Dirac Class Reference

#include <dirac_quda.h>

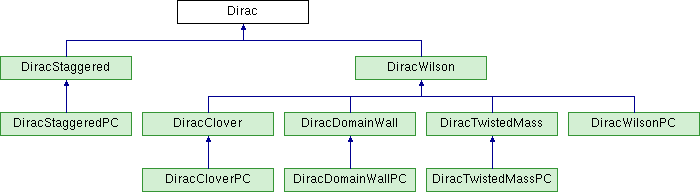

Inheritance diagram for Dirac:

List of all members.

Public Member Functions
	Dirac (const DiracParam &param)
	Dirac (const Dirac &dirac)
virtual	~Dirac ()
Dirac &	operator= (const Dirac &dirac)
virtual void	checkParitySpinor (const cudaColorSpinorField &, const cudaColorSpinorField &) const
virtual void	checkFullSpinor (const cudaColorSpinorField &, const cudaColorSpinorField &) const
void	checkSpinorAlias (const cudaColorSpinorField &, const cudaColorSpinorField &) const
virtual void	Dslash (cudaColorSpinorField &out, const cudaColorSpinorField &in, const QudaParity parity) const =0
virtual void	DslashXpay (cudaColorSpinorField &out, const cudaColorSpinorField &in, const QudaParity parity, const cudaColorSpinorField &x, const double &k) const =0
virtual void	M (cudaColorSpinorField &out, const cudaColorSpinorField &in) const =0
virtual void	MdagM (cudaColorSpinorField &out, const cudaColorSpinorField &in) const =0
void	Mdag (cudaColorSpinorField &out, const cudaColorSpinorField &in) const
virtual void	prepare (cudaColorSpinorField *&src, cudaColorSpinorField *&sol, cudaColorSpinorField &x, cudaColorSpinorField &b, const QudaSolutionType) const =0
virtual void	reconstruct (cudaColorSpinorField &x, const cudaColorSpinorField &b, const QudaSolutionType) const =0
void	setMass (double mass)
unsigned long long	Flops () const
QudaVerbosity	Verbose () const
Static Public Member Functions
static Dirac *	create (const DiracParam &param)
Protected Member Functions
bool	newTmp (cudaColorSpinorField **, const cudaColorSpinorField &) const
void	deleteTmp (cudaColorSpinorField **, const bool &reset) const
Protected Attributes
cudaGaugeField &	gauge
double	kappa
double	mass
MatPCType	matpcType
DagType	dagger
unsigned long long	flops
cudaColorSpinorField *	tmp1
cudaColorSpinorField *	tmp2
QudaTune	tune
QudaVerbosity	verbose
int	commDim [QUDA_MAX_DIM]
Friends
class	DiracMatrix
class	DiracM
class	DiracMdagM
class	DiracMdag

---

Detailed Description

Definition at line 56 of file dirac_quda.h.

---

Constructor & Destructor Documentation

Dirac::Dirac

(

const DiracParam &

param

)

Definition at line 7 of file dirac.cpp.

Dirac::Dirac

(

const Dirac &

dirac

)

Definition at line 15 of file dirac.cpp.

Dirac::~Dirac

(

)

[virtual]

Definition at line 23 of file dirac.cpp.

---

Member Function Documentation

void Dirac::checkFullSpinor	(	const cudaColorSpinorField &	out,
		const cudaColorSpinorField &	in
	)		const [virtual]

Definition at line 110 of file dirac.cpp.

void Dirac::checkParitySpinor	(	const cudaColorSpinorField &	out,
		const cudaColorSpinorField &	in
	)		const [virtual]

Reimplemented in DiracClover, and DiracStaggered.

Definition at line 73 of file dirac.cpp.

void Dirac::checkSpinorAlias	(	const cudaColorSpinorField &	a,
		const cudaColorSpinorField &	b
	)		const

Definition at line 118 of file dirac.cpp.

Dirac * Dirac::create

(

const DiracParam &

param

)

[static]

Definition at line 123 of file dirac.cpp.

void Dirac::deleteTmp	(	cudaColorSpinorField **	a,
		const bool &	reset
	)		const [protected]

Definition at line 55 of file dirac.cpp.

virtual void Dirac::Dslash	(	cudaColorSpinorField &	out,
		const cudaColorSpinorField &	in,
		const QudaParity	parity
	)		const [pure virtual]

Implemented in DiracWilson, DiracCloverPC, DiracDomainWall, DiracTwistedMassPC, and DiracStaggered.

virtual void Dirac::DslashXpay	(	cudaColorSpinorField &	out,
		const cudaColorSpinorField &	in,
		const QudaParity	parity,
		const cudaColorSpinorField &	x,
		const double &	k
	)		const [pure virtual]

Implemented in DiracWilson, DiracCloverPC, DiracDomainWall, DiracTwistedMassPC, and DiracStaggered.

unsigned long long Dirac::Flops

(

)

const [inline]

Definition at line 110 of file dirac_quda.h.

virtual void Dirac::M	(	cudaColorSpinorField &	out,
		const cudaColorSpinorField &	in
	)		const [pure virtual]

Implemented in DiracWilson, DiracWilsonPC, DiracClover, DiracCloverPC, DiracDomainWall, DiracDomainWallPC, DiracTwistedMass, DiracTwistedMassPC, DiracStaggered, and DiracStaggeredPC.

void Dirac::Mdag	(	cudaColorSpinorField &	out,
		const cudaColorSpinorField &	in
	)		const

Definition at line 64 of file dirac.cpp.

virtual void Dirac::MdagM	(	cudaColorSpinorField &	out,
		const cudaColorSpinorField &	in
	)		const [pure virtual]

Implemented in DiracWilson, DiracWilsonPC, DiracClover, DiracCloverPC, DiracDomainWall, DiracDomainWallPC, DiracTwistedMass, DiracTwistedMassPC, DiracStaggered, and DiracStaggeredPC.

bool Dirac::newTmp	(	cudaColorSpinorField **	tmp,
		const cudaColorSpinorField &	a
	)		const [protected]

Definition at line 47 of file dirac.cpp.

Dirac & Dirac::operator=

(

const Dirac &

dirac

)

Definition at line 27 of file dirac.cpp.

virtual void Dirac::prepare	(	cudaColorSpinorField *&	src,
		cudaColorSpinorField *&	sol,
		cudaColorSpinorField &	x,
		cudaColorSpinorField &	b,
		const QudaSolutionType
	)		const [pure virtual]

Implemented in DiracWilson, DiracWilsonPC, DiracClover, DiracCloverPC, DiracDomainWall, DiracDomainWallPC, DiracTwistedMass, DiracTwistedMassPC, DiracStaggered, and DiracStaggeredPC.

virtual void Dirac::reconstruct	(	cudaColorSpinorField &	x,
		const cudaColorSpinorField &	b,
		const QudaSolutionType
	)		const [pure virtual]

Implemented in DiracWilson, DiracWilsonPC, DiracClover, DiracCloverPC, DiracDomainWall, DiracDomainWallPC, DiracTwistedMass, DiracTwistedMassPC, DiracStaggered, and DiracStaggeredPC.

void Dirac::setMass

(

double

mass

)

[inline]

Definition at line 106 of file dirac_quda.h.

QudaVerbosity Dirac::Verbose

(

)

const [inline]

Definition at line 111 of file dirac_quda.h.

---

Friends And Related Function Documentation

friend class DiracM [friend]

Definition at line 59 of file dirac_quda.h.

friend class DiracMatrix [friend]

Definition at line 58 of file dirac_quda.h.

friend class DiracMdag [friend]

Definition at line 61 of file dirac_quda.h.

friend class DiracMdagM [friend]

Definition at line 60 of file dirac_quda.h.

---

Member Data Documentation

int Dirac::commDim[QUDA_MAX_DIM] [protected]

Definition at line 79 of file dirac_quda.h.

DagType Dirac::dagger [mutable, protected]

Definition at line 68 of file dirac_quda.h.

unsigned long long Dirac::flops [mutable, protected]

Definition at line 69 of file dirac_quda.h.

cudaGaugeField& Dirac::gauge [protected]

Definition at line 64 of file dirac_quda.h.

double Dirac::kappa [protected]

Definition at line 65 of file dirac_quda.h.

double Dirac::mass [protected]

Definition at line 66 of file dirac_quda.h.

MatPCType Dirac::matpcType [protected]

Definition at line 67 of file dirac_quda.h.

cudaColorSpinorField* Dirac::tmp1 [mutable, protected]

Definition at line 70 of file dirac_quda.h.

cudaColorSpinorField* Dirac::tmp2 [mutable, protected]

Definition at line 71 of file dirac_quda.h.

QudaTune Dirac::tune [protected]

Definition at line 76 of file dirac_quda.h.

QudaVerbosity Dirac::verbose [protected]

Definition at line 77 of file dirac_quda.h.

---

The documentation for this class was generated from the following files:

• quda/include/dirac_quda.h
• quda/lib/dirac.cpp
