Inheritance diagram for quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >:

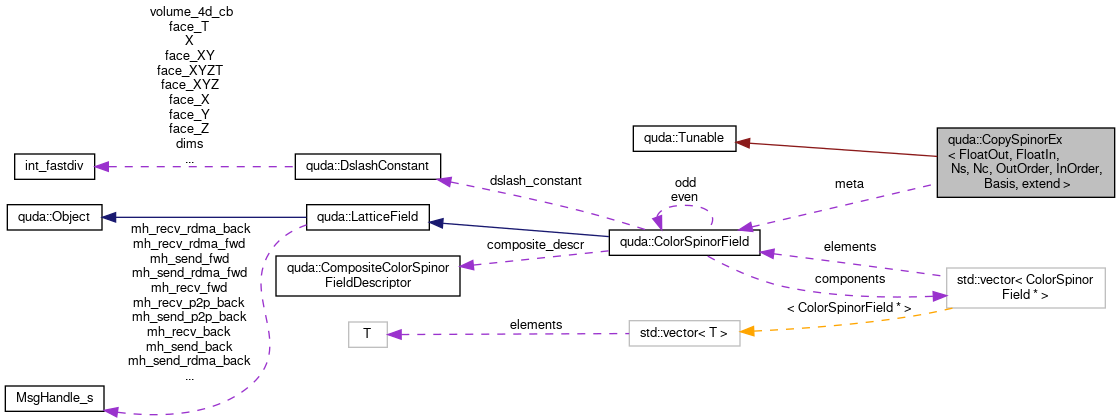

Collaboration diagram for quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >:

[legend]

Public Member Functions
	CopySpinorEx (CopySpinorExArg< OutOrder, InOrder, Basis > &arg, const ColorSpinorField &meta, QudaFieldLocation location)

virtual	~CopySpinorEx ()

void	apply (const cudaStream_t &stream)

TuneKey	tuneKey () const

long long	flops () const

long long	bytes () const

Private Member Functions
unsigned int	sharedBytesPerThread () const

unsigned int	sharedBytesPerBlock (const TuneParam &param) const

bool	advanceSharedBytes (TuneParam &param) const

bool	tuneGridDim () const

unsigned int	minThreads () const

Private Member Functions inherited from quda::Tunable
	Tunable ()

virtual	~Tunable ()

virtual void	preTune ()

virtual void	postTune ()

virtual int	tuningIter () const

virtual std::string	paramString (const TuneParam &param) const

virtual std::string	perfString (float time) const

virtual void	initTuneParam (TuneParam &param) const

virtual void	defaultTuneParam (TuneParam &param) const

virtual bool	advanceTuneParam (TuneParam &param) const

void	checkLaunchParam (TuneParam &param)

CUresult	jitifyError () const

CUresult &	jitifyError ()

virtual bool	tuneAuxDim () const

virtual bool	tuneSharedBytes () const

virtual bool	advanceGridDim (TuneParam &param) const

virtual unsigned int	maxBlockSize (const TuneParam &param) const

virtual unsigned int	maxGridSize () const

virtual unsigned int	minGridSize () const

virtual int	gridStep () const
	gridStep sets the step size when iterating the grid size in advanceGridDim. More...

virtual int	blockStep () const

virtual int	blockMin () const

virtual void	resetBlockDim (TuneParam &param) const

virtual bool	advanceBlockDim (TuneParam &param) const

unsigned int	maxBlocksPerSM () const
	For some reason this can't be queried from the device properties, so here we set set this. Based on Table 14 of the CUDA Programming Guide 10.0 (Technical Specifications per Compute Capability) More...

template<typename F >
void	setMaxDynamicSharedBytesPerBlock (F *func) const
	Enable the maximum dynamic shared bytes for the kernel "func" (values given by maxDynamicSharedBytesPerBlock()). More...

unsigned int	maxDynamicSharedBytesPerBlock () const
	This can't be correctly queried in CUDA for all architectures so here we set set this. Based on Table 14 of the CUDA Programming Guide 10.0 (Technical Specifications per Compute Capability). More...

virtual unsigned int	maxSharedBytesPerBlock () const
	The maximum shared memory that a CUDA thread block can use in the autotuner. This isn't necessarily the same as maxDynamicSharedMemoryPerBlock since that may need explicit opt in to enable (by calling setMaxDynamicSharedBytes for the kernel in question). If the CUDA kernel in question does this opt in then this function can be overloaded to return maxDynamicSharedBytesPerBlock. More...

virtual bool	advanceAux (TuneParam &param) const

int	writeAuxString (const char *format,...)

Private Attributes
CopySpinorExArg< OutOrder, InOrder, Basis >	arg

const ColorSpinorField &	meta

QudaFieldLocation	location

Private Attributes inherited from quda::Tunable
char	aux [TuneKey::aux_n]

CUresult	jitify_error

Detailed Description

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>
class quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >

Definition at line 228 of file extended_color_spinor_utilities.cu.

Constructor & Destructor Documentation

◆ CopySpinorEx()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::CopySpinorEx	(	CopySpinorExArg< OutOrder, InOrder, Basis > &	arg,
		const ColorSpinorField &	meta,
		QudaFieldLocation	location
	)

inline

Definition at line 242 of file extended_color_spinor_utilities.cu.

References quda::CopySpinorExArg< OutOrder, InOrder, Basis >::in, and quda::CopySpinorExArg< OutOrder, InOrder, Basis >::out.

◆ ~CopySpinorEx()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

virtual quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::~CopySpinorEx ( )

inlinevirtual

Definition at line 246 of file extended_color_spinor_utilities.cu.

Member Function Documentation

◆ advanceSharedBytes()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

bool quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::advanceSharedBytes ( TuneParam & param ) const

inlineprivatevirtual

The goal here is to throttle the number of thread blocks per SM by over-allocating shared memory (in order to improve L2 utilization, etc.). We thus request the smallest amount of dynamic shared memory that guarantees throttling to a given number of blocks, in order to allow some extra leeway.

Reimplemented from quda::Tunable.

Definition at line 237 of file extended_color_spinor_utilities.cu.

◆ apply()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

void quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::apply ( const cudaStream_t & stream )

inlinevirtual

Implements quda::Tunable.

Definition at line 248 of file extended_color_spinor_utilities.cu.

References quda::arg(), quda::TuneParam::block, getTuning(), getVerbosity(), quda::TuneParam::grid, QUDA_CPU_FIELD_LOCATION, QUDA_CUDA_FIELD_LOCATION, quda::TuneParam::shared_bytes, and quda::tuneLaunch().

Referenced by quda::copySpinorEx().

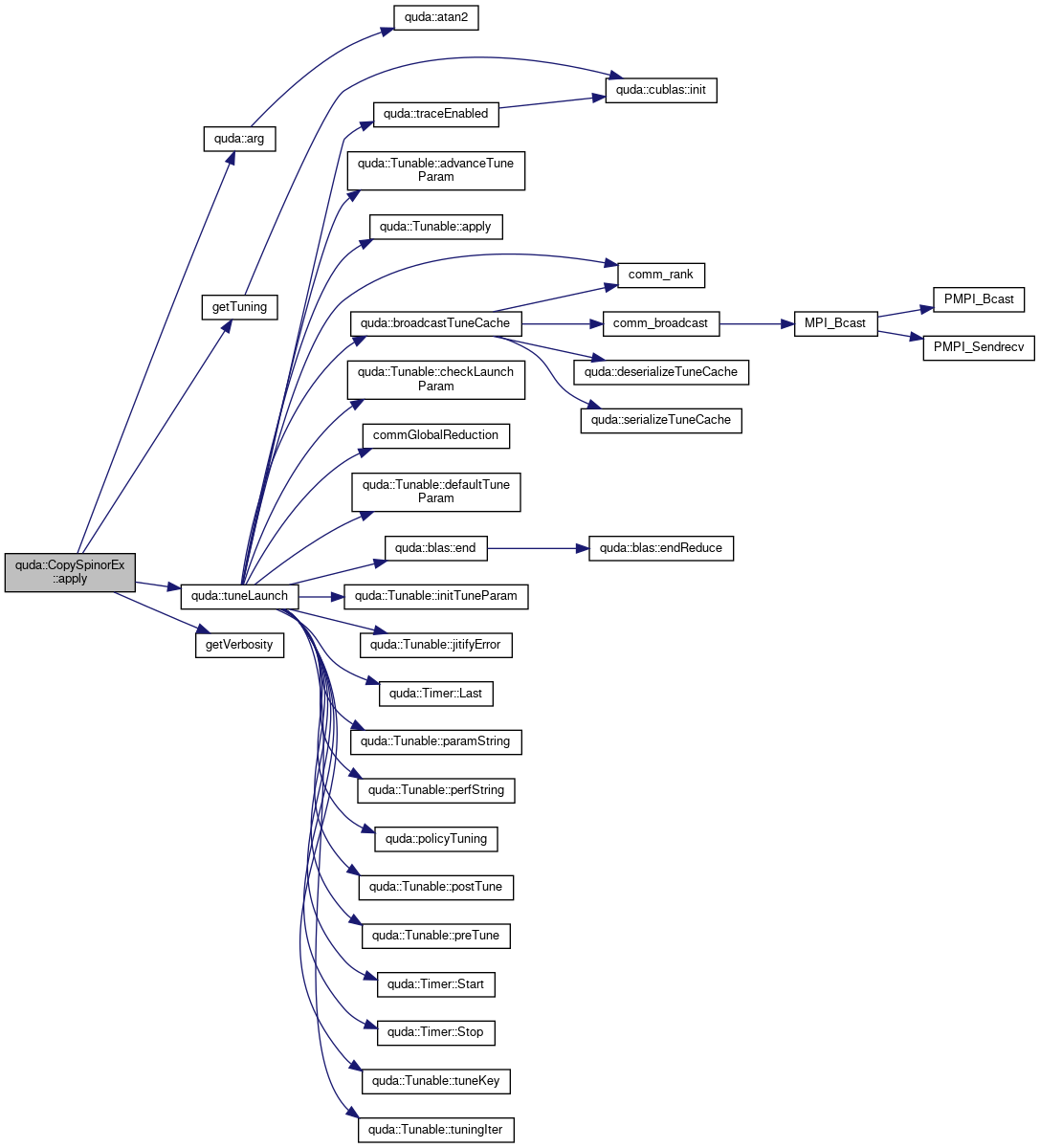

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bytes()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

long long quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::bytes ( ) const

inlinevirtual

Reimplemented from quda::Tunable.

Definition at line 262 of file extended_color_spinor_utilities.cu.

References quda::CopySpinorExArg< OutOrder, InOrder, Basis >::length.

◆ flops()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

long long quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::flops ( ) const

inlinevirtual

Implements quda::Tunable.

Definition at line 261 of file extended_color_spinor_utilities.cu.

◆ minThreads()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

unsigned int quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::minThreads ( ) const

inlineprivatevirtual

Reimplemented from quda::Tunable.

Definition at line 239 of file extended_color_spinor_utilities.cu.

References quda::CopySpinorExArg< OutOrder, InOrder, Basis >::length.

◆ sharedBytesPerBlock()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

unsigned int quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::sharedBytesPerBlock ( const TuneParam & param ) const

inlineprivatevirtual

Implements quda::Tunable.

Definition at line 236 of file extended_color_spinor_utilities.cu.

◆ sharedBytesPerThread()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

unsigned int quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::sharedBytesPerThread ( ) const

inlineprivatevirtual

Implements quda::Tunable.

Definition at line 235 of file extended_color_spinor_utilities.cu.

◆ tuneGridDim()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

bool quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::tuneGridDim ( ) const

inlineprivatevirtual

Reimplemented from quda::Tunable.

Definition at line 238 of file extended_color_spinor_utilities.cu.

◆ tuneKey()

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

TuneKey quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::tuneKey ( ) const

inlinevirtual

Implements quda::Tunable.

Definition at line 259 of file extended_color_spinor_utilities.cu.

References quda::LatticeField::VolString().

Here is the call graph for this function:

Member Data Documentation

◆ arg

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

CopySpinorExArg<OutOrder,InOrder,Basis> quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::arg

private

Definition at line 230 of file extended_color_spinor_utilities.cu.

◆ location

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

QudaFieldLocation quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::location

private

Definition at line 232 of file extended_color_spinor_utilities.cu.

◆ meta

template<typename FloatOut, typename FloatIn, int Ns, int Nc, typename OutOrder, typename InOrder, typename Basis, bool extend>

const ColorSpinorField& quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::meta

private

Definition at line 231 of file extended_color_spinor_utilities.cu.

The documentation for this class was generated from the following file:

lib/extended_color_spinor_utilities.cu
