quda::TunableVectorY Class Reference

#include <tune_quda.h>

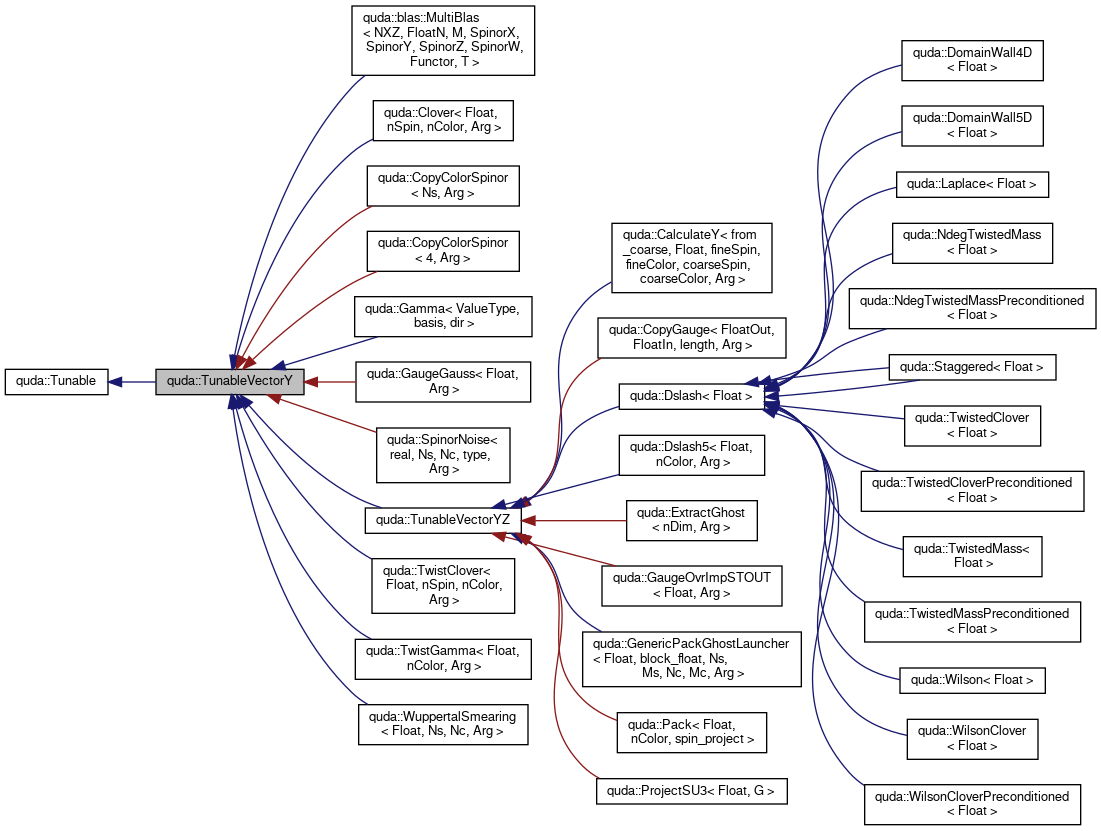

Inheritance diagram for quda::TunableVectorY:
Inheritance graph
[legend]
Collaboration diagram for quda::TunableVectorY:
Collaboration graph
[legend]

Public Member Functions

 TunableVectorY (unsigned int vector_length_y)

bool advanceBlockDim (TuneParam &param) const

void initTuneParam (TuneParam &param) const

void defaultTuneParam (TuneParam &param) const

void resizeVector (int y) const

void resizeStep (int y) const

- Public Member Functions inherited from quda::Tunable
 Tunable ()

virtual ~Tunable ()

virtual TuneKey tuneKey () const =0

virtual void apply (const cudaStream_t &stream)=0

virtual void preTune ()

virtual void postTune ()

virtual int tuningIter () const

virtual std::string paramString (const TuneParam &param) const

virtual std::string perfString (float time) const

virtual bool advanceTuneParam (TuneParam &param) const

void checkLaunchParam (TuneParam &param)

CUresult jitifyError () const

CUresult & jitifyError ()


Protected Member Functions

virtual unsigned int sharedBytesPerThread () const

virtual unsigned int sharedBytesPerBlock (const TuneParam &param) const

- Protected Member Functions inherited from quda::Tunable
virtual long long flops () const =0

virtual long long bytes () const

virtual unsigned int minThreads () const

virtual bool tuneGridDim () const

virtual bool tuneAuxDim () const

virtual bool tuneSharedBytes () const

virtual bool advanceGridDim (TuneParam &param) const

virtual unsigned int maxBlockSize (const TuneParam &param) const

virtual unsigned int maxGridSize () const

virtual unsigned int minGridSize () const

virtual int gridStep () const
 gridStep sets the step size when iterating the grid size in advanceGridDim. More...

virtual int blockStep () const

virtual int blockMin () const

virtual void resetBlockDim (TuneParam &param) const

unsigned int maxBlocksPerSM () const
 For some reason this can't be queried from the device properties, so here we set set this. Based on Table 14 of the CUDA Programming Guide 10.0 (Technical Specifications per Compute Capability) More...

template<typename F >
void setMaxDynamicSharedBytesPerBlock (F *func) const
 Enable the maximum dynamic shared bytes for the kernel "func" (values given by maxDynamicSharedBytesPerBlock()). More...

unsigned int maxDynamicSharedBytesPerBlock () const
 This can't be correctly queried in CUDA for all architectures so here we set set this. Based on Table 14 of the CUDA Programming Guide 10.0 (Technical Specifications per Compute Capability). More...

virtual unsigned int maxSharedBytesPerBlock () const
 The maximum shared memory that a CUDA thread block can use in the autotuner. This isn't necessarily the same as maxDynamicSharedMemoryPerBlock since that may need explicit opt in to enable (by calling setMaxDynamicSharedBytes for the kernel in question). If the CUDA kernel in question does this opt in then this function can be overloaded to return maxDynamicSharedBytesPerBlock. More...

virtual bool advanceSharedBytes (TuneParam &param) const

virtual bool advanceAux (TuneParam &param) const

int writeAuxString (const char *format,...)


Protected Attributes

unsigned int vector_length_y

unsigned int step_y

bool tune_block_x

- Protected Attributes inherited from quda::Tunable
char aux [TuneKey::aux_n]

CUresult jitify_error


Detailed Description

This derived class is for algorithms that deploy a vector of computations across the y dimension of both the threads block and grid. For example this could be parity in the y dimension and checkerboarded volume in x.

Definition at line 426 of file tune_quda.h.

Constructor & Destructor Documentation

◆ TunableVectorY()

quda::TunableVectorY::TunableVectorY ( unsigned int  vector_length_y)
inline

Definition at line 437 of file tune_quda.h.

Member Function Documentation

◆ advanceBlockDim()

bool quda::TunableVectorY::advanceBlockDim ( TuneParam param) const
inlinevirtual

Reimplemented from quda::Tunable.

Reimplemented in quda::TunableVectorYZ, and quda::GenericPackGhostLauncher< Float, block_float, Ns, Ms, Nc, Mc, Arg >.

Definition at line 440 of file tune_quda.h.

References quda::Tunable::advanceBlockDim(), quda::TuneParam::block, deviceProp, and quda::TuneParam::grid.

Referenced by quda::TunableVectorYZ::advanceBlockDim().

Here is the call graph for this function:
Here is the caller graph for this function:

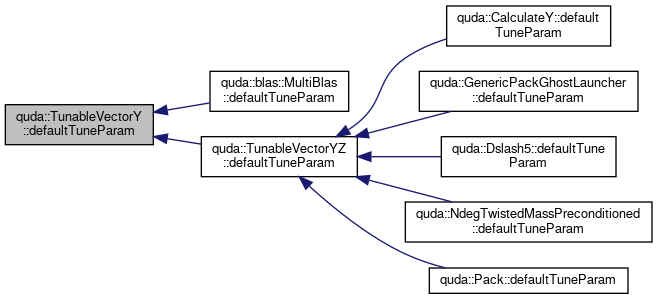

◆ defaultTuneParam()

void quda::TunableVectorY::defaultTuneParam ( TuneParam param) const
inlinevirtual

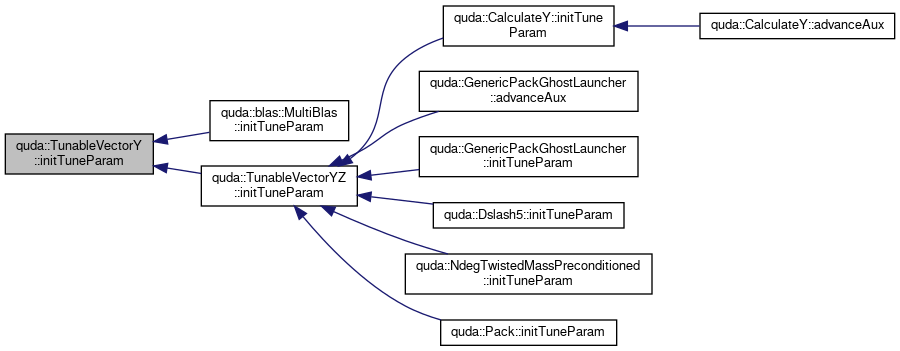

◆ initTuneParam()

void quda::TunableVectorY::initTuneParam ( TuneParam param) const
inlinevirtual

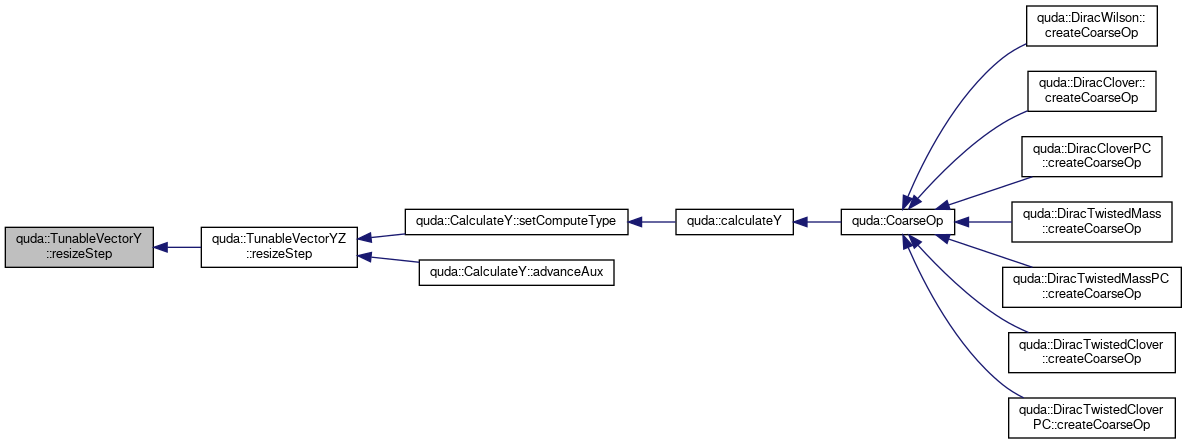

◆ resizeStep()

void quda::TunableVectorY::resizeStep ( int  y) const
inline

Definition at line 482 of file tune_quda.h.

Referenced by quda::TunableVectorYZ::resizeStep().

Here is the caller graph for this function:

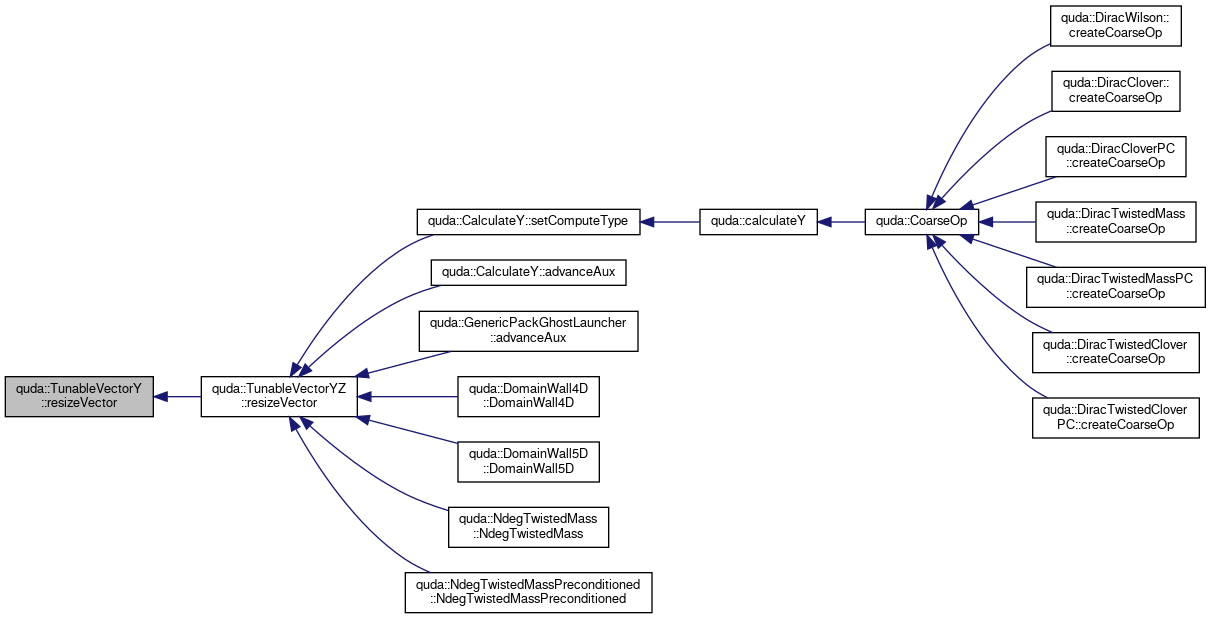

◆ resizeVector()

void quda::TunableVectorY::resizeVector ( int  y) const
inline

Definition at line 481 of file tune_quda.h.

Referenced by quda::TunableVectorYZ::resizeVector().

Here is the caller graph for this function:

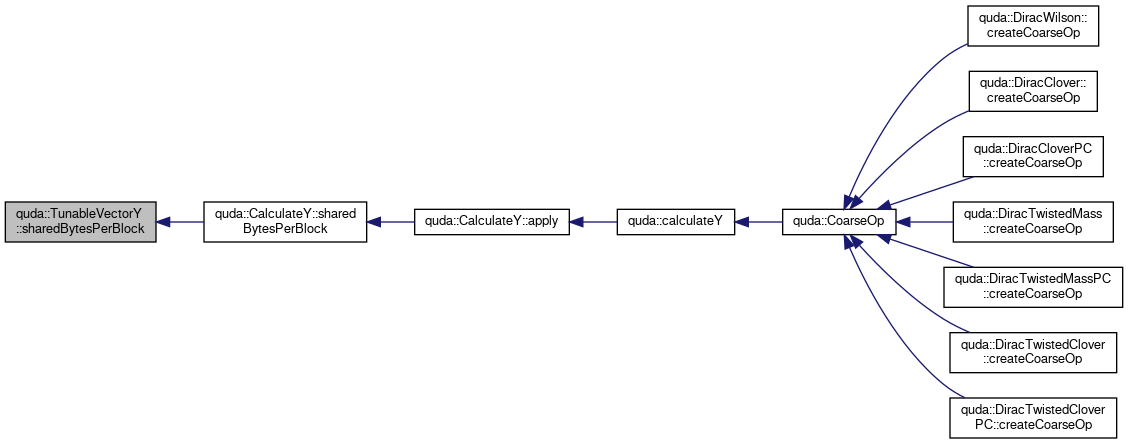

◆ sharedBytesPerBlock()

virtual unsigned int quda::TunableVectorY::sharedBytesPerBlock ( const TuneParam param) const
inlineprotectedvirtual

◆ sharedBytesPerThread()

virtual unsigned int quda::TunableVectorY::sharedBytesPerThread ( ) const
inlineprotectedvirtual

Member Data Documentation

◆ step_y

unsigned int quda::TunableVectorY::step_y
mutableprotected

Definition at line 433 of file tune_quda.h.

◆ tune_block_x

bool quda::TunableVectorY::tune_block_x
protected

◆ vector_length_y

unsigned int quda::TunableVectorY::vector_length_y
mutableprotected

Definition at line 432 of file tune_quda.h.


The documentation for this class was generated from the following file:
