Fortran interface functions. More...

#include <quda_constants.h>

Include dependency graph for quda_fortran.h:

This graph shows which files directly or indirectly include this file:

Functions
void	init_quda_device_ (int *device)

void	init_quda_memory_ ()

void	init_quda_ (int *device)

void	end_quda_ (void)

void	comm_set_gridsize_ (int *grid)

void	new_quda_gauge_param_ (QudaGaugeParam *param)

void	new_quda_invert_param_ (QudaInvertParam *param)

void	load_gauge_quda_ (void h_gauge, QudaGaugeParam param)

void	free_gauge_quda_ (void)

void	free_sloppy_gauge_quda_ (void)

void	load_clover_quda_ (void h_clover, void h_clovinv, QudaInvertParam *inv_param)

void	free_clover_quda_ (void)

void	dslash_quda_ (void h_out, void h_in, QudaInvertParam inv_param, QudaParity parity)

void	clover_quda_ (void h_out, void h_in, QudaInvertParam inv_param, QudaParity parity, int *inverse)

void	mat_quda_ (void h_out, void h_in, QudaInvertParam *inv_param)

void	mat_dag_mat_quda_ (void h_out, void h_in, QudaInvertParam *inv_param)

void	invert_quda_ (void h_x, void h_b, QudaInvertParam *param)

void	invert_multishift_quda_ (void _hp_x, void _hp_b, QudaInvertParam *param)

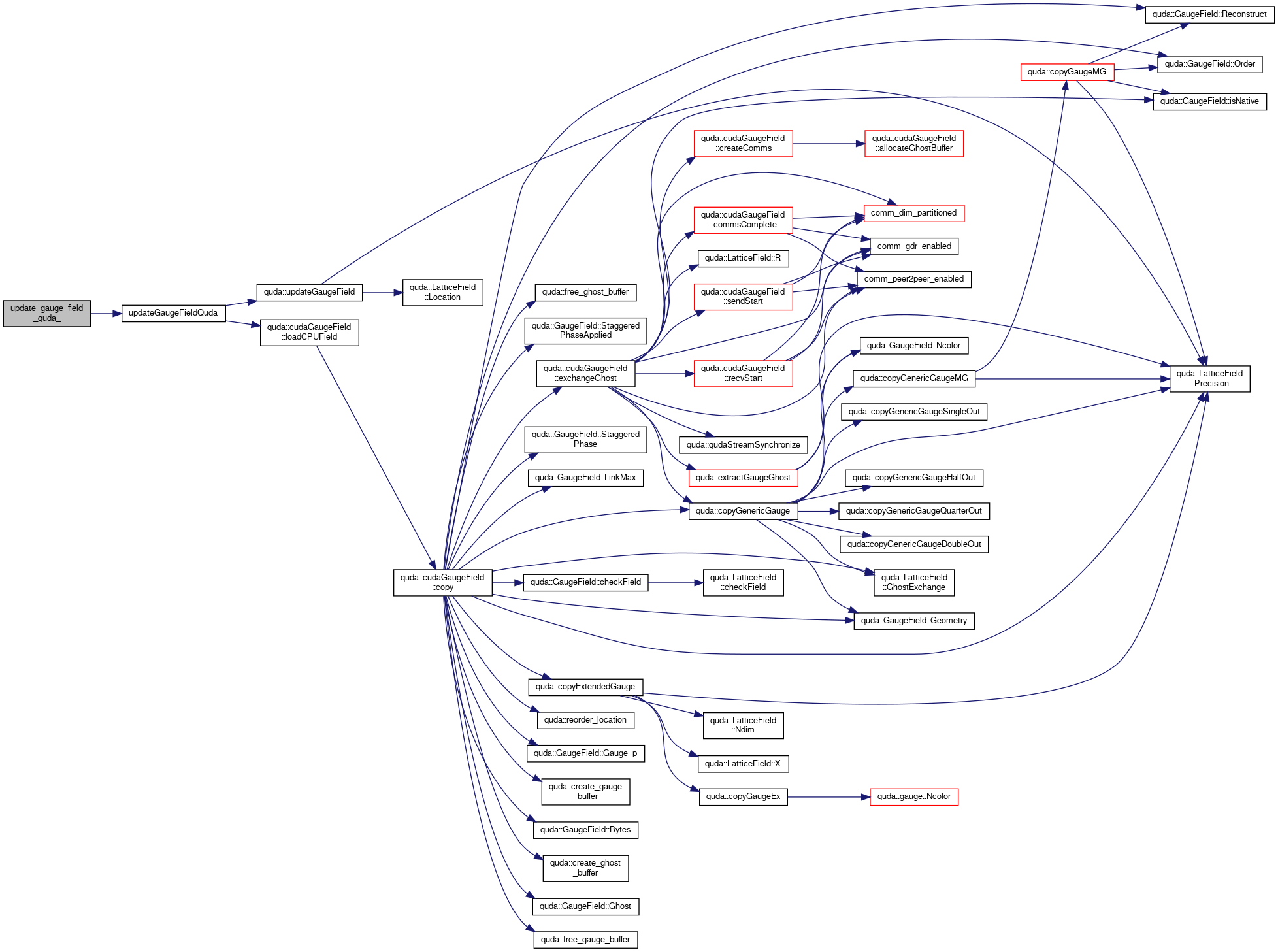

void	update_gauge_field_quda_ (void gauge, void momentum, double dt, bool conj_mom, bool exact, QudaGaugeParam param)

void	compute_staggered_force_quda_ (void mom, double dt, double delta, void gauge, void x, QudaGaugeParam gauge_param, QudaInvertParam *invert_param)

void	compute_gauge_force_quda_ (void mom, void gauge, int num_loop_types, double coeff, double dt, QudaGaugeParam param)
	Compute the gauge force and update the mometum field. More...

void	apply_staggered_phase_quda_ ()
	Apply the staggered phase factors to the resident gauge field. More...

void	remove_staggered_phase_quda_ ()
	Remove the staggered phase factors to the resident gauge field. More...

void	kinetic_quda_ (double kin, void momentum, QudaGaugeParam *param)
	Evaluate the kinetic (momentum) contribution to classical Hamiltonian for Hybrid Monte Carlo. More...

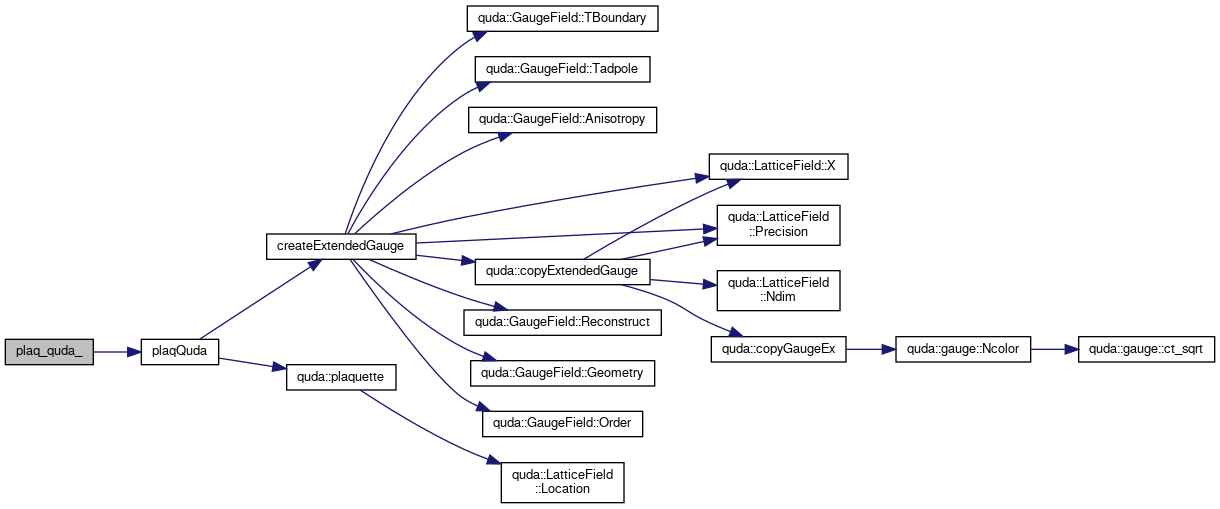

void	plaq_quda_ (double plaq[3])

void	set_kernel_pack_t_ (int *pack)
	fTemporary function exposed for TIFR benchmarking More...

void	flush_chrono_quda_ (int *index)
	Flush the chronological history for the given index. More...

void	register_pinned_quda_ (void ptr, size_t bytes)
	Pinned a pre-existing memory allocation. More...

void	unregister_pinned_quda_ (void *ptr)
	Pinned a pre-existing memory allocation. More...

Detailed Description

Fortran interface functions.

The following are Fortran interface functions to QUDA that mirror the C-equivalents. This essentially just means making all calls by reference, using all the lower-case characters and adding a trailing underscore.

Definition in file quda_fortran.h.

Function Documentation

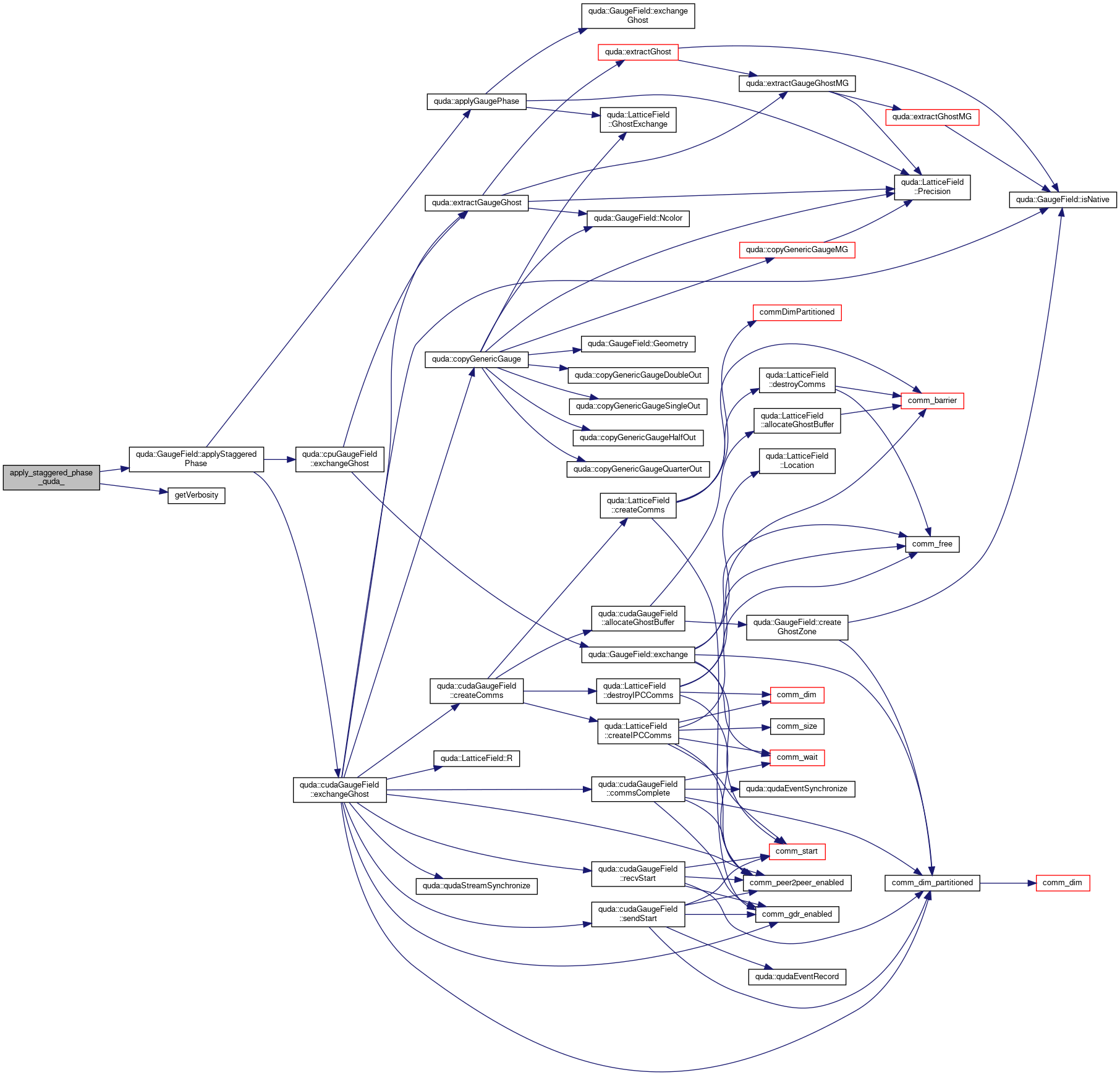

◆ apply_staggered_phase_quda_()

void apply_staggered_phase_quda_ ( )

Apply the staggered phase factors to the resident gauge field.

Definition at line 5328 of file interface_quda.cpp.

References quda::GaugeField::applyStaggeredPhase(), errorQuda, getVerbosity(), printfQuda, and QUDA_VERBOSE.

Here is the call graph for this function:

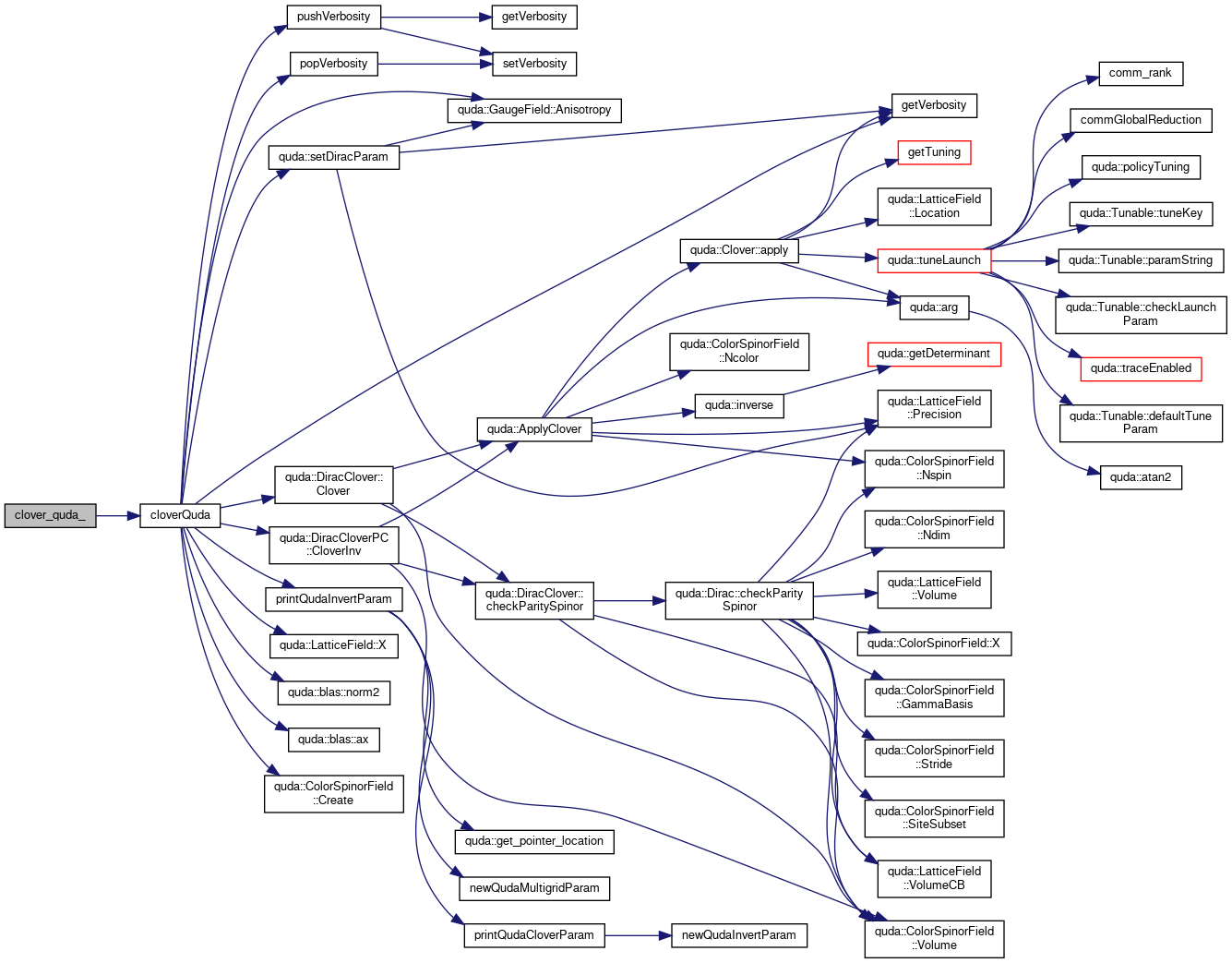

◆ clover_quda_()

void clover_quda_	(	void *	h_out,
		void *	h_in,
		QudaInvertParam *	inv_param,
		QudaParity *	parity,
		int *	inverse
	)

Apply the clover operator or its inverse.

Parameters

h_out	Result spinor field
h_in	Input spinor field
param	Contains all metadata regarding host and device storage
parity	The source and destination parity of the field
inverse	Whether to apply the inverse of the clover term

Definition at line 5157 of file interface_quda.cpp.

References cloverQuda().

Here is the call graph for this function:

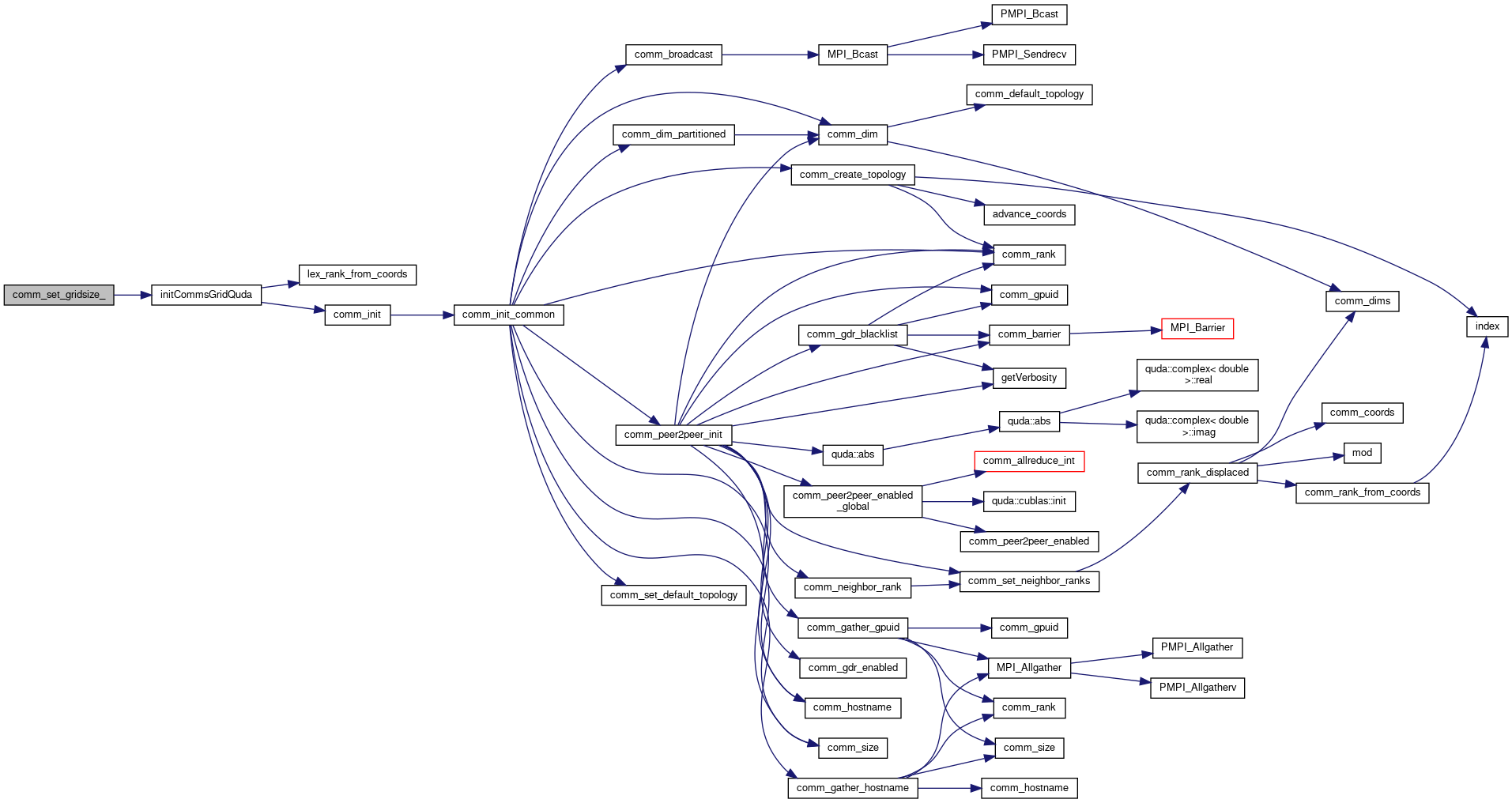

◆ comm_set_gridsize_()

void comm_set_gridsize_ ( int * grid )

Setter method for the comm grid size to all us to reuse BQCD's MPI topology. This is considered a temporary hack that will be fixed when an interface for setting the logical topology is created (issue 31 on github).

BQCD wants a node mapping with x varying fastest.

Definition at line 5370 of file interface_quda.cpp.

References initCommsGridQuda().

Here is the call graph for this function:

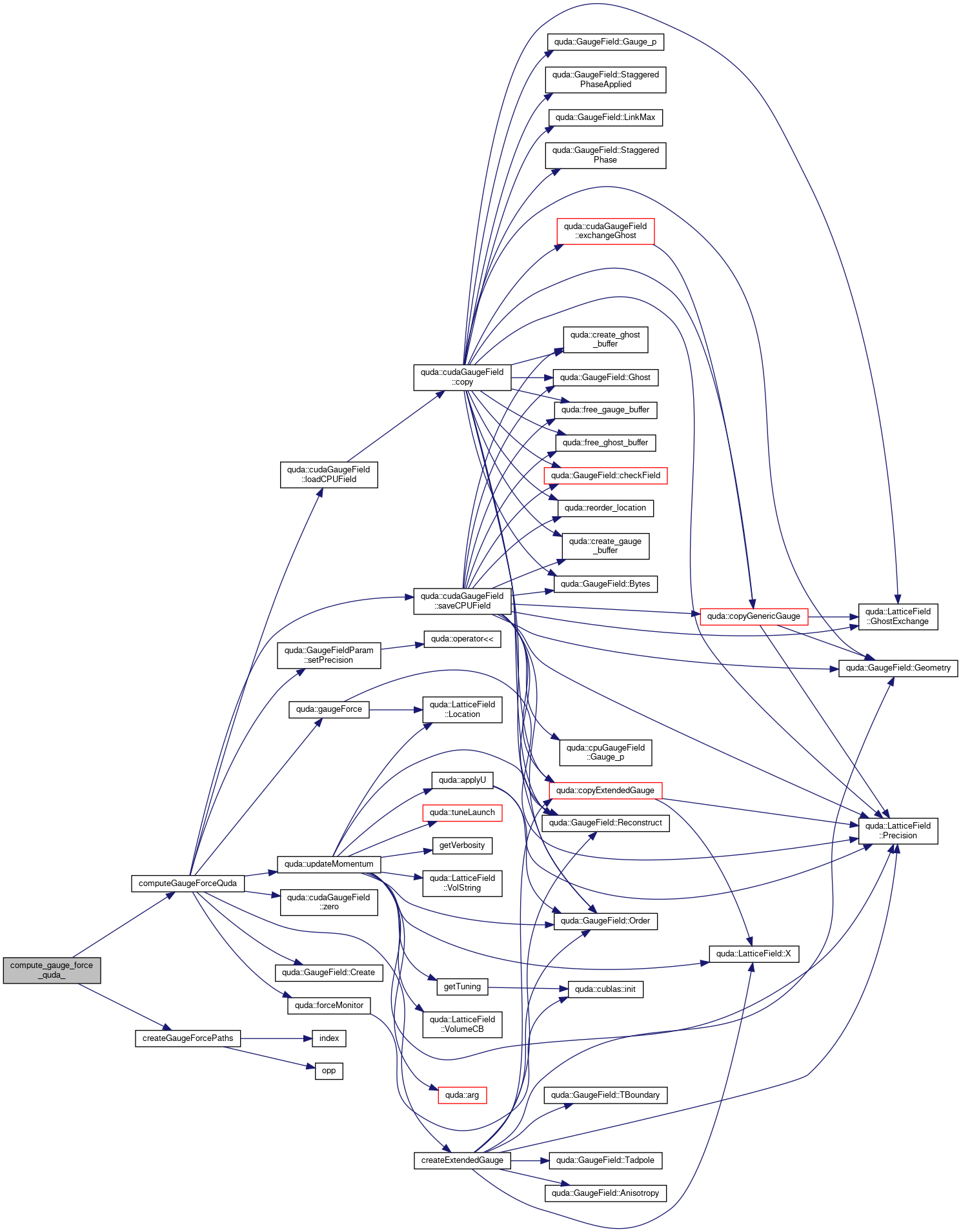

◆ compute_gauge_force_quda_()

void compute_gauge_force_quda_	(	void *	mom,
		void *	gauge,
		int *	num_loop_types,
		double *	coeff,
		double *	dt,
		QudaGaugeParam *	param
	)

Compute the gauge force and update the mometum field.

Parameters

[in,out]	mom	The momentum field to be updated
[in]	gauge	The gauge field from which we compute the force
[in]	num_loop_types	Number of loop types in the gauge action
[in]	loop_coeff	Coefficients of the different loops in the Symanzik action
[in]	dt	The integration step size
[in]	param	The parameters of the external fields and the computation settings

Definition at line 5267 of file interface_quda.cpp.

References computeGaugeForceQuda(), createGaugeForcePaths(), errorQuda, host_free, and safe_malloc.

Here is the call graph for this function:

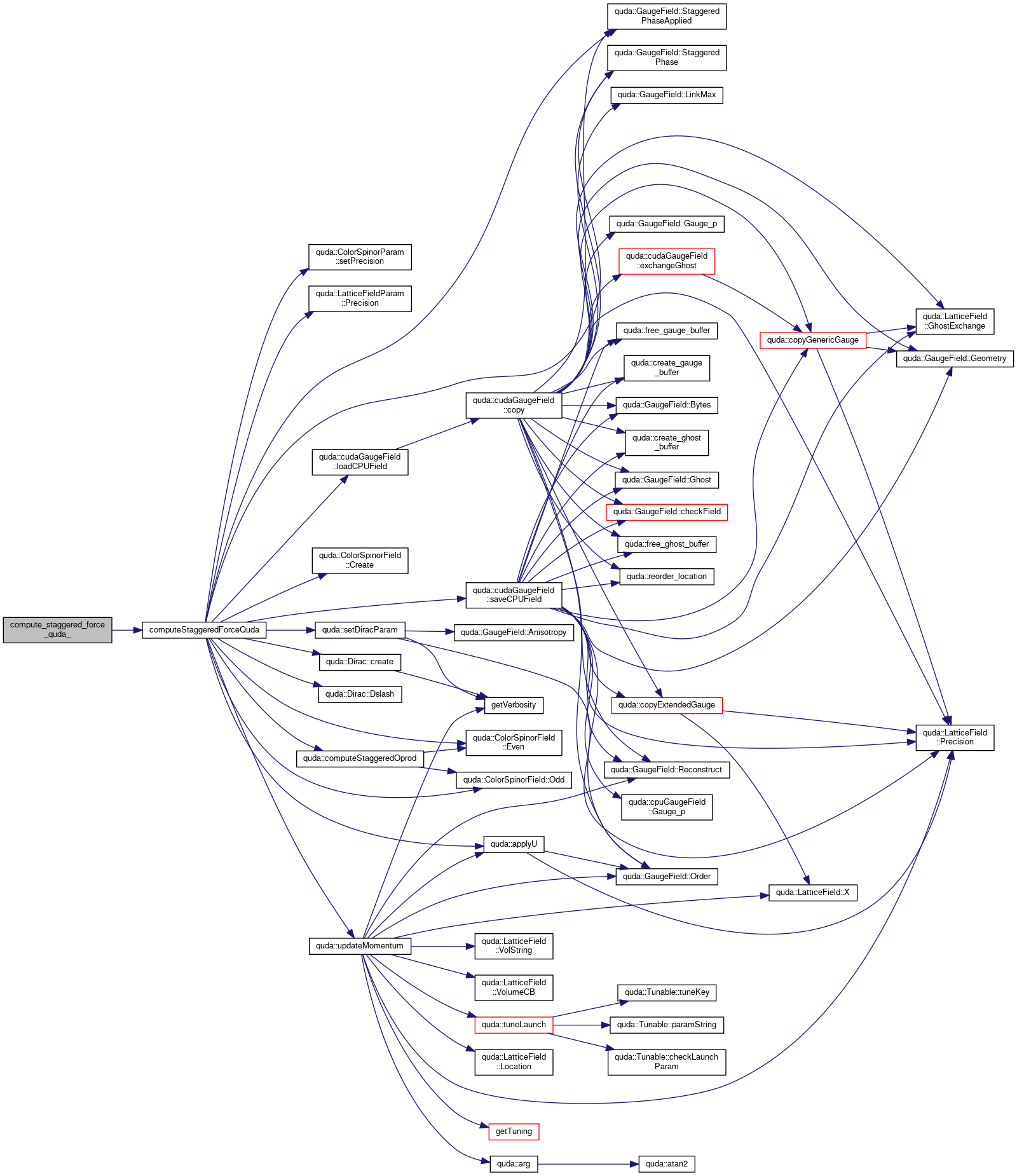

◆ compute_staggered_force_quda_()

void compute_staggered_force_quda_	(	void *	mom,
		double *	dt,
		double *	delta,
		void *	gauge,
		void *	x,
		QudaGaugeParam *	gauge_param,
		QudaInvertParam *	invert_param
	)

Compute the naive staggered force. All fields must be in the same precision.

Parameters

mom	Momentum field
dt	Integrating step size
delta	Additional scale factor when updating momentum (mom += delta * [force]_TA
gauge	Gauge field (at present only supports resident gauge field)
x	Array of single-parity solution vectors (at present only supports resident solutions)
gauge_param	Gauge field meta data
invert_param	Dirac and solver meta data

Definition at line 5323 of file interface_quda.cpp.

References computeStaggeredForceQuda().

Here is the call graph for this function:

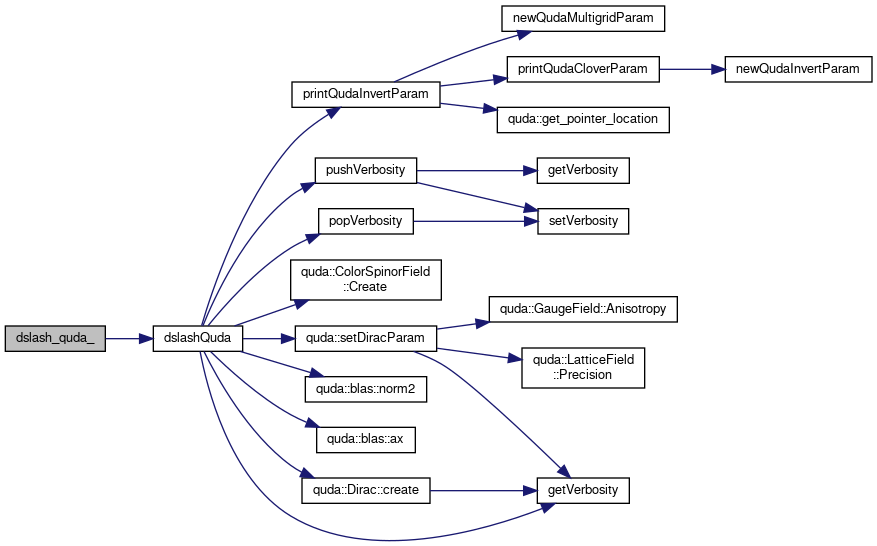

◆ dslash_quda_()

void dslash_quda_	(	void *	h_out,
		void *	h_in,
		QudaInvertParam *	inv_param,
		QudaParity *	parity
	)

Apply the Dslash operator (D_{eo} or D_{oe}).

Parameters

h_out	Result spinor field
h_in	Input spinor field
param	Contains all metadata regarding host and device storage
parity	The destination parity of the field

Definition at line 5155 of file interface_quda.cpp.

References dslashQuda().

Here is the call graph for this function:

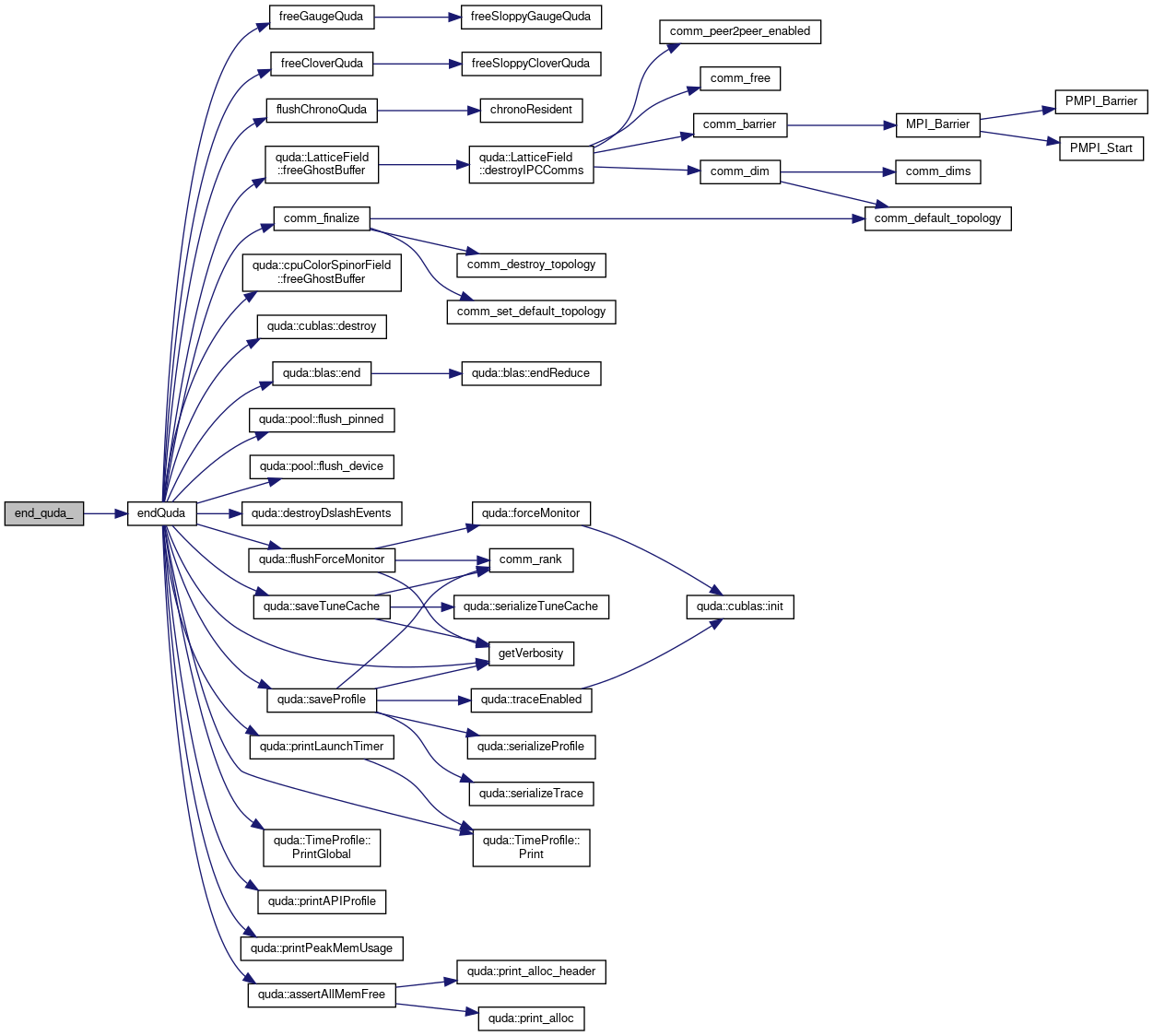

◆ end_quda_()

void end_quda_ ( void )

Finalize the library.

Definition at line 5148 of file interface_quda.cpp.

References endQuda().

Here is the call graph for this function:

◆ flush_chrono_quda_()

void flush_chrono_quda_ ( int * index )

Flush the chronological history for the given index.

Parameters

[in] index Index for which we are flushing

Definition at line 5192 of file interface_quda.cpp.

References flushChronoQuda().

Here is the call graph for this function:

◆ free_clover_quda_()

void free_clover_quda_ ( void )

Free QUDA's internal copy of the clover term and/or clover inverse.

Definition at line 5154 of file interface_quda.cpp.

References freeCloverQuda().

Here is the call graph for this function:

◆ free_gauge_quda_()

void free_gauge_quda_ ( void )

Free QUDA's internal copy of the gauge field.

Definition at line 5150 of file interface_quda.cpp.

References freeGaugeQuda().

Here is the call graph for this function:

◆ free_sloppy_gauge_quda_()

void free_sloppy_gauge_quda_ ( void )

Free QUDA's internal copy of the gauge field.

Definition at line 5151 of file interface_quda.cpp.

References freeSloppyGaugeQuda().

Here is the call graph for this function:

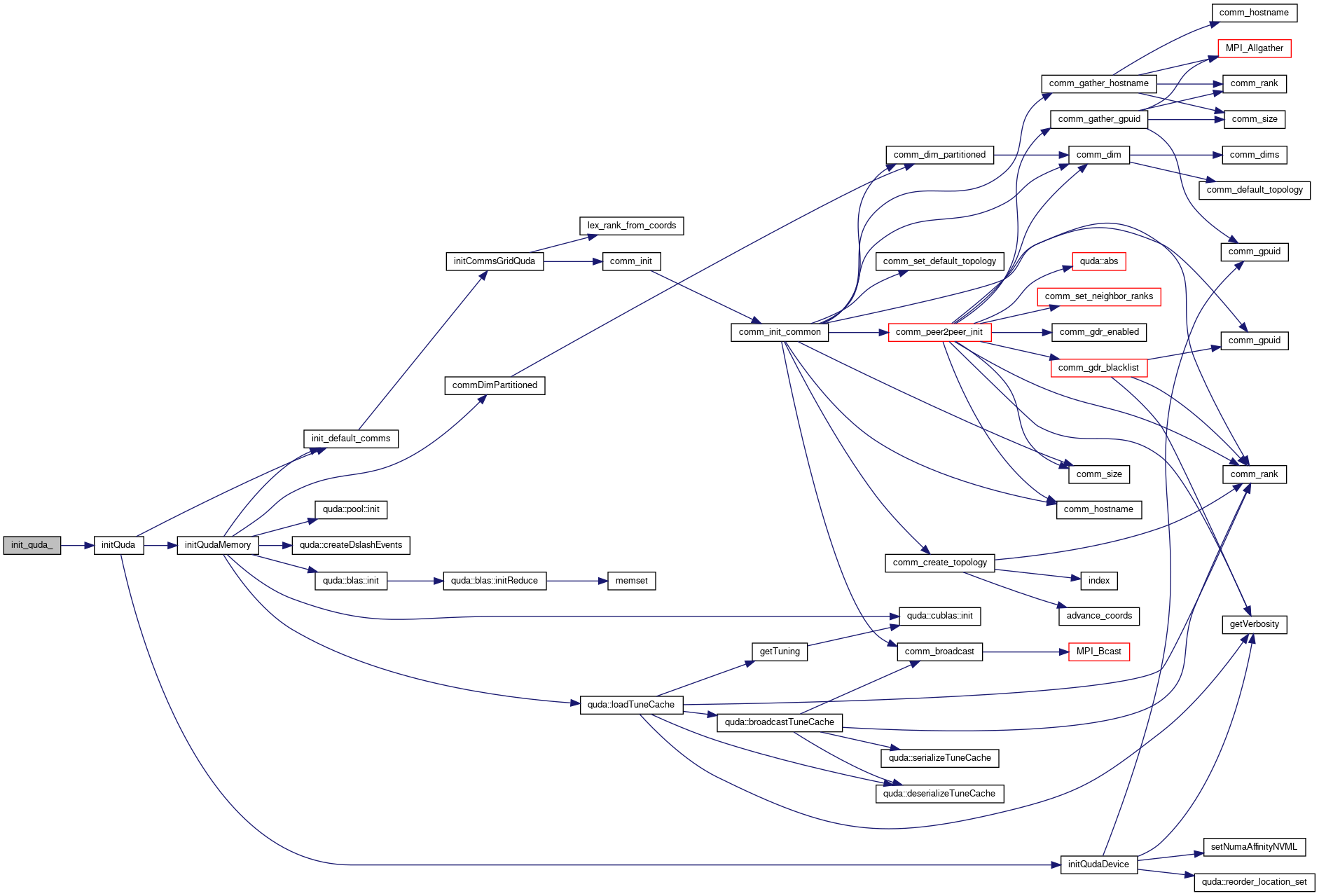

◆ init_quda_()

void init_quda_ ( int * device )

Initialize the library. Under the interface this just calls initQudaMemory and initQudaDevice.

Parameters

device CUDA device number to use. In a multi-GPU build, this parameter may be either set explicitly on a per-process basis or set to -1 to enable a default allocation of devices to processes.

Definition at line 5145 of file interface_quda.cpp.

References initQuda().

Here is the call graph for this function:

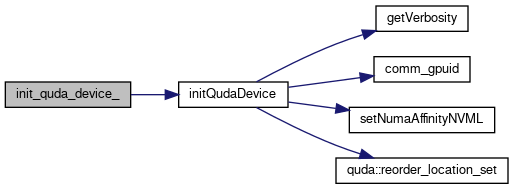

◆ init_quda_device_()

void init_quda_device_ ( int * device )

Initialize the library. This is a low-level interface that is called by initQuda. Calling initQudaDevice requires that the user also call initQudaMemory before using QUDA.

Parameters

device CUDA device number to use. In a multi-GPU build, this parameter may either be set explicitly on a per-process basis or set to -1 to enable a default allocation of devices to processes.

Definition at line 5146 of file interface_quda.cpp.

References initQudaDevice().

Here is the call graph for this function:

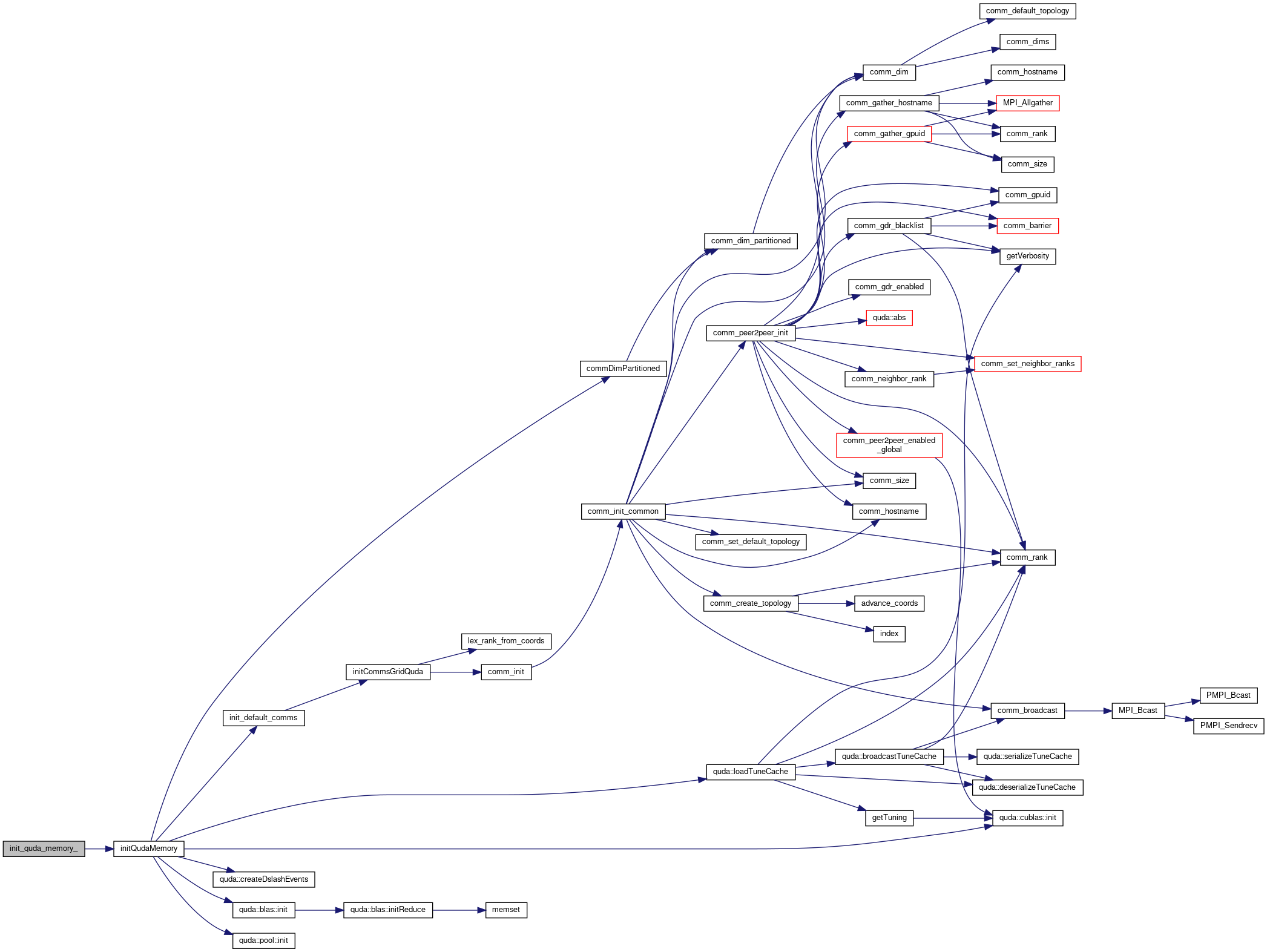

◆ init_quda_memory_()

void init_quda_memory_ ( )

Initialize the library persistant memory allocations (both host and device). This is a low-level interface that is called by initQuda. Calling initQudaMemory requires that the user has previously called initQudaDevice.

Definition at line 5147 of file interface_quda.cpp.

References initQudaMemory().

Here is the call graph for this function:

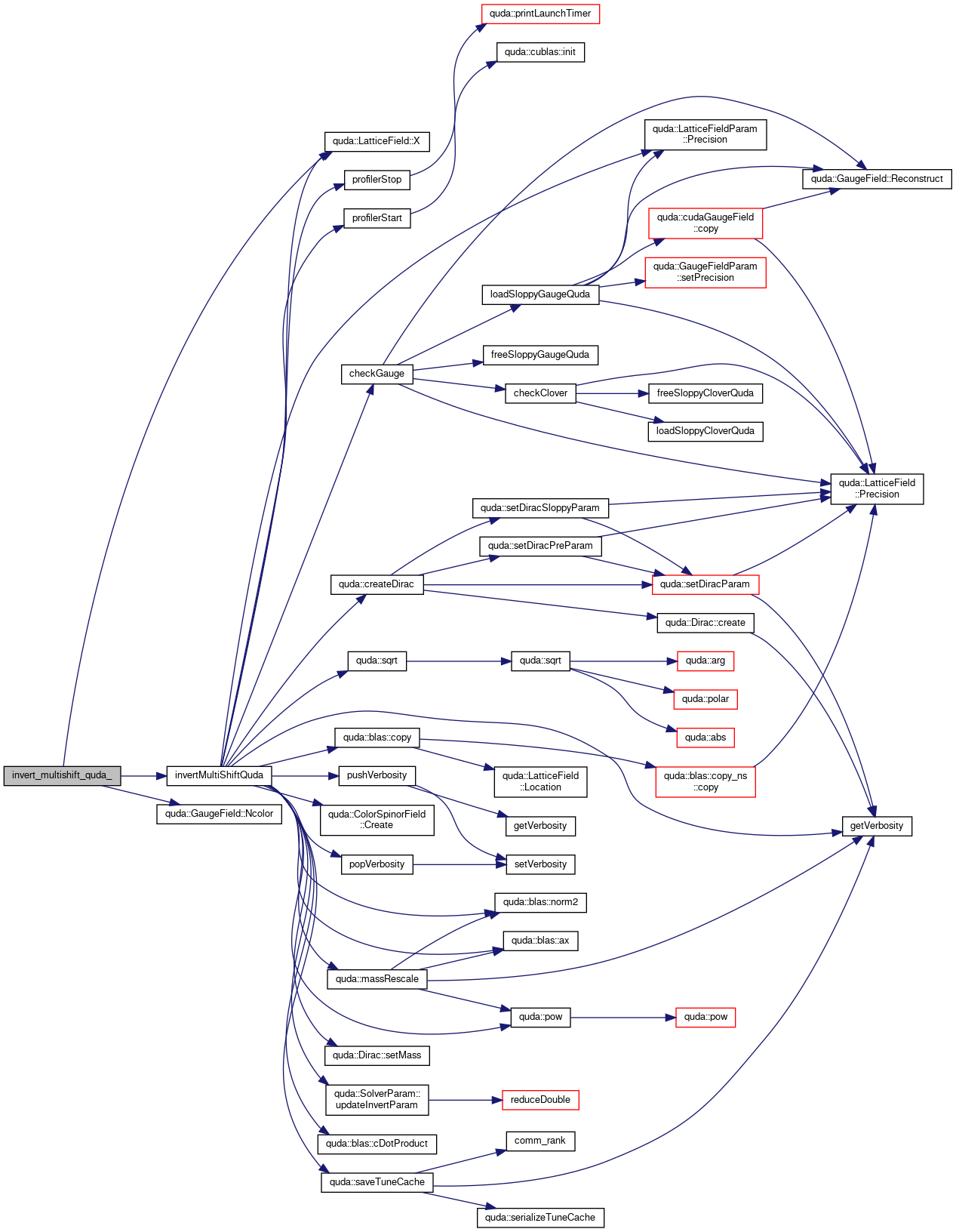

◆ invert_multishift_quda_()

void invert_multishift_quda_	(	void *	_hp_x,
		void *	_hp_b,
		QudaInvertParam *	param
	)

Solve for multiple shifts (e.g., masses).

Parameters

_hp_x	Array of solution spinor fields (large contiguous allocation)
_hp_b	Array of source spinor fields
param	Contains all metadata regarding host and device storage and solver parameters

Definition at line 5171 of file interface_quda.cpp.

References QudaInvertParam_s::cpu_prec, QudaInvertParam_s::dirac_order, QudaInvertParam_s::dslash_type, errorQuda, invertMultiShiftQuda(), QudaInvertParam_s::Ls, quda::GaugeField::Ncolor(), QudaInvertParam_s::num_offset, QUDA_ASQTAD_DSLASH, QUDA_MAX_MULTI_SHIFT, QUDA_STAGGERED_DSLASH, QUDA_TIFR_PADDED_DIRAC_ORDER, and quda::LatticeField::X().

Here is the call graph for this function:

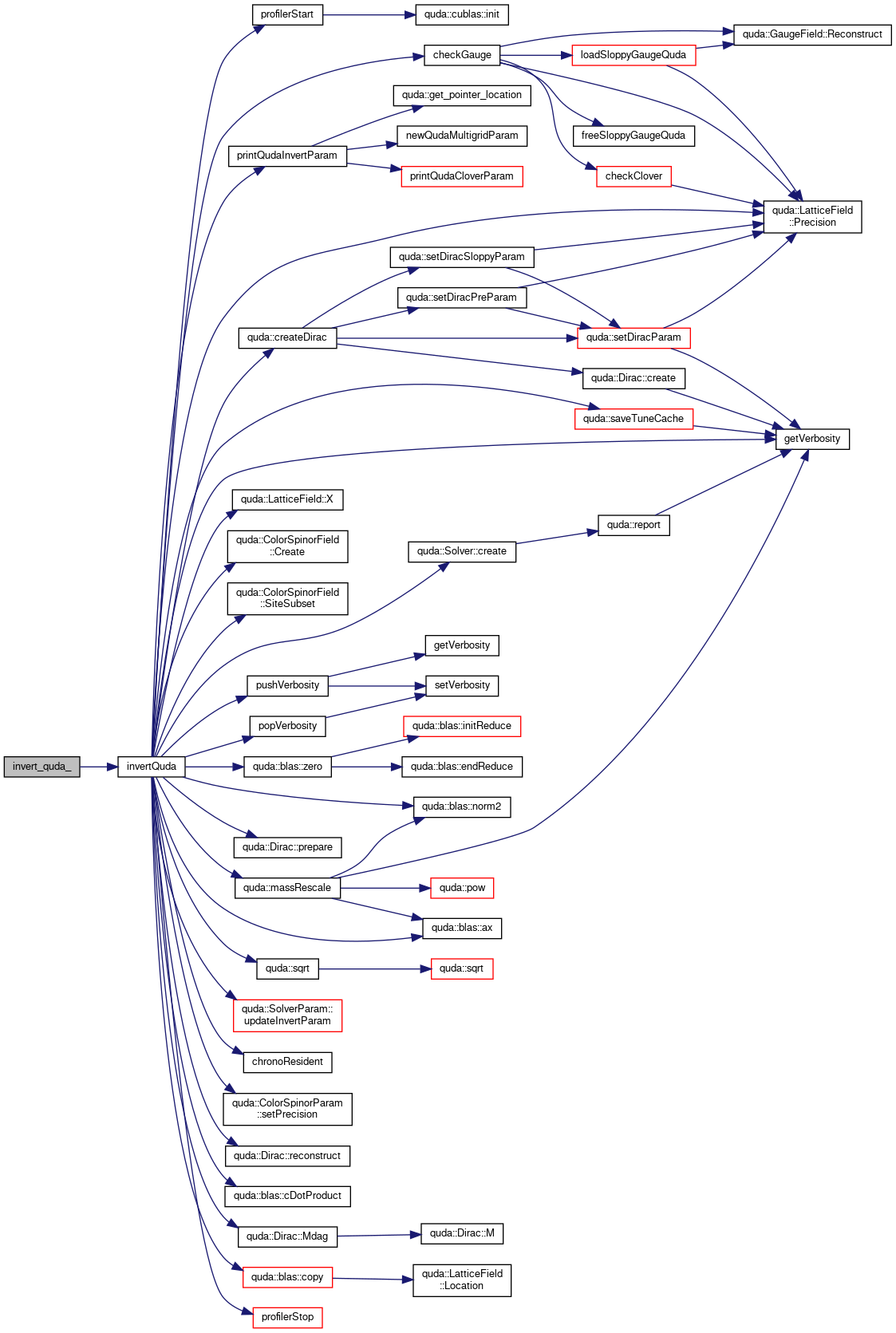

◆ invert_quda_()

void invert_quda_	(	void *	h_x,
		void *	h_b,
		QudaInvertParam *	param
	)

Perform the solve, according to the parameters set in param. It is assumed that the gauge field has already been loaded via loadGaugeQuda().

Parameters

h_x	Solution spinor field
h_b	Source spinor field
param	Contains all metadata regarding host and device storage and solver parameters

Definition at line 5163 of file interface_quda.cpp.

References QudaInvertParam_s::dslash_type, invertQuda(), QudaInvertParam_s::Ls, QUDA_ASQTAD_DSLASH, and QUDA_STAGGERED_DSLASH.

Here is the call graph for this function:

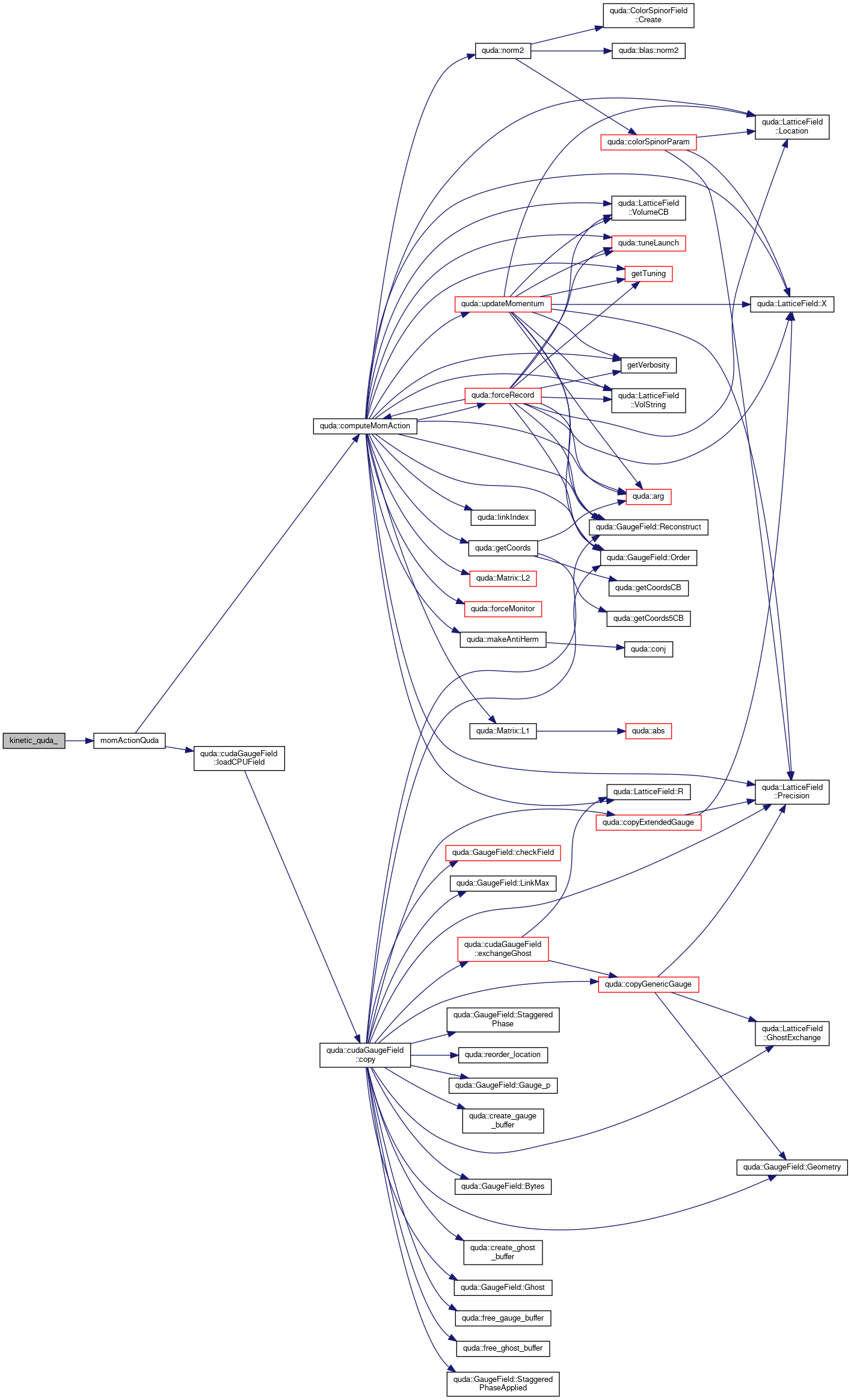

◆ kinetic_quda_()

void kinetic_quda_	(	double *	kin,
		void *	momentum,
		QudaGaugeParam *	param
	)

Evaluate the kinetic (momentum) contribution to classical Hamiltonian for Hybrid Monte Carlo.

Parameters

kin	Kinetic energy
momentum	The momentum field
param	The parameters of the external fields and the computation settings

Returns: momentum action

Definition at line 5349 of file interface_quda.cpp.

References dims, momActionQuda(), and rank.

Here is the call graph for this function:

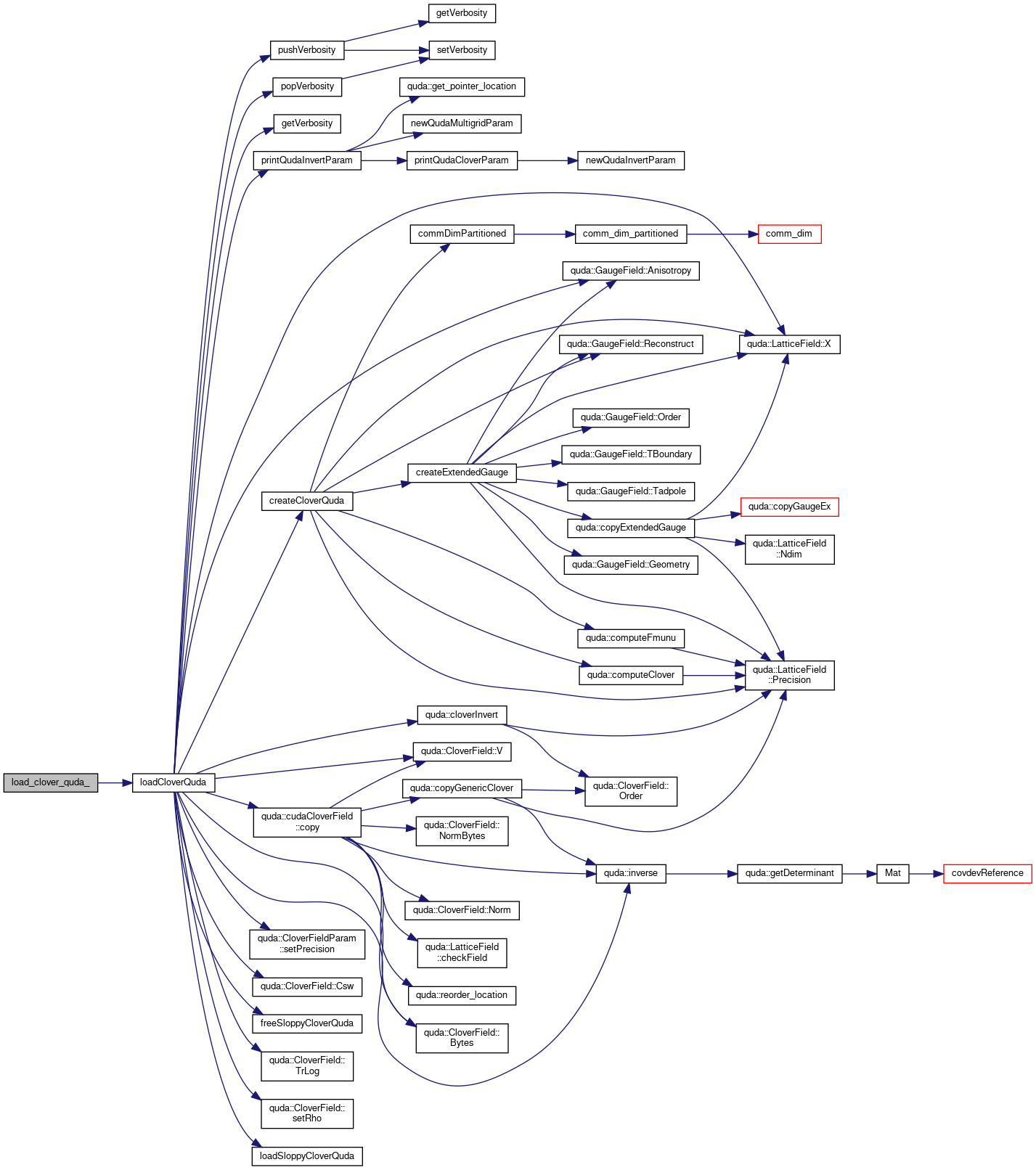

◆ load_clover_quda_()

void load_clover_quda_	(	void *	h_clover,
		void *	h_clovinv,
		QudaInvertParam *	inv_param
	)

Load the clover term and/or the clover inverse from the host. Either h_clover or h_clovinv may be set to NULL.

Parameters

h_clover	Base pointer to host clover field
h_cloverinv	Base pointer to host clover inverse field
inv_param	Contains all metadata regarding host and device storage

Definition at line 5152 of file interface_quda.cpp.

References loadCloverQuda().

Here is the call graph for this function:

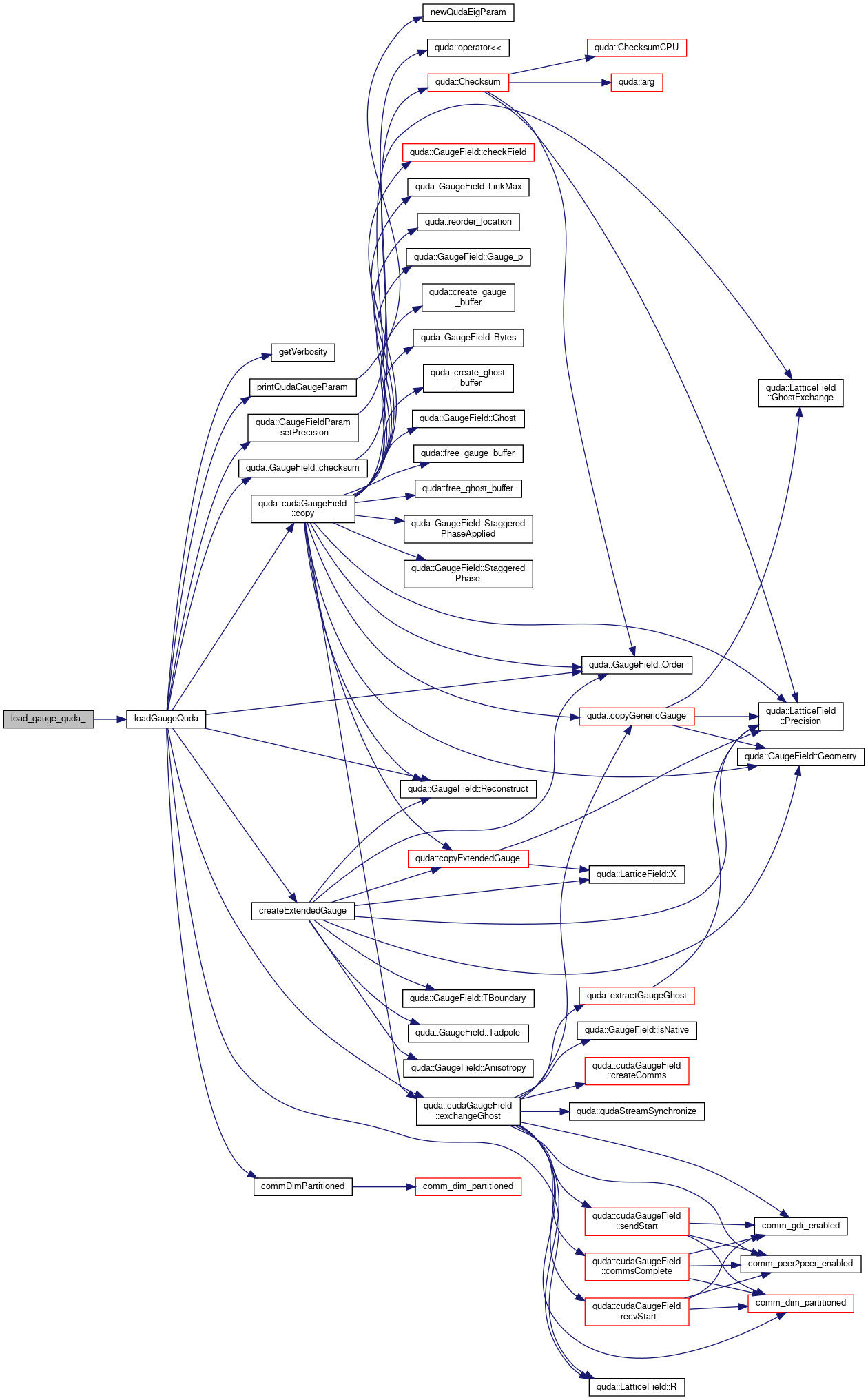

◆ load_gauge_quda_()

void load_gauge_quda_	(	void *	h_gauge,
		QudaGaugeParam *	param
	)

Load the gauge field from the host.

Parameters

h_gauge	Base pointer to host gauge field (regardless of dimensionality)
param	Contains all metadata regarding host and device storage

Definition at line 5149 of file interface_quda.cpp.

References loadGaugeQuda().

Here is the call graph for this function:

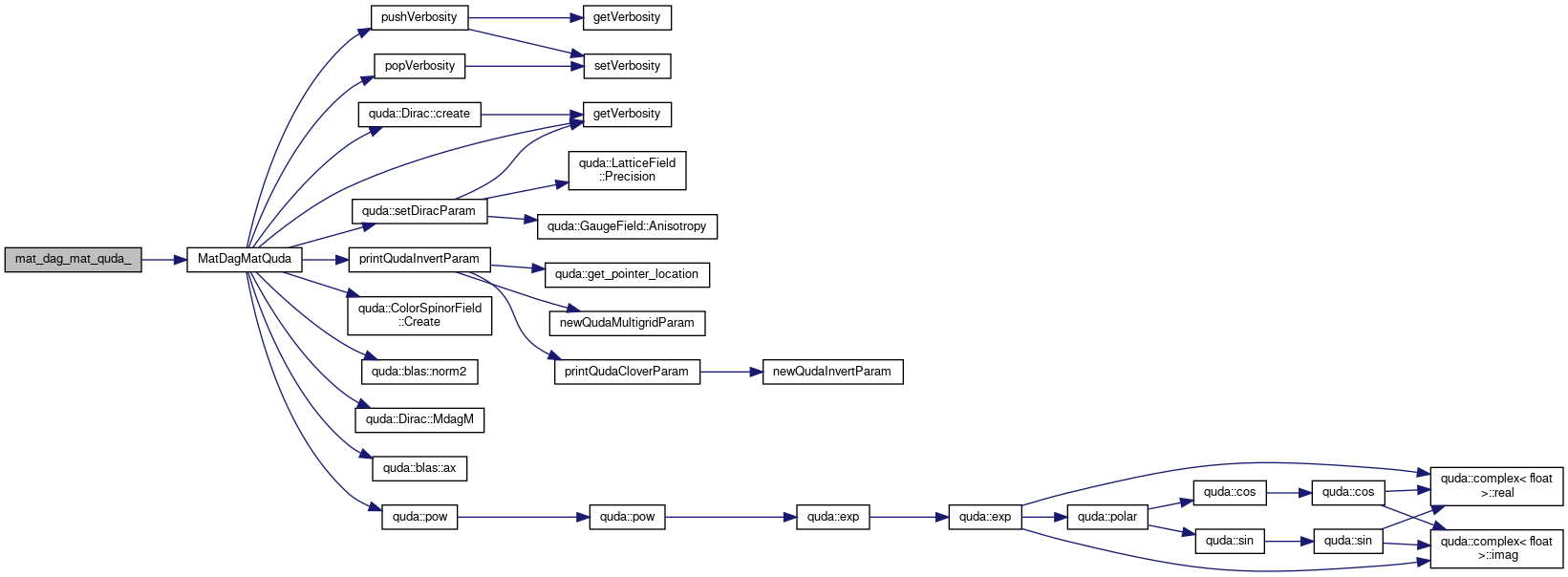

◆ mat_dag_mat_quda_()

void mat_dag_mat_quda_	(	void *	h_out,
		void *	h_in,
		QudaInvertParam *	inv_param
	)

Apply M^{}M, possibly even/odd preconditioned.

Parameters

h_out	Result spinor field
h_in	Input spinor field
param	Contains all metadata regarding host and device storage

Definition at line 5161 of file interface_quda.cpp.

References MatDagMatQuda().

Here is the call graph for this function:

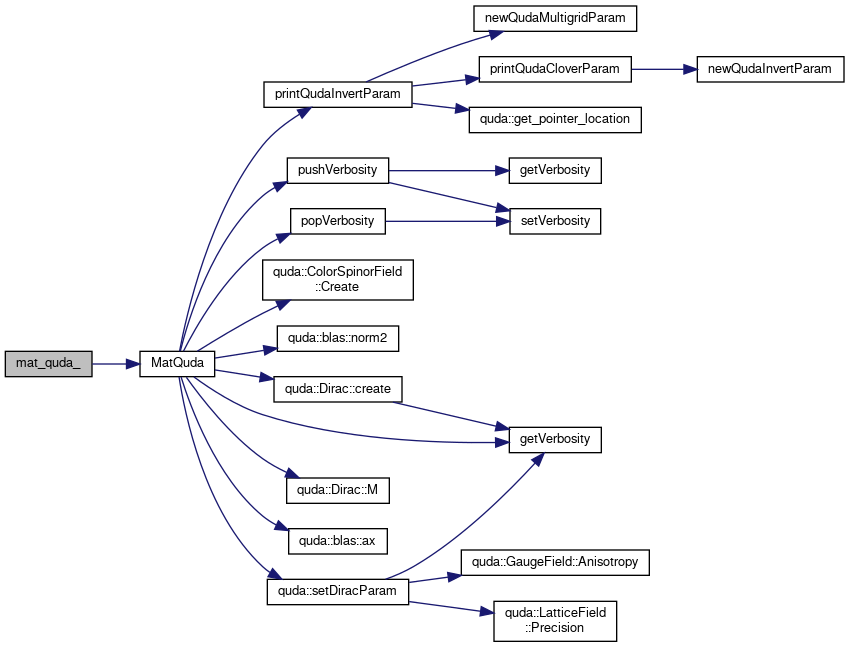

◆ mat_quda_()

void mat_quda_	(	void *	h_out,
		void *	h_in,
		QudaInvertParam *	inv_param
	)

Apply the full Dslash matrix, possibly even/odd preconditioned.

Parameters

h_out	Result spinor field
h_in	Input spinor field
param	Contains all metadata regarding host and device storage

Definition at line 5159 of file interface_quda.cpp.

References MatQuda().

Here is the call graph for this function:

◆ new_quda_gauge_param_()

void new_quda_gauge_param_ ( QudaGaugeParam * param )

Initializes the QudaGaugeParam with default entries.

Parameters

The	QudaGaugeParam to be initialized

Definition at line 5204 of file interface_quda.cpp.

References newQudaGaugeParam().

Here is the call graph for this function:

◆ new_quda_invert_param_()

void new_quda_invert_param_ ( QudaInvertParam * param )

Initializes the QudaInvertParam with default entries.

Parameters

The	QudaInvertParam to be initialized

Definition at line 5207 of file interface_quda.cpp.

References newQudaInvertParam().

Here is the call graph for this function:

◆ plaq_quda_()

void plaq_quda_ ( double plaq[3] )

Parameters

Computes	the total, spatial and temporal plaquette averages of the loaded gauge configuration.
Array	for storing the averages (total, spatial, temporal)

Definition at line 5415 of file interface_quda.cpp.

References plaqQuda().

Here is the call graph for this function:

◆ register_pinned_quda_()

void register_pinned_quda_	(	void *	ptr,
		size_t *	bytes
	)

Pinned a pre-existing memory allocation.

Parameters

[in]	ptr	Pointer to buffer to be pinned
[in]	size	Size of allocation

Definition at line 5194 of file interface_quda.cpp.

References checkCudaError.

◆ remove_staggered_phase_quda_()

void remove_staggered_phase_quda_ ( )

Remove the staggered phase factors to the resident gauge field.

Definition at line 5338 of file interface_quda.cpp.

References errorQuda, getVerbosity(), printfQuda, QUDA_VERBOSE, qudaDeviceSynchronize, and quda::GaugeField::removeStaggeredPhase().

Here is the call graph for this function:

◆ set_kernel_pack_t_()

void set_kernel_pack_t_ ( int * pack )

fTemporary function exposed for TIFR benchmarking

Exposed due to poor derived MPI datatype performance with GPUDirect RDMA

Definition at line 5380 of file interface_quda.cpp.

References quda::setKernelPackT().

Here is the call graph for this function:

◆ unregister_pinned_quda_()

void unregister_pinned_quda_ ( void * ptr )

Pinned a pre-existing memory allocation.

Parameters

[in] ptr Pointer to buffer to be unpinned

Definition at line 5199 of file interface_quda.cpp.

References checkCudaError.

◆ update_gauge_field_quda_()

void update_gauge_field_quda_	(	void *	gauge,
		void *	momentum,
		double *	dt,
		bool *	conj_mom,
		bool *	exact,
		QudaGaugeParam *	param
	)

Evolve the gauge field by step size dt, using the momentum field I.e., Evalulate U(t+dt) = e(dt pi) U(t)

Parameters

gauge	The gauge field to be updated
momentum	The momentum field
dt	The integration step size step
conj_mom	Whether to conjugate the momentum matrix
exact	Whether to use an exact exponential or Taylor expand
param	The parameters of the external fields and the computation settings

Definition at line 5211 of file interface_quda.cpp.

References updateGaugeFieldQuda().

Here is the call graph for this function:

Functions

Detailed Description

Function Documentation

◆ apply_staggered_phase_quda_()

◆ clover_quda_()

◆ comm_set_gridsize_()

◆ compute_gauge_force_quda_()

◆ compute_staggered_force_quda_()

◆ dslash_quda_()

◆ end_quda_()

◆ flush_chrono_quda_()

◆ free_clover_quda_()

◆ free_gauge_quda_()

◆ free_sloppy_gauge_quda_()

◆ init_quda_()

◆ init_quda_device_()

◆ init_quda_memory_()

◆ invert_multishift_quda_()

◆ invert_quda_()

◆ kinetic_quda_()

◆ load_clover_quda_()

◆ load_gauge_quda_()

◆ mat_dag_mat_quda_()

◆ mat_quda_()

◆ new_quda_gauge_param_()

◆ new_quda_invert_param_()

◆ plaq_quda_()

◆ register_pinned_quda_()

◆ remove_staggered_phase_quda_()

◆ set_kernel_pack_t_()

◆ unregister_pinned_quda_()

◆ update_gauge_field_quda_()
