quda::HMatrix< T, N > Class Template Reference

Specialized container for Hermitian matrices (e.g., used for wrapping clover matrices) More...

#include <quda_matrix.h>

Collaboration diagram for quda::HMatrix< T, N >:

Public Member Functions
__device__ __host__	HMatrix ()
__device__ __host__	HMatrix (const HMatrix< T, N > &a)
__device__ __host__	HMatrix (const T data_[])
__device__ __host__ complex< T > const	operator() (int i, int j) const
__device__ __host__ HMatrix_wrapper< T, HMatrix< T, N > >	operator() (int i, int j)
template<class U >
__device__ __host__ void	operator= (const HMatrix< U, N > &b)
template<typename S >
__device__ __host__	HMatrix (const clover_wrapper< T, S > &s)
template<typename S >
__device__ __host__ void	operator= (const clover_wrapper< T, S > &s)
__device__ __host__ HMatrix< T, N >	square () const
	Hermitian matrix square. More...
__device__ __host__ T	max () const
	Compute the absolute max element of the Hermitian matrix. More...
__device__ __host__ void	print () const

Public Attributes
T	data [N *N]

Private Member Functions
__device__ __host__ int	index (int i, int j) const

Private Attributes
friend	HMatrix_wrapper< T, HMatrix< T, N > >

Detailed Description

template<class T, int N>
class quda::HMatrix< T, N >

Specialized container for Hermitian matrices (e.g., used for wrapping clover matrices)

Definition at line 61 of file quda_matrix.h.

Constructor & Destructor Documentation

HMatrix() [1/4]

template<class T, int N>

__device__ __host__ quda::HMatrix< T, N >::HMatrix ( )

inline

Definition at line 307 of file quda_matrix.h.

References quda::zero().

Here is the call graph for this function:

HMatrix() [2/4]

template<class T, int N>

__device__ __host__ quda::HMatrix< T, N >::HMatrix ( const HMatrix< T, N > &  a )

inline

Definition at line 312 of file quda_matrix.h.

References quda::HMatrix< T, N >::data.

HMatrix() [3/4]

template<class T, int N>

__device__ __host__ quda::HMatrix< T, N >::HMatrix ( const T  data_[] )

inline

Definition at line 317 of file quda_matrix.h.

HMatrix() [4/4]

template<typename T , int N>

template<typename S >

__device__ __host__ quda::HMatrix< T, N >::HMatrix ( const clover_wrapper< T, S > &  s )

inline

Definition at line 68 of file clover_field_order.h.

References quda::clover_wrapper< Float, T >::chirality, quda::clover_wrapper< Float, T >::field, quda::clover_wrapper< Float, T >::parity, and quda::clover_wrapper< Float, T >::x_cb.

Member Function Documentation

index()

template<class T, int N>

__device__ __host__ int quda::HMatrix< T, N >::index ( int  i, int  j  ) const

inlineprivate

Definition at line 291 of file quda_matrix.h.

max()

template<class T, int N>

__device__ __host__ T quda::HMatrix< T, N >::max ( ) const

inline

Compute the absolute max element of the Hermitian matrix.

Returns

Abosolue Max element

Definition at line 381 of file quda_matrix.h.

References quda::abs().

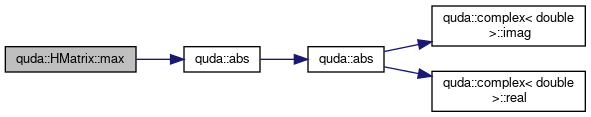

Here is the call graph for this function:

operator()() [1/2]

template<class T, int N>

__device__ __host__ complex<T> const quda::HMatrix< T, N >::operator() ( int  i, int  j  ) const

inline

Definition at line 322 of file quda_matrix.h.

References index().

Here is the call graph for this function:

operator()() [2/2]

template<class T, int N>

__device__ __host__ HMatrix_wrapper<T,HMatrix<T,N> > quda::HMatrix< T, N >::operator() ( int  i, int  j  )

inline

Definition at line 333 of file quda_matrix.h.

References index().

Here is the call graph for this function:

operator=() [1/2]

template<class T, int N>

template<class U >

__device__ __host__ void quda::HMatrix< T, N >::operator= ( const HMatrix< U, N > &  b )

inline

Definition at line 338 of file quda_matrix.h.

References quda::HMatrix< T, N >::data.

operator=() [2/2]

template<typename T , int N>

template<typename S >

__device__ __host__ void quda::HMatrix< T, N >::operator= ( const clover_wrapper< T, S > &  s )

inline

Definition at line 62 of file clover_field_order.h.

References quda::clover_wrapper< Float, T >::chirality, quda::clover_wrapper< Float, T >::field, quda::clover_wrapper< Float, T >::parity, and quda::clover_wrapper< Float, T >::x_cb.

print()

template<class T, int N>

__device__ __host__ void quda::HMatrix< T, N >::print ( ) const

inline

Definition at line 390 of file quda_matrix.h.

References quda::Matrix< T, N >::Matrix().

Here is the call graph for this function:

square()

template<class T, int N>

__device__ __host__ HMatrix<T,N> quda::HMatrix< T, N >::square ( ) const

inline

Hermitian matrix square.

Returns

Matrix square

Definition at line 353 of file quda_matrix.h.

References tmp.

Referenced by quda::computeTMCAV().

Here is the caller graph for this function:

Member Data Documentation

data

template<class T, int N>

T quda::HMatrix< T, N >::data[N *N]

Definition at line 305 of file quda_matrix.h.

Referenced by quda::HMatrix< T, N >::HMatrix(), and quda::HMatrix< T, N >::operator=().

HMatrix_wrapper< T, HMatrix< T, N > >

template<class T, int N>

friend quda::HMatrix< T, N >::HMatrix_wrapper< T, HMatrix< T, N > >

private

Definition at line 288 of file quda_matrix.h.

---

The documentation for this class was generated from the following files:

• include/quda_matrix.h
• include/clover_field_order.h
