Inheritance diagram for quda::ExtractGhostEx< Float, length, nDim, dim, Order >:

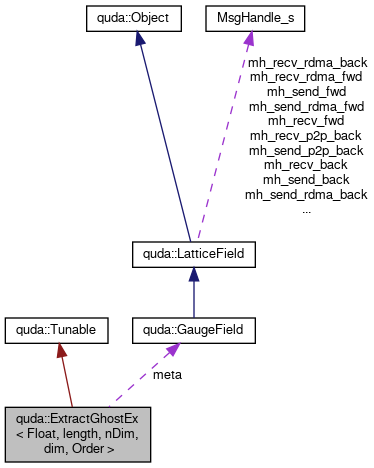

Collaboration diagram for quda::ExtractGhostEx< Float, length, nDim, dim, Order >:

[legend]

Public Member Functions
	ExtractGhostEx (ExtractGhostExArg< Order, nDim, dim > &arg, bool extract, const GaugeField &meta, QudaFieldLocation location)

virtual	~ExtractGhostEx ()

void	apply (const cudaStream_t &stream)

TuneKey	tuneKey () const

long long	flops () const

long long	bytes () const

Private Member Functions
unsigned int	sharedBytesPerThread () const

unsigned int	sharedBytesPerBlock (const TuneParam &param) const

bool	tuneGridDim () const

unsigned int	minThreads () const

Private Member Functions inherited from quda::Tunable
	Tunable ()

virtual	~Tunable ()

virtual void	preTune ()

virtual void	postTune ()

virtual int	tuningIter () const

virtual std::string	paramString (const TuneParam &param) const

virtual std::string	perfString (float time) const

virtual void	initTuneParam (TuneParam &param) const

virtual void	defaultTuneParam (TuneParam &param) const

virtual bool	advanceTuneParam (TuneParam &param) const

void	checkLaunchParam (TuneParam &param)

CUresult	jitifyError () const

CUresult &	jitifyError ()

virtual bool	tuneAuxDim () const

virtual bool	tuneSharedBytes () const

virtual bool	advanceGridDim (TuneParam &param) const

virtual unsigned int	maxBlockSize (const TuneParam &param) const

virtual unsigned int	maxGridSize () const

virtual unsigned int	minGridSize () const

virtual int	gridStep () const
	gridStep sets the step size when iterating the grid size in advanceGridDim. More...

virtual int	blockStep () const

virtual int	blockMin () const

virtual void	resetBlockDim (TuneParam &param) const

virtual bool	advanceBlockDim (TuneParam &param) const

unsigned int	maxBlocksPerSM () const
	For some reason this can't be queried from the device properties, so here we set set this. Based on Table 14 of the CUDA Programming Guide 10.0 (Technical Specifications per Compute Capability) More...

template<typename F >
void	setMaxDynamicSharedBytesPerBlock (F *func) const
	Enable the maximum dynamic shared bytes for the kernel "func" (values given by maxDynamicSharedBytesPerBlock()). More...

unsigned int	maxDynamicSharedBytesPerBlock () const
	This can't be correctly queried in CUDA for all architectures so here we set set this. Based on Table 14 of the CUDA Programming Guide 10.0 (Technical Specifications per Compute Capability). More...

virtual unsigned int	maxSharedBytesPerBlock () const
	The maximum shared memory that a CUDA thread block can use in the autotuner. This isn't necessarily the same as maxDynamicSharedMemoryPerBlock since that may need explicit opt in to enable (by calling setMaxDynamicSharedBytes for the kernel in question). If the CUDA kernel in question does this opt in then this function can be overloaded to return maxDynamicSharedBytesPerBlock. More...

virtual bool	advanceSharedBytes (TuneParam &param) const

virtual bool	advanceAux (TuneParam &param) const

int	writeAuxString (const char *format,...)

Private Attributes
ExtractGhostExArg< Order, nDim, dim >	arg

int	size

bool	extract

const GaugeField &	meta

QudaFieldLocation	location

Private Attributes inherited from quda::Tunable
char	aux [TuneKey::aux_n]

CUresult	jitify_error

Detailed Description

template<typename Float, int length, int nDim, int dim, typename Order>
class quda::ExtractGhostEx< Float, length, nDim, dim, Order >

Definition at line 192 of file extract_gauge_ghost_extended.cu.

Constructor & Destructor Documentation

◆ ExtractGhostEx()

template<typename Float, int length, int nDim, int dim, typename Order>

quda::ExtractGhostEx< Float, length, nDim, dim, Order >::ExtractGhostEx	(	ExtractGhostExArg< Order, nDim, dim > &	arg,
		bool	extract,
		const GaugeField &	meta,
		QudaFieldLocation	location
	)

inline

Definition at line 207 of file extract_gauge_ghost_extended.cu.

References quda::ExtractGhostExArg< Order, nDim, dim >::A0, quda::ExtractGhostExArg< Order, nDim, dim >::A1, quda::ExtractGhostExArg< Order, nDim, dim >::B0, quda::ExtractGhostExArg< Order, nDim, dim >::B1, quda::ExtractGhostExArg< Order, nDim, dim >::C0, quda::ExtractGhostExArg< Order, nDim, dim >::C1, quda::ExtractGhostExArg< Order, nDim, dim >::order, and quda::ExtractGhostExArg< Order, nDim, dim >::R.

◆ ~ExtractGhostEx()

template<typename Float, int length, int nDim, int dim, typename Order>

virtual quda::ExtractGhostEx< Float, length, nDim, dim, Order >::~ExtractGhostEx ( )

inlinevirtual

Definition at line 217 of file extract_gauge_ghost_extended.cu.

Member Function Documentation

◆ apply()

template<typename Float, int length, int nDim, int dim, typename Order>

void quda::ExtractGhostEx< Float, length, nDim, dim, Order >::apply ( const cudaStream_t & stream )

inlinevirtual

Implements quda::Tunable.

Definition at line 219 of file extract_gauge_ghost_extended.cu.

References quda::arg(), quda::TuneParam::block, getTuning(), getVerbosity(), quda::TuneParam::grid, QUDA_CPU_FIELD_LOCATION, quda::TuneParam::shared_bytes, and quda::tuneLaunch().

Referenced by quda::extractGhostEx().

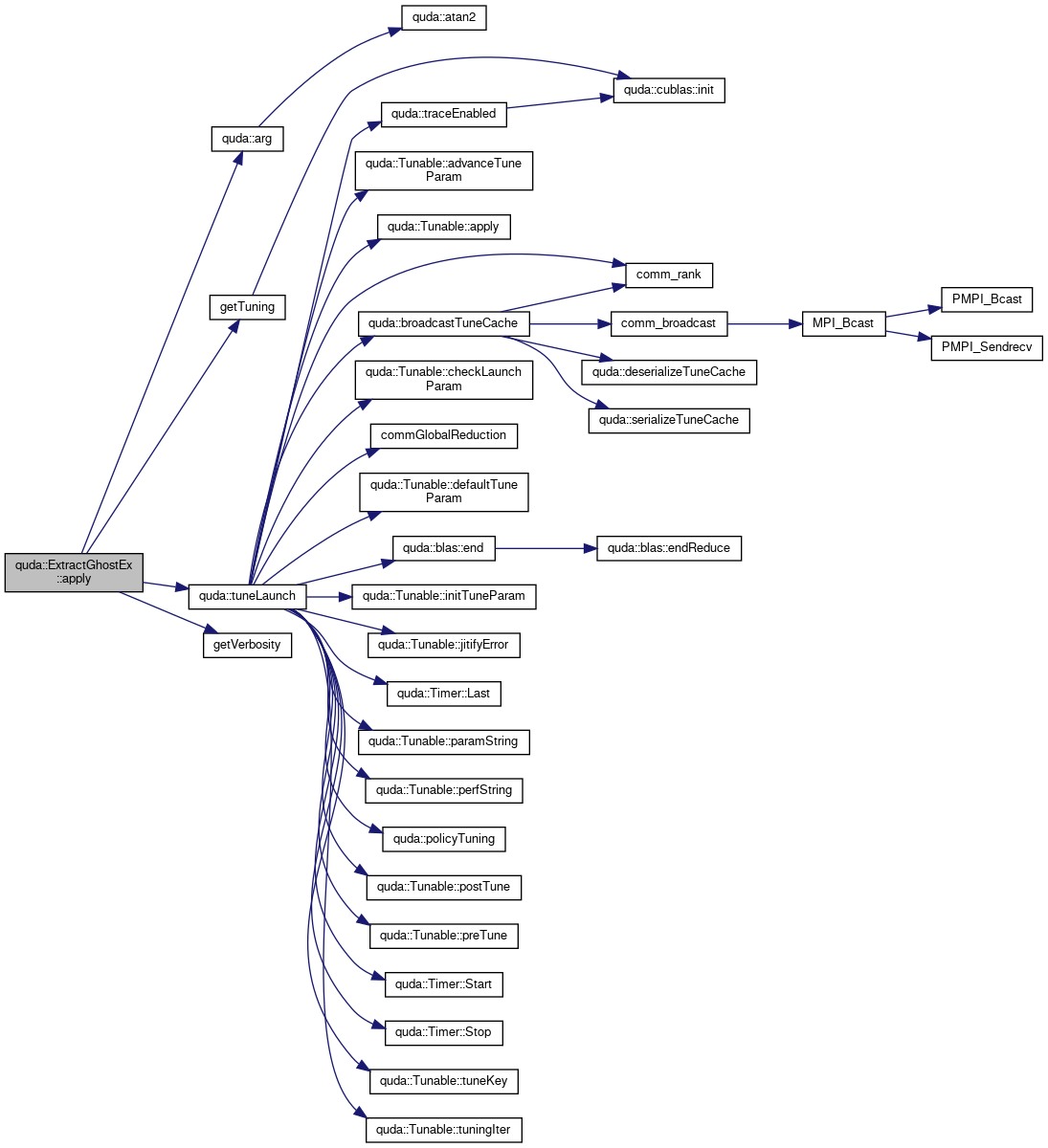

Here is the call graph for this function:

Here is the caller graph for this function:

◆ bytes()

template<typename Float, int length, int nDim, int dim, typename Order>

long long quda::ExtractGhostEx< Float, length, nDim, dim, Order >::bytes ( ) const

inlinevirtual

Reimplemented from quda::Tunable.

Definition at line 246 of file extract_gauge_ghost_extended.cu.

References quda::ExtractGhostExArg< Order, nDim, dim >::order.

◆ flops()

template<typename Float, int length, int nDim, int dim, typename Order>

long long quda::ExtractGhostEx< Float, length, nDim, dim, Order >::flops ( ) const

inlinevirtual

Implements quda::Tunable.

Definition at line 245 of file extract_gauge_ghost_extended.cu.

◆ minThreads()

template<typename Float, int length, int nDim, int dim, typename Order>

unsigned int quda::ExtractGhostEx< Float, length, nDim, dim, Order >::minThreads ( ) const

inlineprivatevirtual

Reimplemented from quda::Tunable.

Definition at line 204 of file extract_gauge_ghost_extended.cu.

References quda::size.

◆ sharedBytesPerBlock()

template<typename Float, int length, int nDim, int dim, typename Order>

unsigned int quda::ExtractGhostEx< Float, length, nDim, dim, Order >::sharedBytesPerBlock ( const TuneParam & param ) const

inlineprivatevirtual

Implements quda::Tunable.

Definition at line 201 of file extract_gauge_ghost_extended.cu.

◆ sharedBytesPerThread()

template<typename Float, int length, int nDim, int dim, typename Order>

unsigned int quda::ExtractGhostEx< Float, length, nDim, dim, Order >::sharedBytesPerThread ( ) const

inlineprivatevirtual

Implements quda::Tunable.

Definition at line 200 of file extract_gauge_ghost_extended.cu.

◆ tuneGridDim()

template<typename Float, int length, int nDim, int dim, typename Order>

bool quda::ExtractGhostEx< Float, length, nDim, dim, Order >::tuneGridDim ( ) const

inlineprivatevirtual

Reimplemented from quda::Tunable.

Definition at line 203 of file extract_gauge_ghost_extended.cu.

◆ tuneKey()

template<typename Float, int length, int nDim, int dim, typename Order>

TuneKey quda::ExtractGhostEx< Float, length, nDim, dim, Order >::tuneKey ( ) const

inlinevirtual

Implements quda::Tunable.

Definition at line 243 of file extract_gauge_ghost_extended.cu.

References quda::LatticeField::VolString().

Here is the call graph for this function:

Member Data Documentation

◆ arg

template<typename Float, int length, int nDim, int dim, typename Order>

ExtractGhostExArg<Order,nDim,dim> quda::ExtractGhostEx< Float, length, nDim, dim, Order >::arg

private

Definition at line 193 of file extract_gauge_ghost_extended.cu.

◆ extract

template<typename Float, int length, int nDim, int dim, typename Order>

bool quda::ExtractGhostEx< Float, length, nDim, dim, Order >::extract

private

Definition at line 195 of file extract_gauge_ghost_extended.cu.

◆ location

template<typename Float, int length, int nDim, int dim, typename Order>

QudaFieldLocation quda::ExtractGhostEx< Float, length, nDim, dim, Order >::location

private

Definition at line 197 of file extract_gauge_ghost_extended.cu.

◆ meta

template<typename Float, int length, int nDim, int dim, typename Order>

const GaugeField& quda::ExtractGhostEx< Float, length, nDim, dim, Order >::meta

private

Definition at line 196 of file extract_gauge_ghost_extended.cu.

◆ size

template<typename Float, int length, int nDim, int dim, typename Order>

int quda::ExtractGhostEx< Float, length, nDim, dim, Order >::size

private

Definition at line 194 of file extract_gauge_ghost_extended.cu.

The documentation for this class was generated from the following file:

lib/extract_gauge_ghost_extended.cu
