#include <gauge_field.h>

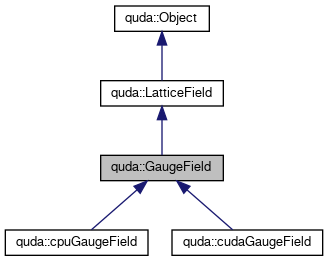

Inheritance diagram for quda::GaugeField:

[legend]

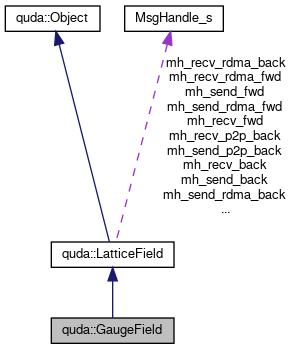

Collaboration diagram for quda::GaugeField:

Public Member Functions
	GaugeField (const GaugeFieldParam &param)

virtual	~GaugeField ()

virtual void	exchangeGhost (QudaLinkDirection=QUDA_LINK_BACKWARDS)=0

virtual void	injectGhost (QudaLinkDirection=QUDA_LINK_BACKWARDS)=0

size_t	Length () const

int	Ncolor () const

QudaReconstructType	Reconstruct () const

QudaGaugeFieldOrder	Order () const

double	Anisotropy () const

double	Tadpole () const

QudaTboundary	TBoundary () const

QudaLinkType	LinkType () const

QudaGaugeFixed	GaugeFixed () const

QudaGaugeFieldOrder	FieldOrder () const

QudaFieldGeometry	Geometry () const

QudaStaggeredPhase	StaggeredPhase () const

bool	StaggeredPhaseApplied () const

void	applyStaggeredPhase (QudaStaggeredPhase phase=QUDA_STAGGERED_PHASE_INVALID)

void	removeStaggeredPhase ()

double	iMu () const

const double &	LinkMax () const

int	Nface () const

virtual void	exchangeExtendedGhost (const int *R, bool no_comms_fill=false)=0
	This does routine will populate the border / halo region of a gauge field that has been created using copyExtendedGauge. More...

virtual void	exchangeExtendedGhost (const int *R, TimeProfile &profile, bool no_comms_fill=false)=0
	This does routine will populate the border / halo region of a gauge field that has been created using copyExtendedGauge. Overloaded variant that will start and stop a comms profile. More...

void	checkField (const LatticeField &) const

bool	isNative () const

size_t	Bytes () const

size_t	PhaseBytes () const

size_t	PhaseOffset () const

virtual void *	Gauge_p ()

virtual void *	Even_p ()

virtual void *	Odd_p ()

virtual const void *	Gauge_p () const

virtual const void *	Even_p () const

virtual const void *	Odd_p () const

const void **	Ghost () const

void **	Ghost ()

size_t	SiteOffset () const

size_t	SiteSize () const

virtual void	zero ()=0

virtual void	copy (const GaugeField &src)=0

double	norm1 (int dim=-1) const
	Compute the L1 norm of the field. More...

double	norm2 (int dim=-1) const
	Compute the L2 norm squared of the field. More...

double	abs_max (int dim=-1) const
	Compute the absolute maximum of the field (Linfinity norm) More...

double	abs_min (int dim=-1) const
	Compute the absolute minimum of the field. More...

uint64_t	checksum (bool mini=false) const

Public Member Functions inherited from quda::LatticeField
	LatticeField (const LatticeFieldParam &param)

	LatticeField (const LatticeField &field)

virtual	~LatticeField ()

void	allocateGhostBuffer (size_t ghost_bytes) const
	Allocate the static ghost buffers. More...

void	createComms (bool no_comms_fill=false, bool bidir=true)

void	destroyComms ()

void	createIPCComms ()

bool	ipcCopyComplete (int dir, int dim)

bool	ipcRemoteCopyComplete (int dir, int dim)

const cudaEvent_t &	getIPCCopyEvent (int dir, int dim) const

const cudaEvent_t &	getIPCRemoteCopyEvent (int dir, int dim) const

int	Ndim () const

const int *	X () const

int	Volume () const

int	VolumeCB () const

const int *	SurfaceCB () const

int	SurfaceCB (const int i) const

int	Stride () const

int	Pad () const

const int *	R () const

QudaGhostExchange	GhostExchange () const

QudaPrecision	Precision () const

QudaPrecision	GhostPrecision () const

double	Scale () const

void	Scale (double scale_)
	Set the scale factor for a fixed-point field. More...

virtual QudaSiteSubset	SiteSubset () const

virtual QudaMemoryType	MemType () const

int	Nvec () const

QudaFieldLocation	Location () const

size_t	GBytes () const

void	checkField (const LatticeField &a) const

virtual void	read (char *filename)

virtual void	write (char *filename)

virtual void	gather (int nFace, int dagger, int dir, cudaStream_t *stream_p=NULL)

virtual void	commsStart (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)

virtual int	commsQuery (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)

virtual void	commsWait (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)

virtual void	scatter (int nFace, int dagger, int dir)

const char *	VolString () const

const char *	AuxString () const

virtual void	backup () const
	Backs up the LatticeField. More...

virtual void	restore () const
	Restores the LatticeField. More...

Public Member Functions inherited from quda::Object
	Object ()

virtual	~Object ()

Static Public Member Functions
static GaugeField *	Create (const GaugeFieldParam &param)
	Create the gauge field, with meta data specified in the parameter struct. More...

Static Public Member Functions inherited from quda::LatticeField
static void	freeGhostBuffer (void)
	Free statically allocated ghost buffers. More...

static void	destroyIPCComms ()

Static Public Member Functions inherited from quda::Object
static void *	operator new (std::size_t size)

static void	operator delete (void *p)

static void *	operator new[] (std::size_t size)

static void	operator delete[] (void *p)

Protected Member Functions
void	exchange (void recv, void send, QudaDirection dir) const
	Exchange the buffers across all dimensions in a given direction. More...

void	createGhostZone (const int *R, bool no_comms_fill, bool bidir=true) const

void	setTuningString ()
	Set the vol_string and aux_string for use in tuning. More...

Protected Member Functions inherited from quda::LatticeField
void	precisionCheck ()

Protected Attributes
size_t	bytes

size_t	phase_offset

size_t	phase_bytes

size_t	length

size_t	real_length

int	nColor

int	nFace

QudaFieldGeometry	geometry

QudaReconstructType	reconstruct

int	nInternal

QudaGaugeFieldOrder	order

QudaGaugeFixed	fixed

QudaLinkType	link_type

QudaTboundary	t_boundary

double	anisotropy

double	tadpole

double	fat_link_max

QudaFieldCreate	create

void *	ghost [2 *QUDA_MAX_DIM]

int	ghostFace [QUDA_MAX_DIM]

QudaStaggeredPhase	staggeredPhaseType

bool	staggeredPhaseApplied

double	i_mu

size_t	site_offset

size_t	site_size

Protected Attributes inherited from quda::LatticeField
int	volume

int	volumeCB

int	stride

int	pad

size_t	total_bytes

int	nDim

int	x [QUDA_MAX_DIM]

int	surface [QUDA_MAX_DIM]

int	surfaceCB [QUDA_MAX_DIM]

int	r [QUDA_MAX_DIM]

QudaPrecision	precision

QudaPrecision	ghost_precision

bool	ghost_precision_reset

double	scale

QudaSiteSubset	siteSubset

QudaGhostExchange	ghostExchange

int	nDimComms

size_t	ghost_bytes

size_t	ghost_bytes_old

size_t	ghost_face_bytes [QUDA_MAX_DIM]

int	ghostOffset [QUDA_MAX_DIM][2]

int	ghostNormOffset [QUDA_MAX_DIM][2]

void *	my_face_h [2]

void *	my_face_hd [2]

void *	my_face_d [2]

void *	my_face_dim_dir_h [2][QUDA_MAX_DIM][2]

void *	my_face_dim_dir_hd [2][QUDA_MAX_DIM][2]

void *	my_face_dim_dir_d [2][QUDA_MAX_DIM][2]

void *	from_face_h [2]

void *	from_face_hd [2]

void *	from_face_d [2]

void *	from_face_dim_dir_h [2][QUDA_MAX_DIM][2]

void *	from_face_dim_dir_hd [2][QUDA_MAX_DIM][2]

void *	from_face_dim_dir_d [2][QUDA_MAX_DIM][2]

MsgHandle *	mh_recv_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_recv_back [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_back [2][QUDA_MAX_DIM]

MsgHandle *	mh_recv_rdma_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_recv_rdma_back [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_rdma_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_rdma_back [2][QUDA_MAX_DIM]

bool	initComms

char	vol_string [TuneKey::volume_n]

char	aux_string [TuneKey::aux_n]

QudaMemoryType	mem_type

char *	backup_h

char *	backup_norm_h

bool	backed_up

Additional Inherited Members
Static Public Attributes inherited from quda::LatticeField
static int	bufferIndex = 0

static bool	ghost_field_reset = false

Static Protected Attributes inherited from quda::LatticeField
static void *	ghost_send_buffer_d [2] = {nullptr, nullptr}

static void *	ghost_recv_buffer_d [2] = {nullptr, nullptr}

static void *	ghost_pinned_send_buffer_h [2] = {nullptr, nullptr}

static void *	ghost_pinned_recv_buffer_h [2] = {nullptr, nullptr}

static void *	ghost_pinned_send_buffer_hd [2] = {nullptr, nullptr}

static void *	ghost_pinned_recv_buffer_hd [2] = {nullptr, nullptr}

static void *	ghost_remote_send_buffer_d [2][QUDA_MAX_DIM][2]

static size_t	ghostFaceBytes = 0

static bool	initGhostFaceBuffer = false

static MsgHandle *	mh_send_p2p_fwd [2][QUDA_MAX_DIM] { }

static MsgHandle *	mh_send_p2p_back [2][QUDA_MAX_DIM] { }

static MsgHandle *	mh_recv_p2p_fwd [2][QUDA_MAX_DIM] { }

static MsgHandle *	mh_recv_p2p_back [2][QUDA_MAX_DIM] { }

static int	buffer_send_p2p_fwd [2][QUDA_MAX_DIM] { }

static int	buffer_recv_p2p_fwd [2][QUDA_MAX_DIM] { }

static int	buffer_send_p2p_back [2][QUDA_MAX_DIM] { }

static int	buffer_recv_p2p_back [2][QUDA_MAX_DIM] { }

static cudaEvent_t	ipcCopyEvent [2][2][QUDA_MAX_DIM]

static cudaEvent_t	ipcRemoteCopyEvent [2][2][QUDA_MAX_DIM]

static bool	initIPCComms = false

Detailed Description

Definition at line 164 of file gauge_field.h.

Constructor & Destructor Documentation

◆ GaugeField()

quda::GaugeField::GaugeField ( const GaugeFieldParam & param )

Definition at line 30 of file gauge_field.cpp.

References ALIGNMENT_ADJUST, anisotropy, bytes, errorQuda, fixed, geometry, quda::LatticeField::ghost_precision, isNative(), length, link_type, nColor, quda::LatticeField::nDim, nInternal, phase_bytes, phase_offset, quda::LatticeField::precision, QUDA_COARSE_GEOMETRY, QUDA_COARSE_LINKS, QUDA_GAUGE_FIXED_YES, QUDA_RECONSTRUCT_13, QUDA_RECONSTRUCT_9, QUDA_SCALAR_GEOMETRY, QUDA_TENSOR_GEOMETRY, QUDA_VECTOR_GEOMETRY, QUDA_WILSON_LINKS, real_length, reconstruct, setTuningString(), quda::LatticeField::stride, quda::LatticeField::total_bytes, and quda::LatticeField::volume.

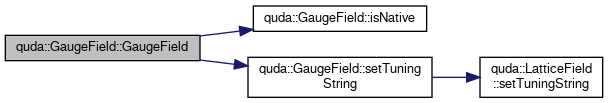

Here is the call graph for this function:

◆ ~GaugeField()

quda::GaugeField::~GaugeField ( )

virtual

Definition at line 100 of file gauge_field.cpp.

Member Function Documentation

◆ abs_max()

double quda::GaugeField::abs_max ( int dim = -1 ) const

Compute the absolute maximum of the field (Linfinity norm)

Parameters

[in] dim Which dimension we are taking the norm of (dim=-1 mean all dimensions)

Returns: Absolute maximum value

Definition at line 84 of file max_gauge.cu.

References quda::ABS_MAX, errorQuda, QUDA_DOUBLE_PRECISION, QUDA_HALF_PRECISION, QUDA_QUARTER_PRECISION, QUDA_RECONSTRUCT_NO, and QUDA_SINGLE_PRECISION.

Referenced by quda::copyGaugeMG(), and quda::cpuGaugeField::cpuGaugeField().

Here is the caller graph for this function:

◆ abs_min()

double quda::GaugeField::abs_min ( int dim = -1 ) const

Compute the absolute minimum of the field.

Parameters

[in] dim Which dimension we are taking the norm of (dim=-1 mean all dimensions)

Returns: Absolute minimum value

Definition at line 97 of file max_gauge.cu.

References quda::ABS_MIN, errorQuda, QUDA_DOUBLE_PRECISION, QUDA_HALF_PRECISION, QUDA_QUARTER_PRECISION, QUDA_RECONSTRUCT_NO, and QUDA_SINGLE_PRECISION.

◆ Anisotropy()

double quda::GaugeField::Anisotropy ( ) const

inline

Definition at line 252 of file gauge_field.h.

References quda::GaugeFieldParam::anisotropy.

Referenced by cloverQuda(), quda::CoarseOp(), createExtendedGauge(), loadCloverQuda(), and quda::setDiracParam().

Here is the caller graph for this function:

◆ applyStaggeredPhase()

void quda::GaugeField::applyStaggeredPhase ( QudaStaggeredPhase phase = QUDA_STAGGERED_PHASE_INVALID )

Apply the staggered phase factors to the gauge field.

Parameters

[in] phase The phase we will apply to the field. If this is QUDA_STAGGERED_PHASE_INVALID, the default value, then apply the phase set internal to the field.

Definition at line 139 of file gauge_field.cpp.

References quda::applyGaugePhase(), errorQuda, quda::cudaGaugeField::exchangeGhost(), quda::cpuGaugeField::exchangeGhost(), quda::LatticeField::ghostExchange, QUDA_GHOST_EXCHANGE_PAD, QUDA_STAGGERED_PHASE_INVALID, staggeredPhaseApplied, and staggeredPhaseType.

Referenced by apply_staggered_phase_quda_(), and staggeredPhaseQuda().

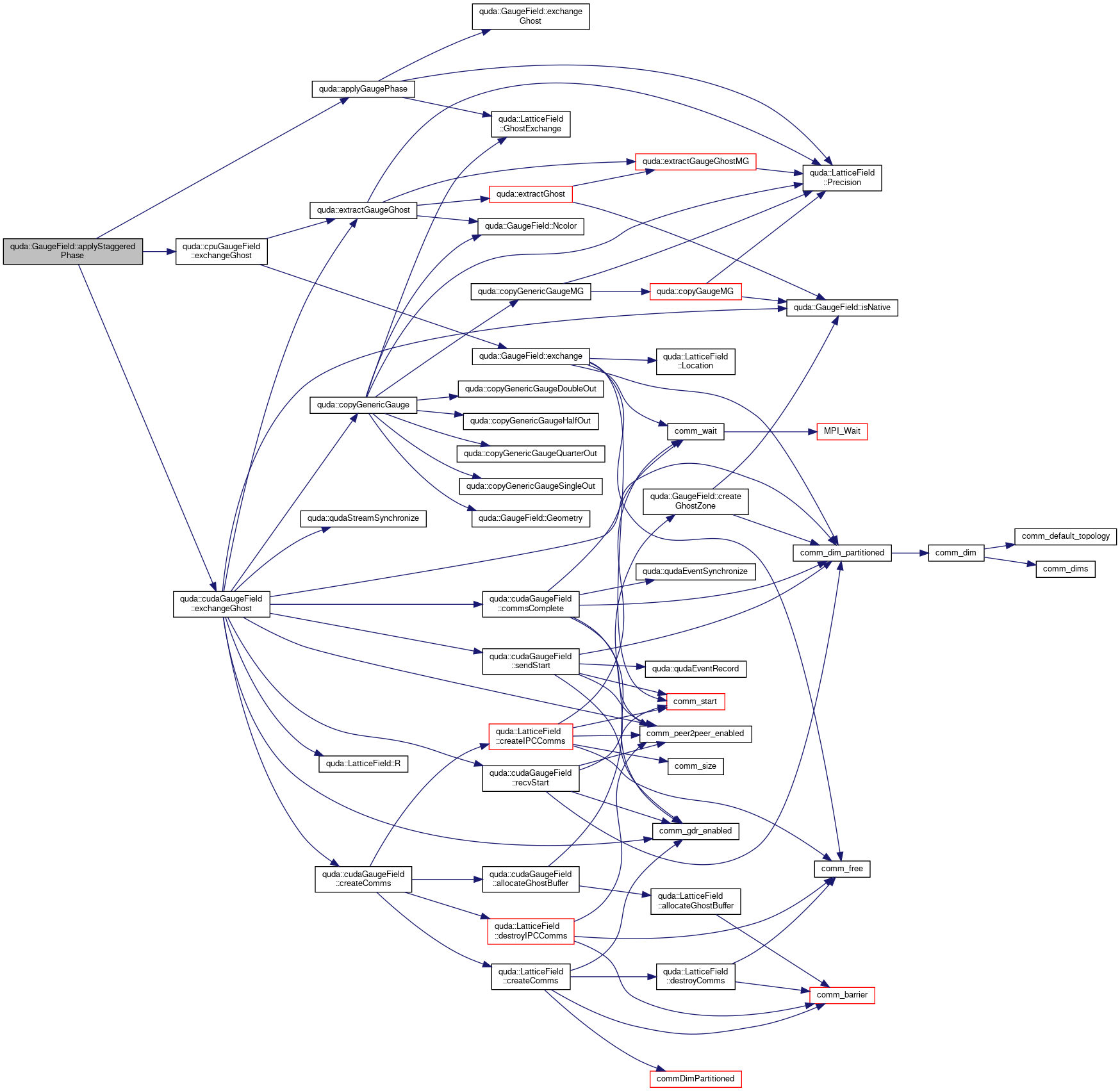

Here is the call graph for this function:

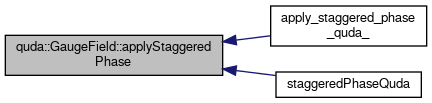

Here is the caller graph for this function:

◆ Bytes()

size_t quda::GaugeField::Bytes ( ) const

inline

Definition at line 311 of file gauge_field.h.

References quda::blas::bytes.

Referenced by quda::GaugeGauss< Float, Arg >::bytes(), quda::DslashCoarsePolicyTune::bytes(), computeHISQForceQuda(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), and quda::cudaGaugeField::saveCPUField().

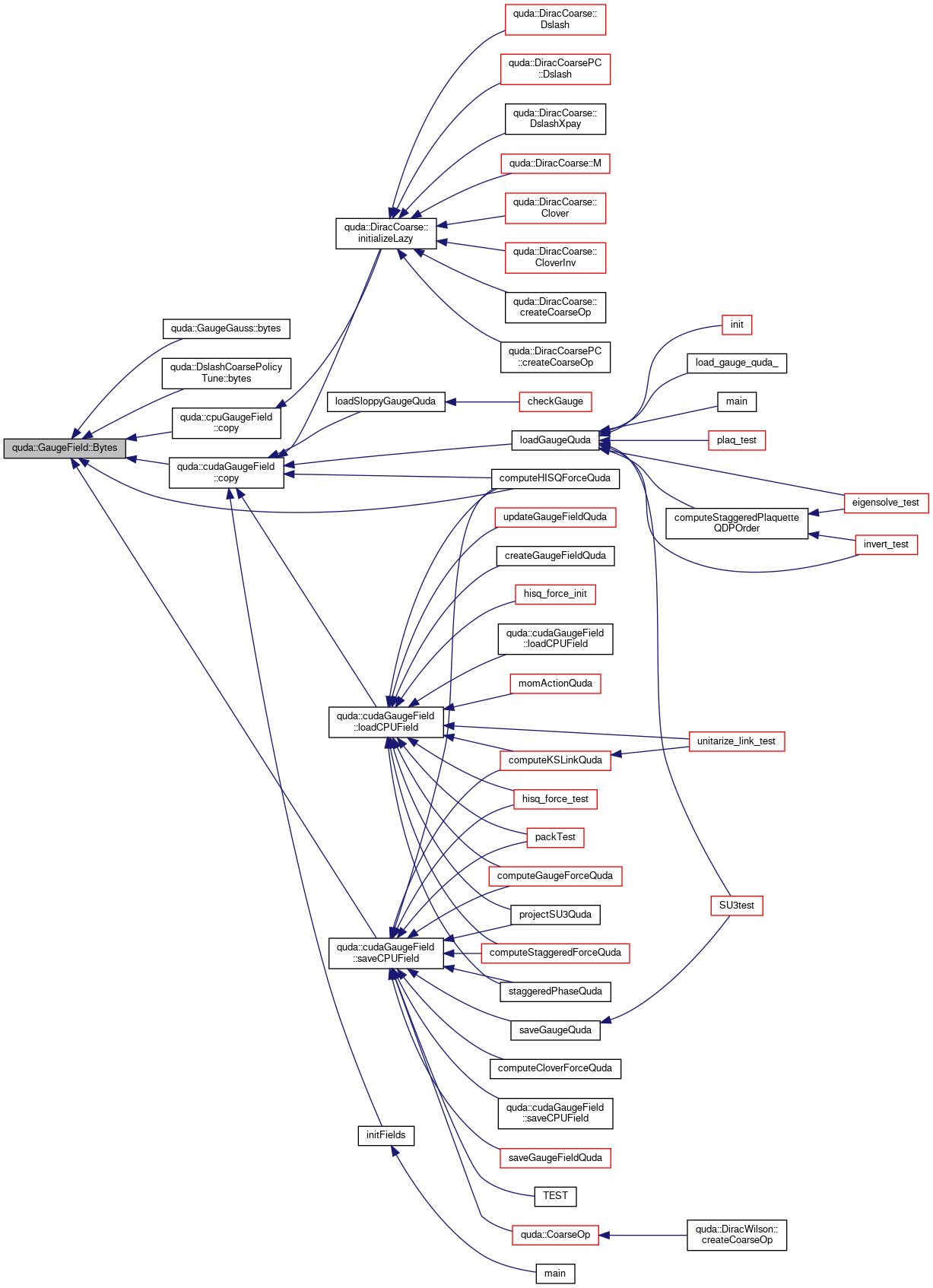

Here is the caller graph for this function:

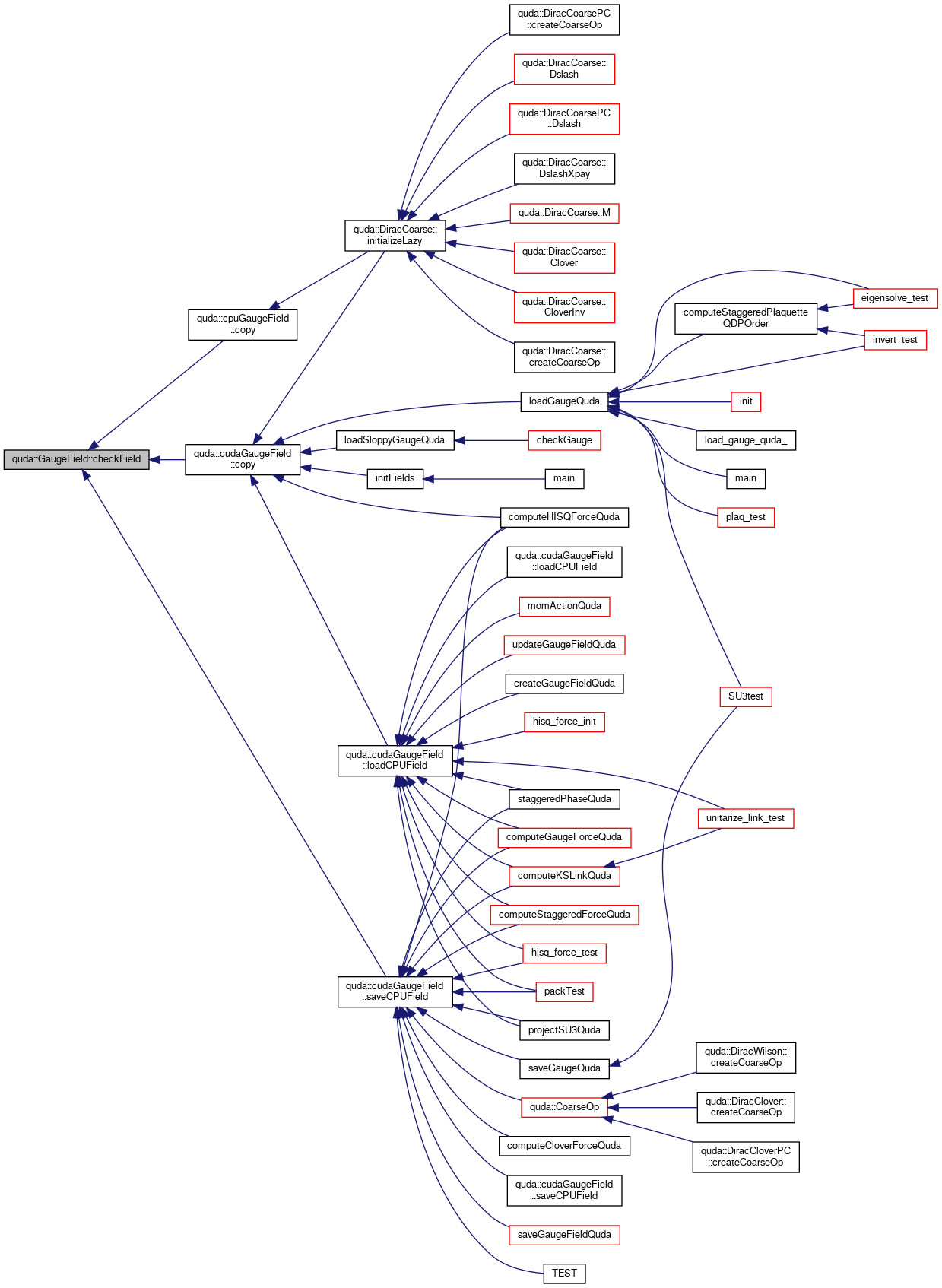

◆ checkField()

void quda::GaugeField::checkField ( const LatticeField & l ) const

Definition at line 265 of file gauge_field.cpp.

References anisotropy, quda::LatticeField::checkField(), errorQuda, fixed, link_type, nColor, nFace, t_boundary, and tadpole.

Referenced by quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), and quda::cudaGaugeField::saveCPUField().

Here is the call graph for this function:

Here is the caller graph for this function:

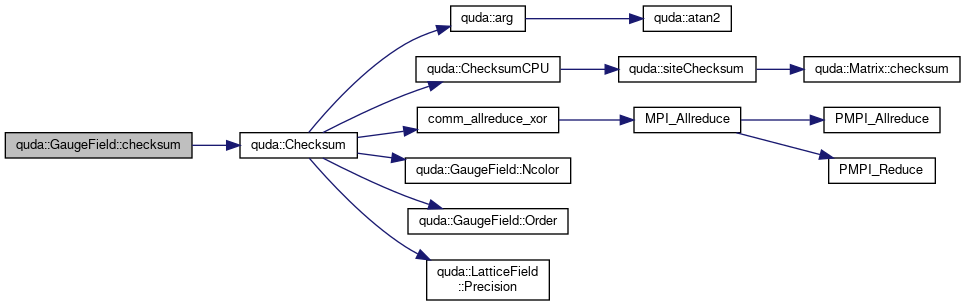

◆ checksum()

uint64_t quda::GaugeField::checksum ( bool mini = false ) const

Compute checksum of this gauge field: this uses a XOR-based checksum method

Parameters

[in] mini Whether to compute a mini checksum or global checksum. A mini checksum only computes the checksum over a subset of the lattice sites and is to be used for online comparisons, e.g., checking a field has changed with a global update algorithm.

Returns: checksum value

Definition at line 355 of file gauge_field.cpp.

References quda::Checksum().

Referenced by loadGaugeQuda().

Here is the call graph for this function:

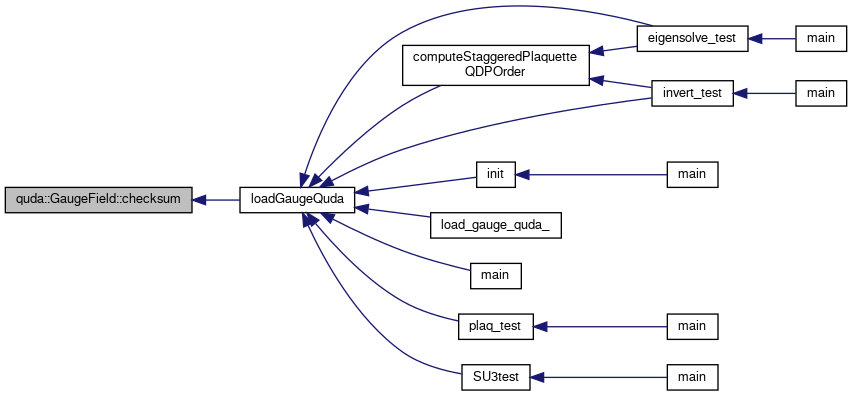

Here is the caller graph for this function:

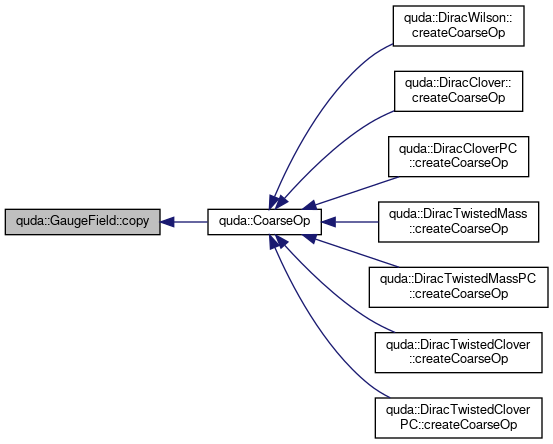

◆ copy()

virtual void quda::GaugeField::copy ( const GaugeField & src )

pure virtual

Generic gauge field copy

Parameters

[in] src Source from which we are copying

Implemented in quda::cpuGaugeField, and quda::cudaGaugeField.

Referenced by quda::CoarseOp().

Here is the caller graph for this function:

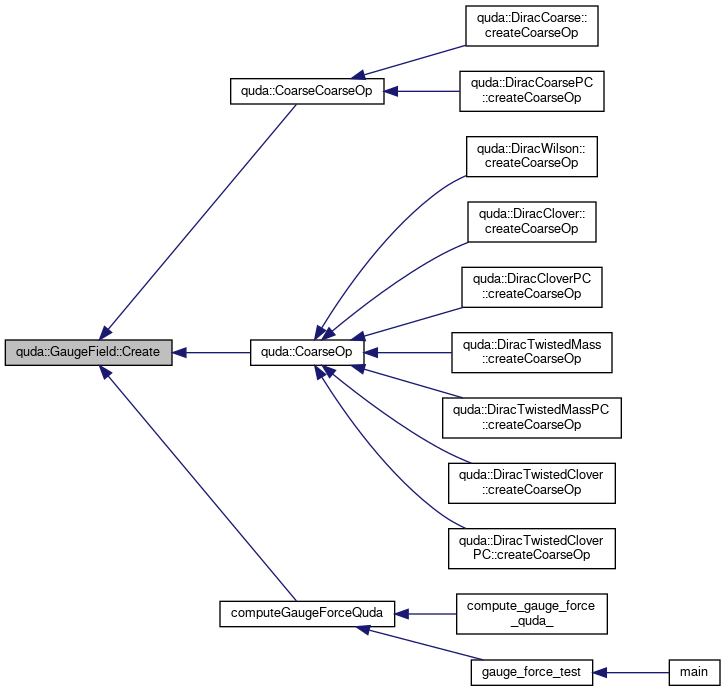

◆ Create()

GaugeField * quda::GaugeField::Create ( const GaugeFieldParam & param )

static

Create the gauge field, with meta data specified in the parameter struct.

Parameters

param Parameter struct specifying the gauge field

Returns: Pointer to allcoated gauge field

Definition at line 359 of file gauge_field.cpp.

References errorQuda, quda::GaugeFieldParam::location, QUDA_CPU_FIELD_LOCATION, and QUDA_CUDA_FIELD_LOCATION.

Referenced by quda::CoarseCoarseOp(), quda::CoarseOp(), and computeGaugeForceQuda().

Here is the caller graph for this function:

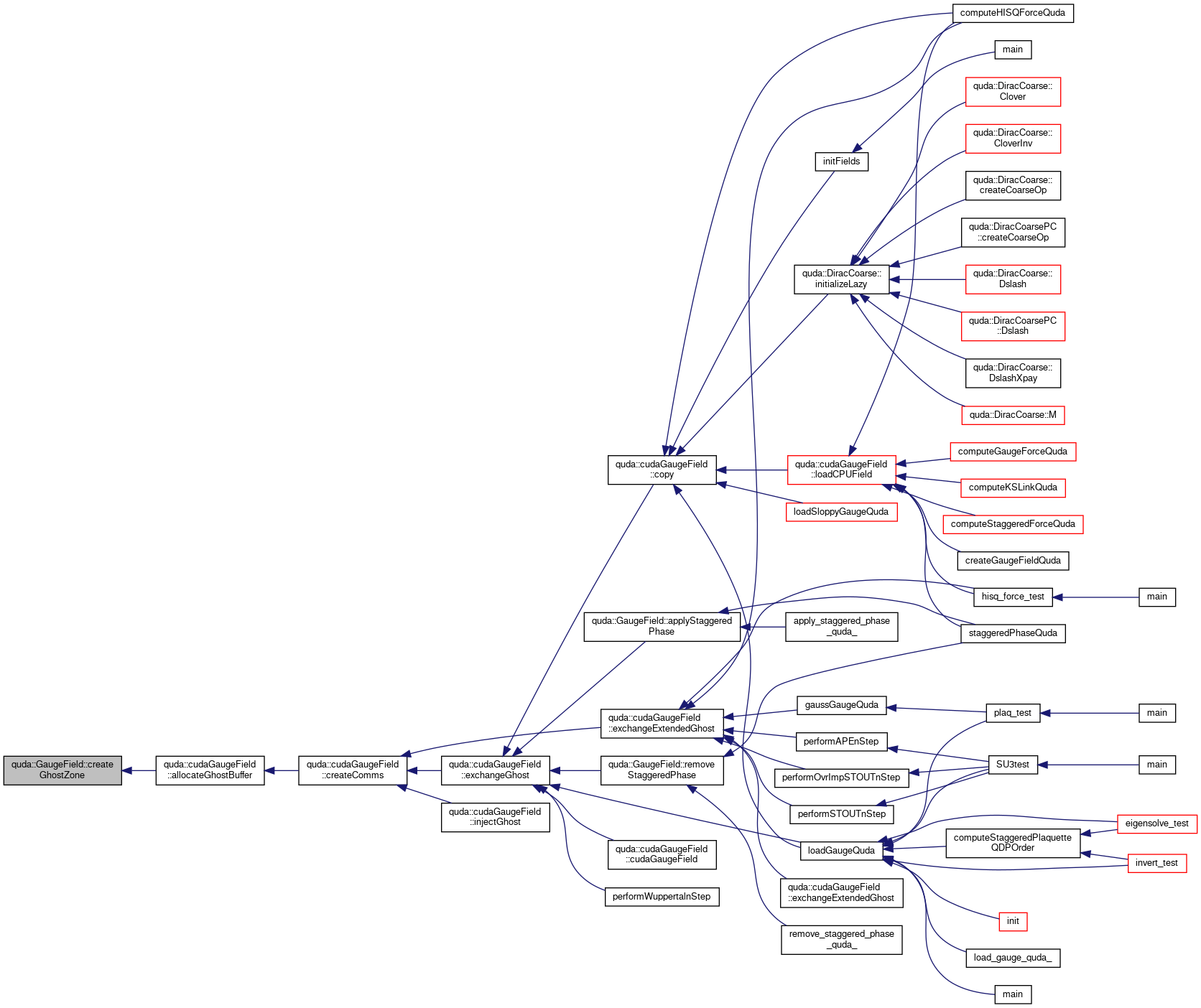

◆ createGhostZone()

void quda::GaugeField::createGhostZone	(	const int *	R,
		bool	no_comms_fill,
		bool	bidir = `true`
	)		const

protected

Compute the required extended ghost zone sizes and offsets

Parameters

[in]	R	Radius of the ghost zone
[in]	no_comms_fill	If true we create a full halo regardless of partitioning
[in]	bidir	Is this a bi-directional exchange - if not then we alias the fowards and backwards offsetss

Definition at line 112 of file gauge_field.cpp.

References ALIGNMENT_ADJUST, comm_dim_partitioned(), geometry, quda::LatticeField::ghost_bytes, quda::LatticeField::ghost_bytes_old, quda::LatticeField::ghost_face_bytes, quda::LatticeField::ghost_precision, ghostFace, quda::LatticeField::ghostOffset, isNative(), quda::LatticeField::nDim, nInternal, QUDA_COARSE_GEOMETRY, QUDA_SCALAR_GEOMETRY, QUDA_VECTOR_GEOMETRY, and quda::LatticeField::surface.

Referenced by quda::cudaGaugeField::allocateGhostBuffer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Even_p() [1/2]

virtual void* quda::GaugeField::Even_p ( )

inlinevirtual

Reimplemented in quda::cudaGaugeField.

Definition at line 316 of file gauge_field.h.

References errorQuda.

◆ Even_p() [2/2]

virtual const void* quda::GaugeField::Even_p ( ) const

inlinevirtual

Reimplemented in quda::cudaGaugeField.

Definition at line 320 of file gauge_field.h.

References errorQuda.

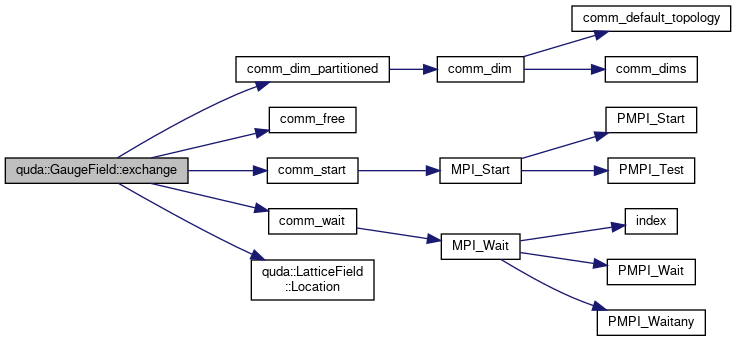

◆ exchange()

void quda::GaugeField::exchange	(	void **	recv,
		void **	send,
		QudaDirection	dir
	)		const

protected

Exchange the buffers across all dimensions in a given direction.

Parameters

[out]	recv	Receive buffer
[in]	send	Send buffer
[in]	dir	Direction in which we are sending (forwards OR backwards only)

Definition at line 185 of file gauge_field.cpp.

References bytes, comm_declare_receive_relative, comm_declare_send_relative, comm_dim_partitioned(), comm_free(), comm_start(), comm_wait(), errorQuda, quda::LatticeField::Location(), quda::LatticeField::nDimComms, nFace, nInternal, pool_pinned_free, pool_pinned_malloc, quda::LatticeField::precision, QUDA_BACKWARDS, QUDA_CPU_FIELD_LOCATION, QUDA_CUDA_FIELD_LOCATION, QUDA_FORWARDS, qudaMemcpy, and quda::LatticeField::surfaceCB.

Referenced by quda::cpuGaugeField::exchangeGhost(), and quda::cpuGaugeField::injectGhost().

Here is the call graph for this function:

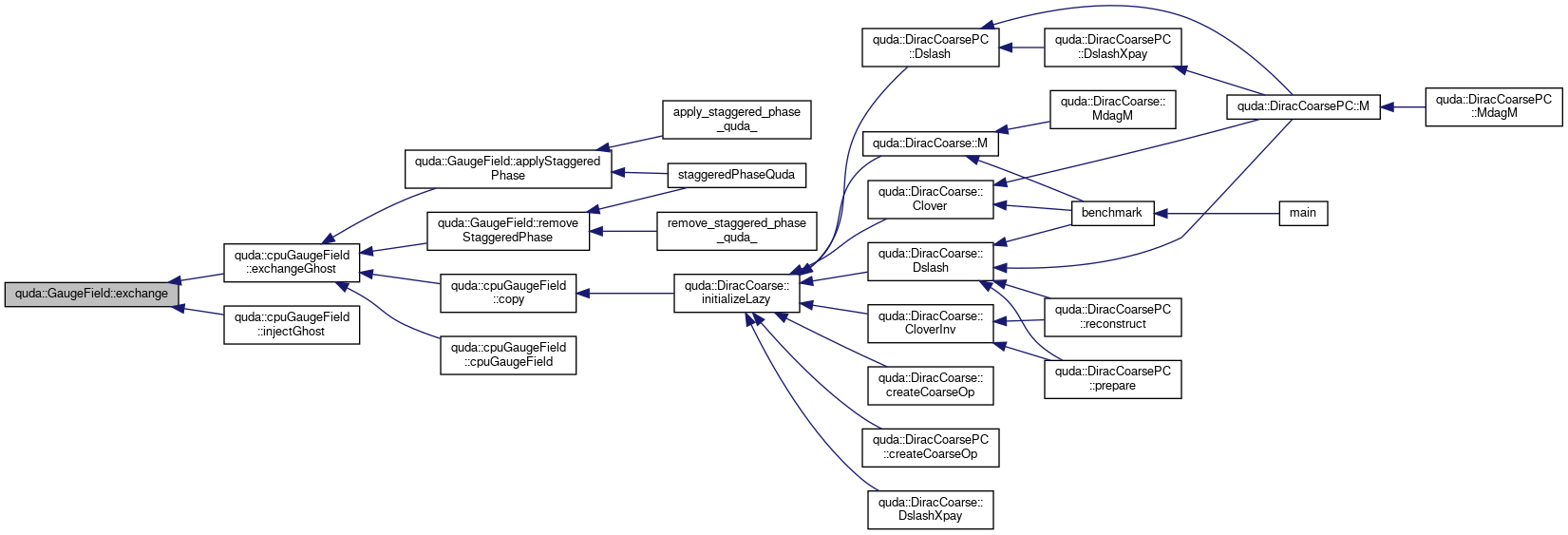

Here is the caller graph for this function:

◆ exchangeExtendedGhost() [1/2]

virtual void quda::GaugeField::exchangeExtendedGhost	(	const int *	R,
		bool	no_comms_fill = `false`
	)

pure virtual

This does routine will populate the border / halo region of a gauge field that has been created using copyExtendedGauge.

Parameters

R	The thickness of the extended region in each dimension
no_comms_fill	Do local exchange to fill out the extended region in non-partitioned dimensions

Implemented in quda::cpuGaugeField, and quda::cudaGaugeField.

Referenced by quda::gaugeGauss().

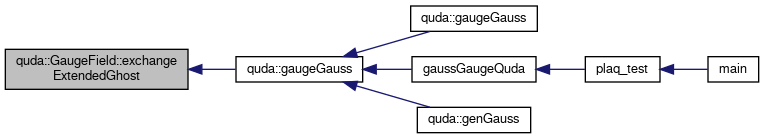

Here is the caller graph for this function:

◆ exchangeExtendedGhost() [2/2]

virtual void quda::GaugeField::exchangeExtendedGhost	(	const int *	R,
		TimeProfile &	profile,
		bool	no_comms_fill = `false`
	)

pure virtual

This does routine will populate the border / halo region of a gauge field that has been created using copyExtendedGauge. Overloaded variant that will start and stop a comms profile.

Parameters

R	The thickness of the extended region in each dimension
profile	TimeProfile intance which will record the time taken
no_comms_fill	Do local exchange to fill out the extended region in non-partitioned dimensions

Implemented in quda::cpuGaugeField, and quda::cudaGaugeField.

◆ exchangeGhost()

virtual void quda::GaugeField::exchangeGhost ( QudaLinkDirection = QUDA_LINK_BACKWARDS )

pure virtual

Implemented in quda::cpuGaugeField, and quda::cudaGaugeField.

Referenced by quda::applyGaugePhase(), and quda::gaugeGauss().

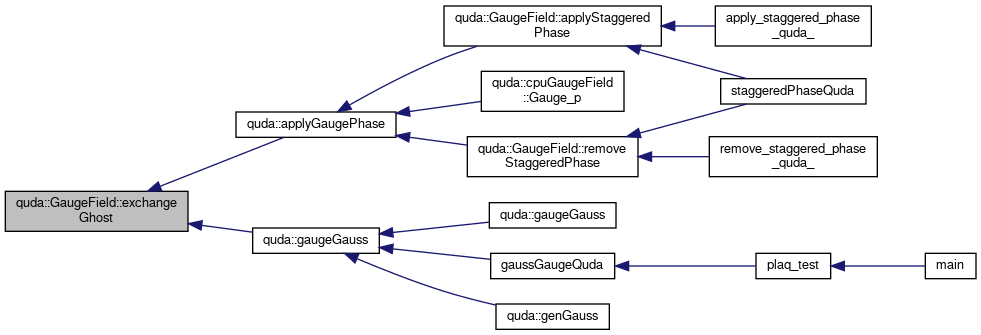

Here is the caller graph for this function:

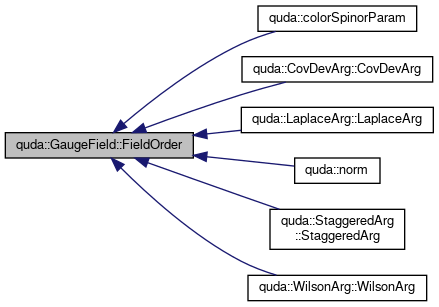

◆ FieldOrder()

QudaGaugeFieldOrder quda::GaugeField::FieldOrder ( ) const

inline

Definition at line 257 of file gauge_field.h.

References quda::GaugeFieldParam::order.

Referenced by quda::colorSpinorParam(), quda::CovDevArg< Float, nColor, reconstruct_ >::CovDevArg(), quda::LaplaceArg< Float, nColor, reconstruct_ >::LaplaceArg(), quda::norm(), quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::StaggeredArg(), and quda::WilsonArg< Float, nColor, reconstruct_ >::WilsonArg().

Here is the caller graph for this function:

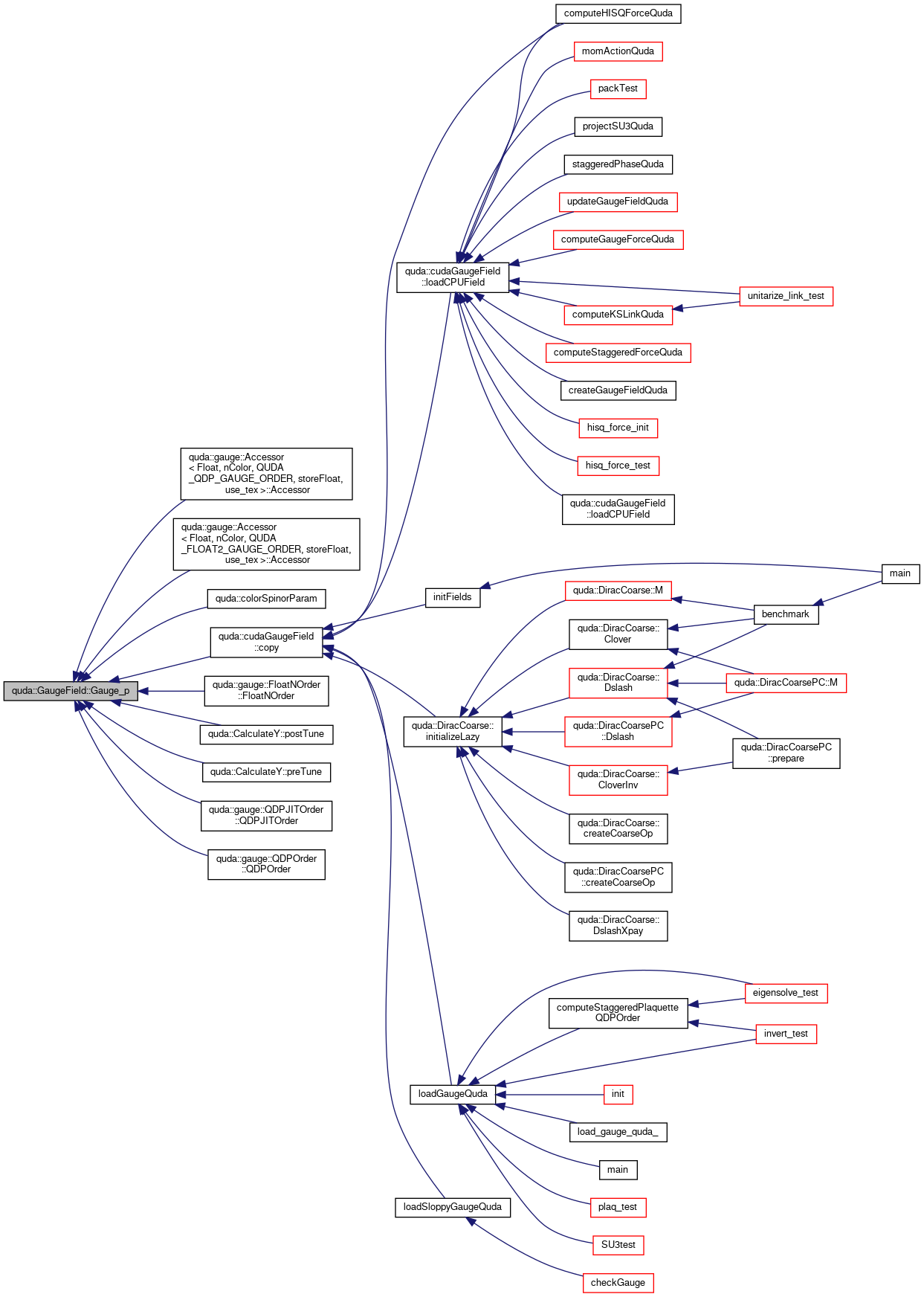

◆ Gauge_p() [1/2]

virtual void* quda::GaugeField::Gauge_p ( )

inlinevirtual

Reimplemented in quda::cpuGaugeField, and quda::cudaGaugeField.

Definition at line 315 of file gauge_field.h.

References errorQuda.

Referenced by quda::gauge::Accessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, storeFloat, use_tex >::Accessor(), quda::gauge::Accessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, storeFloat, use_tex >::Accessor(), quda::colorSpinorParam(), quda::cudaGaugeField::copy(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder(), quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::postTune(), quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::preTune(), quda::gauge::QDPJITOrder< Float, length >::QDPJITOrder(), and quda::gauge::QDPOrder< Float, length >::QDPOrder().

Here is the caller graph for this function:

◆ Gauge_p() [2/2]

virtual const void* quda::GaugeField::Gauge_p ( ) const

inlinevirtual

Reimplemented in quda::cpuGaugeField, and quda::cudaGaugeField.

Definition at line 319 of file gauge_field.h.

References errorQuda.

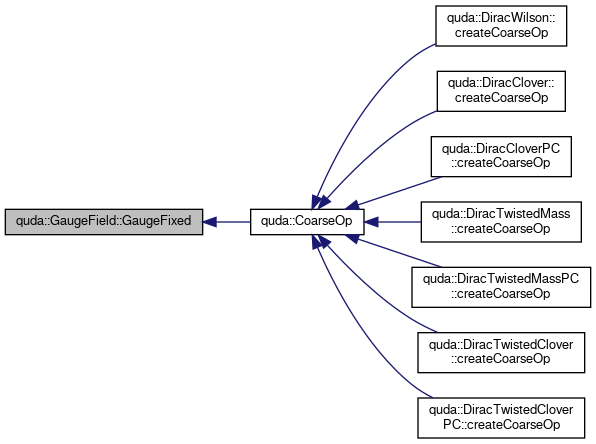

◆ GaugeFixed()

QudaGaugeFixed quda::GaugeField::GaugeFixed ( ) const

inline

Definition at line 256 of file gauge_field.h.

References quda::GaugeFieldParam::fixed.

Referenced by quda::CoarseOp().

Here is the caller graph for this function:

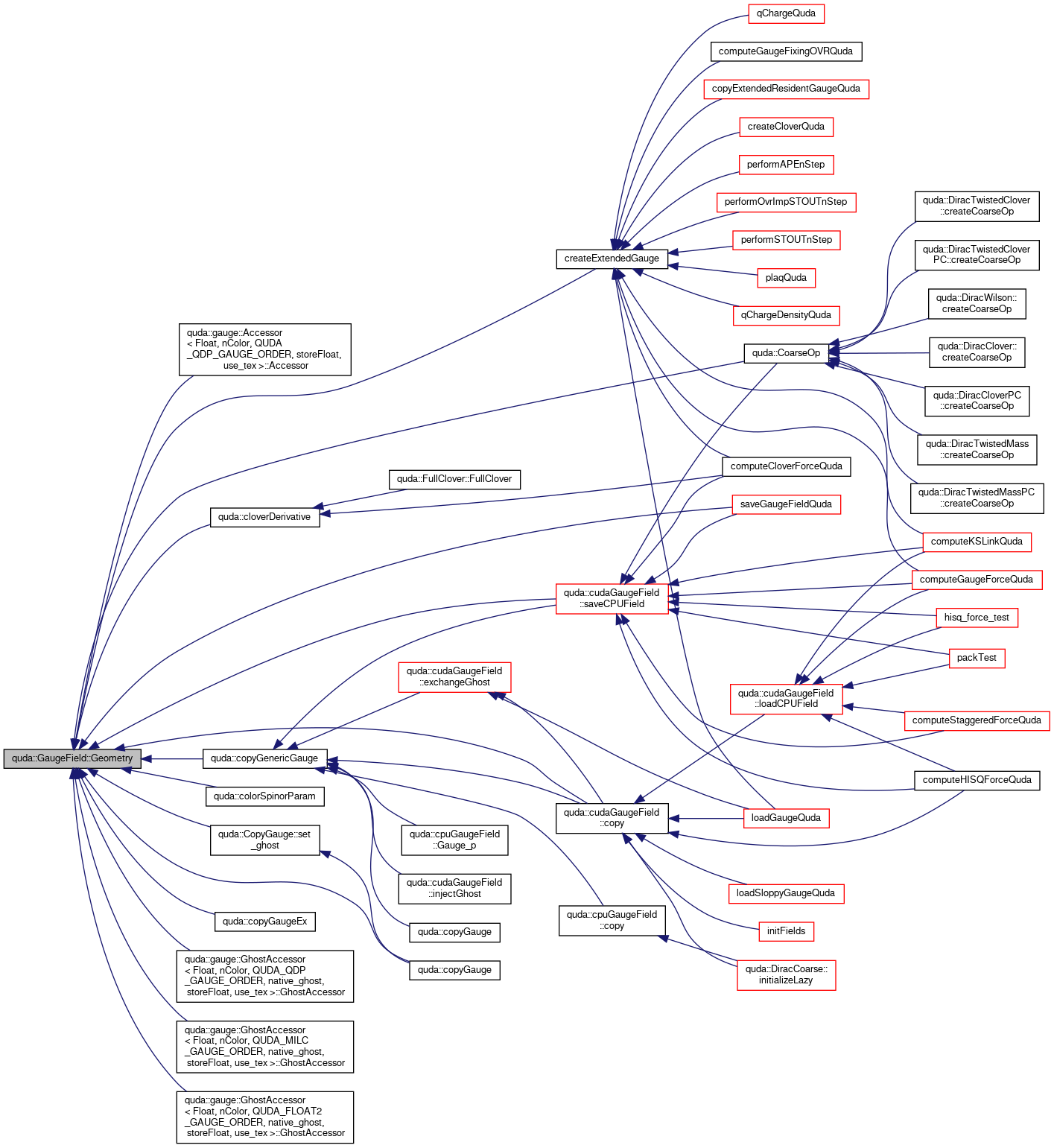

◆ Geometry()

QudaFieldGeometry quda::GaugeField::Geometry ( ) const

inline

Definition at line 258 of file gauge_field.h.

References quda::GaugeFieldParam::geometry.

Referenced by quda::gauge::Accessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, storeFloat, use_tex >::Accessor(), quda::cloverDerivative(), quda::CoarseOp(), quda::colorSpinorParam(), quda::cudaGaugeField::copy(), quda::copyGauge(), quda::copyGaugeEx(), quda::copyGenericGauge(), createExtendedGauge(), quda::gauge::GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::cudaGaugeField::saveCPUField(), saveGaugeFieldQuda(), and quda::CopyGauge< FloatOut, FloatIn, length, Arg >::set_ghost().

Here is the caller graph for this function:

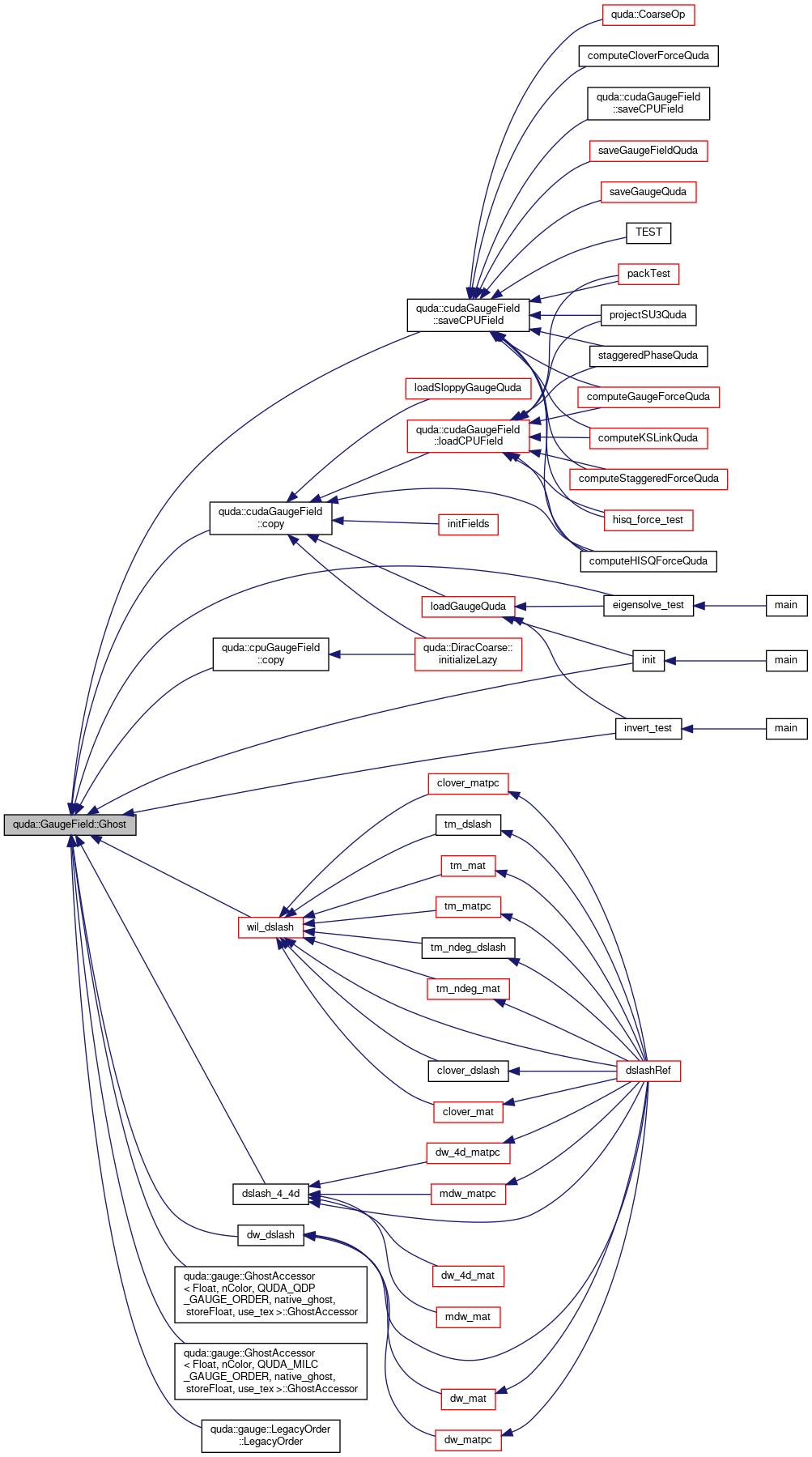

◆ Ghost() [1/2]

const void** quda::GaugeField::Ghost ( ) const

inline

Definition at line 323 of file gauge_field.h.

References errorQuda.

Referenced by quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), dslash_4_4d(), dw_dslash(), eigensolve_test(), quda::gauge::GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), init(), invert_test(), quda::gauge::LegacyOrder< Float, length >::LegacyOrder(), quda::cudaGaugeField::saveCPUField(), and wil_dslash().

Here is the caller graph for this function:

◆ Ghost() [2/2]

void** quda::GaugeField::Ghost ( )

inline

Definition at line 328 of file gauge_field.h.

References errorQuda.

◆ iMu()

double quda::GaugeField::iMu ( ) const

inline

Return the imaginary chemical potential applied to this field

Definition at line 278 of file gauge_field.h.

References quda::GaugeFieldParam::i_mu.

◆ injectGhost()

virtual void quda::GaugeField::injectGhost ( QudaLinkDirection = QUDA_LINK_BACKWARDS )

pure virtual

Implemented in quda::cpuGaugeField, and quda::cudaGaugeField.

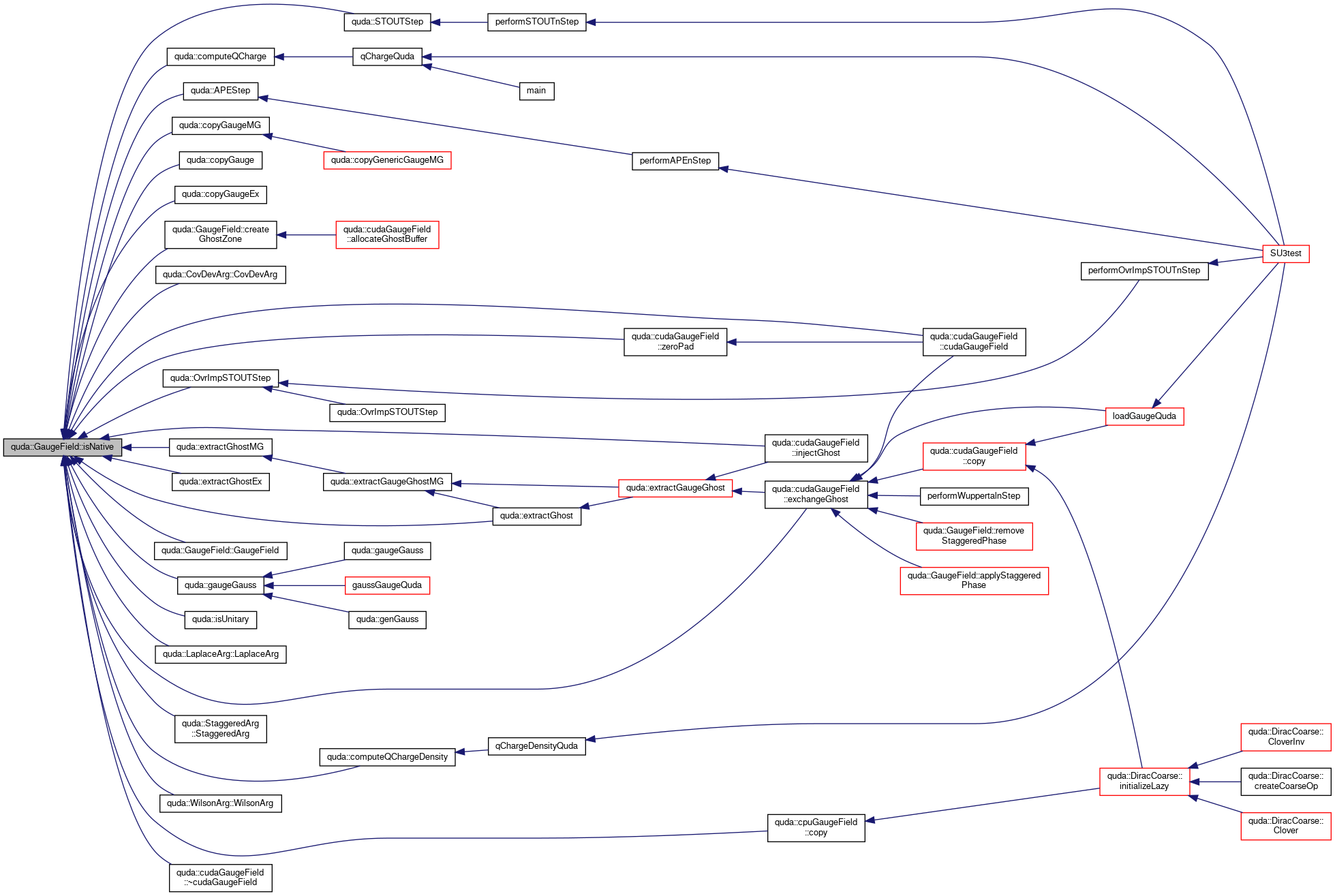

◆ isNative()

bool quda::GaugeField::isNative ( ) const

This function returns true if the field is stored in an internal field order for the given precision.

Definition at line 167 of file gauge_field.cpp.

References order, quda::LatticeField::precision, QUDA_DOUBLE_PRECISION, QUDA_FLOAT2_GAUGE_ORDER, QUDA_FLOAT4_GAUGE_ORDER, QUDA_HALF_PRECISION, QUDA_QUARTER_PRECISION, QUDA_RECONSTRUCT_10, QUDA_RECONSTRUCT_12, QUDA_RECONSTRUCT_13, QUDA_RECONSTRUCT_8, QUDA_RECONSTRUCT_9, QUDA_RECONSTRUCT_NO, QUDA_SINGLE_PRECISION, and reconstruct.

Referenced by quda::APEStep(), quda::computeQCharge(), quda::computeQChargeDensity(), quda::cpuGaugeField::copy(), quda::copyGauge(), quda::copyGaugeEx(), quda::copyGaugeMG(), quda::CovDevArg< Float, nColor, reconstruct_ >::CovDevArg(), createGhostZone(), quda::cudaGaugeField::cudaGaugeField(), quda::cudaGaugeField::exchangeGhost(), quda::extractGhost(), quda::extractGhostEx(), quda::extractGhostMG(), GaugeField(), quda::gaugeGauss(), quda::cudaGaugeField::injectGhost(), quda::isUnitary(), quda::LaplaceArg< Float, nColor, reconstruct_ >::LaplaceArg(), quda::OvrImpSTOUTStep(), quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::StaggeredArg(), quda::STOUTStep(), quda::WilsonArg< Float, nColor, reconstruct_ >::WilsonArg(), quda::cudaGaugeField::zeroPad(), and quda::cudaGaugeField::~cudaGaugeField().

Here is the caller graph for this function:

◆ Length()

size_t quda::GaugeField::Length ( ) const

inline

Definition at line 248 of file gauge_field.h.

References length.

◆ LinkMax()

const double& quda::GaugeField::LinkMax ( ) const

inline

Definition at line 280 of file gauge_field.h.

References fat_link_max.

Referenced by quda::cudaGaugeField::copy(), and quda::cpuGaugeField::copy().

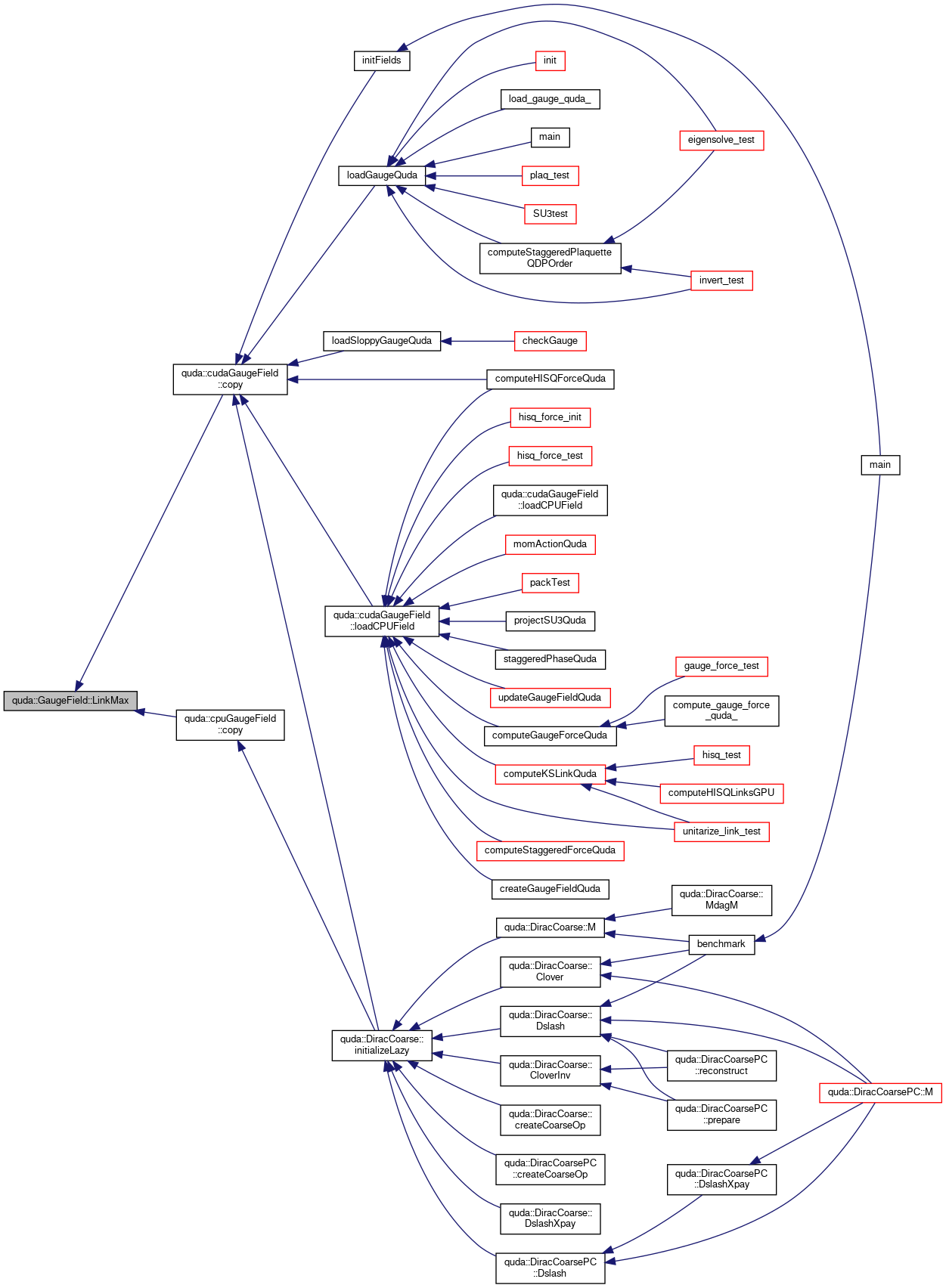

Here is the caller graph for this function:

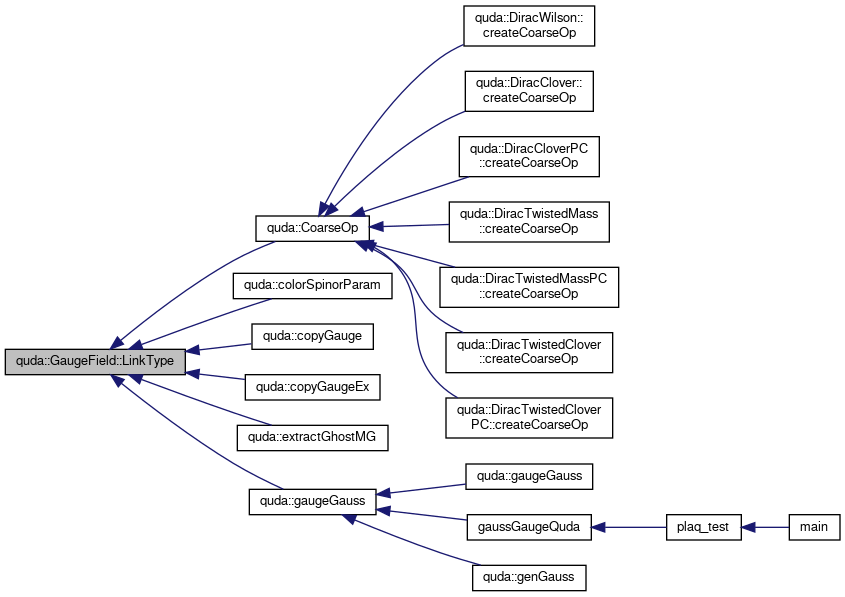

◆ LinkType()

QudaLinkType quda::GaugeField::LinkType ( ) const

inline

Definition at line 255 of file gauge_field.h.

References quda::GaugeFieldParam::link_type.

Referenced by quda::CoarseOp(), quda::colorSpinorParam(), quda::copyGauge(), quda::copyGaugeEx(), quda::extractGhostMG(), and quda::gaugeGauss().

Here is the caller graph for this function:

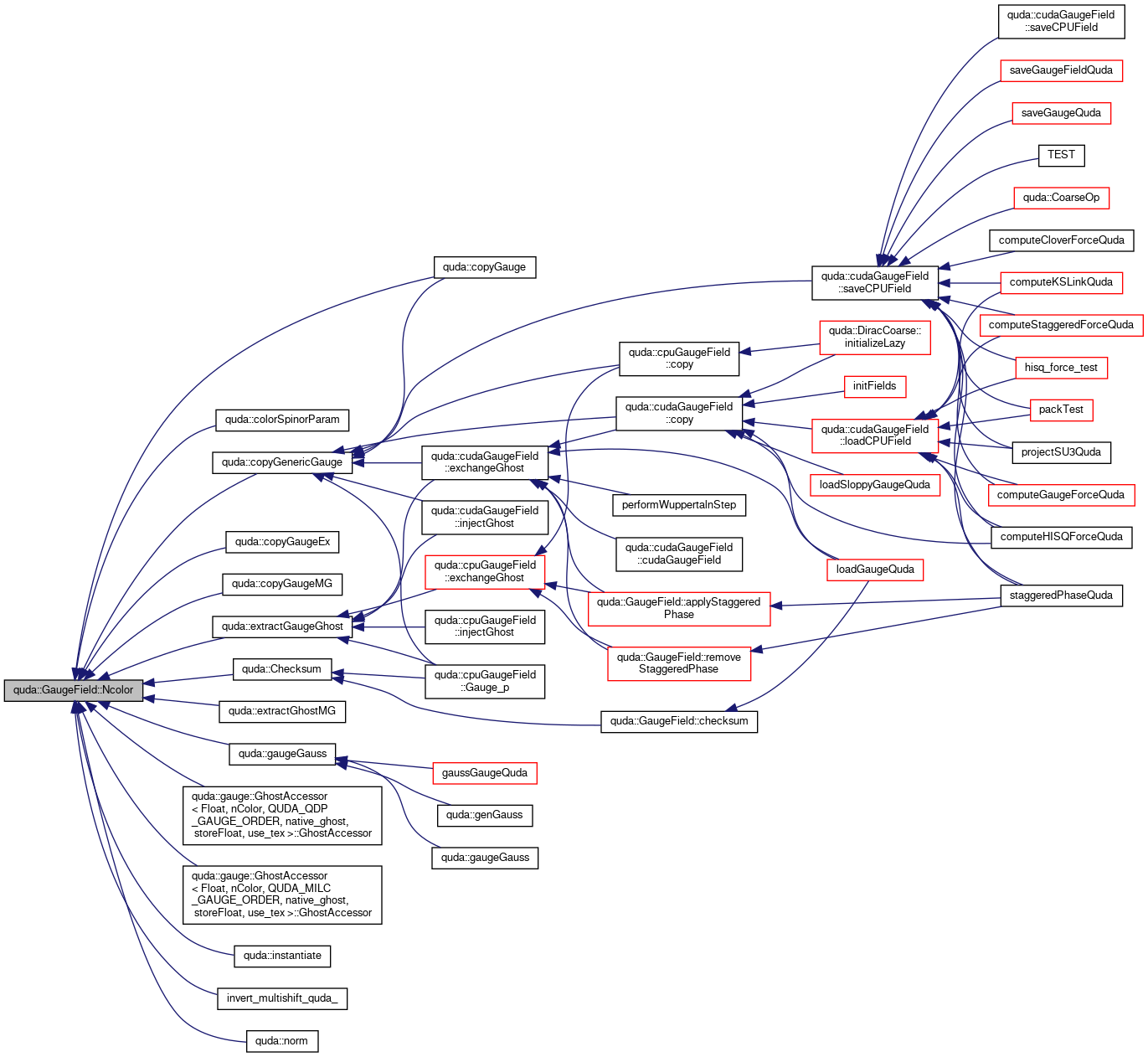

◆ Ncolor()

int quda::GaugeField::Ncolor ( ) const

inline

Definition at line 249 of file gauge_field.h.

References quda::GaugeFieldParam::nColor.

Referenced by quda::Checksum(), quda::colorSpinorParam(), quda::copyGauge(), quda::copyGaugeEx(), quda::copyGaugeMG(), quda::copyGenericGauge(), quda::extractGaugeGhost(), quda::extractGhostMG(), quda::gaugeGauss(), quda::gauge::GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::instantiate(), invert_multishift_quda_(), and quda::norm().

Here is the caller graph for this function:

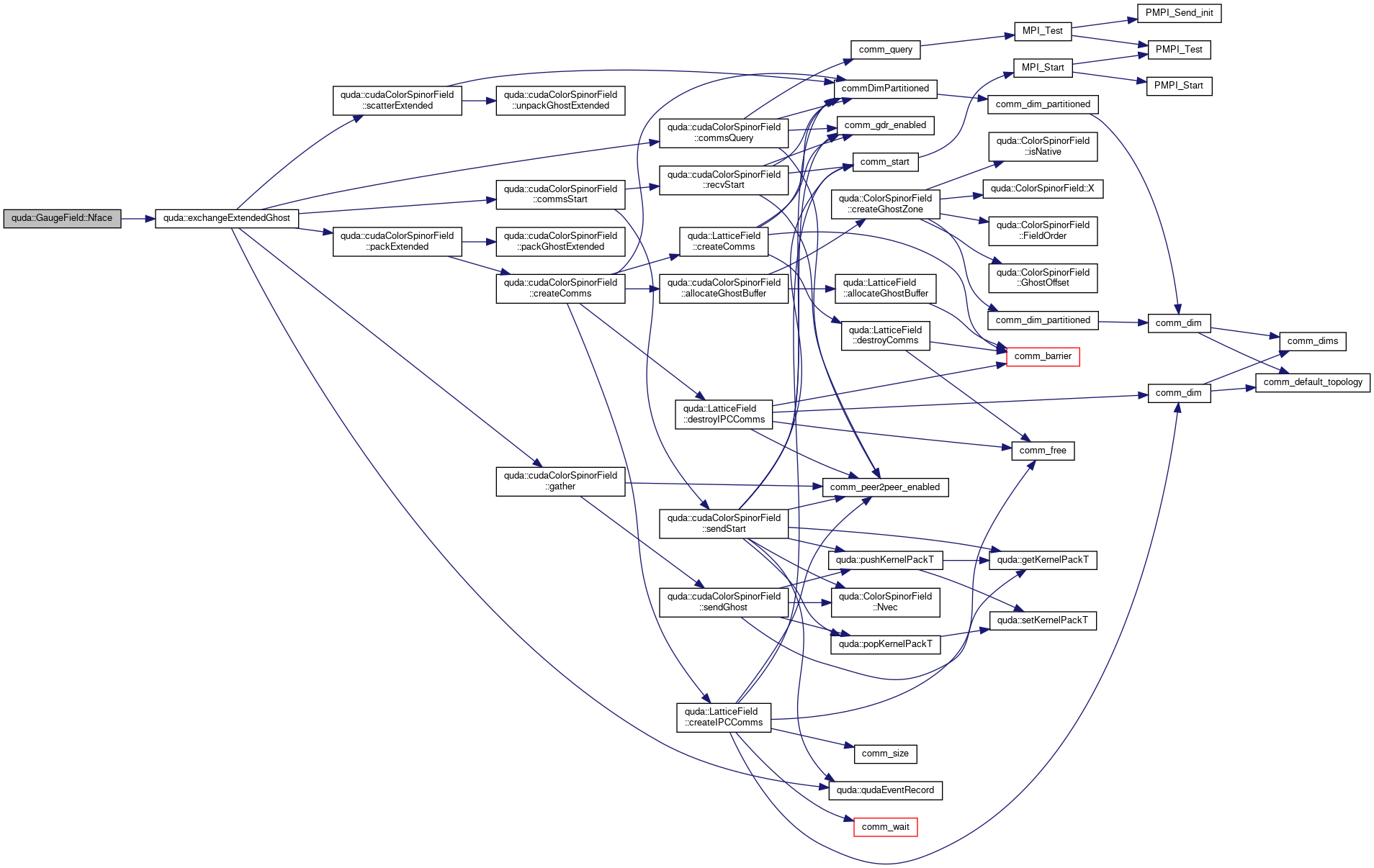

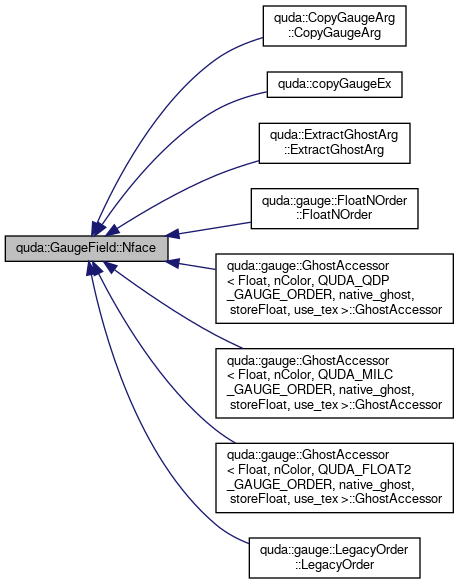

◆ Nface()

int quda::GaugeField::Nface ( ) const

inline

Definition at line 281 of file gauge_field.h.

References quda::exchangeExtendedGhost(), quda::GaugeFieldParam::nFace, and R.

Referenced by quda::CopyGaugeArg< OutOrder, InOrder >::CopyGaugeArg(), quda::copyGaugeEx(), quda::ExtractGhostArg< Float, nColor_, Order, nDim >::ExtractGhostArg(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder(), quda::gauge::GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), and quda::gauge::LegacyOrder< Float, length >::LegacyOrder().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ norm1()

double quda::GaugeField::norm1 ( int dim = -1 ) const

Compute the L1 norm of the field.

Parameters

[in] dim Which dimension we are taking the norm of (dim=-1 mean all dimensions)

Returns: L1 norm

Definition at line 58 of file max_gauge.cu.

References errorQuda, quda::NORM1, QUDA_DOUBLE_PRECISION, QUDA_HALF_PRECISION, QUDA_QUARTER_PRECISION, QUDA_RECONSTRUCT_NO, and QUDA_SINGLE_PRECISION.

◆ norm2()

double quda::GaugeField::norm2 ( int dim = -1 ) const

Compute the L2 norm squared of the field.

Parameters

[in] dim Which dimension we are taking the norm of (dim=-1 mean all dimensions)

Returns: L2 norm squared

Definition at line 71 of file max_gauge.cu.

References errorQuda, quda::NORM2, QUDA_DOUBLE_PRECISION, QUDA_HALF_PRECISION, QUDA_QUARTER_PRECISION, QUDA_RECONSTRUCT_NO, and QUDA_SINGLE_PRECISION.

◆ Odd_p() [1/2]

virtual void* quda::GaugeField::Odd_p ( )

inlinevirtual

Reimplemented in quda::cudaGaugeField.

Definition at line 317 of file gauge_field.h.

References errorQuda.

◆ Odd_p() [2/2]

virtual const void* quda::GaugeField::Odd_p ( ) const

inlinevirtual

Reimplemented in quda::cudaGaugeField.

Definition at line 321 of file gauge_field.h.

References errorQuda.

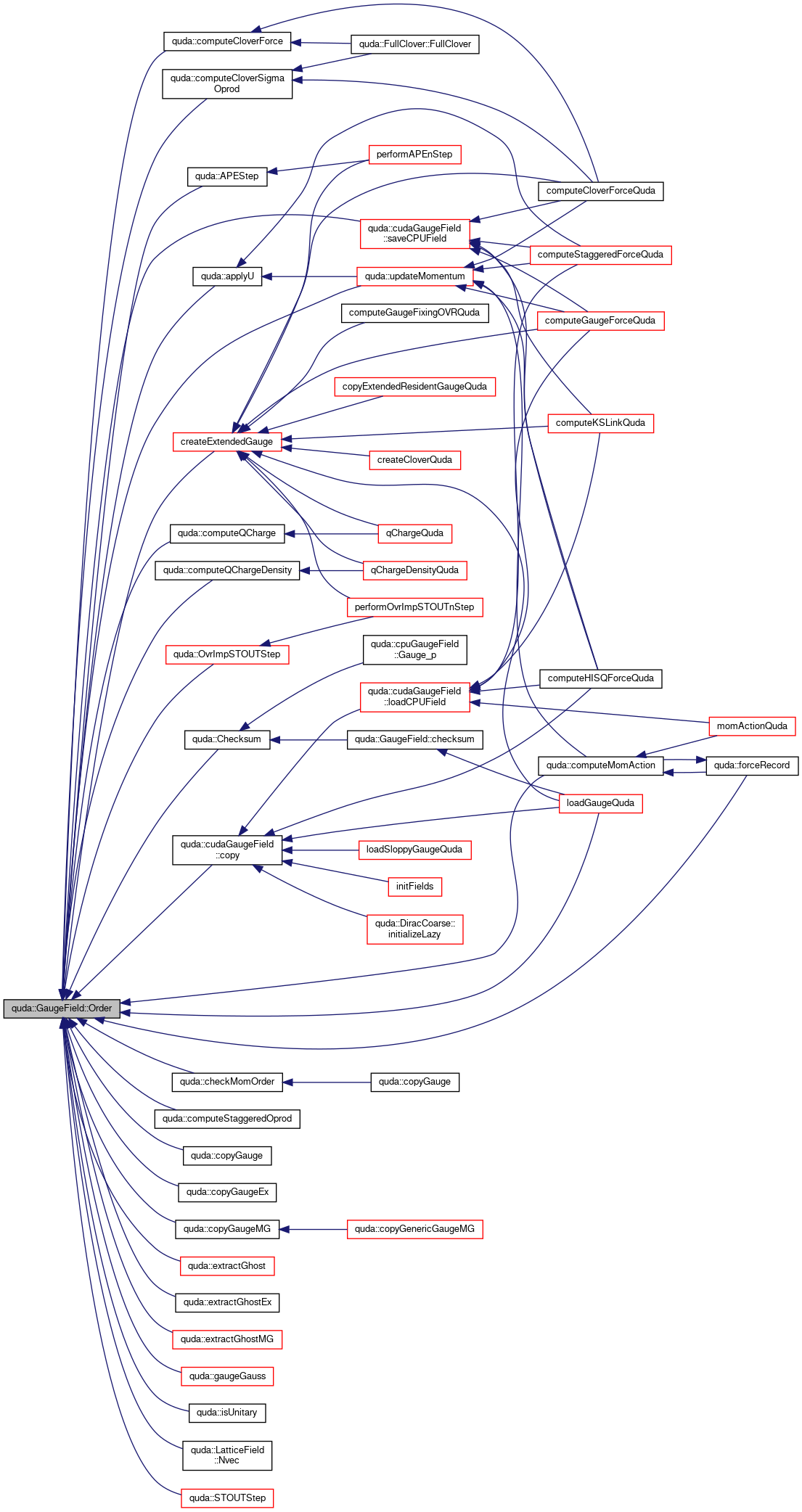

◆ Order()

QudaGaugeFieldOrder quda::GaugeField::Order ( ) const

inline

Definition at line 251 of file gauge_field.h.

References quda::GaugeFieldParam::order.

Referenced by quda::APEStep(), quda::applyU(), quda::checkMomOrder(), quda::Checksum(), quda::computeCloverForce(), quda::computeCloverSigmaOprod(), quda::computeMomAction(), quda::computeQCharge(), quda::computeQChargeDensity(), quda::computeStaggeredOprod(), quda::cudaGaugeField::copy(), quda::copyGauge(), quda::copyGaugeEx(), quda::copyGaugeMG(), createExtendedGauge(), quda::extractGhost(), quda::extractGhostEx(), quda::extractGhostMG(), quda::forceRecord(), quda::gaugeGauss(), quda::isUnitary(), loadGaugeQuda(), quda::LatticeField::Nvec(), quda::OvrImpSTOUTStep(), quda::cudaGaugeField::saveCPUField(), quda::STOUTStep(), and quda::updateMomentum().

Here is the caller graph for this function:

◆ PhaseBytes()

size_t quda::GaugeField::PhaseBytes ( ) const

inline

Definition at line 312 of file gauge_field.h.

◆ PhaseOffset()

size_t quda::GaugeField::PhaseOffset ( ) const

inline

Definition at line 313 of file gauge_field.h.

◆ Reconstruct()

QudaReconstructType quda::GaugeField::Reconstruct ( ) const

inline

Definition at line 250 of file gauge_field.h.

References quda::GaugeFieldParam::reconstruct.

Referenced by quda::APEStep(), checkGauge(), quda::checkMomOrder(), quda::CoarseOp(), quda::colorSpinorParam(), quda::completeKSForce(), quda::computeCloverForce(), quda::computeKSLongLinkForce(), quda::computeMomAction(), quda::computeQCharge(), quda::computeQChargeDensity(), quda::cudaGaugeField::copy(), quda::copyGauge(), quda::copyGaugeEx(), quda::copyGaugeMG(), createCloverQuda(), createExtendedGauge(), quda::extractGhost(), quda::extractGhostEx(), quda::extractGhostMG(), quda::fatLongKSLink(), quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::FieldOrder(), quda::forceRecord(), quda::gaugeGauss(), quda::instantiate(), quda::isUnitary(), loadGaugeQuda(), loadSloppyGaugeQuda(), quda::OvrImpSTOUTStep(), quda::projectSU3(), quda::cudaGaugeField::saveCPUField(), quda::STOUTStep(), quda::updateMomentum(), and quda::wuppertalStep().

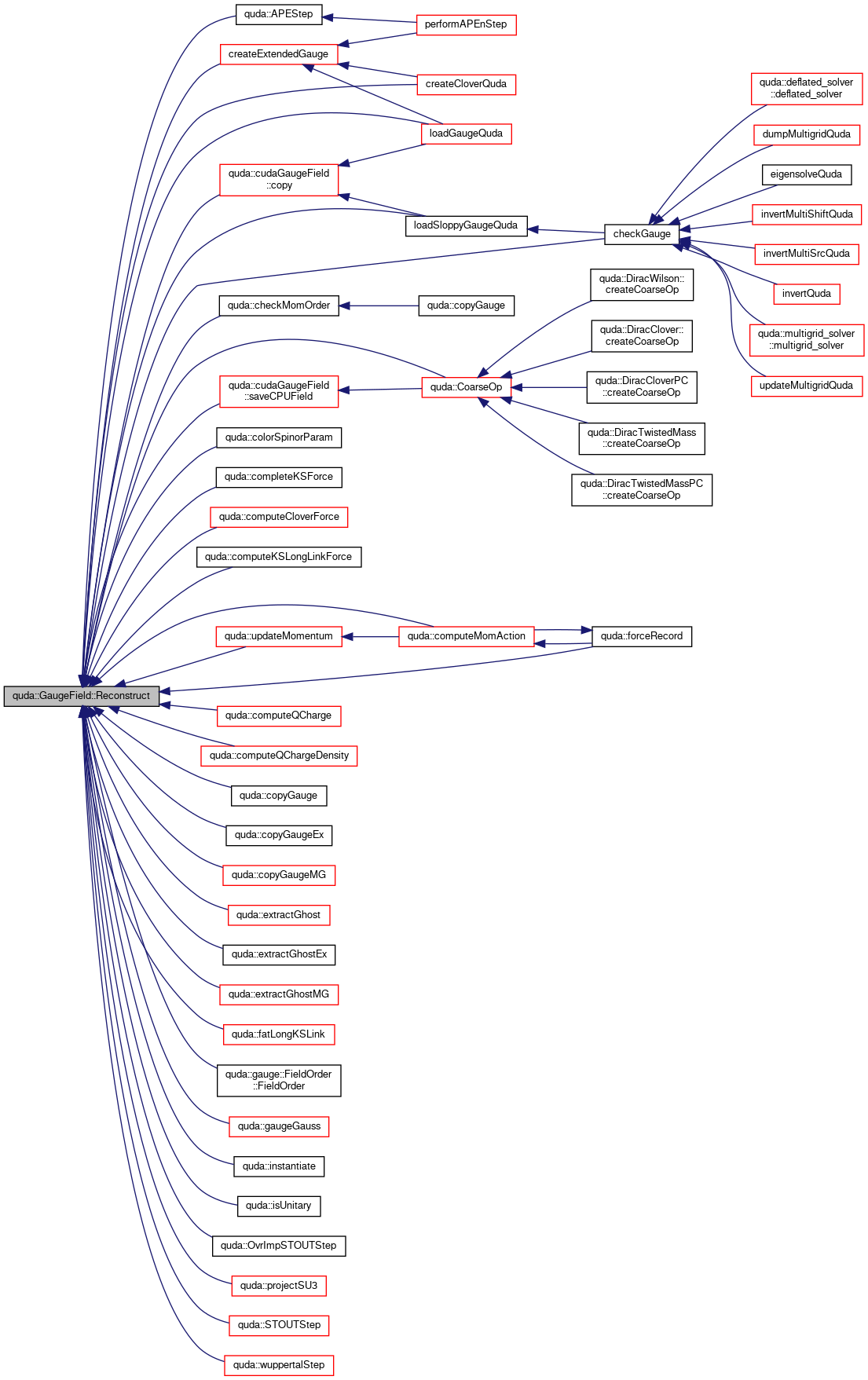

Here is the caller graph for this function:

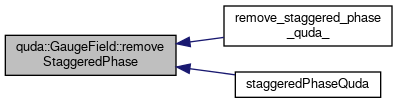

◆ removeStaggeredPhase()

void quda::GaugeField::removeStaggeredPhase ( )

Remove the staggered phase factors from the gauge field.

Definition at line 154 of file gauge_field.cpp.

References quda::applyGaugePhase(), errorQuda, quda::cudaGaugeField::exchangeGhost(), quda::cpuGaugeField::exchangeGhost(), quda::LatticeField::ghostExchange, QUDA_GHOST_EXCHANGE_PAD, and staggeredPhaseApplied.

Referenced by remove_staggered_phase_quda_(), and staggeredPhaseQuda().

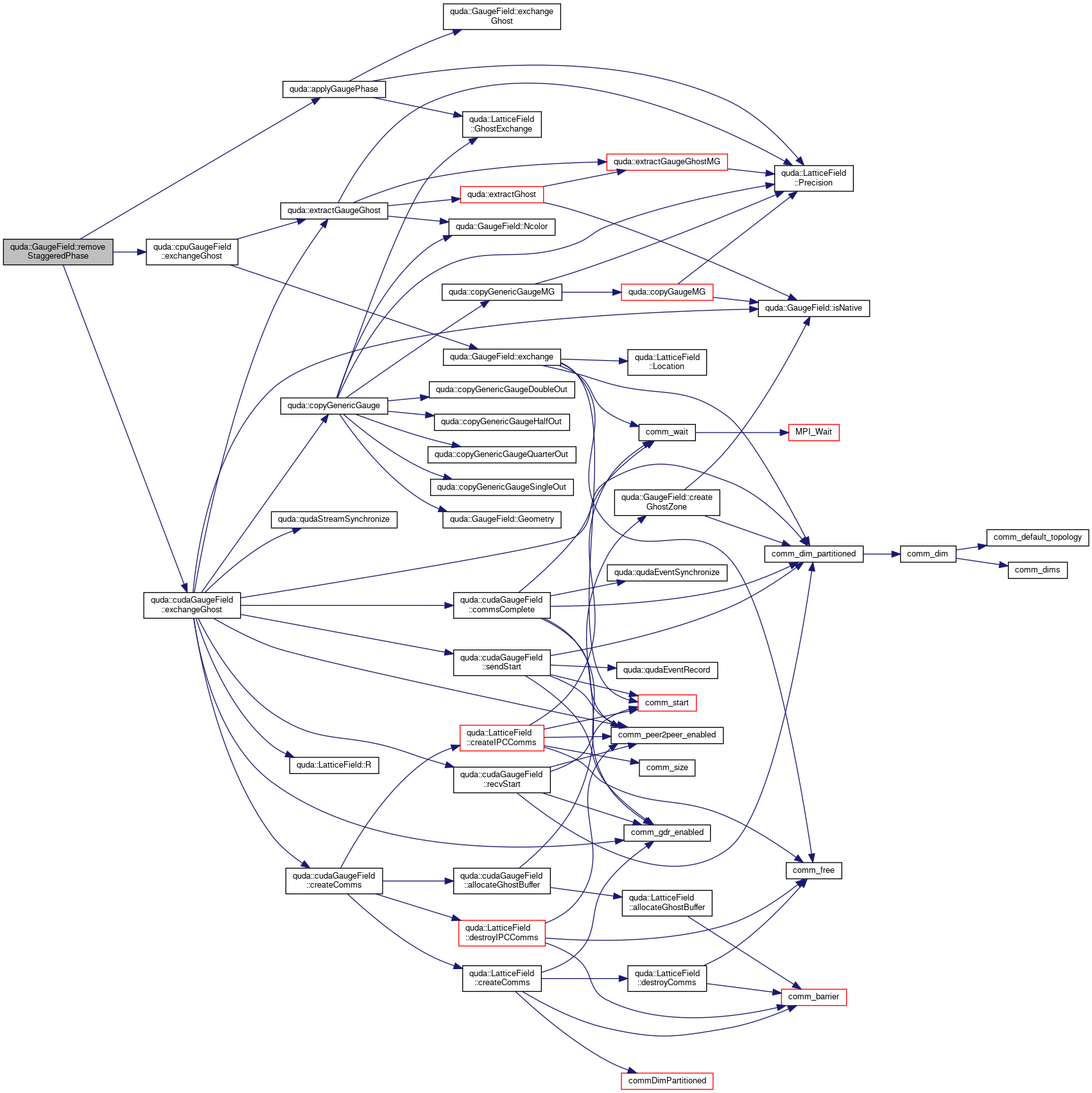

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setTuningString()

void quda::GaugeField::setTuningString ( )

protectedvirtual

Set the vol_string and aux_string for use in tuning.

Reimplemented from quda::LatticeField.

Definition at line 104 of file gauge_field.cpp.

References quda::TuneKey::aux_n, quda::LatticeField::aux_string, errorQuda, geometry, nColor, quda::LatticeField::precision, quda::LatticeField::setTuningString(), quda::LatticeField::stride, and quda::LatticeField::volume.

Referenced by GaugeField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SiteOffset()

size_t quda::GaugeField::SiteOffset ( ) const

inline

Returns: The offset into the struct to the start of the gauge field (only for order = QUDA_MILC_SITE_GAUGE_ORDER)

Definition at line 337 of file gauge_field.h.

References quda::GaugeFieldParam::site_offset.

◆ SiteSize()

size_t quda::GaugeField::SiteSize ( ) const

inline

Returns: The size of the struct into which the gauge field is packed (only for order = QUDA_MILC_SITE_GAUGE_ORDER)

Definition at line 343 of file gauge_field.h.

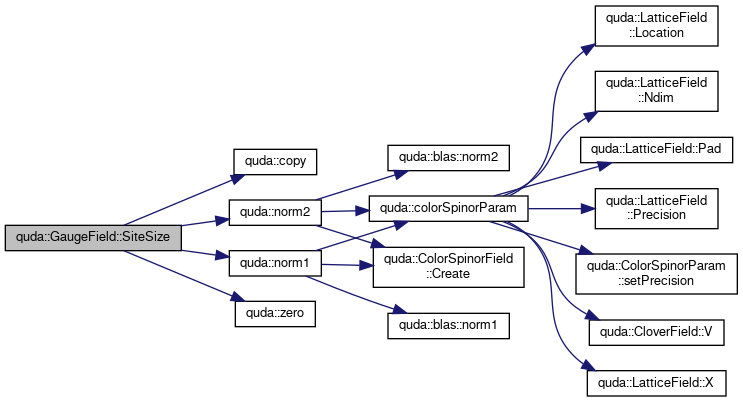

References quda::copy(), quda::norm1(), quda::norm2(), quda::GaugeFieldParam::site_size, and quda::zero().

Here is the call graph for this function:

◆ StaggeredPhase()

QudaStaggeredPhase quda::GaugeField::StaggeredPhase ( ) const

inline

Definition at line 259 of file gauge_field.h.

References quda::GaugeFieldParam::staggeredPhaseType.

Referenced by computeStaggeredForceQuda(), quda::cudaGaugeField::copy(), quda::copyGauge(), quda::extractGhost(), and quda::StaggeredApply< Float, nColor, recon_u >::StaggeredApply().

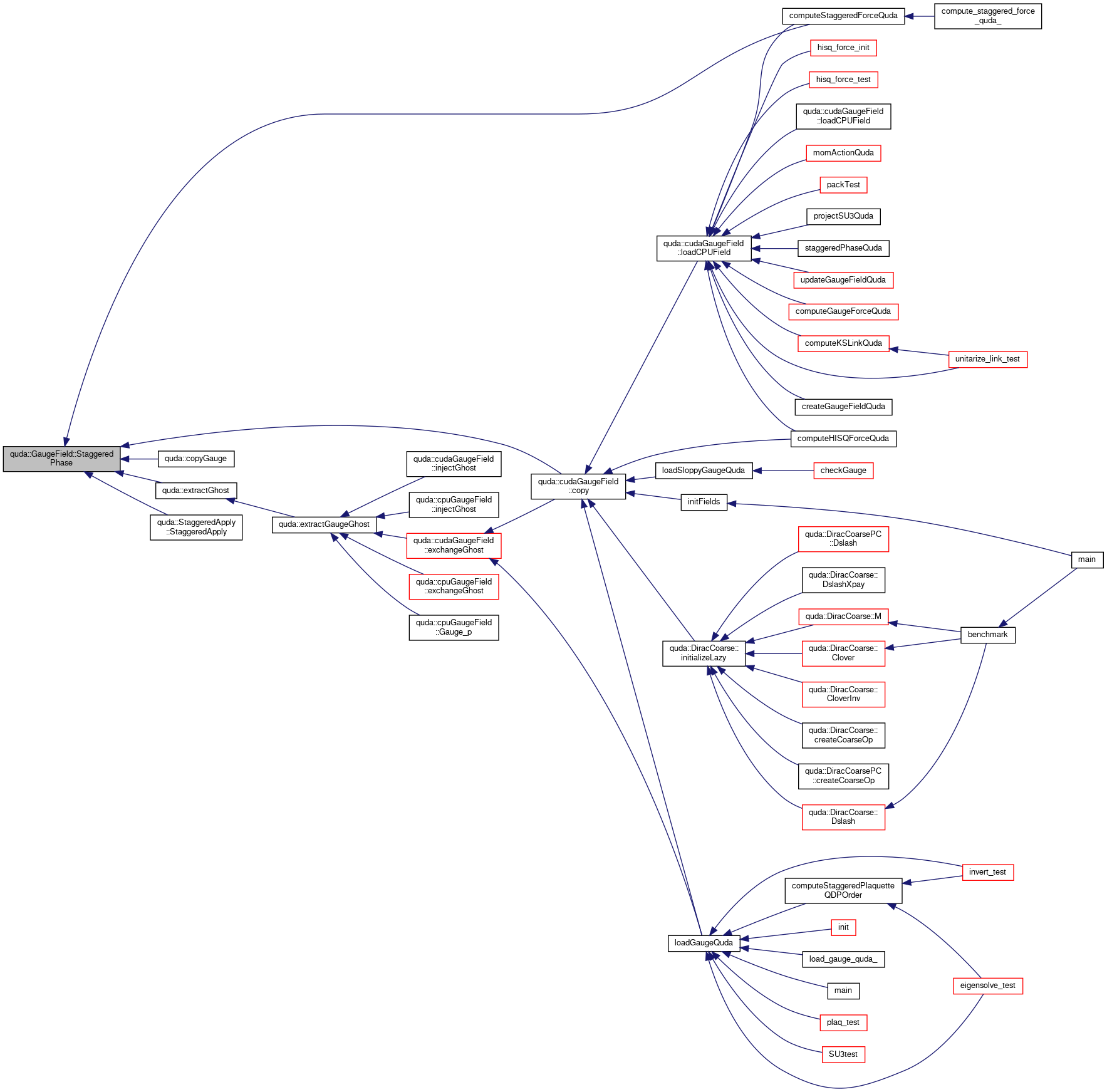

Here is the caller graph for this function:

◆ StaggeredPhaseApplied()

bool quda::GaugeField::StaggeredPhaseApplied ( ) const

inline

Definition at line 260 of file gauge_field.h.

References QUDA_STAGGERED_PHASE_INVALID, and quda::GaugeFieldParam::staggeredPhaseApplied.

Referenced by computeStaggeredForceQuda(), quda::cudaGaugeField::copy(), quda::projectSU3(), and staggeredPhaseQuda().

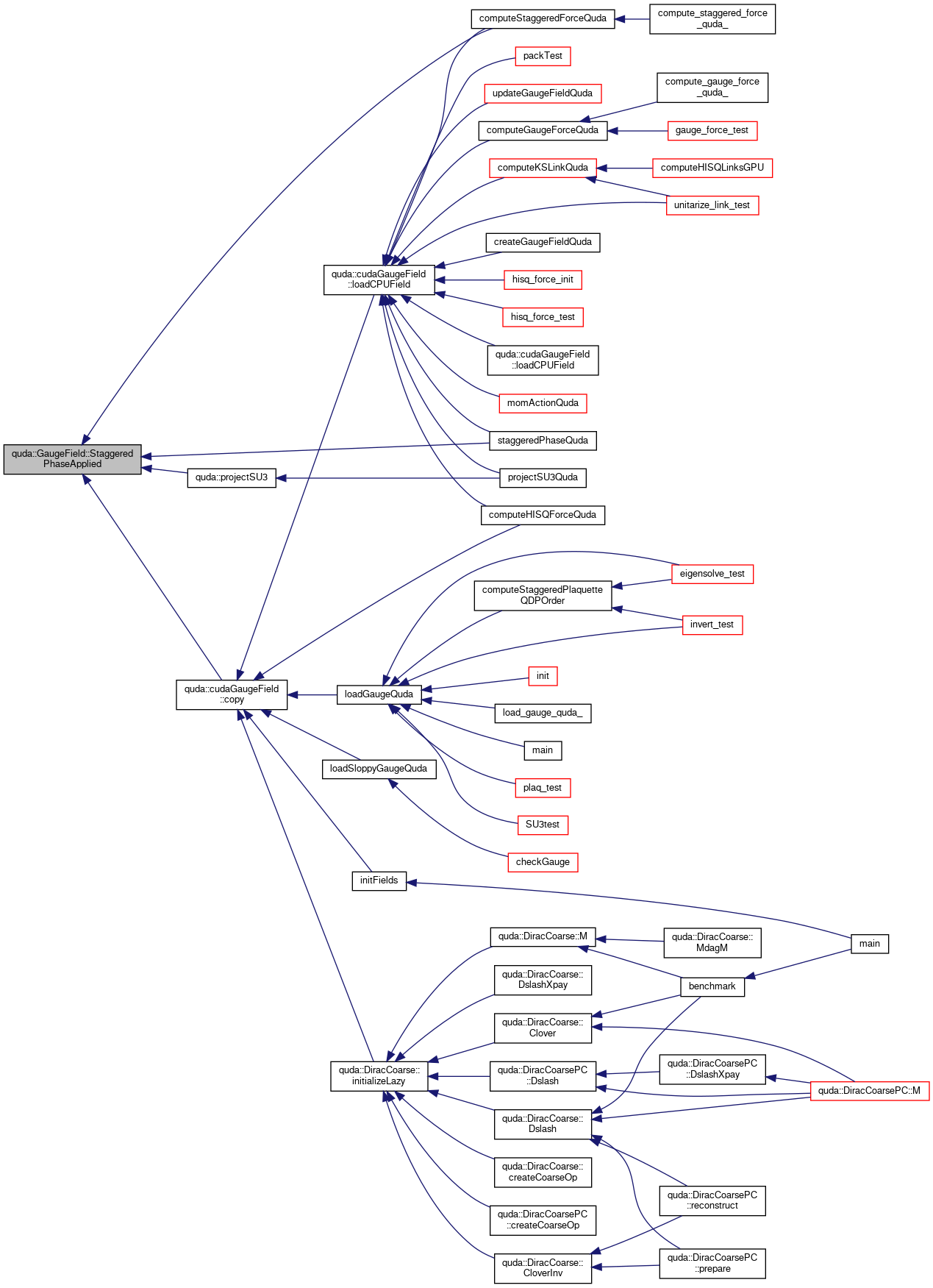

Here is the caller graph for this function:

◆ Tadpole()

double quda::GaugeField::Tadpole ( ) const

inline

Definition at line 253 of file gauge_field.h.

References quda::GaugeFieldParam::tadpole.

Referenced by createExtendedGauge().

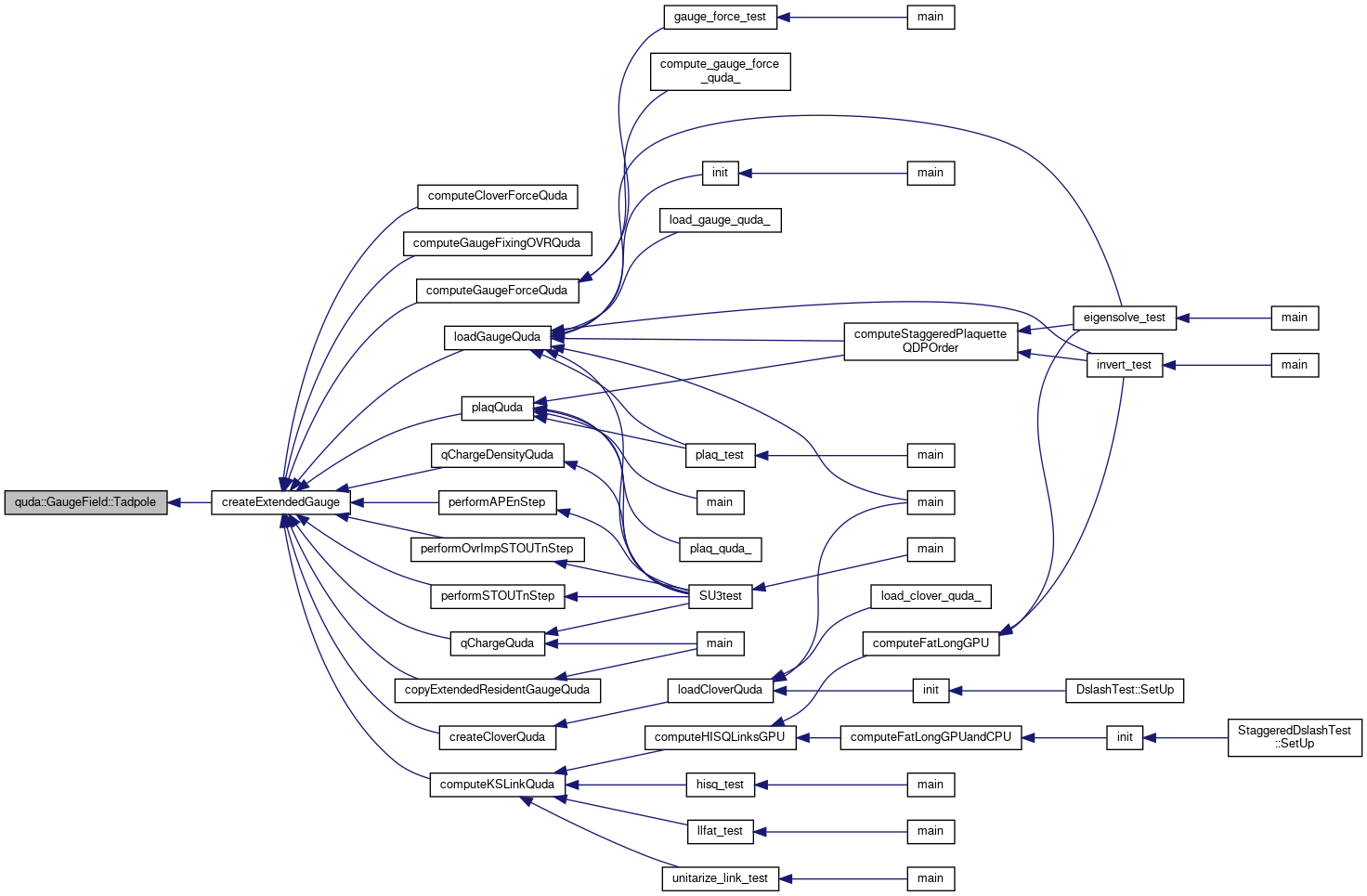

Here is the caller graph for this function:

◆ TBoundary()

QudaTboundary quda::GaugeField::TBoundary ( ) const

inline

Definition at line 254 of file gauge_field.h.

References quda::GaugeFieldParam::t_boundary.

Referenced by quda::CoarseOp(), and createExtendedGauge().

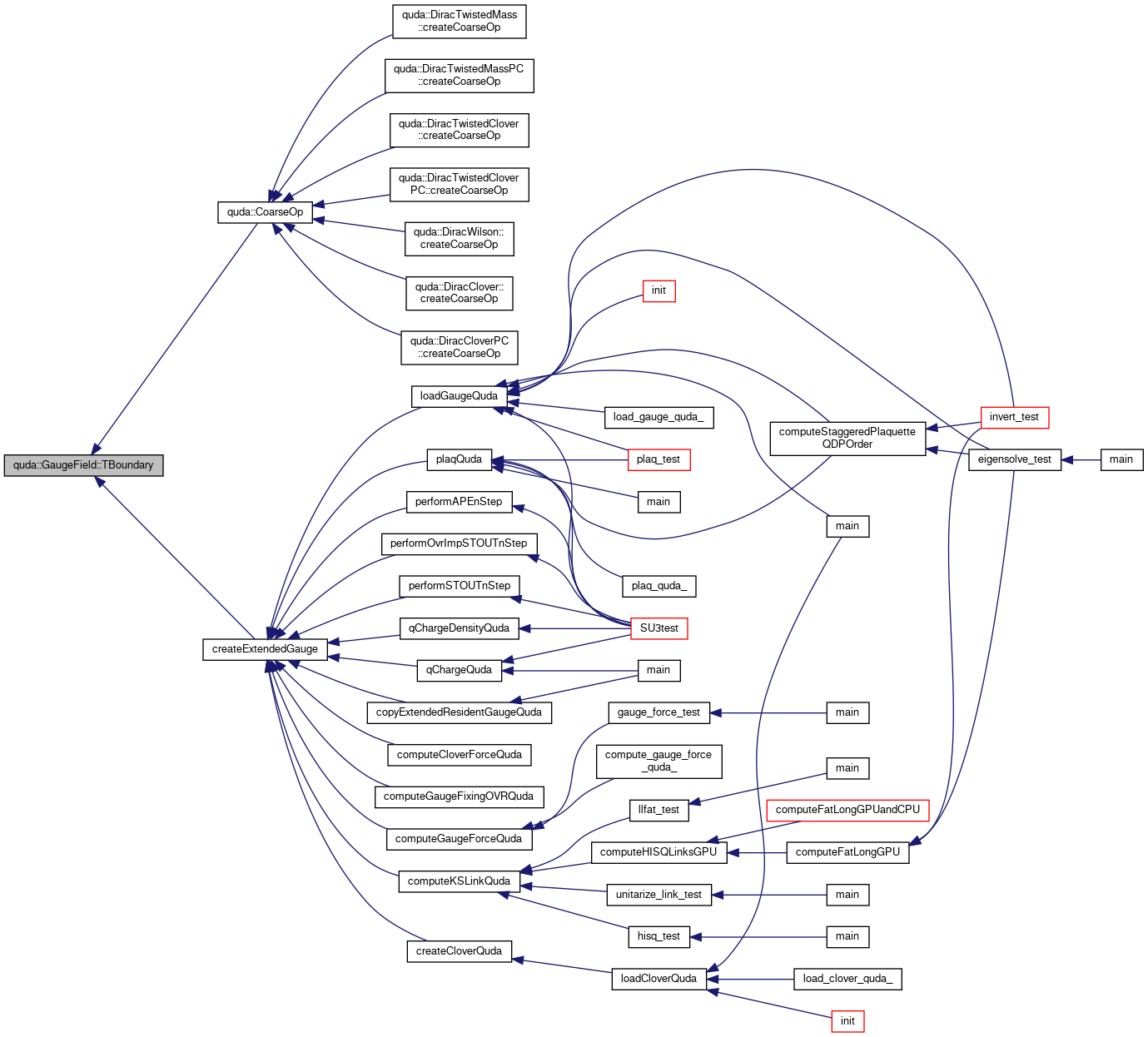

Here is the caller graph for this function:

◆ zero()

virtual void quda::GaugeField::zero ( )

pure virtual

Set all field elements to zero (virtual)

Implemented in quda::cpuGaugeField, and quda::cudaGaugeField.

Referenced by quda::calculateY().

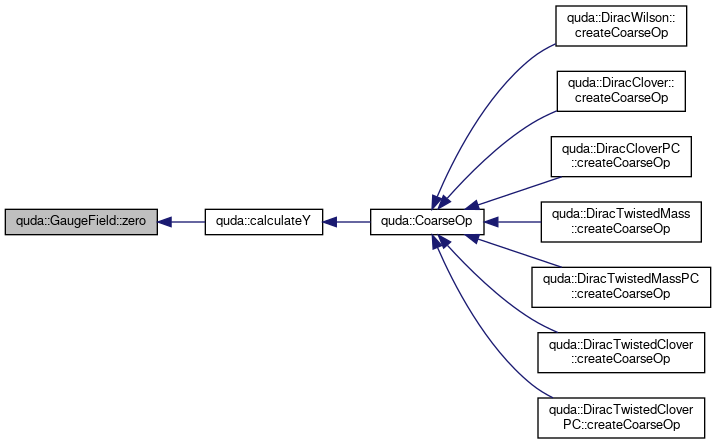

Here is the caller graph for this function:

Member Data Documentation

◆ anisotropy

double quda::GaugeField::anisotropy

protected

Definition at line 183 of file gauge_field.h.

Referenced by checkField(), and GaugeField().

◆ bytes

size_t quda::GaugeField::bytes

protected

Definition at line 167 of file gauge_field.h.

Referenced by quda::cudaGaugeField::backup(), quda::cpuGaugeField::backup(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), exchange(), quda::cpuGaugeField::exchangeExtendedGhost(), GaugeField(), quda::cudaGaugeField::restore(), quda::cudaGaugeField::saveCPUField(), quda::cudaGaugeField::zero(), and quda::cudaGaugeField::zeroPad().

◆ create

QudaFieldCreate quda::GaugeField::create

protected

Definition at line 187 of file gauge_field.h.

Referenced by quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), quda::cudaGaugeField::setGauge(), quda::cpuGaugeField::setGauge(), quda::cpuGaugeField::~cpuGaugeField(), and quda::cudaGaugeField::~cudaGaugeField().

◆ fat_link_max

double quda::GaugeField::fat_link_max

protected

Definition at line 185 of file gauge_field.h.

Referenced by quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), and quda::cpuGaugeField::cpuGaugeField().

◆ fixed

QudaGaugeFixed quda::GaugeField::fixed

protected

Definition at line 179 of file gauge_field.h.

Referenced by checkField(), and GaugeField().

◆ geometry

QudaFieldGeometry quda::GaugeField::geometry

protected

◆ ghost

void* quda::GaugeField::ghost[2 *QUDA_MAX_DIM]

mutableprotected

Definition at line 189 of file gauge_field.h.

Referenced by quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), quda::cudaGaugeField::exchangeGhost(), quda::cpuGaugeField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), quda::cpuGaugeField::injectGhost(), quda::cpuGaugeField::~cpuGaugeField(), and quda::cudaGaugeField::~cudaGaugeField().

◆ ghostFace

int quda::GaugeField::ghostFace[QUDA_MAX_DIM]

mutableprotected

Definition at line 191 of file gauge_field.h.

Referenced by createGhostZone().

◆ i_mu

double quda::GaugeField::i_mu

protected

Imaginary chemical potential

Definition at line 214 of file gauge_field.h.

◆ length

size_t quda::GaugeField::length

protected

Definition at line 170 of file gauge_field.h.

Referenced by GaugeField().

◆ link_type

QudaLinkType quda::GaugeField::link_type

protected

Definition at line 180 of file gauge_field.h.

Referenced by checkField(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), GaugeField(), and quda::cpuGaugeField::~cpuGaugeField().

◆ nColor

int quda::GaugeField::nColor

protected

Definition at line 172 of file gauge_field.h.

Referenced by checkField(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), GaugeField(), quda::cudaGaugeField::saveCPUField(), setTuningString(), and quda::cudaGaugeField::zeroPad().

◆ nFace

int quda::GaugeField::nFace

protected

Definition at line 173 of file gauge_field.h.

Referenced by checkField(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), exchange(), quda::cudaGaugeField::exchangeGhost(), quda::cpuGaugeField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), quda::cpuGaugeField::injectGhost(), and quda::cudaGaugeField::saveCPUField().

◆ nInternal

int quda::GaugeField::nInternal

protected

Definition at line 177 of file gauge_field.h.

Referenced by quda::cpuGaugeField::cpuGaugeField(), createGhostZone(), quda::cudaGaugeField::cudaGaugeField(), exchange(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cpuGaugeField::exchangeGhost(), GaugeField(), quda::cpuGaugeField::injectGhost(), and quda::operator<<().

◆ order

QudaGaugeFieldOrder quda::GaugeField::order

protected

Definition at line 178 of file gauge_field.h.

Referenced by quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), quda::cpuGaugeField::exchangeExtendedGhost(), isNative(), quda::cudaGaugeField::zeroPad(), and quda::cpuGaugeField::~cpuGaugeField().

◆ phase_bytes

size_t quda::GaugeField::phase_bytes

protected

Definition at line 169 of file gauge_field.h.

Referenced by GaugeField(), and quda::cudaGaugeField::zeroPad().

◆ phase_offset

size_t quda::GaugeField::phase_offset

protected

Definition at line 168 of file gauge_field.h.

Referenced by quda::cudaGaugeField::cudaGaugeField(), and GaugeField().

◆ real_length

size_t quda::GaugeField::real_length

protected

Definition at line 171 of file gauge_field.h.

Referenced by GaugeField().

◆ reconstruct

QudaReconstructType quda::GaugeField::reconstruct

protected

Definition at line 176 of file gauge_field.h.

Referenced by quda::cpuGaugeField::copy(), quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), GaugeField(), isNative(), and quda::cudaGaugeField::zeroPad().

◆ site_offset

size_t quda::GaugeField::site_offset

protected

Offset into MILC site struct to the desired matrix field (only if gauge_order=MILC_SITE_GAUGE_ORDER)

Definition at line 219 of file gauge_field.h.

◆ site_size

size_t quda::GaugeField::site_size

protected

Size of MILC site struct (only if gauge_order=MILC_SITE_GAUGE_ORDER)

Definition at line 224 of file gauge_field.h.

Referenced by quda::cpuGaugeField::cpuGaugeField().

◆ staggeredPhaseApplied

bool quda::GaugeField::staggeredPhaseApplied

protected

Whether the staggered phase factor has been applied

Definition at line 201 of file gauge_field.h.

Referenced by applyStaggeredPhase(), quda::cudaGaugeField::copy(), removeStaggeredPhase(), and quda::cudaGaugeField::saveCPUField().

◆ staggeredPhaseType

QudaStaggeredPhase quda::GaugeField::staggeredPhaseType

protected

The staggered phase convention to use

Definition at line 196 of file gauge_field.h.

Referenced by applyStaggeredPhase(), quda::cudaGaugeField::copy(), and quda::cudaGaugeField::saveCPUField().

◆ t_boundary

QudaTboundary quda::GaugeField::t_boundary

protected

Definition at line 181 of file gauge_field.h.

Referenced by checkField().

◆ tadpole

double quda::GaugeField::tadpole

protected

Definition at line 184 of file gauge_field.h.

Referenced by checkField().

The documentation for this class was generated from the following files:

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ GaugeField()

◆ ~GaugeField()

Member Function Documentation

◆ abs_max()

◆ abs_min()

◆ Anisotropy()

◆ applyStaggeredPhase()

◆ Bytes()

◆ checkField()

◆ checksum()

◆ copy()

◆ Create()

◆ createGhostZone()

◆ Even_p() [1/2]

◆ Even_p() [2/2]

◆ exchange()

◆ exchangeExtendedGhost() [1/2]

◆ exchangeExtendedGhost() [2/2]

◆ exchangeGhost()

◆ FieldOrder()

◆ Gauge_p() [1/2]

◆ Gauge_p() [2/2]

◆ GaugeFixed()

◆ Geometry()

◆ Ghost() [1/2]

◆ Ghost() [2/2]

◆ iMu()

◆ injectGhost()

◆ isNative()

◆ Length()

◆ LinkMax()

◆ LinkType()

◆ Ncolor()

◆ Nface()

◆ norm1()

◆ norm2()

◆ Odd_p() [1/2]

◆ Odd_p() [2/2]

◆ Order()

◆ PhaseBytes()

◆ PhaseOffset()

◆ Reconstruct()

◆ removeStaggeredPhase()

◆ setTuningString()

◆ SiteOffset()

◆ SiteSize()

◆ StaggeredPhase()

◆ StaggeredPhaseApplied()

◆ Tadpole()

◆ TBoundary()

◆ zero()

Member Data Documentation

◆ anisotropy

◆ bytes

◆ create

◆ fat_link_max

◆ fixed

◆ geometry

◆ ghost

◆ ghostFace

◆ i_mu

◆ length

◆ link_type

◆ nColor

◆ nFace

◆ nInternal

◆ order

◆ phase_bytes

◆ phase_offset

◆ real_length

◆ reconstruct

◆ site_offset

◆ site_size
