quda::linalg::Cholesky< Mat, T, N, fast > Class Template Reference

Compute Cholesky decomposition of A. By default, we use a modified Cholesky which avoids the division and sqrt, and instead only needs rsqrt. In which case we must use a modified forward and backward difference substitution. More...

Public Member Functions
__device__ __host__	Cholesky (const Mat< T, N > &A)
	Constructor that computes the Cholesky decomposition. More...
__device__ __host__ const T	D (int i) const
	Return the diagonal element of the Cholesky decomposition L(i,i) More...
template<class Vector >
__device__ __host__ Vector	forward (const Vector &b)
	Forward substition to solve Lx = b. More...
template<class Vector >
__device__ __host__ Vector	backward (const Vector &b)
	Backward substition to solve L^dagger x = b. More...
__device__ __host__ Mat< T, N >	invert ()
	Compute the inverse of A (the matrix used to construct the Cholesky decomposition). More...

Private Attributes
Mat< T, N >	L_
	The Cholesky factorization. More...

Detailed Description

template<template< typename, int > class Mat, typename T, int N, bool fast = true>
class quda::linalg::Cholesky< Mat, T, N, fast >

Compute Cholesky decomposition of A. By default, we use a modified Cholesky which avoids the division and sqrt, and instead only needs rsqrt. In which case we must use a modified forward and backward difference substitution.

Template Parameters

Mat	The Matrix container class type. This can either be a general Matrix (quda::Matrix) or a Hermitian matrix (quda::HMatrix).
T	The underlying type. For Hermitian matrices this should be real type and for general matrices this should be the complex type.
N	The size of the linear system we are solving
fast	Whether to use the optimized Cholesky algorithm that stores the reciprocal sqrt on the diagonal of L, instead of the sqrt. This flag must be consistent with the equivalent flag used with the forward and backward substitutions.

Definition at line 38 of file linalg.cuh.

Constructor & Destructor Documentation

Cholesky()

template<template< typename, int > class Mat, typename T, int N, bool fast = true>

__device__ __host__ quda::linalg::Cholesky< Mat, T, N, fast >::Cholesky ( const Mat< T, N > &  A )

inline

Constructor that computes the Cholesky decomposition.

Parameters

[in]

A

Input matrix we are decomposing

Definition at line 48 of file linalg.cuh.

References quda::linalg::Cholesky< Mat, T, N, fast >::L_, quda::s, and quda::sqrt().

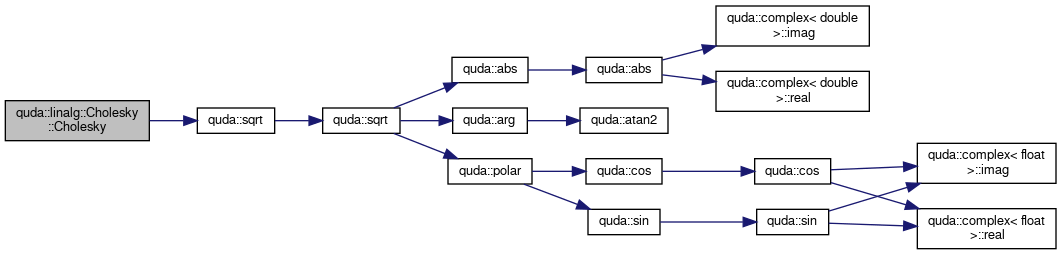

Here is the call graph for this function:

Member Function Documentation

backward()

template<template< typename, int > class Mat, typename T, int N, bool fast = true>

template<class Vector >

__device__ __host__ Vector quda::linalg::Cholesky< Mat, T, N, fast >::backward ( const Vector &  b )

inline

Backward substition to solve L^dagger x = b.

Template Parameters

Vector

The Vector container class, e.g., quda::colorspinor

Parameters

[in]

b

Source vector

Returns

solution vector

Definition at line 123 of file linalg.cuh.

References quda::linalg::Cholesky< Mat, T, N, fast >::L_.

Referenced by quda::computeAV(), and quda::computeTMCAV().

Here is the caller graph for this function:

D()

template<template< typename, int > class Mat, typename T, int N, bool fast = true>

__device__ __host__ const T quda::linalg::Cholesky< Mat, T, N, fast >::D ( int  i ) const

inline

Return the diagonal element of the Cholesky decomposition L(i,i)

Parameters

[in]

i

Index

Returns

Element at L(i,i)

Definition at line 84 of file linalg.cuh.

References quda::linalg::Cholesky< Mat, T, N, fast >::L_.

Referenced by quda::cloverInvertCompute().

Here is the caller graph for this function:

forward()

template<template< typename, int > class Mat, typename T, int N, bool fast = true>

template<class Vector >

__device__ __host__ Vector quda::linalg::Cholesky< Mat, T, N, fast >::forward ( const Vector &  b )

inline

Forward substition to solve Lx = b.

Template Parameters

Vector

The Vector container class, e.g., quda::colorspinor

Parameters

[in]

b

Source vector

Returns

solution vector

Definition at line 97 of file linalg.cuh.

References quda::linalg::Cholesky< Mat, T, N, fast >::L_.

Referenced by quda::computeAV(), and quda::computeTMCAV().

Here is the caller graph for this function:

invert()

template<template< typename, int > class Mat, typename T, int N, bool fast = true>

__device__ __host__ Mat<T,N> quda::linalg::Cholesky< Mat, T, N, fast >::invert ( )

inline

Compute the inverse of A (the matrix used to construct the Cholesky decomposition).

Returns

Matrix inverse

Definition at line 146 of file linalg.cuh.

References quda::linalg::Cholesky< Mat, T, N, fast >::L_.

Referenced by quda::cloverInvertCompute(), and quda::ComputeTMAVGPU().

Here is the caller graph for this function:

Member Data Documentation

L_

template<template< typename, int > class Mat, typename T, int N, bool fast = true>

Mat<T,N> quda::linalg::Cholesky< Mat, T, N, fast >::L_

private

The Cholesky factorization.

Definition at line 41 of file linalg.cuh.

Referenced by quda::linalg::Cholesky< Mat, T, N, fast >::backward(), quda::linalg::Cholesky< Mat, T, N, fast >::Cholesky(), quda::linalg::Cholesky< Mat, T, N, fast >::D(), quda::linalg::Cholesky< Mat, T, N, fast >::forward(), and quda::linalg::Cholesky< Mat, T, N, fast >::invert().

---

The documentation for this class was generated from the following file:

• include/linalg.cuh
