quda::LaplaceArg< Float, nColor, reconstruct_ > Struct Template Reference

Parameter structure for driving the covariatnt derivative operator. More...

Inheritance diagram for quda::LaplaceArg< Float, nColor, reconstruct_ >:

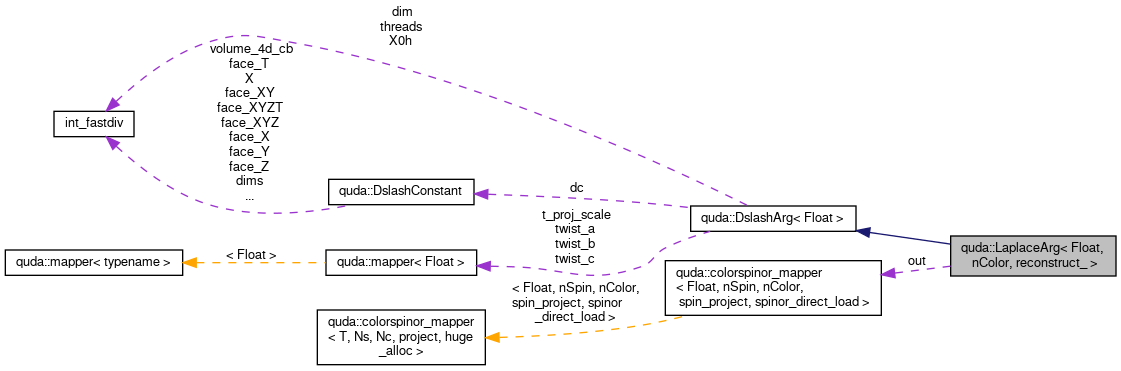

Collaboration diagram for quda::LaplaceArg< Float, nColor, reconstruct_ >:

Public Types
typedef colorspinor_mapper< Float, nSpin, nColor, spin_project, spinor_direct_load >::type	F
typedef gauge_mapper< Float, reconstruct, 18, QUDA_STAGGERED_PHASE_NO, gauge_direct_load, ghost >::type	G
typedef mapper< Float >::type	real
Public Types inherited from quda::DslashArg< Float >
typedef mapper< Float >::type	real

Public Member Functions
	LaplaceArg (ColorSpinorField &out, const ColorSpinorField &in, const GaugeField &U, int dir, double a, const ColorSpinorField &x, int parity, bool dagger, const int *comm_override)
Public Member Functions inherited from quda::DslashArg< Float >
	DslashArg (const ColorSpinorField &in, const GaugeField &U, int parity, bool dagger, bool xpay, int nFace, int spin_project, const int *comm_override)

Public Attributes
F	out
const F	in
const F	x
const G	U
const real	a
int	dir
Public Attributes inherited from quda::DslashArg< Float >
const int	parity
const int	nParity
const int	nFace
const QudaReconstructType	reconstruct
const int_fastdiv	X0h
const int_fastdiv	dim [5]
const int	volumeCB
int	commDim [4]
int	ghostDim [4]
const bool	dagger
const bool	xpay
real	t_proj_scale
DslashConstant	dc
KernelType	kernel_type
bool	remote_write
int_fastdiv	threads
int	threadDimMapLower [4]
int	threadDimMapUpper [4]
const bool	spin_project
real	twist_a
real	twist_b
real	twist_c

Static Public Attributes
static constexpr int	nSpin = 1
static constexpr bool	spin_project = false
static constexpr bool	spinor_direct_load = false
static constexpr QudaReconstructType	reconstruct = reconstruct_
static constexpr bool	gauge_direct_load = false
static constexpr QudaGhostExchange	ghost = QUDA_GHOST_EXCHANGE_PAD

Detailed Description

template<typename Float, int nColor, QudaReconstructType reconstruct_>
struct quda::LaplaceArg< Float, nColor, reconstruct_ >

Parameter structure for driving the covariatnt derivative operator.

Definition at line 16 of file laplace.cuh.

Member Typedef Documentation

F

template<typename Float, int nColor, QudaReconstructType reconstruct_>

typedef colorspinor_mapper<Float, nSpin, nColor, spin_project, spinor_direct_load>::type quda::LaplaceArg< Float, nColor, reconstruct_ >::F

Definition at line 20 of file laplace.cuh.

G

template<typename Float, int nColor, QudaReconstructType reconstruct_>

typedef gauge_mapper<Float, reconstruct, 18, QUDA_STAGGERED_PHASE_NO, gauge_direct_load, ghost>::type quda::LaplaceArg< Float, nColor, reconstruct_ >::G

Definition at line 25 of file laplace.cuh.

real

template<typename Float, int nColor, QudaReconstructType reconstruct_>

typedef mapper<Float>::type quda::LaplaceArg< Float, nColor, reconstruct_ >::real

Definition at line 27 of file laplace.cuh.

Constructor & Destructor Documentation

LaplaceArg()

template<typename Float, int nColor, QudaReconstructType reconstruct_>

quda::LaplaceArg< Float, nColor, reconstruct_ >::LaplaceArg ( ColorSpinorField &  out, const ColorSpinorField &  in, const GaugeField &  U, int  dir, double  a, const ColorSpinorField &  x, int  parity, bool  dagger, const int *  comm_override  )

inline

The direction from which to omit the derivative

Definition at line 36 of file laplace.cuh.

References quda::DslashArg< Float >::dagger, quda::LaplaceArg< Float, nColor, reconstruct_ >::dir, errorQuda, quda::GaugeField::FieldOrder(), quda::ColorSpinorField::FieldOrder(), quda::GaugeField::isNative(), quda::ColorSpinorField::isNative(), quda::DslashArg< Float >::kernel_type, nColor, and quda::DslashArg< Float >::nParity.

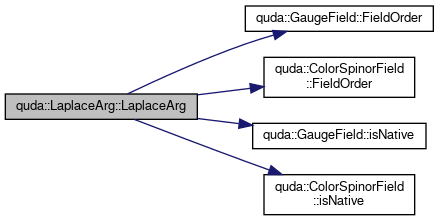

Here is the call graph for this function:

Member Data Documentation

a

template<typename Float, int nColor, QudaReconstructType reconstruct_>

const real quda::LaplaceArg< Float, nColor, reconstruct_ >::a

the gauge field

Definition at line 33 of file laplace.cuh.

dir

template<typename Float, int nColor, QudaReconstructType reconstruct_>

int quda::LaplaceArg< Float, nColor, reconstruct_ >::dir

xpay scale factor - can be -kappa or -kappa^2

Definition at line 34 of file laplace.cuh.

Referenced by quda::LaplaceArg< Float, nColor, reconstruct_ >::LaplaceArg().

gauge_direct_load

template<typename Float, int nColor, QudaReconstructType reconstruct_>

constexpr bool quda::LaplaceArg< Float, nColor, reconstruct_ >::gauge_direct_load = false

static

Definition at line 23 of file laplace.cuh.

ghost

template<typename Float, int nColor, QudaReconstructType reconstruct_>

constexpr QudaGhostExchange quda::LaplaceArg< Float, nColor, reconstruct_ >::ghost = QUDA_GHOST_EXCHANGE_PAD

static

Definition at line 24 of file laplace.cuh.

Referenced by quda::applyLaplace().

in

template<typename Float, int nColor, QudaReconstructType reconstruct_>

const F quda::LaplaceArg< Float, nColor, reconstruct_ >::in

output vector field

Definition at line 30 of file laplace.cuh.

Referenced by quda::applyLaplace().

nSpin

template<typename Float, int nColor, QudaReconstructType reconstruct_>

constexpr int quda::LaplaceArg< Float, nColor, reconstruct_ >::nSpin = 1

static

Definition at line 17 of file laplace.cuh.

out

template<typename Float, int nColor, QudaReconstructType reconstruct_>

F quda::LaplaceArg< Float, nColor, reconstruct_ >::out

Definition at line 29 of file laplace.cuh.

Referenced by quda::laplace().

reconstruct

template<typename Float, int nColor, QudaReconstructType reconstruct_>

constexpr QudaReconstructType quda::LaplaceArg< Float, nColor, reconstruct_ >::reconstruct = reconstruct_

static

Definition at line 22 of file laplace.cuh.

spin_project

template<typename Float, int nColor, QudaReconstructType reconstruct_>

constexpr bool quda::LaplaceArg< Float, nColor, reconstruct_ >::spin_project = false

static

Definition at line 18 of file laplace.cuh.

spinor_direct_load

template<typename Float, int nColor, QudaReconstructType reconstruct_>

constexpr bool quda::LaplaceArg< Float, nColor, reconstruct_ >::spinor_direct_load = false

static

Definition at line 19 of file laplace.cuh.

U

template<typename Float, int nColor, QudaReconstructType reconstruct_>

const G quda::LaplaceArg< Float, nColor, reconstruct_ >::U

input vector field for xpay

Definition at line 32 of file laplace.cuh.

Referenced by quda::applyLaplace().

x

template<typename Float, int nColor, QudaReconstructType reconstruct_>

const F quda::LaplaceArg< Float, nColor, reconstruct_ >::x

input vector field

Definition at line 31 of file laplace.cuh.

Referenced by quda::laplace().

---

The documentation for this struct was generated from the following file:

• include/kernels/laplace.cuh
