quda::SolverParam Struct Reference

#include <invert_quda.h>

Inheritance diagram for quda::SolverParam:

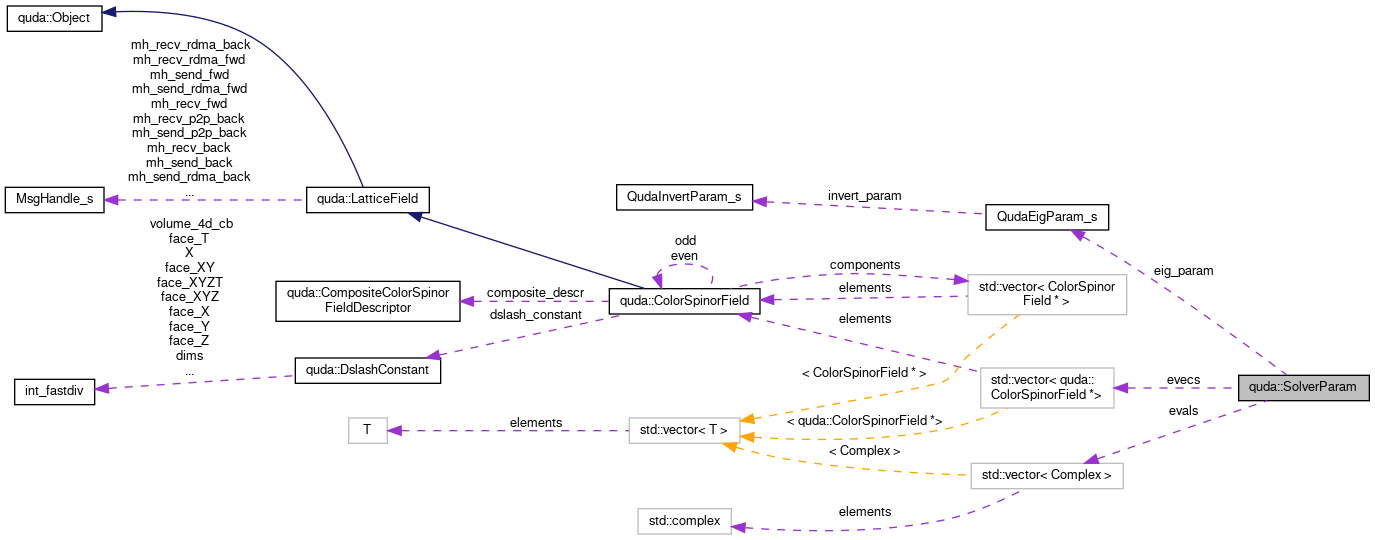

Collaboration diagram for quda::SolverParam:

Public Member Functions
	SolverParam ()
	SolverParam (const QudaInvertParam &param)
	SolverParam (const SolverParam &param)
	~SolverParam ()
void	updateInvertParam (QudaInvertParam &param, int offset=-1)
void	updateRhsIndex (QudaInvertParam &param)

Public Attributes
QudaInverterType	inv_type
QudaInverterType	inv_type_precondition
void *	preconditioner
void *	deflation_op
QudaResidualType	residual_type
bool	deflate
QudaEigParam	eig_param
std::vector< ColorSpinorField * >	evecs
std::vector< Complex >	evals
QudaUseInitGuess	use_init_guess
QudaComputeNullVector	compute_null_vector
double	delta
bool	use_alternative_reliable
bool	use_sloppy_partial_accumulator
int	solution_accumulator_pipeline
int	max_res_increase
int	max_res_increase_total
int	max_hq_res_increase
int	max_hq_res_restart_total
int	heavy_quark_check
int	pipeline
double	tol
double	tol_restart
double	tol_hq
bool	compute_true_res
bool	sloppy_converge
double	true_res
double	true_res_hq
int	maxiter
int	iter
QudaPrecision	precision
QudaPrecision	precision_sloppy
QudaPrecision	precision_refinement_sloppy
QudaPrecision	precision_precondition
QudaPreserveSource	preserve_source
bool	return_residual
int	overlap_precondition
int	num_src
int	num_offset
double	offset [QUDA_MAX_MULTI_SHIFT]
double	tol_offset [QUDA_MAX_MULTI_SHIFT]
double	tol_hq_offset [QUDA_MAX_MULTI_SHIFT]
double	true_res_offset [QUDA_MAX_MULTI_SHIFT]
double	iter_res_offset [QUDA_MAX_MULTI_SHIFT]
double	true_res_hq_offset [QUDA_MAX_MULTI_SHIFT]
int	Nsteps
int	Nkrylov
int	precondition_cycle
double	tol_precondition
int	maxiter_precondition
double	omega
QudaCABasis	ca_basis
double	ca_lambda_min
double	ca_lambda_max
QudaSchwarzType	schwarz_type
double	secs
double	gflops
QudaPrecision	precision_ritz
int	nev
int	m
int	deflation_grid
int	rhs_idx
int	eigcg_max_restarts
int	max_restart_num
double	inc_tol
double	eigenval_tol
QudaVerbosity	verbosity_precondition
bool	is_preconditioner
	verbosity to use for preconditioner More...
bool	global_reduction
	whether the solver acting as a preconditioner for another solver More...
bool	mg_instance
	whether to use a global or local (node) reduction for this solver More...
QudaExtLibType	extlib_type

Detailed Description

SolverParam is the meta data used to define linear solvers.

Definition at line 17 of file invert_quda.h.

Constructor & Destructor Documentation

SolverParam() [1/3]

quda::SolverParam::SolverParam ( )

inline

Default constructor

Definition at line 256 of file invert_quda.h.

SolverParam() [2/3]

quda::SolverParam::SolverParam ( const QudaInvertParam &  param )

inline

Constructor that matches the initial values to that of the QudaInvertParam instance

Parameters

param

The QudaInvertParam instance from which the values are copied

Definition at line 271 of file invert_quda.h.

References QudaInvertParam_s::inv_type, num_offset, QudaInvertParam_s::offset, QUDA_GMRESDR_PROJ_INVERTER, QUDA_INC_EIGCG_INVERTER, QudaInvertParam_s::rhs_idx, QudaInvertParam_s::tol_hq_offset, and QudaInvertParam_s::tol_offset.

SolverParam() [3/3]

quda::SolverParam::SolverParam ( const SolverParam &  param )

inline

Definition at line 346 of file invert_quda.h.

References inv_type, num_offset, offset, QUDA_EIGCG_INVERTER, QUDA_GMRESDR_PROJ_INVERTER, QUDA_INC_EIGCG_INVERTER, rhs_idx, tol_hq_offset, tol_offset, and warningQuda.

~SolverParam()

quda::SolverParam::~SolverParam ( )

inline

Definition at line 422 of file invert_quda.h.

Member Function Documentation

updateInvertParam()

void quda::SolverParam::updateInvertParam ( QudaInvertParam &  param, int  offset = -1  )

inline

Update the QudaInvertParam with the data from this

Parameters

param

the QudaInvertParam to be updated

Definition at line 428 of file invert_quda.h.

References ca_lambda_max, QudaInvertParam_s::ca_lambda_max, ca_lambda_min, QudaInvertParam_s::ca_lambda_min, gflops, QudaInvertParam_s::gflops, iter, QudaInvertParam_s::iter, QudaInvertParam_s::iter_res_offset, num_offset, offset, reduceDouble(), rhs_idx, QudaInvertParam_s::rhs_idx, secs, QudaInvertParam_s::secs, QudaInvertParam_s::true_res, true_res, QudaInvertParam_s::true_res_hq, true_res_hq, QudaInvertParam_s::true_res_hq_offset, and QudaInvertParam_s::true_res_offset.

Referenced by invertMultiShiftQuda(), invertMultiSrcQuda(), invertQuda(), quda::multigrid_solver::multigrid_solver(), and quda::MG::reset().

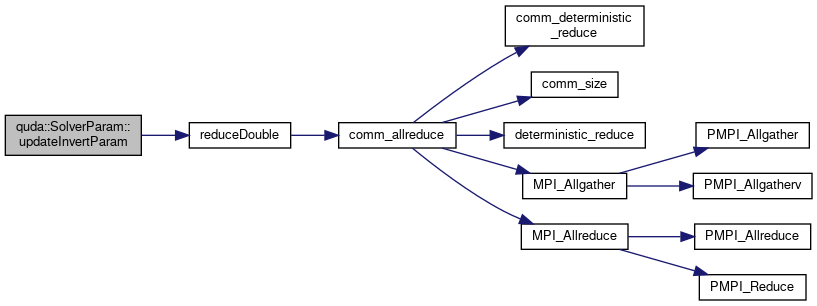

Here is the call graph for this function:

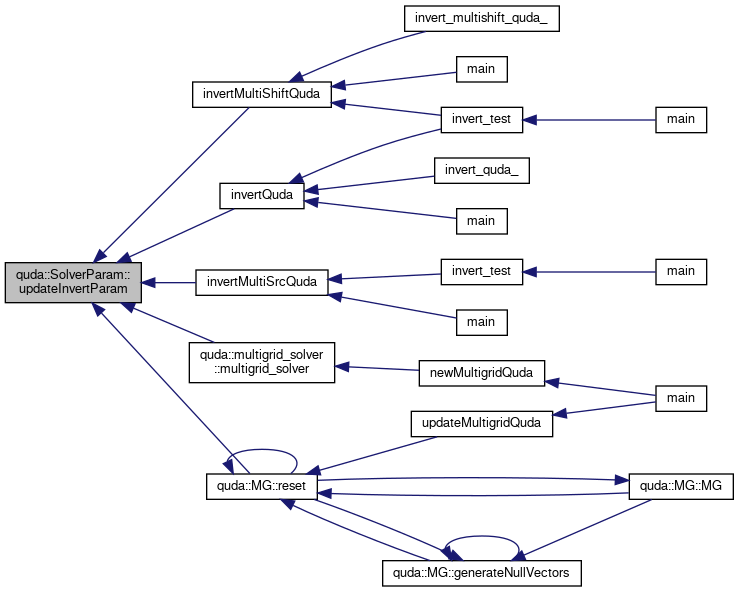

Here is the caller graph for this function:

updateRhsIndex()

void quda::SolverParam::updateRhsIndex ( QudaInvertParam &  param )

inline

Definition at line 453 of file invert_quda.h.

References QudaInvertParam_s::rhs_idx.

Member Data Documentation

ca_basis

QudaCABasis quda::SolverParam::ca_basis

Basis for CA algorithms

Definition at line 208 of file invert_quda.h.

Referenced by quda::MG::createCoarseSolver(), and quda::MG::generateNullVectors().

ca_lambda_max

double quda::SolverParam::ca_lambda_max

Maximum eigenvalue for Chebyshev CA basis

Definition at line 214 of file invert_quda.h.

Referenced by quda::MG::createCoarseSolver(), quda::MG::generateNullVectors(), quda::CACG::operator()(), and updateInvertParam().

ca_lambda_min

double quda::SolverParam::ca_lambda_min

Minimum eigenvalue for Chebyshev CA basis

Definition at line 211 of file invert_quda.h.

Referenced by quda::MG::createCoarseSolver(), quda::MG::generateNullVectors(), quda::CACG::operator()(), and updateInvertParam().

compute_null_vector

QudaComputeNullVector quda::SolverParam::compute_null_vector

Reliable update tolerance

Definition at line 67 of file invert_quda.h.

Referenced by quda::MG::generateNullVectors(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), and quda::CAGCR::operator()().

compute_true_res

bool quda::SolverParam::compute_true_res

Definition at line 124 of file invert_quda.h.

Referenced by quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::fillInnerSolveParam(), quda::MG::generateNullVectors(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::MultiShiftCG::operator()(), and quda::Solver::PrintSummary().

deflate

bool quda::SolverParam::deflate

Used to define deflation

Definition at line 52 of file invert_quda.h.

Referenced by quda::CACG::create(), quda::CAGCR::create(), quda::MG::createCoarseSolver(), quda::CG::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), and quda::CAGCR::operator()().

deflation_grid

int quda::SolverParam::deflation_grid

Definition at line 231 of file invert_quda.h.

Referenced by quda::IncEigCG::IncEigCG(), quda::IncEigCG::operator()(), and quda::GMResDR::operator()().

deflation_op

void* quda::SolverParam::deflation_op

Deflation operator

Definition at line 38 of file invert_quda.h.

Referenced by quda::IncEigCG::initCGsolve(), and quda::IncEigCG::operator()().

delta

double quda::SolverParam::delta

Whether to user alternative reliable updates (CG only at the moment)

Definition at line 70 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::MG::createCoarseSolver(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::MG::generateNullVectors(), invertMultiShiftQuda(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::MultiShiftCG::operator()(), and quda::MG::reset().

eig_param

QudaEigParam quda::SolverParam::eig_param

Deflation eigenvectors

Definition at line 55 of file invert_quda.h.

Referenced by quda::Solver::constructDeflationSpace(), and quda::MG::createCoarseSolver().

eigcg_max_restarts

int quda::SolverParam::eigcg_max_restarts

Definition at line 234 of file invert_quda.h.

Referenced by quda::IncEigCG::operator()().

eigenval_tol

double quda::SolverParam::eigenval_tol

Definition at line 237 of file invert_quda.h.

Referenced by quda::IncEigCG::operator()().

evals

std::vector<Complex> quda::SolverParam::evals

Whether to use an initial guess in the solver or not

Definition at line 61 of file invert_quda.h.

Referenced by quda::Solver::constructDeflationSpace(), quda::CG::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), and quda::CAGCR::operator()().

evecs

std::vector<ColorSpinorField *> quda::SolverParam::evecs

Deflation eigenvalues

Definition at line 58 of file invert_quda.h.

Referenced by quda::Solver::constructDeflationSpace(), quda::CG::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::CACG::~CACG(), quda::CAGCR::~CAGCR(), quda::CG::~CG(), and quda::GCR::~GCR().

extlib_type

QudaExtLibType quda::SolverParam::extlib_type

Which external lib to use in the solver

Definition at line 251 of file invert_quda.h.

Referenced by quda::IncEigCG::RestartVT(), quda::GMResDR::RestartVZH(), and quda::GMResDR::UpdateSolution().

gflops

double quda::SolverParam::gflops

Definition at line 223 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::IncEigCG::eigCGsolve(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::MG::flops(), quda::IncEigCG::initCGsolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::MultiShiftCG::operator()(), quda::GMResDR::operator()(), and updateInvertParam().

global_reduction

bool quda::SolverParam::global_reduction

whether the solver acting as a preconditioner for another solver

Definition at line 243 of file invert_quda.h.

Referenced by quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::fillFGMResDRInnerSolveParam(), quda::fillInnerSolveParam(), quda::MR::operator()(), and quda::SD::operator()().

heavy_quark_check

int quda::SolverParam::heavy_quark_check

Enable pipeline solver

Definition at line 109 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::BiCGstab::operator()(), and quda::BiCGstabL::operator()().

inc_tol

double quda::SolverParam::inc_tol

Definition at line 236 of file invert_quda.h.

Referenced by quda::IncEigCG::initCGsolve(), and quda::IncEigCG::operator()().

inv_type

QudaInverterType quda::SolverParam::inv_type

Which linear solver to use

Definition at line 22 of file invert_quda.h.

Referenced by quda::Solver::create(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::IncEigCG::eigCGsolve(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolverParam(), quda::MG::generateNullVectors(), quda::IncEigCG::IncEigCG(), quda::CG3NE::operator()(), and SolverParam().

inv_type_precondition

QudaInverterType quda::SolverParam::inv_type_precondition

The inner Krylov solver used in the preconditioner. Set to QUDA_INVALID_INVERTER to disable the preconditioner entirely.

Definition at line 28 of file invert_quda.h.

Referenced by quda::Solver::create(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::GCR::GCR(), quda::MG::generateNullVectors(), quda::GMResDR::GMResDR(), quda::IncEigCG::IncEigCG(), quda::PreconCG::PreconCG(), and quda::GCR::~GCR().

is_preconditioner

bool quda::SolverParam::is_preconditioner

verbosity to use for preconditioner

Definition at line 241 of file invert_quda.h.

Referenced by quda::CACG::compute_alpha(), quda::CACG::compute_beta(), quda::CACG::create(), quda::CAGCR::create(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::CAGCR::solve(), quda::CACG::~CACG(), quda::CAGCR::~CAGCR(), quda::MR::~MR(), quda::SD::~SD(), and quda::XSD::~XSD().

iter

int quda::SolverParam::iter

The precision used by the QUDA solver

Definition at line 139 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::IncEigCG::eigCGsolve(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::IncEigCG::initCGsolve(), invertMultiShiftQuda(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::MultiShiftCG::operator()(), quda::IncEigCG::operator()(), quda::GMResDR::operator()(), and updateInvertParam().

iter_res_offset

double quda::SolverParam::iter_res_offset[QUDA_MAX_MULTI_SHIFT]

Iterated L2 residual norm achieved in multi shift solver for each offset

Definition at line 184 of file invert_quda.h.

Referenced by quda::MultiShiftCG::operator()().

m

int quda::SolverParam::m

Definition at line 230 of file invert_quda.h.

Referenced by quda::IncEigCG::eigCGsolve(), quda::IncEigCG::IncEigCG(), quda::GMResDR::operator()(), quda::IncEigCG::UpdateVm(), and quda::multigrid_solver::~multigrid_solver().

max_hq_res_increase

int quda::SolverParam::max_hq_res_increase

This parameter determines how many total heavy-quark residual restarts we tolerate before terminating the solver, i.e., how long do we want to keep trying to converge

Definition at line 101 of file invert_quda.h.

Referenced by quda::CG::operator()().

max_hq_res_restart_total

int quda::SolverParam::max_hq_res_restart_total

After how many iterations shall the heavy quark residual be updated

Definition at line 106 of file invert_quda.h.

Referenced by quda::CG::operator()().

max_res_increase

int quda::SolverParam::max_res_increase

This parameter determines how many total reliable update residual increases we tolerate before terminating the solver, i.e., how long do we want to keep trying to converge

Definition at line 91 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::PreconCG::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), and quda::MultiShiftCG::operator()().

max_res_increase_total

int quda::SolverParam::max_res_increase_total

This parameter determines how many consecutive heavy-quark residual increases we tolerate before terminating the solver, i.e., how long do we want to keep trying to converge

Definition at line 96 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::PreconCG::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), and quda::MultiShiftCG::operator()().

max_restart_num

int quda::SolverParam::max_restart_num

Definition at line 235 of file invert_quda.h.

Referenced by quda::IncEigCG::initCGsolve().

maxiter

int quda::SolverParam::maxiter

The number of iterations performed by the solver

Definition at line 136 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::IncEigCG::eigCGsolve(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::MG::generateNullVectors(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::SD::operator()(), quda::MultiShiftCG::operator()(), and quda::MG::reset().

maxiter_precondition

int quda::SolverParam::maxiter_precondition

Maximum number of iterations allowed in the inner solver

Definition at line 202 of file invert_quda.h.

Referenced by quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), and quda::MG::generateNullVectors().

mg_instance

bool quda::SolverParam::mg_instance

whether to use a global or local (node) reduction for this solver

Whether the MG preconditioner (if any) is an instance of MG (used internally in MG) or of multigrid_solver (used in the interface)

Definition at line 248 of file invert_quda.h.

Referenced by quda::Solver::create(), and quda::MG::createCoarseSolver().

nev

int quda::SolverParam::nev

Definition at line 229 of file invert_quda.h.

Referenced by quda::IncEigCG::eigCGsolve(), quda::IncEigCG::IncEigCG(), quda::IncEigCG::operator()(), and quda::GMResDR::operator()().

Nkrylov

int quda::SolverParam::Nkrylov

Maximum size of Krylov space used by solver

Definition at line 193 of file invert_quda.h.

Referenced by quda::CACG::create(), quda::CAGCR::create(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::fillInnerSolveParam(), quda::MG::generateNullVectors(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::CACG::~CACG(), and quda::CAGCR::~CAGCR().

Nsteps

int quda::SolverParam::Nsteps

Number of steps in s-step algorithms

Definition at line 190 of file invert_quda.h.

Referenced by quda::MG::createSmoother(), quda::fillInnerSolveParam(), quda::MR::MR(), quda::CG::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MR::operator()(), quda::CACGNE::operator()(), and quda::CACGNR::operator()().

num_offset

int quda::SolverParam::num_offset

< Number of offsets in the multi-shift solver

Definition at line 169 of file invert_quda.h.

Referenced by quda::MultiShiftCG::operator()(), SolverParam(), and updateInvertParam().

num_src

int quda::SolverParam::num_src

Definition at line 164 of file invert_quda.h.

Referenced by quda::Solver::blocksolve(), and quda::CG::blocksolve().

offset

double quda::SolverParam::offset[QUDA_MAX_MULTI_SHIFT]

Offsets for multi-shift solver

Definition at line 172 of file invert_quda.h.

Referenced by quda::MultiShiftCG::operator()(), SolverParam(), and updateInvertParam().

omega

double quda::SolverParam::omega

Relaxation parameter used in GCR-DD (default = 1.0)

Definition at line 205 of file invert_quda.h.

Referenced by quda::MG::generateNullVectors(), quda::MGParam::MGParam(), and quda::MR::operator()().

overlap_precondition

int quda::SolverParam::overlap_precondition

Number of sources in the multi-src solver

Definition at line 161 of file invert_quda.h.

Referenced by quda::XSD::XSD().

pipeline

int quda::SolverParam::pipeline

Solver tolerance in the L2 residual norm

Definition at line 112 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::MG::generateNullVectors(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), and quda::GCR::operator()().

precision

QudaPrecision quda::SolverParam::precision

The precision used by the QUDA sloppy operator

Definition at line 142 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::CACG::create(), quda::CAGCR::create(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::MG::generateNullVectors(), quda::IncEigCG::initCGsolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::MultiShiftCG::operator()(), quda::IncEigCG::operator()(), quda::GMResDR::operator()(), quda::MG::reset(), quda::CAGCR::~CAGCR(), quda::CG::~CG(), quda::CG3::~CG3(), and quda::CG3NE::~CG3NE().

precision_precondition

QudaPrecision quda::SolverParam::precision_precondition

Preserve the source or not in the linear solver (deprecated?)

Definition at line 151 of file invert_quda.h.

Referenced by quda::Solver::create(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::IncEigCG::eigCGsolve(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::GMResDR::FlexArnoldiProcedure(), quda::MG::generateNullVectors(), quda::PreconCG::operator()(), quda::GMResDR::operator()(), and quda::GMResDR::~GMResDR().

precision_refinement_sloppy

QudaPrecision quda::SolverParam::precision_refinement_sloppy

The precision used by the QUDA preconditioner

Definition at line 148 of file invert_quda.h.

Referenced by quda::MultiShiftCG::operator()().

precision_ritz

QudaPrecision quda::SolverParam::precision_ritz

< The precision of the Ritz vectors

Definition at line 227 of file invert_quda.h.

Referenced by quda::IncEigCG::eigCGsolve(), and quda::IncEigCG::initCGsolve().

precision_sloppy

QudaPrecision quda::SolverParam::precision_sloppy

The precision used by the QUDA sloppy operator for multishift refinement

Definition at line 145 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::Solver::constructDeflationSpace(), quda::Solver::create(), quda::CACG::create(), quda::CAGCR::create(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::IncEigCG::eigCGsolve(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::GMResDR::FlexArnoldiProcedure(), quda::MG::generateNullVectors(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::MultiShiftCG::operator()(), quda::IncEigCG::operator()(), quda::GMResDR::operator()(), quda::CAGCR::~CAGCR(), quda::CG::~CG(), quda::CG3::~CG3(), quda::CG3NE::~CG3NE(), quda::GCR::~GCR(), and quda::GMResDR::~GMResDR().

precondition_cycle

int quda::SolverParam::precondition_cycle

Number of preconditioner cycles to perform per iteration

Definition at line 196 of file invert_quda.h.

Referenced by quda::fillInnerSolveParam(), and quda::MG::generateNullVectors().

preconditioner

void* quda::SolverParam::preconditioner

Preconditioner instance, e.g., multigrid

Definition at line 33 of file invert_quda.h.

Referenced by quda::Solver::create(), quda::MG::createCoarseSolver(), and quda::MG::generateNullVectors().

preserve_source

QudaPreserveSource quda::SolverParam::preserve_source

Whether the source vector should contain the residual vector when the solver returns

Definition at line 154 of file invert_quda.h.

Referenced by quda::CAGCR::create(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), and quda::CAGCR::~CAGCR().

residual_type

QudaResidualType quda::SolverParam::residual_type

Whether to use the L2 relative residual, L2 absolute residual or Fermilab heavy-quark residual, or combinations therein to determine convergence. To require that multiple stopping conditions are satisfied, use a bitwise OR as follows:

p.residual_type = (QudaResidualType) (QUDA_L2_RELATIVE_RESIDUAL | QUDA_HEAVY_QUARK_RESIDUAL);Whether deflate the initial guess

Definition at line 49 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::Solver::convergence(), quda::MultiShiftSolver::convergence(), quda::Solver::convergenceHQ(), quda::Solver::convergenceL2(), quda::MG::createSmoother(), quda::IncEigCG::eigCGsolve(), quda::fillInnerSolveParam(), quda::MG::generateNullVectors(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::MultiShiftCG::operator()(), quda::GMResDR::operator()(), quda::Solver::PrintStats(), and quda::Solver::PrintSummary().

return_residual

bool quda::SolverParam::return_residual

Domain overlap to use in the preconditioning

Definition at line 158 of file invert_quda.h.

Referenced by quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::CACG::operator()(), and quda::CAGCR::operator()().

rhs_idx

int quda::SolverParam::rhs_idx

Definition at line 232 of file invert_quda.h.

Referenced by quda::IncEigCG::IncEigCG(), quda::IncEigCG::operator()(), quda::GMResDR::operator()(), SolverParam(), and updateInvertParam().

schwarz_type

QudaSchwarzType quda::SolverParam::schwarz_type

Whether to use additive or multiplicative Schwarz preconditioning The time taken by the solver

Definition at line 217 of file invert_quda.h.

Referenced by quda::MG::createSmoother(), quda::fillInnerSolveParam(), quda::MG::generateNullVectors(), quda::MR::MR(), and quda::MR::operator()().

secs

double quda::SolverParam::secs

The Gflops rate of the solver

Definition at line 220 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::CACG::compute_alpha(), quda::CACG::compute_beta(), quda::IncEigCG::eigCGsolve(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::IncEigCG::initCGsolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::MultiShiftCG::operator()(), quda::GMResDR::operator()(), quda::CAGCR::solve(), and updateInvertParam().

sloppy_converge

bool quda::SolverParam::sloppy_converge

Whether to declare convergence without checking the true residual Actual L2 residual norm achieved in solver

Definition at line 127 of file invert_quda.h.

Referenced by quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::fillInnerSolveParam(), quda::GCR::operator()(), quda::CACG::operator()(), and quda::CAGCR::operator()().

solution_accumulator_pipeline

int quda::SolverParam::solution_accumulator_pipeline

This parameter determines how many consecutive reliable update residual increases we tolerate before terminating the solver, i.e., how long do we want to keep trying to converge

Definition at line 86 of file invert_quda.h.

Referenced by quda::CG::operator()().

tol

double quda::SolverParam::tol

Solver tolerance in the L2 residual norm

Definition at line 115 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::IncEigCG::eigCGsolve(), quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), quda::MG::generateNullVectors(), quda::IncEigCG::initCGsolve(), invertMultiShiftQuda(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::IncEigCG::operator()(), and quda::GMResDR::operator()().

tol_hq

double quda::SolverParam::tol_hq

Whether to compute the true residual post solve

Definition at line 121 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::IncEigCG::eigCGsolve(), invertMultiShiftQuda(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::IncEigCG::operator()(), and quda::GMResDR::operator()().

tol_hq_offset

double quda::SolverParam::tol_hq_offset[QUDA_MAX_MULTI_SHIFT]

Solver tolerance for each shift when refinement is applied using the heavy-quark residual

Definition at line 178 of file invert_quda.h.

Referenced by SolverParam().

tol_offset

double quda::SolverParam::tol_offset[QUDA_MAX_MULTI_SHIFT]

Solver tolerance for each offset

Definition at line 175 of file invert_quda.h.

Referenced by quda::MultiShiftCG::operator()(), and SolverParam().

tol_precondition

double quda::SolverParam::tol_precondition

Tolerance in the inner solver

Definition at line 199 of file invert_quda.h.

Referenced by quda::fillEigCGInnerSolverParam(), quda::fillFGMResDRInnerSolveParam(), quda::fillInnerSolveParam(), quda::fillInnerSolverParam(), and quda::MG::generateNullVectors().

tol_restart

double quda::SolverParam::tol_restart

Solver tolerance in the heavy quark residual norm

Definition at line 118 of file invert_quda.h.

Referenced by quda::fillInitCGSolverParam(), and quda::IncEigCG::initCGsolve().

true_res

double quda::SolverParam::true_res

Actual heavy quark residual norm achieved in solver

Definition at line 130 of file invert_quda.h.

Referenced by quda::Solver::blocksolve(), quda::CG::blocksolve(), quda::IncEigCG::eigCGsolve(), invertMultiShiftQuda(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::IncEigCG::operator()(), quda::GMResDR::operator()(), quda::Solver::PrintSummary(), and updateInvertParam().

true_res_hq

double quda::SolverParam::true_res_hq

Maximum number of iterations in the linear solver

Definition at line 133 of file invert_quda.h.

Referenced by quda::Solver::blocksolve(), quda::CG::blocksolve(), quda::IncEigCG::eigCGsolve(), invertMultiShiftQuda(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::IncEigCG::operator()(), quda::Solver::PrintSummary(), and updateInvertParam().

true_res_hq_offset

double quda::SolverParam::true_res_hq_offset[QUDA_MAX_MULTI_SHIFT]

Actual heavy quark residual norm achieved in solver for each offset

Definition at line 187 of file invert_quda.h.

Referenced by quda::Solver::blocksolve(), quda::CG::blocksolve(), invertMultiShiftQuda(), and quda::MultiShiftCG::operator()().

true_res_offset

double quda::SolverParam::true_res_offset[QUDA_MAX_MULTI_SHIFT]

Actual L2 residual norm achieved in solver for each offset

Definition at line 181 of file invert_quda.h.

Referenced by quda::Solver::blocksolve(), quda::CG::blocksolve(), invertMultiShiftQuda(), and quda::MultiShiftCG::operator()().

use_alternative_reliable

bool quda::SolverParam::use_alternative_reliable

Whether to keep the partial solution accumulator in sloppy precision

Definition at line 73 of file invert_quda.h.

Referenced by quda::CG::operator()().

use_init_guess

QudaUseInitGuess quda::SolverParam::use_init_guess

Whether to solve linear system with zero RHS

Definition at line 64 of file invert_quda.h.

Referenced by quda::CAGCR::create(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::fillInitCGSolverParam(), quda::fillInnerSolveParam(), quda::MG::generateNullVectors(), invertMultiShiftQuda(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), and quda::CAGCR::~CAGCR().

use_sloppy_partial_accumulator

bool quda::SolverParam::use_sloppy_partial_accumulator

This parameter determines how often we accumulate into the solution vector from the direction vectors in the solver. E.g., running with solution_accumulator_pipeline = 4, means we will update the solution vector every four iterations using the direction vectors from the prior four iterations. This increases performance of mixed-precision solvers since it means less high-precision vector round-trip memory travel, but requires more low-precision memory allocation.

Definition at line 76 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::fillEigCGInnerSolverParam(), quda::fillInitCGSolverParam(), quda::CG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MultiShiftCG::operator()(), and quda::GCR::~GCR().

verbosity_precondition

QudaVerbosity quda::SolverParam::verbosity_precondition

Definition at line 239 of file invert_quda.h.

Referenced by quda::MG::createCoarseSolver(), quda::fillInnerSolveParam(), quda::GMResDR::FlexArnoldiProcedure(), quda::MG::generateNullVectors(), and quda::GCR::operator()().

---

The documentation for this struct was generated from the following file:

• include/invert_quda.h
