quda::Solver Class Reference

#include <invert_quda.h>

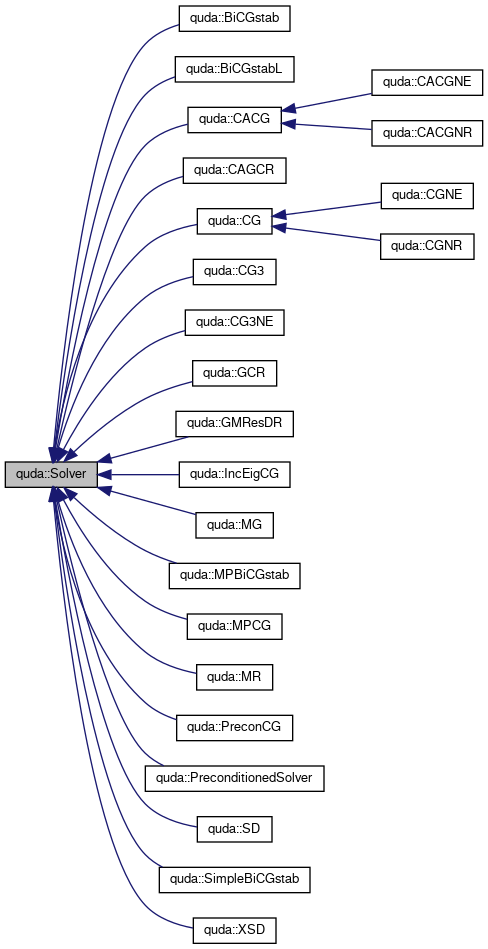

Inheritance diagram for quda::Solver:

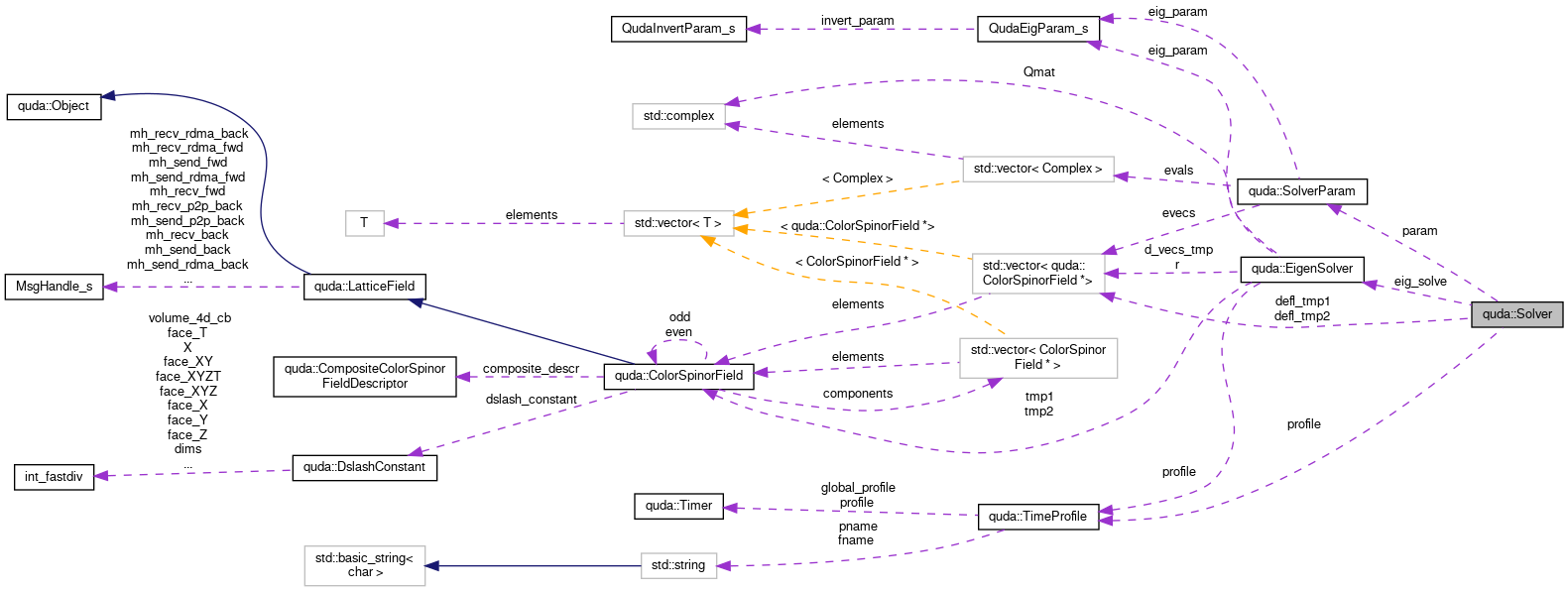

Collaboration diagram for quda::Solver:

Public Member Functions
	Solver (SolverParam &param, TimeProfile &profile)
virtual	~Solver ()
virtual void	operator() (ColorSpinorField &out, ColorSpinorField &in)=0
virtual void	blocksolve (ColorSpinorField &out, ColorSpinorField &in)
bool	convergence (double r2, double hq2, double r2_tol, double hq_tol)
bool	convergenceHQ (double r2, double hq2, double r2_tol, double hq_tol)
	Test for HQ solver convergence – ignore L2 residual. More...
bool	convergenceL2 (double r2, double hq2, double r2_tol, double hq_tol)
	Test for L2 solver convergence – ignore HQ residual. More...
void	PrintStats (const char *name, int k, double r2, double b2, double hq2)
	Prints out the running statistics of the solver (requires a verbosity of QUDA_VERBOSE) More...
void	PrintSummary (const char *name, int k, double r2, double b2, double r2_tol, double hq_tol)
	Prints out the summary of the solver convergence (requires a verbosity of QUDA_SUMMARIZE). Assumes SolverParam.true_res and SolverParam.true_res_hq has been set. More...
void	constructDeflationSpace (const ColorSpinorField &meta, const DiracMatrix &mat, bool svd)
	Constructs the deflation space. More...
virtual double	flops () const

Static Public Member Functions
static Solver *	create (SolverParam &param, DiracMatrix &mat, DiracMatrix &matSloppy, DiracMatrix &matPrecon, TimeProfile &profile)
static double	stopping (double tol, double b2, QudaResidualType residual_type)
	Set the solver L2 stopping condition. More...

Public Attributes
EigenSolver *	eig_solve
bool	deflate_init = false
std::vector< ColorSpinorField * >	defl_tmp1
std::vector< ColorSpinorField * >	defl_tmp2

Protected Attributes
SolverParam &	param
TimeProfile &	profile
int	node_parity

Detailed Description

Definition at line 460 of file invert_quda.h.

Constructor & Destructor Documentation

Solver()

quda::Solver::Solver	(	SolverParam &	param,
		TimeProfile &	profile
	)

Definition at line 13 of file solver.cpp.

References commCoords(), and node_parity.

Here is the call graph for this function:

~Solver()

quda::Solver::~Solver ( )

virtual

Definition at line 24 of file solver.cpp.

References eig_solve.

Member Function Documentation

blocksolve()

void quda::Solver::blocksolve ( ColorSpinorField &  out, ColorSpinorField &  in  )

virtual

Reimplemented in quda::CG.

Definition at line 198 of file solver.cpp.

References quda::ColorSpinorField::Component(), quda::SolverParam::num_src, param, quda::SolverParam::true_res, quda::SolverParam::true_res_hq, quda::SolverParam::true_res_hq_offset, and quda::SolverParam::true_res_offset.

Referenced by invertMultiSrcQuda().

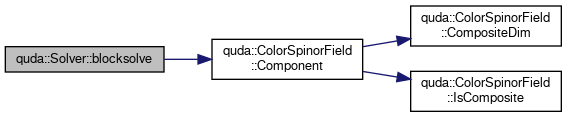

Here is the call graph for this function:

Here is the caller graph for this function:

constructDeflationSpace()

void quda::Solver::constructDeflationSpace	(	const ColorSpinorField &	meta,
		const DiracMatrix &	mat,
		bool	svd
	)

Constructs the deflation space.

Parameters

[in]	meta	A sample ColorSpinorField with which to instantiate the eigensolver
[in]	mat	The operator to eigensolve
[in]	Whether	to compute the SVD

Definition at line 159 of file solver.cpp.

References quda::EigenSolver::computeSVD(), quda::EigenSolver::create(), quda::ColorSpinorParam::create, quda::ColorSpinorField::Create(), csParam, defl_tmp1, defl_tmp2, deflate_init, quda::SolverParam::eig_param, eig_solve, quda::SolverParam::evals, quda::SolverParam::evecs, QudaEigParam_s::nConv, param, quda::SolverParam::precision_sloppy, profile, QUDA_INVALID_PRECISION, quda::QUDA_PROFILE_INIT, QUDA_ZERO_FIELD_CREATE, and quda::ColorSpinorParam::setPrecision().

Referenced by quda::CACG::create(), quda::CAGCR::create(), quda::CG::operator()(), and quda::GCR::operator()().

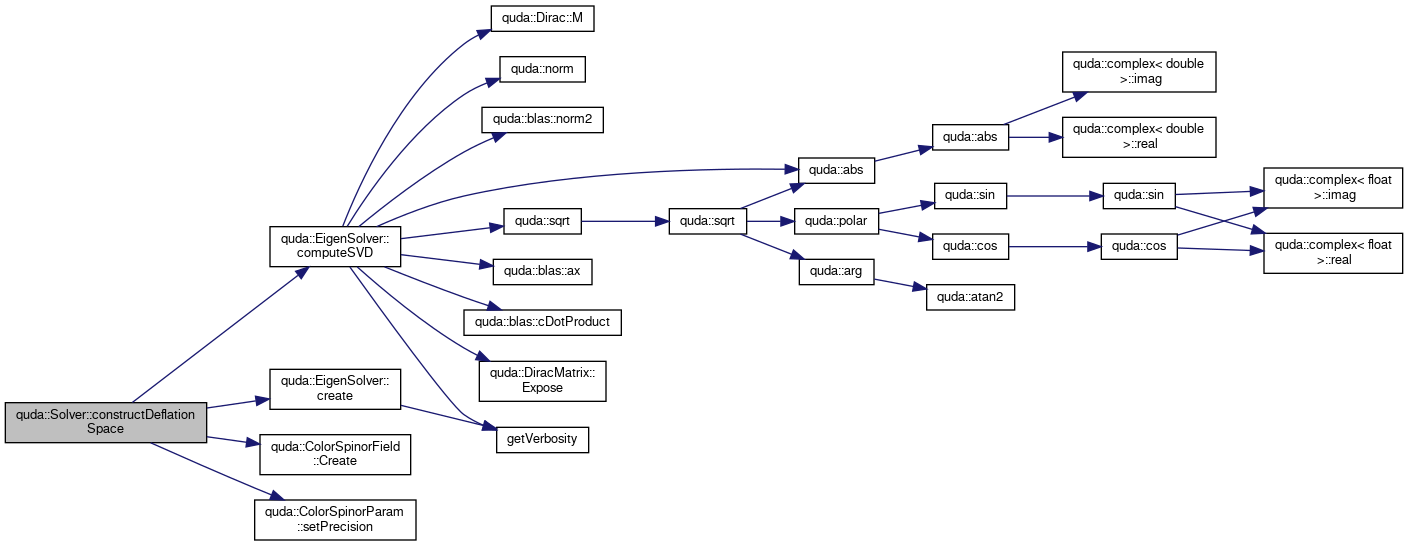

Here is the call graph for this function:

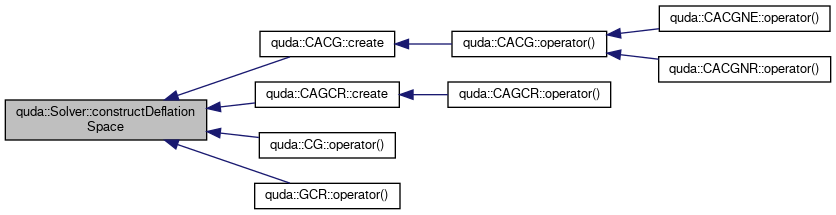

Here is the caller graph for this function:

convergence()

bool quda::Solver::convergence	(	double	r2,
		double	hq2,
		double	r2_tol,
		double	hq_tol
	)

for solver convergence

Parameters

[in]	r2	L2 norm squared of the residual
[in]	hq2	Heavy quark residual
[in]	r2_tol	Solver L2 tolerance
[in]	hq_tol	Solver heavy-quark tolerance

Returns

Whether converged

Definition at line 223 of file solver.cpp.

References param, QUDA_HEAVY_QUARK_RESIDUAL, QUDA_L2_ABSOLUTE_RESIDUAL, QUDA_L2_RELATIVE_RESIDUAL, and quda::SolverParam::residual_type.

Referenced by quda::CG::blocksolve(), quda::IncEigCG::eigCGsolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), and quda::GMResDR::operator()().

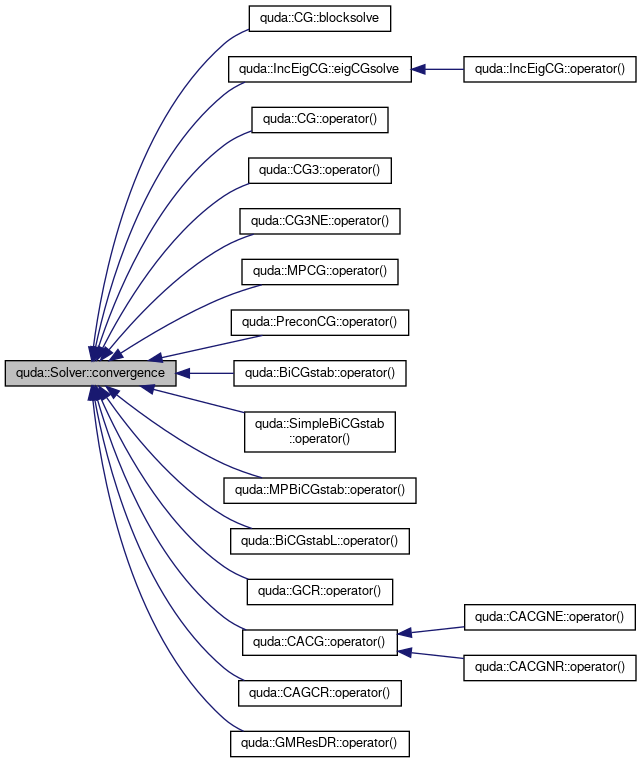

Here is the caller graph for this function:

convergenceHQ()

bool quda::Solver::convergenceHQ	(	double	r2,
		double	hq2,
		double	r2_tol,
		double	hq_tol
	)

Test for HQ solver convergence – ignore L2 residual.

Parameters

[in]	r2	L2 norm squared of the residual
[in]	hq2	Heavy quark residual
[in]	r2_tol	Solver L2 tolerance

Definition at line 237 of file solver.cpp.

References param, QUDA_HEAVY_QUARK_RESIDUAL, and quda::SolverParam::residual_type.

Referenced by quda::CG::blocksolve(), quda::CG::operator()(), quda::CG3::operator()(), and quda::CG3NE::operator()().

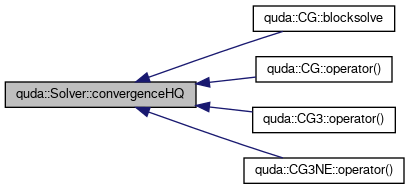

Here is the caller graph for this function:

convergenceL2()

bool quda::Solver::convergenceL2	(	double	r2,
		double	hq2,
		double	r2_tol,
		double	hq_tol
	)

Test for L2 solver convergence – ignore HQ residual.

Parameters

[in]	r2	L2 norm squared of the residual
[in]	hq2	Heavy quark residual
[in]	r2_tol	Solver L2 tolerance
[in]	hq_tol	Solver heavy-quark tolerance

Definition at line 246 of file solver.cpp.

References param, QUDA_L2_ABSOLUTE_RESIDUAL, QUDA_L2_RELATIVE_RESIDUAL, and quda::SolverParam::residual_type.

Referenced by quda::CG::blocksolve(), and quda::CG::operator()().

Here is the caller graph for this function:

create()

Solver * quda::Solver::create ( SolverParam &  param, DiracMatrix &  mat, DiracMatrix &  matSloppy, DiracMatrix &  matPrecon, TimeProfile &  profile  )

static

Solver factory

Definition at line 33 of file solver.cpp.

References errorQuda, quda::SolverParam::inv_type, quda::SolverParam::inv_type_precondition, quda::multigrid_solver::mg, quda::SolverParam::mg_instance, quda::SolverParam::precision_precondition, quda::SolverParam::precision_sloppy, quda::SolverParam::preconditioner, QUDA_BICGSTAB_INVERTER, QUDA_BICGSTABL_INVERTER, QUDA_CA_CG_INVERTER, QUDA_CA_CGNE_INVERTER, QUDA_CA_CGNR_INVERTER, QUDA_CA_GCR_INVERTER, QUDA_CG3_INVERTER, QUDA_CG3NE_INVERTER, QUDA_CG3NR_INVERTER, QUDA_CG_INVERTER, QUDA_CGNE_INVERTER, QUDA_CGNR_INVERTER, QUDA_EIGCG_INVERTER, QUDA_GCR_INVERTER, QUDA_GMRESDR_INVERTER, QUDA_INC_EIGCG_INVERTER, QUDA_MG_INVERTER, QUDA_MPBICGSTAB_INVERTER, QUDA_MPCG_INVERTER, QUDA_MR_INVERTER, QUDA_PCG_INVERTER, QUDA_SD_INVERTER, QUDA_XSD_INVERTER, and quda::report().

Referenced by quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::MG::generateNullVectors(), invertMultiSrcQuda(), and invertQuda().

Here is the call graph for this function:

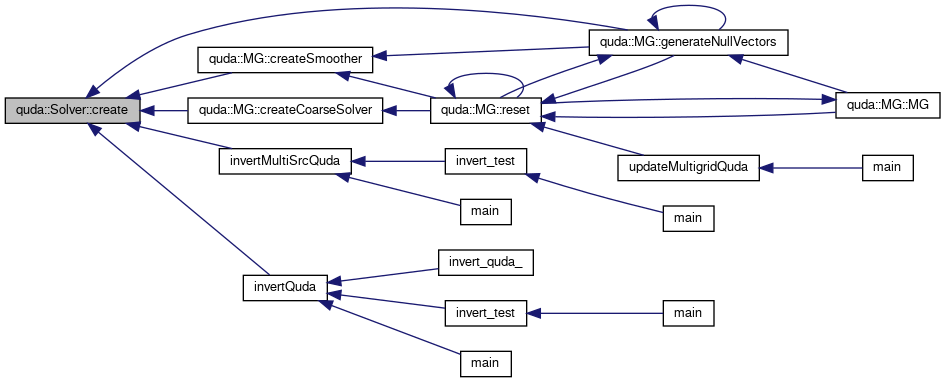

Here is the caller graph for this function:

flops()

virtual double quda::Solver::flops ( ) const

inlinevirtual

Return flops

Returns

flops expended by this operator

Reimplemented in quda::MG.

Definition at line 563 of file invert_quda.h.

Referenced by quda::GCR::operator()().

Here is the caller graph for this function:

operator()()

virtual void quda::Solver::operator() ( ColorSpinorField &  out, ColorSpinorField &  in  )

pure virtual

Implemented in quda::GMResDR, quda::IncEigCG, quda::PreconditionedSolver, quda::XSD, quda::SD, quda::CAGCR, quda::CACGNR, quda::CACGNE, quda::CACG, quda::MR, quda::GCR, quda::BiCGstabL, quda::MPBiCGstab, quda::SimpleBiCGstab, quda::BiCGstab, quda::PreconCG, quda::MPCG, quda::CGNR, quda::CGNE, quda::CG3NE, quda::CG3, quda::CG, and quda::MG.

PrintStats()

void quda::Solver::PrintStats	(	const char *	name,
		int	k,
		double	r2,
		double	b2,
		double	hq2
	)

Prints out the running statistics of the solver (requires a verbosity of QUDA_VERBOSE)

Parameters

[in]	name	Name of solver that called this
[in]	k	iteration count
[in]	r2	L2 norm squared of the residual
[in]	hq2	Heavy quark residual

Definition at line 256 of file solver.cpp.

References errorQuda, getVerbosity(), param, printfQuda, QUDA_HEAVY_QUARK_RESIDUAL, QUDA_VERBOSE, quda::SolverParam::residual_type, and quda::sqrt().

Referenced by quda::CG::blocksolve(), quda::IncEigCG::eigCGsolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), and quda::GMResDR::operator()().

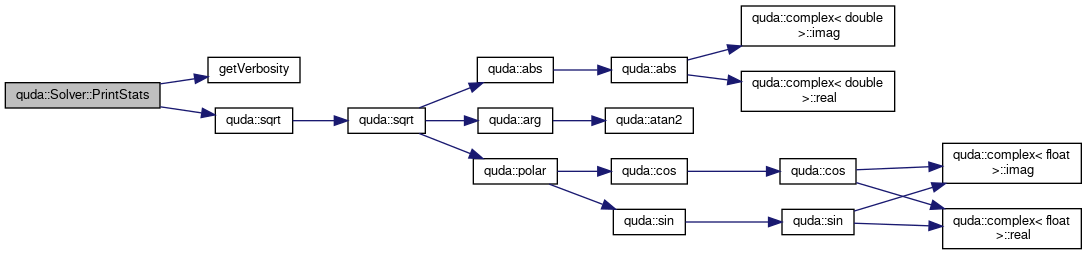

Here is the call graph for this function:

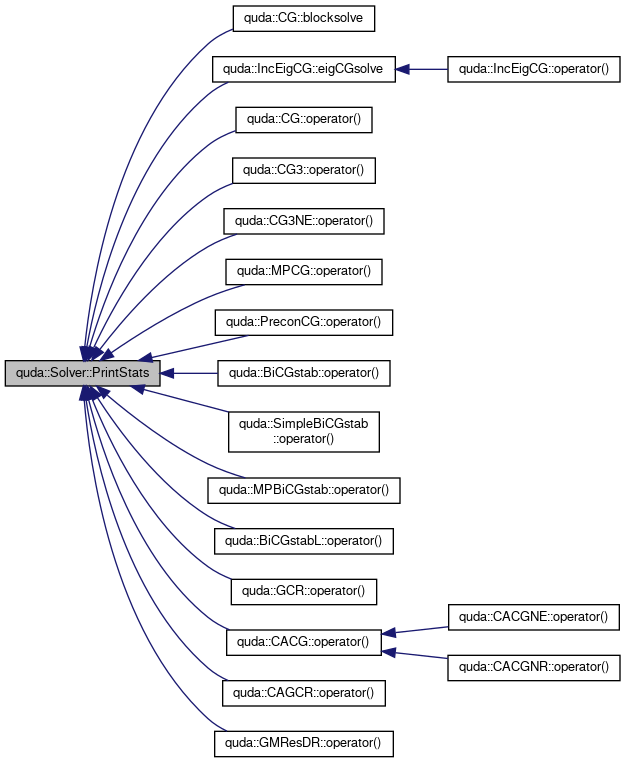

Here is the caller graph for this function:

PrintSummary()

void quda::Solver::PrintSummary	(	const char *	name,
		int	k,
		double	r2,
		double	b2,
		double	r2_tol,
		double	hq_tol
	)

Prints out the summary of the solver convergence (requires a verbosity of QUDA_SUMMARIZE). Assumes SolverParam.true_res and SolverParam.true_res_hq has been set.

Parameters

[in]	name	Name of solver that called this
[in]	k	iteration count
[in]	r2	L2 norm squared of the residual
[in]	hq2	Heavy quark residual
[in]	r2_tol	Solver L2 tolerance
[in]	hq_tol	Solver heavy-quark tolerance

Definition at line 270 of file solver.cpp.

References quda::SolverParam::compute_true_res, getVerbosity(), param, printfQuda, QUDA_HEAVY_QUARK_RESIDUAL, QUDA_SUMMARIZE, quda::SolverParam::residual_type, quda::sqrt(), quda::SolverParam::true_res, and quda::SolverParam::true_res_hq.

Referenced by quda::CG::blocksolve(), quda::IncEigCG::eigCGsolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MPCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::IncEigCG::operator()(), and quda::GMResDR::operator()().

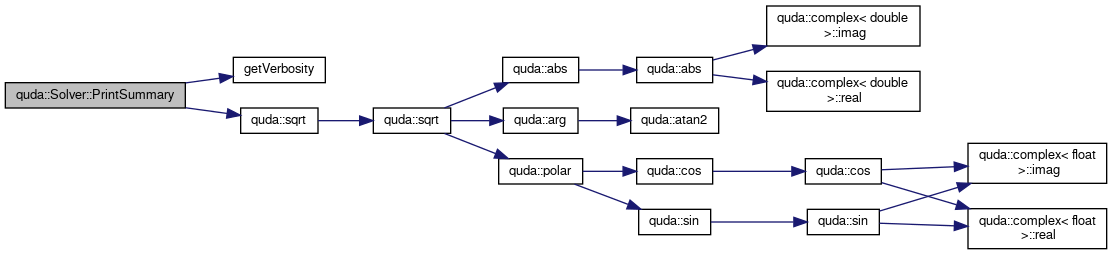

Here is the call graph for this function:

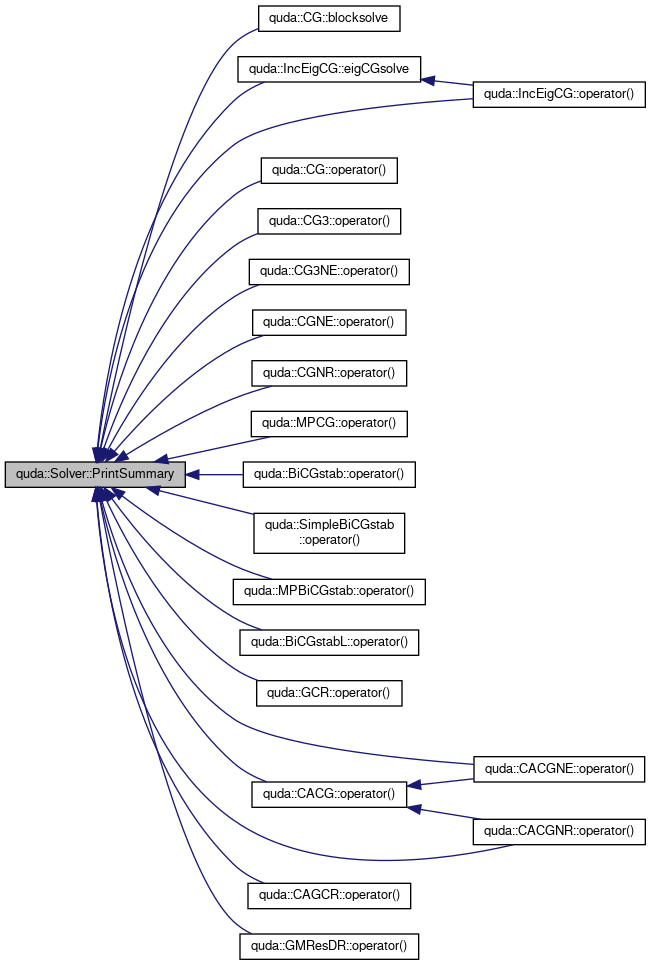

Here is the caller graph for this function:

stopping()

double quda::Solver::stopping ( double  tol, double  b2, QudaResidualType  residual_type  )

static

Set the solver L2 stopping condition.

Parameters

[in]	Desired	solver tolerance
[in]	b2	L2 norm squared of the source vector
[in]	residual_type	The type of residual we want to solve for

Returns

L2 stopping condition

Definition at line 206 of file solver.cpp.

References QUDA_L2_ABSOLUTE_RESIDUAL, QUDA_L2_RELATIVE_RESIDUAL, and tol.

Referenced by quda::CG::blocksolve(), quda::IncEigCG::eigCGsolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), and quda::MultiShiftCG::operator()().

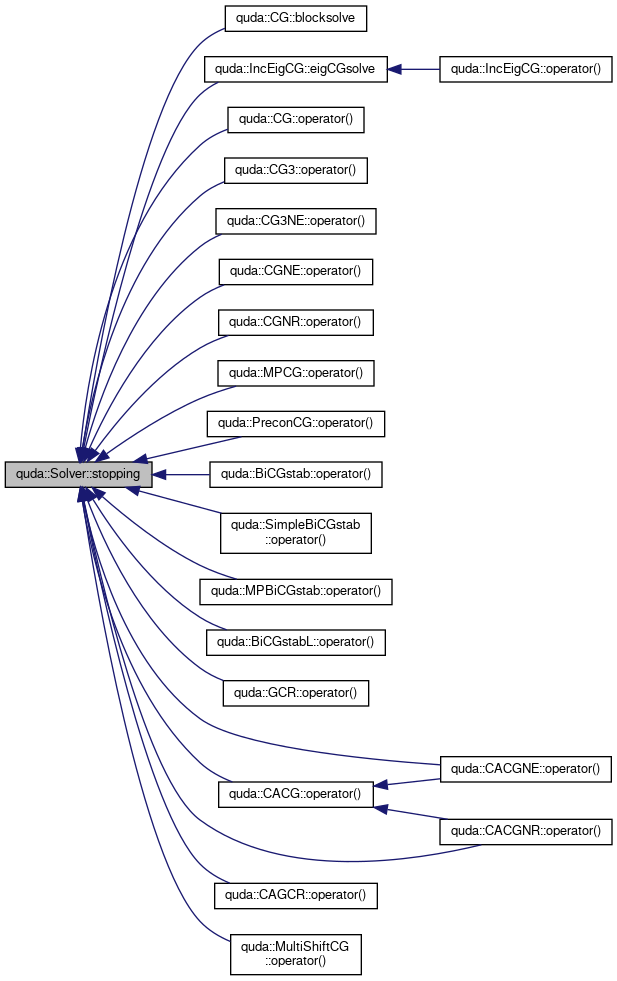

Here is the caller graph for this function:

Member Data Documentation

defl_tmp1

std::vector<ColorSpinorField *> quda::Solver::defl_tmp1

Definition at line 547 of file invert_quda.h.

Referenced by constructDeflationSpace(), quda::CG::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::CACG::~CACG(), quda::CAGCR::~CAGCR(), quda::CG::~CG(), and quda::GCR::~GCR().

defl_tmp2

std::vector<ColorSpinorField *> quda::Solver::defl_tmp2

Definition at line 548 of file invert_quda.h.

Referenced by constructDeflationSpace(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::CACG::~CACG(), quda::CAGCR::~CAGCR(), quda::CG::~CG(), and quda::GCR::~GCR().

deflate_init

bool quda::Solver::deflate_init = false

Definition at line 546 of file invert_quda.h.

Referenced by constructDeflationSpace(), quda::CACG::create(), quda::CAGCR::create(), quda::CG::operator()(), quda::GCR::operator()(), quda::CACG::~CACG(), quda::CAGCR::~CAGCR(), quda::CG::~CG(), and quda::GCR::~GCR().

eig_solve

EigenSolver* quda::Solver::eig_solve

Deflation objects

Definition at line 545 of file invert_quda.h.

Referenced by constructDeflationSpace(), quda::MG::generateEigenVectors(), quda::CG::operator()(), quda::GCR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), and ~Solver().

node_parity

int quda::Solver::node_parity

protected

Definition at line 465 of file invert_quda.h.

Referenced by quda::MR::operator()(), and Solver().

param

SolverParam& quda::Solver::param

protected

Definition at line 463 of file invert_quda.h.

Referenced by blocksolve(), quda::CG::blocksolve(), quda::CACG::compute_alpha(), quda::CACG::compute_beta(), constructDeflationSpace(), convergence(), quda::MultiShiftSolver::convergence(), convergenceHQ(), convergenceL2(), quda::CACG::create(), quda::CAGCR::create(), quda::IncEigCG::eigCGsolve(), quda::GMResDR::FlexArnoldiProcedure(), quda::IncEigCG::initCGsolve(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), quda::CAGCR::operator()(), quda::SD::operator()(), quda::IncEigCG::operator()(), quda::GMResDR::operator()(), PrintStats(), PrintSummary(), quda::IncEigCG::RestartVT(), quda::GMResDR::RestartVZH(), quda::CAGCR::solve(), quda::GMResDR::UpdateSolution(), quda::IncEigCG::UpdateVm(), quda::CACG::~CACG(), quda::CAGCR::~CAGCR(), quda::CG::~CG(), quda::CG3::~CG3(), quda::CG3NE::~CG3NE(), quda::GCR::~GCR(), quda::GMResDR::~GMResDR(), quda::MR::~MR(), quda::SD::~SD(), and quda::XSD::~XSD().

profile

TimeProfile& quda::Solver::profile

protected

Definition at line 464 of file invert_quda.h.

Referenced by quda::CG::blocksolve(), quda::CACG::compute_alpha(), quda::CACG::compute_beta(), constructDeflationSpace(), quda::CACG::create(), quda::CAGCR::create(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::MPCG::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::SimpleBiCGstab::operator()(), quda::MPBiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MR::operator()(), quda::CACG::operator()(), quda::CAGCR::operator()(), quda::CAGCR::solve(), quda::BiCGstab::~BiCGstab(), quda::BiCGstabL::~BiCGstabL(), quda::CACG::~CACG(), quda::CAGCR::~CAGCR(), quda::CG::~CG(), quda::GCR::~GCR(), quda::MR::~MR(), quda::PreconCG::~PreconCG(), quda::SD::~SD(), and quda::XSD::~XSD().

---

The documentation for this class was generated from the following files:

• include/invert_quda.h
• lib/solver.cpp
