Parameter structure for driving the Staggered Dslash operator. More...

Inheritance diagram for quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >:

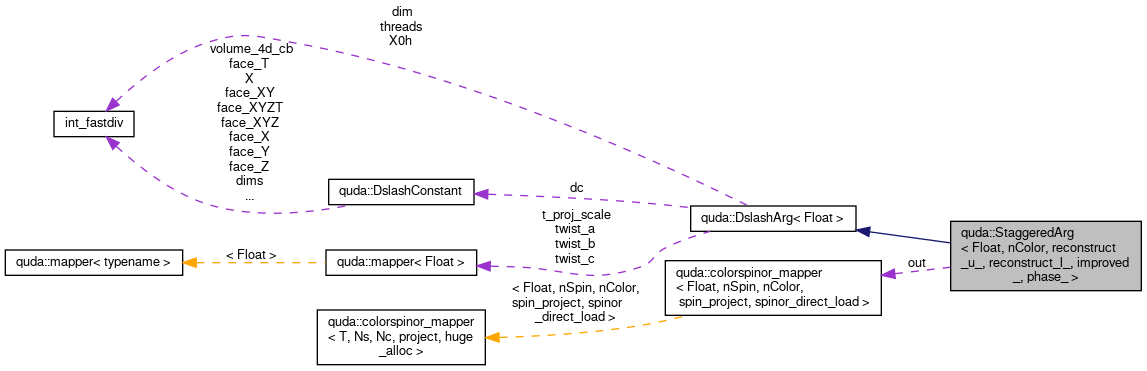

Collaboration diagram for quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >:

[legend]

Public Types
typedef mapper< Float >::type	real

using	F = typename colorspinor_mapper< Float, nSpin, nColor, spin_project, spinor_direct_load >::type

using	GU = typename gauge_mapper< Float, reconstruct_u, 18, phase, gauge_direct_load, ghost, use_inphase >::type

using	GL = typename gauge_mapper< Float, reconstruct_l, 18, QUDA_STAGGERED_PHASE_NO, gauge_direct_load, ghost, use_inphase >::type

Public Types inherited from quda::DslashArg< Float >
typedef mapper< Float >::type	real

Public Member Functions
	StaggeredArg (ColorSpinorField &out, const ColorSpinorField &in, const GaugeField &U, const GaugeField &L, double a, const ColorSpinorField &x, int parity, bool dagger, const int *comm_override)

Public Member Functions inherited from quda::DslashArg< Float >
	DslashArg (const ColorSpinorField &in, const GaugeField &U, int parity, bool dagger, bool xpay, int nFace, int spin_project, const int *comm_override)

Public Attributes
F	out

const F	in

const F	x

const GU	U

const GL	L

const real	a

const real	tboundary

const bool	is_first_time_slice

const bool	is_last_time_slice

Public Attributes inherited from quda::DslashArg< Float >
const int	parity

const int	nParity

const int	nFace

const QudaReconstructType	reconstruct

const int_fastdiv	X0h

const int_fastdiv	dim [5]

const int	volumeCB

int	commDim [4]

int	ghostDim [4]

const bool	dagger

const bool	xpay

real	t_proj_scale

DslashConstant	dc

KernelType	kernel_type

bool	remote_write

int_fastdiv	threads

int	threadDimMapLower [4]

int	threadDimMapUpper [4]

const bool	spin_project

real	twist_a

real	twist_b

real	twist_c

Static Public Attributes
static constexpr int	nSpin = 1

static constexpr bool	spin_project = false

static constexpr bool	spinor_direct_load = false

static constexpr QudaReconstructType	reconstruct_u = reconstruct_u_

static constexpr QudaReconstructType	reconstruct_l = reconstruct_l_

static constexpr bool	gauge_direct_load = false

static constexpr QudaGhostExchange	ghost = QUDA_GHOST_EXCHANGE_PAD

static constexpr bool	use_inphase = improved_ ? false : true

static constexpr QudaStaggeredPhase	phase = phase_

static constexpr bool	improved = improved_

Detailed Description

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>
struct quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >

Parameter structure for driving the Staggered Dslash operator.

Definition at line 18 of file dslash_staggered.cuh.

Member Typedef Documentation

◆ F

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

using quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::F = typename colorspinor_mapper<Float, nSpin, nColor, spin_project, spinor_direct_load>::type

Definition at line 23 of file dslash_staggered.cuh.

◆ GL

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

using quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::GL = typename gauge_mapper<Float, reconstruct_l, 18, QUDA_STAGGERED_PHASE_NO, gauge_direct_load, ghost, use_inphase>::type

Definition at line 33 of file dslash_staggered.cuh.

◆ GU

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

using quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::GU = typename gauge_mapper<Float, reconstruct_u, 18, phase, gauge_direct_load, ghost, use_inphase>::type

Definition at line 31 of file dslash_staggered.cuh.

◆ real

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

typedef mapper<Float>::type quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::real

Definition at line 19 of file dslash_staggered.cuh.

Constructor & Destructor Documentation

◆ StaggeredArg()

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::StaggeredArg	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const GaugeField &	U,
		const GaugeField &	L,
		double	a,
		const ColorSpinorField &	x,
		int	parity,
		bool	dagger,
		const int *	comm_override
	)

inline

Definition at line 47 of file dslash_staggered.cuh.

References errorQuda, quda::GaugeField::FieldOrder(), quda::ColorSpinorField::FieldOrder(), quda::GaugeField::isNative(), and quda::ColorSpinorField::isNative().

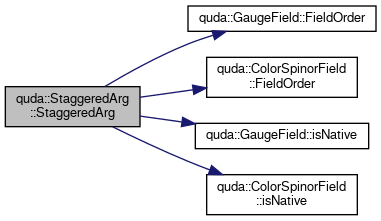

Here is the call graph for this function:

Member Data Documentation

◆ a

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

const real quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::a

the long gauge field

Definition at line 41 of file dslash_staggered.cuh.

◆ gauge_direct_load

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr bool quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::gauge_direct_load = false

static

Definition at line 27 of file dslash_staggered.cuh.

◆ ghost

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr QudaGhostExchange quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::ghost = QUDA_GHOST_EXCHANGE_PAD

static

Definition at line 28 of file dslash_staggered.cuh.

Referenced by quda::applyStaggered().

◆ improved

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr bool quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::improved = improved_

static

are we on the last (global) time slice

Definition at line 45 of file dslash_staggered.cuh.

◆ in

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

const F quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::in

output vector field

Definition at line 36 of file dslash_staggered.cuh.

Referenced by quda::applyStaggered().

◆ is_first_time_slice

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

const bool quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::is_first_time_slice

temporal boundary condition

Definition at line 43 of file dslash_staggered.cuh.

◆ is_last_time_slice

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

const bool quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::is_last_time_slice

are we on the first (global) time slice

Definition at line 44 of file dslash_staggered.cuh.

◆ L

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

const GL quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::L

the gauge field

Definition at line 39 of file dslash_staggered.cuh.

Referenced by quda::applyStaggered().

◆ nSpin

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr int quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::nSpin = 1

static

Definition at line 20 of file dslash_staggered.cuh.

◆ out

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

F quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::out

Definition at line 35 of file dslash_staggered.cuh.

Referenced by quda::staggered().

◆ phase

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr QudaStaggeredPhase quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::phase = phase_

static

Definition at line 30 of file dslash_staggered.cuh.

◆ reconstruct_l

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr QudaReconstructType quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::reconstruct_l = reconstruct_l_

static

Definition at line 26 of file dslash_staggered.cuh.

◆ reconstruct_u

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr QudaReconstructType quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::reconstruct_u = reconstruct_u_

static

Definition at line 25 of file dslash_staggered.cuh.

◆ spin_project

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr bool quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::spin_project = false

static

Definition at line 21 of file dslash_staggered.cuh.

◆ spinor_direct_load

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr bool quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::spinor_direct_load = false

static

Definition at line 22 of file dslash_staggered.cuh.

◆ tboundary

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

const real quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::tboundary

xpay scale factor

Definition at line 42 of file dslash_staggered.cuh.

◆ U

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

const GU quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::U

input vector when doing xpay

Definition at line 38 of file dslash_staggered.cuh.

Referenced by quda::applyStaggered().

◆ use_inphase

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

constexpr bool quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::use_inphase = improved_ ? false : true

static

Definition at line 29 of file dslash_staggered.cuh.

◆ x

template<typename Float, int nColor, QudaReconstructType reconstruct_u_, QudaReconstructType reconstruct_l_, bool improved_, QudaStaggeredPhase phase_ = QUDA_STAGGERED_PHASE_MILC>

const F quda::StaggeredArg< Float, nColor, reconstruct_u_, reconstruct_l_, improved_, phase_ >::x

input vector field

Definition at line 37 of file dslash_staggered.cuh.

Referenced by quda::staggered().

The documentation for this struct was generated from the following file:

include/kernels/dslash_staggered.cuh
