#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <mpi.h>
#include <csignal>
#include <quda_internal.h>
#include <comm_quda.h>

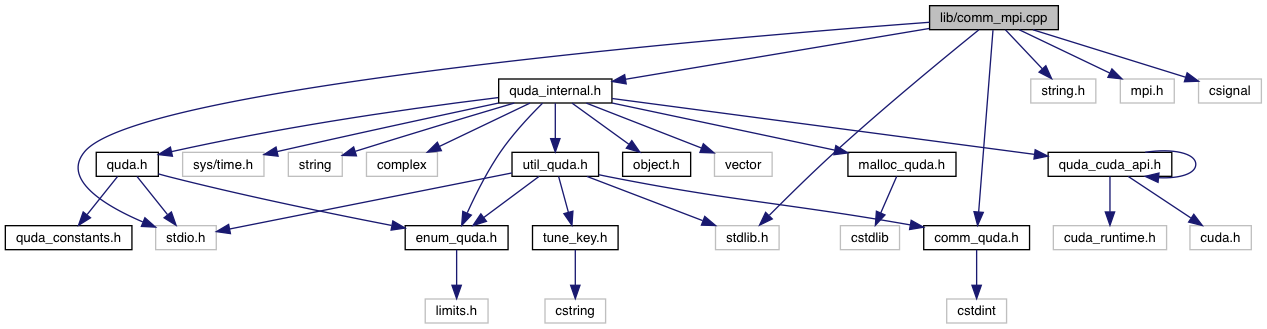

Include dependency graph for comm_mpi.cpp:

Go to the source code of this file.

Classes
struct	MsgHandle_s

Macros
#define	MPI_CHECK(mpi_call)

Functions
void	comm_gather_hostname (char *hostname_recv_buf)
	Gather all hostnames. More...

void	comm_gather_gpuid (int *gpuid_recv_buf)
	Gather all GPU ids. More...

void	comm_init (int ndim, const int dims, QudaCommsMap rank_from_coords, void map_data)

int	comm_rank (void)

int	comm_size (void)

int	comm_gpuid (void)

static void	check_displacement (const int displacement[], int ndim)

MsgHandle *	comm_declare_send_displaced (void *buffer, const int displacement[], size_t nbytes)

MsgHandle *	comm_declare_receive_displaced (void *buffer, const int displacement[], size_t nbytes)

MsgHandle *	comm_declare_strided_send_displaced (void *buffer, const int displacement[], size_t blksize, int nblocks, size_t stride)

MsgHandle *	comm_declare_strided_receive_displaced (void *buffer, const int displacement[], size_t blksize, int nblocks, size_t stride)

void	comm_free (MsgHandle *mh)

void	comm_start (MsgHandle *mh)

void	comm_wait (MsgHandle *mh)

int	comm_query (MsgHandle *mh)

void	comm_allreduce (double *data)

void	comm_allreduce_max (double *data)

void	comm_allreduce_array (double *data, size_t size)

void	comm_allreduce_int (int *data)

void	comm_allreduce_xor (uint64_t *data)

void	comm_broadcast (void *data, size_t nbytes)

void	comm_barrier (void)

void	comm_abort (int status)

const char *	comm_dim_partitioned_string ()
	Return a string that defines the comm partitioning (used as a tuneKey) More...

const char *	comm_dim_topology_string ()
	Return a string that defines the comm topology (for use as a tuneKey) More...

Variables
static int	rank = -1

static int	size = -1

static int	gpuid = -1

static char	partition_string [16]

static char	topology_string [16]

static const int	max_displacement = 4

Macro Definition Documentation

◆ MPI_CHECK

#define MPI_CHECK ( mpi_call )

Value:

do {                    \
  int status = mpi_call;                            \
  if (status != MPI_SUCCESS) {                      \
    char err_string[128];                           \
    int err_len;                                    \
    MPI_Error_string(status, err_string, &err_len); \
    err_string[127] = '\0';                         \
    errorQuda("(MPI) %s", err_string);              \
  }                                                 \
} while (0)

Definition at line 10 of file comm_mpi.cpp.

Referenced by comm_allreduce(), comm_allreduce_array(), comm_allreduce_int(), comm_allreduce_max(), comm_allreduce_xor(), comm_barrier(), comm_broadcast(), comm_declare_receive_displaced(), comm_declare_send_displaced(), comm_declare_strided_receive_displaced(), comm_declare_strided_send_displaced(), comm_free(), comm_gather_gpuid(), comm_gather_hostname(), comm_init(), comm_query(), comm_start(), and comm_wait().

Function Documentation

◆ check_displacement()

static void check_displacement	(	const int	displacement[],
		int	ndim
	)

static

Definition at line 140 of file comm_mpi.cpp.

References abs(), errorQuda, fused_exterior_ndeg_tm_dslash_cuda_gen::i, max_displacement, and ndim.

Referenced by comm_declare_receive_displaced(), comm_declare_send_displaced(), comm_declare_strided_receive_displaced(), and comm_declare_strided_send_displaced().

Here is the call graph for this function:

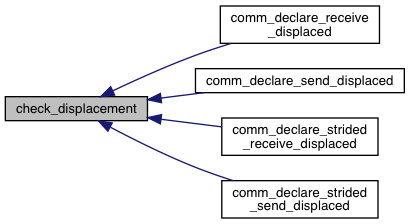

Here is the caller graph for this function:

◆ comm_abort()

void comm_abort ( int status )

Definition at line 334 of file comm_mpi.cpp.

◆ comm_allreduce()

void comm_allreduce ( double * data )

Definition at line 281 of file comm_mpi.cpp.

References MPI_Allreduce(), and MPI_CHECK.

Here is the call graph for this function:

◆ comm_allreduce_array()

void comm_allreduce_array	(	double *	data,
		size_t	size
	)

Definition at line 296 of file comm_mpi.cpp.

References memcpy(), MPI_Allreduce(), MPI_CHECK, and size.

Here is the call graph for this function:

◆ comm_allreduce_int()

void comm_allreduce_int ( int * data )

Definition at line 305 of file comm_mpi.cpp.

References MPI_Allreduce(), and MPI_CHECK.

Here is the call graph for this function:

◆ comm_allreduce_max()

void comm_allreduce_max ( double * data )

Definition at line 289 of file comm_mpi.cpp.

References MPI_Allreduce(), and MPI_CHECK.

Here is the call graph for this function:

◆ comm_allreduce_xor()

void comm_allreduce_xor ( uint64_t * data )

Definition at line 312 of file comm_mpi.cpp.

References errorQuda, MPI_Allreduce(), and MPI_CHECK.

Here is the call graph for this function:

◆ comm_barrier()

void comm_barrier ( void )

Definition at line 328 of file comm_mpi.cpp.

References MPI_Barrier(), and MPI_CHECK.

Here is the call graph for this function:

◆ comm_broadcast()

void comm_broadcast	(	void *	data,
		size_t	nbytes
	)

broadcast from rank 0

Definition at line 322 of file comm_mpi.cpp.

References MPI_Bcast(), and MPI_CHECK.

Here is the call graph for this function:

◆ comm_declare_receive_displaced()

MsgHandle* comm_declare_receive_displaced	(	void *	buffer,
		const int	displacement[],
		size_t	nbytes
	)

Declare a message handle for receiving from a node displaced in (x,y,z,t) according to "displacement"

Definition at line 174 of file comm_mpi.cpp.

References check_displacement(), comm_default_topology(), comm_ndim(), comm_rank_displaced(), MsgHandle_s::custom, fused_exterior_ndeg_tm_dslash_cuda_gen::i, max_displacement, MPI_CHECK, MPI_Recv_init(), ndim, pow(), rank, MsgHandle_s::request, and safe_malloc.

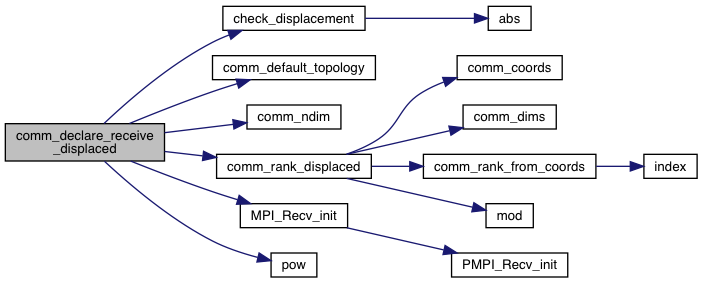

Here is the call graph for this function:

◆ comm_declare_send_displaced()

MsgHandle* comm_declare_send_displaced	(	void *	buffer,
		const int	displacement[],
		size_t	nbytes
	)

Declare a message handle for sending to a node displaced in (x,y,z,t) according to "displacement"

Definition at line 151 of file comm_mpi.cpp.

References check_displacement(), comm_default_topology(), comm_ndim(), comm_rank_displaced(), MsgHandle_s::custom, fused_exterior_ndeg_tm_dslash_cuda_gen::i, max_displacement, MPI_CHECK, MPI_Send_init(), ndim, pow(), rank, MsgHandle_s::request, and safe_malloc.

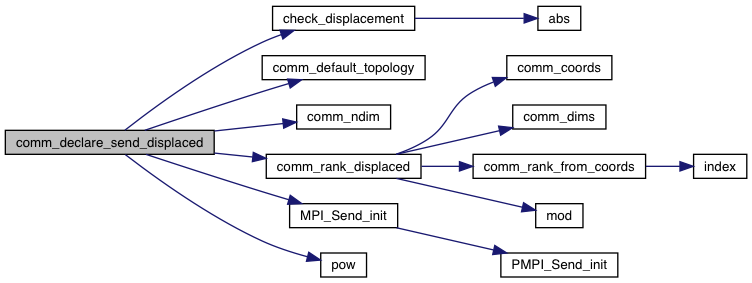

Here is the call graph for this function:

◆ comm_declare_strided_receive_displaced()

MsgHandle* comm_declare_strided_receive_displaced	(	void *	buffer,
		const int	displacement[],
		size_t	blksize,
		int	nblocks,
		size_t	stride
	)

Declare a message handle for receiving from a node displaced in (x,y,z,t) according to "displacement"

Definition at line 226 of file comm_mpi.cpp.

References check_displacement(), comm_default_topology(), comm_ndim(), comm_rank_displaced(), MsgHandle_s::custom, MsgHandle_s::datatype, fused_exterior_ndeg_tm_dslash_cuda_gen::i, max_displacement, MPI_CHECK, MPI_Recv_init(), ndim, pow(), rank, MsgHandle_s::request, and safe_malloc.

Here is the call graph for this function:

◆ comm_declare_strided_send_displaced()

MsgHandle* comm_declare_strided_send_displaced	(	void *	buffer,
		const int	displacement[],
		size_t	blksize,
		int	nblocks,
		size_t	stride
	)

Declare a message handle for sending to a node displaced in (x,y,z,t) according to "displacement"

Definition at line 197 of file comm_mpi.cpp.

References check_displacement(), comm_default_topology(), comm_ndim(), comm_rank_displaced(), MsgHandle_s::custom, MsgHandle_s::datatype, fused_exterior_ndeg_tm_dslash_cuda_gen::i, max_displacement, MPI_CHECK, MPI_Send_init(), ndim, pow(), rank, MsgHandle_s::request, and safe_malloc.

Here is the call graph for this function:

◆ comm_dim_partitioned_string()

const char* comm_dim_partitioned_string ( )

Return a string that defines the comm partitioning (used as a tuneKey)

Returns: String specifying comm partitioning

Definition at line 342 of file comm_mpi.cpp.

References partition_string.

◆ comm_dim_topology_string()

const char* comm_dim_topology_string ( )

Return a string that defines the comm topology (for use as a tuneKey)

Returns: String specifying comm topology

Definition at line 346 of file comm_mpi.cpp.

References topology_string.

◆ comm_free()

void comm_free ( MsgHandle * mh )

Definition at line 252 of file comm_mpi.cpp.

References MsgHandle_s::custom, MsgHandle_s::datatype, host_free, MPI_CHECK, and MsgHandle_s::request.

◆ comm_gather_gpuid()

void comm_gather_gpuid ( int * gpuid_recv_buf )

Gather all GPU ids.

Parameters

[out] gpuid_recv_buf int array of length comm_size() that will be filled in GPU ids for all processes (in rank order).

Definition at line 56 of file comm_mpi.cpp.

References gpuid, MPI_Allgather(), and MPI_CHECK.

Here is the call graph for this function:

◆ comm_gather_hostname()

void comm_gather_hostname ( char * hostname_recv_buf )

Gather all hostnames.

Parameters

[out] hostname_recv_buf char array of length 128*comm_size() that will be filled in GPU ids for all processes. Each hostname is in rank order, with 128 bytes for each.

Definition at line 50 of file comm_mpi.cpp.

References comm_hostname(), MPI_Allgather(), and MPI_CHECK.

Referenced by comm_init().

Here is the call graph for this function:
