multi_reduce_core.cuh File Reference

#include <launch_kernel.cuh>

Include dependency graph for multi_reduce_core.cuh:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	MultiReduceArg< NXZ, ReduceType, SpinorX, SpinorY, SpinorZ, SpinorW, Reducer >
	Parameter struct for generic multi-blas kernel. More...
struct	detail::to_chars< digits >
struct	detail::explode< rem, digits >
struct	detail::explode< 0, digits... >
struct	num_to_string< num >
class	MultiReduceCuda< NXZ, doubleN, ReduceType, FloatN, M, SpinorX, SpinorY, SpinorZ, SpinorW, Reducer >
struct	coeff_array< T >

Namespaces
	detail

Macros
#define	MAX_MATRIX_SIZE   4096

Functions
__host__ __device__ double	set (double &x)
__host__ __device__ double2	set (double2 &x)
__host__ __device__ double3	set (double3 &x)
__host__ __device__ void	sum (double &a, double &b)
__host__ __device__ void	sum (double2 &a, double2 &b)
__host__ __device__ void	sum (double3 &a, double3 &b)
template<int k, int NXZ, typename FloatN , int M, typename ReduceType , typename Arg >
__device__ void	compute (vector_type< ReduceType, NXZ > &sum, Arg &arg, int idx, int parity)
template<int block_size, typename ReduceType , typename FloatN , int M, int NXZ, typename SpinorX , typename SpinorY , typename SpinorZ , typename SpinorW , typename Reducer >
__global__ void	multiReduceKernel (MultiReduceArg< NXZ, ReduceType, SpinorX, SpinorY, SpinorZ, SpinorW, Reducer > arg)
template<typename doubleN , typename ReduceType , typename FloatN , int M, int NXZ, typename SpinorX , typename SpinorY , typename SpinorZ , typename SpinorW , typename Reducer >
void	multiReduceLaunch (doubleN result[], MultiReduceArg< NXZ, ReduceType, SpinorX, SpinorY, SpinorZ, SpinorW, Reducer > &arg, const TuneParam &tp, const cudaStream_t &stream)
template<typename doubleN , typename ReduceType , typename RegType , typename StoreType , typename yType , int M, int NXZ, template< int MXZ, typename ReducerType, typename Float, typename FloatN > class Reducer, typename write , typename T >
void	multiReduceCuda (doubleN result[], const reduce::coeff_array< T > &a, const reduce::coeff_array< T > &b, const reduce::coeff_array< T > &c, std::vector< ColorSpinorField *> &x, std::vector< ColorSpinorField *> &y, std::vector< ColorSpinorField *> &z, std::vector< ColorSpinorField *> &w, int length)

Variables
static __device__ unsigned int	count = 0
static __shared__ bool	isLastBlockDone
static __constant__ signed char	Amatrix_d [MAX_MATRIX_SIZE]
static __constant__ signed char	Bmatrix_d [MAX_MATRIX_SIZE]
static __constant__ signed char	Cmatrix_d [MAX_MATRIX_SIZE]
static signed char *	Amatrix_h
static signed char *	Bmatrix_h
static signed char *	Cmatrix_h

Macro Definition Documentation

MAX_MATRIX_SIZE

#define MAX_MATRIX_SIZE   4096

Definition at line 65 of file multi_reduce_core.cuh.

Referenced by multiReduceCuda().

Function Documentation

compute()

template<int k, int NXZ, typename FloatN , int M, typename ReduceType , typename Arg >

__device__ void compute ( vector_type< ReduceType, NXZ > &  sum, Arg &  arg, int  idx, int  parity  )

inline

Definition at line 76 of file multi_reduce_core.cuh.

References quda::arg(), blockDim, gridDim, idx, parity, sum(), w, x, y, and z.

Here is the call graph for this function:

multiReduceCuda()

template<typename doubleN , typename ReduceType , typename RegType , typename StoreType , typename yType , int M, int NXZ, template< int MXZ, typename ReducerType, typename Float, typename FloatN > class Reducer, typename write , typename T >

void multiReduceCuda	(	doubleN	result[],
		const reduce::coeff_array< T > &	a,
		const reduce::coeff_array< T > &	b,
		const reduce::coeff_array< T > &	c,
		std::vector< ColorSpinorField *> &	x,
		std::vector< ColorSpinorField *> &	y,
		std::vector< ColorSpinorField *> &	z,
		std::vector< ColorSpinorField *> &	w,
		int	length
	)

Definition at line 370 of file multi_reduce_core.cuh.

References a, Amatrix_d, Amatrix_h, b, quda::blas::blasStrings, Bmatrix_d, Bmatrix_h, quda::blas::bytes, c, checkCudaError, checkSpinor(), Cmatrix_d, Cmatrix_h, errorQuda, quda::blas::flops, quda::blas::getStream(), fused_exterior_ndeg_tm_dslash_cuda_gen::i, length, MAX_MATRIX_SIZE, MAX_MULTI_BLAS_N, memset(), QUDA_MAX_MULTI_REDUCE, quda::reduce(), strcat(), strcpy(), V, w, warningQuda, X, x, y, Z, and z.

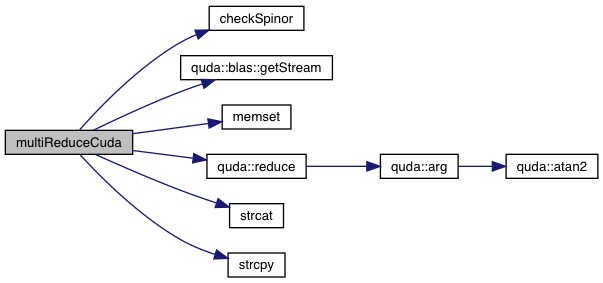

Here is the call graph for this function:

multiReduceKernel()

template<int block_size, typename ReduceType , typename FloatN , int M, int NXZ, typename SpinorX , typename SpinorY , typename SpinorZ , typename SpinorW , typename Reducer >

__global__ void multiReduceKernel

(

MultiReduceArg< NXZ, ReduceType, SpinorX, SpinorY, SpinorZ, SpinorW, Reducer >

arg

)

Definition at line 121 of file multi_reduce_core.cuh.

References quda::arg(), blockDim, fused_exterior_ndeg_tm_dslash_cuda_gen::i, parity, and sum().

Referenced by multiReduceLaunch().

Here is the call graph for this function:

Here is the caller graph for this function:

multiReduceLaunch()

template<typename doubleN , typename ReduceType , typename FloatN , int M, int NXZ, typename SpinorX , typename SpinorY , typename SpinorZ , typename SpinorW , typename Reducer >

void multiReduceLaunch	(	doubleN	result[],
		MultiReduceArg< NXZ, ReduceType, SpinorX, SpinorY, SpinorZ, SpinorW, Reducer > &	arg,
		const TuneParam &	tp,
		const cudaStream_t &	stream
	)

Definition at line 190 of file multi_reduce_core.cuh.

References quda::arg(), deviceProp, errorQuda, quda::blas::getHostReduceBuffer(), quda::blas::getMappedHostReduceBuffer(), quda::blas::getReduceEvent(), fused_exterior_ndeg_tm_dslash_cuda_gen::i, LAUNCH_KERNEL_LOCAL_PARITY, multiReduceKernel(), quda::qudaEventQuery(), quda::qudaEventRecord(), qudaMemcpy, stream, and sum().

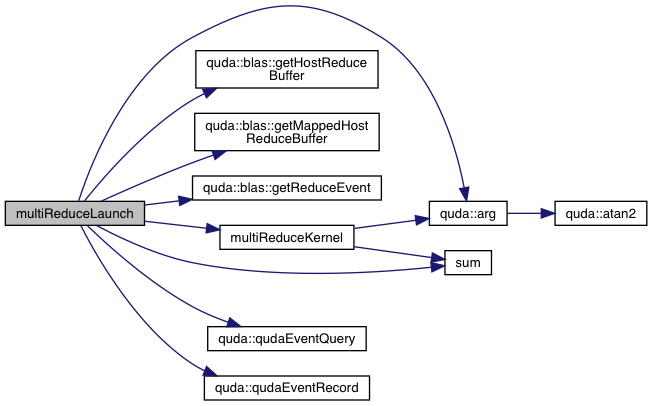

Here is the call graph for this function:

set() [1/3]

__host__ __device__ double set ( double &  x )

inline

Definition at line 1 of file multi_reduce_core.cuh.

References x.

set() [2/3]

__host__ __device__ double2 set ( double2 &  x )

inline

Definition at line 2 of file multi_reduce_core.cuh.

References x.

set() [3/3]

__host__ __device__ double3 set ( double3 &  x )

inline

Definition at line 3 of file multi_reduce_core.cuh.

References x.

sum() [1/3]

__host__ __device__ void sum ( double &  a, double &  b  )

inline

Definition at line 4 of file multi_reduce_core.cuh.

References a, and b.

Referenced by quda::blas::cdot_(), quda::blas::cdotNormA_(), quda::blas::cdotNormB_(), compute(), covdevReference(), quda::blas::dot_(), dslashReference(), dslashReference_4d_sgpu(), dslashReference_5th(), quda::getRealTraceUVdagger(), quda::blas::HeavyQuarkResidualNorm(), multiReduceKernel(), multiReduceLaunch(), norm2(), quda::blas::norm2_(), normalize(), quda::blas::Dot< NXZ, ReduceType, Float2, FloatN >::operator()(), quda::blas::Norm1< ReduceType, Float2, FloatN >::operator()(), quda::reduce_vector< T >::operator()(), quda::blas::Norm2< ReduceType, Float2, FloatN >::operator()(), quda::blas::Cdot< NXZ, ReduceType, Float2, FloatN >::operator()(), quda::blas::CdotCopy< NXZ, ReduceType, Float2, FloatN >::operator()(), quda::blas::DotNormA< ReduceType, Float2, FloatN >::operator()(), quda::blas::axpyNorm2< ReduceType, Float2, FloatN >::operator()(), quda::blas::AxpyReDot< ReduceType, Float2, FloatN >::operator()(), quda::blas::xmyNorm2< ReduceType, Float2, FloatN >::operator()(), quda::blas::caxpyNorm2< ReduceType, Float2, FloatN >::operator()(), quda::blas::caxpyxmaznormx< ReduceType, Float2, FloatN >::operator()(), quda::blas::cabxpyaxnorm< ReduceType, Float2, FloatN >::operator()(), quda::blas::xpaycdotzy< ReduceType, Float2, FloatN >::operator()(), quda::blas::caxpydotzy< ReduceType, Float2, FloatN >::operator()(), quda::blas::CdotNormA< ReduceType, Float2, FloatN >::operator()(), quda::blas::CdotNormB< ReduceType, Float2, FloatN >::operator()(), quda::blas::caxpbypzYmbwcDotProductUYNormY_< ReduceType, Float2, FloatN >::operator()(), quda::blas::axpyCGNorm2< ReduceType, Float2, FloatN >::operator()(), quda::blas::tripleCGReduction_< ReduceType, Float2, FloatN >::operator()(), quda::blas::HeavyQuarkResidualNorm_< ReduceType, Float2, FloatN >::post(), quda::blas::xpyHeavyQuarkResidualNorm_< ReduceType, Float2, FloatN >::post(), quda::reduce2d(), reduceDouble(), reduceDoubleArray(), and quda::reduceRow().

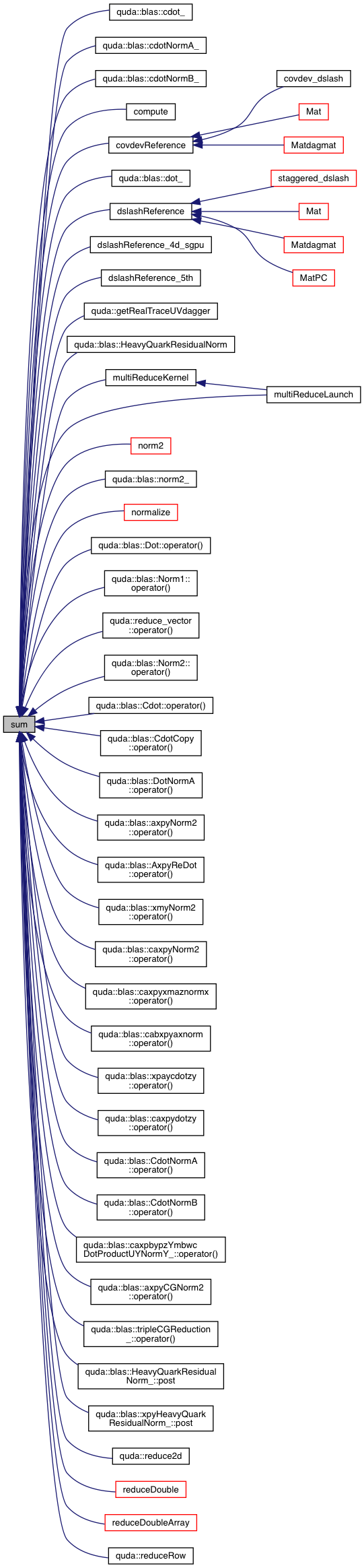

Here is the caller graph for this function:

sum() [2/3]

__host__ __device__ void sum ( double2 &  a, double2 &  b  )

inline

Definition at line 5 of file multi_reduce_core.cuh.

References a, and b.

sum() [3/3]

__host__ __device__ void sum ( double3 &  a, double3 &  b  )

inline

Definition at line 6 of file multi_reduce_core.cuh.

References a, and b.

Variable Documentation

Amatrix_d

__constant__ signed char Amatrix_d[MAX_MATRIX_SIZE]

static

Definition at line 66 of file multi_reduce_core.cuh.

Referenced by multiReduceCuda().

Amatrix_h

signed char* Amatrix_h

static

Definition at line 70 of file multi_reduce_core.cuh.

Referenced by multiReduceCuda().

Bmatrix_d

__constant__ signed char Bmatrix_d[MAX_MATRIX_SIZE]

static

Definition at line 67 of file multi_reduce_core.cuh.

Referenced by multiReduceCuda().

Bmatrix_h

signed char* Bmatrix_h

static

Definition at line 71 of file multi_reduce_core.cuh.

Referenced by multiReduceCuda().

Cmatrix_d

__constant__ signed char Cmatrix_d[MAX_MATRIX_SIZE]

static

Definition at line 68 of file multi_reduce_core.cuh.

Referenced by multiReduceCuda().

Cmatrix_h

signed char* Cmatrix_h

static

Definition at line 72 of file multi_reduce_core.cuh.

Referenced by multiReduceCuda().

count

__device__ unsigned int count = 0

static

Definition at line 19 of file multi_reduce_core.cuh.

isLastBlockDone

__shared__ bool isLastBlockDone

static

Definition at line 20 of file multi_reduce_core.cuh.
