quda::BiCGstabL Class Reference

#include <invert_quda.h>

Inheritance diagram for quda::BiCGstabL:

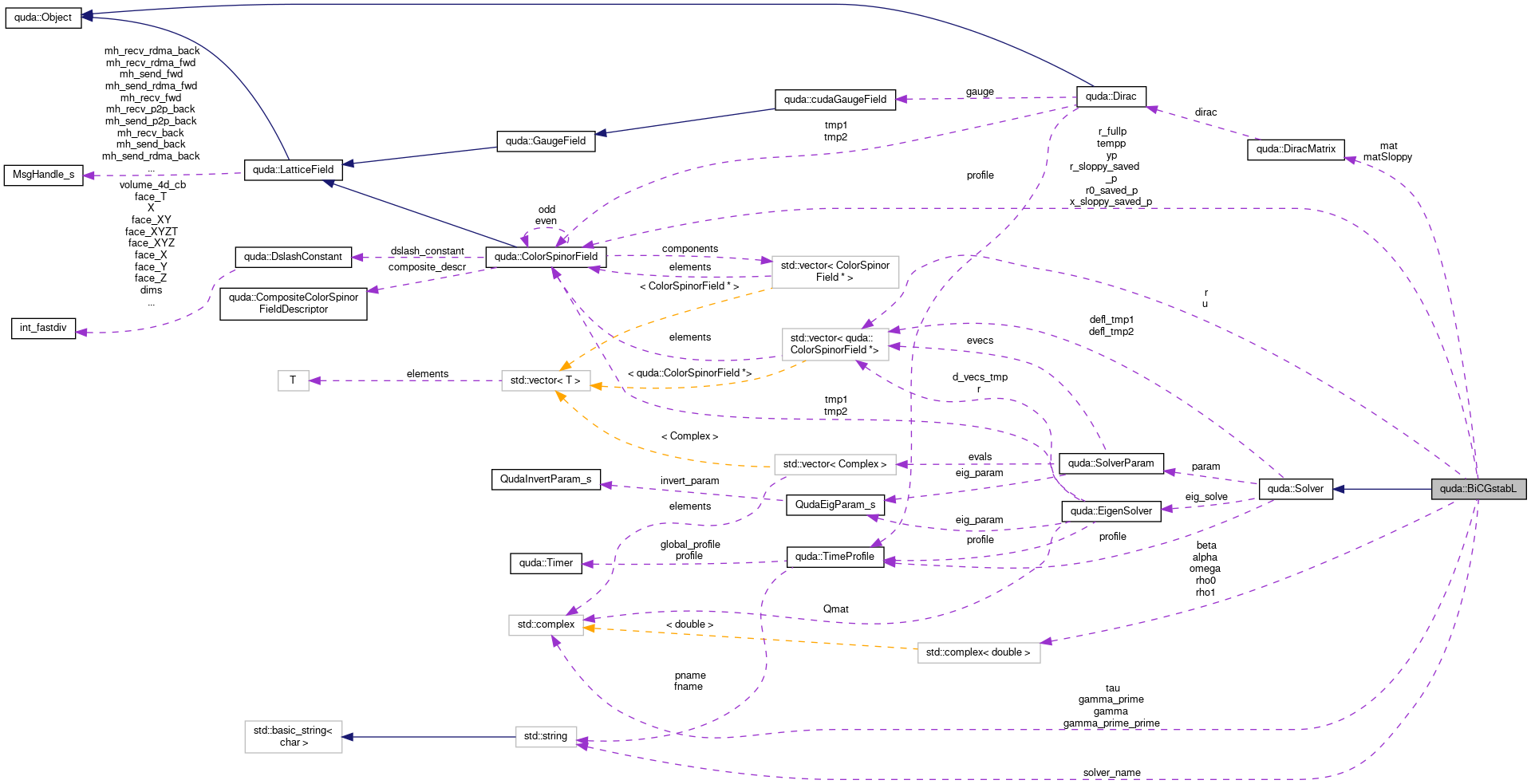

Collaboration diagram for quda::BiCGstabL:

Public Member Functions
	BiCGstabL (DiracMatrix &mat, DiracMatrix &matSloppy, SolverParam &param, TimeProfile &profile)
virtual	~BiCGstabL ()
void	operator() (ColorSpinorField &out, ColorSpinorField &in)
Public Member Functions inherited from quda::Solver
	Solver (SolverParam &param, TimeProfile &profile)
virtual	~Solver ()
virtual void	blocksolve (ColorSpinorField &out, ColorSpinorField &in)
bool	convergence (double r2, double hq2, double r2_tol, double hq_tol)
bool	convergenceHQ (double r2, double hq2, double r2_tol, double hq_tol)
	Test for HQ solver convergence – ignore L2 residual. More...
bool	convergenceL2 (double r2, double hq2, double r2_tol, double hq_tol)
	Test for L2 solver convergence – ignore HQ residual. More...
void	PrintStats (const char *name, int k, double r2, double b2, double hq2)
	Prints out the running statistics of the solver (requires a verbosity of QUDA_VERBOSE) More...
void	PrintSummary (const char *name, int k, double r2, double b2, double r2_tol, double hq_tol)
	Prints out the summary of the solver convergence (requires a verbosity of QUDA_SUMMARIZE). Assumes SolverParam.true_res and SolverParam.true_res_hq has been set. More...
void	constructDeflationSpace (const ColorSpinorField &meta, const DiracMatrix &mat, bool svd)
	Constructs the deflation space. More...
virtual double	flops () const

Private Member Functions
int	reliable (double &rNorm, double &maxrx, double &maxrr, const double &r2, const double &delta)
	Current residual, in BiCG language. More...
void	computeTau (Complex **tau, double *sigma, std::vector< ColorSpinorField *> r, int begin, int size, int j)
void	updateR (Complex **tau, std::vector< ColorSpinorField *> r, int begin, int size, int j)
void	orthoDir (Complex **tau, double *sigma, std::vector< ColorSpinorField *> r, int j, int pipeline)
void	updateUend (Complex *gamma, std::vector< ColorSpinorField *> u, int nKrylov)
void	updateXRend (Complex *gamma, Complex *gamma_prime, Complex *gamma_prime_prime, std::vector< ColorSpinorField *> r, ColorSpinorField &x, int nKrylov)

Private Attributes
DiracMatrix &	mat
const DiracMatrix &	matSloppy
int	nKrylov
Complex	rho0
Complex	rho1
Complex	alpha
Complex	omega
Complex	beta
Complex *	gamma
Complex *	gamma_prime
Complex *	gamma_prime_prime
Complex **	tau
double *	sigma
ColorSpinorField *	r_fullp
ColorSpinorField *	yp
	Full precision residual. More...
ColorSpinorField *	tempp
	Full precision temporary. More...
std::vector< ColorSpinorField * >	r
	Sloppy temporary vector. More...
std::vector< ColorSpinorField * >	u
ColorSpinorField *	x_sloppy_saved_p
ColorSpinorField *	r0_saved_p
	Sloppy solution vector. More...
ColorSpinorField *	r_sloppy_saved_p
	Shadow residual, in BiCG language. More...
bool	init
std::string	solver_name

Additional Inherited Members
Static Public Member Functions inherited from quda::Solver
static Solver *	create (SolverParam &param, DiracMatrix &mat, DiracMatrix &matSloppy, DiracMatrix &matPrecon, TimeProfile &profile)
static double	stopping (double tol, double b2, QudaResidualType residual_type)
	Set the solver L2 stopping condition. More...
Public Attributes inherited from quda::Solver
EigenSolver *	eig_solve
bool	deflate_init = false
std::vector< ColorSpinorField * >	defl_tmp1
std::vector< ColorSpinorField * >	defl_tmp2
Protected Attributes inherited from quda::Solver
SolverParam &	param
TimeProfile &	profile
int	node_parity

Detailed Description

Definition at line 755 of file invert_quda.h.

Constructor & Destructor Documentation

BiCGstabL()

quda::BiCGstabL::BiCGstabL	(	DiracMatrix &	mat,
		DiracMatrix &	matSloppy,
		SolverParam &	param,
		TimeProfile &	profile
	)

Definition at line 255 of file inv_bicgstabl_quda.cpp.

References gamma, gamma_prime, gamma_prime_prime, nKrylov, r, sigma, solver_name, tau, and u.

~BiCGstabL()

quda::BiCGstabL::~BiCGstabL ( )

virtual

Definition at line 274 of file inv_bicgstabl_quda.cpp.

References gamma, gamma_prime, gamma_prime_prime, init, nKrylov, quda::Solver::profile, quda::QUDA_PROFILE_FREE, r, r0_saved_p, r_fullp, r_sloppy_saved_p, sigma, tau, tempp, u, x_sloppy_saved_p, and yp.

Member Function Documentation

computeTau()

void quda::BiCGstabL::computeTau ( Complex **  tau, double *  sigma, std::vector< ColorSpinorField *>  r, int  begin, int  size, int  j  )

private

Internal routines for pipelined Gram-Schmidt. Made to not conflict with GCR's implementation.

Definition at line 21 of file inv_bicgstabl_quda.cpp.

References quda::blas::cDotProduct(), and quda::size.

Referenced by orthoDir().

Here is the call graph for this function:

Here is the caller graph for this function:

operator()()

void quda::BiCGstabL::operator() ( ColorSpinorField &  out, ColorSpinorField &  in  )

virtual

Implements quda::Solver.

Definition at line 322 of file inv_bicgstabl_quda.cpp.

References alpha, quda::dslash::aux_worker, beta, quda::BICGSTABL_UPDATE_R, quda::BICGSTABL_UPDATE_U, quda::blas::caxpby(), quda::blas::caxpy(), quda::blas::cDotProduct(), quda::blas::cDotProductNormA(), quda::SolverParam::compute_null_vector, quda::SolverParam::compute_true_res, quda::Solver::convergence(), quda::blas::copy(), quda::ColorSpinorParam::create, quda::ColorSpinorField::Create(), csParam, quda::SolverParam::delta, errorQuda, quda::blas::flops, quda::DiracMatrix::flops(), gamma, gamma_prime, gamma_prime_prime, quda::DiracMatrix::getStencilSteps(), getVerbosity(), quda::SolverParam::gflops, quda::SolverParam::heavy_quark_check, quda::blas::HeavyQuarkResidualNorm(), init, quda::SolverParam::is_preconditioner, quda::SolverParam::iter, quda::TimeProfile::Last(), mat, matSloppy, quda::SolverParam::maxiter, nKrylov, quda::blas::norm2(), omega, orthoDir(), quda::Solver::param, pipeline, quda::SolverParam::pipeline, quda::LatticeField::Precision(), quda::SolverParam::precision_sloppy, quda::SolverParam::preserve_source, printfQuda, quda::Solver::PrintStats(), quda::Solver::PrintSummary(), quda::Solver::profile, QUDA_COMPUTE_NULL_VECTOR_NO, QUDA_HEAVY_QUARK_RESIDUAL, QUDA_PRESERVE_SOURCE_NO, quda::QUDA_PROFILE_COMPUTE, quda::QUDA_PROFILE_EPILOGUE, quda::QUDA_PROFILE_FREE, quda::QUDA_PROFILE_PREAMBLE, QUDA_USE_INIT_GUESS_YES, QUDA_VERBOSE, QUDA_ZERO_FIELD_CREATE, r, r0_saved_p, r_fullp, r_sloppy_saved_p, reliable(), quda::SolverParam::residual_type, rho0, rho1, quda::SolverParam::secs, quda::ColorSpinorParam::setPrecision(), sigma, solver_name, quda::sqrt(), quda::Solver::stopping(), tau, tempp, quda::SolverParam::tol, quda::SolverParam::tol_hq, quda::SolverParam::true_res, quda::SolverParam::true_res_hq, u, updateUend(), updateXRend(), quda::SolverParam::use_init_guess, quda::SolverParam::use_sloppy_partial_accumulator, warningQuda, x_sloppy_saved_p, quda::blas::xmyNorm(), quda::blas::xpy(), quda::blas::xpyHeavyQuarkResidualNorm(), yp, and quda::blas::zero().

Here is the call graph for this function:

orthoDir()

void quda::BiCGstabL::orthoDir ( Complex **  tau, double *  sigma, std::vector< ColorSpinorField *>  r, int  j, int  pipeline  )

private

Definition at line 57 of file inv_bicgstabl_quda.cpp.

References quda::blas::caxpy(), quda::blas::caxpyDotzy(), quda::blas::cDotProduct(), computeTau(), pipeline, and updateR().

Referenced by operator()().

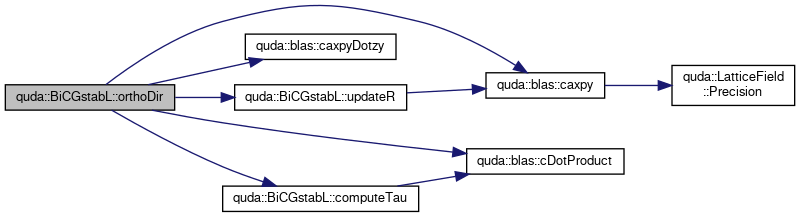

Here is the call graph for this function:

Here is the caller graph for this function:

reliable()

int quda::BiCGstabL::reliable ( double &  rNorm, double &  maxrx, double &  maxrr, const double &  r2, const double &  delta  )

private

Current residual, in BiCG language.

Internal routine for reliable updates. Made to not conflict with BiCGstab's implementation.

Definition at line 308 of file inv_bicgstabl_quda.cpp.

References quda::sqrt(), and updateR().

Referenced by operator()().

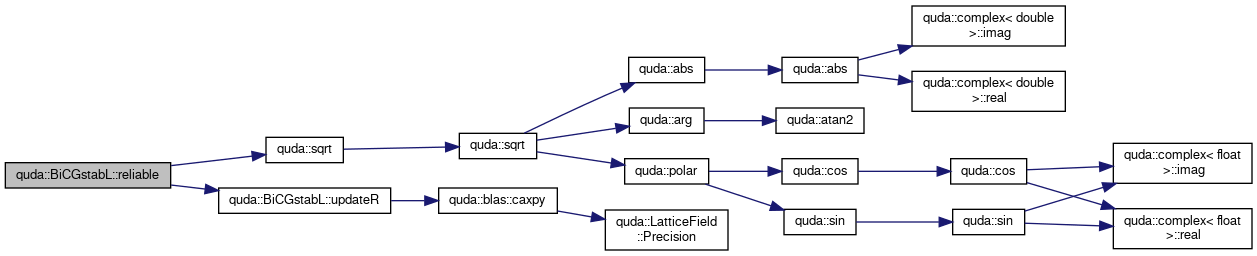

Here is the call graph for this function:

Here is the caller graph for this function:

updateR()

void quda::BiCGstabL::updateR ( Complex **  tau, std::vector< ColorSpinorField *>  r, int  begin, int  size, int  j  )

private

Definition at line 40 of file inv_bicgstabl_quda.cpp.

References quda::blas::caxpy(), and quda::size.

Referenced by orthoDir(), and reliable().

Here is the call graph for this function:

Here is the caller graph for this function:

updateUend()

void quda::BiCGstabL::updateUend ( Complex *  gamma, std::vector< ColorSpinorField *>  u, int  nKrylov  )

private

Definition at line 108 of file inv_bicgstabl_quda.cpp.

References quda::blas::caxpy(), and nKrylov.

Referenced by operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

updateXRend()

void quda::BiCGstabL::updateXRend ( Complex *  gamma, Complex *  gamma_prime, Complex *  gamma_prime_prime, std::vector< ColorSpinorField *>  r, ColorSpinorField &  x, int  nKrylov  )

private

Definition at line 125 of file inv_bicgstabl_quda.cpp.

References quda::blas::caxpyBxpz(), and nKrylov.

Referenced by operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

alpha

Complex quda::BiCGstabL::alpha

private

Definition at line 767 of file invert_quda.h.

Referenced by operator()().

beta

Complex quda::BiCGstabL::beta

private

Definition at line 767 of file invert_quda.h.

Referenced by operator()().

gamma

Complex* quda::BiCGstabL::gamma

private

Definition at line 768 of file invert_quda.h.

Referenced by BiCGstabL(), operator()(), and ~BiCGstabL().

gamma_prime

Complex * quda::BiCGstabL::gamma_prime

private

Definition at line 768 of file invert_quda.h.

Referenced by BiCGstabL(), operator()(), and ~BiCGstabL().

gamma_prime_prime

Complex * quda::BiCGstabL::gamma_prime_prime

private

Definition at line 768 of file invert_quda.h.

Referenced by BiCGstabL(), operator()(), and ~BiCGstabL().

init

bool quda::BiCGstabL::init

private

Solver uses lazy allocation: this flag determines whether we have allocated or not.

Definition at line 805 of file invert_quda.h.

Referenced by operator()(), and ~BiCGstabL().

mat

DiracMatrix& quda::BiCGstabL::mat

private

Definition at line 758 of file invert_quda.h.

Referenced by operator()().

matSloppy

const DiracMatrix& quda::BiCGstabL::matSloppy

private

Definition at line 759 of file invert_quda.h.

Referenced by operator()().

nKrylov

int quda::BiCGstabL::nKrylov

private

The size of the Krylov space that BiCGstabL uses.

Definition at line 764 of file invert_quda.h.

Referenced by BiCGstabL(), operator()(), updateUend(), updateXRend(), and ~BiCGstabL().

omega

Complex quda::BiCGstabL::omega

private

Definition at line 767 of file invert_quda.h.

Referenced by operator()().

r

std::vector<ColorSpinorField*> quda::BiCGstabL::r

private

Sloppy temporary vector.

Definition at line 778 of file invert_quda.h.

Referenced by BiCGstabL(), operator()(), and ~BiCGstabL().

r0_saved_p

ColorSpinorField* quda::BiCGstabL::r0_saved_p

private

Sloppy solution vector.

Definition at line 783 of file invert_quda.h.

Referenced by operator()(), and ~BiCGstabL().

r_fullp

ColorSpinorField* quda::BiCGstabL::r_fullp

private

Definition at line 774 of file invert_quda.h.

Referenced by operator()(), and ~BiCGstabL().

r_sloppy_saved_p

ColorSpinorField* quda::BiCGstabL::r_sloppy_saved_p

private

Shadow residual, in BiCG language.

Definition at line 784 of file invert_quda.h.

Referenced by operator()(), and ~BiCGstabL().

rho0

Complex quda::BiCGstabL::rho0

private

Definition at line 767 of file invert_quda.h.

Referenced by operator()().

rho1

Complex quda::BiCGstabL::rho1

private

Definition at line 767 of file invert_quda.h.

Referenced by operator()().

sigma

double* quda::BiCGstabL::sigma

private

Definition at line 770 of file invert_quda.h.

Referenced by BiCGstabL(), operator()(), and ~BiCGstabL().

solver_name

std::string quda::BiCGstabL::solver_name

private

Definition at line 807 of file invert_quda.h.

Referenced by BiCGstabL(), and operator()().

tau

Complex** quda::BiCGstabL::tau

private

Definition at line 769 of file invert_quda.h.

Referenced by BiCGstabL(), operator()(), and ~BiCGstabL().

tempp

ColorSpinorField* quda::BiCGstabL::tempp

private

Full precision temporary.

Definition at line 777 of file invert_quda.h.

Referenced by operator()(), and ~BiCGstabL().

u

std::vector<ColorSpinorField*> quda::BiCGstabL::u

private

Definition at line 779 of file invert_quda.h.

Referenced by BiCGstabL(), operator()(), and ~BiCGstabL().

x_sloppy_saved_p

ColorSpinorField* quda::BiCGstabL::x_sloppy_saved_p

private

Definition at line 782 of file invert_quda.h.

Referenced by operator()(), and ~BiCGstabL().

yp

ColorSpinorField* quda::BiCGstabL::yp

private

Full precision residual.

Definition at line 775 of file invert_quda.h.

Referenced by operator()(), and ~BiCGstabL().

---

The documentation for this class was generated from the following files:

• include/invert_quda.h
• lib/inv_bicgstabl_quda.cpp
