#include <dirac_quda.h>

Inheritance diagram for quda::DiracCoarsePC:

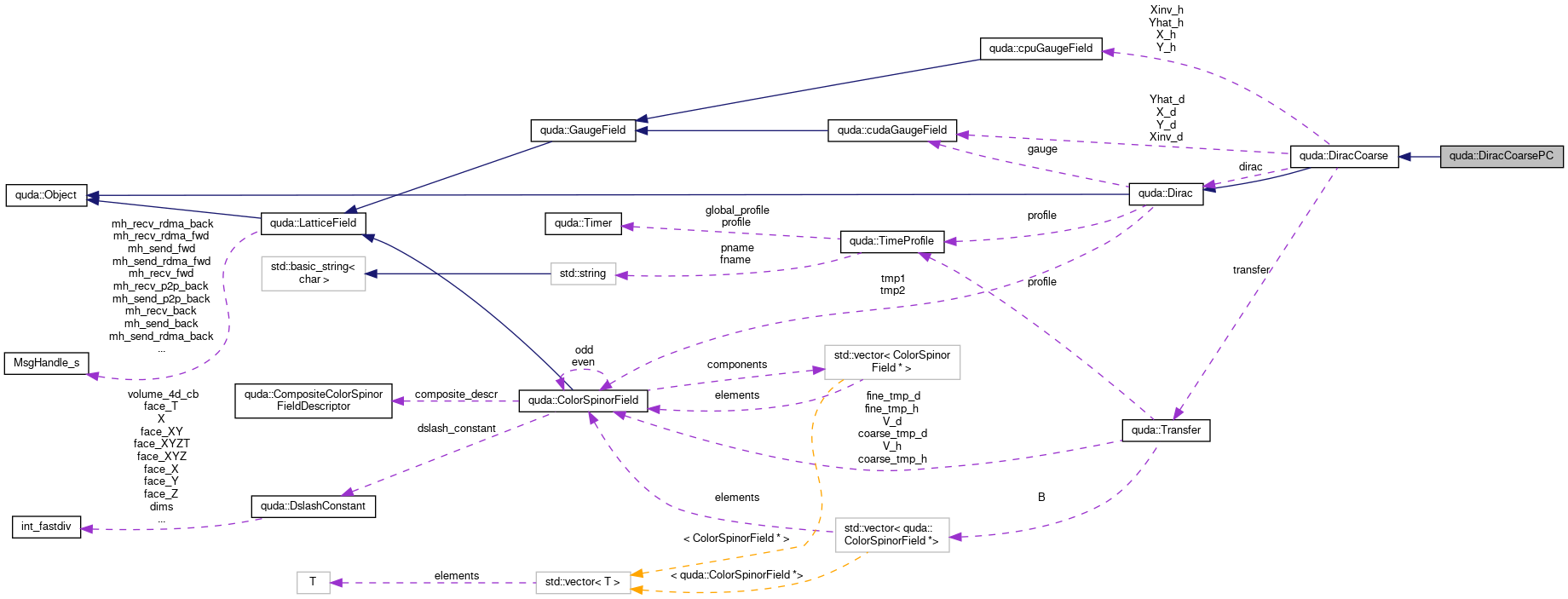

Collaboration diagram for quda::DiracCoarsePC:

[legend]

Public Member Functions
	DiracCoarsePC (const DiracParam &param, bool gpu_setup=true)

	DiracCoarsePC (const DiracCoarse &dirac, const DiracParam &param)

virtual	~DiracCoarsePC ()

void	Dslash (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity) const
	Apply DslashXpay out = (D * in) More...

void	DslashXpay (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity, const ColorSpinorField &x, const double &k) const
	Apply DslashXpay out = (D * in + A * x) More...

void	M (ColorSpinorField &out, const ColorSpinorField &in) const
	Apply the full operator. More...

void	MdagM (ColorSpinorField &out, const ColorSpinorField &in) const

void	prepare (ColorSpinorField &src, ColorSpinorField &sol, ColorSpinorField &x, ColorSpinorField &b, const QudaSolutionType) const

void	reconstruct (ColorSpinorField &x, const ColorSpinorField &b, const QudaSolutionType) const

void	createCoarseOp (GaugeField &Y, GaugeField &X, const Transfer &T, double kappa, double mass, double mu, double mu_factor=0.) const
	Create the coarse even-odd preconditioned coarse operator. Unlike the Wilson operator, the coarsening of the preconditioned coarse operator differs from that of the unpreconditioned coarse operator, so we need to specialize it. More...

Public Member Functions inherited from quda::DiracCoarse
double	Mu () const

double	MuFactor () const

	DiracCoarse (const DiracParam &param, bool gpu_setup=true, bool mapped=false)

	DiracCoarse (const DiracParam &param, cpuGaugeField Y_h, cpuGaugeField X_h, cpuGaugeField Xinv_h, cpuGaugeField Yhat_h, cudaGaugeField Y_d=0, cudaGaugeField X_d=0, cudaGaugeField Xinv_d=0, cudaGaugeField Yhat_d=0)

	DiracCoarse (const DiracCoarse &dirac, const DiracParam &param)

virtual	~DiracCoarse ()

void	Clover (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity) const
	Apply the coarse clover operator. More...

void	CloverInv (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity) const
	Apply the inverse coarse clover operator. More...

void	createPreconditionedCoarseOp (GaugeField &Yhat, GaugeField &Xinv, const GaugeField &Y, const GaugeField &X)
	Create the precondtioned coarse operator. More...

Public Member Functions inherited from quda::Dirac
	Dirac (const DiracParam &param)

	Dirac (const Dirac &dirac)

virtual	~Dirac ()

Dirac &	operator= (const Dirac &dirac)

void	setCommDim (const int commDim_[QUDA_MAX_DIM]) const
	Enable / disable communications for the Dirac operator. More...

virtual void	checkParitySpinor (const ColorSpinorField &, const ColorSpinorField &) const

virtual void	checkFullSpinor (const ColorSpinorField &, const ColorSpinorField &) const

void	checkSpinorAlias (const ColorSpinorField &, const ColorSpinorField &) const

void	Mdag (ColorSpinorField &out, const ColorSpinorField &in) const

void	MMdag (ColorSpinorField &out, const ColorSpinorField &in) const

void	setMass (double mass)

double	Kappa () const

unsigned long long	Flops () const

QudaMatPCType	getMatPCType () const

int	getStencilSteps () const

void	Dagger (QudaDagType dag) const

void	flipDagger () const

QudaPrecision	HaloPrecision () const

void	setHaloPrecision (QudaPrecision halo_precision_) const

Public Member Functions inherited from quda::Object
	Object ()

virtual	~Object ()

Additional Inherited Members
Static Public Member Functions inherited from quda::Dirac
static Dirac *	create (const DiracParam &param)

Static Public Member Functions inherited from quda::Object
static void *	operator new (std::size_t size)

static void	operator delete (void *p)

static void *	operator new[] (std::size_t size)

static void	operator delete[] (void *p)

Protected Member Functions inherited from quda::DiracCoarse
void	initializeCoarse ()
	Initialize the coarse gauge fields. Location is determined by gpu_setup variable. More...

void	initializeLazy (QudaFieldLocation location) const
	Create the CPU or GPU coarse gauge fields on demand (requires that the fields have been created in the other memory space) More...

void	createY (bool gpu=true, bool mapped=false) const
	Allocate the Y and X fields. More...

void	createYhat (bool gpu=true) const
	Allocate the Yhat and Xinv fields. More...

Protected Member Functions inherited from quda::Dirac
bool	newTmp (ColorSpinorField **, const ColorSpinorField &) const

void	deleteTmp (ColorSpinorField **, const bool &reset) const

Protected Attributes inherited from quda::DiracCoarse
double	mu

double	mu_factor

const Transfer *	transfer

const Dirac *	dirac

const bool	need_bidirectional

cpuGaugeField *	Y_h

cpuGaugeField *	X_h

cpuGaugeField *	Xinv_h

cpuGaugeField *	Yhat_h

cudaGaugeField *	Y_d

cudaGaugeField *	X_d

cudaGaugeField *	Xinv_d

cudaGaugeField *	Yhat_d

bool	enable_gpu

bool	enable_cpu

const bool	gpu_setup

bool	init_gpu

bool	init_cpu

const bool	mapped

Protected Attributes inherited from quda::Dirac
cudaGaugeField *	gauge

double	kappa

double	mass

int	laplace3D

QudaMatPCType	matpcType

QudaDagType	dagger

unsigned long long	flops

ColorSpinorField *	tmp1

ColorSpinorField *	tmp2

QudaDiracType	type

QudaPrecision	halo_precision

int	commDim [QUDA_MAX_DIM]

TimeProfile	profile

Detailed Description

Even-odd preconditioned variant of coarse Dslash operator

Definition at line 972 of file dirac_quda.h.

Constructor & Destructor Documentation

◆ DiracCoarsePC() [1/2]

quda::DiracCoarsePC::DiracCoarsePC	(	const DiracParam &	param,
		bool	gpu_setup = `true`
	)

Parameters

[in]	param	Parameters defining this operator
[in]	gpu_setup	Whether to do the setup on GPU or CPU

Definition at line 356 of file dirac_coarse.cpp.

◆ DiracCoarsePC() [2/2]

quda::DiracCoarsePC::DiracCoarsePC	(	const DiracCoarse &	dirac,
		const DiracParam &	param
	)

Parameters

[in]	dirac	Another operator instance to clone from (shallow copy)
[in]	param	Parameters defining this operator

Definition at line 361 of file dirac_coarse.cpp.

◆ ~DiracCoarsePC()

quda::DiracCoarsePC::~DiracCoarsePC ( )

virtual

Definition at line 366 of file dirac_coarse.cpp.

Member Function Documentation

◆ createCoarseOp()

void quda::DiracCoarsePC::createCoarseOp	(	GaugeField &	Y,
		GaugeField &	X,
		const Transfer &	T,
		double	kappa,
		double	mass,
		double	mu,
		double	mu_factor = `0.`
	)		const

virtual

Create the coarse even-odd preconditioned coarse operator. Unlike the Wilson operator, the coarsening of the preconditioned coarse operator differs from that of the unpreconditioned coarse operator, so we need to specialize it.

Parameters

T[in]	Transfer operator defining the coarse grid
Y[out]	Coarse link field
X[out]	Coarse clover field
kappa	Kappa parameter for the coarse operator
mass	Mass parameter for the coarse operator, assumed to be zero
mu	TM mu parameter for the coarse operator
mu_factor	multiplicative factor for the mu parameter

Reimplemented from quda::DiracCoarse.

Definition at line 524 of file dirac_coarse.cpp.

References checkLocation, quda::CoarseCoarseOp(), quda::DiracCoarse::initializeLazy(), quda::Dirac::matpcType, QUDA_COARSEPC_DIRAC, QUDA_CPU_FIELD_LOCATION, QUDA_CUDA_FIELD_LOCATION, quda::ColorSpinorField::TwistFlavor(), quda::Transfer::Vectors(), quda::DiracCoarse::X_d, quda::DiracCoarse::X_h, quda::DiracCoarse::Xinv_d, quda::DiracCoarse::Xinv_h, quda::DiracCoarse::Yhat_d, and quda::DiracCoarse::Yhat_h.

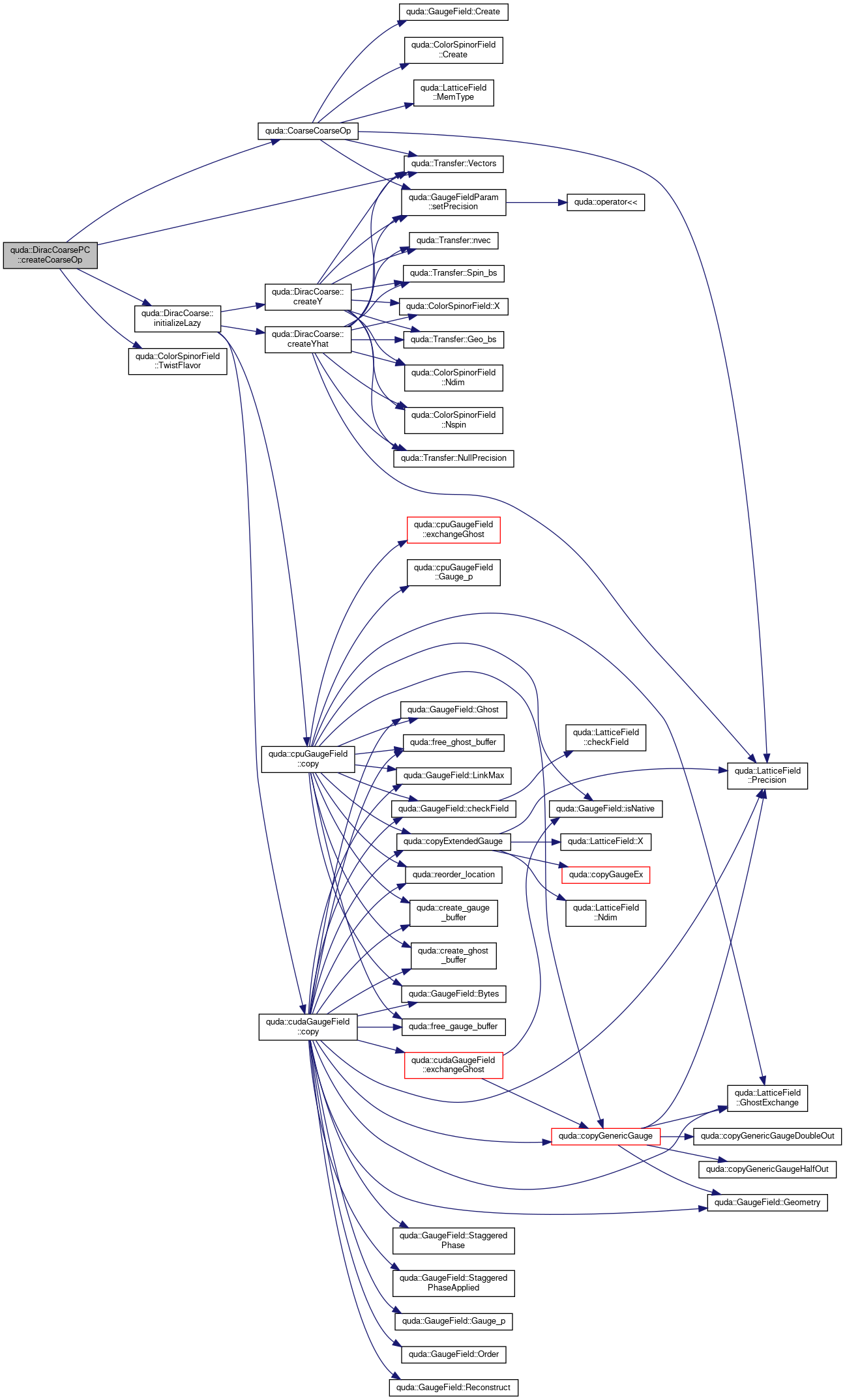

Here is the call graph for this function:

◆ Dslash()

void quda::DiracCoarsePC::Dslash	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity
	)		const

virtual

Apply DslashXpay out = (D * in)

Parameters

[out]	out	Output field
[in]	in	Input field

Reimplemented from quda::DiracCoarse.

Definition at line 368 of file dirac_coarse.cpp.

References quda::ApplyCoarse(), checkLocation, quda::Dirac::commDim, quda::Dirac::dagger, quda::Dirac::flops, quda::Dirac::halo_precision, quda::DiracCoarse::initializeLazy(), quda::Dirac::kappa, quda::ColorSpinorField::Ncolor(), quda::ColorSpinorField::Nspin(), QUDA_CPU_FIELD_LOCATION, QUDA_CUDA_FIELD_LOCATION, quda::ColorSpinorField::SiteSubset(), quda::ColorSpinorField::VolumeCB(), quda::DiracCoarse::X_d, quda::DiracCoarse::X_h, quda::DiracCoarse::Yhat_d, and quda::DiracCoarse::Yhat_h.

Referenced by DslashXpay(), and M().

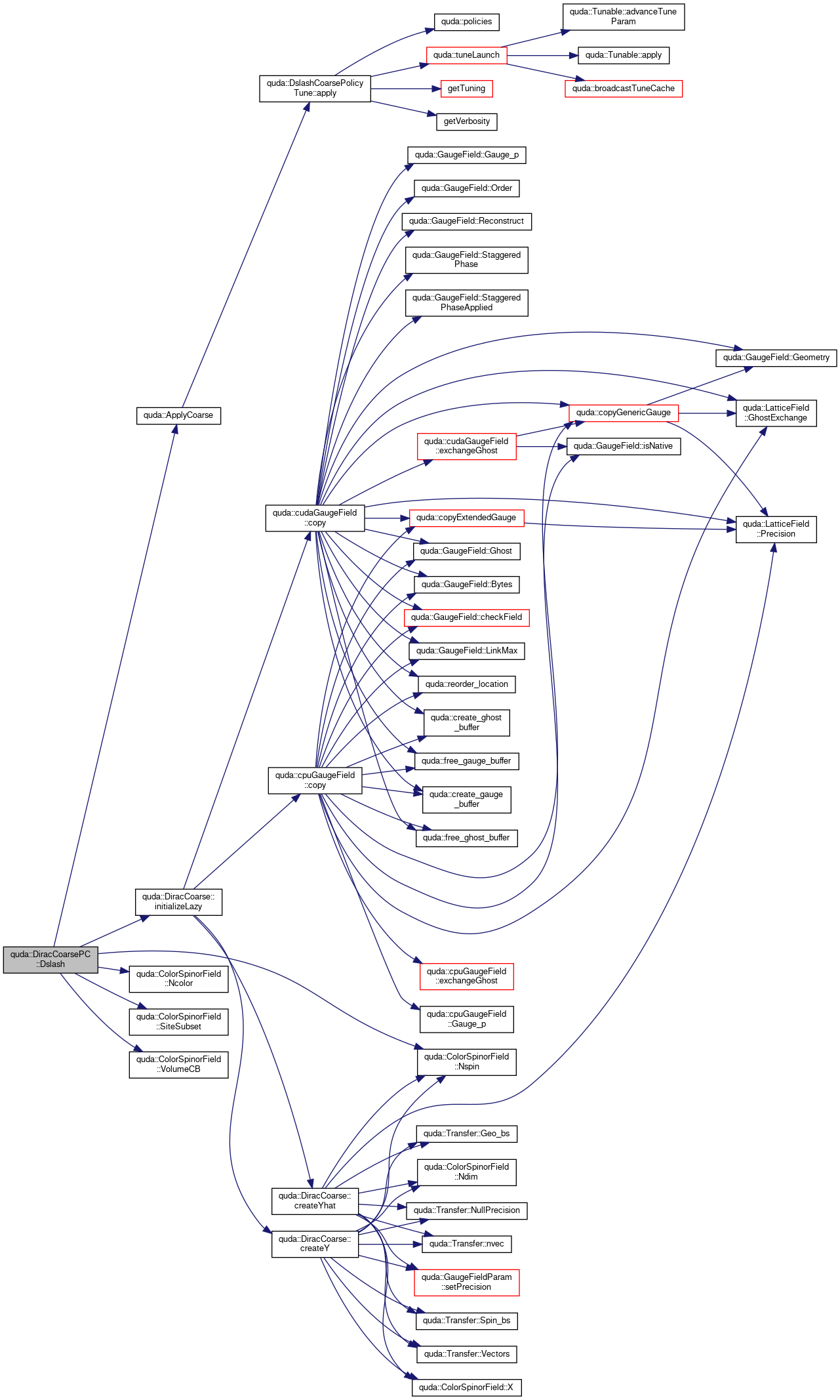

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DslashXpay()

void quda::DiracCoarsePC::DslashXpay	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity,
		const ColorSpinorField &	x,
		const double &	k
	)		const

virtual

Apply DslashXpay out = (D * in + A * x)

Parameters

[out]	out	Output field
[in]	in	Input field

Reimplemented from quda::DiracCoarse.

Definition at line 382 of file dirac_coarse.cpp.

References Dslash(), quda::Dirac::flops, quda::ColorSpinorField::Ncolor(), quda::ColorSpinorField::Nspin(), quda::ColorSpinorField::VolumeCB(), and quda::blas::xpay().

Referenced by M().

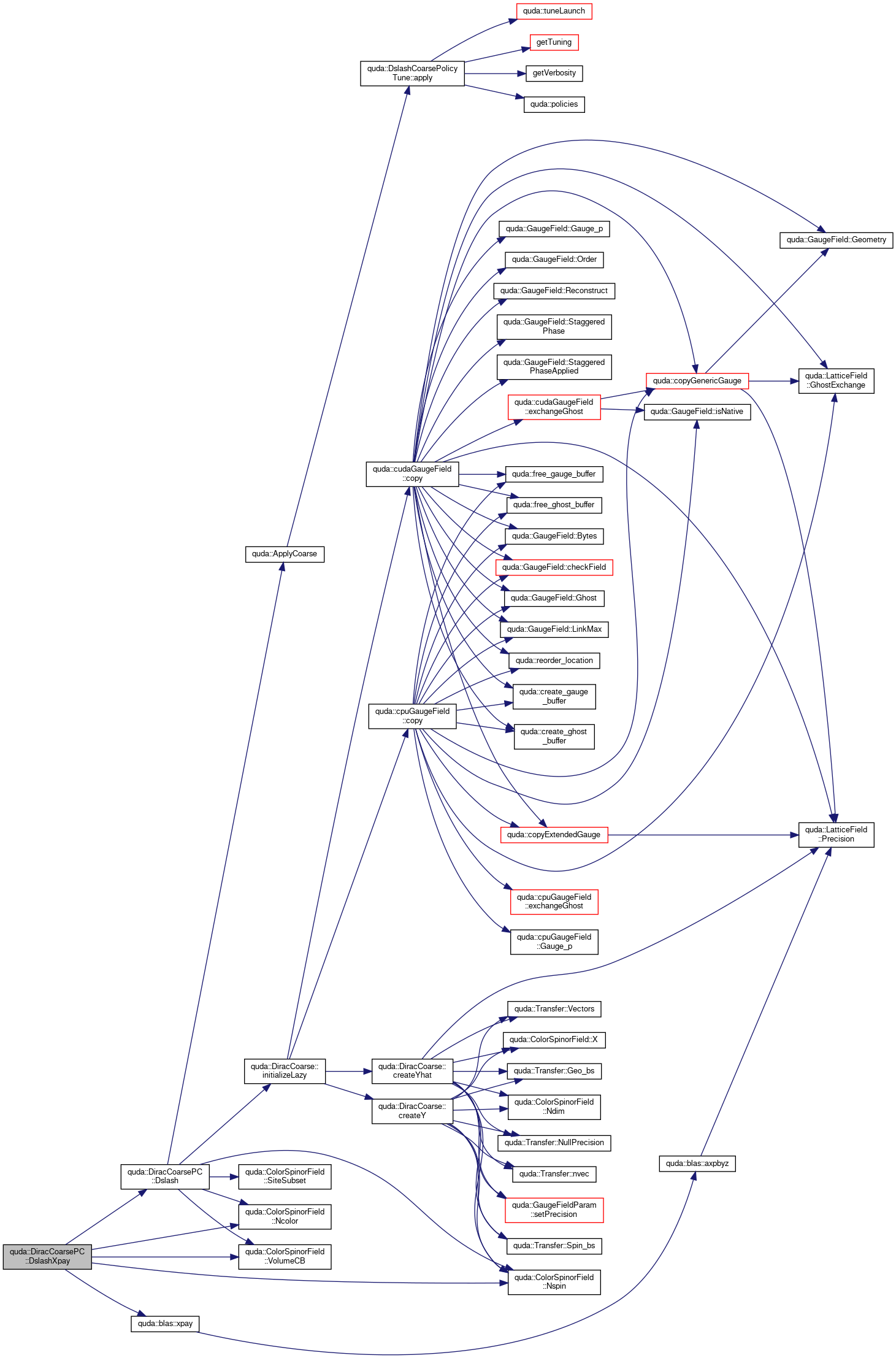

Here is the call graph for this function:

Here is the caller graph for this function:

◆ M()

void quda::DiracCoarsePC::M	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Apply the full operator.

Parameters

[out]	out	output vector, out = M * in
[in]	in	input vector

Reimplemented from quda::DiracCoarse.

Definition at line 393 of file dirac_coarse.cpp.

References quda::DiracCoarse::Clover(), quda::Dirac::deleteTmp(), quda::DiracCoarse::Dslash(), Dslash(), DslashXpay(), errorQuda, quda::Dirac::matpcType, quda::Dirac::newTmp(), QUDA_EVEN_PARITY, QUDA_FULL_SITE_SUBSET, QUDA_MATPC_EVEN_EVEN, QUDA_MATPC_EVEN_EVEN_ASYMMETRIC, QUDA_MATPC_ODD_ODD, QUDA_MATPC_ODD_ODD_ASYMMETRIC, QUDA_ODD_PARITY, quda::ColorSpinorField::SiteSubset(), quda::Dirac::tmp1, and quda::blas::xpay().

Referenced by MdagM().

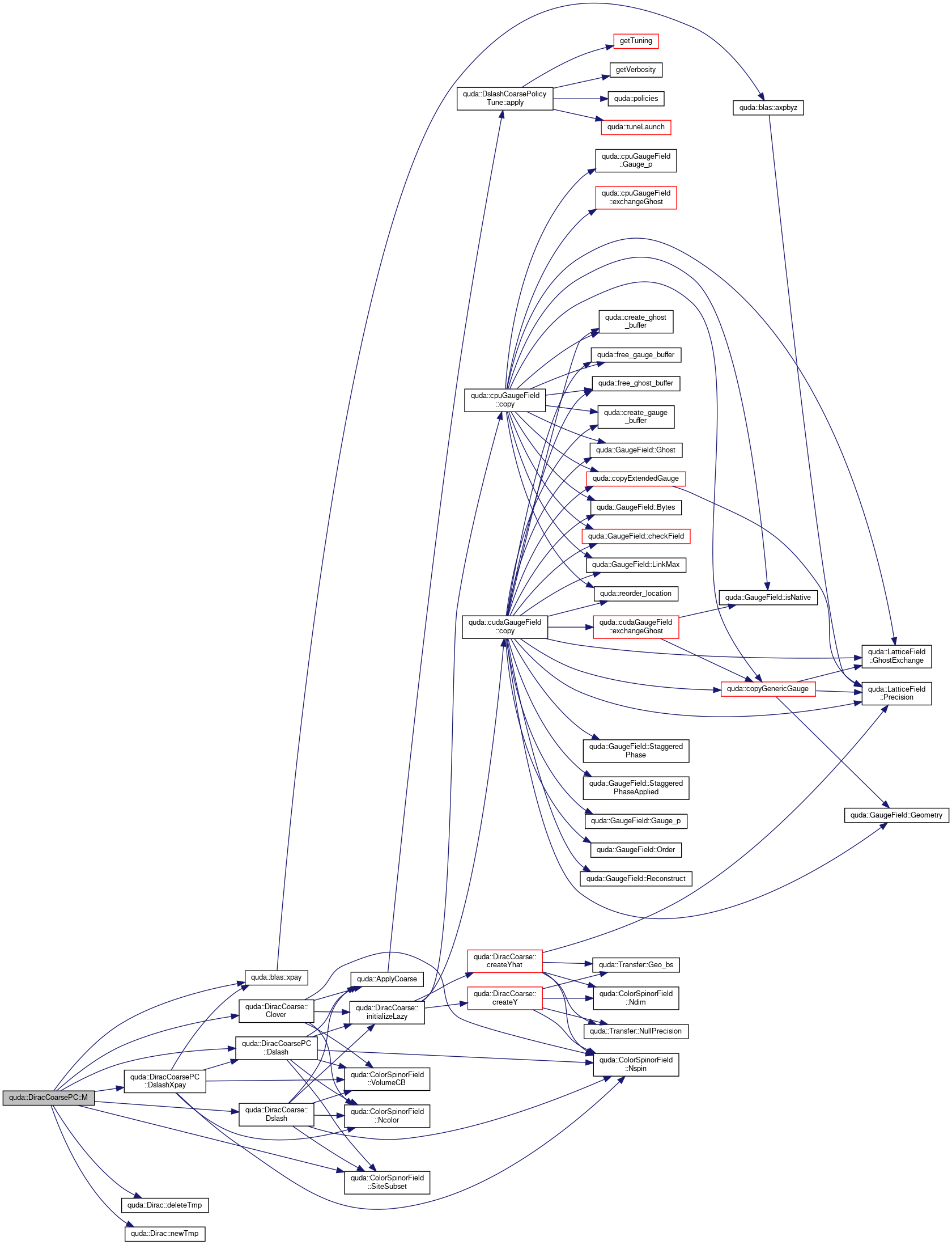

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MdagM()

void quda::DiracCoarsePC::MdagM	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Reimplemented from quda::DiracCoarse.

Definition at line 429 of file dirac_coarse.cpp.

References quda::Dirac::deleteTmp(), M(), quda::Dirac::Mdag(), quda::Dirac::newTmp(), and quda::Dirac::tmp2.

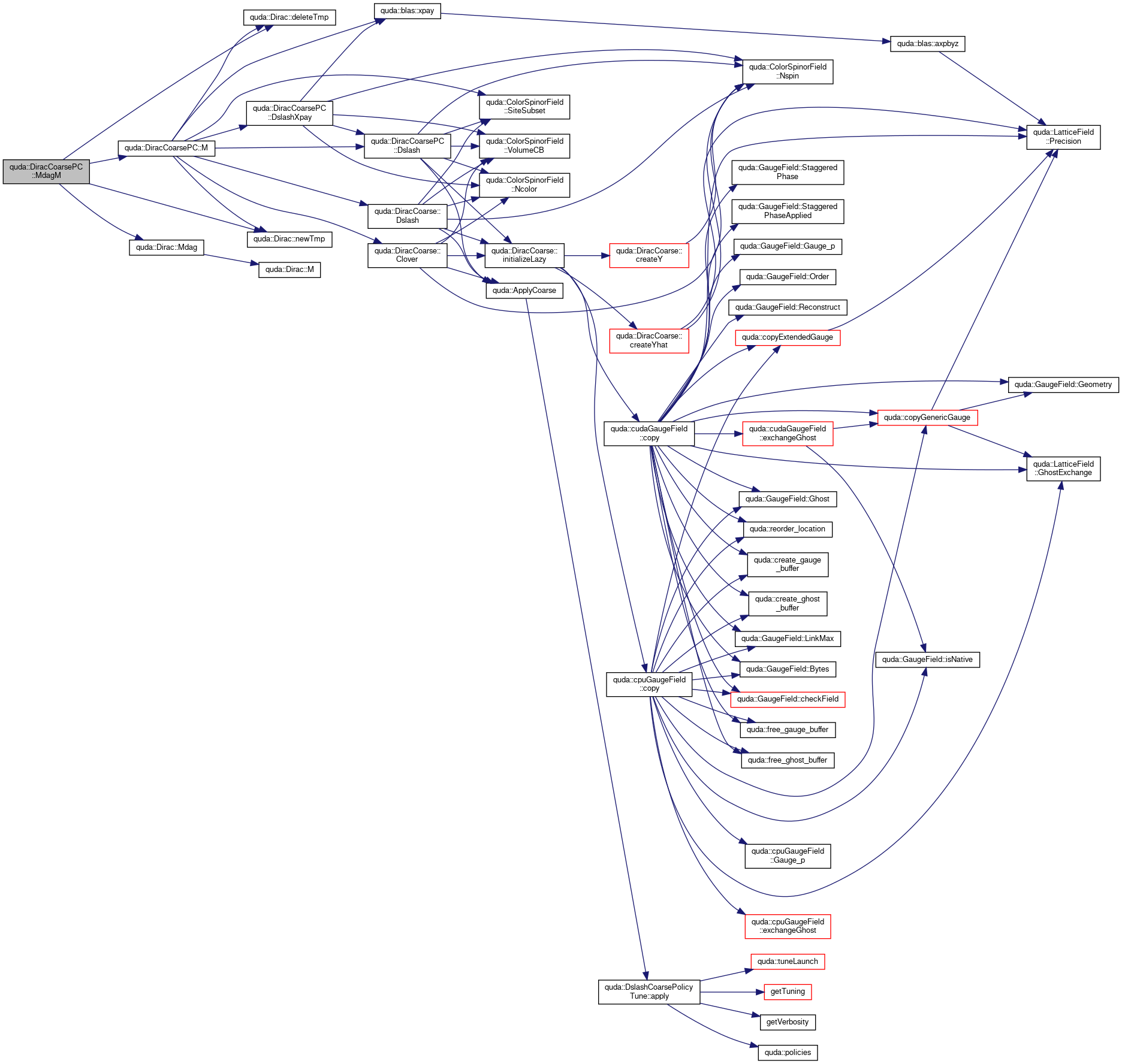

Here is the call graph for this function:

◆ prepare()

void quda::DiracCoarsePC::prepare	(	ColorSpinorField *&	src,
		ColorSpinorField *&	sol,
		ColorSpinorField &	x,
		ColorSpinorField &	b,
		const QudaSolutionType	solType
	)		const
