#include <dirac_quda.h>

Inheritance diagram for quda::Dirac:

[legend]

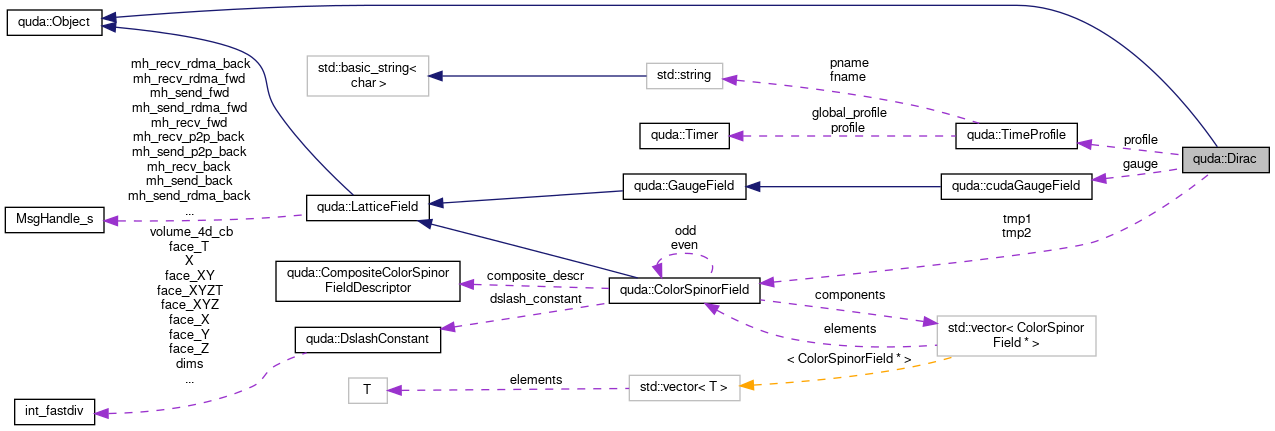

Collaboration diagram for quda::Dirac:

[legend]

Public Member Functions
	Dirac (const DiracParam &param)

	Dirac (const Dirac &dirac)

virtual	~Dirac ()

Dirac &	operator= (const Dirac &dirac)

void	setCommDim (const int commDim_[QUDA_MAX_DIM]) const
	Enable / disable communications for the Dirac operator. More...

virtual void	checkParitySpinor (const ColorSpinorField &, const ColorSpinorField &) const

virtual void	checkFullSpinor (const ColorSpinorField &, const ColorSpinorField &) const

void	checkSpinorAlias (const ColorSpinorField &, const ColorSpinorField &) const

virtual void	Dslash (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity) const =0

virtual void	DslashXpay (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity, const ColorSpinorField &x, const double &k) const =0

virtual void	M (ColorSpinorField &out, const ColorSpinorField &in) const =0

virtual void	MdagM (ColorSpinorField &out, const ColorSpinorField &in) const =0

void	Mdag (ColorSpinorField &out, const ColorSpinorField &in) const

void	MMdag (ColorSpinorField &out, const ColorSpinorField &in) const

virtual void	prepare (ColorSpinorField &src, ColorSpinorField &sol, ColorSpinorField &x, ColorSpinorField &b, const QudaSolutionType) const =0

virtual void	reconstruct (ColorSpinorField &x, const ColorSpinorField &b, const QudaSolutionType) const =0

void	setMass (double mass)

double	Kappa () const

virtual double	Mu () const

virtual double	MuFactor () const

unsigned long long	Flops () const

QudaMatPCType	getMatPCType () const

int	getStencilSteps () const

void	Dagger (QudaDagType dag) const

void	flipDagger () const

virtual void	createCoarseOp (GaugeField &Y, GaugeField &X, const Transfer &T, double kappa, double mass=0., double mu=0., double mu_factor=0.) const
	Create the coarse operator (virtual parent) More...

QudaPrecision	HaloPrecision () const

void	setHaloPrecision (QudaPrecision halo_precision_) const

Public Member Functions inherited from quda::Object
	Object ()

virtual	~Object ()

Static Public Member Functions
static Dirac *	create (const DiracParam &param)

Static Public Member Functions inherited from quda::Object
static void *	operator new (std::size_t size)

static void	operator delete (void *p)

static void *	operator new[] (std::size_t size)

static void	operator delete[] (void *p)

Protected Member Functions
bool	newTmp (ColorSpinorField **, const ColorSpinorField &) const

void	deleteTmp (ColorSpinorField **, const bool &reset) const

Protected Attributes
cudaGaugeField *	gauge

double	kappa

double	mass

int	laplace3D

QudaMatPCType	matpcType

QudaDagType	dagger

unsigned long long	flops

ColorSpinorField *	tmp1

ColorSpinorField *	tmp2

QudaDiracType	type

QudaPrecision	halo_precision

int	commDim [QUDA_MAX_DIM]

TimeProfile	profile

Friends
class	DiracMatrix

class	DiracM

class	DiracMdagM

class	DiracMMdag

class	DiracMdag

Detailed Description

Definition at line 106 of file dirac_quda.h.

Constructor & Destructor Documentation

◆ Dirac() [1/2]

quda::Dirac::Dirac ( const DiracParam & param )

Definition at line 12 of file dirac.cpp.

References quda::DiracParam::commDim, and commDim.

◆ Dirac() [2/2]

quda::Dirac::Dirac ( const Dirac & dirac )

Definition at line 29 of file dirac.cpp.

References commDim.

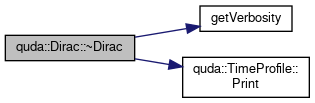

◆ ~Dirac()

quda::Dirac::~Dirac ( )

virtual

Definition at line 45 of file dirac.cpp.

References getVerbosity(), quda::TimeProfile::Print(), profile, and QUDA_VERBOSE.

Here is the call graph for this function:

Member Function Documentation

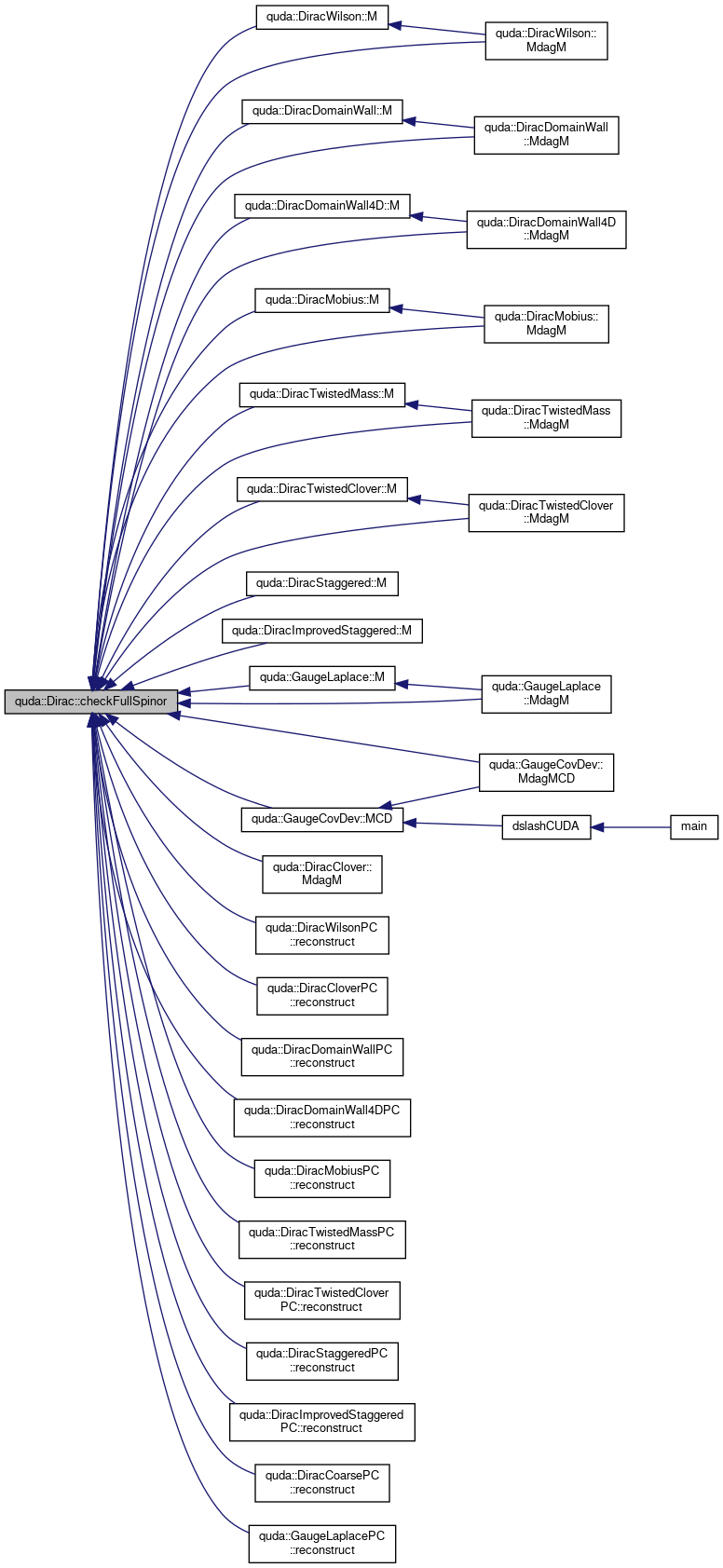

◆ checkFullSpinor()

void quda::Dirac::checkFullSpinor	(	const ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Definition at line 146 of file dirac.cpp.

References errorQuda, QUDA_FULL_SITE_SUBSET, and quda::ColorSpinorField::SiteSubset().

Referenced by quda::DiracWilson::M(), quda::DiracDomainWall::M(), quda::DiracDomainWall4D::M(), quda::DiracMobius::M(), quda::DiracTwistedMass::M(), quda::DiracTwistedClover::M(), quda::DiracStaggered::M(), quda::DiracImprovedStaggered::M(), quda::GaugeLaplace::M(), quda::GaugeCovDev::MCD(), quda::DiracWilson::MdagM(), quda::DiracClover::MdagM(), quda::DiracDomainWall::MdagM(), quda::DiracDomainWall4D::MdagM(), quda::DiracMobius::MdagM(), quda::DiracTwistedMass::MdagM(), quda::DiracTwistedClover::MdagM(), quda::GaugeLaplace::MdagM(), quda::GaugeCovDev::MdagMCD(), quda::DiracWilsonPC::reconstruct(), quda::DiracCloverPC::reconstruct(), quda::DiracDomainWallPC::reconstruct(), quda::DiracDomainWall4DPC::reconstruct(), quda::DiracMobiusPC::reconstruct(), quda::DiracTwistedMassPC::reconstruct(), quda::DiracTwistedCloverPC::reconstruct(), quda::DiracStaggeredPC::reconstruct(), quda::DiracImprovedStaggeredPC::reconstruct(), quda::DiracCoarsePC::reconstruct(), and quda::GaugeLaplacePC::reconstruct().

Here is the call graph for this function:

Here is the caller graph for this function:

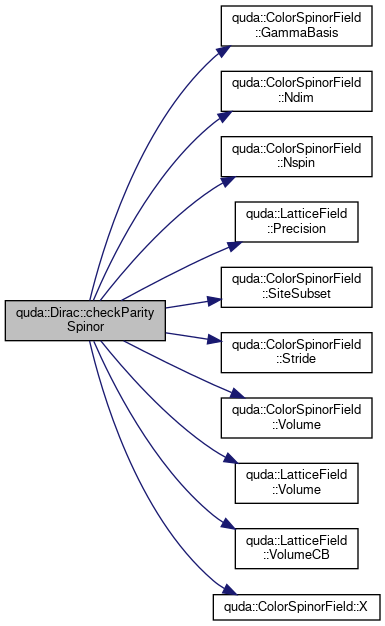

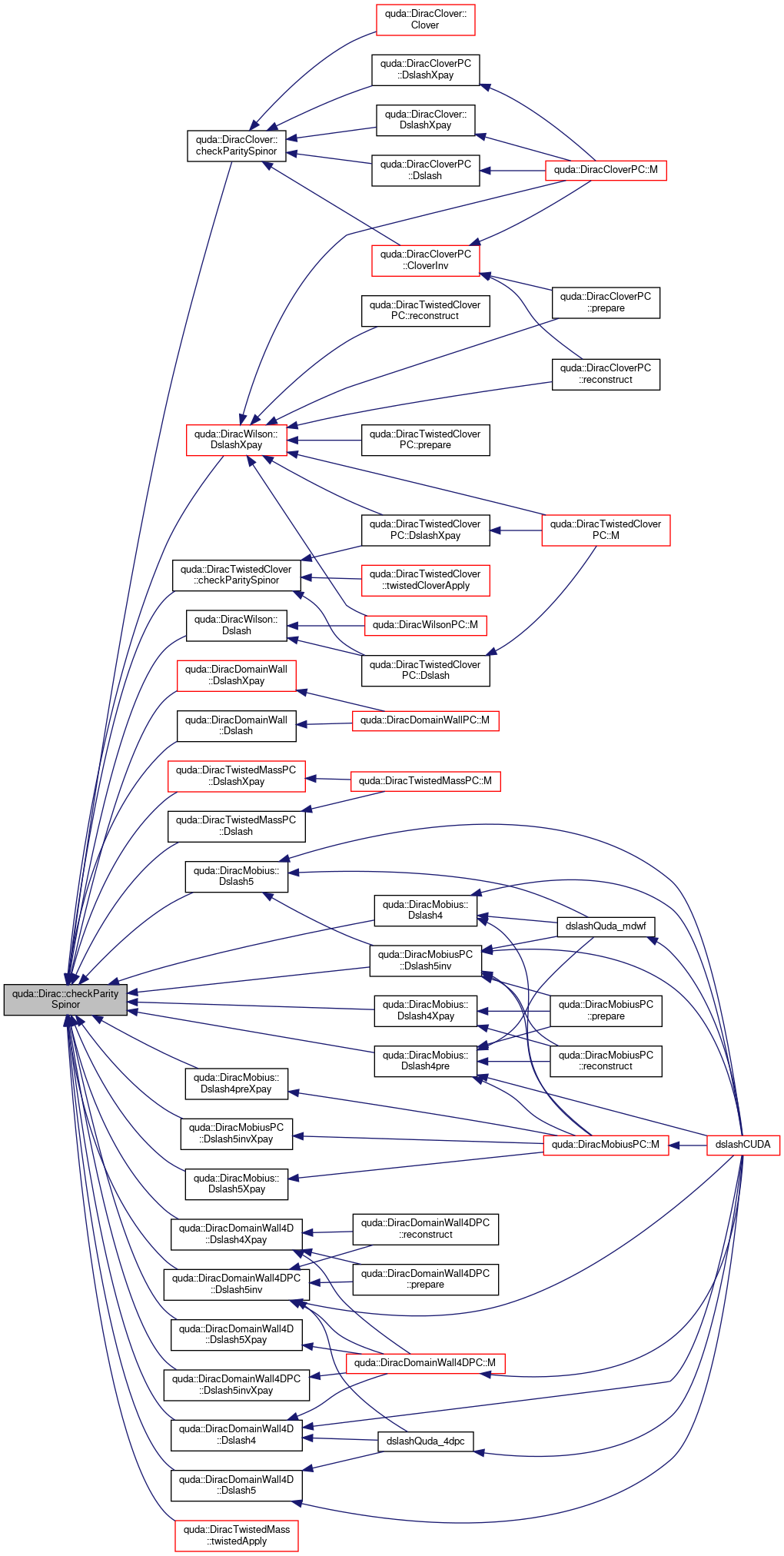

◆ checkParitySpinor()

void quda::Dirac::checkParitySpinor	(	const ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Reimplemented in quda::DiracImprovedStaggered, quda::DiracStaggered, quda::DiracTwistedClover, and quda::DiracClover.

Definition at line 106 of file dirac.cpp.

References errorQuda, quda::ColorSpinorField::GammaBasis(), gauge, quda::ColorSpinorField::Ndim(), quda::ColorSpinorField::Nspin(), quda::LatticeField::Precision(), QUDA_FULL_SITE_SUBSET, QUDA_PARITY_SITE_SUBSET, QUDA_UKQCD_GAMMA_BASIS, quda::ColorSpinorField::SiteSubset(), quda::ColorSpinorField::Stride(), quda::ColorSpinorField::Volume(), quda::LatticeField::Volume(), quda::LatticeField::VolumeCB(), and quda::ColorSpinorField::X().

Referenced by quda::DiracClover::checkParitySpinor(), quda::DiracTwistedClover::checkParitySpinor(), quda::DiracWilson::Dslash(), quda::DiracDomainWall::Dslash(), quda::DiracTwistedMassPC::Dslash(), quda::DiracDomainWall4D::Dslash4(), quda::DiracMobius::Dslash4(), quda::DiracMobius::Dslash4pre(), quda::DiracMobius::Dslash4preXpay(), quda::DiracDomainWall4D::Dslash4Xpay(), quda::DiracMobius::Dslash4Xpay(), quda::DiracDomainWall4D::Dslash5(), quda::DiracMobius::Dslash5(), quda::DiracDomainWall4DPC::Dslash5inv(), quda::DiracMobiusPC::Dslash5inv(), quda::DiracDomainWall4DPC::Dslash5invXpay(), quda::DiracMobiusPC::Dslash5invXpay(), quda::DiracDomainWall4D::Dslash5Xpay(), quda::DiracMobius::Dslash5Xpay(), quda::DiracWilson::DslashXpay(), quda::DiracDomainWall::DslashXpay(), quda::DiracTwistedMassPC::DslashXpay(), and quda::DiracTwistedMass::twistedApply().

Here is the call graph for this function:

Here is the caller graph for this function:

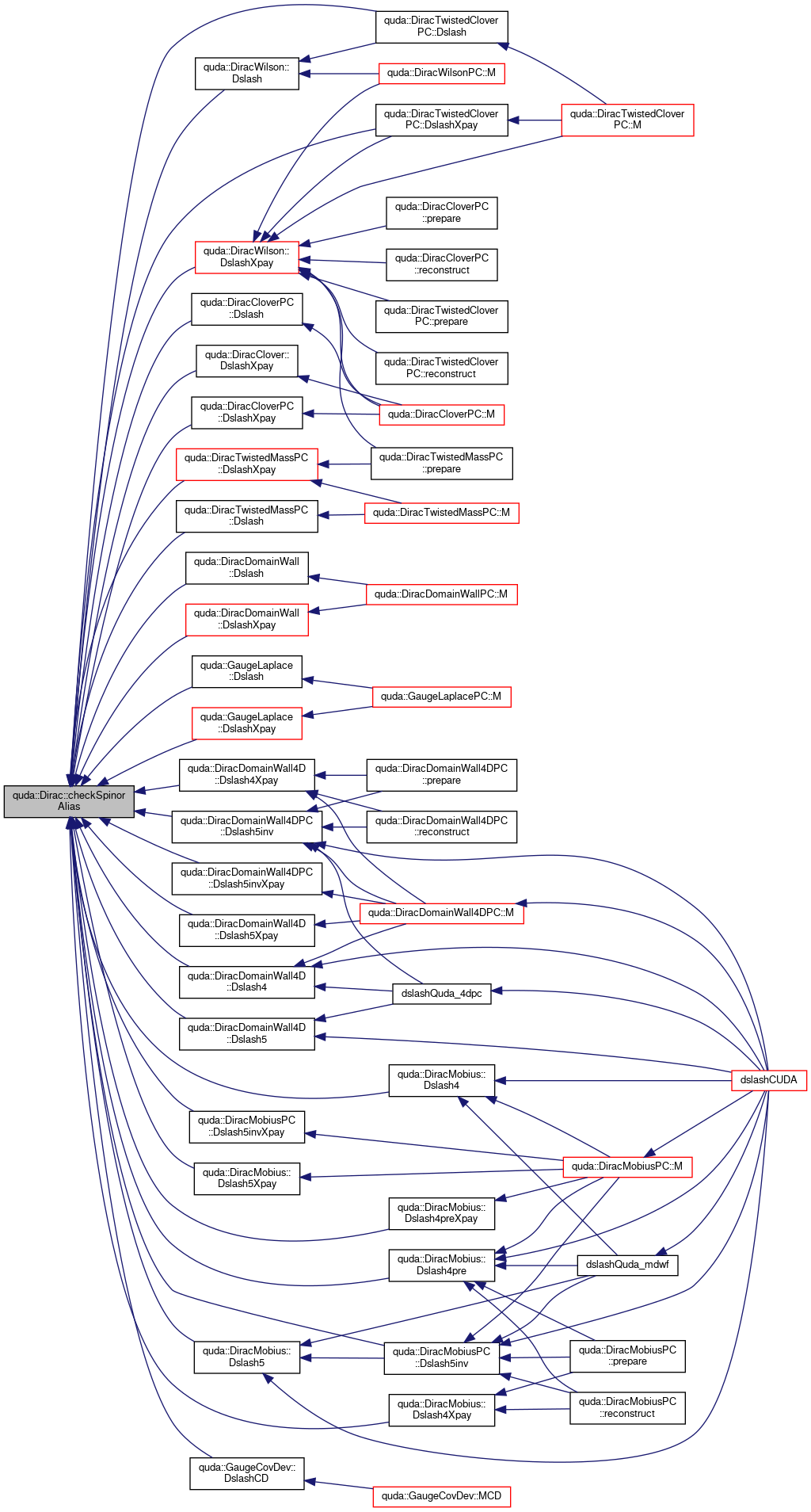

◆ checkSpinorAlias()

void quda::Dirac::checkSpinorAlias	(	const ColorSpinorField &	a,
		const ColorSpinorField &	b
	)		const

Definition at line 154 of file dirac.cpp.

References errorQuda, and quda::ColorSpinorField::V().

Referenced by quda::DiracWilson::Dslash(), quda::DiracCloverPC::Dslash(), quda::DiracDomainWall::Dslash(), quda::DiracTwistedMassPC::Dslash(), quda::DiracTwistedCloverPC::Dslash(), quda::GaugeLaplace::Dslash(), quda::DiracDomainWall4D::Dslash4(), quda::DiracMobius::Dslash4(), quda::DiracMobius::Dslash4pre(), quda::DiracMobius::Dslash4preXpay(), quda::DiracDomainWall4D::Dslash4Xpay(), quda::DiracMobius::Dslash4Xpay(), quda::DiracDomainWall4D::Dslash5(), quda::DiracMobius::Dslash5(), quda::DiracDomainWall4DPC::Dslash5inv(), quda::DiracMobiusPC::Dslash5inv(), quda::DiracDomainWall4DPC::Dslash5invXpay(), quda::DiracMobiusPC::Dslash5invXpay(), quda::DiracDomainWall4D::Dslash5Xpay(), quda::DiracMobius::Dslash5Xpay(), quda::GaugeCovDev::DslashCD(), quda::DiracWilson::DslashXpay(), quda::DiracClover::DslashXpay(), quda::DiracCloverPC::DslashXpay(), quda::DiracDomainWall::DslashXpay(), quda::DiracTwistedMassPC::DslashXpay(), quda::DiracTwistedCloverPC::DslashXpay(), and quda::GaugeLaplace::DslashXpay().

Here is the call graph for this function:

Here is the caller graph for this function:

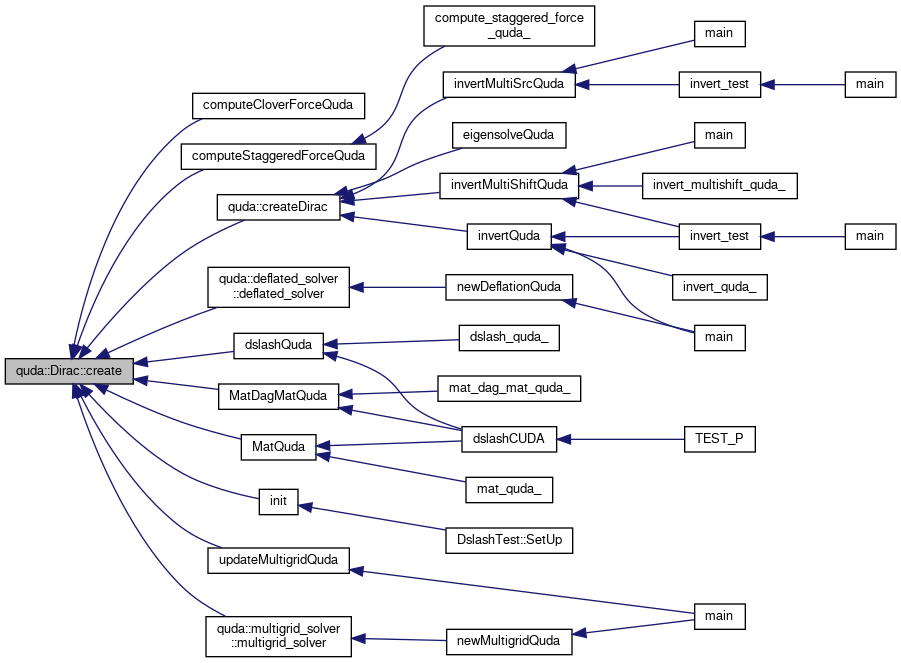

◆ create()

Dirac * quda::Dirac::create ( const DiracParam & param )

static

Definition at line 159 of file dirac.cpp.

References errorQuda, getVerbosity(), quda::DiracParam::Ls, printfQuda, QUDA_ASQTAD_DIRAC, QUDA_ASQTADPC_DIRAC, QUDA_CLOVER_DIRAC, QUDA_CLOVERPC_DIRAC, QUDA_COARSE_DIRAC, QUDA_COARSEPC_DIRAC, QUDA_DEBUG_VERBOSE, QUDA_DOMAIN_WALL_4D_DIRAC, QUDA_DOMAIN_WALL_4DPC_DIRAC, QUDA_DOMAIN_WALL_DIRAC, QUDA_DOMAIN_WALLPC_DIRAC, QUDA_GAUGE_COVDEV_DIRAC, QUDA_GAUGE_LAPLACE_DIRAC, QUDA_GAUGE_LAPLACEPC_DIRAC, QUDA_MOBIUS_DOMAIN_WALL_DIRAC, QUDA_MOBIUS_DOMAIN_WALLPC_DIRAC, QUDA_STAGGERED_DIRAC, QUDA_STAGGEREDPC_DIRAC, QUDA_TWISTED_CLOVER_DIRAC, QUDA_TWISTED_CLOVERPC_DIRAC, QUDA_TWISTED_MASS_DIRAC, QUDA_TWISTED_MASSPC_DIRAC, QUDA_WILSON_DIRAC, QUDA_WILSONPC_DIRAC, and quda::DiracParam::type.

Referenced by computeCloverForceQuda(), computeStaggeredForceQuda(), quda::createDirac(), quda::deflated_solver::deflated_solver(), dslashQuda(), init(), MatDagMatQuda(), MatQuda(), quda::multigrid_solver::multigrid_solver(), and updateMultigridQuda().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createCoarseOp()

virtual void quda::Dirac::createCoarseOp	(	GaugeField &	Y,
		GaugeField &	X,
		const Transfer &	T,
		double	kappa,
		double	mass = `0.`,
		double	mu = `0.`,
		double	mu_factor = `0.`
	)		const

inlinevirtual

Create the coarse operator (virtual parent)

Parameters

Y[out]	Coarse link field
X[out]	Coarse clover field
T[in]	Transfer operator defining the coarse grid
kappa	Kappa parameter for the coarse operator
mass	Mass parameter for the coarse operator (gets explicitly built into clover, hard coded to zero for non-staggered ops)
mu	TM mu parameter for the coarse operator
mu_factor	multiplicative factor for the mu parameter

Reimplemented in quda::DiracCoarsePC, quda::DiracCoarse, quda::DiracStaggered, quda::DiracTwistedCloverPC, quda::DiracTwistedClover, quda::DiracTwistedMassPC, quda::DiracTwistedMass, quda::DiracCloverPC, quda::DiracClover, and quda::DiracWilson.

Definition at line 196 of file dirac_quda.h.

References errorQuda.

Referenced by quda::DiracCoarse::initializeCoarse().

Here is the caller graph for this function:

◆ Dagger()

void quda::Dirac::Dagger ( QudaDagType dag ) const

inline

Definition at line 182 of file dirac_quda.h.

Referenced by computeCloverForceQuda().

Here is the caller graph for this function:

◆ deleteTmp()

void quda::Dirac::deleteTmp	(	ColorSpinorField **	a,
		const bool &	reset
	)		const

protected

Definition at line 81 of file dirac.cpp.

Here is the caller graph for this function:

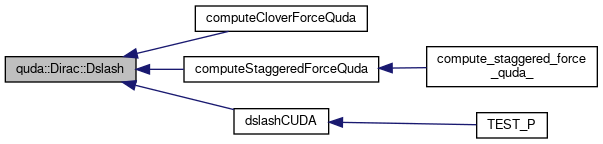

◆ Dslash()

virtual void quda::Dirac::Dslash	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity
	)		const

pure virtual

Implemented in quda::GaugeCovDev, quda::GaugeLaplace, quda::DiracCoarsePC, quda::DiracCoarse, quda::DiracImprovedStaggered, quda::DiracStaggered, quda::DiracTwistedCloverPC, quda::DiracTwistedClover, quda::DiracTwistedMassPC, quda::DiracTwistedMass, quda::DiracDomainWall, quda::DiracCloverPC, and quda::DiracWilson.

Referenced by computeCloverForceQuda(), computeStaggeredForceQuda(), and dslashCUDA().

Here is the caller graph for this function:

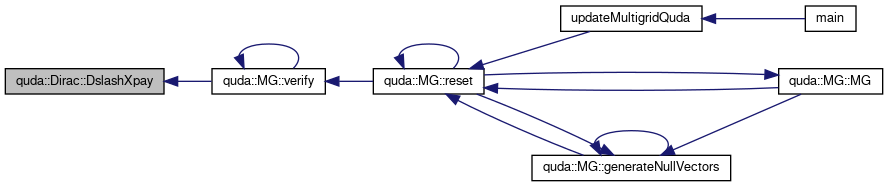

◆ DslashXpay()

virtual void quda::Dirac::DslashXpay	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity,
		const ColorSpinorField &	x,
		const double &	k
	)		const

pure virtual

Implemented in quda::GaugeCovDev, quda::GaugeLaplace, quda::DiracCoarsePC, quda::DiracCoarse, quda::DiracImprovedStaggered, quda::DiracStaggered, quda::DiracTwistedCloverPC, quda::DiracTwistedClover, quda::DiracTwistedMassPC, quda::DiracTwistedMass, quda::DiracDomainWall, quda::DiracCloverPC, quda::DiracClover, and quda::DiracWilson.

Referenced by quda::MG::verify().

Here is the caller graph for this function:

◆ flipDagger()

void quda::Dirac::flipDagger ( ) const

inline

Definition at line 183 of file dirac_quda.h.

References QUDA_DAG_NO, and QUDA_DAG_YES.

Referenced by quda::DiracDagger::operator()().

Here is the caller graph for this function:

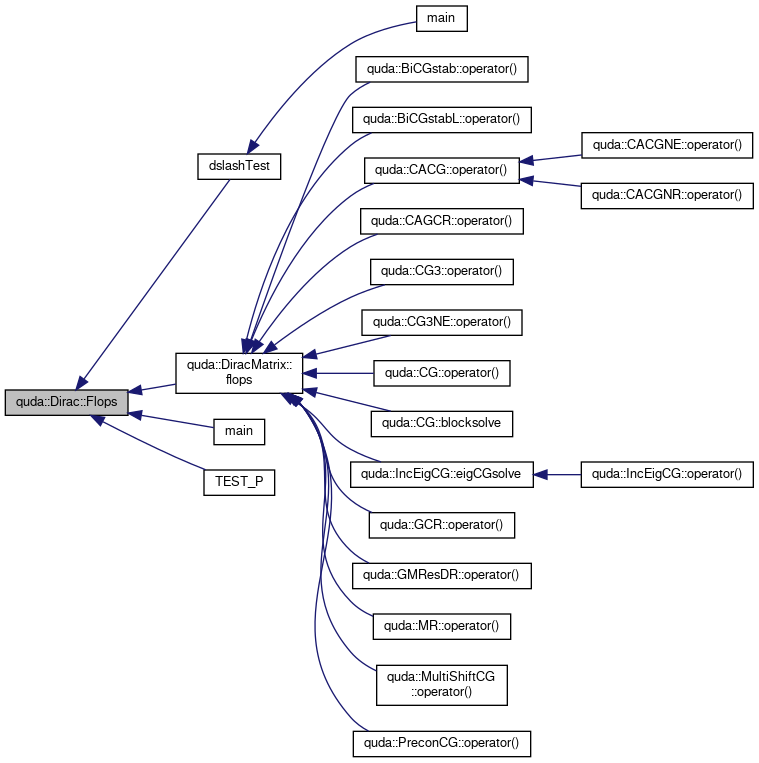

◆ Flops()

unsigned long long quda::Dirac::Flops ( ) const

inline

Definition at line 177 of file dirac_quda.h.

References quda::blas::flops.

Referenced by dslashTest(), quda::DiracMatrix::flops(), main(), and TEST_P().

Here is the caller graph for this function:

◆ getMatPCType()

QudaMatPCType quda::Dirac::getMatPCType ( ) const

inline

Definition at line 180 of file dirac_quda.h.

References quda::DiracParam::matpcType.

Referenced by quda::DiracMatrix::getMatPCType().

Here is the caller graph for this function:

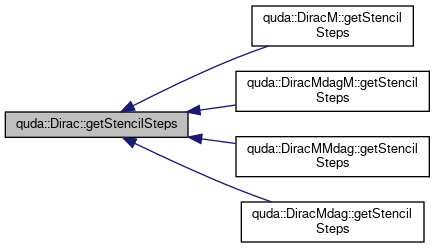

◆ getStencilSteps()

int quda::Dirac::getStencilSteps ( ) const

Definition at line 251 of file dirac.cpp.

References errorQuda, QUDA_ASQTAD_DIRAC, QUDA_ASQTADPC_DIRAC, QUDA_CLOVER_DIRAC, QUDA_CLOVERPC_DIRAC, QUDA_COARSE_DIRAC, QUDA_COARSEPC_DIRAC, QUDA_DOMAIN_WALL_4DPC_DIRAC, QUDA_DOMAIN_WALL_DIRAC, QUDA_DOMAIN_WALLPC_DIRAC, QUDA_GAUGE_COVDEV_DIRAC, QUDA_GAUGE_LAPLACE_DIRAC, QUDA_GAUGE_LAPLACEPC_DIRAC, QUDA_MOBIUS_DOMAIN_WALL_DIRAC, QUDA_MOBIUS_DOMAIN_WALLPC_DIRAC, QUDA_STAGGERED_DIRAC, QUDA_STAGGEREDPC_DIRAC, QUDA_TWISTED_CLOVER_DIRAC, QUDA_TWISTED_CLOVERPC_DIRAC, QUDA_TWISTED_MASS_DIRAC, QUDA_TWISTED_MASSPC_DIRAC, QUDA_WILSON_DIRAC, QUDA_WILSONPC_DIRAC, and type.

Referenced by quda::DiracM::getStencilSteps(), quda::DiracMdagM::getStencilSteps(), quda::DiracMMdag::getStencilSteps(), and quda::DiracMdag::getStencilSteps().

Here is the caller graph for this function:

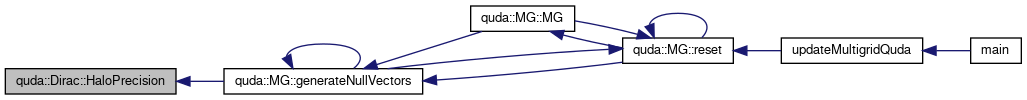

◆ HaloPrecision()

QudaPrecision quda::Dirac::HaloPrecision ( ) const

inline

Definition at line 200 of file dirac_quda.h.

References quda::DiracParam::halo_precision.

Referenced by quda::MG::generateNullVectors().

Here is the caller graph for this function:

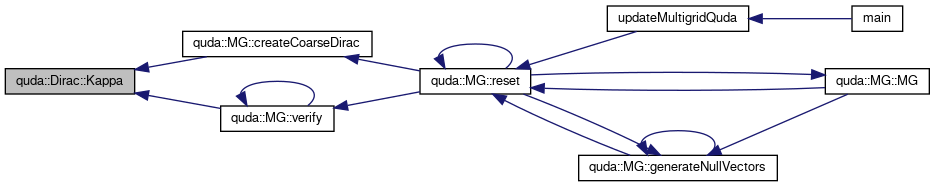

◆ Kappa()

double quda::Dirac::Kappa ( ) const

inline

Definition at line 173 of file dirac_quda.h.

References quda::DiracParam::kappa.

Referenced by quda::MG::createCoarseDirac(), and quda::MG::verify().

Here is the caller graph for this function:

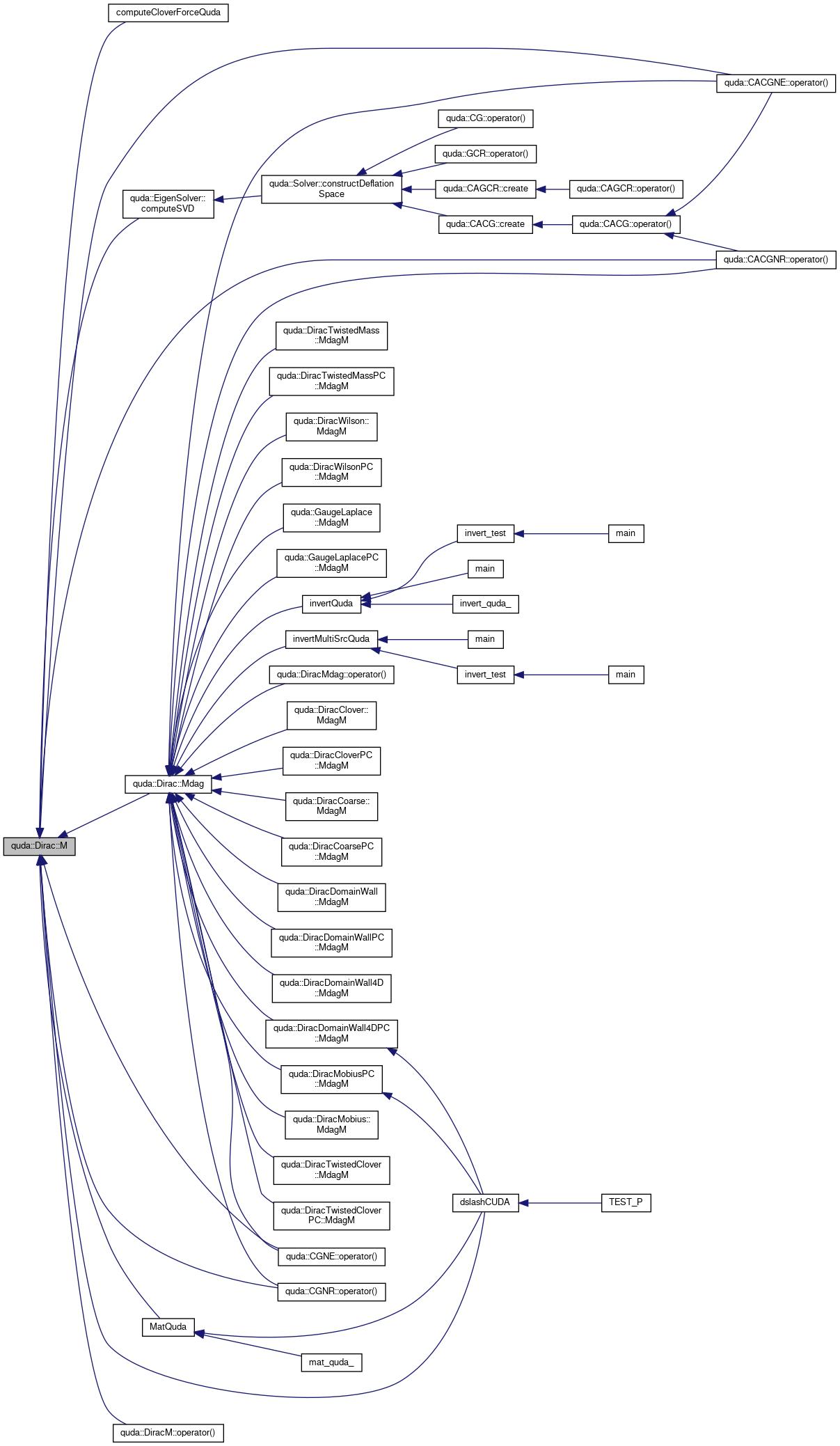

◆ M()

virtual void quda::Dirac::M	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

pure virtual

Implemented in quda::GaugeCovDev, quda::GaugeLaplacePC, quda::GaugeLaplace, quda::DiracCoarsePC, quda::DiracCoarse, quda::DiracImprovedStaggeredPC, quda::DiracImprovedStaggered, quda::DiracStaggeredPC, quda::DiracStaggered, quda::DiracTwistedCloverPC, quda::DiracTwistedClover, quda::DiracTwistedMassPC, quda::DiracTwistedMass, quda::DiracMobiusPC, quda::DiracMobius, quda::DiracDomainWall4DPC, quda::DiracDomainWall4D, quda::DiracDomainWallPC, quda::DiracDomainWall, quda::DiracCloverPC, quda::DiracClover, quda::DiracWilsonPC, and quda::DiracWilson.

Referenced by computeCloverForceQuda(), quda::EigenSolver::computeSVD(), dslashCUDA(), MatQuda(), Mdag(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), and quda::DiracM::operator()().

Here is the caller graph for this function:

◆ Mdag()

void quda::Dirac::Mdag	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

Definition at line 90 of file dirac.cpp.

References dagger, flip, and M().

Referenced by invertMultiSrcQuda(), invertQuda(), quda::DiracWilson::MdagM(), quda::DiracWilsonPC::MdagM(), quda::DiracClover::MdagM(), quda::DiracCloverPC::MdagM(), quda::DiracDomainWall::MdagM(), quda::DiracDomainWallPC::MdagM(), quda::DiracDomainWall4D::MdagM(), quda::DiracDomainWall4DPC::MdagM(), quda::DiracMobius::MdagM(), quda::DiracMobiusPC::MdagM(), quda::DiracTwistedMass::MdagM(), quda::DiracTwistedMassPC::MdagM(), quda::DiracTwistedClover::MdagM(), quda::DiracTwistedCloverPC::MdagM(), quda::DiracCoarse::MdagM(), quda::DiracCoarsePC::MdagM(), quda::GaugeLaplace::MdagM(), quda::GaugeLaplacePC::MdagM(), quda::CGNE::operator()(), quda::CGNR::operator()(), quda::CACGNE::operator()(), quda::CACGNR::operator()(), and quda::DiracMdag::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

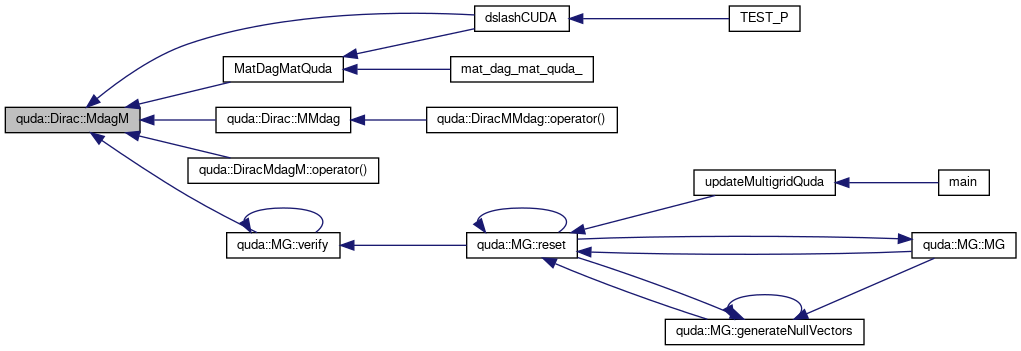

◆ MdagM()

virtual void quda::Dirac::MdagM	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

pure virtual

◆ MMdag()

void quda::Dirac::MMdag	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

Definition at line 97 of file dirac.cpp.

References dagger, flip, and MdagM().

Referenced by quda::DiracMMdag::operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

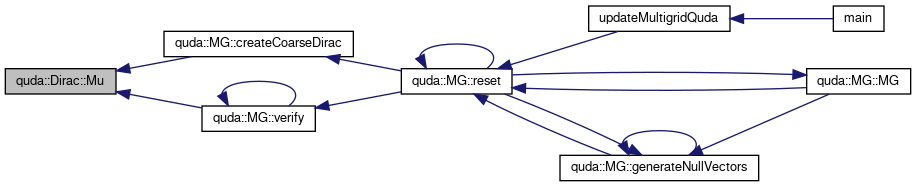

◆ Mu()

virtual double quda::Dirac::Mu ( ) const

inlinevirtual

Reimplemented in quda::DiracCoarse, quda::DiracTwistedClover, and quda::DiracTwistedMass.

Definition at line 174 of file dirac_quda.h.

Referenced by quda::MG::createCoarseDirac(), and quda::MG::verify().

Here is the caller graph for this function:

◆ MuFactor()

virtual double quda::Dirac::MuFactor ( ) const

inlinevirtual

Reimplemented in quda::DiracCoarse.

Definition at line 175 of file dirac_quda.h.

◆ newTmp()

bool quda::Dirac::newTmp	(	ColorSpinorField **	tmp,
		const ColorSpinorField &	a
	)		const

protected

Definition at line 70 of file dirac.cpp.

References quda::ColorSpinorParam::create, param, and QUDA_ZERO_FIELD_CREATE.

Here is the caller graph for this function:

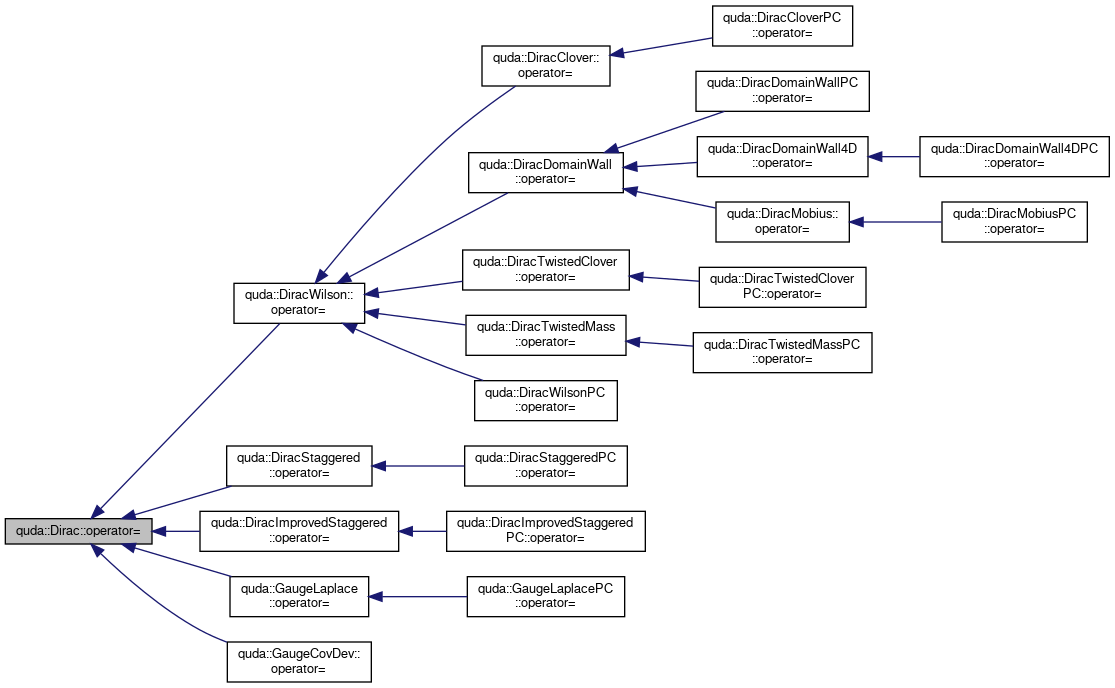

◆ operator=()

Dirac & quda::Dirac::operator= ( const Dirac & dirac )

Definition at line 49 of file dirac.cpp.

References commDim, dagger, errorQuda, flops, gauge, kappa, laplace3D, matpcType, profile, tmp1, tmp2, and type.

Referenced by quda::DiracWilson::operator=(), quda::DiracStaggered::operator=(), quda::DiracImprovedStaggered::operator=(), quda::GaugeLaplace::operator=(), and quda::GaugeCovDev::operator=().

Here is the caller graph for this function:

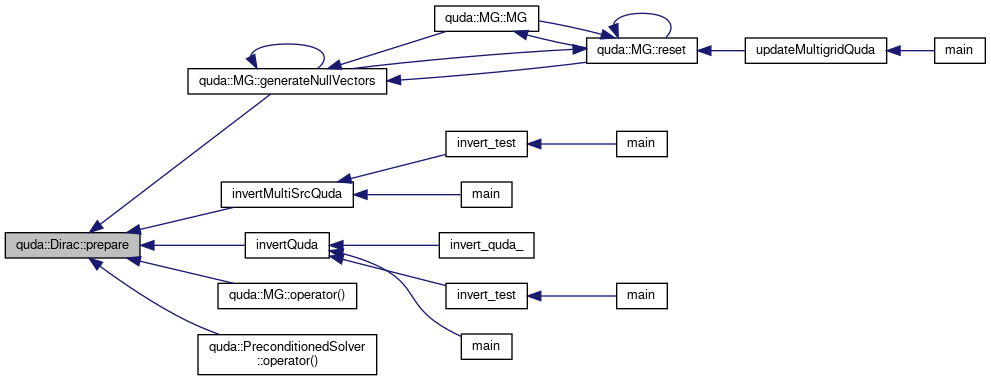

◆ prepare()

virtual void quda::Dirac::prepare	(	ColorSpinorField *&	src,
		ColorSpinorField *&	sol,
		ColorSpinorField &	x,
		ColorSpinorField &	b,
		const QudaSolutionType
	)		const

pure virtual

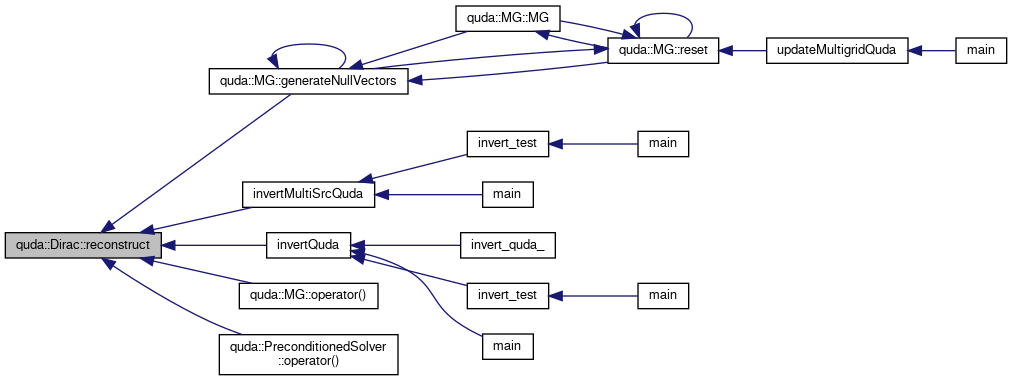

◆ reconstruct()

virtual void quda::Dirac::reconstruct	(	ColorSpinorField &	x,
		const ColorSpinorField &	b,
		const QudaSolutionType
	)		const

pure virtual

◆ setCommDim()

void quda::Dirac::setCommDim ( const int commDim_[QUDA_MAX_DIM] ) const

inline

Enable / disable communications for the Dirac operator.

Parameters

[in] commDim_ Array of booleans which determines whether communications are enabled

Definition at line 145 of file dirac_quda.h.

References in, out, parity, and QUDA_MAX_DIM.

Referenced by quda::MG::generateNullVectors().

Here is the caller graph for this function:

◆ setHaloPrecision()

void quda::Dirac::setHaloPrecision ( QudaPrecision halo_precision_ ) const

inline

Definition at line 201 of file dirac_quda.h.

Referenced by quda::MG::generateNullVectors().

Here is the caller graph for this function:

◆ setMass()

void quda::Dirac::setMass ( double mass )

inline

Definition at line 169 of file dirac_quda.h.

References quda::DiracParam::mass, and param.

Referenced by invertMultiShiftQuda().

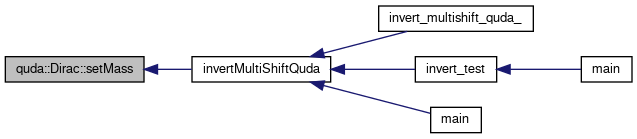

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ DiracM

friend class DiracM

friend

Definition at line 109 of file dirac_quda.h.

◆ DiracMatrix

friend class DiracMatrix

friend

Definition at line 108 of file dirac_quda.h.

◆ DiracMdag

friend class DiracMdag

friend

Definition at line 112 of file dirac_quda.h.

◆ DiracMdagM

friend class DiracMdagM

friend

Definition at line 110 of file dirac_quda.h.

◆ DiracMMdag

friend class DiracMMdag

friend

Definition at line 111 of file dirac_quda.h.

Member Data Documentation

◆ commDim

int quda::Dirac::commDim[QUDA_MAX_DIM]

mutableprotected

Definition at line 130 of file dirac_quda.h.

◆ dagger

QudaDagType quda::Dirac::dagger

mutableprotected

Definition at line 120 of file dirac_quda.h.

◆ flops

unsigned long long quda::Dirac::flops

mutableprotected

Definition at line 121 of file dirac_quda.h.

◆ gauge

cudaGaugeField* quda::Dirac::gauge

protected

Definition at line 115 of file dirac_quda.h.

◆ halo_precision

QudaPrecision quda::Dirac::halo_precision

mutableprotected

Definition at line 125 of file dirac_quda.h.

Referenced by quda::DiracCoarse::Dslash(), quda::DiracCoarsePC::Dslash(), quda::DiracCoarse::DslashXpay(), and quda::DiracCoarse::M().

◆ kappa

double quda::Dirac::kappa

protected

Definition at line 116 of file dirac_quda.h.

◆ laplace3D

int quda::Dirac::laplace3D

protected

Definition at line 118 of file dirac_quda.h.

Referenced by quda::GaugeLaplace::Dslash(), quda::GaugeLaplace::DslashXpay(), and operator=().

◆ mass

double quda::Dirac::mass

protected

Definition at line 117 of file dirac_quda.h.

Referenced by quda::DiracDomainWall::Dslash(), quda::DiracMobius::Dslash4pre(), quda::DiracMobius::Dslash4preXpay(), quda::DiracDomainWall4D::Dslash5(), quda::DiracMobius::Dslash5(), quda::DiracDomainWall4DPC::Dslash5inv(), quda::DiracMobiusPC::Dslash5inv(), quda::DiracDomainWall4DPC::Dslash5invXpay(), quda::DiracMobiusPC::Dslash5invXpay(), quda::DiracDomainWall4D::Dslash5Xpay(), quda::DiracMobius::Dslash5Xpay(), quda::DiracDomainWall::DslashXpay(), quda::DiracCoarse::initializeCoarse(), quda::DiracDomainWall::M(), quda::DiracDomainWall4D::M(), quda::DiracMobius::M(), quda::DiracStaggered::M(), quda::DiracStaggeredPC::M(), quda::DiracImprovedStaggered::M(), quda::DiracImprovedStaggeredPC::M(), quda::DiracStaggered::MdagM(), quda::DiracImprovedStaggered::MdagM(), quda::DiracStaggeredPC::prepare(), quda::DiracImprovedStaggeredPC::prepare(), quda::DiracStaggeredPC::reconstruct(), and quda::DiracImprovedStaggeredPC::reconstruct().

◆ matpcType

QudaMatPCType quda::Dirac::matpcType

protected

Definition at line 119 of file dirac_quda.h.

Referenced by quda::DiracCloverPC::createCoarseOp(), quda::DiracTwistedMassPC::createCoarseOp(), quda::DiracTwistedCloverPC::createCoarseOp(), quda::DiracCoarsePC::createCoarseOp(), quda::DiracTwistedMassPC::Dslash(), quda::DiracTwistedCloverPC::Dslash(), quda::DiracTwistedMassPC::DslashXpay(), quda::DiracTwistedCloverPC::DslashXpay(), quda::DiracWilsonPC::M(), quda::DiracCloverPC::M(), quda::DiracDomainWallPC::M(), quda::DiracDomainWall4DPC::M(), quda::DiracMobiusPC::M(), quda::DiracTwistedMassPC::M(), quda::DiracTwistedCloverPC::M(), quda::DiracStaggeredPC::M(), quda::DiracImprovedStaggeredPC::M(), quda::DiracCoarsePC::M(), quda::GaugeLaplacePC::M(), operator=(), quda::DiracWilsonPC::prepare(), quda::DiracCloverPC::prepare(), quda::DiracDomainWallPC::prepare(), quda::DiracDomainWall4DPC::prepare(), quda::DiracMobiusPC::prepare(), quda::DiracTwistedMassPC::prepare(), quda::DiracTwistedCloverPC::prepare(), quda::DiracStaggeredPC::prepare(), quda::DiracImprovedStaggeredPC::prepare(), quda::DiracCoarsePC::prepare(), quda::GaugeLaplacePC::prepare(), quda::DiracWilsonPC::reconstruct(), quda::DiracCloverPC::reconstruct(), quda::DiracDomainWallPC::reconstruct(), quda::DiracDomainWall4DPC::reconstruct(), quda::DiracMobiusPC::reconstruct(), quda::DiracTwistedMassPC::reconstruct(), quda::DiracTwistedCloverPC::reconstruct(), quda::DiracStaggeredPC::reconstruct(), quda::DiracImprovedStaggeredPC::reconstruct(), quda::DiracCoarsePC::reconstruct(), and quda::GaugeLaplacePC::reconstruct().

◆ profile

TimeProfile quda::Dirac::profile

mutableprotected

Definition at line 132 of file dirac_quda.h.

◆ tmp1

ColorSpinorField* quda::Dirac::tmp1

mutableprotected

Definition at line 122 of file dirac_quda.h.

◆ tmp2

◆ type

QudaDiracType quda::Dirac::type

protected

Definition at line 124 of file dirac_quda.h.

Referenced by getStencilSteps(), and operator=().

The documentation for this class was generated from the following files:

include/dirac_quda.h
lib/dirac.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ Dirac() [1/2]

◆ Dirac() [2/2]

◆ ~Dirac()

Member Function Documentation

◆ checkFullSpinor()

◆ checkParitySpinor()

◆ checkSpinorAlias()

◆ create()

◆ createCoarseOp()

◆ Dagger()

◆ deleteTmp()

◆ Dslash()

◆ DslashXpay()

◆ flipDagger()

◆ Flops()

◆ getMatPCType()

◆ getStencilSteps()

◆ HaloPrecision()

◆ Kappa()

◆ M()

◆ Mdag()

◆ MdagM()

◆ MMdag()

◆ Mu()

◆ MuFactor()

◆ newTmp()

◆ operator=()

◆ prepare()

◆ reconstruct()

◆ setCommDim()

◆ setHaloPrecision()

◆ setMass()

Friends And Related Function Documentation

◆ DiracM

◆ DiracMatrix

◆ DiracMdag

◆ DiracMdagM

◆ DiracMMdag

Member Data Documentation

◆ commDim

◆ dagger

◆ flops

◆ gauge

◆ halo_precision

◆ kappa

◆ laplace3D

◆ mass

◆ matpcType

◆ profile

◆ tmp1

◆ tmp2

◆ type
