#include <dirac_quda.h>

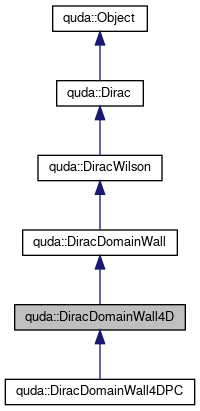

Inheritance diagram for quda::DiracDomainWall4D:

[legend]

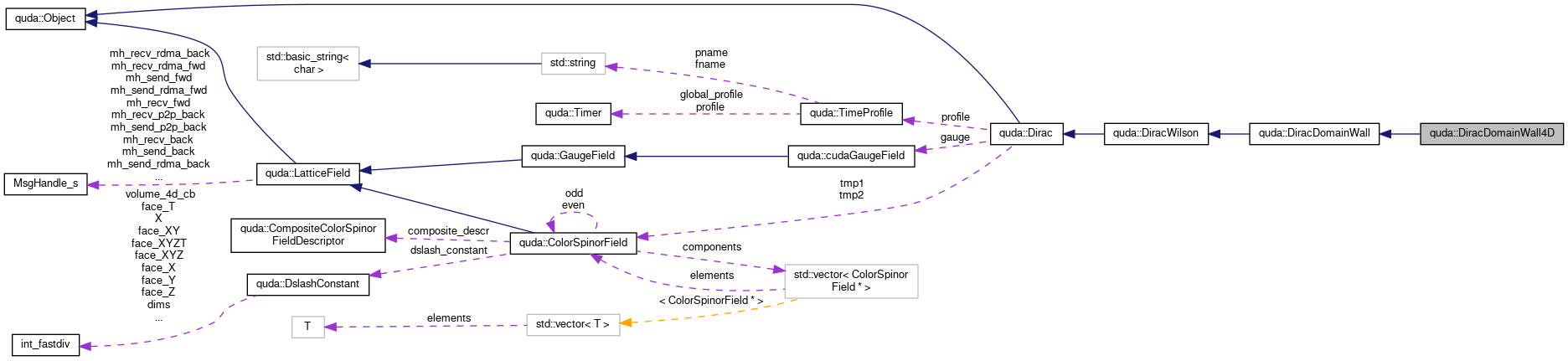

Collaboration diagram for quda::DiracDomainWall4D:

[legend]

Public Member Functions
	DiracDomainWall4D (const DiracParam &param)

	DiracDomainWall4D (const DiracDomainWall4D &dirac)

virtual	~DiracDomainWall4D ()

DiracDomainWall4D &	operator= (const DiracDomainWall4D &dirac)

void	Dslash4 (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity) const

void	Dslash5 (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity) const

void	Dslash4Xpay (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity, const ColorSpinorField &x, const double &k) const

void	Dslash5Xpay (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity, const ColorSpinorField &x, const double &k) const

void	M (ColorSpinorField &out, const ColorSpinorField &in) const

void	MdagM (ColorSpinorField &out, const ColorSpinorField &in) const

void	prepare (ColorSpinorField &src, ColorSpinorField &sol, ColorSpinorField &x, ColorSpinorField &b, const QudaSolutionType) const

void	reconstruct (ColorSpinorField &x, const ColorSpinorField &b, const QudaSolutionType) const

Public Member Functions inherited from quda::DiracDomainWall
	DiracDomainWall (const DiracParam &param)

	DiracDomainWall (const DiracDomainWall &dirac)

virtual	~DiracDomainWall ()

DiracDomainWall &	operator= (const DiracDomainWall &dirac)

void	Dslash (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity) const

void	DslashXpay (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity, const ColorSpinorField &x, const double &k) const

Public Member Functions inherited from quda::DiracWilson
	DiracWilson (const DiracParam &param)

	DiracWilson (const DiracWilson &dirac)

	DiracWilson (const DiracParam &param, const int nDims)

virtual	~DiracWilson ()

DiracWilson &	operator= (const DiracWilson &dirac)

virtual void	createCoarseOp (GaugeField &Y, GaugeField &X, const Transfer &T, double kappa, double mass=0., double mu=0., double mu_factor=0.) const
	Create the coarse Wilson operator. More...

Public Member Functions inherited from quda::Dirac
	Dirac (const DiracParam &param)

	Dirac (const Dirac &dirac)

virtual	~Dirac ()

Dirac &	operator= (const Dirac &dirac)

void	setCommDim (const int commDim_[QUDA_MAX_DIM]) const
	Enable / disable communications for the Dirac operator. More...

virtual void	checkParitySpinor (const ColorSpinorField &, const ColorSpinorField &) const

virtual void	checkFullSpinor (const ColorSpinorField &, const ColorSpinorField &) const

void	checkSpinorAlias (const ColorSpinorField &, const ColorSpinorField &) const

void	Mdag (ColorSpinorField &out, const ColorSpinorField &in) const

void	MMdag (ColorSpinorField &out, const ColorSpinorField &in) const

void	setMass (double mass)

double	Kappa () const

virtual double	Mu () const

virtual double	MuFactor () const

unsigned long long	Flops () const

QudaMatPCType	getMatPCType () const

int	getStencilSteps () const

void	Dagger (QudaDagType dag) const

void	flipDagger () const

QudaPrecision	HaloPrecision () const

void	setHaloPrecision (QudaPrecision halo_precision_) const

Public Member Functions inherited from quda::Object
	Object ()

virtual	~Object ()

Additional Inherited Members
Static Public Member Functions inherited from quda::Dirac
static Dirac *	create (const DiracParam &param)

Static Public Member Functions inherited from quda::Object
static void *	operator new (std::size_t size)

static void	operator delete (void *p)

static void *	operator new[] (std::size_t size)

static void	operator delete[] (void *p)

Protected Member Functions inherited from quda::DiracDomainWall
void	checkDWF (const ColorSpinorField &out, const ColorSpinorField &in) const

Protected Member Functions inherited from quda::DiracWilson
void	initConstants ()

Protected Member Functions inherited from quda::Dirac
bool	newTmp (ColorSpinorField **, const ColorSpinorField &) const

void	deleteTmp (ColorSpinorField **, const bool &reset) const

Protected Attributes inherited from quda::DiracDomainWall
double	m5

double	kappa5

int	Ls

Protected Attributes inherited from quda::Dirac
cudaGaugeField *	gauge

double	kappa

double	mass

int	laplace3D

QudaMatPCType	matpcType

QudaDagType	dagger

unsigned long long	flops

ColorSpinorField *	tmp1

ColorSpinorField *	tmp2

QudaDiracType	type

QudaPrecision	halo_precision

int	commDim [QUDA_MAX_DIM]

TimeProfile	profile

Detailed Description

Definition at line 397 of file dirac_quda.h.

Constructor & Destructor Documentation

◆ DiracDomainWall4D() [1/2]

quda::DiracDomainWall4D::DiracDomainWall4D ( const DiracParam & param )

Definition at line 7 of file dirac_domain_wall_4d.cpp.

◆ DiracDomainWall4D() [2/2]

quda::DiracDomainWall4D::DiracDomainWall4D ( const DiracDomainWall4D & dirac )

Definition at line 9 of file dirac_domain_wall_4d.cpp.

◆ ~DiracDomainWall4D()

quda::DiracDomainWall4D::~DiracDomainWall4D ( )

virtual

Definition at line 11 of file dirac_domain_wall_4d.cpp.

Member Function Documentation

◆ Dslash4()

void quda::DiracDomainWall4D::Dslash4	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity
	)		const

Definition at line 21 of file dirac_domain_wall_4d.cpp.

References quda::ApplyDomainWall4D(), quda::DiracDomainWall::checkDWF(), quda::Dirac::checkParitySpinor(), quda::Dirac::checkSpinorAlias(), quda::Dirac::commDim, quda::Dirac::dagger, quda::Dirac::flops, quda::Dirac::gauge, quda::Dirac::profile, and quda::ColorSpinorField::Volume().

Referenced by dslashCUDA(), dslashQuda_4dpc(), and quda::DiracDomainWall4DPC::M().

Here is the call graph for this function:

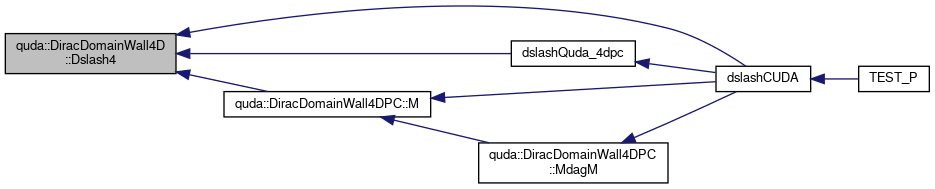

Here is the caller graph for this function:

◆ Dslash4Xpay()

void quda::DiracDomainWall4D::Dslash4Xpay	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity,
		const ColorSpinorField &	x,
		const double &	k
	)		const

Definition at line 46 of file dirac_domain_wall_4d.cpp.

References quda::ApplyDomainWall4D(), quda::DiracDomainWall::checkDWF(), quda::Dirac::checkParitySpinor(), quda::Dirac::checkSpinorAlias(), quda::Dirac::commDim, quda::Dirac::dagger, quda::Dirac::flops, quda::Dirac::gauge, quda::Dirac::profile, and quda::ColorSpinorField::Volume().

Referenced by quda::DiracDomainWall4DPC::M(), quda::DiracDomainWall4DPC::prepare(), and quda::DiracDomainWall4DPC::reconstruct().

Here is the call graph for this function:

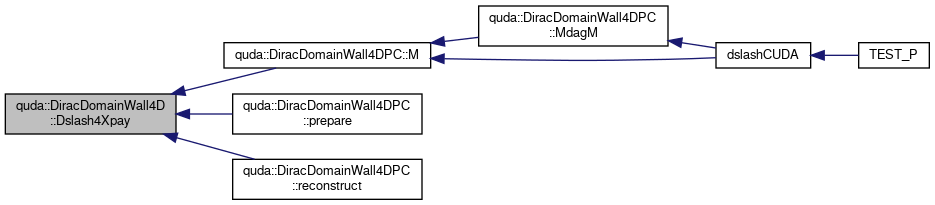

Here is the caller graph for this function:

◆ Dslash5()

void quda::DiracDomainWall4D::Dslash5	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity
	)		const

Definition at line 31 of file dirac_domain_wall_4d.cpp.

References quda::ApplyDslash5(), quda::DiracDomainWall::checkDWF(), quda::Dirac::checkParitySpinor(), quda::Dirac::checkSpinorAlias(), quda::Dirac::dagger, quda::DSLASH5_DWF, quda::Dirac::flops, quda::DiracDomainWall::Ls, quda::Dirac::mass, quda::ColorSpinorField::Volume(), and quda::ColorSpinorField::X().

Referenced by dslashCUDA(), and dslashQuda_4dpc().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Dslash5Xpay()

void quda::DiracDomainWall4D::Dslash5Xpay	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity,
		const ColorSpinorField &	x,
		const double &	k
	)		const

Definition at line 58 of file dirac_domain_wall_4d.cpp.

References quda::ApplyDslash5(), quda::DiracDomainWall::checkDWF(), quda::Dirac::checkParitySpinor(), quda::Dirac::checkSpinorAlias(), quda::Dirac::dagger, quda::DSLASH5_DWF, quda::Dirac::flops, quda::DiracDomainWall::Ls, quda::Dirac::mass, quda::ColorSpinorField::Volume(), and quda::ColorSpinorField::X().

Referenced by quda::DiracDomainWall4DPC::M().

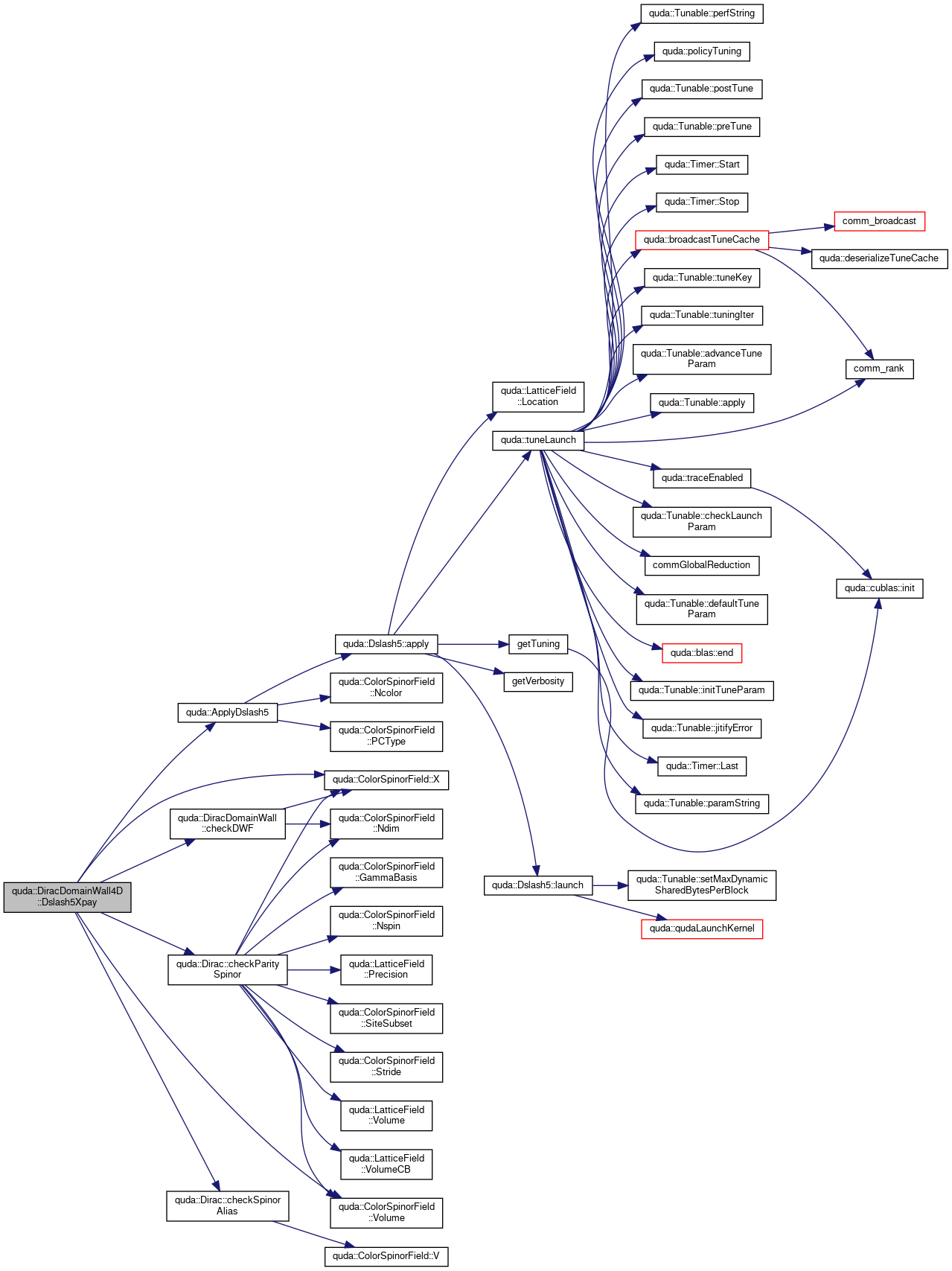

Here is the call graph for this function:

Here is the caller graph for this function:

◆ M()

void quda::DiracDomainWall4D::M	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Reimplemented from quda::DiracDomainWall.

Reimplemented in quda::DiracDomainWall4DPC.

Definition at line 73 of file dirac_domain_wall_4d.cpp.

References quda::ApplyDomainWall4D(), quda::ApplyDslash5(), quda::Dirac::checkFullSpinor(), quda::Dirac::commDim, quda::Dirac::dagger, quda::DSLASH5_DWF, quda::Dirac::flops, quda::Dirac::gauge, quda::DiracDomainWall::kappa5, quda::DiracDomainWall::Ls, quda::Dirac::mass, quda::Dirac::profile, QUDA_INVALID_PARITY, quda::ColorSpinorField::Volume(), quda::ColorSpinorField::X(), and quda::blas::xpay().

Referenced by MdagM().

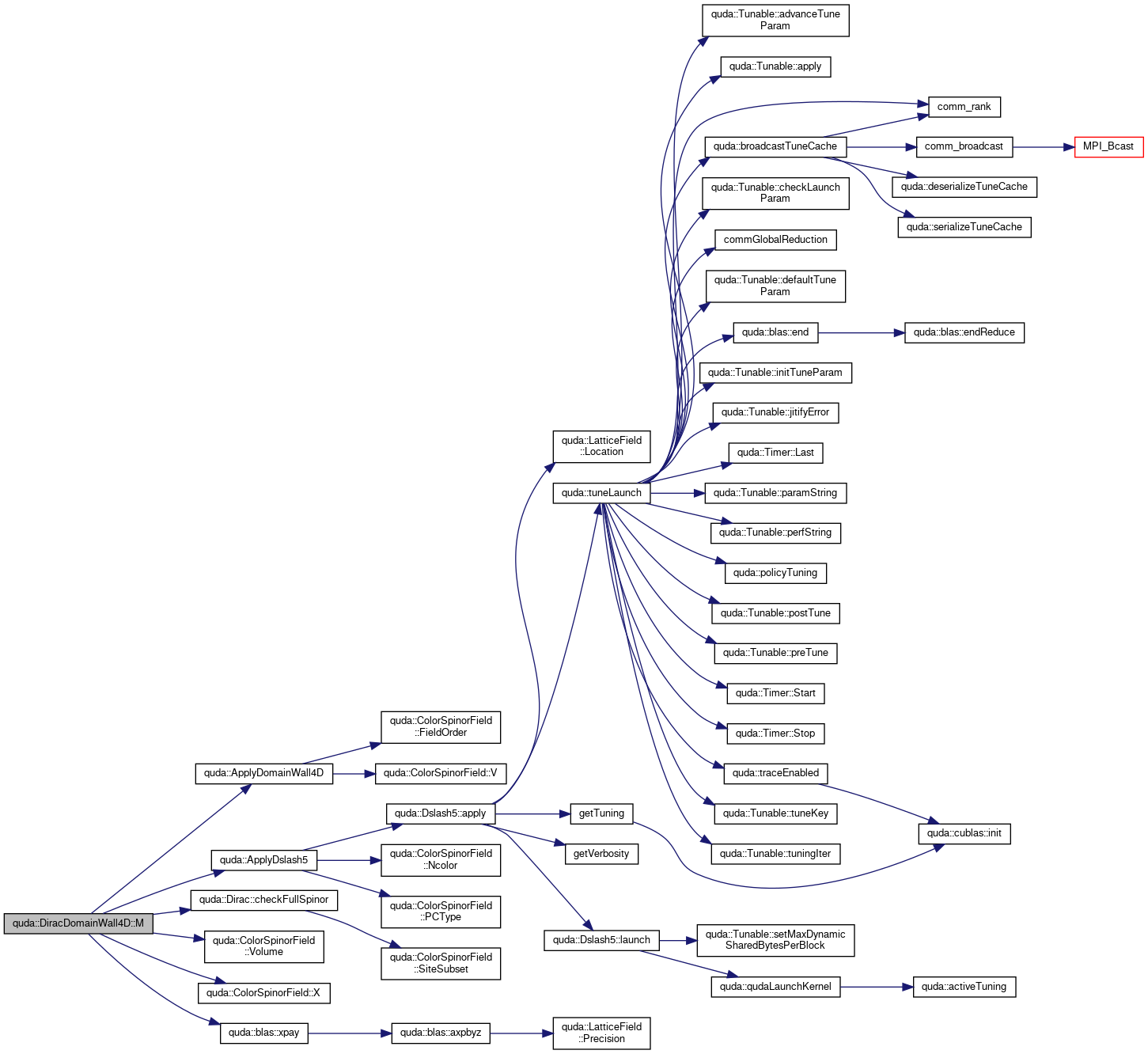

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MdagM()

void quda::DiracDomainWall4D::MdagM	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Reimplemented from quda::DiracDomainWall.

Reimplemented in quda::DiracDomainWall4DPC.

Definition at line 88 of file dirac_domain_wall_4d.cpp.

References quda::Dirac::checkFullSpinor(), quda::Dirac::deleteTmp(), M(), quda::Dirac::Mdag(), quda::Dirac::newTmp(), and quda::Dirac::tmp1.

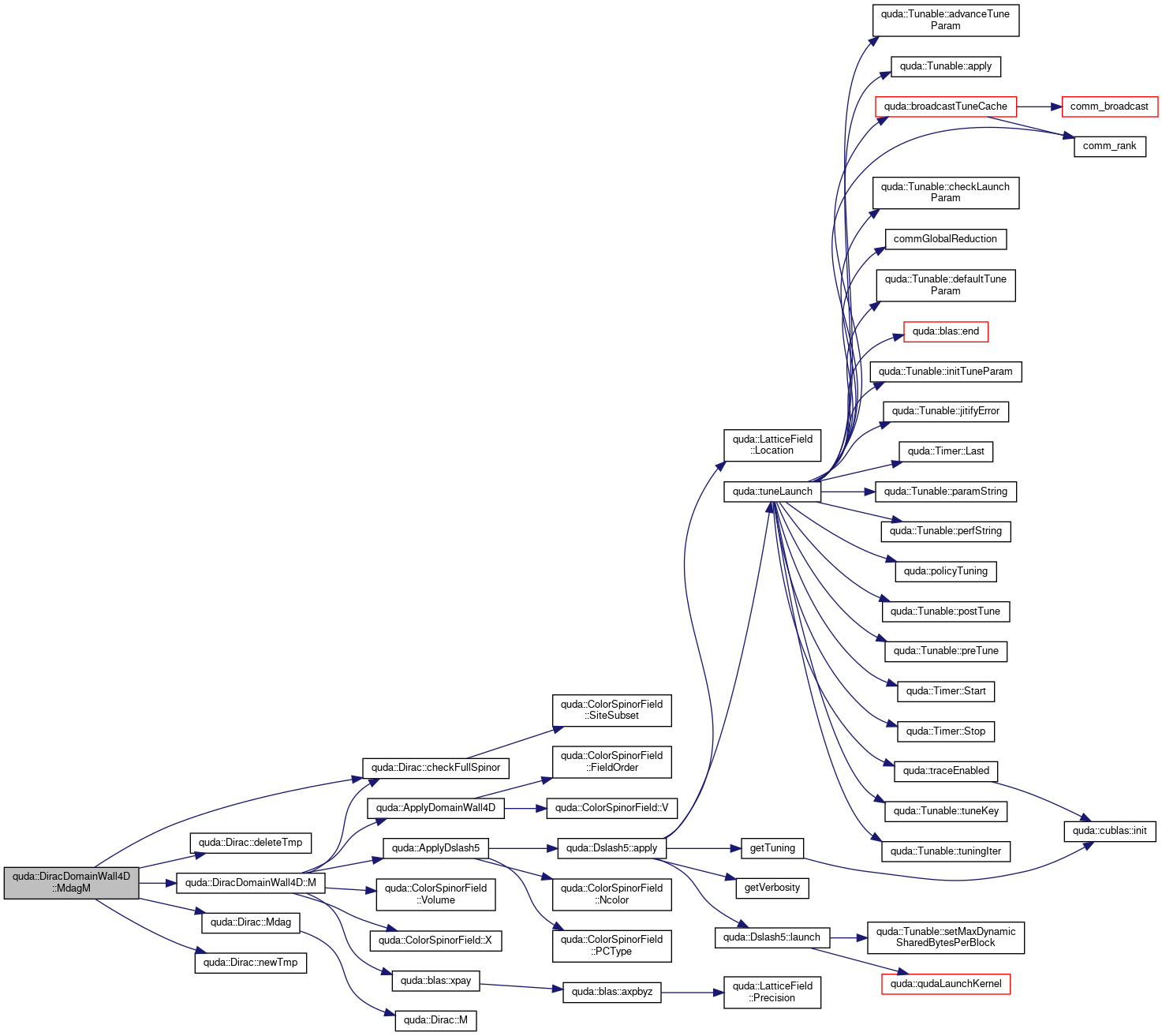

Here is the call graph for this function:

◆ operator=()

DiracDomainWall4D & quda::DiracDomainWall4D::operator= ( const DiracDomainWall4D & dirac )

Definition at line 13 of file dirac_domain_wall_4d.cpp.

References quda::DiracDomainWall::operator=().

Referenced by quda::DiracDomainWall4DPC::operator=().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ prepare()

void quda::DiracDomainWall4D::prepare	(	ColorSpinorField *&	src,
		ColorSpinorField *&	sol,
		ColorSpinorField &	x,
		ColorSpinorField &	b,
		const QudaSolutionType	solType
	)		const
