quda::LatticeField Class Reference

#include <lattice_field.h>

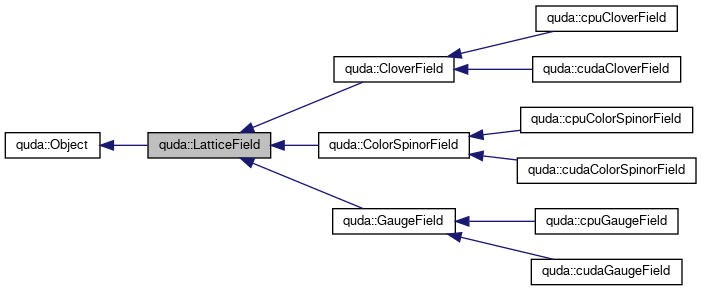

Inheritance diagram for quda::LatticeField:

Collaboration diagram for quda::LatticeField:

Public Member Functions
	LatticeField (const LatticeFieldParam &param)
	LatticeField (const LatticeField &field)
virtual	~LatticeField ()
void	allocateGhostBuffer (size_t ghost_bytes) const
	Allocate the static ghost buffers. More...
void	createComms (bool no_comms_fill=false, bool bidir=true)
void	destroyComms ()
void	createIPCComms ()
bool	ipcCopyComplete (int dir, int dim)
bool	ipcRemoteCopyComplete (int dir, int dim)
const cudaEvent_t &	getIPCCopyEvent (int dir, int dim) const
const cudaEvent_t &	getIPCRemoteCopyEvent (int dir, int dim) const
int	Ndim () const
const int *	X () const
int	Volume () const
int	VolumeCB () const
const int *	SurfaceCB () const
int	SurfaceCB (const int i) const
int	Stride () const
int	Pad () const
const int *	R () const
QudaGhostExchange	GhostExchange () const
QudaPrecision	Precision () const
QudaPrecision	GhostPrecision () const
double	Scale () const
void	Scale (double scale_)
	Set the scale factor for a fixed-point field. More...
virtual QudaSiteSubset	SiteSubset () const
virtual QudaMemoryType	MemType () const
int	Nvec () const
QudaFieldLocation	Location () const
size_t	GBytes () const
void	checkField (const LatticeField &a) const
virtual void	read (char *filename)
virtual void	write (char *filename)
virtual void	gather (int nFace, int dagger, int dir, cudaStream_t *stream_p=NULL)
virtual void	commsStart (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)
virtual int	commsQuery (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)
virtual void	commsWait (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)
virtual void	scatter (int nFace, int dagger, int dir)
const char *	VolString () const
const char *	AuxString () const
virtual void	backup () const
	Backs up the LatticeField. More...
virtual void	restore () const
	Restores the LatticeField. More...
Public Member Functions inherited from quda::Object
	Object ()
virtual	~Object ()

Static Public Member Functions
static void	freeGhostBuffer (void)
	Free statically allocated ghost buffers. More...
static void	destroyIPCComms ()
Static Public Member Functions inherited from quda::Object
static void *	operator new (std::size_t size)
static void	operator delete (void *p)
static void *	operator new[] (std::size_t size)
static void	operator delete[] (void *p)

Static Public Attributes
static int	bufferIndex = 0
static bool	ghost_field_reset = false

Protected Member Functions
virtual void	setTuningString ()
void	precisionCheck ()

Protected Attributes
int	volume
int	volumeCB
int	stride
int	pad
size_t	total_bytes
int	nDim
int	x [QUDA_MAX_DIM]
int	surface [QUDA_MAX_DIM]
int	surfaceCB [QUDA_MAX_DIM]
int	r [QUDA_MAX_DIM]
QudaPrecision	precision
QudaPrecision	ghost_precision
bool	ghost_precision_reset
double	scale
QudaSiteSubset	siteSubset
QudaGhostExchange	ghostExchange
int	nDimComms
size_t	ghost_bytes
size_t	ghost_bytes_old
size_t	ghost_face_bytes [QUDA_MAX_DIM]
int	ghostOffset [QUDA_MAX_DIM][2]
int	ghostNormOffset [QUDA_MAX_DIM][2]
void *	my_face_h [2]
void *	my_face_hd [2]
void *	my_face_d [2]
void *	my_face_dim_dir_h [2][QUDA_MAX_DIM][2]
void *	my_face_dim_dir_hd [2][QUDA_MAX_DIM][2]
void *	my_face_dim_dir_d [2][QUDA_MAX_DIM][2]
void *	from_face_h [2]
void *	from_face_hd [2]
void *	from_face_d [2]
void *	from_face_dim_dir_h [2][QUDA_MAX_DIM][2]
void *	from_face_dim_dir_hd [2][QUDA_MAX_DIM][2]
void *	from_face_dim_dir_d [2][QUDA_MAX_DIM][2]
MsgHandle *	mh_recv_fwd [2][QUDA_MAX_DIM]
MsgHandle *	mh_recv_back [2][QUDA_MAX_DIM]
MsgHandle *	mh_send_fwd [2][QUDA_MAX_DIM]
MsgHandle *	mh_send_back [2][QUDA_MAX_DIM]
MsgHandle *	mh_recv_rdma_fwd [2][QUDA_MAX_DIM]
MsgHandle *	mh_recv_rdma_back [2][QUDA_MAX_DIM]
MsgHandle *	mh_send_rdma_fwd [2][QUDA_MAX_DIM]
MsgHandle *	mh_send_rdma_back [2][QUDA_MAX_DIM]
bool	initComms
char	vol_string [TuneKey::volume_n]
char	aux_string [TuneKey::aux_n]
QudaMemoryType	mem_type
char *	backup_h
char *	backup_norm_h
bool	backed_up

Static Protected Attributes
static void *	ghost_send_buffer_d [2] = {nullptr, nullptr}
static void *	ghost_recv_buffer_d [2] = {nullptr, nullptr}
static void *	ghost_pinned_send_buffer_h [2] = {nullptr, nullptr}
static void *	ghost_pinned_recv_buffer_h [2] = {nullptr, nullptr}
static void *	ghost_pinned_send_buffer_hd [2] = {nullptr, nullptr}
static void *	ghost_pinned_recv_buffer_hd [2] = {nullptr, nullptr}
static void *	ghost_remote_send_buffer_d [2][QUDA_MAX_DIM][2]
static size_t	ghostFaceBytes = 0
static bool	initGhostFaceBuffer = false
static MsgHandle *	mh_send_p2p_fwd [2][QUDA_MAX_DIM] { }
static MsgHandle *	mh_send_p2p_back [2][QUDA_MAX_DIM] { }
static MsgHandle *	mh_recv_p2p_fwd [2][QUDA_MAX_DIM] { }
static MsgHandle *	mh_recv_p2p_back [2][QUDA_MAX_DIM] { }
static int	buffer_send_p2p_fwd [2][QUDA_MAX_DIM] { }
static int	buffer_recv_p2p_fwd [2][QUDA_MAX_DIM] { }
static int	buffer_send_p2p_back [2][QUDA_MAX_DIM] { }
static int	buffer_recv_p2p_back [2][QUDA_MAX_DIM] { }
static cudaEvent_t	ipcCopyEvent [2][2][QUDA_MAX_DIM]
static cudaEvent_t	ipcRemoteCopyEvent [2][2][QUDA_MAX_DIM]
static bool	initIPCComms = false

Detailed Description

Definition at line 144 of file lattice_field.h.

Constructor & Destructor Documentation

LatticeField() [1/2]

quda::LatticeField::LatticeField

(

const LatticeFieldParam &

param

)

Constructor for creating a LatticeField from a LatticeFieldParam

Parameters

param

Contains the metadata for creating the LatticeField

Definition at line 59 of file lattice_field.cpp.

References backed_up, backup_h, backup_norm_h, errorQuda, from_face_d, from_face_dim_dir_d, from_face_dim_dir_h, from_face_dim_dir_hd, from_face_h, from_face_hd, ghostExchange, ghostNormOffset, ghostOffset, initComms, mem_type, mh_recv_back, mh_recv_fwd, mh_recv_rdma_back, mh_recv_rdma_fwd, mh_send_back, mh_send_fwd, mh_send_rdma_back, mh_send_rdma_fwd, my_face_d, my_face_dim_dir_d, my_face_dim_dir_h, my_face_dim_dir_hd, my_face_h, my_face_hd, nDim, nDimComms, pad, param, precision, precisionCheck(), QUDA_DOUBLE_PRECISION, QUDA_FULL_SITE_SUBSET, QUDA_GHOST_EXCHANGE_EXTENDED, QUDA_HALF_PRECISION, QUDA_INVALID_SITE_SUBSET, QUDA_MAX_DIM, QUDA_QUARTER_PRECISION, QUDA_SINGLE_PRECISION, r, setTuningString(), siteSubset, stride, surface, surfaceCB, volume, volumeCB, and x.

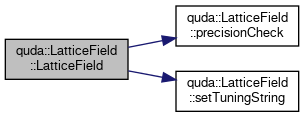

Here is the call graph for this function:

LatticeField() [2/2]

quda::LatticeField::LatticeField

(

const LatticeField &

field

)

Constructor for creating a LatticeField from another LatticeField

Parameters

field

Instance of LatticeField from which we are inheriting metadata

Definition at line 149 of file lattice_field.cpp.

References backed_up, backup_h, backup_norm_h, errorQuda, from_face_d, from_face_h, from_face_hd, ghostExchange, ghostNormOffset, ghostOffset, initComms, mem_type, mh_recv_back, mh_recv_fwd, mh_recv_rdma_back, mh_recv_rdma_fwd, mh_send_back, mh_send_fwd, mh_send_rdma_back, mh_send_rdma_fwd, my_face_d, my_face_h, my_face_hd, nDim, nDimComms, pad, precisionCheck(), QUDA_FULL_SITE_SUBSET, QUDA_GHOST_EXCHANGE_EXTENDED, QUDA_INVALID_SITE_SUBSET, QUDA_MAX_DIM, r, setTuningString(), siteSubset, stride, surface, surfaceCB, volume, volumeCB, and x.

Here is the call graph for this function:

~LatticeField()

quda::LatticeField::~LatticeField ( )

virtual

Destructor for LatticeField

Definition at line 218 of file lattice_field.cpp.

Member Function Documentation

allocateGhostBuffer()

void quda::LatticeField::allocateGhostBuffer

(

size_t

ghost_bytes

)

const

Allocate the static ghost buffers.

Parameters

[in]

ghost_bytes

Size of the ghost buffer to allocate

Definition at line 220 of file lattice_field.cpp.

References comm_barrier(), device_pinned_free, device_pinned_malloc, ghost_bytes, ghost_pinned_recv_buffer_h, ghost_pinned_recv_buffer_hd, ghost_pinned_send_buffer_h, ghost_pinned_send_buffer_hd, ghost_recv_buffer_d, ghost_send_buffer_d, ghostFaceBytes, host_free, initGhostFaceBuffer, mapped_malloc, and qudaDeviceSynchronize.

Referenced by quda::cudaGaugeField::allocateGhostBuffer(), and quda::cudaColorSpinorField::allocateGhostBuffer().

Here is the call graph for this function:

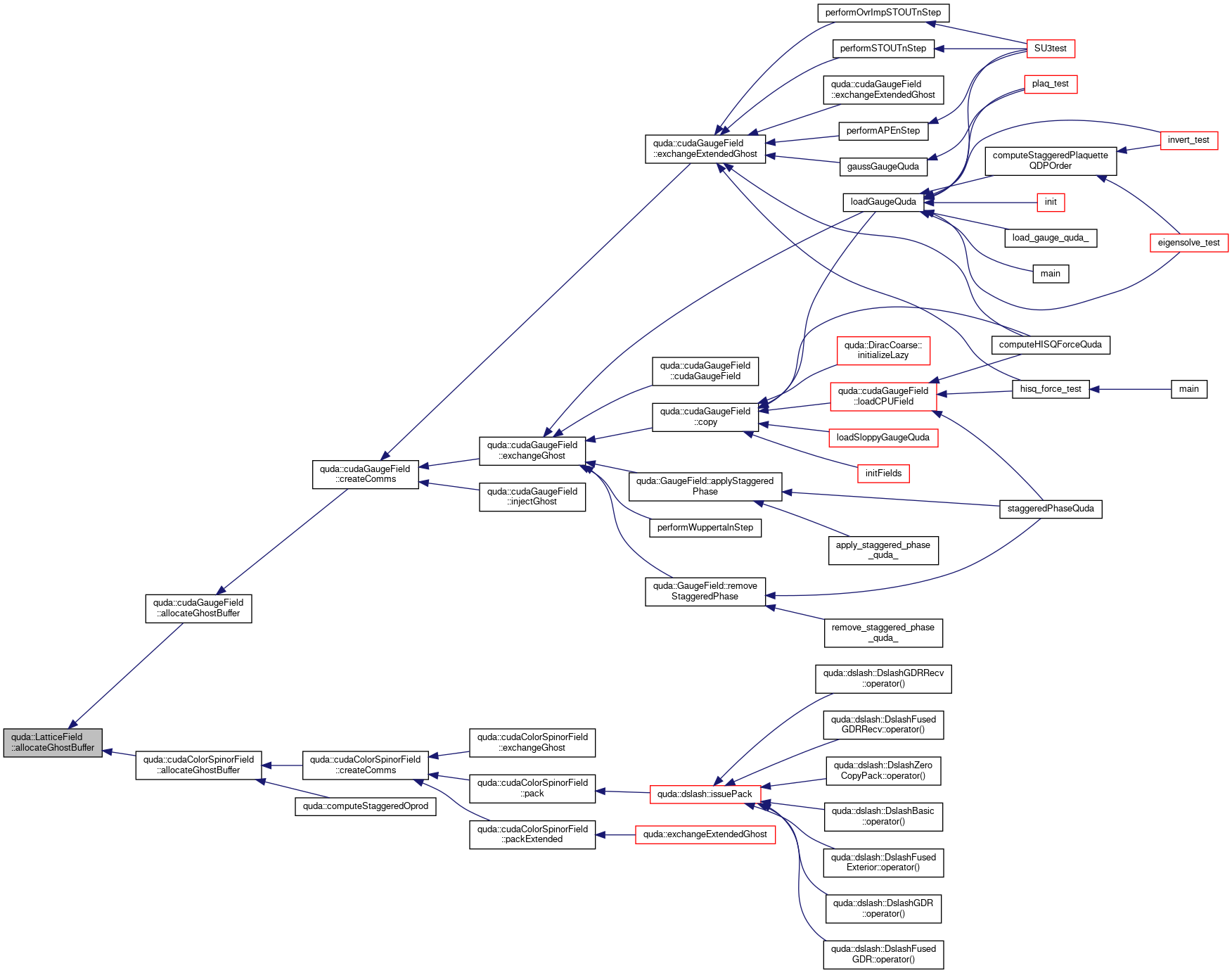

Here is the caller graph for this function:

AuxString()

const char* quda::LatticeField::AuxString ( ) const

inline

Return the aux string used by the autotuner

Definition at line 627 of file lattice_field.h.

Referenced by quda::blas::BlasCuda< FloatN, M, SpinorX, SpinorY, SpinorZ, SpinorW, SpinorV, Functor >::BlasCuda(), quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::CalculateY(), quda::Clover< Float, nSpin, nColor, Arg >::Clover(), quda::blas::copy_ns::copy(), quda::CopyGauge< FloatOut, FloatIn, length, Arg >::CopyGauge(), quda::Dslash5< Float, nColor, Arg >::Dslash5(), quda::DslashCoarsePolicyTune::DslashCoarsePolicyTune(), quda::Pack< Float, nColor, spin_project >::fillAux(), quda::Gamma< ValueType, basis, dir >::Gamma(), quda::GenericPackGhostLauncher< Float, block_float, Ns, Ms, Nc, Mc, Arg >::GenericPackGhostLauncher(), quda::blas::ReduceCuda< doubleN, ReduceType, FloatN, M, SpinorX, SpinorY, SpinorZ, SpinorW, SpinorV, Reducer >::ReduceCuda(), quda::SpinorNoise< real, Ns, Nc, type, Arg >::SpinorNoise(), quda::CopySpinor< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder >::tuneKey(), quda::GaugeGauss< Float, Arg >::tuneKey(), quda::TwistClover< Float, nSpin, nColor, Arg >::TwistClover(), quda::TwistGamma< Float, nColor, Arg >::TwistGamma(), and quda::WuppertalSmearing< Float, Ns, Nc, Arg >::WuppertalSmearing().

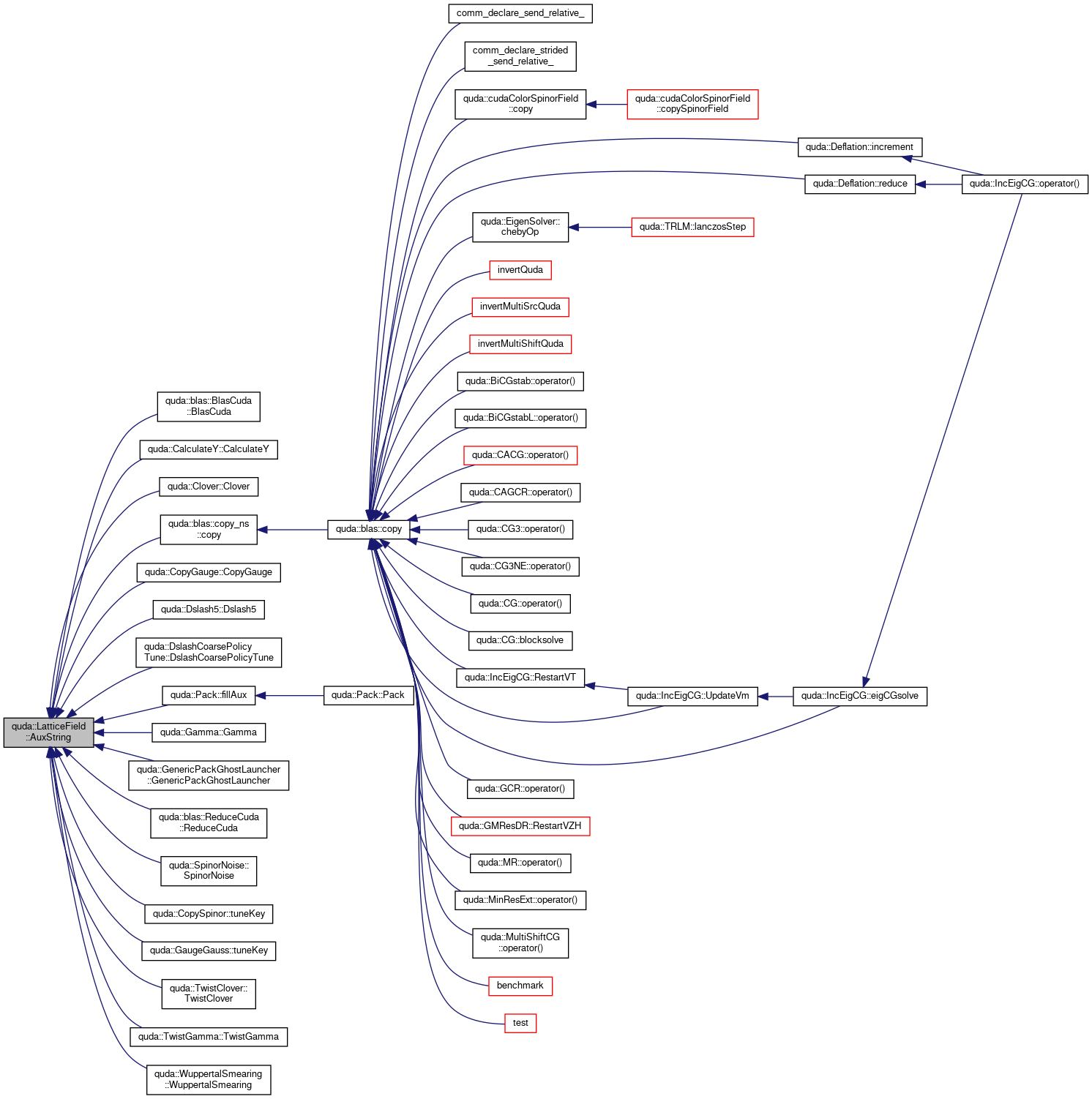

Here is the caller graph for this function:

backup()

virtual void quda::LatticeField::backup ( ) const

inlinevirtual

Backs up the LatticeField.

Reimplemented in quda::cpuColorSpinorField, quda::cudaColorSpinorField, quda::cpuGaugeField, and quda::cudaGaugeField.

Definition at line 630 of file lattice_field.h.

References errorQuda.

Referenced by quda::Dslash< Float >::preTune(), and quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::preTune().

Here is the caller graph for this function:

checkField()

void quda::LatticeField::checkField

(

const LatticeField &

a

)

const

Check that the metadata of *this and a are compatible

Parameters

a	The LatticeField to which we are comparing

Definition at line 631 of file lattice_field.cpp.

References errorQuda, ghostExchange, nDim, QUDA_GHOST_EXCHANGE_EXTENDED, r, surface, surfaceCB, volume, volumeCB, and x.

Referenced by quda::GaugeField::checkField(), quda::cudaCloverField::copy(), and quda::cudaCloverField::saveCPUField().

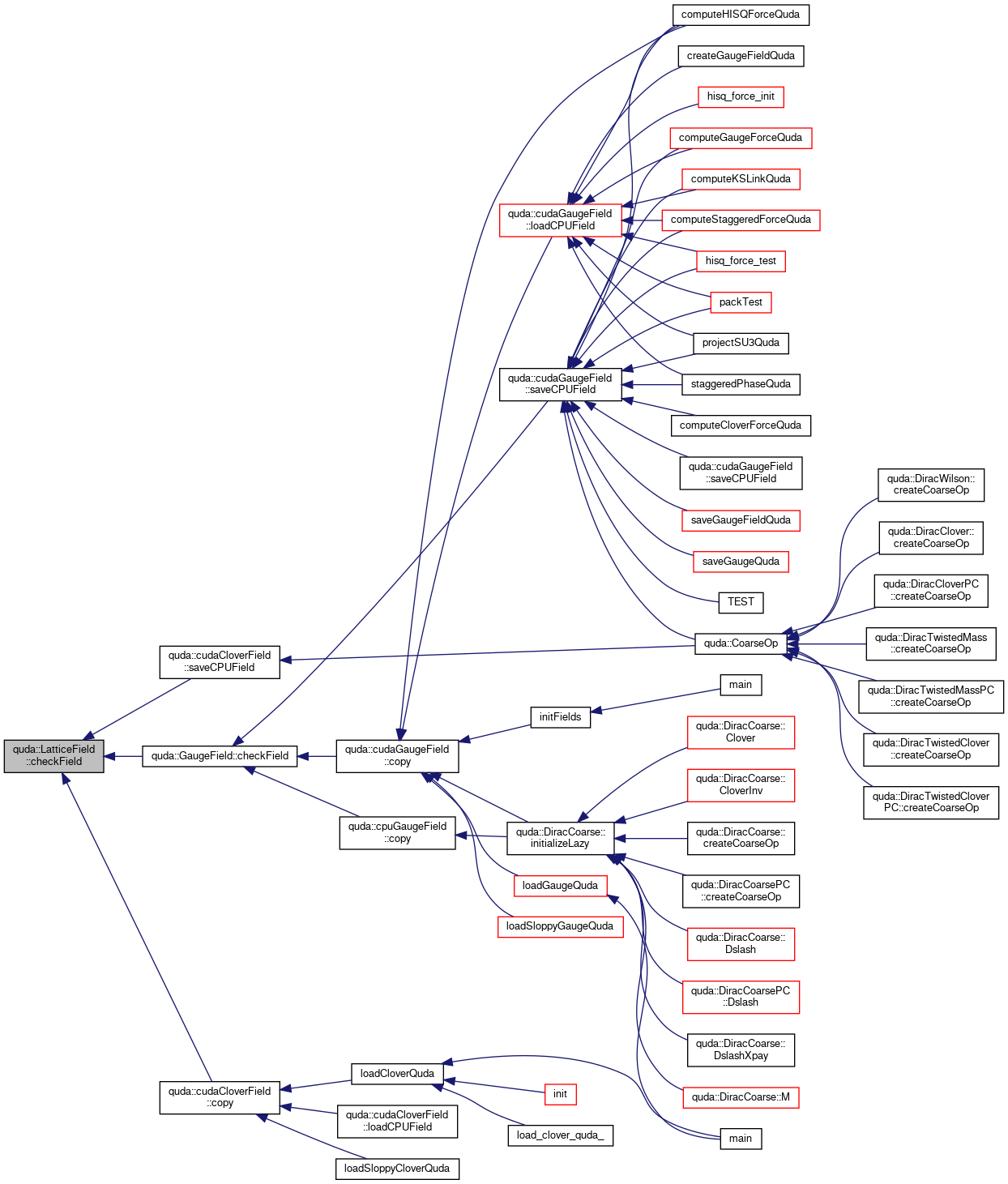

Here is the caller graph for this function:

commsQuery()

virtual int quda::LatticeField::commsQuery ( int  nFace, int  dir, int  dagger = 0, cudaStream_t *  stream_p = NULL, bool  gdr_send = false, bool  gdr_recv = true  )

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 614 of file lattice_field.h.

References errorQuda.

commsStart()

virtual void quda::LatticeField::commsStart ( int  nFace, int  dir, int  dagger = 0, cudaStream_t *  stream_p = NULL, bool  gdr_send = false, bool  gdr_recv = true  )

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 611 of file lattice_field.h.

References errorQuda.

commsWait()

virtual void quda::LatticeField::commsWait ( int  nFace, int  dir, int  dagger = 0, cudaStream_t *  stream_p = NULL, bool  gdr_send = false, bool  gdr_recv = true  )

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 617 of file lattice_field.h.

References errorQuda.

createComms()

void quda::LatticeField::createComms	(	bool	no_comms_fill = false,
		bool	bidir = true
	)

Create the communication handlers (both host and device)

Parameters

[in]	no_comms_fill	Whether to allocate halo buffers for dimensions that are not partitioned
[in]	bidir	Whether to allocate communication buffers to allow for simultaneous bi-directional exchange. If false, then the forwards and backwards buffers will alias (saving memory).

Definition at line 300 of file lattice_field.cpp.

References checkCudaError, comm_barrier(), comm_declare_receive_relative, comm_declare_send_relative, comm_gdr_enabled(), commDimPartitioned(), destroyComms(), from_face_d, from_face_dim_dir_d, from_face_dim_dir_h, from_face_dim_dir_hd, from_face_h, from_face_hd, ghost_face_bytes, ghost_pinned_recv_buffer_h, ghost_pinned_recv_buffer_hd, ghost_pinned_send_buffer_h, ghost_pinned_send_buffer_hd, ghost_precision, ghost_recv_buffer_d, ghost_send_buffer_d, ghostOffset, initComms, mh_recv_back, mh_recv_fwd, mh_recv_rdma_back, mh_recv_rdma_fwd, mh_send_back, mh_send_fwd, mh_send_rdma_back, mh_send_rdma_fwd, my_face_d, my_face_dim_dir_d, my_face_dim_dir_h, my_face_dim_dir_hd, my_face_h, my_face_hd, nDimComms, and qudaDeviceSynchronize.

Referenced by quda::cudaGaugeField::createComms(), and quda::cudaColorSpinorField::createComms().

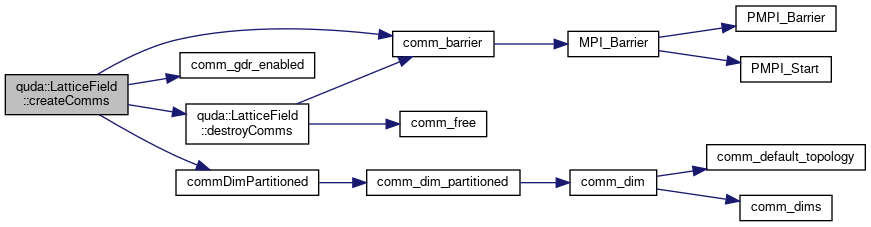

Here is the call graph for this function:

Here is the caller graph for this function:

createIPCComms()

void quda::LatticeField::createIPCComms

(

)

Create the inter-process communication handlers

Definition at line 412 of file lattice_field.cpp.

References buffer_recv_p2p_back, buffer_recv_p2p_fwd, buffer_send_p2p_back, buffer_send_p2p_fwd, checkCudaError, comm_declare_receive_relative, comm_declare_send_relative, comm_dim(), comm_free(), comm_peer2peer_enabled(), comm_size(), comm_start(), comm_wait(), errorQuda, ghost_field_reset, ghost_recv_buffer_d, ghost_remote_send_buffer_d, initComms, initIPCComms, ipcCopyEvent, ipcRemoteCopyEvent, mh_recv_p2p_back, mh_recv_p2p_fwd, mh_send_p2p_back, mh_send_p2p_fwd, and QUDA_MAX_DIM.

Referenced by quda::cudaGaugeField::createComms(), and quda::cudaColorSpinorField::createComms().

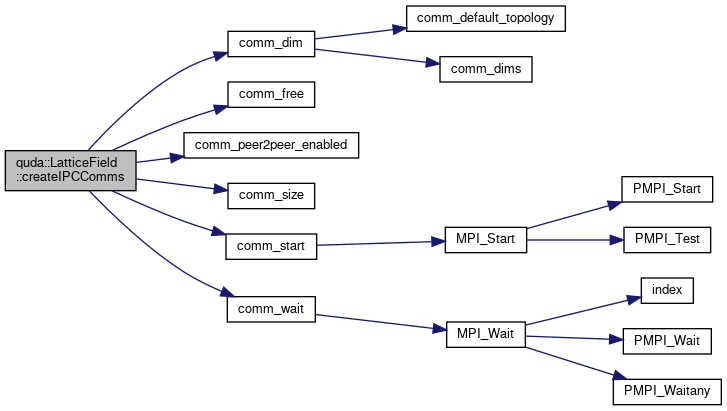

Here is the call graph for this function:

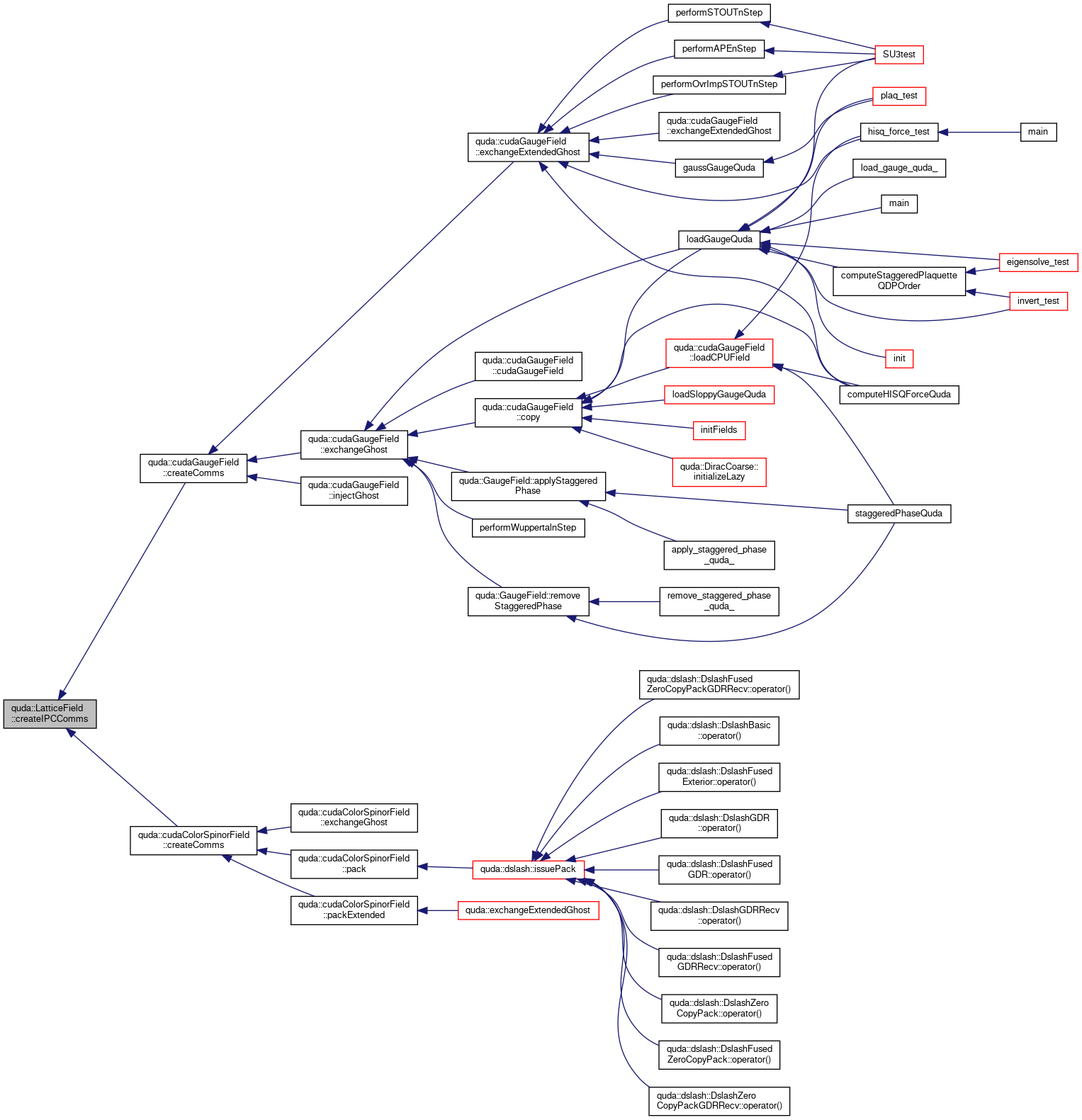

Here is the caller graph for this function:

destroyComms()

void quda::LatticeField::destroyComms

(

)

Destroy the communication handlers

Definition at line 379 of file lattice_field.cpp.

References checkCudaError, comm_barrier(), comm_free(), initComms, mh_recv_back, mh_recv_fwd, mh_recv_rdma_back, mh_recv_rdma_fwd, mh_send_back, mh_send_fwd, mh_send_rdma_back, mh_send_rdma_fwd, nDimComms, and qudaDeviceSynchronize.

Referenced by createComms(), quda::cudaColorSpinorField::operator=(), quda::cudaColorSpinorField::~cudaColorSpinorField(), and quda::cudaGaugeField::~cudaGaugeField().

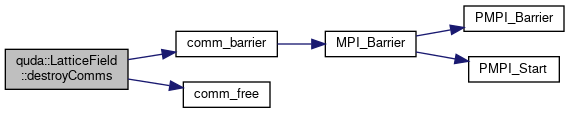

Here is the call graph for this function:

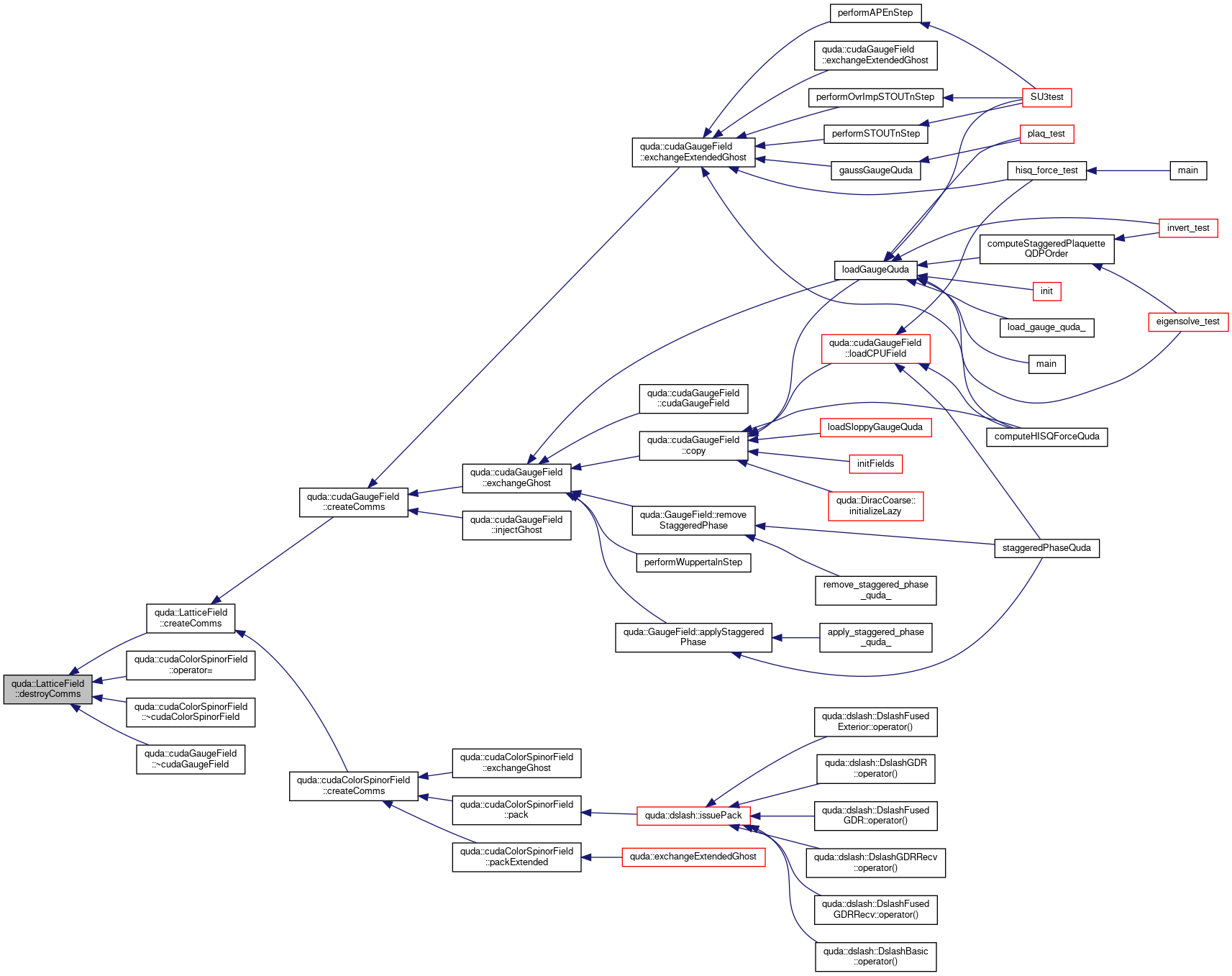

Here is the caller graph for this function:

destroyIPCComms()

void quda::LatticeField::destroyIPCComms ( )

static

Destroy the statically allocated inter-process communication handlers

Definition at line 556 of file lattice_field.cpp.

References checkCudaError, comm_barrier(), comm_dim(), comm_free(), comm_peer2peer_enabled(), ghost_remote_send_buffer_d, initIPCComms, ipcCopyEvent, mh_recv_p2p_back, mh_recv_p2p_fwd, mh_send_p2p_back, mh_send_p2p_fwd, and qudaDeviceSynchronize.

Referenced by quda::cudaGaugeField::createComms(), quda::cudaColorSpinorField::createComms(), and freeGhostBuffer().

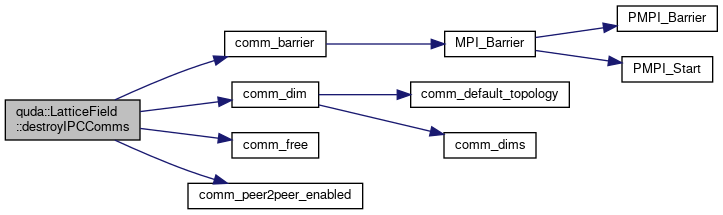

Here is the call graph for this function:

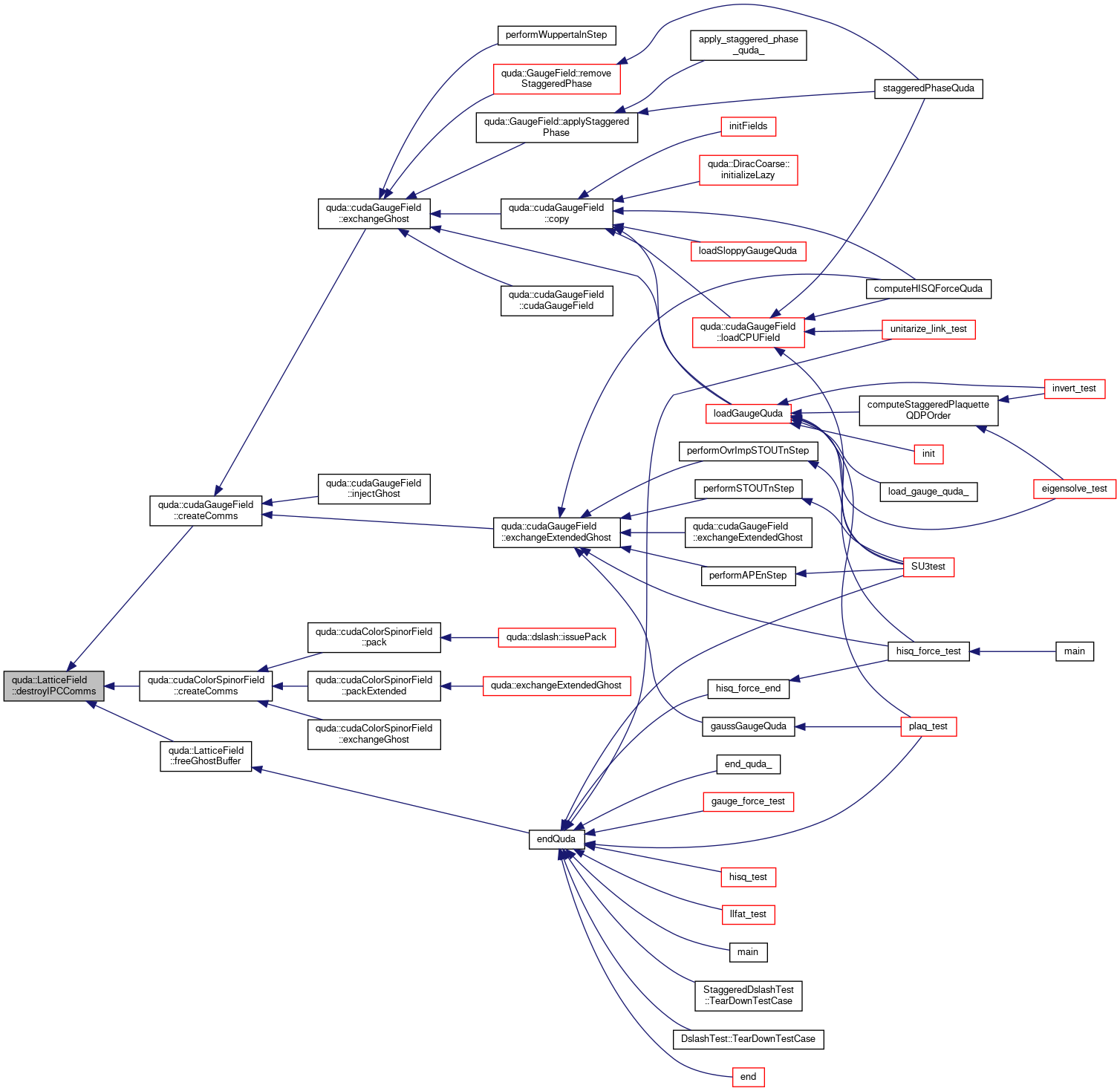

Here is the caller graph for this function:

freeGhostBuffer()

void quda::LatticeField::freeGhostBuffer ( void  )

static

Free statically allocated ghost buffers.

Definition at line 271 of file lattice_field.cpp.

References destroyIPCComms(), device_pinned_free, ghost_pinned_recv_buffer_h, ghost_pinned_recv_buffer_hd, ghost_pinned_send_buffer_h, ghost_pinned_send_buffer_hd, ghost_recv_buffer_d, ghost_send_buffer_d, host_free, and initGhostFaceBuffer.

Referenced by endQuda().

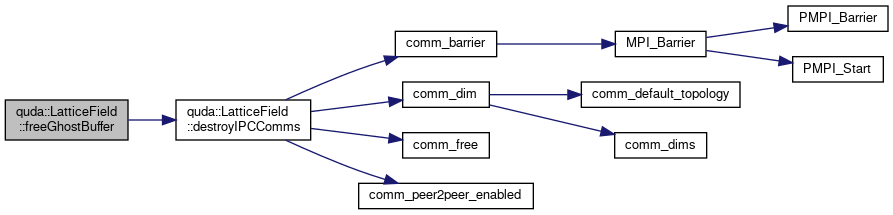

Here is the call graph for this function:

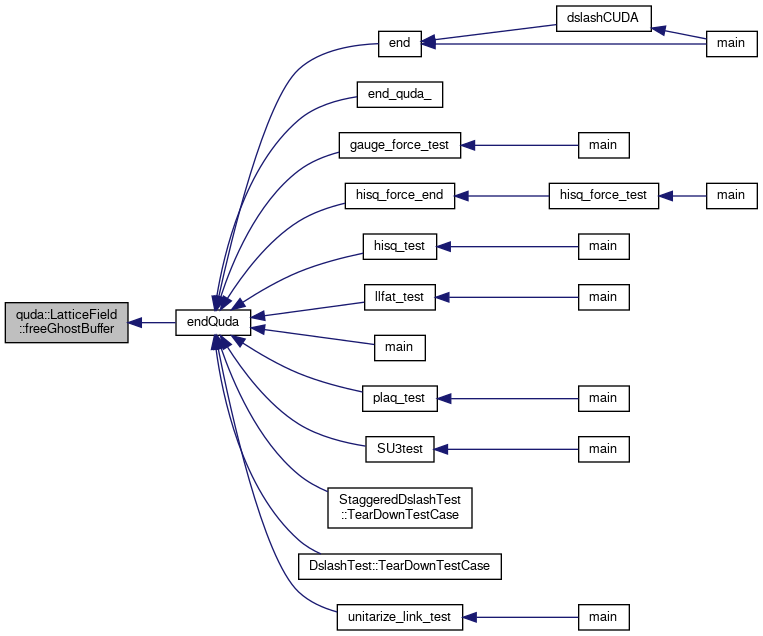

Here is the caller graph for this function:

gather()

virtual void quda::LatticeField::gather ( int  nFace, int  dagger, int  dir, cudaStream_t *  stream_p = NULL  )

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 608 of file lattice_field.h.

References errorQuda.

GBytes()

size_t quda::LatticeField::GBytes ( ) const

inline

Returns

The total storage allocated

Definition at line 588 of file lattice_field.h.

getIPCCopyEvent()

const cudaEvent_t & quda::LatticeField::getIPCCopyEvent	(	int	dir,
		int	dim
	)		const

Handle to local copy event used for peer-to-peer synchronization

Definition at line 612 of file lattice_field.cpp.

References bufferIndex, and ipcCopyEvent.

Referenced by quda::dslash::completeDslash().

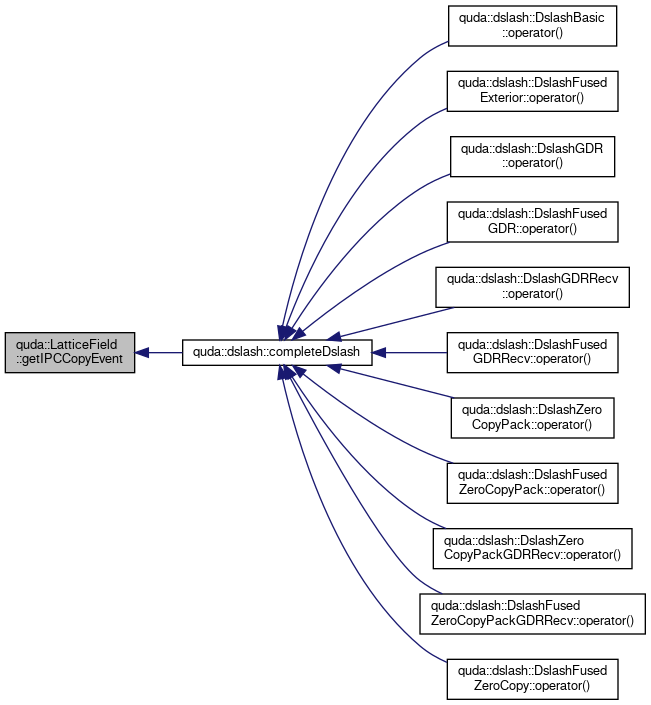

Here is the caller graph for this function:

getIPCRemoteCopyEvent()

const cudaEvent_t & quda::LatticeField::getIPCRemoteCopyEvent	(	int	dir,
		int	dim
	)		const

Handle to remote copy event used for peer-to-peer synchronization

Definition at line 616 of file lattice_field.cpp.

References bufferIndex, and ipcRemoteCopyEvent.

Referenced by quda::dslash::commsComplete().

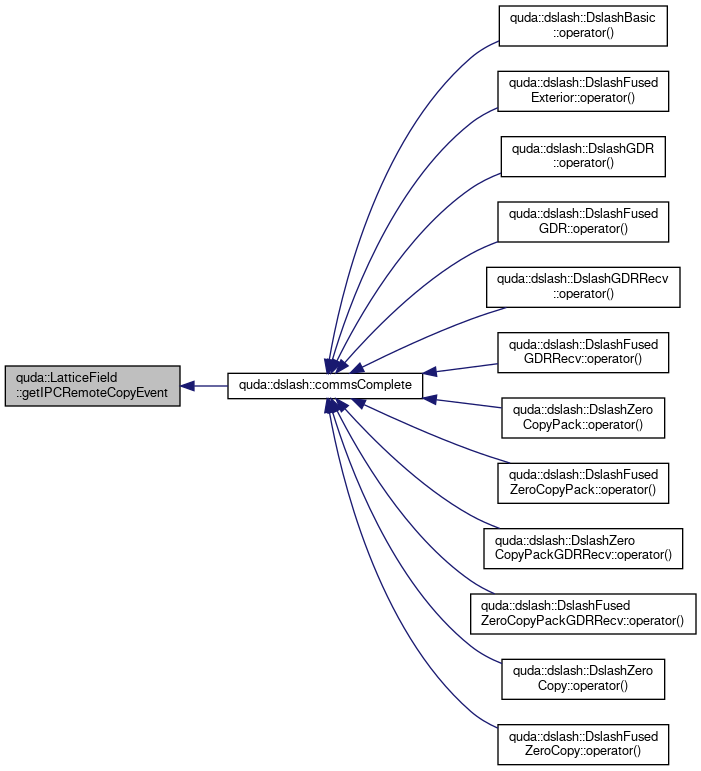

Here is the caller graph for this function:

GhostExchange()

QudaGhostExchange quda::LatticeField::GhostExchange ( ) const

inline

Returns

Type of ghost exchange

Definition at line 541 of file lattice_field.h.

References quda::LatticeFieldParam::ghostExchange.

Referenced by quda::applyGaugePhase(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), quda::copyGenericGauge(), quda::gaugeGauss(), and quda::cudaGaugeField::saveCPUField().

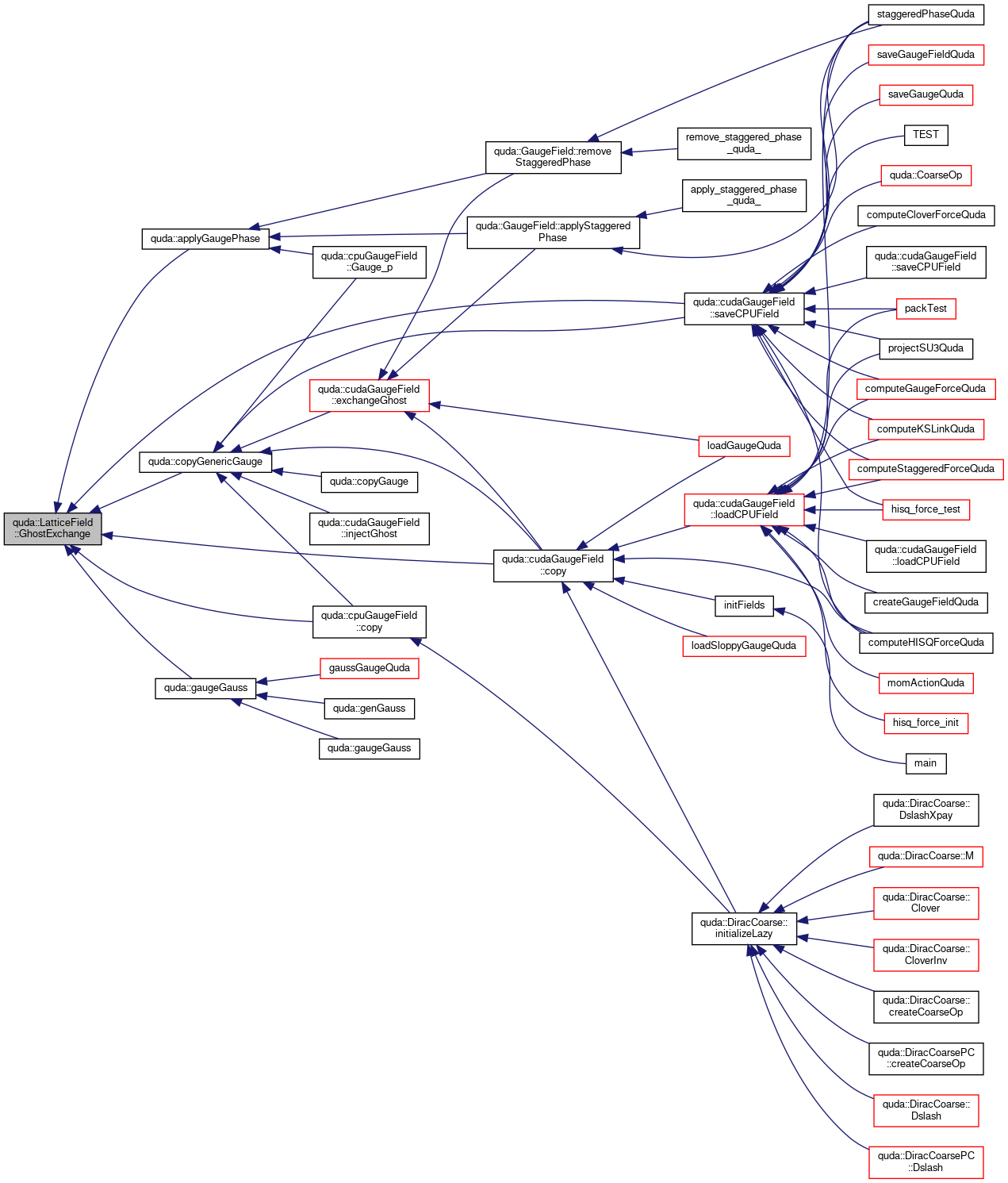

Here is the caller graph for this function:

GhostPrecision()

QudaPrecision quda::LatticeField::GhostPrecision ( ) const

inline

Returns

The ghost precision

Definition at line 551 of file lattice_field.h.

References quda::LatticeFieldParam::ghost_precision.

Referenced by quda::GenericPackGhostLauncher< Float, block_float, Ns, Ms, Nc, Mc, Arg >::bytes(), and quda::Dslash< Float >::setParam().

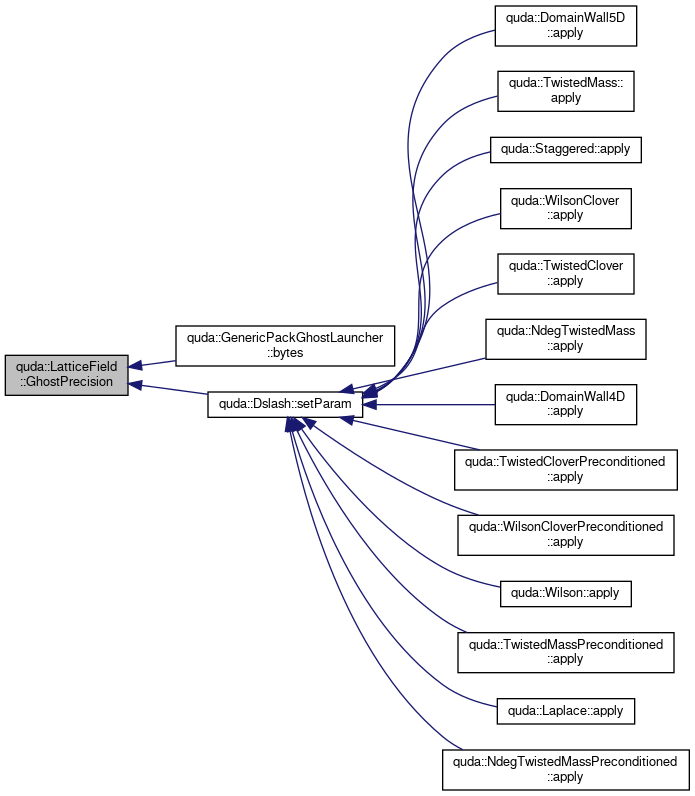

Here is the caller graph for this function:

ipcCopyComplete()

bool quda::LatticeField::ipcCopyComplete ( int  dir, int  dim  )

inline

Helper function to determine if local-to-remote (send) peer-to-peer copy is complete

Definition at line 602 of file lattice_field.cpp.

References bufferIndex, and ipcCopyEvent.

ipcRemoteCopyComplete()

bool quda::LatticeField::ipcRemoteCopyComplete ( int  dir, int  dim  )

inline

Helper function to determine if local-to-remote (receive) peer-to-peer copy is complete

Definition at line 607 of file lattice_field.cpp.

References bufferIndex, and ipcRemoteCopyEvent.

Location()

QudaFieldLocation quda::LatticeField::Location

(

)

const

Returns

The location of the field

Definition at line 660 of file lattice_field.cpp.

References errorQuda, QUDA_CPU_FIELD_LOCATION, QUDA_CUDA_FIELD_LOCATION, and QUDA_INVALID_FIELD_LOCATION.

Referenced by quda::gauge::Accessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, storeFloat, use_tex >::Accessor(), quda::SpinorNoise< real, Ns, Nc, type, Arg >::advanceTuneParam(), quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::advanceTuneParam(), quda::GaugePlaq< Float, Gauge >::apply(), quda::Staggered< Float, nDim, nColor, Arg >::apply(), quda::GenericPackGhostLauncher< Float, block_float, Ns, Ms, Nc, Mc, Arg >::apply(), quda::GaugeGauss< Float, Arg >::apply(), quda::Dslash5< Float, nColor, Arg >::apply(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::apply(), quda::GaugeOvrImpSTOUT< Float, Arg >::apply(), quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::apply(), quda::Gamma< ValueType, basis, dir >::apply(), quda::TwistGamma< Float, nColor, Arg >::apply(), quda::Clover< Float, nSpin, nColor, Arg >::apply(), quda::TwistClover< Float, nSpin, nColor, Arg >::apply(), quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::CalculateY(), quda::blas::caxpyXmazMR(), quda::colorSpinorParam(), quda::compile_type_str(), quda::computeMomAction(), quda::blas::copy(), quda::ColorSpinorField::CreateCoarse(), quda::ColorSpinorField::CreateFine(), quda::GaugeField::exchange(), quda::ColorSpinorField::exchange(), quda::ColorSpinorField::fill(), quda::clover::FloatNOrder< Float, length, N, add_rho, huge_alloc >::FloatNOrder(), quda::colorspinor::FloatNOrder< Float, Ns, Nc, N, spin_project, huge_alloc >::FloatNOrder(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder(), quda::forceRecord(), quda::gaugeForce(), quda::GenericPackGhostLauncher< Float, block_float, Ns, Ms, Nc, Mc, Arg >::GenericPackGhostLauncher(), quda::Dslash< Float >::instantiate(), quda::Location_(), quda::Transfer::P(), quda::plaquette(), quda::Transfer::R(), quda::SpinorNoise< real, Ns, Nc, type, Arg >::SpinorNoise(), quda::spinorNoise(), quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::tuneKey(), quda::updateGaugeField(), and quda::updateMomentum().

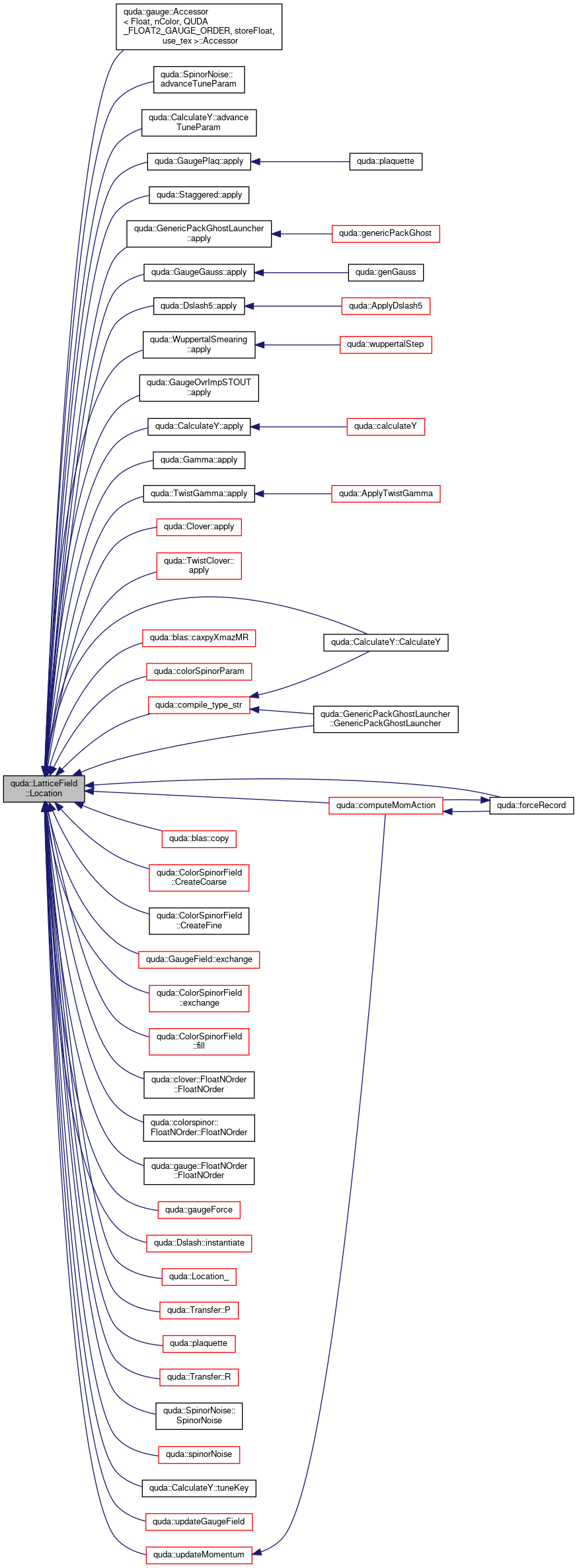

Here is the caller graph for this function:

MemType()

virtual QudaMemoryType quda::LatticeField::MemType ( ) const

inlinevirtual

Returns

Mem type

Definition at line 572 of file lattice_field.h.

References quda::LatticeFieldParam::mem_type.

Referenced by quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::advanceTuneParam(), quda::CoarseCoarseOp(), quda::CoarseOp(), and quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::tuneKey().

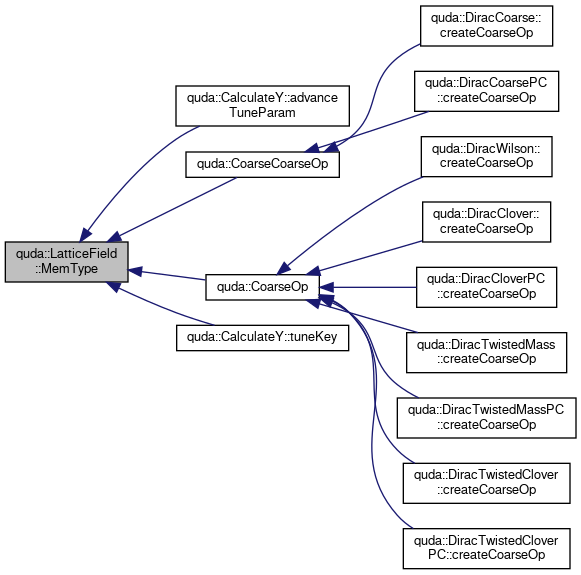

Here is the caller graph for this function:

Ndim()

int quda::LatticeField::Ndim ( ) const

inline

Returns

The dimension of the lattice

Definition at line 494 of file lattice_field.h.

References quda::LatticeFieldParam::nDim.

Referenced by quda::CloverFieldParam::CloverFieldParam(), quda::colorSpinorParam(), quda::copyExtendedGauge(), quda::copyGaugeEx(), and quda::CopyGauge< FloatOut, FloatIn, length, Arg >::set_ghost().

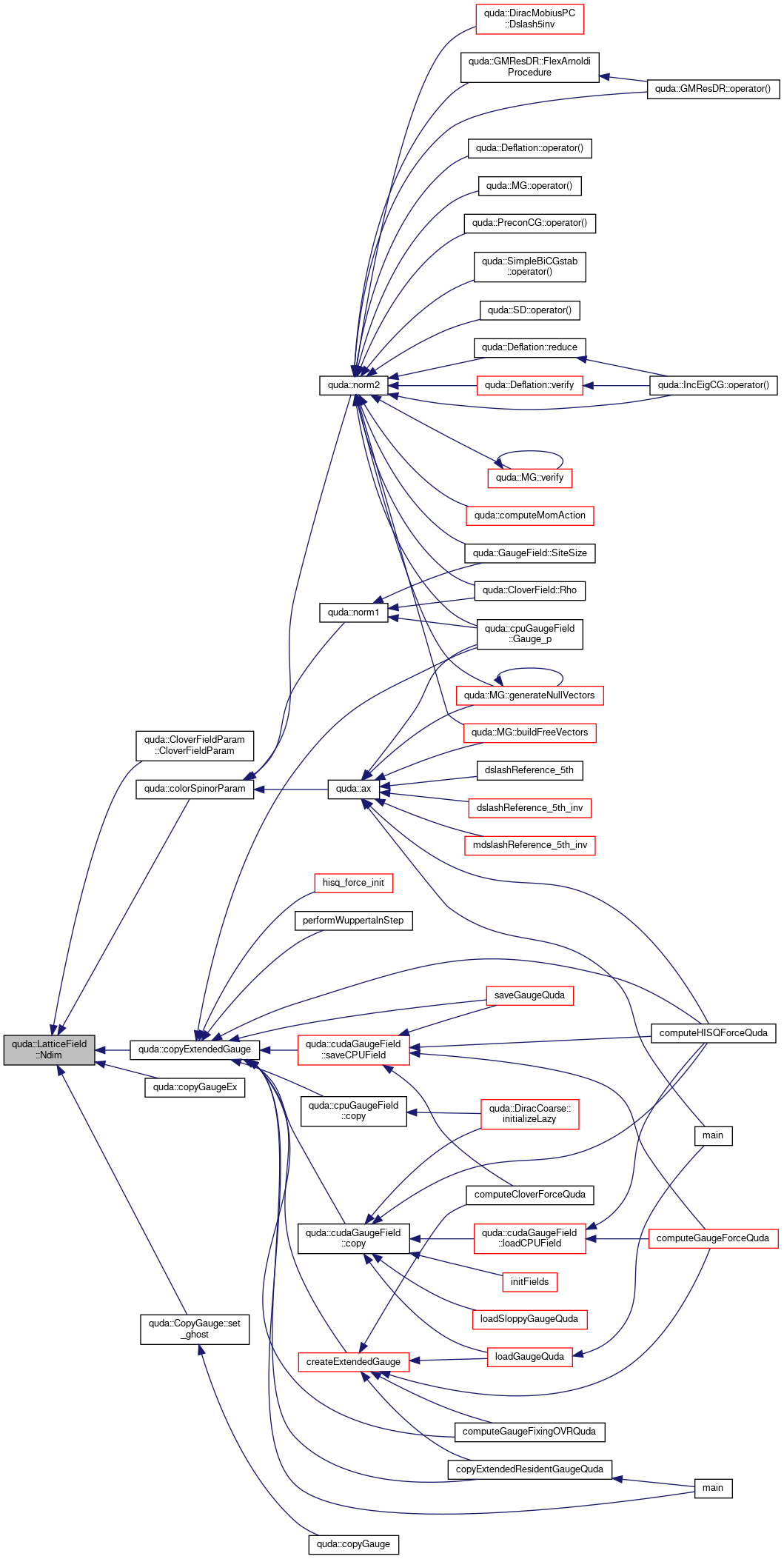

Here is the caller graph for this function:

Nvec()

int quda::LatticeField::Nvec

(

)

const

Returns

The vector storage length used for native fields , 2 for Float2, 4 for Float4

Definition at line 684 of file lattice_field.cpp.

References errorQuda, quda::ColorSpinorField::FieldOrder(), quda::CloverField::Order(), and quda::GaugeField::Order().

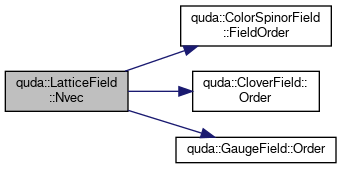

Here is the call graph for this function:

Pad()

int quda::LatticeField::Pad ( ) const

inline

Returns

The field padding

Definition at line 531 of file lattice_field.h.

References quda::LatticeFieldParam::pad.

Referenced by quda::CloverFieldParam::CloverFieldParam(), and quda::colorSpinorParam().

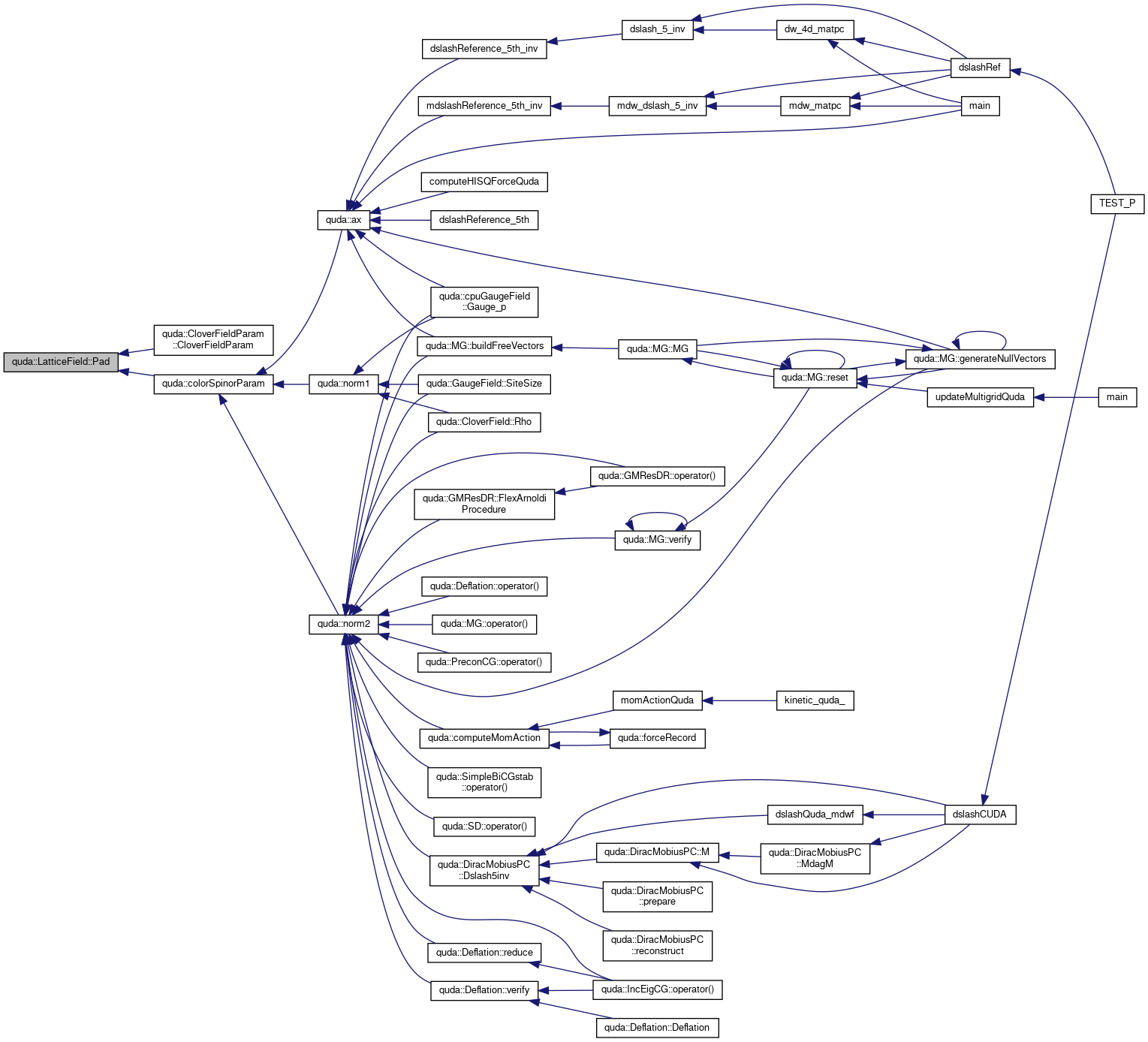

Here is the caller graph for this function:

Precision()

QudaPrecision quda::LatticeField::Precision ( ) const

inline

Returns

The field precision

Definition at line 546 of file lattice_field.h.

References quda::LatticeFieldParam::precision.

Referenced by quda::APEStep(), quda::ApplyClover(), quda::ApplyGamma(), quda::applyGaugePhase(), quda::ApplyTwistClover(), quda::ApplyTwistGamma(), quda::applyU(), quda::blas::axpbyz(), quda::blas::axpyBzpcx(), quda::blas::axpyCGNorm(), quda::blas::axpyZpbx(), quda::blas::BlasCuda< FloatN, M, SpinorX, SpinorY, SpinorZ, SpinorW, SpinorV, Functor >::BlasCuda(), quda::BlockOrthogonalize(), quda::TwistedClover< Float, nDim, nColor, Arg >::bytes(), quda::WilsonClover< Float, nDim, nColor, Arg >::bytes(), quda::DomainWall5D< Float, nDim, nColor, Arg >::bytes(), quda::TwistedCloverPreconditioned< Float, nDim, nColor, Arg >::bytes(), quda::WilsonCloverPreconditioned< Float, nDim, nColor, Arg >::bytes(), quda::Staggered< Float, nDim, nColor, Arg >::bytes(), quda::Laplace< Float, nDim, nColor, Arg >::bytes(), quda::GenericPackGhostLauncher< Float, block_float, Ns, Ms, Nc, Mc, Arg >::bytes(), quda::Dslash< Float >::bytes(), quda::calculateY(), quda::calculateYhat(), quda::canReuseResidentGauge(), quda::blas::caxpbypzYmbwcDotProductUYNormY(), quda::blas::caxpy(), quda::blas::caxpyBxpz(), quda::blas::caxpyBzpx(), checkClover(), checkGauge(), quda::Dirac::checkParitySpinor(), quda::DiracStaggered::checkParitySpinor(), quda::DiracImprovedStaggered::checkParitySpinor(), quda::Checksum(), quda::cloverDerivative(), quda::CloverFieldParam::CloverFieldParam(), quda::cloverInvert(), quda::CoarseCoarseOp(), quda::CoarseOp(), quda::ColorSpinorField::ColorSpinorField(), quda::colorSpinorParam(), quda::completeKSForce(), quda::cudaCloverField::compute(), quda::computeClover(), quda::computeCloverForce(), quda::computeCloverSigmaOprod(), quda::computeCloverSigmaTrace(), quda::computeFmunu(), quda::computeKSLongLinkForce(), quda::computeMomAction(), quda::computeQCharge(), quda::computeQChargeDensity(), quda::computeStaggeredOprod(), quda::contractQuda(), quda::blas::copy_ns::copy(), quda::cudaGaugeField::copy(), quda::copyExtendedColorSpinor(), quda::copyExtendedGauge(), quda::copyGauge(), quda::copyGaugeMG(), quda::copyGenericClover(), quda::copyGenericColorSpinor(), quda::copyGenericGauge(), quda::copyGenericGaugeMG(), createCloverQuda(), quda::ColorSpinorField::CreateCoarse(), quda::MG::createCoarseSolver(), createExtendedGauge(), quda::ColorSpinorField::CreateFine(), quda::DiracCoarse::createYhat(), quda::DslashCoarsePolicyTune::DslashCoarsePolicyTune(), quda::IncEigCG::eigCGsolve(), quda::extractExtendedGaugeGhost(), quda::extractGaugeGhost(), quda::extractGaugeGhostMG(), quda::clover::FloatNOrder< Float, length, N, add_rho, huge_alloc >::FloatNOrder(), quda::colorspinor::FloatNOrder< Float, Ns, Nc, N, spin_project, huge_alloc >::FloatNOrder(), quda::gaugefixingFFT(), quda::gaugefixingOVR(), quda::gaugeForce(), quda::gaugeGauss(), quda::MG::generateNullVectors(), quda::genericCompare(), quda::genericCudaPrintVector(), quda::genericPrintVector(), quda::genericSource(), quda::getLinkDeterminant(), quda::getLinkTrace(), quda::InitGaugeField(), quda::instantiate(), invertQuda(), quda::isUnitary(), loadSloppyCloverQuda(), loadSloppyGaugeQuda(), quda::blas::mixed_blas(), quda::blas::mixed_reduce(), quda::Monte(), quda::Deflation::operator()(), quda::DslashCoarseLaunch::operator()(), quda::CG::operator()(), quda::CG3::operator()(), quda::CG3NE::operator()(), quda::PreconCG::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::GCR::operator()(), quda::MultiShiftCG::operator()(), quda::OvrImpSTOUTStep(), quda::PackGhost(), quda::PGaugeExchange(), quda::Precision_(), quda::projectSU3(), quda::Prolongate(), qChargeDensityQuda(), qChargeQuda(), quda::blas::ReduceCuda< doubleN, ReduceType, FloatN, M, SpinorX, SpinorY, SpinorZ, SpinorW, SpinorV, Reducer >::ReduceCuda(), quda::MG::reset(), quda::IncEigCG::RestartVT(), quda::Restrict(), quda::cudaGaugeField::saveCPUField(), quda::setDiracParam(), quda::setDiracPreParam(), quda::setDiracRefineParam(), quda::setDiracSloppyParam(), quda::shiftColorSpinorField(), quda::spinorNoise(), quda::STOUTStep(), quda::blas::tripleCGUpdate(), quda::blas::uni_blas(), quda::blas::uni_reduce(), quda::unitarizeLinks(), quda::unitarizeLinksCPU(), quda::updateGaugeField(), quda::updateMomentum(), quda::MG::verify(), quda::wuppertalStep(), and quda::GCR::~GCR().

precisionCheck()

void quda::LatticeField::precisionCheck ( )

inlineprotected

Definition at line 389 of file lattice_field.h.

References errorQuda, QUDA_DOUBLE_PRECISION, QUDA_HALF_PRECISION, QUDA_QUARTER_PRECISION, and QUDA_SINGLE_PRECISION.

Referenced by LatticeField().

Here is the caller graph for this function:

R()

const int* quda::LatticeField::R ( ) const

inline

Returns

Extended field radius

Definition at line 536 of file lattice_field.h.

References quda::LatticeFieldParam::r.

Referenced by quda::computeMomAction(), quda::cudaGaugeField::exchangeGhost(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder(), quda::GaugeAPEArg< Float, GaugeOr, GaugeDs >::GaugeAPEArg(), quda::gaugeGauss(), quda::GaugeGaussArg< Float, recon, group_ >::GaugeGaussArg(), quda::GaugeOvrImpSTOUTArg< Float, GaugeOr, GaugeDs >::GaugeOvrImpSTOUTArg(), quda::GaugePlaqArg< Gauge >::GaugePlaqArg(), quda::GaugeSTOUTArg< Float, GaugeOr, GaugeDs >::GaugeSTOUTArg(), hisq_force_test(), quda::cudaGaugeField::injectGhost(), quda::LatticeFieldParam::LatticeFieldParam(), and loadGaugeQuda().

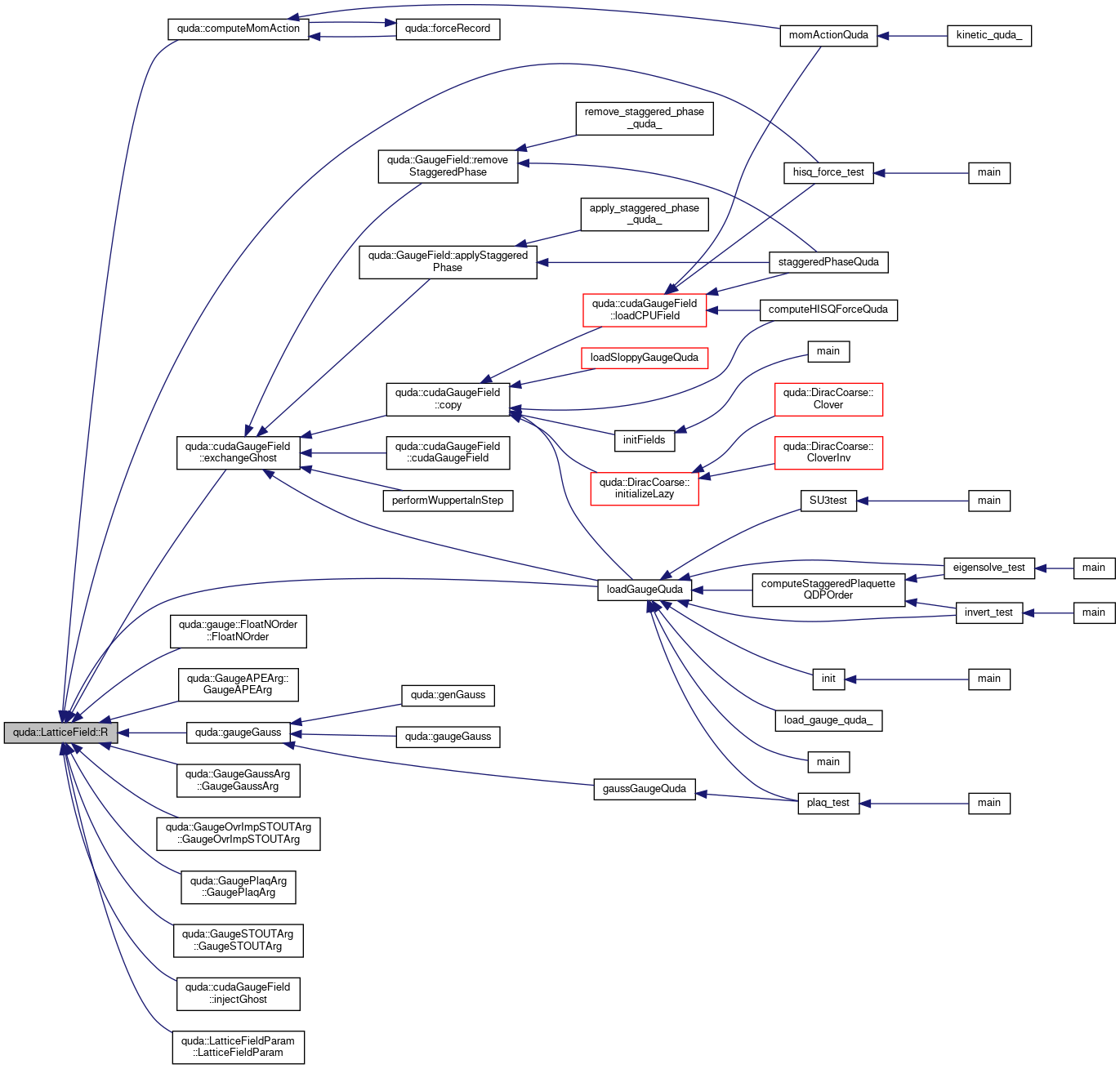

Here is the caller graph for this function:

read()

void quda::LatticeField::read ( char *  filename )

virtual

Read in the field specified by filenemae

Parameters

filename

The name of the file to read

Definition at line 676 of file lattice_field.cpp.

References errorQuda.

restore()

virtual void quda::LatticeField::restore ( ) const

inlinevirtual

Restores the LatticeField.

Reimplemented in quda::cpuColorSpinorField, quda::cudaColorSpinorField, quda::cpuGaugeField, and quda::cudaGaugeField.

Definition at line 633 of file lattice_field.h.

References errorQuda.

Referenced by quda::Dslash< Float >::postTune(), and quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::postTune().

Here is the caller graph for this function:

Scale() [1/2]

double quda::LatticeField::Scale ( ) const

inline

Returns

The global scaling factor for a fixed-point field

Definition at line 556 of file lattice_field.h.

References quda::LatticeFieldParam::scale.

Referenced by quda::gauge::Accessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, storeFloat, use_tex >::Accessor(), quda::gauge::Accessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, storeFloat, use_tex >::Accessor(), quda::gauge::Accessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, storeFloat, use_tex >::Accessor(), quda::calculateY(), quda::copyGaugeMG(), quda::colorspinor::FieldOrderCB< Float, coarseSpin, coarseColor, 1, csOrder, Float, ghostFloat >::FieldOrderCB(), quda::gauge::GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), and quda::gauge::GhostAccessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor().

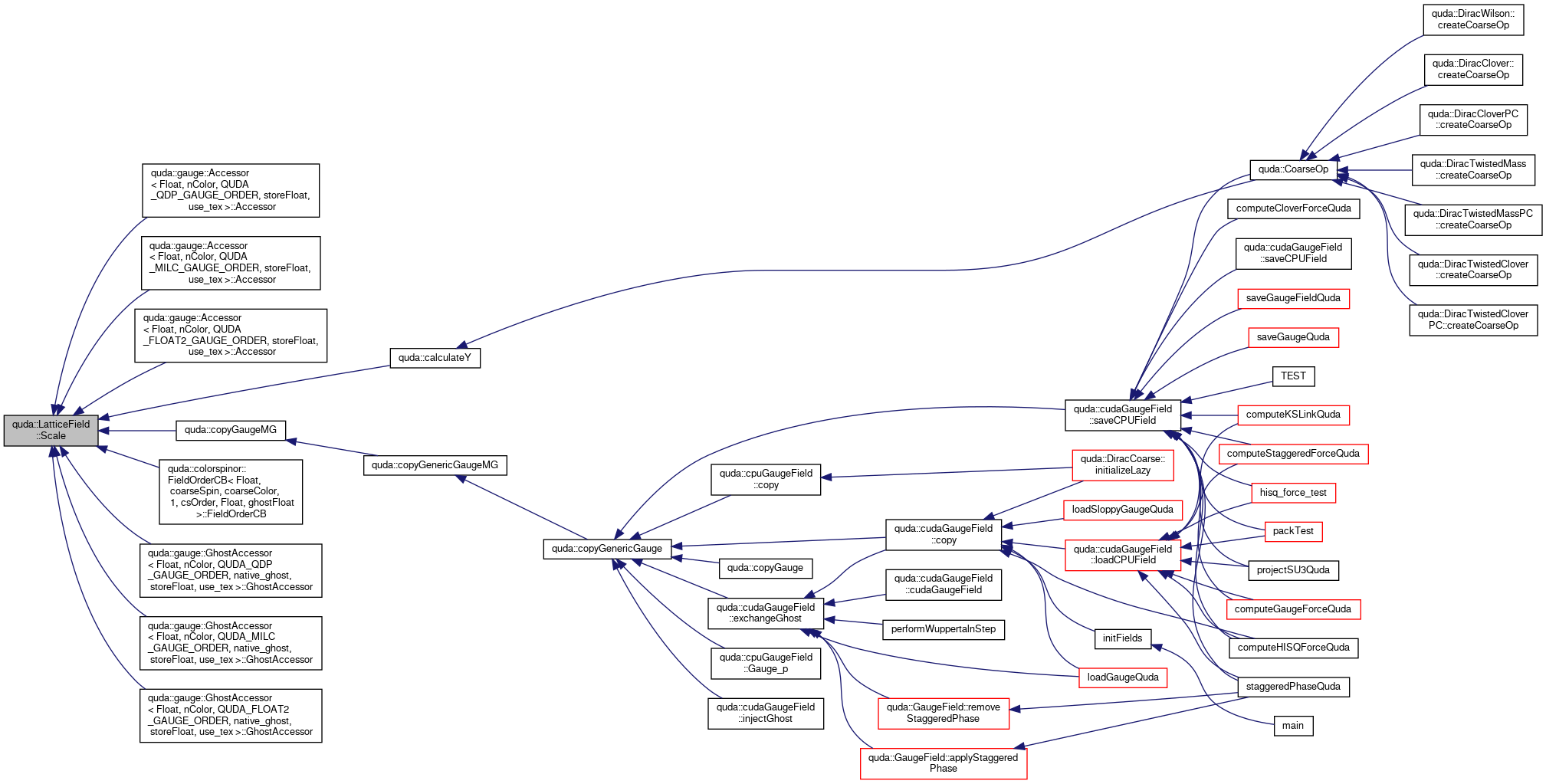

Here is the caller graph for this function:

Scale() [2/2]

void quda::LatticeField::Scale ( double  scale_ )

inline

Set the scale factor for a fixed-point field.

Parameters

[in]

scale_

The new scale factor

Definition at line 562 of file lattice_field.h.

scatter()

virtual void quda::LatticeField::scatter ( int  nFace, int  dagger, int  dir  )

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 620 of file lattice_field.h.

References errorQuda.

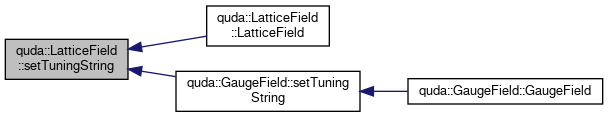

setTuningString()

void quda::LatticeField::setTuningString ( )

protectedvirtual

Sets the vol_string for use in tuning

Reimplemented in quda::ColorSpinorField, and quda::GaugeField.

Definition at line 620 of file lattice_field.cpp.

References errorQuda, nDim, vol_string, quda::TuneKey::volume_n, and x.

Referenced by LatticeField(), and quda::GaugeField::setTuningString().

Here is the caller graph for this function:

SiteSubset()

virtual QudaSiteSubset quda::LatticeField::SiteSubset ( ) const

inlinevirtual

Returns

Field subset type

Reimplemented in quda::ColorSpinorField.

Definition at line 567 of file lattice_field.h.

References quda::LatticeFieldParam::siteSubset.

Stride()

int quda::LatticeField::Stride ( ) const

inline

Returns

The single-parity stride of the field

Definition at line 526 of file lattice_field.h.

Referenced by quda::DslashCoarsePolicyTune::bytes().

Here is the caller graph for this function:

SurfaceCB() [1/2]

const int* quda::LatticeField::SurfaceCB ( ) const

inline

Parameters

i	The dimension of the requested surface

Returns

The single-parity surface of dimension i

Definition at line 515 of file lattice_field.h.

Referenced by quda::GenericPackGhostLauncher< Float, block_float, Ns, Ms, Nc, Mc, Arg >::bytes(), quda::CopyGaugeArg< OutOrder, InOrder >::CopyGaugeArg(), quda::copyGaugeEx(), quda::ExtractGhostArg< Float, nColor_, Order, nDim >::ExtractGhostArg(), quda::extractGhostEx(), quda::colorspinor::FloatNOrder< Float, Ns, Nc, N, spin_project, huge_alloc >::FloatNOrder(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder(), quda::gauge::GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, native_ghost, storeFloat, use_tex >::GhostAccessor(), quda::colorspinor::GhostAccessorCB< Float, nSpin, nColor, nVec, QUDA_SPACE_SPIN_COLOR_FIELD_ORDER >::GhostAccessorCB(), quda::colorspinor::GhostAccessorCB< Float, nSpin, nColor, nVec, QUDA_FLOAT2_FIELD_ORDER >::GhostAccessorCB(), quda::colorspinor::GhostAccessorCB< Float, nSpin, nColor, nVec, QUDA_FLOAT4_FIELD_ORDER >::GhostAccessorCB(), quda::gauge::LegacyOrder< Float, length >::LegacyOrder(), quda::colorspinor::SpaceColorSpinorOrder< Float, Ns, Nc >::SpaceColorSpinorOrder(), and quda::colorspinor::SpaceSpinorColorOrder< Float, Ns, Nc >::SpaceSpinorColorOrder().

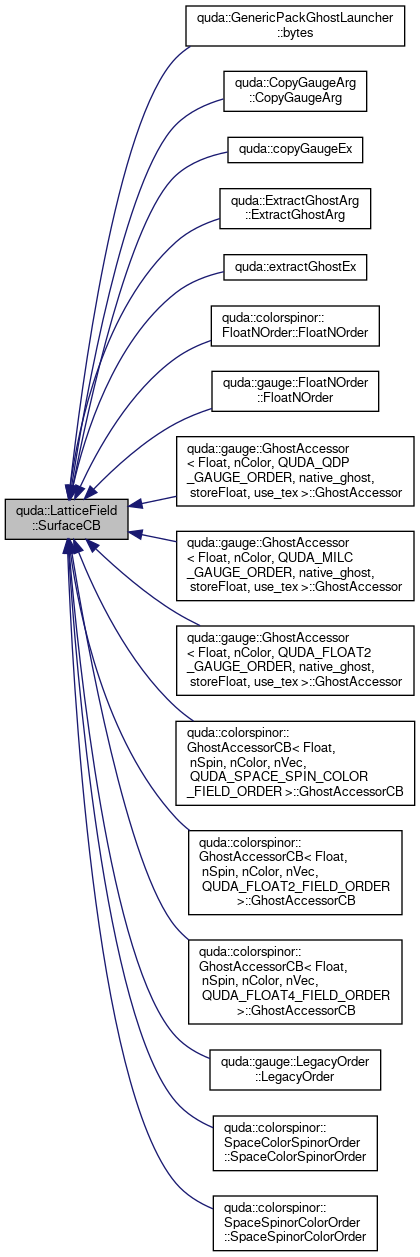

Here is the caller graph for this function:

SurfaceCB() [2/2]

int quda::LatticeField::SurfaceCB ( const int  i ) const

inline

Parameters

i	The dimension of the requested surface

Returns

The single-parity surface of dimension i

Definition at line 521 of file lattice_field.h.

VolString()

const char* quda::LatticeField::VolString ( ) const

inline

Return the volume string used by the autotuner

Definition at line 624 of file lattice_field.h.

Referenced by quda::computeMomAction(), quda::blas::copy_ns::copy(), quda::forceRecord(), quda::isUnitary(), quda::GaugePlaq< Float, Gauge >::tuneKey(), quda::Wilson< Float, nDim, nColor, Arg >::tuneKey(), quda::DomainWall4D< Float, nDim, nColor, Arg >::tuneKey(), quda::TwistedMass< Float, nDim, nColor, Arg >::tuneKey(), quda::CopySpinor< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder >::tuneKey(), quda::NdegTwistedMass< Float, nDim, nColor, Arg >::tuneKey(), quda::TwistedMassPreconditioned< Float, nDim, nColor, Arg >::tuneKey(), quda::blas::BlasCuda< FloatN, M, SpinorX, SpinorY, SpinorZ, SpinorW, SpinorV, Functor >::tuneKey(), quda::DomainWall5D< Float, nDim, nColor, Arg >::tuneKey(), quda::TwistedClover< Float, nDim, nColor, Arg >::tuneKey(), quda::WilsonClover< Float, nDim, nColor, Arg >::tuneKey(), quda::CopyGauge< FloatOut, FloatIn, length, Arg >::tuneKey(), quda::SpinorNoise< real, Ns, Nc, type, Arg >::tuneKey(), quda::NdegTwistedMassPreconditioned< Float, nDim, nColor, Arg >::tuneKey(), quda::WilsonCloverPreconditioned< Float, nDim, nColor, Arg >::tuneKey(), quda::TwistedCloverPreconditioned< Float, nDim, nColor, Arg >::tuneKey(), quda::GaugeGauss< Float, Arg >::tuneKey(), quda::KSForceComplete< Float, Oprod, Gauge, Mom >::tuneKey(), quda::CopyGaugeEx< FloatOut, FloatIn, length, OutOrder, InOrder >::tuneKey(), quda::Laplace< Float, nDim, nColor, Arg >::tuneKey(), quda::GenericPackGhostLauncher< Float, block_float, Ns, Ms, Nc, Mc, Arg >::tuneKey(), quda::Staggered< Float, nDim, nColor, Arg >::tuneKey(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::tuneKey(), quda::CopyColorSpinor< Ns, Arg >::tuneKey(), quda::GaugeOvrImpSTOUT< Float, Arg >::tuneKey(), quda::Dslash5< Float, nColor, Arg >::tuneKey(), quda::ExtractGhost< nDim, Arg >::tuneKey(), quda::ExtractGhostEx< Float, length, nDim, dim, Order >::tuneKey(), quda::blas::ReduceCuda< doubleN, ReduceType, FloatN, M, SpinorX, SpinorY, SpinorZ, SpinorW, SpinorV, Reducer >::tuneKey(), quda::CopySpinorEx< FloatOut, FloatIn, Ns, Nc, OutOrder, InOrder, Basis, extend >::tuneKey(), quda::CopyColorSpinor< 4, Arg >::tuneKey(), quda::Gamma< ValueType, basis, dir >::tuneKey(), quda::Pack< Float, nColor, spin_project >::tuneKey(), quda::KSLongLinkForce< Float, Result, Oprod, Gauge >::tuneKey(), quda::TwistGamma< Float, nColor, Arg >::tuneKey(), quda::ProjectSU3< Float, G >::tuneKey(), quda::Clover< Float, nSpin, nColor, Arg >::tuneKey(), quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::tuneKey(), quda::DslashCoarsePolicyTune::tuneKey(), quda::TwistClover< Float, nSpin, nColor, Arg >::tuneKey(), and quda::updateMomentum().

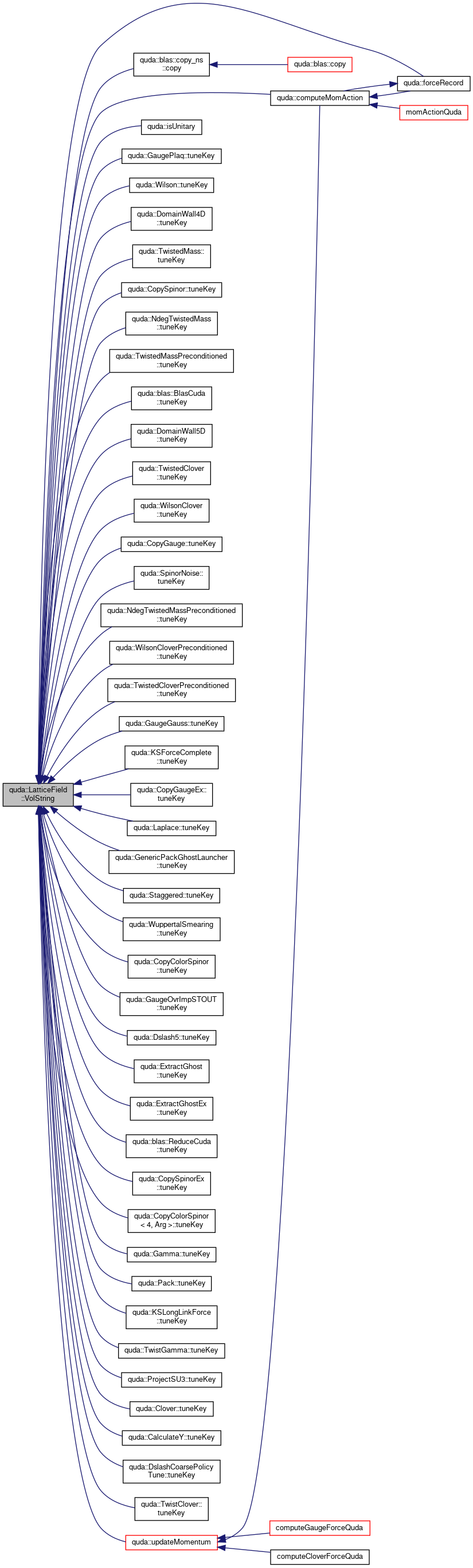

Here is the caller graph for this function:

Volume()

int quda::LatticeField::Volume ( ) const

inline

Returns

The full-field volume

Definition at line 504 of file lattice_field.h.

Referenced by quda::Dirac::checkParitySpinor(), hisq_force_init(), hisq_force_test(), quda::isUnitary(), qChargeDensityQuda(), TEST(), and quda::unitarizeLinksCPU().

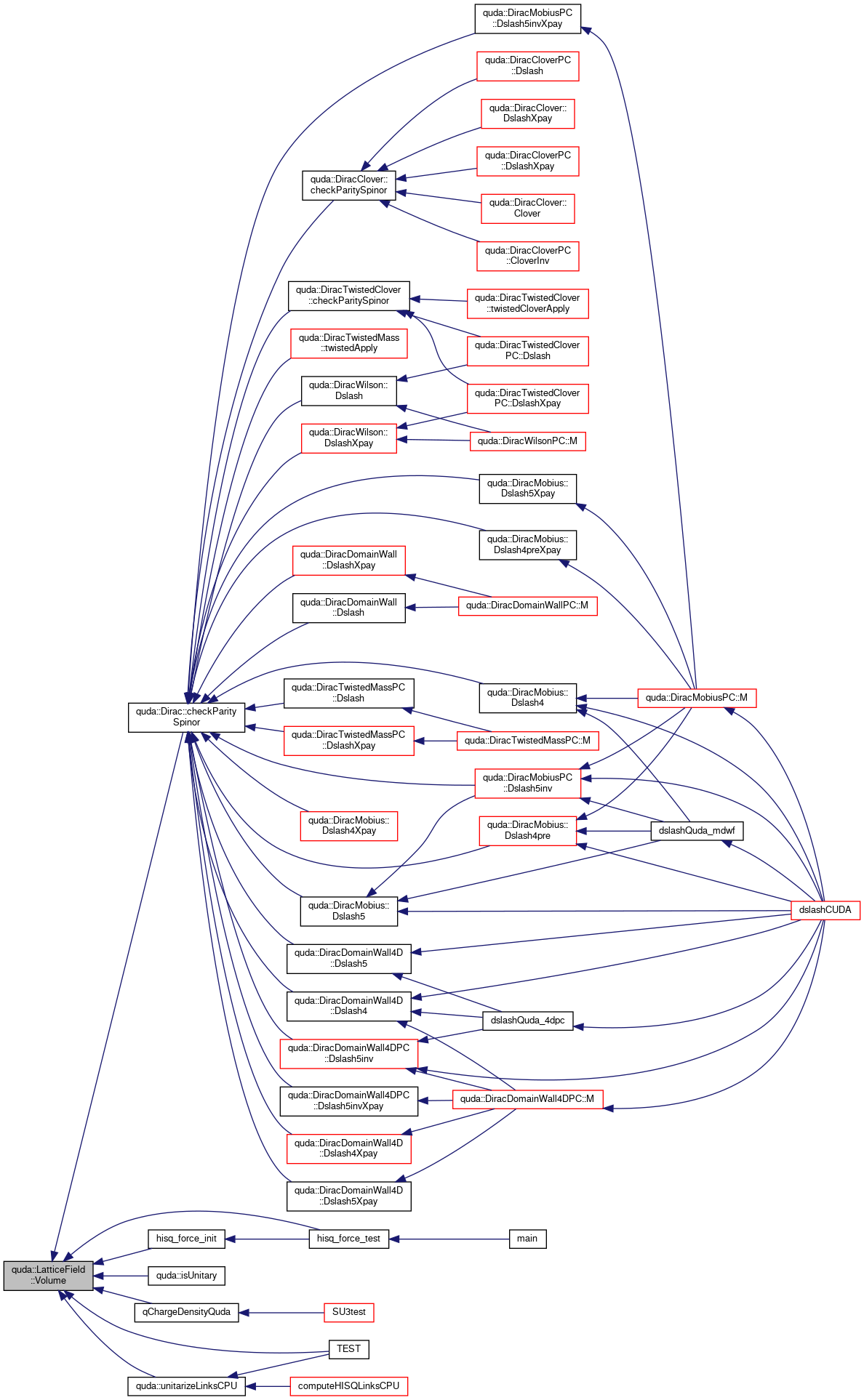

Here is the caller graph for this function:

VolumeCB()

int quda::LatticeField::VolumeCB ( ) const

inline

Returns

The single-parity volume

Definition at line 509 of file lattice_field.h.

References volumeCB.

Referenced by quda::DslashCoarsePolicyTune::bytes(), quda::Dirac::checkParitySpinor(), quda::DiracClover::checkParitySpinor(), quda::DiracTwistedClover::checkParitySpinor(), quda::DiracStaggered::checkParitySpinor(), quda::DiracImprovedStaggered::checkParitySpinor(), quda::computeMomAction(), quda::forceRecord(), and quda::updateMomentum().

Here is the caller graph for this function:

write()

void quda::LatticeField::write ( char *  filename )

virtual

Write the field in the file specified by filename

Parameters

filename

The name of the file to write

Definition at line 680 of file lattice_field.cpp.

References errorQuda.

X()

const int* quda::LatticeField::X ( ) const

inline

Returns

The pointer to the lattice-dimension array

Definition at line 499 of file lattice_field.h.

References quda::LatticeFieldParam::x.

Referenced by quda::ApplyImprovedStaggered(), quda::gauge::BQCDOrder< Float, length >::BQCDOrder(), quda::calculateY(), quda::cloverDerivative(), quda::CloverFieldParam::CloverFieldParam(), cloverQuda(), quda::CoarseOp(), quda::colorSpinorParam(), quda::completeKSForce(), quda::computeKSLongLinkForce(), quda::computeMomAction(), quda::copyExtendedGauge(), quda::copyGaugeEx(), createCloverQuda(), createExtendedGauge(), quda::deflated_solver::deflated_solver(), eigensolveQuda(), quda::extractGhost(), quda::ExtractGhostArg< Float, nColor_, Order, nDim >::ExtractGhostArg(), quda::extractGhostEx(), quda::fatLongKSLink(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder(), quda::FmunuArg< Float, Fmunu, Gauge >::FmunuArg(), quda::forceRecord(), quda::GaugeAPEArg< Float, GaugeOr, GaugeDs >::GaugeAPEArg(), quda::GaugeGaussArg< Float, recon, group_ >::GaugeGaussArg(), quda::GaugeOvrImpSTOUTArg< Float, GaugeOr, GaugeDs >::GaugeOvrImpSTOUTArg(), quda::GaugePlaqArg< Gauge >::GaugePlaqArg(), quda::GaugeSTOUTArg< Float, GaugeOr, GaugeDs >::GaugeSTOUTArg(), invert_multishift_quda_(), invertMultiShiftQuda(), invertMultiSrcQuda(), invertQuda(), quda::LatticeFieldParam::LatticeFieldParam(), loadCloverQuda(), quda::multigrid_solver::multigrid_solver(), performWuppertalnStep(), qChargeDensityQuda(), qChargeQuda(), quda::RNG::RNG(), quda::gauge::TIFRPaddedOrder< Float, length >::TIFRPaddedOrder(), and quda::updateMomentum().

Here is the caller graph for this function:

Member Data Documentation

aux_string

char quda::LatticeField::aux_string[TuneKey::aux_n]

protected

used as a label in the autotuner

Definition at line 381 of file lattice_field.h.

Referenced by quda::GaugeField::setTuningString(), and quda::ColorSpinorField::setTuningString().

backed_up

bool quda::LatticeField::backed_up

mutableprotected

Definition at line 403 of file lattice_field.h.

Referenced by quda::cudaGaugeField::backup(), quda::cpuGaugeField::backup(), quda::cudaColorSpinorField::backup(), quda::cpuColorSpinorField::backup(), LatticeField(), quda::cudaGaugeField::restore(), quda::cpuGaugeField::restore(), quda::cudaColorSpinorField::restore(), and quda::cpuColorSpinorField::restore().

backup_h

char* quda::LatticeField::backup_h

mutableprotected

Definition at line 401 of file lattice_field.h.

Referenced by quda::cudaGaugeField::backup(), quda::cpuGaugeField::backup(), quda::cudaColorSpinorField::backup(), quda::cpuColorSpinorField::backup(), LatticeField(), quda::cudaGaugeField::restore(), quda::cpuGaugeField::restore(), quda::cudaColorSpinorField::restore(), and quda::cpuColorSpinorField::restore().

backup_norm_h

char* quda::LatticeField::backup_norm_h

mutableprotected

Definition at line 402 of file lattice_field.h.

Referenced by quda::cudaColorSpinorField::backup(), quda::cpuColorSpinorField::backup(), LatticeField(), quda::cudaColorSpinorField::restore(), and quda::cpuColorSpinorField::restore().

buffer_recv_p2p_back

int quda::LatticeField::buffer_recv_p2p_back { }

staticprotected

Buffer used by peer-to-peer message handler

Definition at line 363 of file lattice_field.h.

Referenced by createIPCComms().

buffer_recv_p2p_fwd

int quda::LatticeField::buffer_recv_p2p_fwd { }

staticprotected

Buffer used by peer-to-peer message handler

Definition at line 357 of file lattice_field.h.

Referenced by createIPCComms().

buffer_send_p2p_back

int quda::LatticeField::buffer_send_p2p_back { }

staticprotected

Buffer used by peer-to-peer message handler

Definition at line 360 of file lattice_field.h.

Referenced by createIPCComms().

buffer_send_p2p_fwd

int quda::LatticeField::buffer_send_p2p_fwd { }

staticprotected

Buffer used by peer-to-peer message handler

Definition at line 354 of file lattice_field.h.

Referenced by createIPCComms().

bufferIndex

int quda::LatticeField::bufferIndex = 0

static

Static variable that is determined which ghost buffer we are using

Definition at line 484 of file lattice_field.h.

Referenced by quda::calculateY(), quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaColorSpinorField::gather(), getIPCCopyEvent(), getIPCRemoteCopyEvent(), quda::cudaGaugeField::injectGhost(), ipcCopyComplete(), ipcRemoteCopyComplete(), quda::dslash::issueGather(), quda::dslash::issuePack(), quda::dslash::DslashBasic< Dslash >::operator()(), quda::dslash::DslashFusedExterior< Dslash >::operator()(), quda::DslashCoarseLaunch::operator()(), quda::dslash::DslashGDR< Dslash >::operator()(), quda::dslash::DslashFusedGDR< Dslash >::operator()(), quda::dslash::DslashGDRRecv< Dslash >::operator()(), quda::dslash::DslashFusedGDRRecv< Dslash >::operator()(), quda::dslash::DslashZeroCopyPack< Dslash >::operator()(), quda::dslash::DslashFusedZeroCopyPack< Dslash >::operator()(), quda::dslash::DslashZeroCopyPackGDRRecv< Dslash >::operator()(), quda::dslash::DslashFusedZeroCopyPackGDRRecv< Dslash >::operator()(), quda::dslash::DslashZeroCopy< Dslash >::operator()(), quda::dslash::DslashFusedZeroCopy< Dslash >::operator()(), quda::cudaColorSpinorField::packGhost(), quda::cudaGaugeField::recvStart(), quda::cudaColorSpinorField::recvStart(), quda::cudaColorSpinorField::scatter(), quda::cudaColorSpinorField::scatterExtended(), quda::cudaColorSpinorField::sendGhost(), quda::cudaGaugeField::sendStart(), quda::cudaColorSpinorField::sendStart(), quda::dslash::setMappedGhost(), quda::cudaColorSpinorField::unpackGhost(), and quda::wuppertalStep().

from_face_d

void* quda::LatticeField::from_face_d[2]

protected

Device memory buffer for receiving messages

Definition at line 306 of file lattice_field.h.

Referenced by createComms(), quda::cudaColorSpinorField::createComms(), and LatticeField().

from_face_dim_dir_d

void* quda::LatticeField::from_face_dim_dir_d[2][QUDA_MAX_DIM][2]

protected

Local pointers to the device ghost_recv buffer

Definition at line 315 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), and LatticeField().

from_face_dim_dir_h

void* quda::LatticeField::from_face_dim_dir_h[2][QUDA_MAX_DIM][2]

protected

Local pointers to the pinned from_face buffer

Definition at line 309 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), LatticeField(), quda::cudaColorSpinorField::scatter(), and quda::cudaColorSpinorField::scatterExtended().

from_face_dim_dir_hd

void* quda::LatticeField::from_face_dim_dir_hd[2][QUDA_MAX_DIM][2]

protected

Local pointers to the mapped from_face buffer

Definition at line 312 of file lattice_field.h.

Referenced by createComms(), quda::cudaColorSpinorField::exchangeGhost(), and LatticeField().

from_face_h

void* quda::LatticeField::from_face_h[2]

protected

Memory buffer used for receiving all messages

Definition at line 296 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::createComms(), quda::cudaColorSpinorField::createComms(), quda::cudaColorSpinorField::exchangeGhost(), and LatticeField().

from_face_hd

void* quda::LatticeField::from_face_hd[2]

protected

Mapped version of from_face_h

Definition at line 301 of file lattice_field.h.

Referenced by createComms(), and LatticeField().

ghost_bytes

size_t quda::LatticeField::ghost_bytes

mutableprotected

Size in bytes of this ghost field

Definition at line 247 of file lattice_field.h.

Referenced by allocateGhostBuffer(), quda::cudaGaugeField::allocateGhostBuffer(), quda::cudaColorSpinorField::allocateGhostBuffer(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), quda::cudaColorSpinorField::create(), quda::cudaGaugeField::createComms(), quda::GaugeField::createGhostZone(), quda::ColorSpinorField::createGhostZone(), and quda::cudaGaugeField::saveCPUField().

ghost_bytes_old

size_t quda::LatticeField::ghost_bytes_old

mutableprotected

Size in bytes of prior ghost allocation

Definition at line 252 of file lattice_field.h.

Referenced by quda::cudaGaugeField::createComms(), and quda::GaugeField::createGhostZone().

ghost_face_bytes

size_t quda::LatticeField::ghost_face_bytes[QUDA_MAX_DIM]

mutableprotected

Size in bytes of the ghost in each dimension

Definition at line 257 of file lattice_field.h.

Referenced by createComms(), quda::GaugeField::createGhostZone(), quda::ColorSpinorField::createGhostZone(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), quda::cudaColorSpinorField::sendGhost(), quda::cudaGaugeField::sendStart(), quda::cudaColorSpinorField::sendStart(), and quda::cudaColorSpinorField::unpackGhost().

ghost_field_reset

bool quda::LatticeField::ghost_field_reset = false

static

Bool which is triggered if the ghost field is reset

Definition at line 489 of file lattice_field.h.

Referenced by quda::cudaGaugeField::createComms(), quda::cudaColorSpinorField::createComms(), and createIPCComms().

ghost_pinned_recv_buffer_h

void * quda::LatticeField::ghost_pinned_recv_buffer_h = {nullptr, nullptr}

staticprotected

Double buffered static pinned recv buffers

Definition at line 217 of file lattice_field.h.

Referenced by allocateGhostBuffer(), createComms(), quda::cudaGaugeField::createComms(), quda::cudaColorSpinorField::createComms(), and freeGhostBuffer().

ghost_pinned_recv_buffer_hd

void * quda::LatticeField::ghost_pinned_recv_buffer_hd = {nullptr, nullptr}

staticprotected

Mapped version of pinned recv buffers

Definition at line 227 of file lattice_field.h.

Referenced by allocateGhostBuffer(), quda::cudaColorSpinorField::allocateGhostBuffer(), quda::cudaColorSpinorField::create(), createComms(), and freeGhostBuffer().

ghost_pinned_send_buffer_h

void * quda::LatticeField::ghost_pinned_send_buffer_h = {nullptr, nullptr}

staticprotected

Double buffered static pinned send buffers

Definition at line 212 of file lattice_field.h.

Referenced by allocateGhostBuffer(), createComms(), quda::cudaGaugeField::createComms(), quda::cudaColorSpinorField::createComms(), and freeGhostBuffer().

ghost_pinned_send_buffer_hd

void * quda::LatticeField::ghost_pinned_send_buffer_hd = {nullptr, nullptr}

staticprotected

Mapped version of pinned send buffers

Definition at line 222 of file lattice_field.h.

Referenced by allocateGhostBuffer(), createComms(), and freeGhostBuffer().

ghost_precision

QudaPrecision quda::LatticeField::ghost_precision

mutableprotected

Precision of the ghost

Definition at line 174 of file lattice_field.h.

Referenced by quda::cudaColorSpinorField::create(), createComms(), quda::cudaColorSpinorField::createComms(), quda::GaugeField::createGhostZone(), quda::ColorSpinorField::createGhostZone(), quda::ColorSpinorField::exchange(), quda::cudaColorSpinorField::exchangeGhost(), quda::ColorSpinorField::fill(), quda::GaugeField::GaugeField(), quda::operator<<(), quda::ColorSpinorField::reset(), quda::cudaColorSpinorField::sendGhost(), quda::cudaColorSpinorField::sendStart(), and quda::cudaColorSpinorField::unpackGhost().

ghost_precision_reset

bool quda::LatticeField::ghost_precision_reset

mutableprotected

Bool which is triggered if the ghost precision is reset

Definition at line 177 of file lattice_field.h.

Referenced by quda::cudaColorSpinorField::allocateGhostBuffer(), quda::cudaColorSpinorField::createComms(), and quda::cudaColorSpinorField::exchangeGhost().

ghost_recv_buffer_d

void * quda::LatticeField::ghost_recv_buffer_d = {nullptr, nullptr}

staticprotected

Double buffered static GPU halo receive buffer

Definition at line 207 of file lattice_field.h.

Referenced by allocateGhostBuffer(), quda::cudaColorSpinorField::allocateGhostBuffer(), quda::cudaColorSpinorField::create(), createComms(), quda::cudaColorSpinorField::createComms(), createIPCComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), freeGhostBuffer(), quda::cudaGaugeField::injectGhost(), and quda::cudaColorSpinorField::unpackGhost().

ghost_remote_send_buffer_d

void * quda::LatticeField::ghost_remote_send_buffer_d

staticprotected

Remove ghost pointer for sending to

Definition at line 232 of file lattice_field.h.

Referenced by createIPCComms(), destroyIPCComms(), quda::cudaColorSpinorField::packGhost(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

ghost_send_buffer_d

void * quda::LatticeField::ghost_send_buffer_d = {nullptr, nullptr}

staticprotected

Double buffered static GPU halo send buffer

Definition at line 202 of file lattice_field.h.

Referenced by allocateGhostBuffer(), createComms(), quda::cudaColorSpinorField::createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), freeGhostBuffer(), and quda::cudaGaugeField::injectGhost().

ghostExchange

QudaGhostExchange quda::LatticeField::ghostExchange

protected

Type of ghost exchange to perform

Definition at line 186 of file lattice_field.h.

Referenced by quda::GaugeField::applyStaggeredPhase(), checkField(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), quda::cudaGaugeField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), LatticeField(), and quda::GaugeField::removeStaggeredPhase().

ghostFaceBytes

size_t quda::LatticeField::ghostFaceBytes = 0

staticprotected

The current size of the static ghost allocation

Definition at line 237 of file lattice_field.h.

Referenced by allocateGhostBuffer().

ghostNormOffset

int quda::LatticeField::ghostNormOffset[QUDA_MAX_DIM][2]

mutableprotected

Real-number (in floats) offsets to each ghost zone for norm field

Definition at line 267 of file lattice_field.h.

Referenced by quda::cudaColorSpinorField::createComms(), quda::ColorSpinorField::createGhostZone(), and LatticeField().

ghostOffset

int quda::LatticeField::ghostOffset[QUDA_MAX_DIM][2]

mutableprotected

Real-number offsets to each ghost zone

Definition at line 262 of file lattice_field.h.

Referenced by createComms(), quda::cudaColorSpinorField::createComms(), quda::GaugeField::createGhostZone(), quda::ColorSpinorField::createGhostZone(), LatticeField(), quda::cudaColorSpinorField::packGhost(), quda::cudaGaugeField::sendStart(), quda::cudaColorSpinorField::sendStart(), and quda::cudaColorSpinorField::unpackGhost().

initComms

bool quda::LatticeField::initComms

protected

Whether we have initialized communication for this field

Definition at line 372 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::createComms(), quda::cudaColorSpinorField::createComms(), createIPCComms(), destroyComms(), and LatticeField().

initGhostFaceBuffer

bool quda::LatticeField::initGhostFaceBuffer = false

staticprotected

Whether the ghost buffers have been initialized

Definition at line 242 of file lattice_field.h.

Referenced by allocateGhostBuffer(), and freeGhostBuffer().

initIPCComms

bool quda::LatticeField::initIPCComms = false

staticprotected

Whether we have initialized peer-to-peer communication

Definition at line 375 of file lattice_field.h.

Referenced by createIPCComms(), and destroyIPCComms().

ipcCopyEvent

cudaEvent_t quda::LatticeField::ipcCopyEvent

staticprotected

Local copy of event used for peer-to-peer synchronization

Definition at line 366 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), getIPCCopyEvent(), ipcCopyComplete(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

ipcRemoteCopyEvent

cudaEvent_t quda::LatticeField::ipcRemoteCopyEvent

staticprotected

Remote copy of event used for peer-to-peer synchronization

Definition at line 369 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), quda::cudaColorSpinorField::exchangeGhost(), getIPCRemoteCopyEvent(), and ipcRemoteCopyComplete().

mem_type

QudaMemoryType quda::LatticeField::mem_type

protected

The type of allocation we are going to do for this field

Definition at line 387 of file lattice_field.h.

Referenced by quda::cudaColorSpinorField::create(), quda::cudaGaugeField::cudaGaugeField(), quda::cudaColorSpinorField::destroy(), LatticeField(), and quda::cudaGaugeField::~cudaGaugeField().

mh_recv_back

MsgHandle* quda::LatticeField::mh_recv_back[2][QUDA_MAX_DIM]

protected

Message handles for receiving from backwards

Definition at line 321 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::cpuGaugeField::exchangeExtendedGhost(), LatticeField(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

mh_recv_fwd

MsgHandle* quda::LatticeField::mh_recv_fwd[2][QUDA_MAX_DIM]

protected

Message handles for receiving from forwards

Definition at line 318 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::cpuGaugeField::exchangeExtendedGhost(), LatticeField(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

mh_recv_p2p_back

MsgHandle * quda::LatticeField::mh_recv_p2p_back { }

staticprotected

Peer-to-peer message handler for signaling event posting

Definition at line 351 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

mh_recv_p2p_fwd

MsgHandle * quda::LatticeField::mh_recv_p2p_fwd { }

staticprotected

Peer-to-peer message handler for signaling event posting

Definition at line 348 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

mh_recv_rdma_back

MsgHandle* quda::LatticeField::mh_recv_rdma_back[2][QUDA_MAX_DIM]

protected

Message handles for rdma receiving from backwards

Definition at line 333 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), LatticeField(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

mh_recv_rdma_fwd

MsgHandle* quda::LatticeField::mh_recv_rdma_fwd[2][QUDA_MAX_DIM]

protected

Message handles for rdma receiving from forwards

Definition at line 330 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), LatticeField(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

mh_send_back

MsgHandle* quda::LatticeField::mh_send_back[2][QUDA_MAX_DIM]

protected

Message handles for sending backwards

Definition at line 327 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::ColorSpinorField::exchange(), quda::cpuGaugeField::exchangeExtendedGhost(), LatticeField(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

mh_send_fwd

MsgHandle* quda::LatticeField::mh_send_fwd[2][QUDA_MAX_DIM]

protected

Message handles for sending forwards

Definition at line 324 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::ColorSpinorField::exchange(), quda::cpuGaugeField::exchangeExtendedGhost(), LatticeField(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

mh_send_p2p_back

MsgHandle * quda::LatticeField::mh_send_p2p_back { }

staticprotected

Peer-to-peer message handler for signaling event posting

Definition at line 345 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

mh_send_p2p_fwd

MsgHandle * quda::LatticeField::mh_send_p2p_fwd { }

staticprotected

Peer-to-peer message handler for signaling event posting

Definition at line 342 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

mh_send_rdma_back

MsgHandle* quda::LatticeField::mh_send_rdma_back[2][QUDA_MAX_DIM]

protected

Message handles for rdma sending to backwards

Definition at line 339 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), LatticeField(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

mh_send_rdma_fwd

MsgHandle* quda::LatticeField::mh_send_rdma_fwd[2][QUDA_MAX_DIM]

protected

Message handles for rdma sending to forwards

Definition at line 336 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), LatticeField(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

my_face_d

void* quda::LatticeField::my_face_d[2]

protected

Device memory buffer for sending messages

Definition at line 282 of file lattice_field.h.

Referenced by createComms(), quda::cudaColorSpinorField::createComms(), and LatticeField().

my_face_dim_dir_d

void* quda::LatticeField::my_face_dim_dir_d[2][QUDA_MAX_DIM][2]

protected

Local pointers to the device ghost_send buffer

Definition at line 291 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), LatticeField(), quda::cudaColorSpinorField::packGhost(), quda::cudaColorSpinorField::sendGhost(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

my_face_dim_dir_h

void* quda::LatticeField::my_face_dim_dir_h[2][QUDA_MAX_DIM][2]

protected

Local pointers to the pinned my_face buffer

Definition at line 285 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaColorSpinorField::gather(), quda::cudaGaugeField::injectGhost(), and LatticeField().

my_face_dim_dir_hd

void* quda::LatticeField::my_face_dim_dir_hd[2][QUDA_MAX_DIM][2]

protected

Local pointers to the mapped my_face buffer

Definition at line 288 of file lattice_field.h.

Referenced by createComms(), quda::cudaColorSpinorField::exchangeGhost(), LatticeField(), and quda::cudaColorSpinorField::packGhost().

my_face_h

void* quda::LatticeField::my_face_h[2]

protected

Pinned memory buffer used for sending messages

Definition at line 272 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::createComms(), quda::cudaColorSpinorField::createComms(), quda::cudaColorSpinorField::exchangeGhost(), and LatticeField().

my_face_hd

void* quda::LatticeField::my_face_hd[2]

protected

Mapped version of my_face_h

Definition at line 277 of file lattice_field.h.

Referenced by createComms(), and LatticeField().

nDim

int quda::LatticeField::nDim

protected

Number of field dimensions

Definition at line 159 of file lattice_field.h.

Referenced by checkField(), quda::CloverField::CloverField(), quda::cpuGaugeField::cpuGaugeField(), quda::GaugeField::createGhostZone(), quda::cudaGaugeField::cudaGaugeField(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cpuGaugeField::exchangeGhost(), quda::GaugeField::GaugeField(), quda::cudaGaugeField::injectGhost(), quda::cpuGaugeField::injectGhost(), LatticeField(), setTuningString(), quda::cpuGaugeField::~cpuGaugeField(), and quda::cudaGaugeField::~cudaGaugeField().

nDimComms

int quda::LatticeField::nDimComms

protected

The number of dimensions we partition for communication

Definition at line 191 of file lattice_field.h.

Referenced by quda::cpuColorSpinorField::allocateGhostBuffer(), createComms(), quda::cudaColorSpinorField::createComms(), destroyComms(), quda::GaugeField::exchange(), quda::ColorSpinorField::exchange(), quda::cudaColorSpinorField::exchangeGhost(), quda::cpuColorSpinorField::exchangeGhost(), and LatticeField().

pad

int quda::LatticeField::pad

protected

Definition at line 154 of file lattice_field.h.

Referenced by quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), and LatticeField().

precision

QudaPrecision quda::LatticeField::precision

protected

Precision of the field

Definition at line 171 of file lattice_field.h.

Referenced by quda::cpuColorSpinorField::allocateGhostBuffer(), quda::CloverField::CloverField(), quda::cudaCloverField::compute(), quda::cudaCloverField::copy(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), quda::cudaColorSpinorField::CopySubset(), quda::cpuCloverField::cpuCloverField(), quda::cpuGaugeField::cpuGaugeField(), quda::ColorSpinorField::create(), quda::cudaColorSpinorField::create(), quda::cpuColorSpinorField::create(), quda::cudaCloverField::cudaCloverField(), quda::cudaGaugeField::cudaGaugeField(), quda::cudaColorSpinorField::destroy(), quda::GaugeField::exchange(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cpuGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::ColorSpinorField::fill(), quda::GaugeField::GaugeField(), quda::cpuGaugeField::injectGhost(), quda::CloverField::isNative(), quda::GaugeField::isNative(), quda::ColorSpinorField::isNative(), LatticeField(), quda::operator<<(), quda::ColorSpinorField::operator=(), quda::cudaColorSpinorField::packGhost(), quda::ColorSpinorField::reset(), quda::cudaCloverField::saveCPUField(), quda::cudaColorSpinorField::sendGhost(), quda::cudaGaugeField::sendStart(), quda::cudaColorSpinorField::sendStart(), quda::GaugeField::setTuningString(), quda::ColorSpinorField::setTuningString(), quda::cudaColorSpinorField::Source(), quda::cudaColorSpinorField::zero(), quda::cudaGaugeField::zeroPad(), and quda::cudaColorSpinorField::zeroPad().

r

int quda::LatticeField::r[QUDA_MAX_DIM]

protected

The extended lattice radius (if applicable)

Definition at line 168 of file lattice_field.h.

Referenced by checkField(), and LatticeField().

scale

double quda::LatticeField::scale

protected

For fixed-point fields that need a global scaling factor

Definition at line 180 of file lattice_field.h.

siteSubset

QudaSiteSubset quda::LatticeField::siteSubset

protected

Whether the field is full or single parity

Definition at line 183 of file lattice_field.h.

Referenced by LatticeField().

stride

int quda::LatticeField::stride

protected

Definition at line 153 of file lattice_field.h.

Referenced by quda::CloverField::CloverField(), quda::GaugeField::GaugeField(), LatticeField(), quda::GaugeField::setTuningString(), and quda::cudaGaugeField::zeroPad().

surface

int quda::LatticeField::surface[QUDA_MAX_DIM]

protected

Definition at line 164 of file lattice_field.h.

Referenced by checkField(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), quda::cpuGaugeField::cpuGaugeField(), quda::GaugeField::createGhostZone(), quda::cudaGaugeField::cudaGaugeField(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cpuGaugeField::exchangeGhost(), quda::cpuGaugeField::injectGhost(), LatticeField(), and quda::cudaGaugeField::saveCPUField().

surfaceCB

int quda::LatticeField::surfaceCB[QUDA_MAX_DIM]

protected

Definition at line 165 of file lattice_field.h.

Referenced by quda::cpuColorSpinorField::allocateGhostBuffer(), checkField(), quda::cudaGaugeField::cudaGaugeField(), quda::GaugeField::exchange(), quda::ColorSpinorField::exchange(), and LatticeField().

total_bytes

size_t quda::LatticeField::total_bytes

protected

Definition at line 156 of file lattice_field.h.

Referenced by quda::cudaCloverField::cudaCloverField(), quda::ColorSpinorField::exchange(), quda::cudaColorSpinorField::exchangeGhost(), and quda::GaugeField::GaugeField().

vol_string

char quda::LatticeField::vol_string[TuneKey::volume_n]

protected

Used as a label in the autotuner

Definition at line 378 of file lattice_field.h.

Referenced by setTuningString(), and quda::ColorSpinorField::setTuningString().

volume

int quda::LatticeField::volume

protected

Lattice volume

Definition at line 148 of file lattice_field.h.

Referenced by checkField(), quda::cpuGaugeField::cpuGaugeField(), quda::GaugeField::GaugeField(), LatticeField(), and quda::GaugeField::setTuningString().

volumeCB

int quda::LatticeField::volumeCB

protected

Checkerboarded volume

Definition at line 151 of file lattice_field.h.

Referenced by checkField(), quda::CloverField::CloverField(), LatticeField(), and quda::cudaGaugeField::zeroPad().

x

int quda::LatticeField::x[QUDA_MAX_DIM]

protected

Array storing the length of dimension

Definition at line 162 of file lattice_field.h.

Referenced by checkField(), quda::cpuGaugeField::cpuGaugeField(), LatticeField(), and setTuningString().

---

The documentation for this class was generated from the following files:

• include/lattice_field.h
• lib/lattice_field.cpp
