QUDA: quda::IncEigCG Class Reference

#include <invert_quda.h>

Inheritance diagram for quda::IncEigCG:

Inheritance graph

[legend]

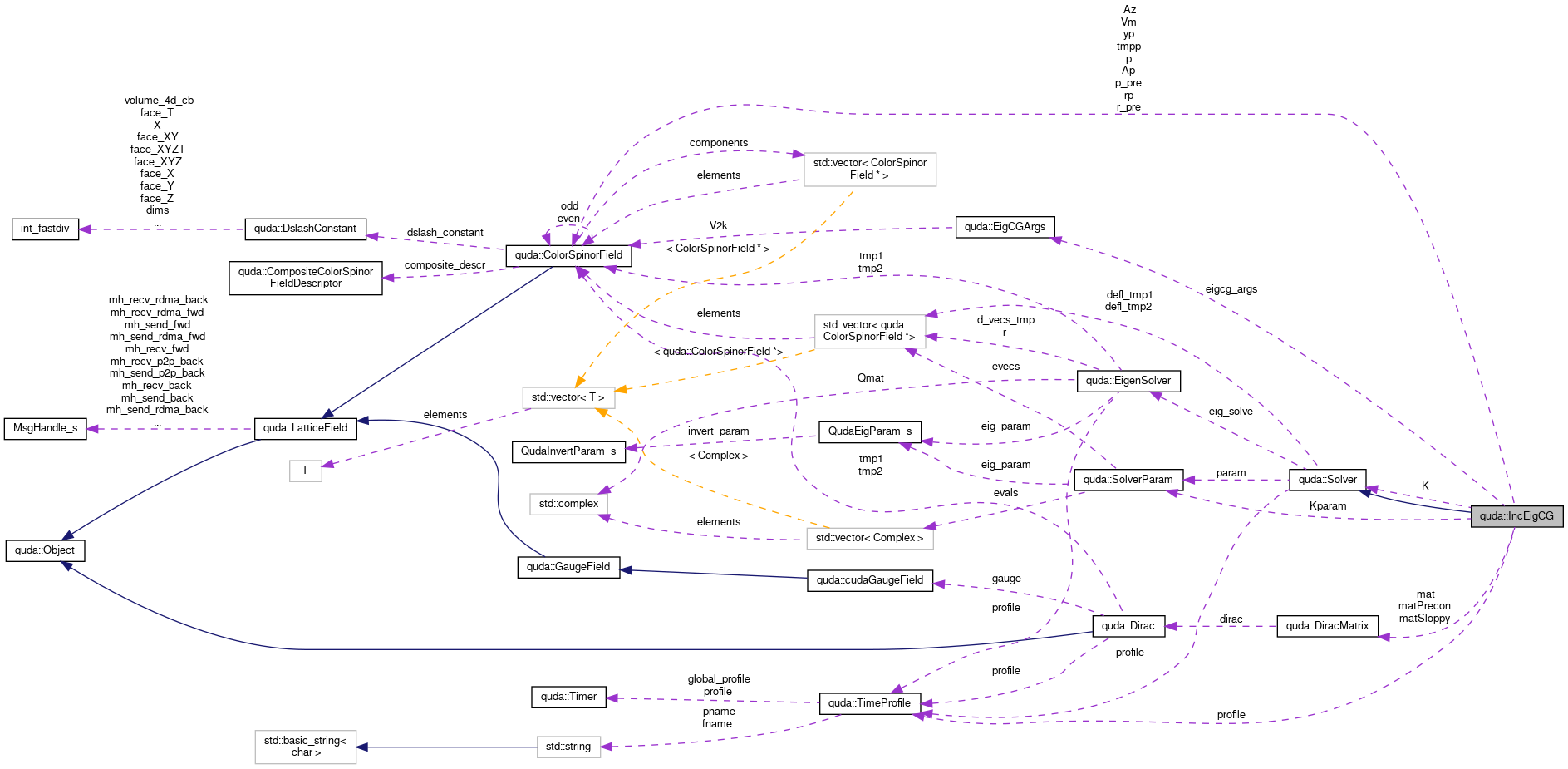

Collaboration diagram for quda::IncEigCG:

Collaboration graph

[legend]

Public Member Functions
	IncEigCG (DiracMatrix &mat, DiracMatrix &matSloppy, DiracMatrix &matPrecon, SolverParam &param, TimeProfile &profile)

virtual	~IncEigCG ()

void	increment (ColorSpinorField &V, int nev)
	Expands deflation space. More...

void	RestartVT (const double beta, const double rho)

void	UpdateVm (ColorSpinorField &res, double beta, double sqrtr2)

int	eigCGsolve (ColorSpinorField &out, ColorSpinorField &in)

int	initCGsolve (ColorSpinorField &out, ColorSpinorField &in)

void	operator() (ColorSpinorField &out, ColorSpinorField &in)

Public Member Functions inherited from quda::Solver
	Solver (SolverParam &param, TimeProfile &profile)

virtual	~Solver ()

virtual void	blocksolve (ColorSpinorField &out, ColorSpinorField &in)

bool	convergence (double r2, double hq2, double r2_tol, double hq_tol)

bool	convergenceHQ (double r2, double hq2, double r2_tol, double hq_tol)
	Test for HQ solver convergence – ignore L2 residual. More...

bool	convergenceL2 (double r2, double hq2, double r2_tol, double hq_tol)
	Test for L2 solver convergence – ignore HQ residual. More...

void	PrintStats (const char *name, int k, double r2, double b2, double hq2)
	Prints out the running statistics of the solver (requires a verbosity of QUDA_VERBOSE) More...

void	PrintSummary (const char *name, int k, double r2, double b2, double r2_tol, double hq_tol)
	Prints out the summary of the solver convergence (requires a verbosity of QUDA_SUMMARIZE). Assumes SolverParam.true_res and SolverParam.true_res_hq has been set. More...

void	constructDeflationSpace (const ColorSpinorField &meta, const DiracMatrix &mat, bool svd)
	Constructs the deflation space. More...

virtual double	flops () const

Private Attributes
DiracMatrix &	mat

DiracMatrix &	matSloppy

DiracMatrix &	matPrecon

Solver *	K

SolverParam	Kparam

ColorSpinorFieldSet *	Vm

ColorSpinorField *	rp

ColorSpinorField *	yp
	residual vector More...

ColorSpinorField *	p
	high precision accumulator More...

ColorSpinorField *	Ap

ColorSpinorField *	tmpp

ColorSpinorField *	Az
	temporary for mat-vec More...

ColorSpinorField *	r_pre

ColorSpinorField *	p_pre
	residual passed to preconditioner More...

EigCGArgs *	eigcg_args
	preconditioner result More...

TimeProfile &	profile

bool	init

Additional Inherited Members
Static Public Member Functions inherited from quda::Solver
static Solver *	create (SolverParam &param, DiracMatrix &mat, DiracMatrix &matSloppy, DiracMatrix &matPrecon, TimeProfile &profile)

static double	stopping (double tol, double b2, QudaResidualType residual_type)
	Set the solver L2 stopping condition. More...

Public Attributes inherited from quda::Solver
EigenSolver *	eig_solve

bool	deflate_init = false

std::vector< ColorSpinorField * >	defl_tmp1

std::vector< ColorSpinorField * >	defl_tmp2

Protected Attributes inherited from quda::Solver
SolverParam &	param

TimeProfile &	profile

int	node_parity

Detailed Description

Definition at line 1225 of file invert_quda.h.

Constructor & Destructor Documentation

◆ IncEigCG()

quda::IncEigCG::IncEigCG	(	DiracMatrix &	mat,
		DiracMatrix &	matSloppy,
		DiracMatrix &	matPrecon,
		SolverParam &	param,
		TimeProfile &	profile
	)

Definition at line 252 of file inv_eigcg_quda.cpp.

References quda::SolverParam::deflation_grid, errorQuda, quda::fillEigCGInnerSolverParam(), quda::fillInitCGSolverParam(), quda::SolverParam::inv_type, quda::SolverParam::inv_type_precondition, K, Kparam, quda::SolverParam::m, quda::SolverParam::nev, printfQuda, QUDA_CG_INVERTER, QUDA_EIGCG_INVERTER, QUDA_INC_EIGCG_INVERTER, QUDA_INVALID_INVERTER, QUDA_MR_INVERTER, QUDA_SD_INVERTER, and quda::SolverParam::rhs_idx.

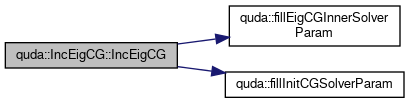

Here is the call graph for this function:

◆ ~IncEigCG()

quda::IncEigCG::~IncEigCG ( )

virtual

Definition at line 290 of file inv_eigcg_quda.cpp.

References Ap, Az, eigcg_args, init, K, p, p_pre, r_pre, rp, tmpp, Vm, and yp.

Member Function Documentation

◆ eigCGsolve()

int quda::IncEigCG::eigCGsolve	(	ColorSpinorField &	out,
		ColorSpinorField &	in
	)

Definition at line 381 of file inv_eigcg_quda.cpp.

References Ap, quda::blas::axpyNorm(), quda::blas::axpyZpbx(), Az, checkLocation, commGlobalReductionSet(), quda::ColorSpinorParam::composite_dim, quda::Solver::convergence(), quda::blas::copy(), quda::ColorSpinorParam::create, quda::ColorSpinorField::Create(), csParam, eigcg_args, errorQuda, quda::blas::flops, quda::DiracMatrix::flops(), quda::SolverParam::gflops, quda::EigCGArgs::global_stop, quda::blas::HeavyQuarkResidualNorm(), init, quda::SolverParam::inv_type, quda::ColorSpinorParam::is_composite, quda::SolverParam::iter, quda::EigCGArgs::k, K, Kparam, quda::TimeProfile::Last(), quda::SolverParam::m, matSloppy, quda::SolverParam::maxiter, quda::SolverParam::nev, quda::blas::norm2(), p, p_pre, quda::Solver::param, quda::LatticeField::Precision(), quda::SolverParam::precision_precondition, quda::SolverParam::precision_ritz, quda::SolverParam::precision_sloppy, printfQuda, quda::Solver::PrintStats(), quda::Solver::PrintSummary(), profile, QUDA_COPY_FIELD_CREATE, QUDA_CUDA_FIELD_LOCATION, QUDA_DOUBLE_PRECISION, QUDA_HEAVY_QUARK_RESIDUAL, QUDA_INC_EIGCG_INVERTER, quda::QUDA_PROFILE_COMPUTE, quda::QUDA_PROFILE_EPILOGUE, quda::QUDA_PROFILE_FREE, quda::QUDA_PROFILE_INIT, quda::QUDA_PROFILE_PREAMBLE, QUDA_ZERO_FIELD_CREATE, r_pre, quda::blas::reDotProduct(), quda::EigCGArgs::ResetArgs(), quda::SolverParam::residual_type, quda::EigCGArgs::restarts, rp, quda::EigCGArgs::run_residual_correction, quda::SolverParam::secs, quda::EigCGArgs::SetLanczos(), quda::ColorSpinorParam::setPrecision(), quda::sqrt(), quda::Solver::stopping(), tmp, tmpp, quda::SolverParam::tol, quda::SolverParam::tol_hq, quda::SolverParam::true_res, quda::SolverParam::true_res_hq, UpdateVm(), quda::EigCGArgs::V2k, Vm, warningQuda, quda::blas::xmyNorm(), quda::blas::xpy(), yp, and quda::blas::zero().

Referenced by operator()().

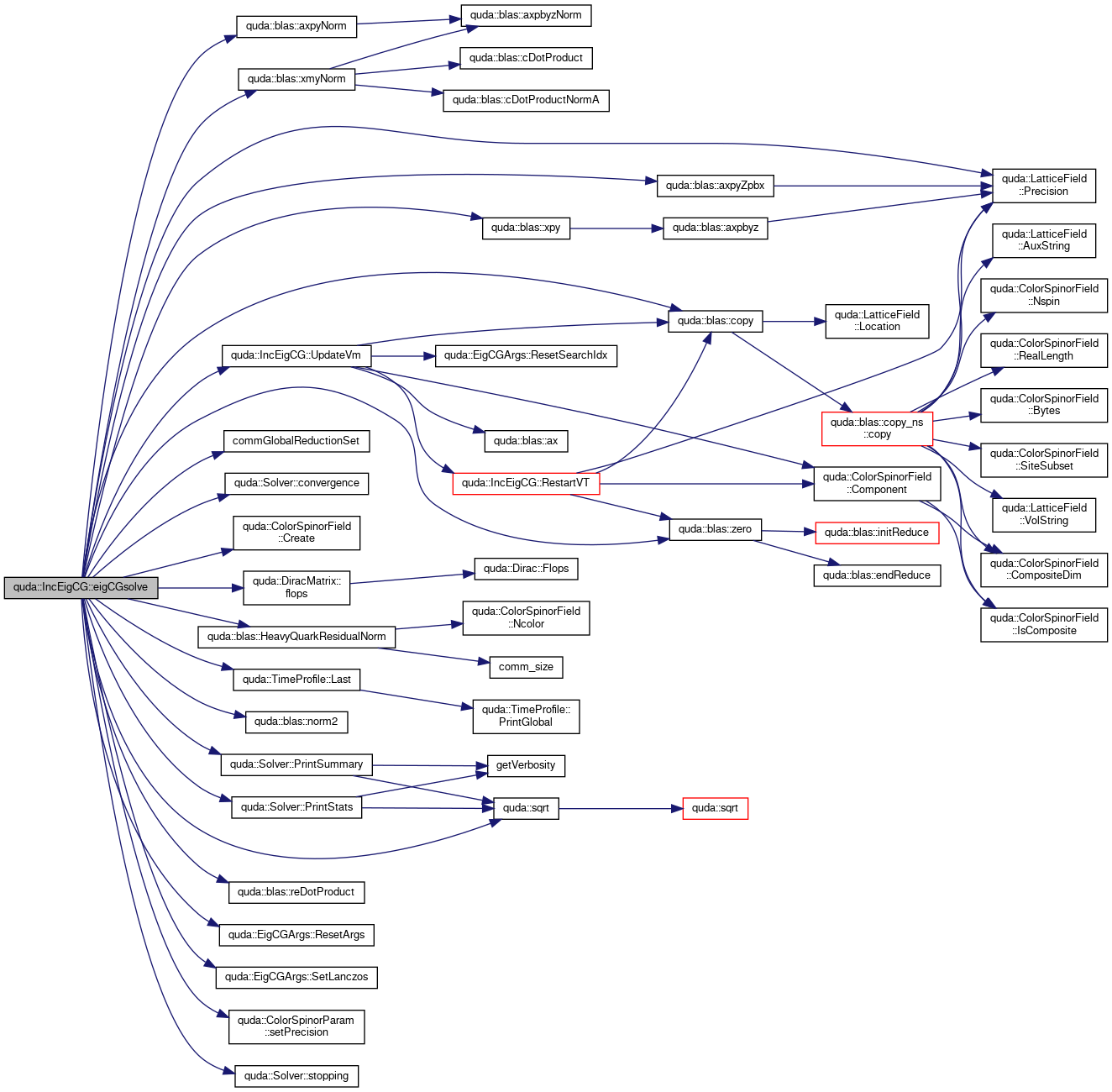

Here is the call graph for this function:

Here is the caller graph for this function:

◆ increment()

void quda::IncEigCG::increment	(	ColorSpinorField &	V,
		int	nev
	)

Expands deflation space.

Parameters

V	Composite field container of new eigenvectors
nev	number of vectors to load

◆ initCGsolve()

int quda::IncEigCG::initCGsolve	(	ColorSpinorField &	out,
		ColorSpinorField &	in
	)

Definition at line 583 of file inv_eigcg_quda.cpp.

References quda::ColorSpinorParam::create, quda::ColorSpinorField::Create(), csParam, quda::deflated_solver::defl, quda::SolverParam::deflation_op, getVerbosity(), quda::SolverParam::gflops, quda::SolverParam::inc_tol, quda::SolverParam::iter, K, Kparam, mat, matPrecon, quda::SolverParam::max_restart_num, quda::Solver::param, quda::SolverParam::precision, quda::SolverParam::precision_ritz, printfQuda, profile, QUDA_VERBOSE, QUDA_ZERO_FIELD_CREATE, rp, quda::SolverParam::secs, quda::ColorSpinorParam::setPrecision(), tmp2, quda::SolverParam::tol, quda::SolverParam::tol_restart, and quda::blas::xpay().

Referenced by operator()().

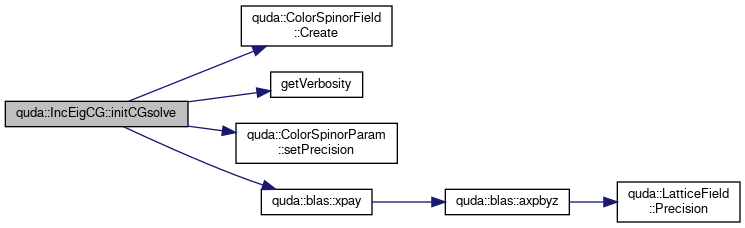

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator()()

void quda::IncEigCG::operator()	(	ColorSpinorField &	out,
		ColorSpinorField &	in
	)

virtual

Implements quda::Solver.

Definition at line 656 of file inv_eigcg_quda.cpp.

References quda::ColorSpinorParam::create, quda::ColorSpinorField::Create(), csParam, quda::deflated_solver::defl, quda::SolverParam::deflation_grid, quda::SolverParam::deflation_op, eigcg_args, quda::SolverParam::eigcg_max_restarts, eigCGsolve(), quda::SolverParam::eigenval_tol, errorQuda, getVerbosity(), quda::blas::HeavyQuarkResidualNorm(), quda::SolverParam::inc_tol, quda::Deflation::increment(), initCGsolve(), quda::Deflation::is_complete(), quda::SolverParam::iter, K, Kparam, mat, matPrecon, matSloppy, quda::max_eigcg_cycles, quda::SolverParam::nev, quda::norm2(), quda::Solver::param, quda::SolverParam::precision, quda::SolverParam::precision_sloppy, printfQuda, quda::Solver::PrintSummary(), profile, QUDA_VERBOSE, QUDA_ZERO_FIELD_CREATE, quda::Deflation::reduce(), quda::EigCGArgs::restarts, quda::SolverParam::rhs_idx, rp, quda::EigCGArgs::run_residual_correction, quda::ColorSpinorParam::setPrecision(), quda::Deflation::size(), quda::sqrt(), quda::SolverParam::tol, quda::SolverParam::tol_hq, quda::SolverParam::true_res, quda::SolverParam::true_res_hq, quda::Deflation::verify(), Vm, warningQuda, quda::blas::xmyNorm(), quda::blas::xpy(), and quda::blas::zero().

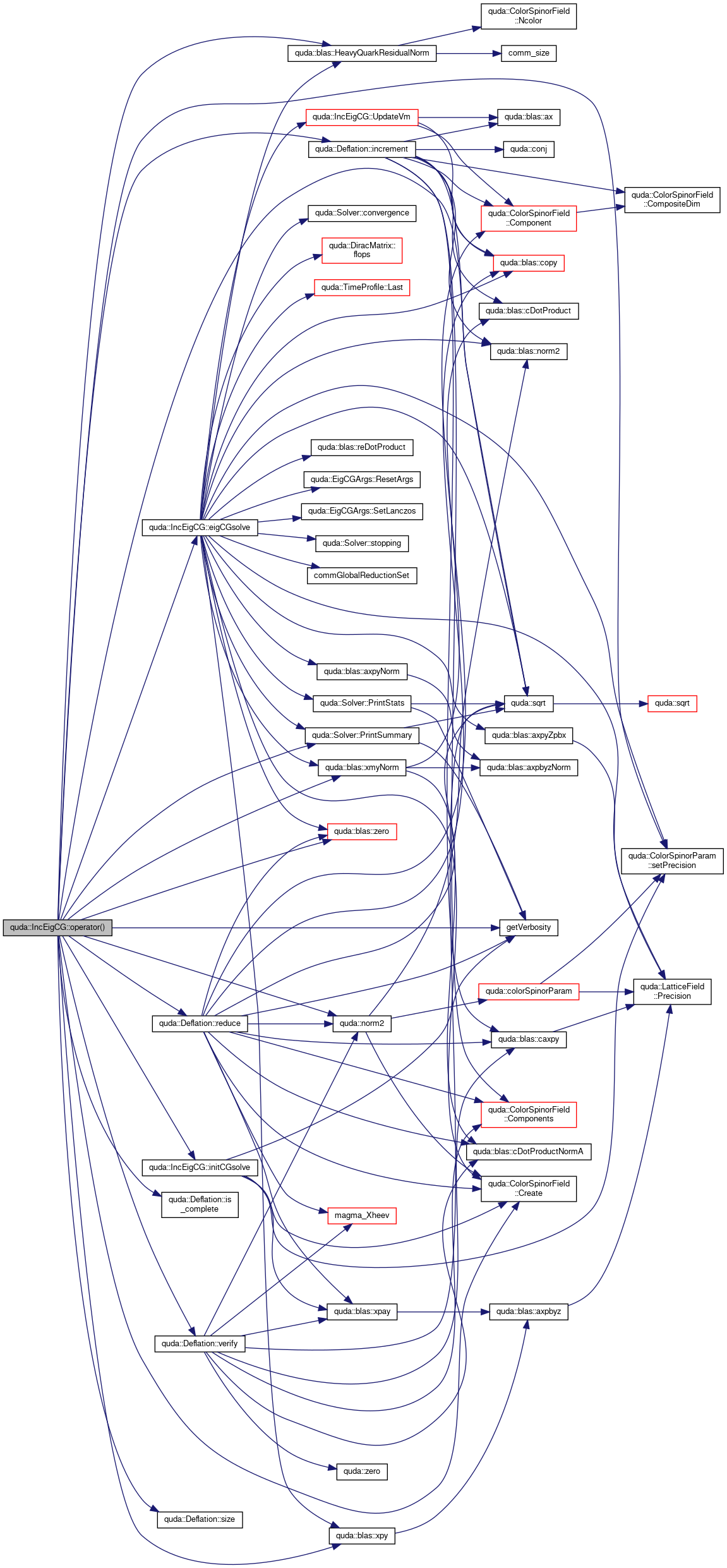

Here is the call graph for this function:

◆ RestartVT()

void quda::IncEigCG::RestartVT	(	const double	beta,
		const double	rho
	)

Definition at line 316 of file inv_eigcg_quda.cpp.

References Ap, Az, quda::blas::caxpy(), quda::ColorSpinorField::Component(), quda::ColorSpinorField::Components(), quda::blas::copy(), eigcg_args, errorQuda, quda::SolverParam::extlib_type, quda::EigCGArgs::k, quda::EigCGArgs::m, omega, quda::Solver::param, quda::LatticeField::Precision(), QUDA_EIGEN_EXTLIB, QUDA_MAGMA_EXTLIB, quda::EigCGArgs::RestartLanczos(), quda::EigCGArgs::ritzVecs, quda::EigCGArgs::V2k, Vm, quda::blas::xpay(), and quda::blas::zero().

Referenced by UpdateVm().

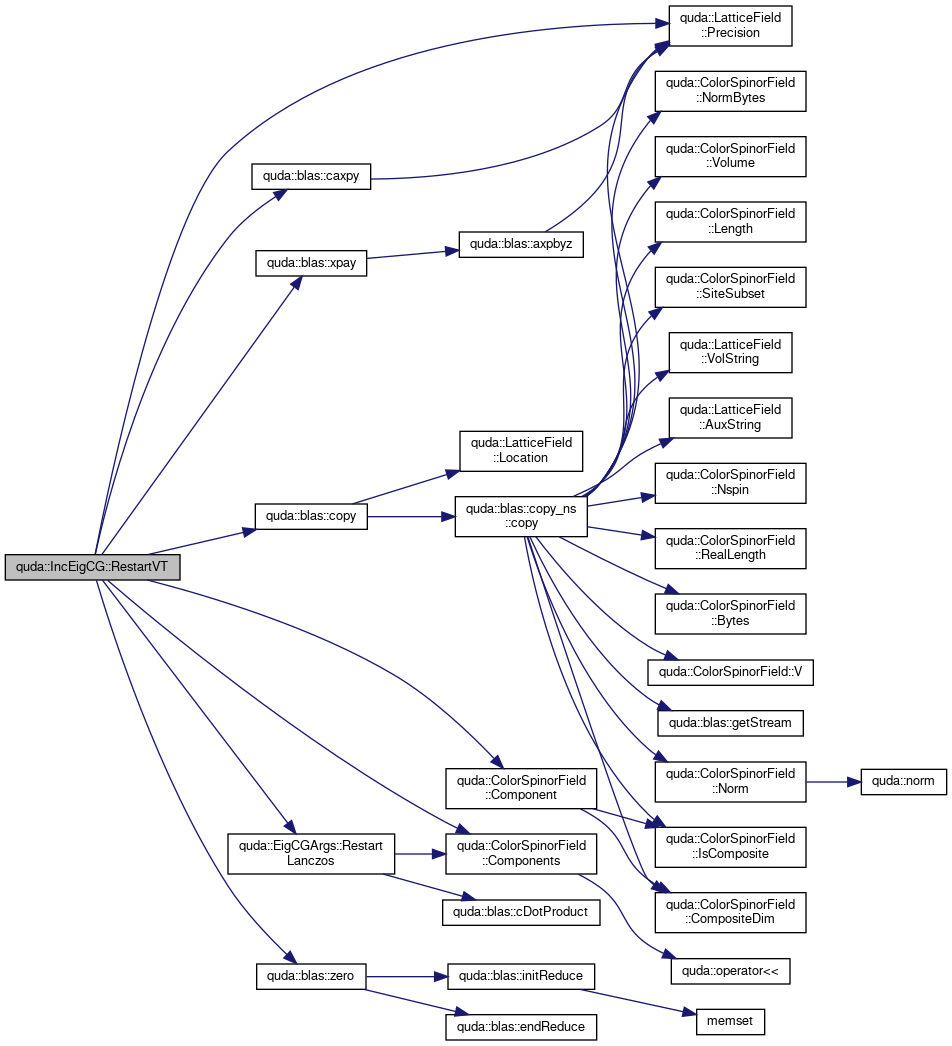

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateVm()

void quda::IncEigCG::UpdateVm	(	ColorSpinorField &	res,
		double	beta,
		double	sqrtr2
	)

Definition at line 357 of file inv_eigcg_quda.cpp.

References Ap, quda::blas::ax(), Az, quda::ColorSpinorField::Component(), quda::blas::copy(), eigcg_args, quda::EigCGArgs::id, quda::SolverParam::m, quda::Solver::param, quda::EigCGArgs::ResetSearchIdx(), RestartVT(), quda::EigCGArgs::run_residual_correction, and Vm.

Referenced by eigCGsolve().

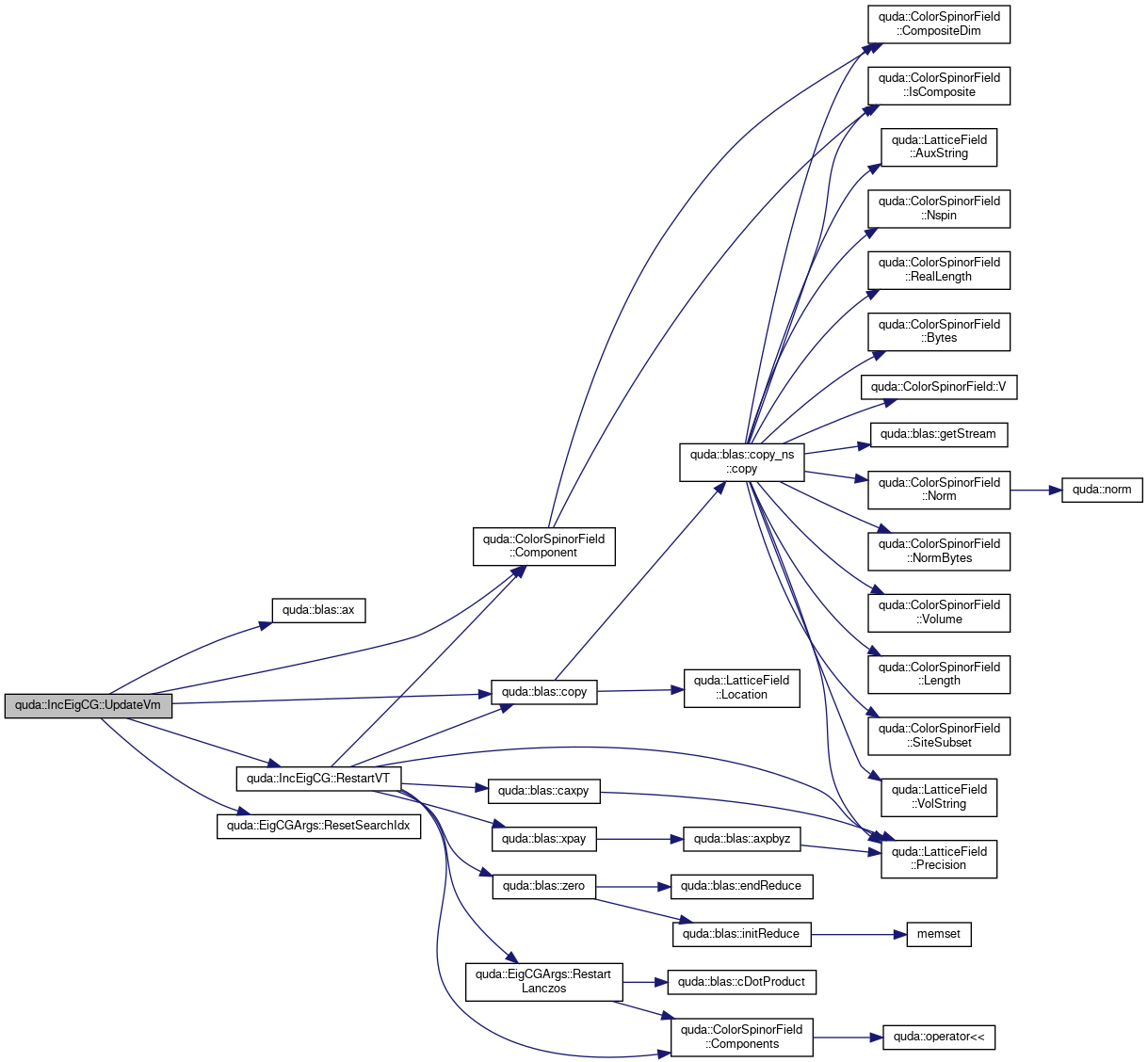

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ Ap

ColorSpinorField* quda::IncEigCG::Ap

private

Definition at line 1240 of file invert_quda.h.

Referenced by eigCGsolve(), RestartVT(), UpdateVm(), and ~IncEigCG().

◆ Az

ColorSpinorField* quda::IncEigCG::Az

private

temporary for mat-vec

Definition at line 1242 of file invert_quda.h.

Referenced by eigCGsolve(), RestartVT(), UpdateVm(), and ~IncEigCG().

◆ eigcg_args

EigCGArgs* quda::IncEigCG::eigcg_args

private

preconditioner result

Definition at line 1246 of file invert_quda.h.

Referenced by eigCGsolve(), operator()(), RestartVT(), UpdateVm(), and ~IncEigCG().

◆ init

bool quda::IncEigCG::init

private

Definition at line 1250 of file invert_quda.h.

Referenced by eigCGsolve(), and ~IncEigCG().

◆ K

Solver* quda::IncEigCG::K

private

Definition at line 1232 of file invert_quda.h.

Referenced by eigCGsolve(), IncEigCG(), initCGsolve(), operator()(), and ~IncEigCG().

◆ Kparam

SolverParam quda::IncEigCG::Kparam

private

Definition at line 1233 of file invert_quda.h.

Referenced by eigCGsolve(), IncEigCG(), initCGsolve(), and operator()().

◆ mat

DiracMatrix& quda::IncEigCG::mat

private

Definition at line 1228 of file invert_quda.h.

Referenced by initCGsolve(), and operator()().

◆ matPrecon

DiracMatrix& quda::IncEigCG::matPrecon

private

Definition at line 1230 of file invert_quda.h.

Referenced by initCGsolve(), and operator()().

◆ matSloppy

DiracMatrix& quda::IncEigCG::matSloppy

private

Definition at line 1229 of file invert_quda.h.

Referenced by eigCGsolve(), and operator()().

◆ p

ColorSpinorField* quda::IncEigCG::p

private

high precision accumulator

Definition at line 1239 of file invert_quda.h.

Referenced by eigCGsolve(), and ~IncEigCG().

◆ p_pre

ColorSpinorField* quda::IncEigCG::p_pre

private

residual passed to preconditioner

Definition at line 1244 of file invert_quda.h.

Referenced by eigCGsolve(), and ~IncEigCG().

◆ profile

TimeProfile& quda::IncEigCG::profile

private

Definition at line 1248 of file invert_quda.h.

Referenced by eigCGsolve(), initCGsolve(), and operator()().

◆ r_pre

ColorSpinorField* quda::IncEigCG::r_pre

private

Definition at line 1243 of file invert_quda.h.

Referenced by eigCGsolve(), and ~IncEigCG().

◆ rp

ColorSpinorField* quda::IncEigCG::rp

private

Definition at line 1237 of file invert_quda.h.

Referenced by eigCGsolve(), initCGsolve(), operator()(), and ~IncEigCG().

◆ tmpp

ColorSpinorField* quda::IncEigCG::tmpp

private

Definition at line 1241 of file invert_quda.h.

Referenced by eigCGsolve(), and ~IncEigCG().

◆ Vm

ColorSpinorFieldSet* quda::IncEigCG::Vm

private

Definition at line 1235 of file invert_quda.h.

Referenced by eigCGsolve(), operator()(), RestartVT(), UpdateVm(), and ~IncEigCG().

◆ yp

ColorSpinorField* quda::IncEigCG::yp

private

residual vector

Definition at line 1238 of file invert_quda.h.

Referenced by eigCGsolve(), and ~IncEigCG().

The documentation for this class was generated from the following files:

include/invert_quda.h
lib/inv_eigcg_quda.cpp
