#include <clover_field.h>

Inheritance diagram for quda::cpuCloverField:

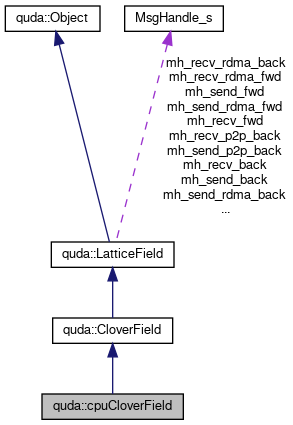

Collaboration diagram for quda::cpuCloverField:

[legend]

Public Member Functions
	cpuCloverField (const CloverFieldParam &param)

virtual	~cpuCloverField ()

Public Member Functions inherited from quda::CloverField
	CloverField (const CloverFieldParam &param)

virtual	~CloverField ()

void *	V (bool inverse=false)

void *	Norm (bool inverse=false)

const void *	V (bool inverse=false) const

const void *	Norm (bool inverse=false) const

bool	isNative () const

double *	TrLog () const

QudaCloverFieldOrder	Order () const

size_t	Bytes () const

size_t	NormBytes () const

int	Ncolor () const

int	Nspin () const

double	Csw () const

bool	Twisted () const

double	Mu2 () const

double	Rho () const

void	setRho (double rho)
	Bakes in the rho factor into the clover field, (for real diagonal additive Hasenbusch), e.g., A + rho. More...

double	norm1 () const
	Compute the L1 norm of the field. More...

double	norm2 () const
	Compute the L2 norm squared of the field. More...

double	abs_max () const
	Compute the absolute maximum of the field (Linfinity norm) More...

double	abs_min () const
	Compute the absolute minimum of the field. More...

Public Member Functions inherited from quda::LatticeField
	LatticeField (const LatticeFieldParam &param)

	LatticeField (const LatticeField &field)

virtual	~LatticeField ()

void	allocateGhostBuffer (size_t ghost_bytes) const
	Allocate the static ghost buffers. More...

void	createComms (bool no_comms_fill=false, bool bidir=true)

void	destroyComms ()

void	createIPCComms ()

bool	ipcCopyComplete (int dir, int dim)

bool	ipcRemoteCopyComplete (int dir, int dim)

const cudaEvent_t &	getIPCCopyEvent (int dir, int dim) const

const cudaEvent_t &	getIPCRemoteCopyEvent (int dir, int dim) const

int	Ndim () const

const int *	X () const

int	Volume () const

int	VolumeCB () const

const int *	SurfaceCB () const

int	SurfaceCB (const int i) const

int	Stride () const

int	Pad () const

const int *	R () const

QudaGhostExchange	GhostExchange () const

QudaPrecision	Precision () const

QudaPrecision	GhostPrecision () const

double	Scale () const

void	Scale (double scale_)
	Set the scale factor for a fixed-point field. More...

virtual QudaSiteSubset	SiteSubset () const

virtual QudaMemoryType	MemType () const

int	Nvec () const

QudaFieldLocation	Location () const

size_t	GBytes () const

void	checkField (const LatticeField &a) const

virtual void	read (char *filename)

virtual void	write (char *filename)

virtual void	gather (int nFace, int dagger, int dir, cudaStream_t *stream_p=NULL)

virtual void	commsStart (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)

virtual int	commsQuery (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)

virtual void	commsWait (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)

virtual void	scatter (int nFace, int dagger, int dir)

const char *	VolString () const

const char *	AuxString () const

virtual void	backup () const
	Backs up the LatticeField. More...

virtual void	restore () const
	Restores the LatticeField. More...

Public Member Functions inherited from quda::Object
	Object ()

virtual	~Object ()

Additional Inherited Members
Static Public Member Functions inherited from quda::LatticeField
static void	freeGhostBuffer (void)
	Free statically allocated ghost buffers. More...

static void	destroyIPCComms ()

Static Public Member Functions inherited from quda::Object
static void *	operator new (std::size_t size)

static void	operator delete (void *p)

static void *	operator new[] (std::size_t size)

static void	operator delete[] (void *p)

Static Public Attributes inherited from quda::LatticeField
static int	bufferIndex = 0

static bool	ghost_field_reset = false

Protected Member Functions inherited from quda::LatticeField
virtual void	setTuningString ()

void	precisionCheck ()

Protected Attributes inherited from quda::CloverField
size_t	bytes

size_t	norm_bytes

size_t	length

size_t	real_length

int	nColor

int	nSpin

void *	clover

void *	norm

void *	cloverInv

void *	invNorm

double	csw

bool	twisted

double	mu2

double	rho

QudaCloverFieldOrder	order

QudaFieldCreate	create

double	trlog [2]

Protected Attributes inherited from quda::LatticeField
int	volume

int	volumeCB

int	stride

int	pad

size_t	total_bytes

int	nDim

int	x [QUDA_MAX_DIM]

int	surface [QUDA_MAX_DIM]

int	surfaceCB [QUDA_MAX_DIM]

int	r [QUDA_MAX_DIM]

QudaPrecision	precision

QudaPrecision	ghost_precision

bool	ghost_precision_reset

double	scale

QudaSiteSubset	siteSubset

QudaGhostExchange	ghostExchange

int	nDimComms

size_t	ghost_bytes

size_t	ghost_bytes_old

size_t	ghost_face_bytes [QUDA_MAX_DIM]

int	ghostOffset [QUDA_MAX_DIM][2]

int	ghostNormOffset [QUDA_MAX_DIM][2]

void *	my_face_h [2]

void *	my_face_hd [2]

void *	my_face_d [2]

void *	my_face_dim_dir_h [2][QUDA_MAX_DIM][2]

void *	my_face_dim_dir_hd [2][QUDA_MAX_DIM][2]

void *	my_face_dim_dir_d [2][QUDA_MAX_DIM][2]

void *	from_face_h [2]

void *	from_face_hd [2]

void *	from_face_d [2]

void *	from_face_dim_dir_h [2][QUDA_MAX_DIM][2]

void *	from_face_dim_dir_hd [2][QUDA_MAX_DIM][2]

void *	from_face_dim_dir_d [2][QUDA_MAX_DIM][2]

MsgHandle *	mh_recv_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_recv_back [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_back [2][QUDA_MAX_DIM]

MsgHandle *	mh_recv_rdma_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_recv_rdma_back [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_rdma_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_rdma_back [2][QUDA_MAX_DIM]

bool	initComms

char	vol_string [TuneKey::volume_n]

char	aux_string [TuneKey::aux_n]

QudaMemoryType	mem_type

char *	backup_h

char *	backup_norm_h

bool	backed_up

Static Protected Attributes inherited from quda::LatticeField
static void *	ghost_send_buffer_d [2] = {nullptr, nullptr}

static void *	ghost_recv_buffer_d [2] = {nullptr, nullptr}

static void *	ghost_pinned_send_buffer_h [2] = {nullptr, nullptr}

static void *	ghost_pinned_recv_buffer_h [2] = {nullptr, nullptr}

static void *	ghost_pinned_send_buffer_hd [2] = {nullptr, nullptr}

static void *	ghost_pinned_recv_buffer_hd [2] = {nullptr, nullptr}

static void *	ghost_remote_send_buffer_d [2][QUDA_MAX_DIM][2]

static size_t	ghostFaceBytes = 0

static bool	initGhostFaceBuffer = false

static MsgHandle *	mh_send_p2p_fwd [2][QUDA_MAX_DIM] { }

static MsgHandle *	mh_send_p2p_back [2][QUDA_MAX_DIM] { }

static MsgHandle *	mh_recv_p2p_fwd [2][QUDA_MAX_DIM] { }

static MsgHandle *	mh_recv_p2p_back [2][QUDA_MAX_DIM] { }

static int	buffer_send_p2p_fwd [2][QUDA_MAX_DIM] { }

static int	buffer_recv_p2p_fwd [2][QUDA_MAX_DIM] { }

static int	buffer_send_p2p_back [2][QUDA_MAX_DIM] { }

static int	buffer_recv_p2p_back [2][QUDA_MAX_DIM] { }

static cudaEvent_t	ipcCopyEvent [2][2][QUDA_MAX_DIM]

static cudaEvent_t	ipcRemoteCopyEvent [2][2][QUDA_MAX_DIM]

static bool	initIPCComms = false
