quda::MGParam Struct Reference

#include <multigrid.h>

Inheritance diagram for quda::MGParam:

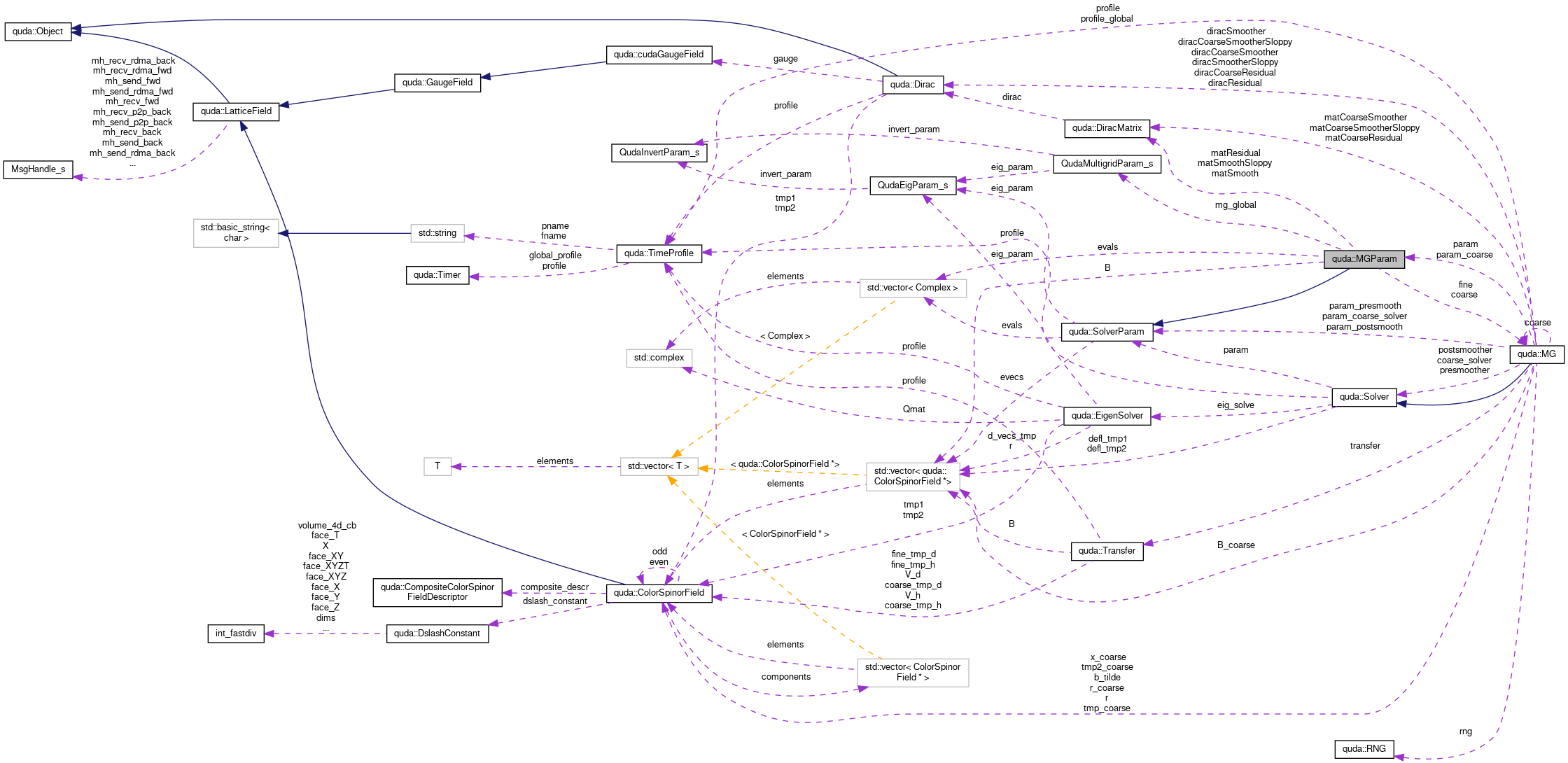

Collaboration diagram for quda::MGParam:

Public Member Functions
	MGParam (QudaMultigridParam &param, std::vector< ColorSpinorField *> &B, DiracMatrix *matResidual, DiracMatrix *matSmooth, DiracMatrix *matSmoothSloppy, int level=0)
	MGParam (const MGParam &param, std::vector< ColorSpinorField *> &B, std::vector< Complex > evals, DiracMatrix *matResidual, DiracMatrix *matSmooth, DiracMatrix *matSmoothSloppy, int level=0)
Public Member Functions inherited from quda::SolverParam
	SolverParam ()
	SolverParam (const QudaInvertParam &param)
	SolverParam (const SolverParam &param)
	~SolverParam ()
void	updateInvertParam (QudaInvertParam &param, int offset=-1)
void	updateRhsIndex (QudaInvertParam &param)

Public Attributes
QudaMultigridParam &	mg_global
int	level
int	Nlevel
int	geoBlockSize [QUDA_MAX_DIM]
int	spinBlockSize
int	Nvec
int	NblockOrtho
MG *	coarse
MG *	fine
std::vector< ColorSpinorField * > &	B
std::vector< Complex >	evals
int	nu_pre
int	nu_post
double	smoother_tol
QudaMultigridCycleType	cycle_type
QudaBoolean	global_reduction
DiracMatrix *	matResidual
DiracMatrix *	matSmooth
DiracMatrix *	matSmoothSloppy
QudaInverterType	smoother
QudaSolutionType	coarse_grid_solution_type
QudaSolveType	smoother_solve_type
QudaFieldLocation	location
QudaFieldLocation	setup_location
char	filename [100]
Public Attributes inherited from quda::SolverParam
QudaInverterType	inv_type
QudaInverterType	inv_type_precondition
void *	preconditioner
void *	deflation_op
QudaResidualType	residual_type
bool	deflate
QudaEigParam	eig_param
std::vector< ColorSpinorField * >	evecs
std::vector< Complex >	evals
QudaUseInitGuess	use_init_guess
QudaComputeNullVector	compute_null_vector
double	delta
bool	use_alternative_reliable
bool	use_sloppy_partial_accumulator
int	solution_accumulator_pipeline
int	max_res_increase
int	max_res_increase_total
int	max_hq_res_increase
int	max_hq_res_restart_total
int	heavy_quark_check
int	pipeline
double	tol
double	tol_restart
double	tol_hq
bool	compute_true_res
bool	sloppy_converge
double	true_res
double	true_res_hq
int	maxiter
int	iter
QudaPrecision	precision
QudaPrecision	precision_sloppy
QudaPrecision	precision_refinement_sloppy
QudaPrecision	precision_precondition
QudaPreserveSource	preserve_source
bool	return_residual
int	overlap_precondition
int	num_src
int	num_offset
double	offset [QUDA_MAX_MULTI_SHIFT]
double	tol_offset [QUDA_MAX_MULTI_SHIFT]
double	tol_hq_offset [QUDA_MAX_MULTI_SHIFT]
double	true_res_offset [QUDA_MAX_MULTI_SHIFT]
double	iter_res_offset [QUDA_MAX_MULTI_SHIFT]
double	true_res_hq_offset [QUDA_MAX_MULTI_SHIFT]
int	Nsteps
int	Nkrylov
int	precondition_cycle
double	tol_precondition
int	maxiter_precondition
double	omega
QudaCABasis	ca_basis
double	ca_lambda_min
double	ca_lambda_max
QudaSchwarzType	schwarz_type
double	secs
double	gflops
QudaPrecision	precision_ritz
int	nev
int	m
int	deflation_grid
int	rhs_idx
int	eigcg_max_restarts
int	max_restart_num
double	inc_tol
double	eigenval_tol
QudaVerbosity	verbosity_precondition
bool	is_preconditioner
	verbosity to use for preconditioner More...
bool	global_reduction
	whether the solver acting as a preconditioner for another solver More...
bool	mg_instance
	whether to use a global or local (node) reduction for this solver More...
QudaExtLibType	extlib_type

Detailed Description

This struct contains all the metadata required to define the multigrid solver. For each level of multigrid we will have an instance of MGParam describing all the meta data appropriate for given level.

Definition at line 26 of file multigrid.h.

Constructor & Destructor Documentation

MGParam() [1/2]

quda::MGParam::MGParam ( QudaMultigridParam &  param, std::vector< ColorSpinorField *> &  B, DiracMatrix *  matResidual, DiracMatrix *  matSmooth, DiracMatrix *  matSmoothSloppy, int  level = 0  )

inline

This is top level instantiation done when we start creating the multigrid operator.

Definition at line 108 of file multigrid.h.

References QudaMultigridParam_s::geo_block_size, quda::SolverParam::omega, QudaMultigridParam_s::omega, and QUDA_MAX_DIM.

MGParam() [2/2]

quda::MGParam::MGParam ( const MGParam &  param, std::vector< ColorSpinorField *> &  B, std::vector< Complex >  evals, DiracMatrix *  matResidual, DiracMatrix *  matSmooth, DiracMatrix *  matSmoothSloppy, int  level = 0  )

inline

Definition at line 139 of file multigrid.h.

References QudaMultigridParam_s::geo_block_size, mg_global, quda::SolverParam::omega, QudaMultigridParam_s::omega, and QUDA_MAX_DIM.

Member Data Documentation

B

std::vector<ColorSpinorField*>& quda::MGParam::B

The null space vectors

Definition at line 57 of file multigrid.h.

Referenced by quda::MG::dumpNullVectors(), quda::MG::generateEigenVectors(), quda::MG::generateNullVectors(), quda::MG::MG(), quda::MG::reset(), and quda::MG::verify().

coarse

MG* quda::MGParam::coarse

This is the next lower level

Definition at line 51 of file multigrid.h.

coarse_grid_solution_type

QudaSolutionType quda::MGParam::coarse_grid_solution_type

The type of residual to send to the next coarse grid, and thus the type of solution to receive back from this coarse grid

Definition at line 91 of file multigrid.h.

Referenced by quda::MG::createCoarseDirac(), quda::MG::MG(), quda::MG::operator()(), and quda::MG::verify().

cycle_type

QudaMultigridCycleType quda::MGParam::cycle_type

Multigrid cycle type

Definition at line 72 of file multigrid.h.

Referenced by quda::MG::createCoarseSolver(), quda::MG::destroyCoarseSolver(), and quda::MG::~MG().

evals

std::vector<Complex> quda::MGParam::evals

The eigenvalue array

Definition at line 60 of file multigrid.h.

Referenced by quda::MG::MG(), and quda::MG::reset().

filename

char quda::MGParam::filename[100]

Filename for where to load/store the null space

Definition at line 103 of file multigrid.h.

fine

MG* quda::MGParam::fine

This is the immediate finer level

Definition at line 54 of file multigrid.h.

Referenced by quda::MG::reset().

geoBlockSize

int quda::MGParam::geoBlockSize[QUDA_MAX_DIM]

Geometric block size

Definition at line 39 of file multigrid.h.

Referenced by quda::MG::reset(), and quda::MG::verify().

global_reduction

QudaBoolean quda::MGParam::global_reduction

Whether to use global or local (node) reductions

Definition at line 75 of file multigrid.h.

Referenced by quda::MG::createSmoother().

level

int quda::MGParam::level

What is the level of this instance

Definition at line 33 of file multigrid.h.

Referenced by quda::MG::buildFreeVectors(), quda::MG::createCoarseDirac(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::MG::destroyCoarseSolver(), quda::MG::destroySmoother(), quda::MG::dumpNullVectors(), quda::MG::flops(), quda::MG::generateEigenVectors(), quda::MG::generateNullVectors(), quda::MG::loadVectors(), quda::MG::MG(), quda::MG::operator()(), quda::MG::reset(), quda::MG::saveVectors(), quda::MG::verify(), and quda::MG::~MG().

location

QudaFieldLocation quda::MGParam::location

Where to compute this level of multigrid

Definition at line 97 of file multigrid.h.

Referenced by quda::MG::MG(), and quda::MG::verify().

matResidual

DiracMatrix* quda::MGParam::matResidual

The Dirac operator to use for residual computation

Definition at line 78 of file multigrid.h.

Referenced by quda::MG::operator()(), quda::MG::reset(), and quda::MG::verify().

matSmooth

DiracMatrix* quda::MGParam::matSmooth

The Dirac operator to use for smoothing

Definition at line 81 of file multigrid.h.

Referenced by quda::MG::createCoarseDirac(), quda::MG::createSmoother(), quda::MG::generateNullVectors(), and quda::MG::reset().

matSmoothSloppy

DiracMatrix* quda::MGParam::matSmoothSloppy

The sloppy Dirac operator to use for smoothing

Definition at line 84 of file multigrid.h.

Referenced by quda::MG::createSmoother(), quda::MG::generateNullVectors(), and quda::MG::reset().

mg_global

QudaMultigridParam& quda::MGParam::mg_global

This points to the parameter struct that is passed into QUDA. We use this to set per-level parameters

Definition at line 30 of file multigrid.h.

Referenced by quda::MG::buildFreeVectors(), quda::MG::createCoarseDirac(), quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::MG::generateEigenVectors(), quda::MG::generateNullVectors(), quda::MG::loadVectors(), quda::MG::MG(), MGParam(), quda::MG::operator()(), quda::MG::pushLevel(), quda::MG::reset(), quda::MG::saveVectors(), quda::MG::verify(), and quda::MG::~MG().

NblockOrtho

int quda::MGParam::NblockOrtho

Number of times to apply Gram-Schmidt within a block

Definition at line 48 of file multigrid.h.

Referenced by quda::MG::reset().

Nlevel

int quda::MGParam::Nlevel

Number of levels in the solver

Definition at line 36 of file multigrid.h.

Referenced by quda::MG::createCoarseSolver(), quda::MG::createSmoother(), quda::MG::destroyCoarseSolver(), quda::MG::dumpNullVectors(), quda::MG::flops(), quda::MG::generateNullVectors(), quda::MG::MG(), quda::MG::operator()(), quda::MG::reset(), quda::MG::verify(), and quda::MG::~MG().

nu_post

int quda::MGParam::nu_post

Number of pre-smoothing applications to perform

Definition at line 66 of file multigrid.h.

Referenced by quda::MG::createSmoother().

nu_pre

int quda::MGParam::nu_pre

Number of pre-smoothing applications to perform

Definition at line 63 of file multigrid.h.

Referenced by quda::MG::createSmoother().

Nvec

int quda::MGParam::Nvec

Number of vectors used to define coarse space

Definition at line 45 of file multigrid.h.

Referenced by quda::MG::createCoarseDirac(), quda::MG::generateNullVectors(), quda::MG::reset(), quda::MG::verify(), and quda::MG::~MG().

setup_location

QudaFieldLocation quda::MGParam::setup_location

Where to compute this level of the multigrid setup

Definition at line 100 of file multigrid.h.

Referenced by quda::MG::createCoarseDirac().

smoother

QudaInverterType quda::MGParam::smoother

What type of smoother to use

Definition at line 87 of file multigrid.h.

Referenced by quda::MG::createSmoother().

smoother_solve_type

QudaSolveType quda::MGParam::smoother_solve_type

The type of smoother solve to do on each grid (e/o preconditioning or not)

Definition at line 94 of file multigrid.h.

Referenced by quda::MG::createCoarseDirac(), quda::MG::MG(), quda::MG::operator()(), quda::MG::verify(), and quda::MG::~MG().

smoother_tol

double quda::MGParam::smoother_tol

Tolerance to use for the solver / smoother (if applicable)

Definition at line 69 of file multigrid.h.

Referenced by quda::MG::createSmoother().

spinBlockSize

int quda::MGParam::spinBlockSize

Spin block size

Definition at line 42 of file multigrid.h.

Referenced by quda::MG::reset(), and quda::MG::verify().

---

The documentation for this struct was generated from the following file:

• include/multigrid.h
