#include <gauge_field_order.h>

Collaboration diagram for quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >:

[legend]

Public Member Functions
	FieldOrder (GaugeField &U, void gauge_=0, void *ghost_=0)

	FieldOrder (const FieldOrder &o)

void	resetScale (double max)

__device__ __host__ complex< Float >	operator() (int d, int parity, int x, int row, int col) const

__device__ __host__ fieldorder_wrapper< Float, storeFloat >	operator() (int d, int parity, int x, int row, int col)

__device__ __host__ complex< Float >	Ghost (int d, int parity, int x, int row, int col) const

__device__ __host__ fieldorder_wrapper< Float, storeFloat >	Ghost (int d, int parity, int x, int row, int col)

__device__ __host__ const complex< Float >	operator() (int d, int parity, int x, int s_row, int s_col, int c_row, int c_col) const

__device__ __host__ fieldorder_wrapper< Float, storeFloat >	operator() (int d, int parity, int x, int s_row, int s_col, int c_row, int c_col)

__device__ __host__ complex< Float >	Ghost (int d, int parity, int x, int s_row, int s_col, int c_row, int c_col) const

__device__ __host__ fieldorder_wrapper< Float, storeFloat >	Ghost (int d, int parity, int x, int s_row, int s_col, int c_row, int c_col)

template<typename theirFloat >
__device__ __host__ void	atomicAdd (int d, int parity, int x, int s_row, int s_col, int c_row, int c_col, const complex< theirFloat > &val)

__device__ __host__ int	Ncolor () const

__device__ __host__ int	Volume () const

__device__ __host__ int	VolumeCB () const

__device__ __host__ int	Ndim () const

__device__ __host__ int	Geometry () const

__device__ __host__ int	NspinCoarse () const

__device__ __host__ int	NcolorCoarse () const

__host__ double	norm1 (int dim=-1, bool global=true) const
	Returns the L1 norm of the field in a given dimension. More...

__host__ double	norm2 (int dim=-1, bool global=true) const
	Returns the L2 norm squared of the field in a given dimension. More...

__host__ double	abs_max (int dim=-1, bool global=true) const
	Returns the Linfinity norm of the field in a given dimension. More...

__host__ double	abs_min (int dim=-1, bool global=true) const
	Returns the minimum absolute value of the field. More...

size_t	Bytes () const

Static Public Member Functions
static constexpr bool	fixedPoint ()

Public Attributes
const int	volumeCB

const int	nDim

const int_fastdiv	geometry

const QudaFieldLocation	location

Accessor< Float, nColor, order, storeFloat, use_tex >	accessor

GhostAccessor< Float, nColor, order, native_ghost, storeFloat, use_tex >	ghostAccessor

Static Public Attributes
static constexpr int	nColorCoarse = nColor / nSpinCoarse

Detailed Description

template<typename Float, int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>
struct quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >

This is a template driven generic gauge field accessor. To deploy for a specifc field ordering, the two operator() accessors have to be specialized for that ordering.

Template Parameters

Float	Underlying type returned by the accessors
nColor	Number of colors for the field
nSpinCoarse	Number of "spin degrees of freedom" (for coarse-link fields only)
order	Storage order of the field
native_ghost	Whether to use native ghosts (inlined into the padded area for internal-order fields or use a separate array if false)

Definition at line 896 of file gauge_field_order.h.

Constructor & Destructor Documentation

◆ FieldOrder() [1/2]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::FieldOrder	(	GaugeField &	U,
		void *	gauge_ = `0`,
		void **	ghost_ = `0`
	)

inline

Constructor for the FieldOrder class

Parameters

field The field that we are accessing

Definition at line 912 of file gauge_field_order.h.

References errorQuda, QUDA_RECONSTRUCT_NO, and quda::GaugeField::Reconstruct().

Here is the call graph for this function:

◆ FieldOrder() [2/2]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::FieldOrder ( const FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex > & o )

inline

Definition at line 921 of file gauge_field_order.h.

Member Function Documentation

◆ abs_max()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__host__ double quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::abs_max	(	int	dim = `-1`,
		bool	global = `true`
	)		const

inline

Returns the Linfinity norm of the field in a given dimension.

Parameters

[in] dim Which dimension we are taking the norm of (dim=-1 mean all dimensions)

Returns: Linfinity norm

Definition at line 1093 of file gauge_field_order.h.

References comm_allreduce_max(), and quda::gauge_wrapper< Float, T >::dim.

Here is the call graph for this function:

◆ abs_min()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__host__ double quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::abs_min	(	int	dim = `-1`,
		bool	global = `true`
	)		const

inline

Returns the minimum absolute value of the field.

Parameters

[in] dim Which dimension we are taking the norm of (dim=-1 mean all dimensions)

Returns: Minimum norm

Definition at line 1105 of file gauge_field_order.h.

References comm_allreduce_min(), and quda::gauge_wrapper< Float, T >::dim.

Here is the call graph for this function:

◆ atomicAdd()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

template<typename theirFloat >

__device__ __host__ void quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::atomicAdd	(	int	d,
		int	parity,
		int	x,
		int	s_row,
		int	s_col,
		int	c_row,
		int	c_col,
		const complex< theirFloat > &	val
	)

inline

Definition at line 1038 of file gauge_field_order.h.

◆ Bytes()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

size_t quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::Bytes ( ) const

inline

Return the size of the allocation (geometry and parity left out and added as needed in Tunable::bytes)

Definition at line 1113 of file gauge_field_order.h.

References volumeCB.

◆ fixedPoint()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

static constexpr bool quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::fixedPoint ( )

inlinestatic

Definition at line 931 of file gauge_field_order.h.

◆ Geometry()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::Geometry ( ) const

inline

Returns the field geometry

Definition at line 1056 of file gauge_field_order.h.

◆ Ghost() [1/4]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ complex<Float> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::Ghost	(	int	d,
		int	parity,
		int	x,
		int	row,
		int	col
	)		const

inline

Read-only complex-member accessor function for the ghost zone

Parameters

d	dimension index
parity	Parity index
x	1-d site index
row	row index
c	column index

Definition at line 963 of file gauge_field_order.h.

◆ Ghost() [2/4]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ fieldorder_wrapper<Float,storeFloat> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::Ghost	(	int	d,
		int	parity,
		int	x,
		int	row,
		int	col
	)

inline

Writable complex-member accessor function for the ghost zone

Parameters

d	dimension index
parity	Parity index
x	1-d site index
row	row index
c	column index

Definition at line 974 of file gauge_field_order.h.

◆ Ghost() [3/4]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ complex<Float> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::Ghost	(	int	d,
		int	parity,
		int	x,
		int	s_row,
		int	s_col,
		int	c_row,
		int	c_col
	)		const

inline

Specialized read-only complex-member accessor function (for coarse gauge field ghost zone)

Parameters

d	dimension index
parity	Parity index
x	1-d site index
s_row	row spin index
c_row	row color index
s_col	col spin index
c_col	col color index

Definition at line 1017 of file gauge_field_order.h.

◆ Ghost() [4/4]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ fieldorder_wrapper<Float,storeFloat> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::Ghost	(	int	d,
		int	parity,
		int	x,
		int	s_row,
		int	s_col,
		int	c_row,
		int	c_col
	)

inline

Specialized read-only complex-member accessor function (for coarse gauge field ghost zone)

Parameters

d	dimension index
parity	Parity index
x	1-d site index
s_row	row spin index
c_row	row color index
s_col	col spin index
c_col	col color index

Definition at line 1033 of file gauge_field_order.h.

◆ Ncolor()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::Ncolor ( ) const

inline

Returns the number of field colors

Definition at line 1044 of file gauge_field_order.h.

References nColor.

◆ NcolorCoarse()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::NcolorCoarse ( ) const

inline

Returns the number of coarse gauge field colors

Definition at line 1062 of file gauge_field_order.h.

◆ Ndim()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::Ndim ( ) const

inline

Returns the field geometric dimension

Definition at line 1053 of file gauge_field_order.h.

◆ norm1()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__host__ double quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::norm1	(	int	dim = `-1`,
		bool	global = `true`
	)		const

inline

Returns the L1 norm of the field in a given dimension.

Parameters

[in] dim Which dimension we are taking the norm of (dim=-1 mean all dimensions)

Returns: L1 norm

Definition at line 1069 of file gauge_field_order.h.

References comm_allreduce(), and quda::gauge_wrapper< Float, T >::dim.

Here is the call graph for this function:

◆ norm2()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__host__ double quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::norm2	(	int	dim = `-1`,
		bool	global = `true`
	)		const

inline

Returns the L2 norm squared of the field in a given dimension.

Parameters

[in] dim Which dimension we are taking the norm of (dim=-1 mean all dimensions)

Returns: L2 norm squared

Definition at line 1081 of file gauge_field_order.h.

References comm_allreduce(), and quda::gauge_wrapper< Float, T >::dim.

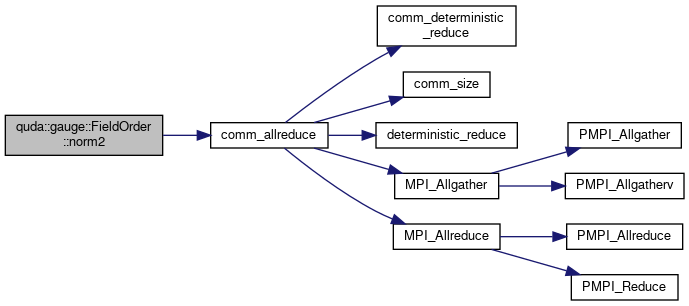

Here is the call graph for this function:

◆ NspinCoarse()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::NspinCoarse ( ) const

inline

Returns the number of coarse gauge field spins

Definition at line 1059 of file gauge_field_order.h.

◆ operator()() [1/4]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ complex<Float> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::operator()	(	int	d,
		int	parity,
		int	x,
		int	row,
		int	col
	)		const

inline

Read-only complex-member accessor function

Parameters

d	dimension index
parity	Parity index
x	1-d site index
row	row index
c	column index

Definition at line 941 of file gauge_field_order.h.

◆ operator()() [2/4]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ fieldorder_wrapper<Float,storeFloat> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::operator()	(	int	d,
		int	parity,
		int	x,
		int	row,
		int	col
	)

inline

Writable complex-member accessor function

Parameters

d	dimension index
parity	Parity index
x	1-d site index
row	row index
c	column index

Definition at line 952 of file gauge_field_order.h.

◆ operator()() [3/4]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ const complex<Float> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::operator()	(	int	d,
		int	parity,
		int	x,
		int	s_row,
		int	s_col,
		int	c_row,
		int	c_col
	)		const

inline

Specialized read-only complex-member accessor function (for coarse gauge field)

Parameters

d	dimension index
parity	Parity index
x	1-d site index
s_row	row spin index
c_row	row color index
s_col	col spin index
c_col	col color index

Definition at line 987 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::parity.

◆ operator()() [4/4]

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ fieldorder_wrapper<Float,storeFloat> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::operator()	(	int	d,
		int	parity,
		int	x,
		int	s_row,
		int	s_col,
		int	c_row,
		int	c_col
	)

inline

Specialized read-only complex-member accessor function (for coarse gauge field)

Parameters

d	dimension index
parity	Parity index
x	1-d site index
s_row	row spin index
c_row	row color index
s_col	col spin index
c_col	col color index

Definition at line 1003 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::parity.

◆ resetScale()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

void quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::resetScale ( double max )

inline

Definition at line 926 of file gauge_field_order.h.

References quda::gauge::Accessor< Float, nColor, order, storeFloat, use_tex >::resetScale(), and quda::gauge::GhostAccessor< Float, nColor, order, native_ghost, storeFloat, use_tex >::resetScale().

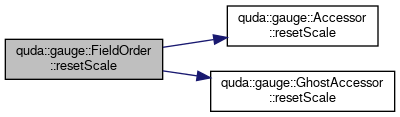

Here is the call graph for this function:

◆ Volume()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::Volume ( ) const

inline

Returns the field volume

Definition at line 1047 of file gauge_field_order.h.

References volumeCB.

◆ VolumeCB()

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

__device__ __host__ int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::VolumeCB ( ) const

inline

Returns the field volume

Definition at line 1050 of file gauge_field_order.h.

References volumeCB.

Member Data Documentation

◆ accessor

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

Accessor<Float,nColor,order,storeFloat,use_tex> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::accessor

Definition at line 905 of file gauge_field_order.h.

◆ geometry

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

const int_fastdiv quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::geometry

Definition at line 901 of file gauge_field_order.h.

◆ ghostAccessor

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

GhostAccessor<Float,nColor,order,native_ghost,storeFloat,use_tex> quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::ghostAccessor

Definition at line 906 of file gauge_field_order.h.

◆ location

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

const QudaFieldLocation quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::location

Definition at line 902 of file gauge_field_order.h.

◆ nColorCoarse

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

constexpr int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::nColorCoarse = nColor / nSpinCoarse

static

Definition at line 903 of file gauge_field_order.h.

◆ nDim

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

const int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::nDim

Definition at line 900 of file gauge_field_order.h.

◆ volumeCB

template<typename Float , int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>

const int quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >::volumeCB

An internal reference to the actual field we are accessing

Definition at line 899 of file gauge_field_order.h.

The documentation for this struct was generated from the following file:

include/gauge_field_order.h

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Detailed Description

template<typename Float, int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false> struct quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >

Constructor & Destructor Documentation

◆ FieldOrder() [1/2]

◆ FieldOrder() [2/2]

Member Function Documentation

◆ abs_max()

◆ abs_min()

◆ atomicAdd()

◆ Bytes()

◆ fixedPoint()

◆ Geometry()

◆ Ghost() [1/4]

◆ Ghost() [2/4]

◆ Ghost() [3/4]

◆ Ghost() [4/4]

◆ Ncolor()

◆ NcolorCoarse()

◆ Ndim()

◆ norm1()

◆ norm2()

◆ NspinCoarse()

◆ operator()() [1/4]

◆ operator()() [2/4]

◆ operator()() [3/4]

◆ operator()() [4/4]

◆ resetScale()

◆ Volume()

◆ VolumeCB()

Member Data Documentation

◆ accessor

◆ geometry

◆ ghostAccessor

◆ location

◆ nColorCoarse

◆ nDim

◆ volumeCB

template<typename Float, int nColor, int nSpinCoarse, QudaGaugeFieldOrder order, bool native_ghost = true, typename storeFloat = Float, bool use_tex = false>
struct quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost, storeFloat, use_tex >
