Classes
struct	abs_

struct	abs_< Float, char >

struct	abs_< Float, int >

struct	abs_< Float, short >

struct	Accessor

struct	Accessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, storeFloat, use_tex >

struct	Accessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, storeFloat, use_tex >

struct	Accessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, storeFloat, use_tex >

struct	BQCDOrder
	struct to define BQCD ordered gauge fields: More...

struct	CPSOrder

struct	FieldOrder

struct	fieldorder_wrapper
	fieldorder_wrapper is an internal class that is used to wrap instances of FieldOrder accessors, currying in the specific location on the field. This is used as a helper class for fixed-point accessors providing the necessary conversion and scaling when writing to a fixed-point field. More...

struct	FloatNOrder

struct	GhostAccessor

struct	GhostAccessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, native_ghost, storeFloat, use_tex >

struct	GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost, storeFloat, use_tex >

struct	GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost, storeFloat, use_tex >

struct	LegacyOrder
	The LegacyOrder defines the ghost zone storage and ordering for all cpuGaugeFields, which use the same ghost zone storage. More...

struct	MILCOrder

struct	MILCSiteOrder
	struct to define gauge fields packed into an opaque MILC site struct: More...

struct	QDPJITOrder

struct	QDPOrder

struct	Reconstruct
	Generic reconstruction helper with no reconstruction. More...

struct	Reconstruct< 11, Float, ghostExchange_ >
	Gauge reconstruct helper for Momentum field with 10 packed elements (really 9 from the Lie algebra, with zero for last element). We label this as 11 to avoid collisions with simple load/store of momentum field where we do not seek to unpack/pack. More...

struct	Reconstruct< 12, Float, ghostExchange_ >
	Gauge reconstruct 12 helper where we reconstruct the third row from the cross product of the first two rows. More...

struct	Reconstruct< 13, Float, ghostExchange_, stag_phase >
	Gauge reconstruct 13 helper where we reconstruct the third row from the cross product of the first two rows, and include a non-trivial phase factor. More...

struct	Reconstruct< 8, Float, ghostExchange_ >
	Gauge reconstruct 8 helper where we reconstruct the gauge matrix from 8 packed elements (maximal compression) More...

struct	Reconstruct< 9, Float, ghostExchange_, stag_phase >
	Gauge reconstruct 9 helper where we reconstruct the gauge matrix from 8 packed elements (maximal compression) and include a non-trivial phase factor. More...

struct	S
	This is just a dummy structure we use for trove to define the required structure size. More...

struct	square_

struct	square_< ReduceType, char >

struct	square_< ReduceType, int >

struct	square_< ReduceType, short >

struct	TIFROrder
	struct to define TIFR ordered gauge fields: [mu][parity][volumecb][col][row] More...

struct	TIFRPaddedOrder

Functions
template<typename Float , typename storeFloat >
__host__ __device__ constexpr bool	fixed_point ()

template<>
__host__ __device__ constexpr bool	fixed_point< float, char > ()

template<>
__host__ __device__ constexpr bool	fixed_point< float, short > ()

template<>
__host__ __device__ constexpr bool	fixed_point< float, int > ()

template<typename Float , typename storeFloat >
__host__ __device__ constexpr bool	match ()

template<>
__host__ __device__ constexpr bool	match< int, int > ()

template<>
__host__ __device__ constexpr bool	match< short, short > ()

template<typename Float , typename storeFloat >
__device__ __host__ complex< Float >	operator* (const Float &a, const fieldorder_wrapper< Float, storeFloat > &b)

template<typename Float , typename storeFloat >
__device__ __host__ complex< Float >	operator+ (const fieldorder_wrapper< Float, storeFloat > &a, const complex< Float > &b)

template<typename Float , typename storeFloat >
__device__ __host__ complex< Float >	operator+ (const complex< Float > &a, const fieldorder_wrapper< Float, storeFloat > &b)

template<int nColor, int N>
__device__ __host__ int	indexFloatN (int dim, int parity, int x_cb, int row, int col, int stride, int offset_cb)

template<QudaGhostExchange ghostExchange_, typename T , typename I >
__device__ __host__ T	timeBoundary (int idx, const I X[QUDA_MAX_DIM], const int R[QUDA_MAX_DIM], T tBoundary, T scale, int firstTimeSliceBound, int lastTimeSliceBound, bool isFirstTimeSlice, bool isLastTimeSlice, QudaGhostExchange ghostExchange=QUDA_GHOST_EXCHANGE_NO)
	timeBoundary Compute boundary condition correction More...

template<typename Float , typename I >
__device__ __host__ Float	milcStaggeredPhase (int dim, const int x[], const I R[])

__host__ __device__ constexpr int	ct_sqrt (int n, int i=1)

__host__ __device__ constexpr int	Ncolor (int length)
	Return the number of colors of the accessor based on the length of the field. More...

template<QudaStaggeredPhase phase>
__host__ __device__ bool	static_phase ()

Variables
constexpr bool	default_huge_alloc = true

Function Documentation

◆ ct_sqrt()

__host__ __device__ constexpr int quda::gauge::ct_sqrt	(	int	n,
		int	i = `1`
	)

Definition at line 1664 of file gauge_field_order.h.

Referenced by Ncolor().

Here is the caller graph for this function:

◆ fixed_point()

template<typename Float , typename storeFloat >

__host__ __device__ constexpr bool quda::gauge::fixed_point ( )

inline

Definition at line 218 of file gauge_field_order.h.

◆ fixed_point< float, char >()

template<>

__host__ __device__ constexpr bool quda::gauge::fixed_point< float, char > ( )

inline

Definition at line 219 of file gauge_field_order.h.

◆ fixed_point< float, int >()

template<>

__host__ __device__ constexpr bool quda::gauge::fixed_point< float, int > ( )

inline

Definition at line 221 of file gauge_field_order.h.

◆ fixed_point< float, short >()

template<>

__host__ __device__ constexpr bool quda::gauge::fixed_point< float, short > ( )

inline

Definition at line 220 of file gauge_field_order.h.

◆ indexFloatN()

template<int nColor, int N>

__device__ __host__ int quda::gauge::indexFloatN	(	int	dim,
		int	parity,
		int	x_cb,
		int	row,
		int	col,
		int	stride,
		int	offset_cb
	)

inline

Definition at line 673 of file gauge_field_order.h.

References index(), and nColor.

Here is the call graph for this function:

◆ match()

template<typename Float , typename storeFloat >

__host__ __device__ constexpr bool quda::gauge::match ( )

inline

Definition at line 223 of file gauge_field_order.h.

◆ match< int, int >()

template<>

__host__ __device__ constexpr bool quda::gauge::match< int, int > ( )

inline

Definition at line 224 of file gauge_field_order.h.

◆ match< short, short >()

template<>

__host__ __device__ constexpr bool quda::gauge::match< short, short > ( )

inline

Definition at line 225 of file gauge_field_order.h.

◆ milcStaggeredPhase()

template<typename Float , typename I >

__device__ __host__ Float quda::gauge::milcStaggeredPhase	(	int	dim,
		const int	x[],
		const I	R[]
	)

inline

Definition at line 1212 of file gauge_field_order.h.

◆ Ncolor()

__host__ __device__ constexpr int quda::gauge::Ncolor ( int length )

Return the number of colors of the accessor based on the length of the field.

Parameters

[in] length Number of real numbers per link

Returns: Number of colors (=sqrt(length/2))

Definition at line 1674 of file gauge_field_order.h.

References ct_sqrt().

Referenced by quda::checkNan(), quda::copyGauge(), quda::copyGaugeEx(), quda::copyGaugeKernel(), quda::copyGhost(), quda::copyGhostKernel(), quda::extractor(), quda::injector(), and quda::CopyGauge< FloatOut, FloatIn, length, Arg >::set_ghost().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator*()

template<typename Float , typename storeFloat >

__device__ __host__ complex<Float> quda::gauge::operator*	(	const Float &	a,
		const fieldorder_wrapper< Float, storeFloat > &	b
	)

inline

Definition at line 323 of file gauge_field_order.h.

References quda::gauge::fieldorder_wrapper< Float, storeFloat >::idx, quda::gauge::fieldorder_wrapper< Float, storeFloat >::imag(), quda::gauge::fieldorder_wrapper< Float, storeFloat >::real(), and quda::gauge::fieldorder_wrapper< Float, storeFloat >::v.

Here is the call graph for this function:

◆ operator+() [1/2]

template<typename Float , typename storeFloat >

__device__ __host__ complex<Float> quda::gauge::operator+	(	const fieldorder_wrapper< Float, storeFloat > &	a,
		const complex< Float > &	b
	)

inline

Definition at line 330 of file gauge_field_order.h.

References quda::gauge::fieldorder_wrapper< Float, storeFloat >::idx, quda::gauge::fieldorder_wrapper< Float, storeFloat >::imag(), quda::gauge::fieldorder_wrapper< Float, storeFloat >::real(), and quda::gauge::fieldorder_wrapper< Float, storeFloat >::v.

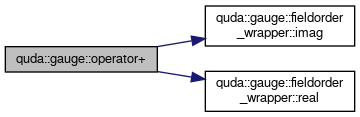

Here is the call graph for this function:

◆ operator+() [2/2]

template<typename Float , typename storeFloat >

__device__ __host__ complex<Float> quda::gauge::operator+	(	const complex< Float > &	a,
		const fieldorder_wrapper< Float, storeFloat > &	b
	)

inline

Definition at line 336 of file gauge_field_order.h.

References quda::gauge::fieldorder_wrapper< Float, storeFloat >::idx, quda::gauge::fieldorder_wrapper< Float, storeFloat >::imag(), quda::gauge::fieldorder_wrapper< Float, storeFloat >::real(), and quda::gauge::fieldorder_wrapper< Float, storeFloat >::v.

Here is the call graph for this function:

◆ static_phase()

template<QudaStaggeredPhase phase>

__host__ __device__ bool quda::gauge::static_phase ( )

inline

Definition at line 1679 of file gauge_field_order.h.

References default_huge_alloc, length, QUDA_GHOST_EXCHANGE_INVALID, QUDA_STAGGERED_PHASE_CPS, QUDA_STAGGERED_PHASE_MILC, QUDA_STAGGERED_PHASE_NO, and QUDA_STAGGERED_PHASE_TIFR.

◆ timeBoundary()

template<QudaGhostExchange ghostExchange_, typename T , typename I >

__device__ __host__ T quda::gauge::timeBoundary	(	int	idx,
		const I	X[QUDA_MAX_DIM],
		const int	R[QUDA_MAX_DIM],
		T	tBoundary,
		T	scale,
		int	firstTimeSliceBound,
		int	lastTimeSliceBound,
		bool	isFirstTimeSlice,
		bool	isLastTimeSlice,
		QudaGhostExchange	ghostExchange = `QUDA_GHOST_EXCHANGE_NO`
	)

inline

timeBoundary Compute boundary condition correction

Template Parameters

ghostExhange_ Optional template the ghostExchange type to avoid the run-time overhead

Parameters

idx	extended field linear index
X	the gauge field dimensions
R	the radii dimenions of the extended region
tBoundary	the boundary condition
isFirstTimeSlice	if we're on the first time slice of nodes
isLastTimeSlide	if we're on the last time slice of nodes
ghostExchange	if the field is extended or not (determines indexing type)

Definition at line 1179 of file gauge_field_order.h.

References QUDA_GHOST_EXCHANGE_EXTENDED, QUDA_GHOST_EXCHANGE_INVALID, QUDA_GHOST_EXCHANGE_PAD, R, and X.

Variable Documentation

◆ default_huge_alloc

constexpr bool quda::gauge::default_huge_alloc = true

Definition at line 1677 of file gauge_field_order.h.

Referenced by quda::complex< float >::complex(), and static_phase().
