The LegacyOrder defines the ghost zone storage and ordering for all cpuGaugeFields, which use the same ghost zone storage. More...

#include <gauge_field_order.h>

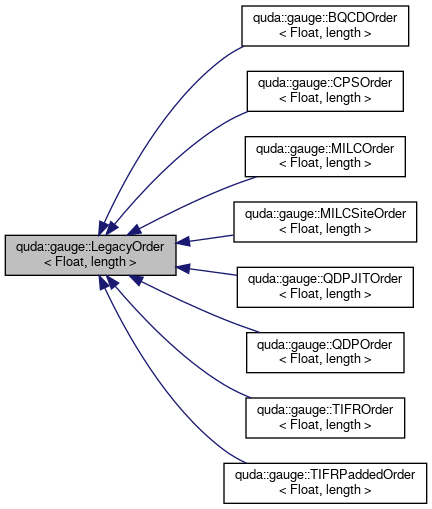

Inheritance diagram for quda::gauge::LegacyOrder< Float, length >:

[legend]

Public Types
using	Accessor = LegacyOrder< Float, length >

using	real = typename mapper< Float >::type

using	complex = complex< real >

Public Member Functions
	LegacyOrder (const GaugeField &u, Float **ghost_)

	LegacyOrder (const LegacyOrder &order)

__device__ __host__ void	loadGhost (complex v[length/2], int x, int dir, int parity, real phase=1.0) const

__device__ __host__ void	saveGhost (const complex v[length/2], int x, int dir, int parity)

__device__ __host__ gauge_ghost_wrapper< real, Accessor >	Ghost (int dim, int ghost_idx, int parity, real phase=1.0)
	This accessor routine returns a gauge_ghost_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations. More...

__device__ __host__ const gauge_ghost_wrapper< real, Accessor >	Ghost (int dim, int ghost_idx, int parity, real phase=1.0) const
	This accessor routine returns a const gauge_ghost_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations. More...

__device__ __host__ void	loadGhostEx (complex v[length/2], int x, int dummy, int dir, int dim, int g, int parity, const int R[]) const

__device__ __host__ void	saveGhostEx (const complex v[length/2], int x, int dummy, int dir, int dim, int g, int parity, const int R[])

Public Attributes
Float *	ghost [QUDA_MAX_DIM]

int	faceVolumeCB [QUDA_MAX_DIM]

const int	volumeCB

const int	stride

const int	geometry

const int	hasPhase

Detailed Description

template<typename Float, int length>
struct quda::gauge::LegacyOrder< Float, length >

The LegacyOrder defines the ghost zone storage and ordering for all cpuGaugeFields, which use the same ghost zone storage.

Definition at line 2043 of file gauge_field_order.h.

Member Typedef Documentation

◆ Accessor

template<typename Float , int length>

using quda::gauge::LegacyOrder< Float, length >::Accessor = LegacyOrder<Float, length>

Definition at line 2044 of file gauge_field_order.h.

◆ complex

template<typename Float , int length>

using quda::gauge::LegacyOrder< Float, length >::complex = complex<real>

Definition at line 2046 of file gauge_field_order.h.

◆ real

template<typename Float , int length>

using quda::gauge::LegacyOrder< Float, length >::real = typename mapper<Float>::type

Definition at line 2045 of file gauge_field_order.h.

Constructor & Destructor Documentation

◆ LegacyOrder() [1/2]

template<typename Float , int length>

quda::gauge::LegacyOrder< Float, length >::LegacyOrder	(	const GaugeField &	u,
		Float **	ghost_
	)

inline

Definition at line 2054 of file gauge_field_order.h.

References errorQuda, quda::GaugeField::Ghost(), quda::GaugeField::Nface(), QUDA_COARSE_GEOMETRY, and quda::LatticeField::SurfaceCB().

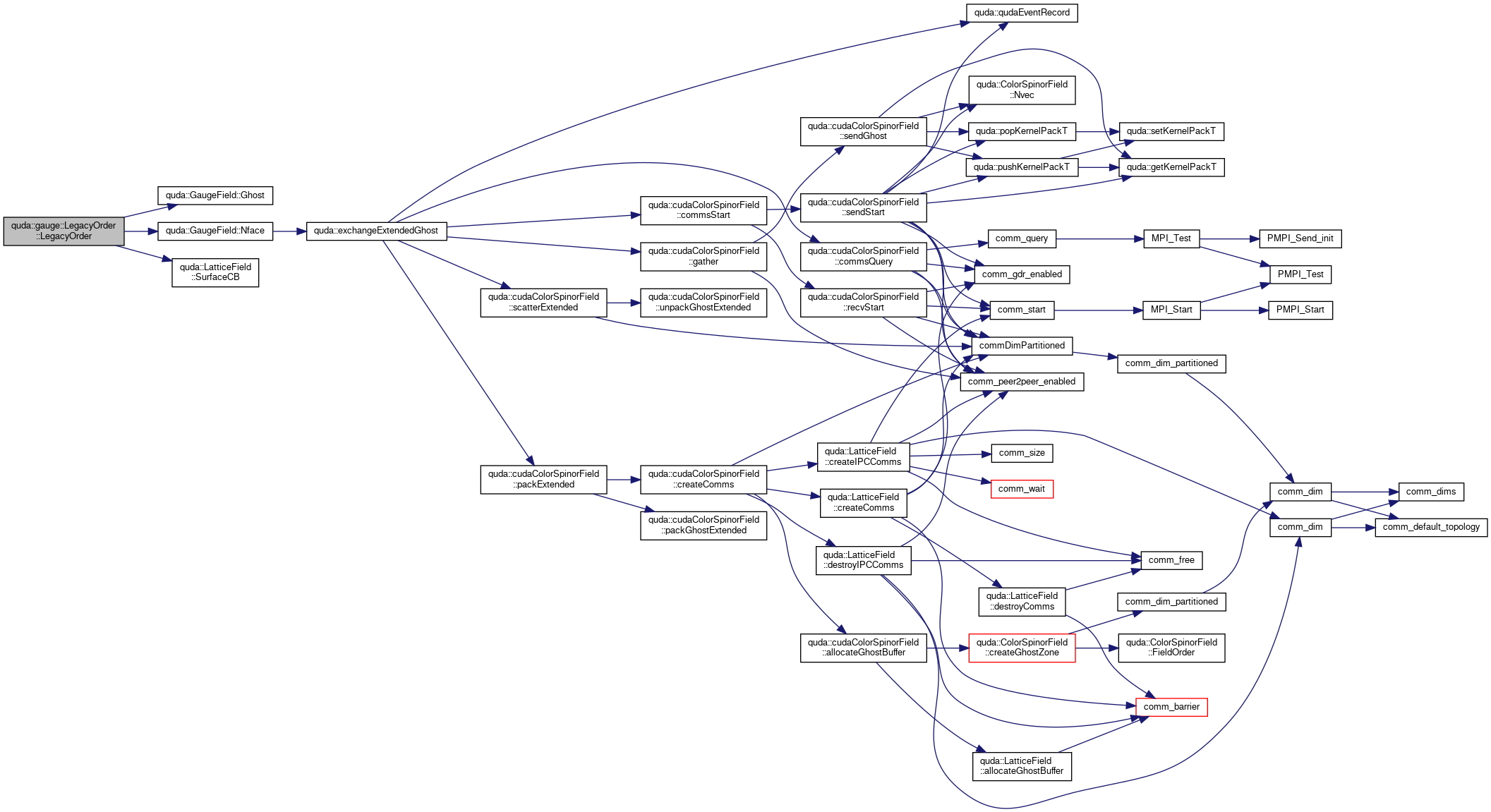

Here is the call graph for this function:

◆ LegacyOrder() [2/2]

template<typename Float , int length>

quda::gauge::LegacyOrder< Float, length >::LegacyOrder ( const LegacyOrder< Float, length > & order )

inline

Definition at line 2069 of file gauge_field_order.h.

References quda::gauge::LegacyOrder< Float, length >::faceVolumeCB, and quda::gauge::LegacyOrder< Float, length >::ghost.

Member Function Documentation

◆ Ghost() [1/2]

template<typename Float , int length>

__device__ __host__ gauge_ghost_wrapper<real, Accessor> quda::gauge::LegacyOrder< Float, length >::Ghost	(	int	dim,
		int	ghost_idx,
		int	parity,
		real	phase = `1.0`
	)

inline

This accessor routine returns a gauge_ghost_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations.

Parameters

[in]	dir	Which dimension are we requesting
[in]	ghost_idx	Ghost index we are requesting
[in]	parity	Parity we are requesting

Returns: Instance of a gauge_ghost_wrapper that curries in access to this field at the above coordinates.

Definition at line 2123 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::dim, quda::gauge_wrapper< Float, T >::parity, and quda::gauge_wrapper< Float, T >::phase.

◆ Ghost() [2/2]

template<typename Float , int length>

__device__ __host__ const gauge_ghost_wrapper<real, Accessor> quda::gauge::LegacyOrder< Float, length >::Ghost	(	int	dim,
		int	ghost_idx,
		int	parity,
		real	phase = `1.0`
	)		const

inline

This accessor routine returns a const gauge_ghost_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations.

Parameters

[in]	dir	Which dimension are we requesting
[in]	ghost_idx	Ghost index we are requesting
[in]	parity	Parity we are requesting

Returns: Instance of a gauge_ghost_wrapper that curries in access to this field at the above coordinates.

Definition at line 2139 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::dim, quda::gauge_wrapper< Float, T >::parity, and quda::gauge_wrapper< Float, T >::phase.

◆ loadGhost()

template<typename Float , int length>

__device__ __host__ void quda::gauge::LegacyOrder< Float, length >::loadGhost	(	complex	v[length/2],
		int	x,
		int	dir,
		int	parity,
		real	phase = `1.0`
	)		const

inline

Definition at line 2081 of file gauge_field_order.h.

◆ loadGhostEx()

template<typename Float , int length>

__device__ __host__ void quda::gauge::LegacyOrder< Float, length >::loadGhostEx	(	complex	v[length/2],
		int	x,
		int	dummy,
		int	dir,
		int	dim,
		int	g,
		int	parity,
		const int	R[]
	)		const

inline

Definition at line 2145 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::dim, and quda::gauge_wrapper< Float, T >::parity.

◆ saveGhost()

template<typename Float , int length>

__device__ __host__ void quda::gauge::LegacyOrder< Float, length >::saveGhost	(	const complex	v[length/2],
		int	x,
		int	dir,
		int	parity
	)

inline

Definition at line 2093 of file gauge_field_order.h.

◆ saveGhostEx()

template<typename Float , int length>

__device__ __host__ void quda::gauge::LegacyOrder< Float, length >::saveGhostEx	(	const complex	v[length/2],
		int	x,
		int	dummy,
		int	dir,
		int	dim,
		int	g,
		int	parity,
		const int	R[]
	)

inline

Definition at line 2158 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::dim, and quda::gauge_wrapper< Float, T >::parity.

Member Data Documentation

◆ faceVolumeCB

template<typename Float , int length>

int quda::gauge::LegacyOrder< Float, length >::faceVolumeCB[QUDA_MAX_DIM]

Definition at line 2048 of file gauge_field_order.h.

Referenced by quda::gauge::LegacyOrder< Float, length >::LegacyOrder().

◆ geometry

template<typename Float , int length>

const int quda::gauge::LegacyOrder< Float, length >::geometry

Definition at line 2051 of file gauge_field_order.h.

◆ ghost

template<typename Float , int length>

Float* quda::gauge::LegacyOrder< Float, length >::ghost[QUDA_MAX_DIM]

Definition at line 2047 of file gauge_field_order.h.

Referenced by quda::gauge::LegacyOrder< Float, length >::LegacyOrder().

◆ hasPhase

template<typename Float , int length>

const int quda::gauge::LegacyOrder< Float, length >::hasPhase

Definition at line 2052 of file gauge_field_order.h.

◆ stride

template<typename Float , int length>

const int quda::gauge::LegacyOrder< Float, length >::stride

Definition at line 2050 of file gauge_field_order.h.

◆ volumeCB

template<typename Float , int length>

const int quda::gauge::LegacyOrder< Float, length >::volumeCB

Definition at line 2049 of file gauge_field_order.h.

The documentation for this struct was generated from the following file:

include/gauge_field_order.h
