quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase > Struct Template Reference

Generic reconstruction helper with no reconstruction. More...

#include <gauge_field_order.h>

Inheritance diagram for quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >:

Collaboration diagram for quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >:

Public Types
using	real = typename mapper< Float >::type
using	complex = complex< real >

Public Member Functions
	Reconstruct (const GaugeField &u)
	Reconstruct (const Reconstruct< N, Float, ghostExchange_ > &recon)
__device__ __host__ void	Pack (real out[N], const complex in[N/2], int idx) const
template<typename I >
__device__ __host__ void	Unpack (complex out[N/2], const real in[N], int idx, int dir, real phase, const I *X, const int *R) const
__device__ __host__ real	getPhase (const complex in[N/2]) const

Public Attributes
real	scale
real	scale_inv

Detailed Description

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>
struct quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >

Generic reconstruction helper with no reconstruction.

Template Parameters

N	number of real numbers in each packed gauge matrix
Float	Storage format (e.g., double, float, short)
ghostExchange_	optional template the ghostExchange type to avoid the run-time overhead (dummy for trivial reconstruct type)

Definition at line 1125 of file gauge_field_order.h.

Member Typedef Documentation

complex

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>

using quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::complex = complex<real>

Definition at line 1127 of file gauge_field_order.h.

real

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>

using quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::real = typename mapper<Float>::type

Definition at line 1126 of file gauge_field_order.h.

Constructor & Destructor Documentation

Reconstruct() [1/2]

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>

quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Reconstruct ( const GaugeField &  u )

inline

Definition at line 1130 of file gauge_field_order.h.

Reconstruct() [2/2]

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>

quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Reconstruct ( const Reconstruct< N, Float, ghostExchange_ > &  recon )

inline

Definition at line 1131 of file gauge_field_order.h.

Member Function Documentation

getPhase()

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>

__device__ __host__ real quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::getPhase ( const complex  in[N/2] ) const

inline

Definition at line 1164 of file gauge_field_order.h.

Referenced by quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::save(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::saveGhost(), and quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::saveGhostEx().

Here is the caller graph for this function:

Pack()

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>

__device__ __host__ void quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Pack ( real  out[N], const complex  in[N/2], int  idx  ) const

inline

Definition at line 1135 of file gauge_field_order.h.

Referenced by quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::save(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::saveGhost(), and quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::saveGhostEx().

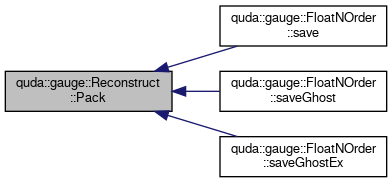

Here is the caller graph for this function:

Unpack()

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>

template<typename I >

__device__ __host__ void quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Unpack ( complex  out[N/2], const real  in[N], int  idx, int  dir, real  phase, const I *  X, const int *  R  ) const

inline

Definition at line 1153 of file gauge_field_order.h.

Referenced by quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::load(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::loadGhost(), and quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::loadGhostEx().

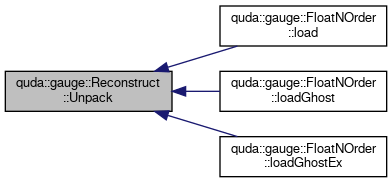

Here is the caller graph for this function:

Member Data Documentation

scale

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>

real quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::scale

Definition at line 1128 of file gauge_field_order.h.

scale_inv

template<int N, typename Float, QudaGhostExchange ghostExchange_, QudaStaggeredPhase = QUDA_STAGGERED_PHASE_NO>

real quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::scale_inv

Definition at line 1129 of file gauge_field_order.h.

---

The documentation for this struct was generated from the following file:

• include/gauge_field_order.h
