QUDA: quda::GMResDR Class Reference

QUDA 0.9.0

#include <invert_quda.h>

Inheritance diagram for quda::GMResDR:

Inheritance graph

[legend]

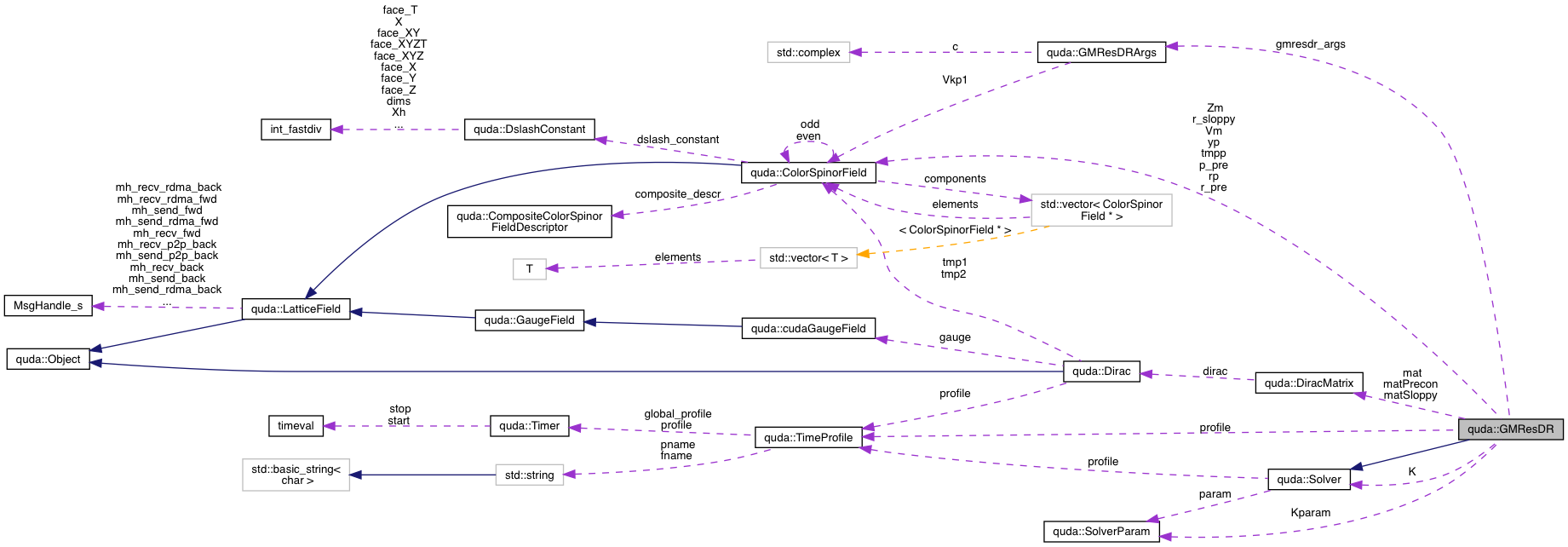

Collaboration diagram for quda::GMResDR:

Collaboration graph

[legend]

Public Member Functions
	GMResDR (DiracMatrix &mat, DiracMatrix &matSloppy, DiracMatrix &matPrecon, SolverParam &param, TimeProfile &profile)

	GMResDR (DiracMatrix &mat, Solver &K, DiracMatrix &matSloppy, DiracMatrix &matPrecon, SolverParam &param, TimeProfile &profile)

virtual	~GMResDR ()

void	operator() (ColorSpinorField &out, ColorSpinorField &in)

void	RunDeflatedCycles (ColorSpinorField out, ColorSpinorField in, const double tol_threshold)

int	FlexArnoldiProcedure (const int start_idx, const bool do_givens)

void	RestartVZH ()

void	UpdateSolution (ColorSpinorField x, ColorSpinorField r, bool do_gels)

Public Member Functions inherited from quda::Solver
	Solver (SolverParam &param, TimeProfile &profile)

virtual	~Solver ()

virtual void	solve (ColorSpinorField &out, ColorSpinorField &in)

bool	convergence (const double &r2, const double &hq2, const double &r2_tol, const double &hq_tol)

bool	convergenceHQ (const double &r2, const double &hq2, const double &r2_tol, const double &hq_tol)

bool	convergenceL2 (const double &r2, const double &hq2, const double &r2_tol, const double &hq_tol)

void	PrintStats (const char *, int k, const double &r2, const double &b2, const double &hq2)

void	PrintSummary (const char *name, int k, const double &r2, const double &b2)

virtual double	flops () const

Private Attributes
DiracMatrix &	mat

DiracMatrix &	matSloppy

DiracMatrix &	matPrecon

Solver *	K

SolverParam	Kparam

ColorSpinorFieldSet *	Vm

ColorSpinorFieldSet *	Zm

ColorSpinorField *	rp

ColorSpinorField *	yp
	residual vector More...

ColorSpinorField *	tmpp
	high precision accumulator More...

ColorSpinorField *	r_sloppy
	temporary for mat-vec More...

ColorSpinorField *	r_pre
	sloppy residual vector More...

ColorSpinorField *	p_pre
	residual passed to preconditioner More...

TimeProfile &	profile
	preconditioner result More...

GMResDRArgs *	gmresdr_args

bool	init

Additional Inherited Members
Static Public Member Functions inherited from quda::Solver
static Solver *	create (SolverParam &param, DiracMatrix &mat, DiracMatrix &matSloppy, DiracMatrix &matPrecon, TimeProfile &profile)

static double	stopping (const double &tol, const double &b2, QudaResidualType residual_type)

Protected Attributes inherited from quda::Solver
SolverParam &	param

TimeProfile &	profile

Detailed Description

Definition at line 859 of file invert_quda.h.

Constructor & Destructor Documentation

◆ GMResDR() [1/2]

quda::GMResDR::GMResDR	(	DiracMatrix &	mat,
		DiracMatrix &	matSloppy,
		DiracMatrix &	matPrecon,
		SolverParam &	param,
		TimeProfile &	profile
	)

Definition at line 211 of file inv_gmresdr_quda.cpp.

References errorQuda, quda::fillFGMResDRInnerSolveParam(), quda::SolverParam::inv_type_precondition, K, Kparam, matPrecon, quda::Solver::param, profile, QUDA_BICGSTAB_INVERTER, QUDA_CG_INVERTER, QUDA_INVALID_INVERTER, QUDA_MR_INVERTER, and QUDA_SD_INVERTER.

Here is the call graph for this function:

◆ GMResDR() [2/2]

quda::GMResDR::GMResDR	(	DiracMatrix &	mat,
		Solver &	K,
		DiracMatrix &	matSloppy,
		DiracMatrix &	matPrecon,
		SolverParam &	param,
		TimeProfile &	profile
	)

Definition at line 234 of file inv_gmresdr_quda.cpp.

◆ ~GMResDR()

quda::GMResDR::~GMResDR ( )

virtual

Definition at line 239 of file inv_gmresdr_quda.cpp.

References gmresdr_args, init, K, p_pre, quda::Solver::param, quda::SolverParam::precision_precondition, quda::SolverParam::precision_sloppy, profile, quda::QUDA_PROFILE_FREE, r_pre, r_sloppy, rp, tmpp, Vm, yp, and Zm.

Member Function Documentation

◆ FlexArnoldiProcedure()

int quda::GMResDR::FlexArnoldiProcedure	(	const int	start_idx,
		const bool	do_givens = `false`
	)

Definition at line 371 of file inv_gmresdr_quda.cpp.

References args, quda::blas::ax(), quda::blas::caxpy(), quda::blas::cDotProduct(), quda::ColorSpinorField::Component(), quda::ColorSpinorField::Components(), quda::conj(), gmresdr_args, fused_exterior_ndeg_tm_dslash_cuda_gen::i, K, matSloppy, memcpy(), memset(), quda::norm(), quda::norm2(), p_pre, quda::Solver::param, popVerbosity(), quda::SolverParam::precision_precondition, quda::SolverParam::precision_sloppy, pushVerbosity(), r_pre, r_sloppy, quda::sqrt(), tmp, tmpp, quda::SolverParam::verbosity_precondition, Vm, quda::zero(), and Zm.

Referenced by operator()().

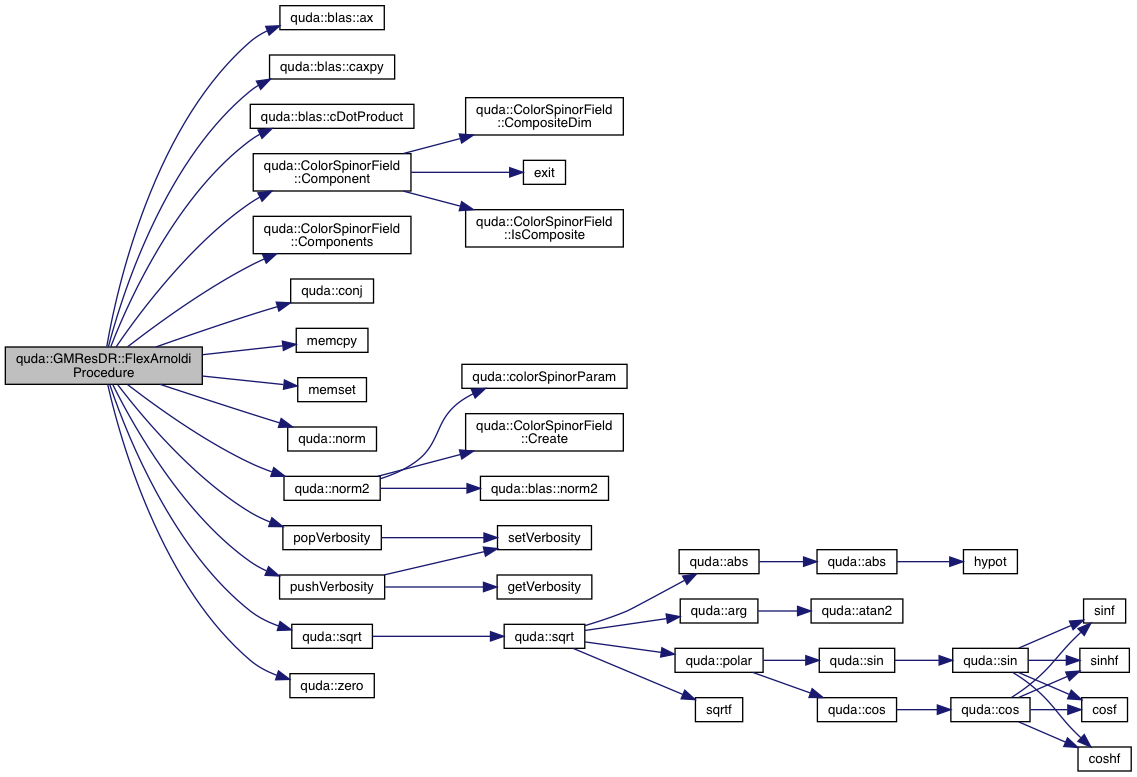

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator()()

void quda::GMResDR::operator()	(	ColorSpinorField &	out,
		ColorSpinorField &	in
	)

virtual

Implements quda::Solver.

Definition at line 453 of file inv_gmresdr_quda.cpp.

References args, quda::blas::axpy(), b, quda::blas::cDotProduct(), quda::ColorSpinorField::Component(), quda::ColorSpinorField::Components(), quda::Solver::convergence(), quda::ColorSpinorField::Create(), csParam, quda::SolverParam::deflation_grid, e, fabs(), FlexArnoldiProcedure(), quda::blas::flops, quda::DiracMatrix::flops(), quda::SolverParam::gflops, gmresdr_args, quda::blas::HeavyQuarkResidualNorm(), init, quda::SolverParam::iter, K, quda::TimeProfile::Last(), quda::SolverParam::m, mat, quda::SolverParam::nev, quda::norm(), quda::norm2(), p_pre, quda::Solver::param, quda::SolverParam::precision, quda::SolverParam::precision_precondition, quda::SolverParam::precision_sloppy, printfQuda, quda::Solver::PrintStats(), quda::Solver::PrintSummary(), profile, QUDA_DOUBLE_PRECISION, QUDA_HEAVY_QUARK_RESIDUAL, quda::QUDA_PROFILE_COMPUTE, quda::QUDA_PROFILE_EPILOGUE, quda::QUDA_PROFILE_INIT, quda::QUDA_PROFILE_PREAMBLE, QUDA_ZERO_FIELD_CREATE, r_pre, r_sloppy, quda::SolverParam::residual_type, RestartVZH(), quda::SolverParam::rhs_idx, rp, quda::SolverParam::secs, quda::sqrt(), tmpp, quda::SolverParam::tol, quda::SolverParam::tol_hq, quda::SolverParam::true_res, UpdateSolution(), quda::GMResDRArgs::Vkp1, Vm, x, quda::blas::xmyNorm(), quda::blas::xpy(), y, yp, z, quda::blas::zero(), quda::zero(), and Zm.

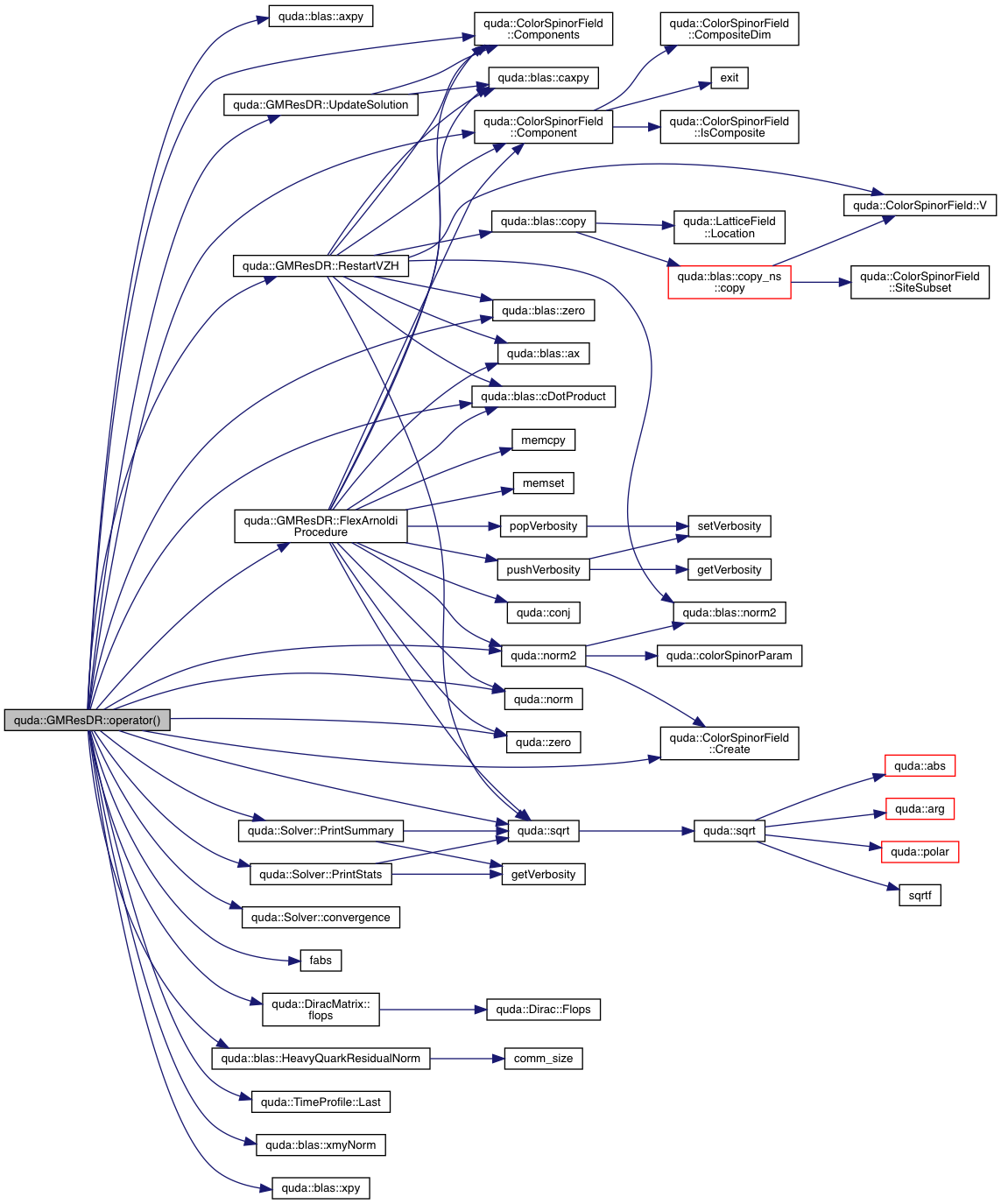

Here is the call graph for this function:

◆ RestartVZH()

void quda::GMResDR::RestartVZH ( )

Definition at line 302 of file inv_gmresdr_quda.cpp.

References args, quda::blas::ax(), quda::blas::caxpy(), quda::blas::cDotProduct(), checkCudaError, quda::ColorSpinorField::Component(), quda::ColorSpinorField::Components(), quda::blas::copy(), errorQuda, quda::SolverParam::extlib_type, gmresdr_args, fused_exterior_ndeg_tm_dslash_cuda_gen::i, quda::blas::norm2(), quda::Solver::param, QUDA_EIGEN_EXTLIB, QUDA_MAGMA_EXTLIB, quda::sqrt(), quda::ColorSpinorField::V(), Vm, z, quda::blas::zero(), and Zm.

Referenced by operator()().

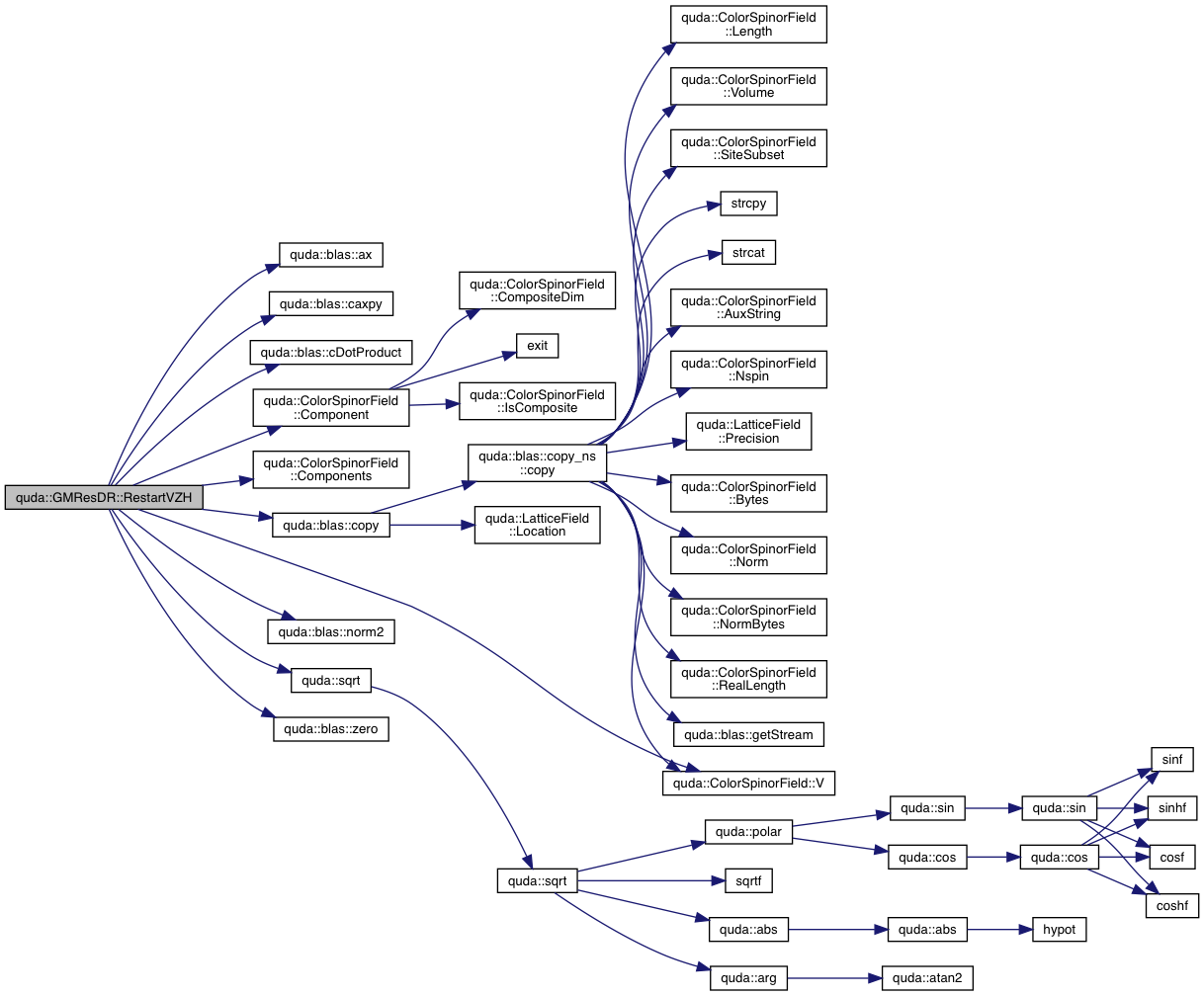

Here is the call graph for this function:

Here is the caller graph for this function:

◆ RunDeflatedCycles()

void quda::GMResDR::RunDeflatedCycles	(	ColorSpinorField *	out,
		ColorSpinorField *	in,
		const double	tol_threshold
	)

◆ UpdateSolution()

void quda::GMResDR::UpdateSolution	(	ColorSpinorField *	x,
		ColorSpinorField *	r,
		bool	do_gels
	)

Definition at line 271 of file inv_gmresdr_quda.cpp.

References args, quda::blas::caxpy(), quda::ColorSpinorField::Components(), errorQuda, quda::SolverParam::extlib_type, gmresdr_args, quda::Solver::param, QUDA_EIGEN_EXTLIB, QUDA_MAGMA_EXTLIB, Vm, x, and Zm.

Referenced by operator()().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ gmresdr_args

GMResDRArgs* quda::GMResDR::gmresdr_args

private

Definition at line 882 of file invert_quda.h.

Referenced by FlexArnoldiProcedure(), operator()(), RestartVZH(), UpdateSolution(), and ~GMResDR().

◆ init

bool quda::GMResDR::init

private

Definition at line 884 of file invert_quda.h.

Referenced by operator()(), and ~GMResDR().

◆ K

Solver* quda::GMResDR::K

private

Definition at line 867 of file invert_quda.h.

Referenced by FlexArnoldiProcedure(), GMResDR(), operator()(), and ~GMResDR().

◆ Kparam

SolverParam quda::GMResDR::Kparam

private

Definition at line 868 of file invert_quda.h.

Referenced by GMResDR().

◆ mat

DiracMatrix& quda::GMResDR::mat

private

Definition at line 863 of file invert_quda.h.

Referenced by operator()().

◆ matPrecon

DiracMatrix& quda::GMResDR::matPrecon

private

Definition at line 865 of file invert_quda.h.

Referenced by GMResDR().

◆ matSloppy

DiracMatrix& quda::GMResDR::matSloppy

private

Definition at line 864 of file invert_quda.h.

Referenced by FlexArnoldiProcedure().

◆ p_pre

ColorSpinorField* quda::GMResDR::p_pre

private

residual passed to preconditioner

Definition at line 878 of file invert_quda.h.

Referenced by FlexArnoldiProcedure(), operator()(), and ~GMResDR().

◆ profile

TimeProfile& quda::GMResDR::profile

private

preconditioner result

Definition at line 880 of file invert_quda.h.

Referenced by GMResDR(), operator()(), and ~GMResDR().

◆ r_pre

ColorSpinorField* quda::GMResDR::r_pre

private

sloppy residual vector

Definition at line 877 of file invert_quda.h.

Referenced by FlexArnoldiProcedure(), operator()(), and ~GMResDR().

◆ r_sloppy

ColorSpinorField* quda::GMResDR::r_sloppy

private

temporary for mat-vec

Definition at line 876 of file invert_quda.h.

Referenced by FlexArnoldiProcedure(), operator()(), and ~GMResDR().

◆ rp

ColorSpinorField* quda::GMResDR::rp

private

Definition at line 873 of file invert_quda.h.

Referenced by operator()(), and ~GMResDR().

◆ tmpp

ColorSpinorField* quda::GMResDR::tmpp

private

high precision accumulator

Definition at line 875 of file invert_quda.h.

Referenced by FlexArnoldiProcedure(), operator()(), and ~GMResDR().

◆ Vm

ColorSpinorFieldSet* quda::GMResDR::Vm

private

Definition at line 870 of file invert_quda.h.

Referenced by FlexArnoldiProcedure(), operator()(), RestartVZH(), UpdateSolution(), and ~GMResDR().

◆ yp

ColorSpinorField* quda::GMResDR::yp

private

residual vector

Definition at line 874 of file invert_quda.h.

Referenced by operator()(), and ~GMResDR().

◆ Zm

ColorSpinorFieldSet* quda::GMResDR::Zm

private

Definition at line 871 of file invert_quda.h.

Referenced by FlexArnoldiProcedure(), operator()(), RestartVZH(), UpdateSolution(), and ~GMResDR().

The documentation for this class was generated from the following files:

include/invert_quda.h
lib/inv_gmresdr_quda.cpp
