QUDA  0.9.0
Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
quda::WuppertalSmearing< Float, Ns, Nc, Arg > Class Template Reference
Inheritance diagram for quda::WuppertalSmearing< Float, Ns, Nc, Arg >:
Inheritance graph
[legend]

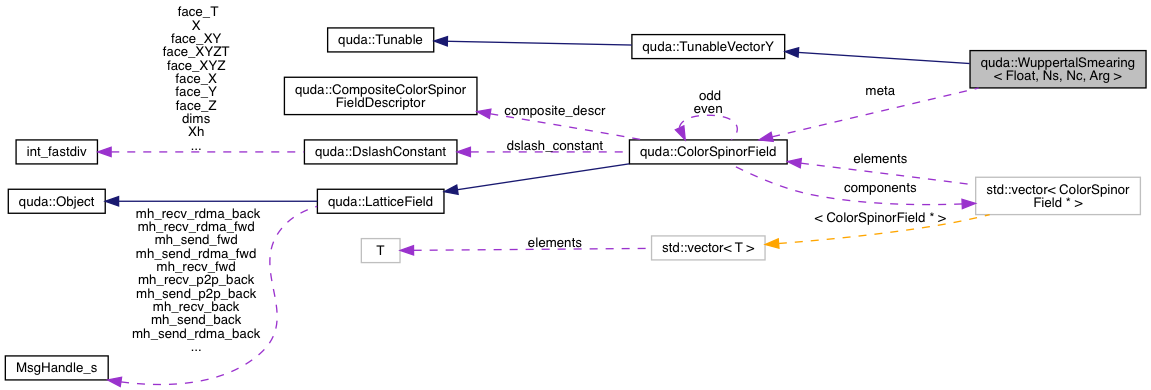

Collaboration diagram for quda::WuppertalSmearing< Float, Ns, Nc, Arg >:
Collaboration graph
[legend]

Public Member Functions

 WuppertalSmearing (Arg &arg, const ColorSpinorField &meta)

virtual ~WuppertalSmearing ()

void apply (const cudaStream_t &stream)

TuneKey tuneKey () const

- Public Member Functions inherited from quda::TunableVectorY
 TunableVectorY (unsigned int vector_length_y)

bool advanceBlockDim (TuneParam &param) const

void initTuneParam (TuneParam &param) const

void defaultTuneParam (TuneParam &param) const

void resizeVector (int y)

- Public Member Functions inherited from quda::Tunable
 Tunable ()

virtual ~Tunable ()

virtual void preTune ()

virtual void postTune ()

virtual int tuningIter () const

virtual std::string paramString (const TuneParam &param) const

virtual std::string perfString (float time) const

virtual bool advanceTuneParam (TuneParam &param) const

void checkLaunchParam (TuneParam &param)


Protected Member Functions

long long flops () const

long long bytes () const

bool tuneGridDim () const

unsigned int minThreads () const

unsigned int maxBlockSize () const

- Protected Member Functions inherited from quda::TunableVectorY
virtual unsigned int sharedBytesPerThread () const

virtual unsigned int sharedBytesPerBlock (const TuneParam &param) const

- Protected Member Functions inherited from quda::Tunable
virtual bool tuneAuxDim () const

virtual bool tuneSharedBytes () const

virtual bool advanceGridDim (TuneParam &param) const

virtual unsigned int maxGridSize () const

virtual unsigned int minGridSize () const

virtual int blockStep () const

virtual int blockMin () const

unsigned int maxBlocksPerSM () const
 For reason this can't be queried from the device properties, so here we set set this. Based on Table 14 of the CUDA Programming Guide 9.0 (Technical Specifications per Compute Capability) More...

virtual bool advanceSharedBytes (TuneParam &param) const

virtual bool advanceAux (TuneParam &param) const

int writeAuxString (const char *format,...)


Protected Attributes

Arg & arg

const ColorSpinorField & meta

- Protected Attributes inherited from quda::TunableVectorY
unsigned int vector_length_y

- Protected Attributes inherited from quda::Tunable
char aux [TuneKey::aux_n]


Detailed Description

template<typename Float, int Ns, int Nc, typename Arg>
class quda::WuppertalSmearing< Float, Ns, Nc, Arg >

Definition at line 150 of file color_spinor_wuppertal.cu.

Constructor & Destructor Documentation

◆ WuppertalSmearing()

template<typename Float, int Ns, int Nc, typename Arg>
quda::WuppertalSmearing< Float, Ns, Nc, Arg >::WuppertalSmearing ( Arg &  arg,
const ColorSpinorField &  meta
)
inline

Definition at line 169 of file color_spinor_wuppertal.cu.

References quda::Tunable::aux, quda::ColorSpinorField::AuxString(), comm_dim_partitioned_string(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::meta, strcat(), and strcpy().

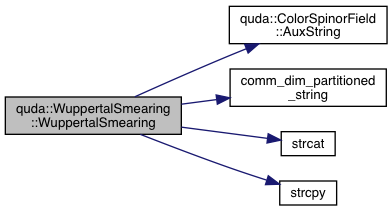

Here is the call graph for this function:

◆ ~WuppertalSmearing()

template<typename Float, int Ns, int Nc, typename Arg>
virtual quda::WuppertalSmearing< Float, Ns, Nc, Arg >::~WuppertalSmearing ( )
inlinevirtual

Definition at line 174 of file color_spinor_wuppertal.cu.

Member Function Documentation

◆ apply()

template<typename Float, int Ns, int Nc, typename Arg>
void quda::WuppertalSmearing< Float, Ns, Nc, Arg >::apply ( const cudaStream_t &  stream)
inlinevirtual

Implements quda::Tunable.

Definition at line 176 of file color_spinor_wuppertal.cu.

References quda::WuppertalSmearing< Float, Ns, Nc, Arg >::arg, quda::TuneParam::block, getTuning(), getVerbosity(), quda::TuneParam::grid, quda::LatticeField::Location(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::meta, QUDA_CPU_FIELD_LOCATION, quda::TuneParam::shared_bytes, quda::stream, and quda::tuneLaunch().

Referenced by quda::wuppertalStep().

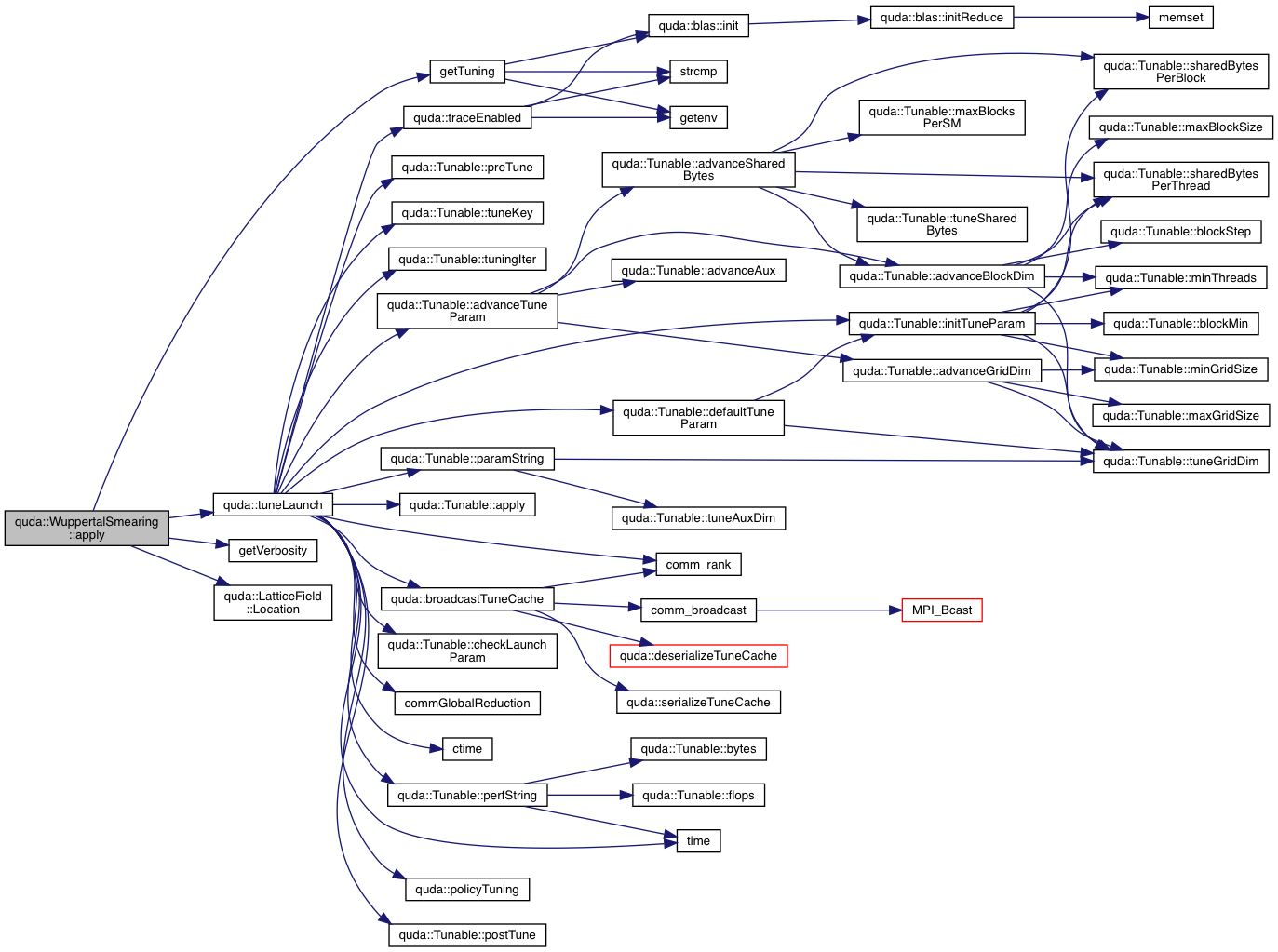

Here is the call graph for this function:
Here is the caller graph for this function:

◆ bytes()

template<typename Float, int Ns, int Nc, typename Arg>
long long quda::WuppertalSmearing< Float, Ns, Nc, Arg >::bytes ( ) const
inlineprotectedvirtual

Reimplemented from quda::Tunable.

Definition at line 160 of file color_spinor_wuppertal.cu.

References quda::WuppertalSmearing< Float, Ns, Nc, Arg >::arg, quda::WuppertalSmearing< Float, Ns, Nc, Arg >::meta, and quda::ColorSpinorField::VolumeCB().

Here is the call graph for this function:

◆ flops()

template<typename Float, int Ns, int Nc, typename Arg>
long long quda::WuppertalSmearing< Float, Ns, Nc, Arg >::flops ( ) const
inlineprotectedvirtual

Implements quda::Tunable.

Definition at line 156 of file color_spinor_wuppertal.cu.

References quda::WuppertalSmearing< Float, Ns, Nc, Arg >::arg, quda::WuppertalSmearing< Float, Ns, Nc, Arg >::meta, and quda::ColorSpinorField::VolumeCB().

Here is the call graph for this function:

◆ maxBlockSize()

template<typename Float, int Ns, int Nc, typename Arg>
unsigned int quda::WuppertalSmearing< Float, Ns, Nc, Arg >::maxBlockSize ( ) const
inlineprotectedvirtual

Reimplemented from quda::Tunable.

Definition at line 166 of file color_spinor_wuppertal.cu.

References quda::WuppertalSmearing< Float, Ns, Nc, Arg >::arg, and deviceProp.

◆ minThreads()

template<typename Float, int Ns, int Nc, typename Arg>
unsigned int quda::WuppertalSmearing< Float, Ns, Nc, Arg >::minThreads ( ) const
inlineprotectedvirtual

Reimplemented from quda::Tunable.

Definition at line 165 of file color_spinor_wuppertal.cu.

References quda::WuppertalSmearing< Float, Ns, Nc, Arg >::arg.

◆ tuneGridDim()

template<typename Float, int Ns, int Nc, typename Arg>
bool quda::WuppertalSmearing< Float, Ns, Nc, Arg >::tuneGridDim ( ) const
inlineprotectedvirtual

Reimplemented from quda::Tunable.

Definition at line 164 of file color_spinor_wuppertal.cu.

◆ tuneKey()

template<typename Float, int Ns, int Nc, typename Arg>
TuneKey quda::WuppertalSmearing< Float, Ns, Nc, Arg >::tuneKey ( ) const
inlinevirtual

Implements quda::Tunable.

Definition at line 185 of file color_spinor_wuppertal.cu.

References quda::Tunable::aux, quda::WuppertalSmearing< Float, Ns, Nc, Arg >::meta, and quda::LatticeField::VolString().

Here is the call graph for this function:

Member Data Documentation

◆ arg

template<typename Float, int Ns, int Nc, typename Arg>
Arg& quda::WuppertalSmearing< Float, Ns, Nc, Arg >::arg
protected

Definition at line 153 of file color_spinor_wuppertal.cu.

Referenced by quda::WuppertalSmearing< Float, Ns, Nc, Arg >::apply(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::bytes(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::flops(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::maxBlockSize(), and quda::WuppertalSmearing< Float, Ns, Nc, Arg >::minThreads().

◆ meta

template<typename Float, int Ns, int Nc, typename Arg>
const ColorSpinorField& quda::WuppertalSmearing< Float, Ns, Nc, Arg >::meta
protected

Definition at line 154 of file color_spinor_wuppertal.cu.

Referenced by quda::WuppertalSmearing< Float, Ns, Nc, Arg >::apply(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::bytes(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::flops(), quda::WuppertalSmearing< Float, Ns, Nc, Arg >::tuneKey(), and quda::WuppertalSmearing< Float, Ns, Nc, Arg >::WuppertalSmearing().

The documentation for this class was generated from the following file:
