#include <qmp.h>
#include <csignal>
#include <quda_internal.h>
#include <comm_quda.h>
#include <mpi.h>

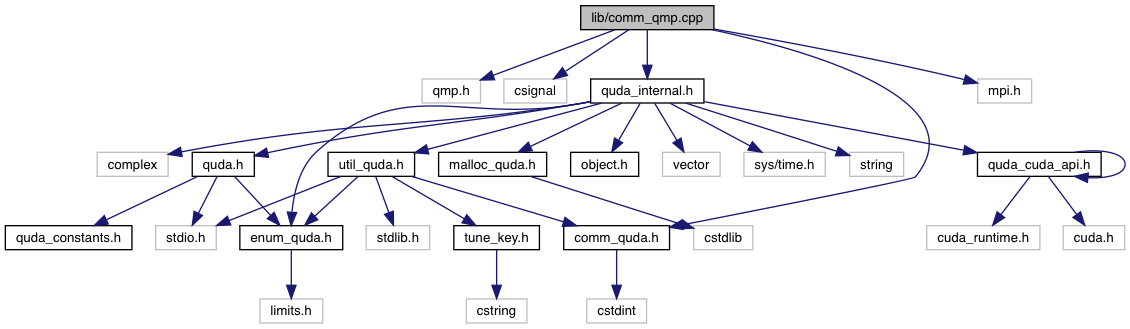

Include dependency graph for comm_qmp.cpp:

Classes
struct	MsgHandle_s

Macros
#define	QMP_CHECK(qmp_call)

#define	USE_MPI_GATHER

Functions
void	comm_gather_hostname (char *hostname_recv_buf)
	Gather all hostnames. More...

void	comm_gather_gpuid (int *gpuid_recv_buf)
	Gather all GPU ids. More...

void	comm_init (int ndim, const int dims, QudaCommsMap rank_from_coords, void map_data)

int	comm_rank (void)

int	comm_size (void)

int	comm_gpuid (void)

MsgHandle *	comm_declare_send_displaced (void *buffer, const int displacement[], size_t nbytes)

MsgHandle *	comm_declare_receive_displaced (void *buffer, const int displacement[], size_t nbytes)

MsgHandle *	comm_declare_strided_send_displaced (void *buffer, const int displacement[], size_t blksize, int nblocks, size_t stride)

MsgHandle *	comm_declare_strided_receive_displaced (void *buffer, const int displacement[], size_t blksize, int nblocks, size_t stride)

void	comm_free (MsgHandle *mh)

void	comm_start (MsgHandle *mh)

void	comm_wait (MsgHandle *mh)

int	comm_query (MsgHandle *mh)

void	comm_allreduce (double *data)

void	comm_allreduce_max (double *data)

void	comm_allreduce_array (double *data, size_t size)

void	comm_allreduce_int (int *data)

void	comm_allreduce_xor (uint64_t *data)

void	comm_broadcast (void *data, size_t nbytes)

void	comm_barrier (void)

void	comm_abort (int status)

const char *	comm_dim_partitioned_string ()
	Return a string that defines the comm partitioning (used as a tuneKey) More...

const char *	comm_dim_topology_string ()
	Return a string that defines the comm topology (for use as a tuneKey) More...

Variables
static int	gpuid = -1

static char	partition_string [16]

static char	topology_string [16]

Macro Definition Documentation

◆ QMP_CHECK

#define QMP_CHECK ( qmp_call )

Value:

do {                     \
  QMP_status_t status = qmp_call;                    \
  if (status != QMP_SUCCESS)                         \
    errorQuda("(QMP) %s", QMP_error_string(status)); \
} while (0)

Definition at line 6 of file comm_qmp.cpp.

Referenced by comm_allreduce(), comm_allreduce_array(), comm_allreduce_int(), comm_allreduce_max(), comm_allreduce_xor(), comm_barrier(), comm_broadcast(), comm_start(), and comm_wait().

◆ USE_MPI_GATHER

#define USE_MPI_GATHER

Definition at line 25 of file comm_qmp.cpp.

Function Documentation

◆ comm_abort()

void comm_abort ( int status )

Definition at line 295 of file comm_qmp.cpp.

◆ comm_allreduce()

void comm_allreduce ( double * data )

Definition at line 254 of file comm_qmp.cpp.

References QMP_CHECK.

◆ comm_allreduce_array()

void comm_allreduce_array	(	double *	data,
		size_t	size
	)

Definition at line 266 of file comm_qmp.cpp.

References QMP_CHECK, and size.

◆ comm_allreduce_int()

void comm_allreduce_int ( int * data )

Definition at line 272 of file comm_qmp.cpp.

References QMP_CHECK.

◆ comm_allreduce_max()

void comm_allreduce_max ( double * data )

Definition at line 260 of file comm_qmp.cpp.

References QMP_CHECK.

◆ comm_allreduce_xor()

void comm_allreduce_xor ( uint64_t * data )

Definition at line 277 of file comm_qmp.cpp.

References errorQuda, and QMP_CHECK.

◆ comm_barrier()

void comm_barrier ( void )

Definition at line 289 of file comm_qmp.cpp.

References QMP_CHECK.

◆ comm_broadcast()

void comm_broadcast	(	void *	data,
		size_t	nbytes
	)

broadcast from rank 0

Definition at line 283 of file comm_qmp.cpp.

References QMP_CHECK.

◆ comm_declare_receive_displaced()

MsgHandle* comm_declare_receive_displaced	(	void *	buffer,
		const int	displacement[],
		size_t	nbytes
	)

Declare a message handle for receiving from a node displaced in (x,y,z,t) according to "displacement"

Definition at line 168 of file comm_qmp.cpp.

References comm_default_topology(), comm_rank_displaced(), errorQuda, MsgHandle_s::handle, MsgHandle_s::mem, rank, and safe_malloc.

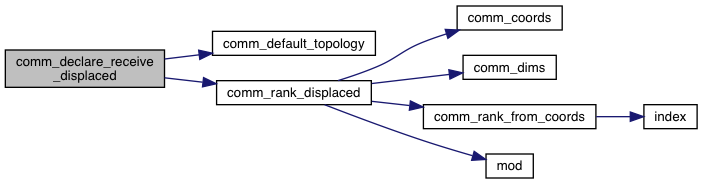

Here is the call graph for this function:

◆ comm_declare_send_displaced()

MsgHandle* comm_declare_send_displaced	(	void *	buffer,
		const int	displacement[],
		size_t	nbytes
	)

Declare a message handle for sending to a node displaced in (x,y,z,t) according to "displacement"

Definition at line 149 of file comm_qmp.cpp.

References comm_default_topology(), comm_rank_displaced(), errorQuda, MsgHandle_s::handle, MsgHandle_s::mem, rank, and safe_malloc.

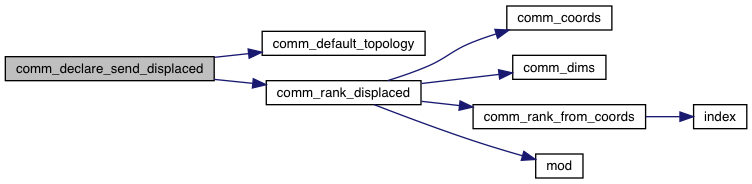

Here is the call graph for this function:

◆ comm_declare_strided_receive_displaced()

MsgHandle* comm_declare_strided_receive_displaced	(	void *	buffer,
		const int	displacement[],
		size_t	blksize,
		int	nblocks,
		size_t	stride
	)

Declare a message handle for strided receiving from a node displaced in (x,y,z,t) according to "displacement"

Definition at line 210 of file comm_qmp.cpp.

References comm_default_topology(), comm_rank_displaced(), errorQuda, MsgHandle_s::handle, MsgHandle_s::mem, rank, and safe_malloc.

Here is the call graph for this function:

◆ comm_declare_strided_send_displaced()

MsgHandle* comm_declare_strided_send_displaced	(	void *	buffer,
		const int	displacement[],
		size_t	blksize,
		int	nblocks,
		size_t	stride
	)

Declare a message handle for strided sending to a node displaced in (x,y,z,t) according to "displacement"

Definition at line 189 of file comm_qmp.cpp.

References comm_default_topology(), comm_rank_displaced(), errorQuda, MsgHandle_s::handle, MsgHandle_s::mem, rank, and safe_malloc.

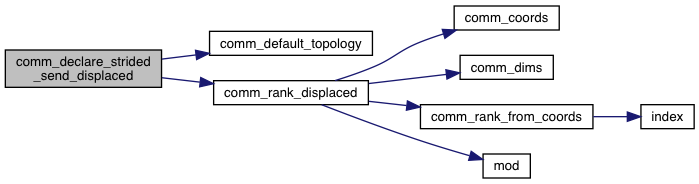

Here is the call graph for this function:

◆ comm_dim_partitioned_string()

const char* comm_dim_partitioned_string ( )

Return a string that defines the comm partitioning (used as a tuneKey)

Returns: String specifying comm partitioning

Definition at line 303 of file comm_qmp.cpp.

References partition_string.

◆ comm_dim_topology_string()

const char* comm_dim_topology_string ( )

Return a string that defines the comm topology (for use as a tuneKey)

Returns: String specifying comm topology

Definition at line 307 of file comm_qmp.cpp.

References topology_string.

◆ comm_free()

void comm_free ( MsgHandle * mh )

Definition at line 228 of file comm_qmp.cpp.

References MsgHandle_s::handle, host_free, and MsgHandle_s::mem.

◆ comm_gather_gpuid()

void comm_gather_gpuid ( int * gpuid_recv_buf )

Gather all GPU ids.

Parameters

[out] gpuid_recv_buf int array of length comm_size() that will be filled in GPU ids for all processes (in rank order).

Definition at line 60 of file comm_qmp.cpp.

References comm_rank(), comm_size(), gpuid, fused_exterior_ndeg_tm_dslash_cuda_gen::i, and MPI_Allgather().

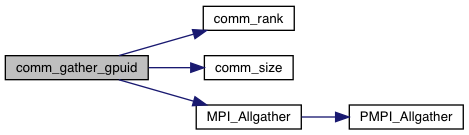

Here is the call graph for this function:

◆ comm_gather_hostname()

void comm_gather_hostname ( char * hostname_recv_buf )

Gather all hostnames.

Parameters

[out] hostname_recv_buf char array of length 128*comm_size() that will be filled in GPU ids for all processes. Each hostname is in rank order, with 128 bytes for each.

Definition at line 34 of file comm_qmp.cpp.

References comm_hostname(), comm_rank(), comm_size(), fused_exterior_ndeg_tm_dslash_cuda_gen::i, and MPI_Allgather().

Referenced by comm_init().

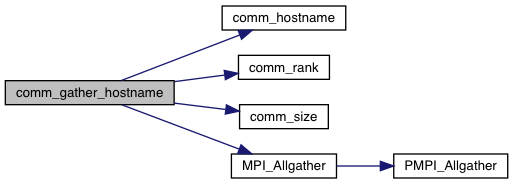

Here is the call graph for this function:
