quda::gauge Namespace Reference

Classes
struct	Accessor
struct	Accessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER >
struct	Accessor< Float, nColor, QUDA_MILC_GAUGE_ORDER >
struct	Accessor< Float, nColor, QUDA_QDP_GAUGE_ORDER >
struct	BQCDOrder
	struct to define BQCD ordered gauge fields: More...
struct	CPSOrder
struct	FieldOrder
struct	FloatNOrder
struct	GhostAccessor
struct	GhostAccessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, native_ghost >
struct	GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost >
struct	GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost >
struct	LegacyOrder
struct	MILCOrder
struct	MILCSiteOrder
	struct to define gauge fields packed into an opaque MILC site struct: More...
struct	QDPJITOrder
struct	QDPOrder
struct	Reconstruct
struct	Reconstruct< 11, Float >
struct	Reconstruct< 12, Float >
struct	Reconstruct< 13, Float >
struct	Reconstruct< 19, Float >
struct	Reconstruct< 8, Float >
struct	Reconstruct< 9, Float >
struct	S
	This is just a dummy structure we use for trove to define the required structure size. More...
struct	square
struct	TIFROrder
struct	TIFRPaddedOrder

Functions
template<int nColor, int N>
__device__ __host__ int	indexFloatN (int dim, int parity, int x_cb, int row, int col, int stride, int offset_cb)
template<typename Float , typename I >
__device__ __host__ Float	timeBoundary (int idx, const I X[QUDA_MAX_DIM], const int R[QUDA_MAX_DIM], QudaTboundary tBoundary, bool isFirstTimeSlice, bool isLastTimeSlice, QudaGhostExchange ghostExchange=QUDA_GHOST_EXCHANGE_NO)
template<typename Float , typename I >
__device__ __host__ Float	milcStaggeredPhase (int dim, const int x[], const I R[])
__host__ __device__ constexpr int	ct_sqrt (int n, int i=1)
__host__ __device__ constexpr int	Ncolor (int length)
	Return the number of colors of the accessor based on the length of the field. More...

Variables
constexpr bool	default_huge_alloc = true

Function Documentation

ct_sqrt()

__host__ __device__ constexpr int quda::gauge::ct_sqrt ( int  n, int  i = 1  )

inline

Definition at line 934 of file gauge_field_order.h.

References fused_exterior_ndeg_tm_dslash_cuda_gen::i, and n.

Referenced by Ncolor().

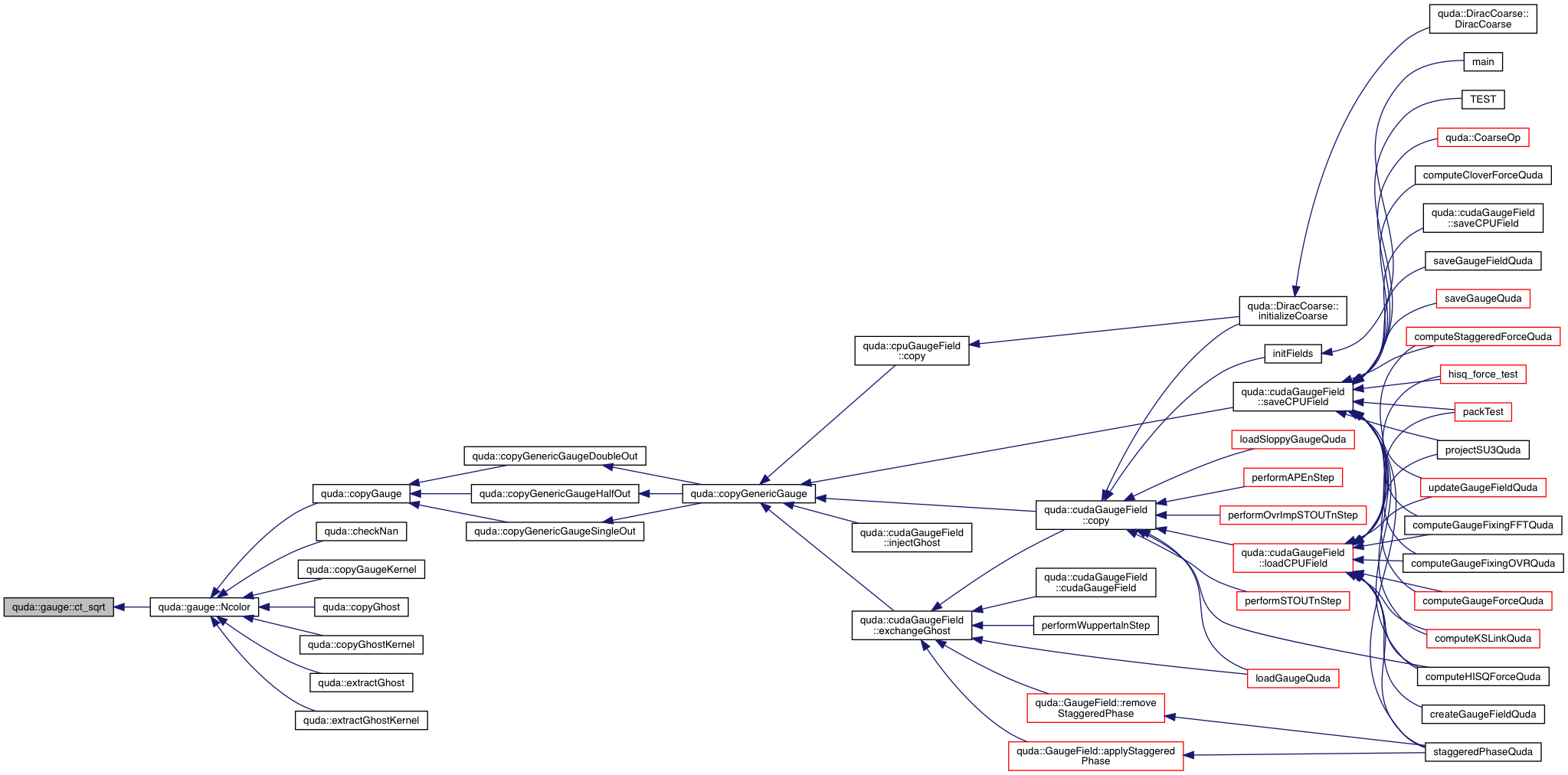

Here is the caller graph for this function:

indexFloatN()

template<int nColor, int N>

__device__ __host__ int quda::gauge::indexFloatN ( int  dim, int  parity, int  x_cb, int  row, int  col, int  stride, int  offset_cb  )

inline

Definition at line 286 of file gauge_field_order.h.

References dim, fused_exterior_ndeg_tm_dslash_cuda_gen::i, index(), nColor, and parity.

Here is the call graph for this function:

milcStaggeredPhase()

template<typename Float , typename I >

__device__ __host__ Float quda::gauge::milcStaggeredPhase ( int  dim, const int  x[], const I  R[]  )

inline

Definition at line 650 of file gauge_field_order.h.

References dim, R, deg_tm_dslash_cuda_gen::sign(), and x.

Here is the call graph for this function:

Ncolor()

__host__ __device__ constexpr int quda::gauge::Ncolor ( int  length )

inline

Return the number of colors of the accessor based on the length of the field.

Parameters

[in]

length

Number of real numbers per link

Returns

Number of colors (=sqrt(length/2))

Definition at line 943 of file gauge_field_order.h.

References ct_sqrt(), and length.

Referenced by quda::checkNan(), quda::copyGauge(), quda::copyGaugeKernel(), quda::copyGhost(), quda::copyGhostKernel(), quda::extractGhost(), and quda::extractGhostKernel().

Here is the call graph for this function:

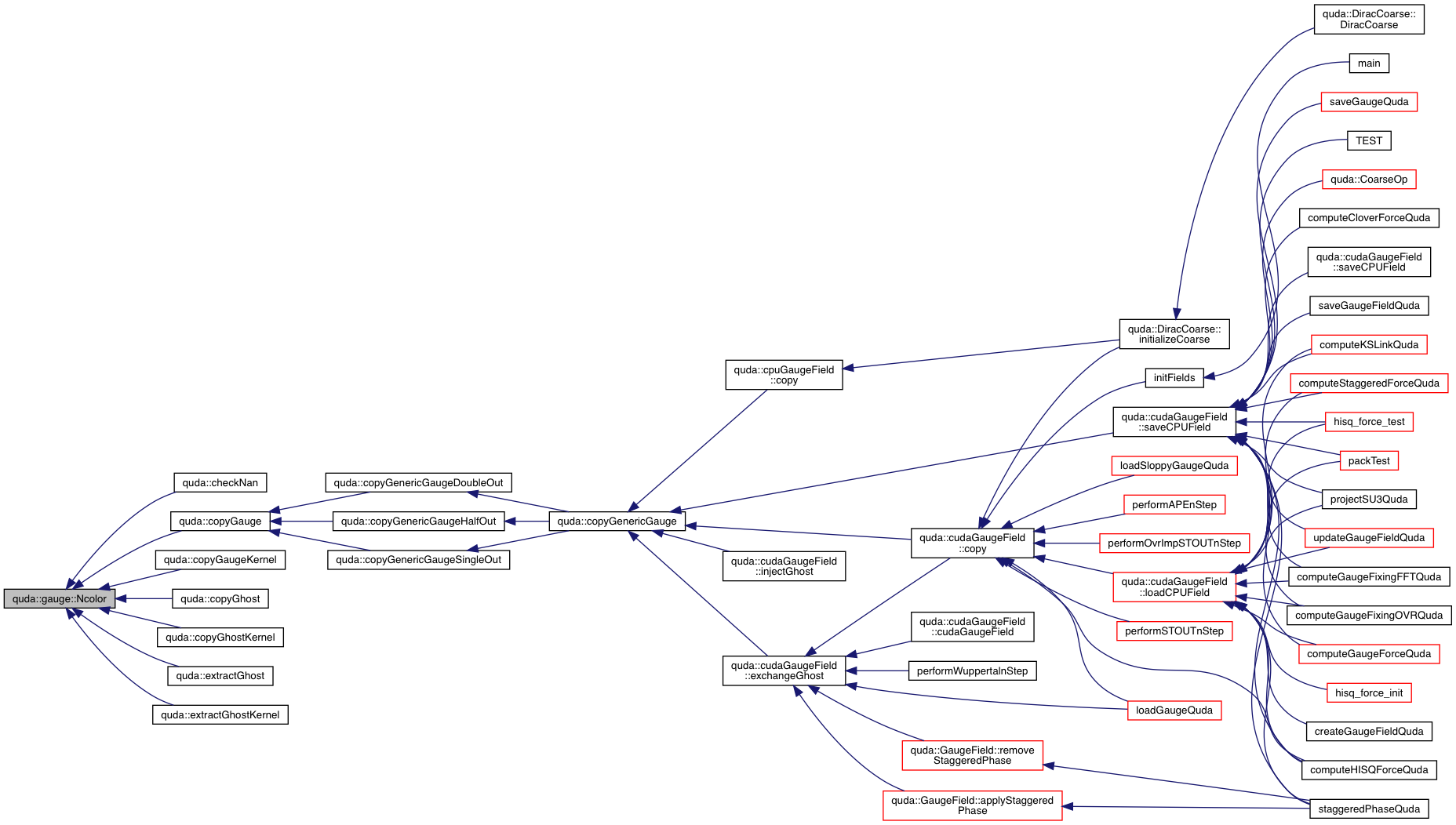

Here is the caller graph for this function:

timeBoundary()

template<typename Float , typename I >

__device__ __host__ Float quda::gauge::timeBoundary ( int  idx, const I  X[QUDA_MAX_DIM], const int  R[QUDA_MAX_DIM], QudaTboundary  tBoundary, bool  isFirstTimeSlice, bool  isLastTimeSlice, QudaGhostExchange  ghostExchange = QUDA_GHOST_EXCHANGE_NO  )

inline

timeBoundary variant for extended gauge field

Parameters

idx	extended field linear index
X	the gauge field dimensions
R	the radii dimenions of the extended region
tBoundary	the boundary condition
isFirstTimeSlice	if we're on the first time slice of nodes
isLastTimeSlide	if we're on the last time slice of nodes
ghostExchange	if the field is extended or not (determines indexing type)

Definition at line 624 of file gauge_field_order.h.

References idx, QUDA_GHOST_EXCHANGE_EXTENDED, R, and X.

Variable Documentation

default_huge_alloc

constexpr bool quda::gauge::default_huge_alloc = true

Definition at line 946 of file gauge_field_order.h.
