#include <gauge_field_order.h>

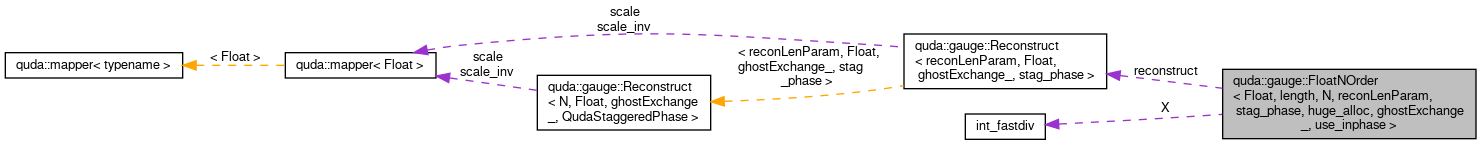

Collaboration diagram for quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >:

[legend]

Public Types
using	Accessor = FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >

using	real = typename mapper< Float >::type

using	complex = complex< real >

typedef VectorType< Float, N >::type	Vector

typedef AllocType< huge_alloc >::type	AllocInt

Public Member Functions
	FloatNOrder (const GaugeField &u, Float gauge_=0, Float *ghost_=0, bool override=false)

	FloatNOrder (const FloatNOrder &order)

__device__ __host__ void	load (complex v[length/2], int x, int dir, int parity, real inphase=1.0) const

__device__ __host__ void	save (const complex v[length/2], int x, int dir, int parity)

__device__ __host__ gauge_wrapper< real, Accessor >	operator() (int dim, int x_cb, int parity, real phase=1.0)
	This accessor routine returns a gauge_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations. More...

__device__ __host__ const gauge_wrapper< real, Accessor >	operator() (int dim, int x_cb, int parity, real phase=1.0) const
	This accessor routine returns a const gauge_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations. More...

__device__ __host__ void	loadGhost (complex v[length/2], int x, int dir, int parity, real inphase=1.0) const

__device__ __host__ void	saveGhost (const complex v[length/2], int x, int dir, int parity)

__device__ __host__ gauge_ghost_wrapper< real, Accessor >	Ghost (int dim, int ghost_idx, int parity, real phase=1.0)
	This accessor routine returns a gauge_ghost_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations. More...

__device__ __host__ const gauge_ghost_wrapper< real, Accessor >	Ghost (int dim, int ghost_idx, int parity, real phase=1.0) const
	This accessor routine returns a const gauge_ghost_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations. More...

__device__ __host__ void	loadGhostEx (complex v[length/2], int buff_idx, int extended_idx, int dir, int dim, int g, int parity, const int R[]) const

__device__ __host__ void	saveGhostEx (const complex v[length/2], int buff_idx, int extended_idx, int dir, int dim, int g, int parity, const int R[])

void	save ()
	Backup the field to the host when tuning. More...

void	load ()
	Restore the field from the host after tuning. More...

size_t	Bytes () const

Public Attributes
Reconstruct< reconLenParam, Float, ghostExchange_, stag_phase >	reconstruct

Float *	gauge

const AllocInt	offset

Float *	ghost [4]

QudaGhostExchange	ghostExchange

int	coords [QUDA_MAX_DIM]

int_fastdiv	X [QUDA_MAX_DIM]

int	R [QUDA_MAX_DIM]

const int	volumeCB

int	faceVolumeCB [4]

const int	stride

const int	geometry

const AllocInt	phaseOffset

void *	backup_h

size_t	bytes
	host memory for backing up the field when tuning More...

Static Public Attributes
static const int	reconLen = (reconLenParam == 11) ? 10 : reconLenParam

static const int	hasPhase = (reconLen == 9 \|\| reconLen == 13) ? 1 : 0

Detailed Description

template<typename Float, int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>
struct quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >

Definition at line 1692 of file gauge_field_order.h.

Member Typedef Documentation

◆ Accessor

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

using quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::Accessor = FloatNOrder<Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase>

Definition at line 1694 of file gauge_field_order.h.

◆ AllocInt

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

typedef AllocType<huge_alloc>::type quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::AllocInt

Definition at line 1699 of file gauge_field_order.h.

◆ complex

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

using quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::complex = complex<real>

Definition at line 1697 of file gauge_field_order.h.

◆ real

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

using quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::real = typename mapper<Float>::type

Definition at line 1696 of file gauge_field_order.h.

◆ Vector

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

typedef VectorType<Float, N>::type quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::Vector

Definition at line 1698 of file gauge_field_order.h.

Constructor & Destructor Documentation

◆ FloatNOrder() [1/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder	(	const GaugeField &	u,
		Float *	gauge_ = `0`,
		Float **	ghost_ = `0`,
		bool	override = `false`
	)

inline

Definition at line 1723 of file gauge_field_order.h.

References errorQuda, quda::GaugeField::Gauge_p(), quda::LatticeField::Location(), quda::GaugeField::Nface(), QUDA_COARSE_GEOMETRY, QUDA_CUDA_FIELD_LOCATION, quda::LatticeField::R(), quda::LatticeField::SurfaceCB(), and quda::LatticeField::X().

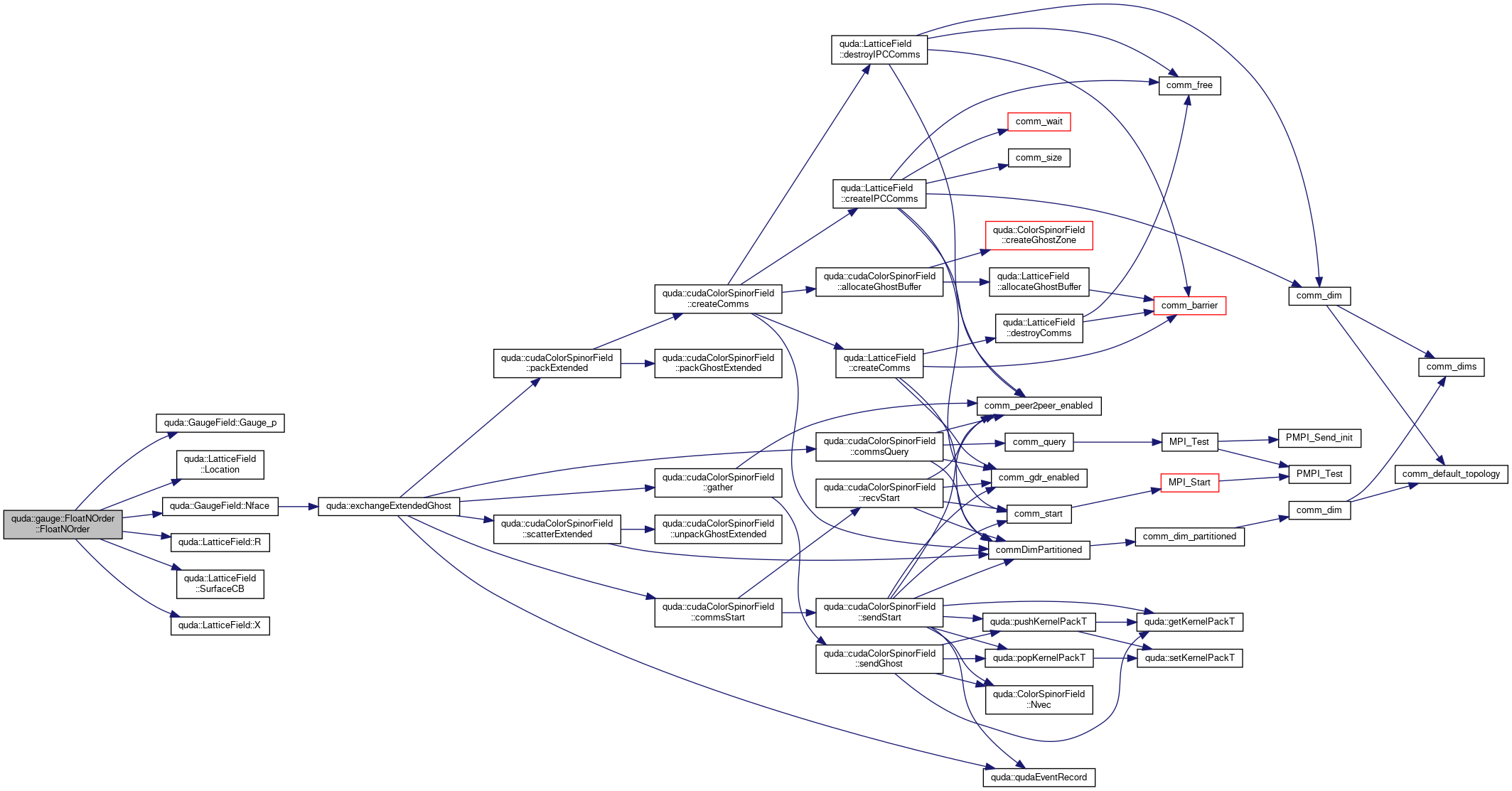

Here is the call graph for this function:

◆ FloatNOrder() [2/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder ( const FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase > & order )

inline

Definition at line 1752 of file gauge_field_order.h.

References quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::faceVolumeCB, quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::ghost, quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::R, and quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::X.

Member Function Documentation

◆ Bytes()

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

size_t quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::Bytes ( ) const

inline

Definition at line 2024 of file gauge_field_order.h.

◆ Ghost() [1/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ gauge_ghost_wrapper<real, Accessor> quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::Ghost	(	int	dim,
		int	ghost_idx,
		int	parity,
		real	phase = `1.0`
	)

inline

This accessor routine returns a gauge_ghost_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations.

Parameters

[in]	dir	Which dimension are we requesting
[in]	ghost_idx	Ghost index we are requesting
[in]	parity	Parity we are requesting

Returns: Instance of a gauge_ghost_wrapper that curries in access to this field at the above coordinates.

Definition at line 1931 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::dim, quda::gauge_wrapper< Float, T >::parity, and quda::gauge_wrapper< Float, T >::phase.

◆ Ghost() [2/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ const gauge_ghost_wrapper<real, Accessor> quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::Ghost	(	int	dim,
		int	ghost_idx,
		int	parity,
		real	phase = `1.0`
	)		const

inline

This accessor routine returns a const gauge_ghost_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations.

Parameters

[in]	dir	Which dimension are we requesting
[in]	ghost_idx	Ghost index we are requesting
[in]	parity	Parity we are requesting

Returns: Instance of a gauge_ghost_wrapper that curries in access to this field at the above coordinates.

Definition at line 1947 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::dim, quda::gauge_wrapper< Float, T >::parity, and quda::gauge_wrapper< Float, T >::phase.

◆ load() [1/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ void quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::load	(	complex	v[length/2],
		int	x,
		int	dir,
		int	parity,
		real	inphase = `1.0`
	)		const

inline

Definition at line 1769 of file gauge_field_order.h.

References quda::copy(), tmp, and quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Unpack().

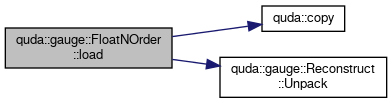

Here is the call graph for this function:

◆ load() [2/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

void quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::load ( )

inline

Restore the field from the host after tuning.

Definition at line 2017 of file gauge_field_order.h.

References checkCudaError, and host_free.

◆ loadGhost()

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ void quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::loadGhost	(	complex	v[length/2],
		int	x,
		int	dir,
		int	parity,
		real	inphase = `1.0`
	)		const

inline

Definition at line 1861 of file gauge_field_order.h.

References quda::copy(), tmp, and quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Unpack().

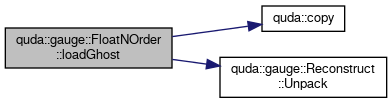

Here is the call graph for this function:

◆ loadGhostEx()

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ void quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::loadGhostEx	(	complex	v[length/2],
		int	buff_idx,
		int	extended_idx,
		int	dir,
		int	dim,
		int	g,
		int	parity,
		const int	R[]
	)		const

inline

Definition at line 1953 of file gauge_field_order.h.

References quda::copy(), quda::gauge_wrapper< Float, T >::dim, quda::gauge_wrapper< Float, T >::parity, tmp, and quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Unpack().

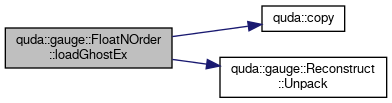

Here is the call graph for this function:

◆ operator()() [1/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ gauge_wrapper<real, Accessor> quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::operator()	(	int	dim,
		int	x_cb,
		int	parity,
		real	phase = `1.0`
	)

inline

This accessor routine returns a gauge_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations.

Parameters

[in]	dir	Which dimension are we requesting
[in]	x_cb	Checkerboarded space-time index we are requesting
[in]	parity	Parity we are requesting

Returns: Instance of a gauge_wrapper that curries in access to this field at the above coordinates.

Definition at line 1840 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::dim, quda::gauge_wrapper< Float, T >::parity, quda::gauge_wrapper< Float, T >::phase, and quda::gauge_wrapper< Float, T >::x_cb.

◆ operator()() [2/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ const gauge_wrapper<real, Accessor> quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::operator()	(	int	dim,
		int	x_cb,
		int	parity,
		real	phase = `1.0`
	)		const

inline

This accessor routine returns a const gauge_wrapper to this object, allowing us to overload various operators for manipulating at the site level interms of matrix operations.

Parameters

[in]	dir	Which dimension are we requesting
[in]	x_cb	Checkerboarded space-time index we are requesting
[in]	parity	Parity we are requesting

Returns: Instance of a gauge_wrapper that curries in access to this field at the above coordinates.

Definition at line 1855 of file gauge_field_order.h.

References quda::gauge_wrapper< Float, T >::dim, quda::gauge_wrapper< Float, T >::parity, quda::gauge_wrapper< Float, T >::phase, and quda::gauge_wrapper< Float, T >::x_cb.

◆ save() [1/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ void quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::save	(	const complex	v[length/2],
		int	x,
		int	dir,
		int	parity
	)

inline

Definition at line 1808 of file gauge_field_order.h.

References quda::copy(), quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::getPhase(), quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Pack(), tmp, and quda::vector_store().

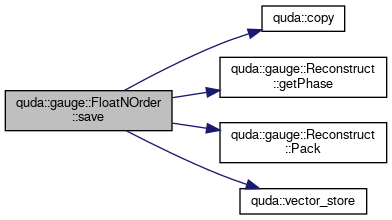

Here is the call graph for this function:

◆ save() [2/2]

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

void quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::save ( )

inline

Backup the field to the host when tuning.

Definition at line 2007 of file gauge_field_order.h.

References checkCudaError, errorQuda, and safe_malloc.

◆ saveGhost()

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ void quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::saveGhost	(	const complex	v[length/2],
		int	x,
		int	dir,
		int	parity
	)

inline

Definition at line 1894 of file gauge_field_order.h.

References quda::copy(), quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::getPhase(), quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Pack(), tmp, and quda::vector_store().

Here is the call graph for this function:

◆ saveGhostEx()

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

__device__ __host__ void quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::saveGhostEx	(	const complex	v[length/2],
		int	buff_idx,
		int	extended_idx,
		int	dir,
		int	dim,
		int	g,
		int	parity,
		const int	R[]
	)

inline

Definition at line 1978 of file gauge_field_order.h.

References quda::copy(), quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::getPhase(), quda::gauge::Reconstruct< N, Float, ghostExchange_, QudaStaggeredPhase >::Pack(), tmp, and quda::vector_store().

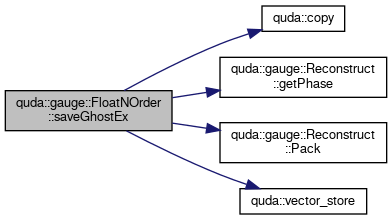

Here is the call graph for this function:

Member Data Documentation

◆ backup_h

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

void* quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::backup_h

Definition at line 1720 of file gauge_field_order.h.

◆ bytes

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

size_t quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::bytes

host memory for backing up the field when tuning

Definition at line 1721 of file gauge_field_order.h.

◆ coords

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

int quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::coords[QUDA_MAX_DIM]

Definition at line 1712 of file gauge_field_order.h.

◆ faceVolumeCB

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

int quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::faceVolumeCB[4]

Definition at line 1716 of file gauge_field_order.h.

Referenced by quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder().

◆ gauge

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

Float* quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::gauge

Definition at line 1703 of file gauge_field_order.h.

◆ geometry

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

const int quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::geometry

Definition at line 1718 of file gauge_field_order.h.

◆ ghost

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

Float* quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::ghost[4]

Definition at line 1710 of file gauge_field_order.h.

Referenced by quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder().

◆ ghostExchange

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

QudaGhostExchange quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::ghostExchange

Definition at line 1711 of file gauge_field_order.h.

◆ hasPhase

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

const int quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::hasPhase = (reconLen == 9 || reconLen == 13) ? 1 : 0

static

Definition at line 1702 of file gauge_field_order.h.

◆ offset

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

const AllocInt quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::offset

Definition at line 1704 of file gauge_field_order.h.

◆ phaseOffset

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

const AllocInt quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::phaseOffset

Definition at line 1719 of file gauge_field_order.h.

◆ R

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

int quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::R[QUDA_MAX_DIM]

Definition at line 1714 of file gauge_field_order.h.

Referenced by quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder().

◆ reconLen

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

const int quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::reconLen = (reconLenParam == 11) ? 10 : reconLenParam

static

Definition at line 1701 of file gauge_field_order.h.

◆ reconstruct

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

Reconstruct<reconLenParam, Float, ghostExchange_, stag_phase> quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::reconstruct

Definition at line 1700 of file gauge_field_order.h.

◆ stride

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

const int quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::stride

Definition at line 1717 of file gauge_field_order.h.

◆ volumeCB

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

const int quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::volumeCB

Definition at line 1715 of file gauge_field_order.h.

◆ X

template<typename Float , int length, int N, int reconLenParam, QudaStaggeredPhase stag_phase = QUDA_STAGGERED_PHASE_NO, bool huge_alloc = default_huge_alloc, QudaGhostExchange ghostExchange_ = QUDA_GHOST_EXCHANGE_INVALID, bool use_inphase = false>

int_fastdiv quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::X[QUDA_MAX_DIM]

Definition at line 1713 of file gauge_field_order.h.

Referenced by quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc, ghostExchange_, use_inphase >::FloatNOrder().

The documentation for this struct was generated from the following file:

include/gauge_field_order.h

Public Types

Public Member Functions

Public Attributes

Static Public Attributes

Detailed Description

Member Typedef Documentation

◆ Accessor

◆ AllocInt

◆ complex

◆ real

◆ Vector

Constructor & Destructor Documentation

◆ FloatNOrder() [1/2]

◆ FloatNOrder() [2/2]

Member Function Documentation

◆ Bytes()

◆ Ghost() [1/2]

◆ Ghost() [2/2]

◆ load() [1/2]

◆ load() [2/2]

◆ loadGhost()

◆ loadGhostEx()

◆ operator()() [1/2]

◆ operator()() [2/2]

◆ save() [1/2]

◆ save() [2/2]

◆ saveGhost()

◆ saveGhostEx()

Member Data Documentation

◆ backup_h

◆ bytes

◆ coords

◆ faceVolumeCB

◆ gauge

◆ geometry

◆ ghost

◆ ghostExchange

◆ hasPhase

◆ offset

◆ phaseOffset

◆ R

◆ reconLen

◆ reconstruct

◆ stride

◆ volumeCB

◆ X
