QUDA: quda::Deflation Class Reference

QUDA 0.9.0

#include <deflation.h>

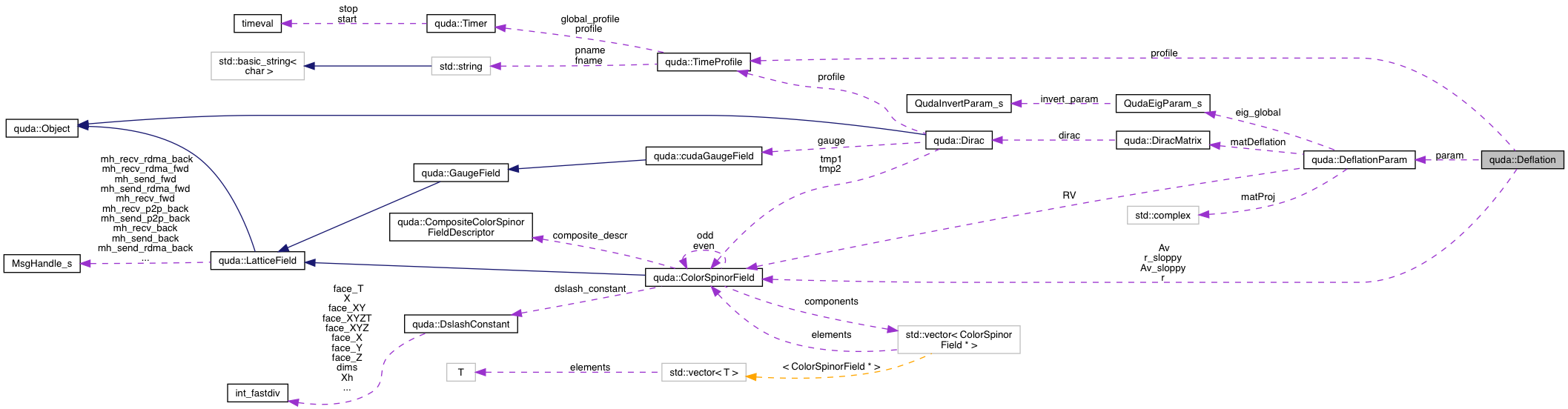

Collaboration diagram for quda::Deflation:

Collaboration graph

[legend]

Public Member Functions
	Deflation (DeflationParam &param, TimeProfile &profile)

virtual	~Deflation ()

void	verify ()

void	increment (ColorSpinorField &V, int nev)

void	reduce (double tol, int max_nev)

void	operator() (ColorSpinorField &out, ColorSpinorField &in)

void	loadVectors (ColorSpinorField *RV)
	Load the eigen space vectors from file. More...

void	saveVectors (ColorSpinorField *RV)
	Save the eigen space vectors in file. More...

bool	is_complete ()
	Test whether the deflation space is complete and therefore cannot be further extended More...

int	size ()
	return deflation space size More...

double	flops () const
	Return the total flops done on this and all coarser levels. More...

Private Attributes
DeflationParam &	param

TimeProfile	profile

ColorSpinorField *	r

ColorSpinorField *	Av

ColorSpinorField *	r_sloppy

ColorSpinorField *	Av_sloppy

Detailed Description

Deflation methods :

Definition at line 78 of file deflation.h.

Constructor & Destructor Documentation

◆ Deflation()

quda::Deflation::Deflation	(	DeflationParam &	param,
		TimeProfile &	profile
	)

Constructor for Deflation class

Parameters

param	DeflationParam struct that defines all meta data
profile	Timeprofile instance used to profile

Definition at line 30 of file deflation.cpp.

References Av, Av_sloppy, quda::ColorSpinorField::Component(), quda::ColorSpinorField::Create(), csParam, QudaEigParam_s::cuda_prec_ritz, quda::DeflationParam::eig_global, getVerbosity(), QudaEigParam_s::import_vectors, loadVectors(), quda::DeflationParam::location, param, quda::TimeProfile::Print(), printfQuda, profile, QUDA_CUDA_FIELD_LOCATION, QUDA_DOUBLE_PRECISION, QUDA_FLOAT2_FIELD_ORDER, QUDA_FLOAT4_FIELD_ORDER, QUDA_MEMORY_DEVICE, QUDA_SUMMARIZE, QUDA_UKQCD_GAMMA_BASIS, QUDA_ZERO_FIELD_CREATE, r, r_sloppy, QudaEigParam_s::run_verify, quda::DeflationParam::RV, quda::DeflationParam::tot_dim, and verify().

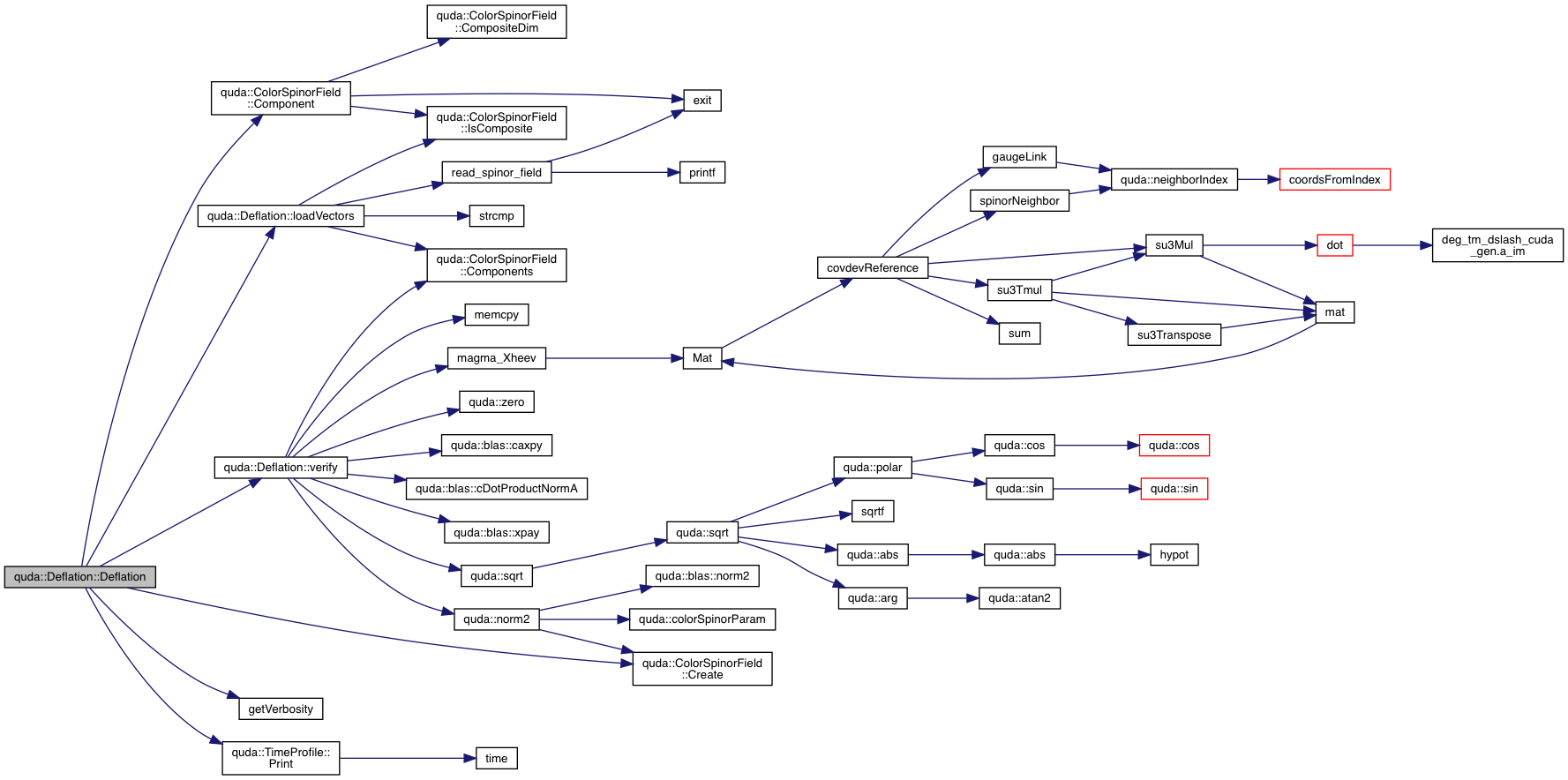

Here is the call graph for this function:

◆ ~Deflation()

quda::Deflation::~Deflation ( )

virtual

Destructor for Deflation class. Frees any existing Deflation instance

Definition at line 76 of file deflation.cpp.

References Av, Av_sloppy, QudaEigParam_s::cuda_prec_ritz, quda::DeflationParam::eig_global, getVerbosity(), param, quda::TimeProfile::Print(), profile, QUDA_DOUBLE_PRECISION, QUDA_SUMMARIZE, r, and r_sloppy.

Here is the call graph for this function:

Member Function Documentation

◆ flops()

double quda::Deflation::flops ( ) const

Return the total flops done on this and all coarser levels.

Definition at line 89 of file deflation.cpp.

◆ increment()

void quda::Deflation::increment	(	ColorSpinorField &	V,
		int	nev
	)

In the incremental eigcg: expands deflation space.

Parameters

V	container of new eigenvectors
nev	number of vectors to load

Definition at line 207 of file deflation.cpp.

References Av, Av_sloppy, quda::blas::ax(), quda::blas::caxpy(), quda::blas::cDotProduct(), quda::ColorSpinorField::Component(), quda::ColorSpinorField::Components(), quda::ColorSpinorField::CompositeDim(), quda::conj(), quda::blas::copy(), QudaEigParam_s::cuda_prec_ritz, quda::DeflationParam::cur_dim, e, quda::DeflationParam::eig_global, errorQuda, fused_exterior_ndeg_tm_dslash_cuda_gen::i, QudaInvertParam_s::inv_type, QudaEigParam_s::invert_param, quda::DeflationParam::ld, quda::DeflationParam::matDeflation, quda::DeflationParam::matProj, nev, quda::blas::norm2(), offset, param, printfQuda, QUDA_DOUBLE_PRECISION, QUDA_EIGCG_INVERTER, QUDA_INC_EIGCG_INVERTER, r, quda::DeflationParam::RV, quda::sqrt(), quda::DeflationParam::tot_dim, and warningQuda.

Referenced by quda::IncEigCG::operator()().

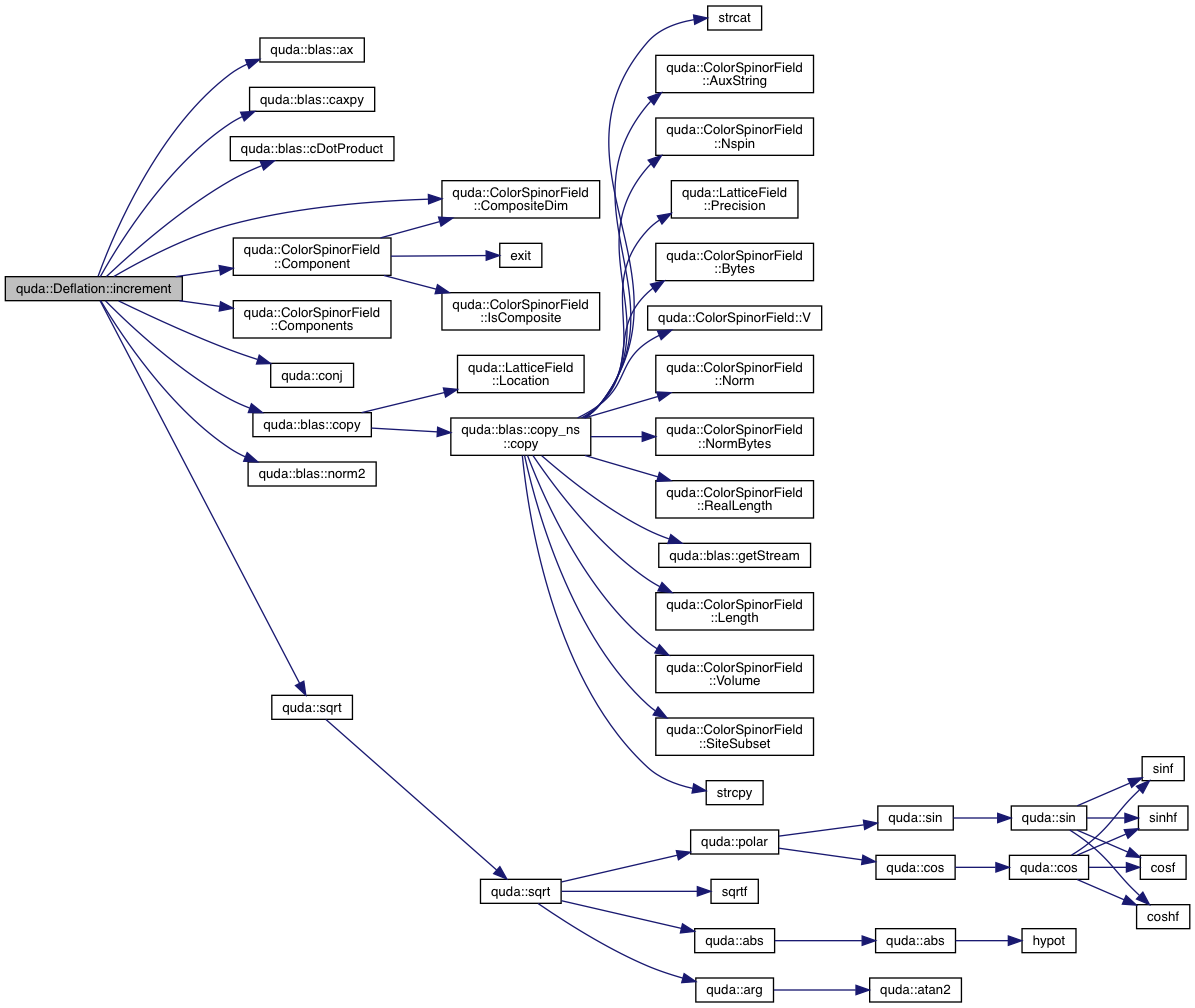

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_complete()

bool quda::Deflation::is_complete ( )

inline

Test whether the deflation space is complete and therefore cannot be further extended

Definition at line 159 of file deflation.h.

References quda::DeflationParam::cur_dim, param, and quda::DeflationParam::tot_dim.

Referenced by quda::IncEigCG::operator()().

Here is the caller graph for this function:

◆ loadVectors()

void quda::Deflation::loadVectors ( ColorSpinorField * RV )

Load the eigen space vectors from file.

Parameters

RV	Loaded eigen-space vectors (pre-allocated)

Definition at line 384 of file deflation.cpp.

References quda::ColorSpinorField::Components(), quda::DeflationParam::eig_global, errorQuda, fused_exterior_ndeg_tm_dslash_cuda_gen::i, quda::ColorSpinorField::IsComposite(), param, printfQuda, profile, quda::QUDA_PROFILE_INIT, quda::QUDA_PROFILE_IO, read_spinor_field(), strcmp(), V, vec_infile, and QudaEigParam_s::vec_infile.

Referenced by Deflation().

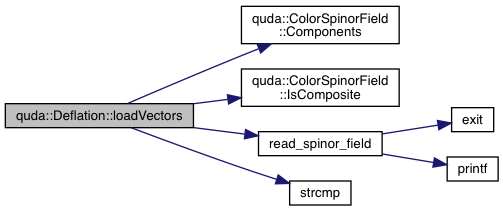

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator()()

void quda::Deflation::operator()	(	ColorSpinorField &	out,
		ColorSpinorField &	in
	)

This applies deflation operation on a given spinor vector(s)

Parameters

out	The projected vector
in	The input vector (or equivalently the right hand side vector)

Definition at line 152 of file deflation.cpp.

References b, quda::blas::caxpy(), quda::blas::cDotProduct(), quda::ColorSpinorField::Components(), quda::DeflationParam::cur_dim, quda::DeflationParam::eig_global, errorQuda, QudaEigParam_s::extlib_type, fused_exterior_ndeg_tm_dslash_cuda_gen::i, QudaInvertParam_s::inv_type, QudaEigParam_s::invert_param, quda::DeflationParam::invRitzVals, quda::DeflationParam::ld, magma_Xgesv(), quda::DeflationParam::matProj, quda::norm2(), param, quda::LatticeField::Precision(), printfQuda, QUDA_EIGCG_INVERTER, QUDA_EIGEN_EXTLIB, QUDA_INC_EIGCG_INVERTER, QUDA_MAGMA_EXTLIB, r_sloppy, quda::DeflationParam::RV, quda::sqrt(), quda::DeflationParam::use_inv_ritz, and x.

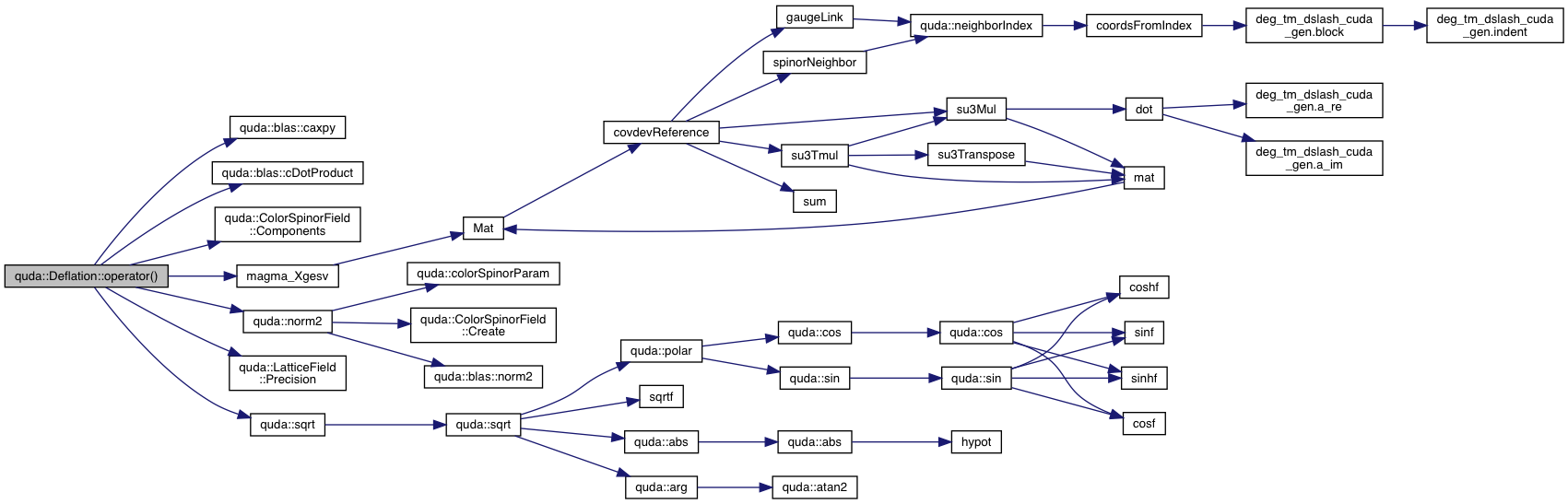

Here is the call graph for this function:

◆ reduce()

void quda::Deflation::reduce	(	double	tol,
		int	max_nev
	)

In the incremental eigcg: reduce deflation space based on the following criteria:

Parameters

tol	: keep all eigenvectors with residual norm less then tol
max_nev	: keep the lowest max_nev eigenvectors (conservative)

Definition at line 285 of file deflation.cpp.

References Av_sloppy, quda::blas::caxpy(), quda::blas::cDotProductNormA(), quda::ColorSpinorField::Component(), quda::ColorSpinorField::Components(), quda::blas::copy(), quda::ColorSpinorField::Create(), csParam, quda::DeflationParam::cur_dim, e, quda::DeflationParam::eig_global, errorQuda, QudaEigParam_s::extlib_type, fabs(), getVerbosity(), fused_exterior_ndeg_tm_dslash_cuda_gen::i, idx, quda::DeflationParam::invRitzVals, quda::DeflationParam::ld, magma_Xheev(), quda::DeflationParam::matDeflation, quda::DeflationParam::matProj, memcpy(), quda::norm2(), param, quda::pinned_allocator, quda::pinned_deleter, printf(), printfQuda, QUDA_EIGEN_EXTLIB, QUDA_MAGMA_EXTLIB, QUDA_MEMORY_MAPPED, QUDA_VERBOSE, QUDA_ZERO_FIELD_CREATE, r, r_sloppy, quda::DeflationParam::RV, quda::sqrt(), tol, quda::DeflationParam::tot_dim, quda::DeflationParam::use_inv_ritz, quda::blas::xpay(), and quda::blas::zero().

Referenced by quda::IncEigCG::operator()().

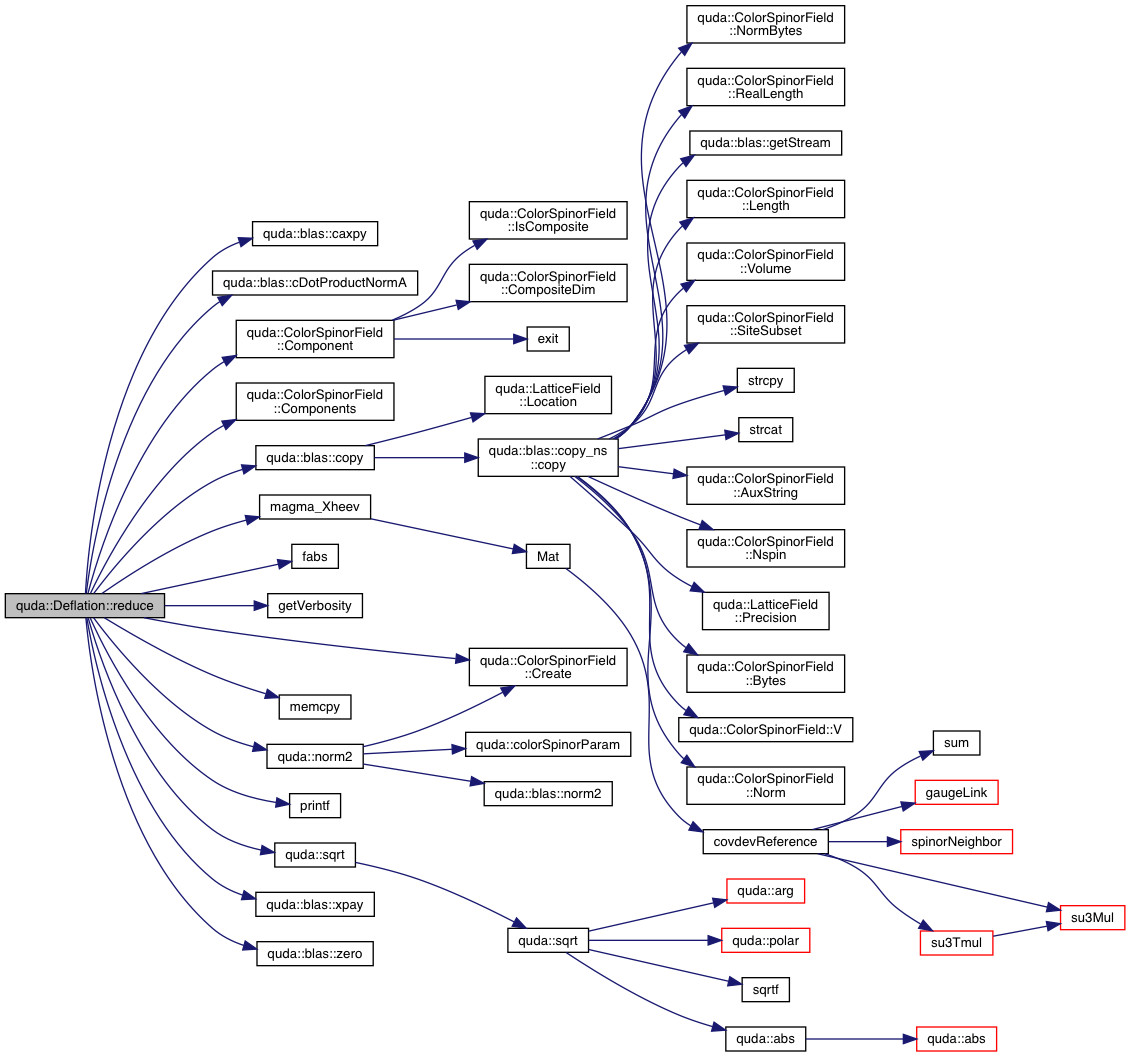

Here is the call graph for this function:

Here is the caller graph for this function:

◆ saveVectors()

void quda::Deflation::saveVectors ( ColorSpinorField * RV )

Save the eigen space vectors in file.

Parameters

RV	Save eigen-space vectors from here

Definition at line 420 of file deflation.cpp.

References quda::ColorSpinorField::Components(), quda::DeflationParam::eig_global, errorQuda, host_free, fused_exterior_ndeg_tm_dslash_cuda_gen::i, quda::ColorSpinorField::IsComposite(), param, printfQuda, profile, quda::QUDA_PROFILE_INIT, quda::QUDA_PROFILE_IO, safe_malloc, strcmp(), V, vec_outfile, QudaEigParam_s::vec_outfile, and write_spinor_field().

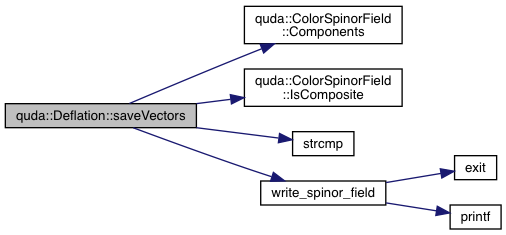

Here is the call graph for this function:

◆ size()

int quda::Deflation::size ( )

inline

return deflation space size

Definition at line 164 of file deflation.h.

References quda::DeflationParam::cur_dim, and param.

Referenced by quda::IncEigCG::operator()().

Here is the caller graph for this function:

◆ verify()

void quda::Deflation::verify ( )

This method verifies the correctness of the MG method. It checks:

eigen-vector accuracy
...

Verification that the computed approximate eigenvectors are (not) valid

Definition at line 100 of file deflation.cpp.

References Av_sloppy, quda::blas::caxpy(), quda::blas::cDotProductNormA(), quda::ColorSpinorField::Components(), quda::DeflationParam::cur_dim, quda::DeflationParam::eig_global, errorQuda, QudaEigParam_s::extlib_type, fused_exterior_ndeg_tm_dslash_cuda_gen::i, quda::DeflationParam::ld, magma_Xheev(), quda::DeflationParam::matDeflation, quda::DeflationParam::matProj, memcpy(), quda::norm2(), param, quda::pinned_allocator, quda::pinned_deleter, printfQuda, QUDA_EIGEN_EXTLIB, QUDA_MAGMA_EXTLIB, r, r_sloppy, quda::DeflationParam::RV, quda::sqrt(), quda::blas::xpay(), and quda::zero().

Referenced by Deflation(), and quda::IncEigCG::operator()().

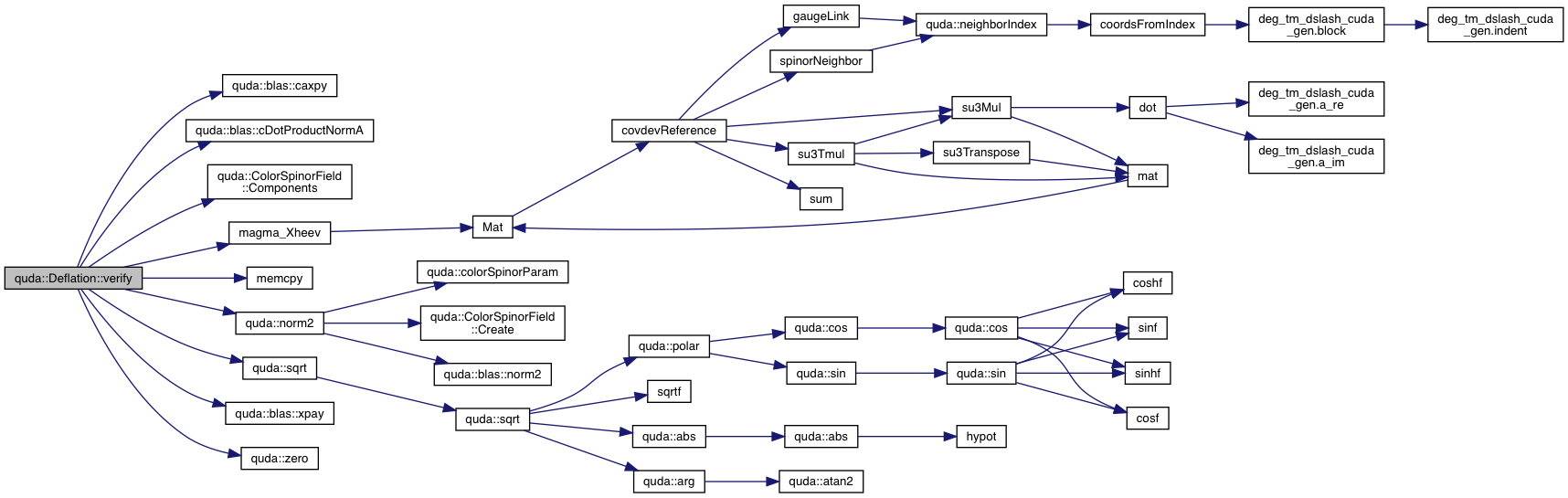

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ Av

ColorSpinorField* quda::Deflation::Av

private

High precision aux field

Definition at line 91 of file deflation.h.

Referenced by Deflation(), increment(), and ~Deflation().

◆ Av_sloppy

ColorSpinorField* quda::Deflation::Av_sloppy

private

Deflation matrix operation result

Definition at line 97 of file deflation.h.

Referenced by Deflation(), increment(), reduce(), verify(), and ~Deflation().

◆ param

DeflationParam& quda::Deflation::param

private

Local copy of the deflation metadata

Definition at line 82 of file deflation.h.

Referenced by Deflation(), increment(), is_complete(), loadVectors(), operator()(), reduce(), saveVectors(), size(), verify(), and ~Deflation().

◆ profile

TimeProfile quda::Deflation::profile

private

TimeProfile for this level

Definition at line 85 of file deflation.h.

Referenced by Deflation(), loadVectors(), saveVectors(), and ~Deflation().

◆ r

ColorSpinorField* quda::Deflation::r

private

High precision aux field

Definition at line 88 of file deflation.h.

Referenced by Deflation(), increment(), reduce(), verify(), and ~Deflation().

◆ r_sloppy

ColorSpinorField* quda::Deflation::r_sloppy

private

Ritz precision residual vector

Definition at line 94 of file deflation.h.

Referenced by Deflation(), operator()(), reduce(), verify(), and ~Deflation().

The documentation for this class was generated from the following files:

include/deflation.h
lib/deflation.cpp
