#include <multigrid.h>

Inheritance diagram for quda::MG:

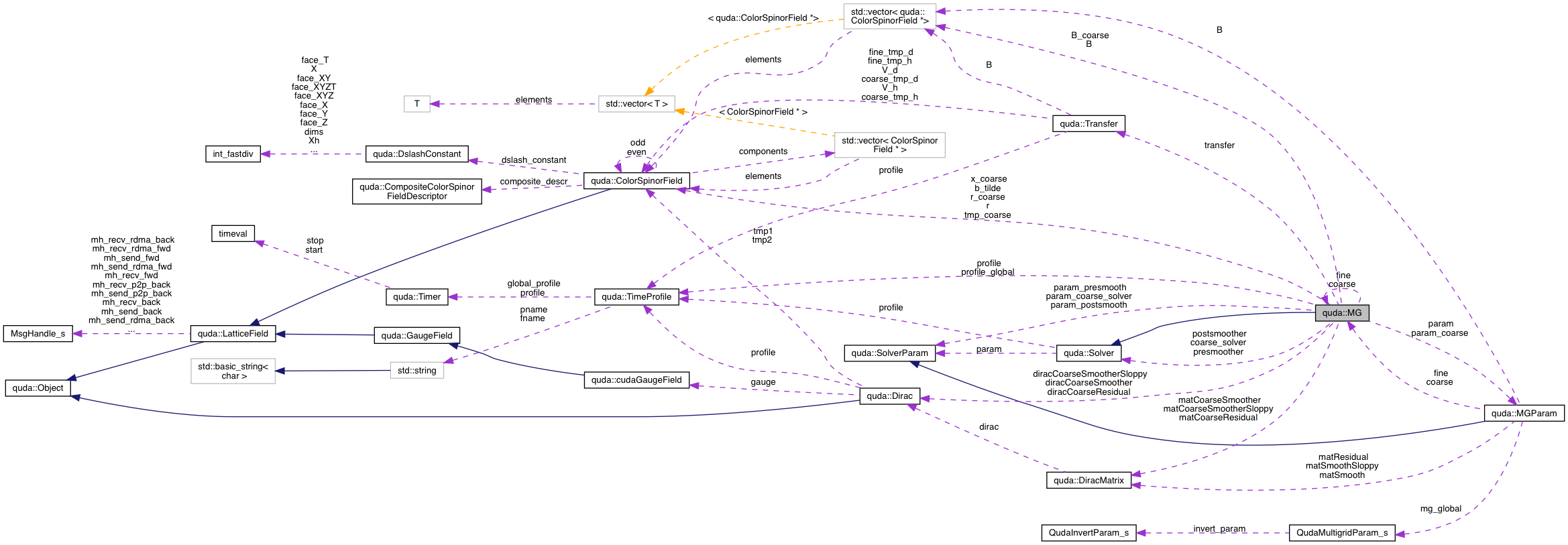

Collaboration diagram for quda::MG:

[legend]

Public Member Functions
	MG (MGParam &param, TimeProfile &profile)

virtual	~MG ()

void	createSmoother ()
	Create the smoothers. More...

void	destroySmoother ()
	Free the smoothers. More...

void	reset ()

void	verify ()

void	operator() (ColorSpinorField &out, ColorSpinorField &in)

void	loadVectors (std::vector< ColorSpinorField *> &B)
	Load the null space vectors in from file. More...

void	saveVectors (std::vector< ColorSpinorField *> &B)
	Save the null space vectors in from file. More...

void	generateNullVectors (std::vector< ColorSpinorField *> B)
	Generate the null-space vectors. More...

double	flops () const
	Return the total flops done on this and all coarser levels. More...

Public Member Functions inherited from quda::Solver
	Solver (SolverParam &param, TimeProfile &profile)

virtual	~Solver ()

virtual void	solve (ColorSpinorField &out, ColorSpinorField &in)

bool	convergence (const double &r2, const double &hq2, const double &r2_tol, const double &hq_tol)

bool	convergenceHQ (const double &r2, const double &hq2, const double &r2_tol, const double &hq_tol)

bool	convergenceL2 (const double &r2, const double &hq2, const double &r2_tol, const double &hq_tol)

void	PrintStats (const char *, int k, const double &r2, const double &b2, const double &hq2)

void	PrintSummary (const char *name, int k, const double &r2, const double &b2)

Private Attributes
MGParam &	param

Transfer *	transfer

Solver *	presmoother

Solver *	postsmoother

TimeProfile &	profile_global

TimeProfile	profile

char	prefix [128]

char	coarse_prefix [128]

MG *	coarse

MG *	fine

Solver *	coarse_solver

MGParam *	param_coarse

SolverParam *	param_presmooth

SolverParam *	param_postsmooth

SolverParam *	param_coarse_solver

std::vector< ColorSpinorField * > *	B

std::vector< ColorSpinorField * > *	B_coarse

ColorSpinorField *	r

ColorSpinorField *	b_tilde

ColorSpinorField *	r_coarse

ColorSpinorField *	x_coarse

ColorSpinorField *	tmp_coarse

Dirac *	diracCoarseResidual

Dirac *	diracCoarseSmoother

Dirac *	diracCoarseSmootherSloppy

DiracMatrix *	matCoarseResidual

DiracMatrix *	matCoarseSmoother

DiracMatrix *	matCoarseSmootherSloppy

Additional Inherited Members
Static Public Member Functions inherited from quda::Solver
static Solver *	create (SolverParam &param, DiracMatrix &mat, DiracMatrix &matSloppy, DiracMatrix &matPrecon, TimeProfile &profile)

static double	stopping (const double &tol, const double &b2, QudaResidualType residual_type)

Protected Attributes inherited from quda::Solver
SolverParam &	param

TimeProfile &	profile

Detailed Description

Adaptive Multigrid solver

Definition at line 172 of file multigrid.h.

Constructor & Destructor Documentation

◆ MG()

quda::MG::MG	(	MGParam &	param,
		TimeProfile &	profile
	)

Constructor for MG class

Parameters

param	MGParam struct that defines all meta data
profile	Timeprofile instance used to profile

Definition at line 13 of file multigrid.cpp.

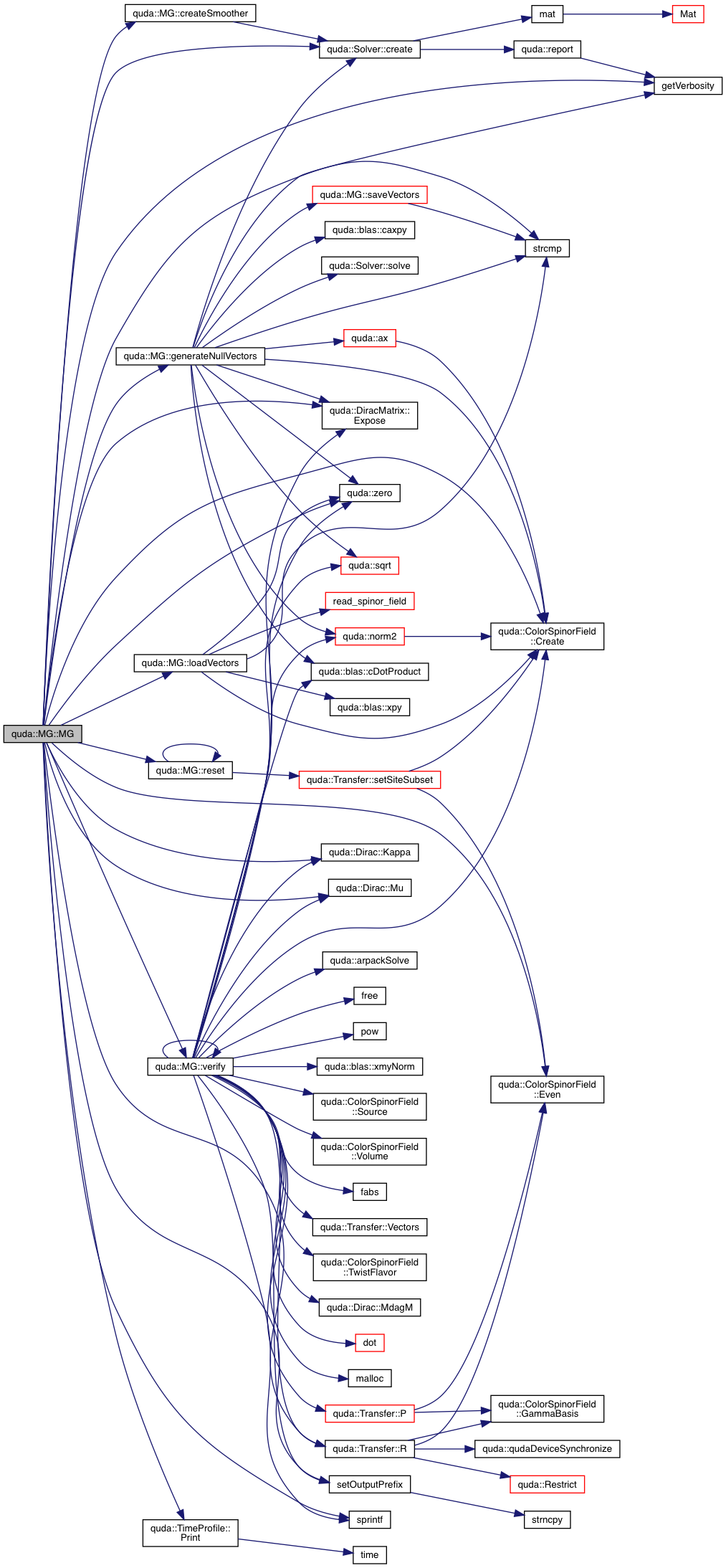

Here is the call graph for this function:

◆ ~MG()

quda::MG::~MG ( )

virtual

Destructor for MG class. Frees any existing coarse grid MG instance

Definition at line 268 of file multigrid.cpp.

References B_coarse, b_tilde, coarse, coarse_solver, quda::MGParam::cycle_type, destroySmoother(), diracCoarseResidual, diracCoarseSmoother, diracCoarseSmootherSloppy, getVerbosity(), fused_exterior_ndeg_tm_dslash_cuda_gen::i, quda::MGParam::level, matCoarseResidual, matCoarseSmoother, matCoarseSmootherSloppy, quda::MGParam::mg_global, QudaMultigridParam_s::n_vec, quda::MGParam::Nlevel, quda::MGParam::Nvec, param, param_coarse, param_coarse_solver, quda::TimeProfile::Print(), profile, QUDA_DIRECT_PC_SOLVE, QUDA_MG_CYCLE_RECURSIVE, QUDA_SUMMARIZE, r, r_coarse, quda::MGParam::smoother_solve_type, tmp_coarse, transfer, and x_coarse.

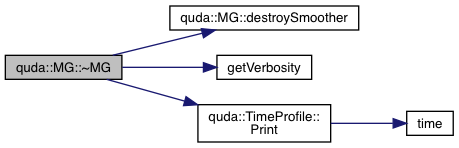

Here is the call graph for this function:

Member Function Documentation

◆ createSmoother()

void quda::MG::createSmoother ( )

Create the smoothers.

Definition at line 213 of file multigrid.cpp.

Referenced by MG(), and updateMultigridQuda().

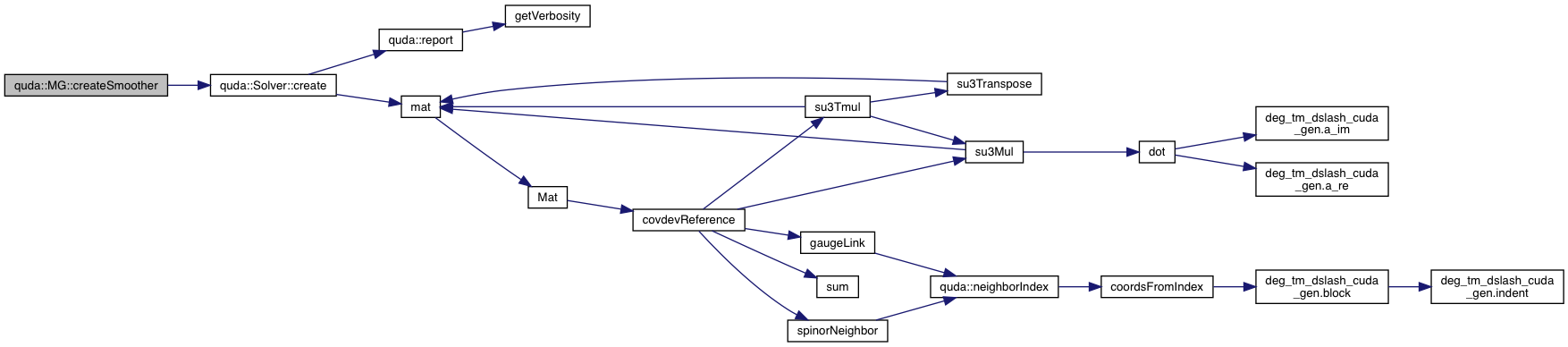

Here is the call graph for this function:

Here is the caller graph for this function:

◆ destroySmoother()

void quda::MG::destroySmoother ( )

Free the smoothers.

Definition at line 254 of file multigrid.cpp.

References quda::MGParam::level, quda::MGParam::Nlevel, param, param_postsmooth, param_presmooth, postsmoother, and presmoother.

Referenced by updateMultigridQuda(), and ~MG().

Here is the caller graph for this function:

◆ flops()

double quda::MG::flops ( ) const

virtual

Return the total flops done on this and all coarser levels.

Reimplemented from quda::Solver.

Definition at line 303 of file multigrid.cpp.

References coarse, quda::Transfer::flops(), flops(), quda::SolverParam::gflops, quda::MGParam::level, quda::MGParam::Nlevel, param, param_postsmooth, param_presmooth, and transfer.

Referenced by flops().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ generateNullVectors()

void quda::MG::generateNullVectors ( std::vector< ColorSpinorField *> B )

Generate the null-space vectors.

Parameters

B	Generated null-space vectors

Definition at line 744 of file multigrid.cpp.

Referenced by MG().

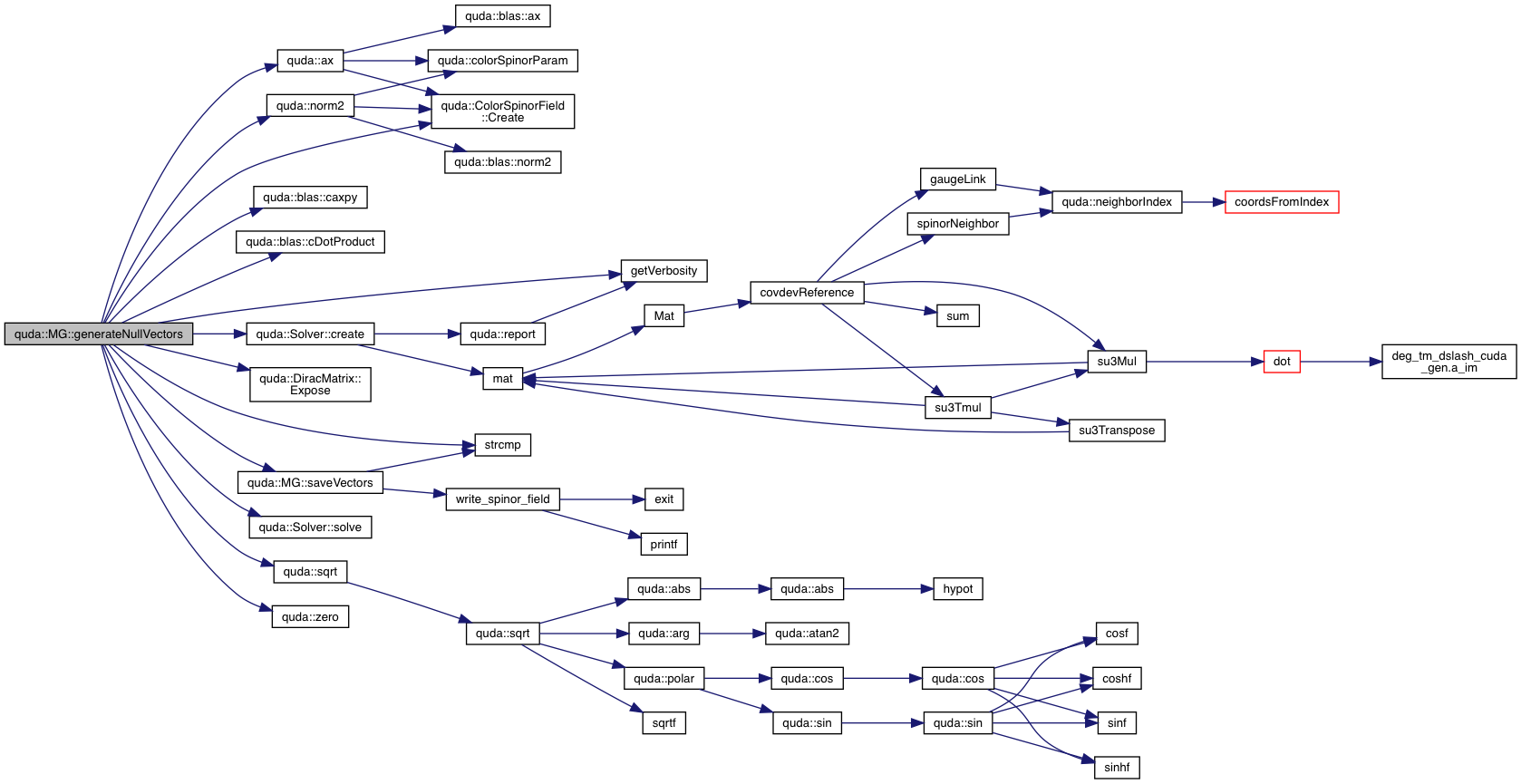

Here is the call graph for this function:

Here is the caller graph for this function:

◆ loadVectors()

void quda::MG::loadVectors ( std::vector< ColorSpinorField *> & B )

Load the null space vectors in from file.

Parameters

B	Loaded null-space vectors (pre-allocated)

Definition at line 648 of file multigrid.cpp.

References B, c, quda::ColorSpinorField::Create(), csParam, errorQuda, fused_exterior_ndeg_tm_dslash_cuda_gen::i, quda::MGParam::level, quda::MGParam::mg_global, param, printfQuda, profile_global, QUDA_CONSTANT_SOURCE, quda::QUDA_PROFILE_INIT, quda::QUDA_PROFILE_IO, QUDA_RANDOM_SOURCE, QUDA_ZERO_FIELD_CREATE, read_spinor_field(), s, strcmp(), tmp, V, vec_infile, QudaMultigridParam_s::vec_infile, quda::blas::xpy(), and quda::zero().

Referenced by MG().

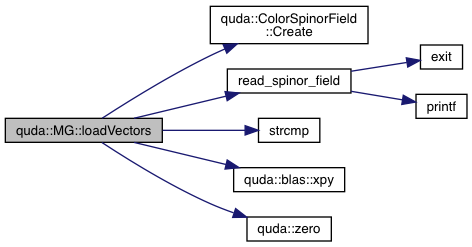

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator()()

void quda::MG::operator()	(	ColorSpinorField &	out,
		ColorSpinorField &	in
	)

virtual

This applies the V-cycle to the residual vector returning the residual vector

Parameters

out	The solution vector
in	The residual vector (or equivalently the right hand side vector)

Implements quda::Solver.

Definition at line 530 of file multigrid.cpp.

References axpby(), b, b_tilde, quda::MGParam::coarse_grid_solution_type, quda::debug, dirac, errorQuda, quda::ColorSpinorField::Even(), quda::DiracMatrix::Expose(), in, quda::MGParam::level, quda::MGParam::matResidual, quda::MGParam::matSmooth, quda::MGParam::Nlevel, quda::norm2(), out, quda::Transfer::P(), param, prefix, printfQuda, QUDA_DIRECT_PC_SOLVE, QUDA_DIRECT_SOLVE, QUDA_FULL_SITE_SUBSET, QUDA_MAT_SOLUTION, QUDA_MATPC_SOLUTION, quda::Transfer::R(), r, r_coarse, setOutputPrefix(), quda::MGParam::smoother_solve_type, strncpy(), transfer, x, x_coarse, quda::blas::xmyNorm(), and quda::blas::xpy().

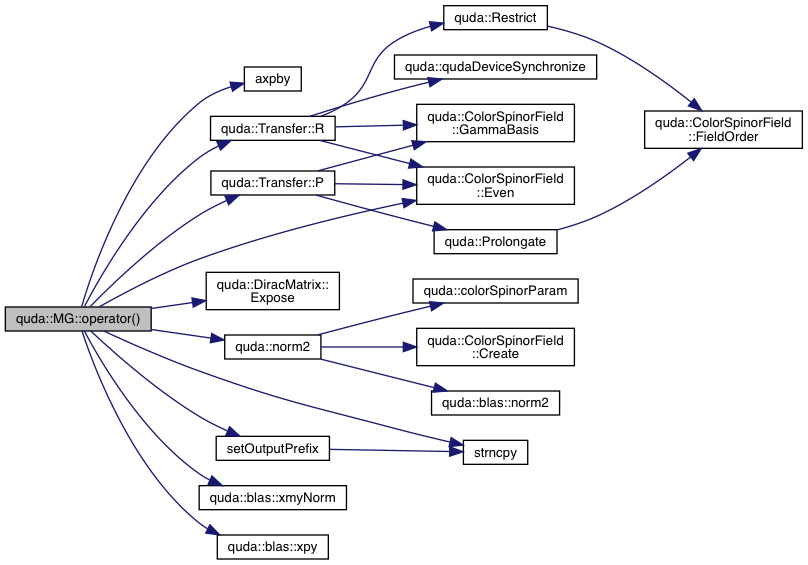

Here is the call graph for this function:

◆ reset()

void quda::MG::reset ( )

This method is a placeholder for reseting the solver, e.g., when a parameter has changed such as the mass. For now, all it does is call Transfer::setSiteSubset to resize the on-GPU null-space components to single-parity if we're doing a single-parity solve (memory saving technique).

Definition at line 203 of file multigrid.cpp.

References coarse, quda::MGParam::coarse_grid_solution_type, QudaMultigridParam_s::invert_param, quda::MGParam::level, matpc_type, QudaInvertParam_s::matpc_type, quda::MGParam::mg_global, quda::MGParam::Nlevel, param, parity, QUDA_EVEN_PARITY, QUDA_FULL_SITE_SUBSET, QUDA_MATPC_EVEN_EVEN, QUDA_MATPC_EVEN_EVEN_ASYMMETRIC, QUDA_MATPC_SOLUTION, QUDA_ODD_PARITY, QUDA_PARITY_SITE_SUBSET, reset(), quda::Transfer::setSiteSubset(), and transfer.

Referenced by MG(), and reset().

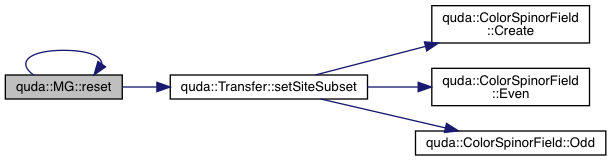

Here is the call graph for this function:

Here is the caller graph for this function:

◆ saveVectors()

void quda::MG::saveVectors ( std::vector< ColorSpinorField *> & B )

Save the null space vectors in from file.

Parameters

B	Save null-space vectors from here

Definition at line 708 of file multigrid.cpp.

References B, errorQuda, host_free, fused_exterior_ndeg_tm_dslash_cuda_gen::i, quda::MGParam::level, quda::MGParam::mg_global, param, printfQuda, profile_global, quda::QUDA_PROFILE_INIT, quda::QUDA_PROFILE_IO, safe_malloc, strcmp(), V, vec_outfile, QudaMultigridParam_s::vec_outfile, and write_spinor_field().

Referenced by generateNullVectors().

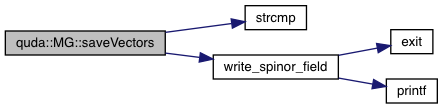

Here is the call graph for this function:

Here is the caller graph for this function:

◆ verify()

void quda::MG::verify ( )

This method verifies the correctness of the MG method. It checks:

Null-space vectors are exactly preserved: v_k = P R v_k
Any coarse vector is exactly preserved on the fine grid: eta_c = R P eta_c
The emulated coarse Dirac operator matches the native one: D_c = R D P

Verification that the constructed multigrid operator is valid

Definition at line 327 of file multigrid.cpp.

References quda::arpackSolve(), quda::MGParam::B, quda::blas::cDotProduct(), coarse, quda::MGParam::coarse_grid_solution_type, quda::ColorSpinorParam::create, quda::ColorSpinorField::Create(), csParam, dirac, dot(), e, errorQuda, quda::DiracMatrix::Expose(), fabs(), quda::ColorSpinorParam::fieldOrder, free(), quda::MGParam::geoBlockSize, fused_exterior_ndeg_tm_dslash_cuda_gen::i, quda::Dirac::Kappa(), kappa, quda::MGParam::level, quda::ColorSpinorParam::location, QudaMultigridParam_s::location, malloc(), quda::MGParam::matResidual, quda::MGParam::matSmooth, quda::Dirac::MdagM(), quda::MGParam::mg_global, quda::Dirac::Mu(), QudaMultigridParam_s::mu_factor, quda::MGParam::Nlevel, quda::norm2(), quda::MGParam::Nvec, quda::Transfer::P(), param, param_coarse, pow(), prefix, printfQuda, QUDA_CPU_FIELD_LOCATION, QUDA_DIRECT_PC_SOLVE, QUDA_DOUBLE_PRECISION, QUDA_EVEN_PARITY, QUDA_MATPC_SOLUTION, QUDA_NULL_FIELD_CREATE, QUDA_ODD_PARITY, QUDA_PARITY_SITE_SUBSET, QUDA_RANDOM_SOURCE, QUDA_SINGLE_PRECISION, QUDA_SPACE_SPIN_COLOR_FIELD_ORDER, QUDA_ZERO_FIELD_CREATE, quda::Transfer::R(), r, r_coarse, setOutputPrefix(), quda::LatticeFieldParam::siteSubset, quda::MGParam::smoother_solve_type, quda::ColorSpinorField::Source(), quda::MGParam::spinBlockSize, sprintf(), quda::sqrt(), tmp1, tmp2, tmp_coarse, tol, transfer, quda::ColorSpinorField::TwistFlavor(), quda::Transfer::Vectors(), verify(), quda::ColorSpinorField::Volume(), warningQuda, quda::LatticeFieldParam::x, x, x_coarse, quda::blas::xmyNorm(), and quda::zero().

Referenced by MG(), and verify().

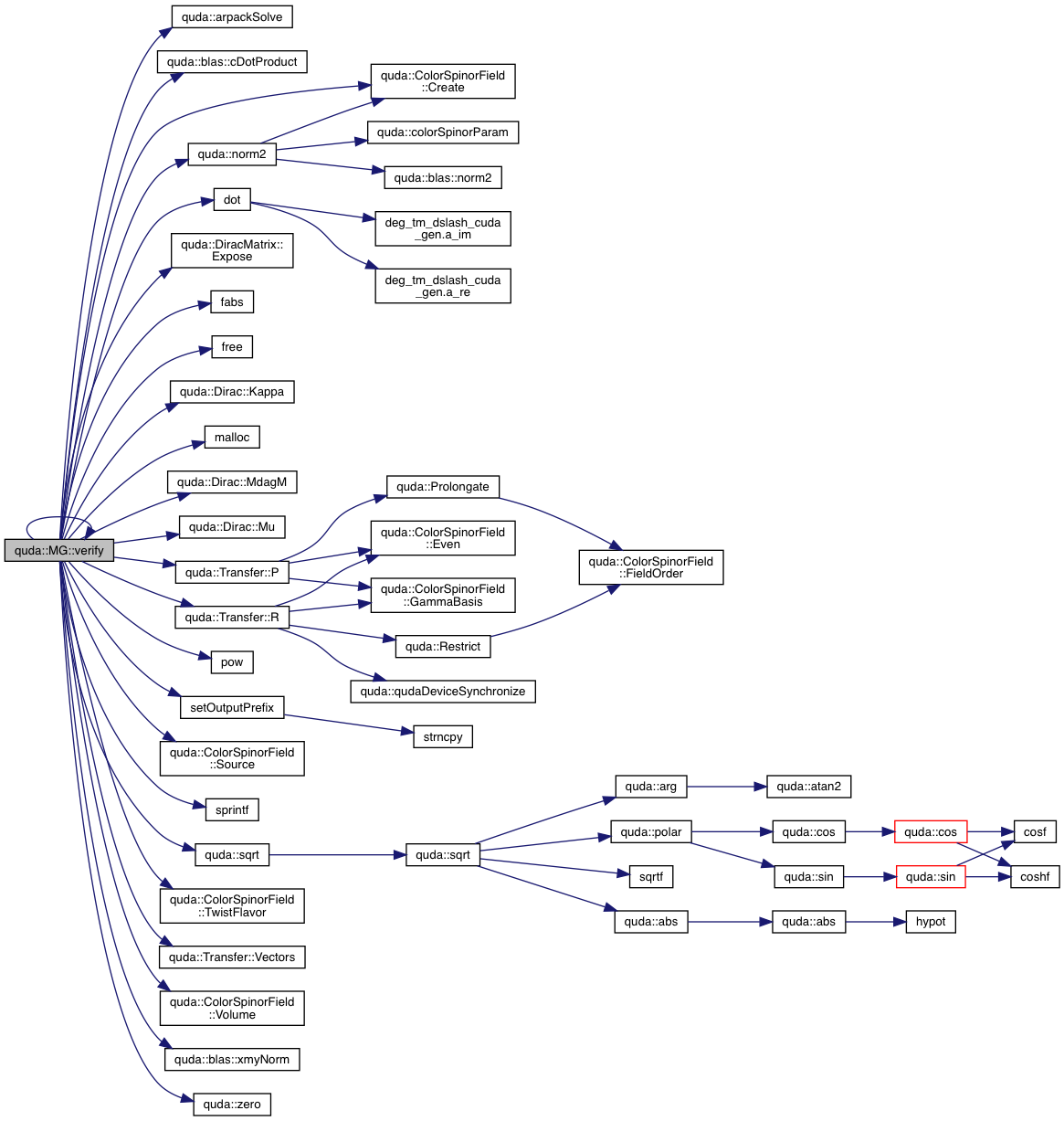

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ B

std::vector<ColorSpinorField*>* quda::MG::B

private

The fine-grid representation of the null space vectors

Definition at line 218 of file multigrid.h.

Referenced by generateNullVectors(), loadVectors(), and saveVectors().

◆ B_coarse

std::vector<ColorSpinorField*>* quda::MG::B_coarse

private

The coarse-grid representation of the null space vectors

Definition at line 221 of file multigrid.h.

Referenced by MG(), and ~MG().

◆ b_tilde

ColorSpinorField* quda::MG::b_tilde

private

Projected source vector for preconditioned syste, else just points to source

Definition at line 227 of file multigrid.h.

Referenced by MG(), operator()(), and ~MG().

◆ coarse

MG* quda::MG::coarse

private

This is the next lower level

Definition at line 197 of file multigrid.h.

Referenced by flops(), MG(), reset(), verify(), and ~MG().

◆ coarse_prefix

char quda::MG::coarse_prefix[128]

private

Prefix label used for printf on next coarse level

Definition at line 194 of file multigrid.h.

Referenced by MG().

◆ coarse_solver

Solver* quda::MG::coarse_solver

private

The coarse grid solver - this either points at "coarse" or a solver preconditioned by "coarse"

Definition at line 203 of file multigrid.h.

Referenced by MG(), and ~MG().

◆ diracCoarseResidual

Dirac* quda::MG::diracCoarseResidual

private

The coarse operator used for computing inter-grid residuals

Definition at line 239 of file multigrid.h.

Referenced by MG(), and ~MG().

◆ diracCoarseSmoother

Dirac* quda::MG::diracCoarseSmoother

private

The coarse operator used for doing smoothing

Definition at line 242 of file multigrid.h.

Referenced by MG(), and ~MG().

◆ diracCoarseSmootherSloppy

Dirac* quda::MG::diracCoarseSmootherSloppy

private

The coarse operator used for doing sloppy smoothing

Definition at line 245 of file multigrid.h.

Referenced by MG(), and ~MG().

◆ fine

MG* quda::MG::fine

private

This is the next coarser level

Definition at line 200 of file multigrid.h.

◆ matCoarseResidual

DiracMatrix* quda::MG::matCoarseResidual

private

Wrapper for the residual coarse grid operator

Definition at line 248 of file multigrid.h.

Referenced by MG(), and ~MG().

◆ matCoarseSmoother

DiracMatrix* quda::MG::matCoarseSmoother

private

Wrapper for the smoothing coarse grid operator

Definition at line 251 of file multigrid.h.

Referenced by MG(), and ~MG().

◆ matCoarseSmootherSloppy

DiracMatrix* quda::MG::matCoarseSmootherSloppy

private

Wrapper for the sloppy smoothing coarse grid operator

Definition at line 254 of file multigrid.h.

Referenced by MG(), and ~MG().

◆ param

MGParam& quda::MG::param

private

Local copy of the multigrid metadata

Definition at line 176 of file multigrid.h.

Referenced by createSmoother(), destroySmoother(), flops(), generateNullVectors(), loadVectors(), MG(), operator()(), reset(), saveVectors(), verify(), and ~MG().

◆ param_coarse

MGParam* quda::MG::param_coarse

private

Storage for the parameter struct for the coarse grid

Definition at line 206 of file multigrid.h.

Referenced by MG(), verify(), and ~MG().

◆ param_coarse_solver

SolverParam* quda::MG::param_coarse_solver

private

Storage for the parameter struct for the coarse solver

Definition at line 215 of file multigrid.h.

Referenced by MG(), and ~MG().

◆ param_postsmooth

SolverParam* quda::MG::param_postsmooth

private

Storage for the parameter struct for the post-smoother

Definition at line 212 of file multigrid.h.

Referenced by createSmoother(), destroySmoother(), and flops().

◆ param_presmooth

SolverParam* quda::MG::param_presmooth

private

Storage for the parameter struct for the pre-smoother

Definition at line 209 of file multigrid.h.

Referenced by createSmoother(), destroySmoother(), and flops().

◆ postsmoother

Solver * quda::MG::postsmoother

private

Definition at line 182 of file multigrid.h.

Referenced by createSmoother(), and destroySmoother().

◆ prefix

char quda::MG::prefix[128]

private

Prefix label used for printf at this level

Definition at line 191 of file multigrid.h.

Referenced by MG(), operator()(), and verify().

◆ presmoother

Solver* quda::MG::presmoother

private

This is the smoother used

Definition at line 182 of file multigrid.h.

Referenced by createSmoother(), and destroySmoother().

◆ profile

TimeProfile quda::MG::profile

private

TimeProfile for this level

Definition at line 188 of file multigrid.h.

Referenced by createSmoother(), generateNullVectors(), MG(), and ~MG().

◆ profile_global

TimeProfile& quda::MG::profile_global

private

TimeProfile for all levels (refers to profile from parent solver)

Definition at line 185 of file multigrid.h.

Referenced by loadVectors(), MG(), and saveVectors().

◆ r

ColorSpinorField* quda::MG::r

private

Residual vector

Definition at line 224 of file multigrid.h.

Referenced by MG(), operator()(), verify(), and ~MG().

◆ r_coarse

ColorSpinorField* quda::MG::r_coarse

private

Coarse residual vector

Definition at line 230 of file multigrid.h.

Referenced by MG(), operator()(), verify(), and ~MG().

◆ tmp_coarse

ColorSpinorField* quda::MG::tmp_coarse

private

Coarse temporary vector

Definition at line 236 of file multigrid.h.

Referenced by MG(), verify(), and ~MG().

◆ transfer

Transfer* quda::MG::transfer

private

This is the transfer operator that defines the prolongation and restriction operators

Definition at line 179 of file multigrid.h.

Referenced by flops(), MG(), operator()(), reset(), verify(), and ~MG().

◆ x_coarse

ColorSpinorField* quda::MG::x_coarse

private

Coarse solution vector

Definition at line 233 of file multigrid.h.

Referenced by MG(), operator()(), verify(), and ~MG().

The documentation for this class was generated from the following files:

include/multigrid.h
lib/multigrid.cpp

Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ MG()

◆ ~MG()

Member Function Documentation

◆ createSmoother()

◆ destroySmoother()

◆ flops()

◆ generateNullVectors()

◆ loadVectors()

◆ operator()()

◆ reset()

◆ saveVectors()

◆ verify()

Member Data Documentation

◆ B

◆ B_coarse

◆ b_tilde

◆ coarse

◆ coarse_prefix

◆ coarse_solver

◆ diracCoarseResidual

◆ diracCoarseSmoother

◆ diracCoarseSmootherSloppy

◆ fine

◆ matCoarseResidual

◆ matCoarseSmoother

◆ matCoarseSmootherSloppy

◆ param

◆ param_coarse

◆ param_coarse_solver

◆ param_postsmooth

◆ param_presmooth

◆ postsmoother

◆ prefix

◆ presmoother

◆ profile

◆ profile_global

◆ r

◆ r_coarse

◆ tmp_coarse

◆ transfer

◆ x_coarse
