#include <transfer.h>

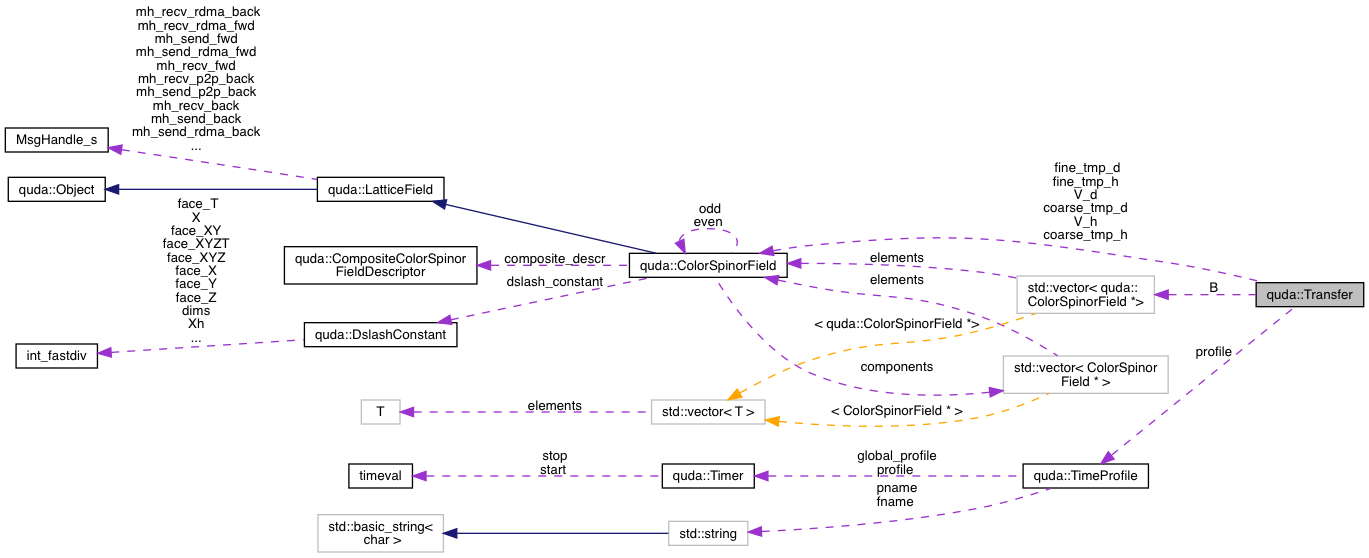

Collaboration diagram for quda::Transfer:

[legend]

Public Member Functions
	Transfer (const std::vector< ColorSpinorField > &B, int Nvec, int geo_bs, int spin_bs, bool enable_gpu, TimeProfile &profile)

virtual	~Transfer ()

void	P (ColorSpinorField &out, const ColorSpinorField &in) const

void	R (ColorSpinorField &out, const ColorSpinorField &in) const

const ColorSpinorField &	Vectors (QudaFieldLocation location=QUDA_CPU_FIELD_LOCATION) const

int	nvec () const

int	Spin_bs () const

const int *	Geo_bs () const

void	setTransferGPU (bool use_gpu) const

void	setSiteSubset (QudaSiteSubset site_subset, QudaParity parity)
	Sets whether the transfer operator is to act on full fields or single parity fields, and if single-parity which parity. If site_subset is QUDA_FULL_SITE_SUBSET, the transfer operator can still be applied to single-parity fields, however, if site_subset is QUDA_PARITY_SITE_SUBSET, then the transfer operator cannot be applied to full fields, and setSiteSubset will need to be called first to reset to QUDA_FULL_SITE_SUBSET. This method exists to reduce GPU memory overhead - if only transfering single-parity fine fields then we only store a single-parity copy of the null space components on the device. More...

double	flops () const

Private Member Functions
void	fillV (ColorSpinorField &V)

void	createGeoMap (int *geo_bs)

void	createSpinMap (int spin_bs)

Private Attributes
const std::vector< ColorSpinorField * > &	B

const int	Nvec

ColorSpinorField *	V_h

ColorSpinorField *	V_d

ColorSpinorField *	fine_tmp_h

ColorSpinorField *	fine_tmp_d

ColorSpinorField *	coarse_tmp_h

ColorSpinorField *	coarse_tmp_d

int *	geo_bs

int *	fine_to_coarse_h

int *	coarse_to_fine_h

int *	fine_to_coarse_d

int *	coarse_to_fine_d

int	spin_bs

int *	spin_map

QudaSiteSubset	site_subset

QudaParity	parity

bool	enable_gpu

bool	use_gpu

double	flops_

TimeProfile &	profile

Detailed Description

The transfer class defines the inter-grid operators that connect fine and coarse grids. This implements both restriction and prologation methods. The transfer operator is fully defined at object creation time, and defined by the null-space vectors and the coarsening pattern that are passed to it.

At present only the restriction (R) and prolongation (P) methods have been offloaded to run on the GPU, with the block orthogonlization yet to be offloaded.

Definition at line 30 of file transfer.h.

Constructor & Destructor Documentation

◆ Transfer()

quda::Transfer::Transfer	(	const std::vector< ColorSpinorField *> &	B,
		int	Nvec,
		int *	geo_bs,
		int	spin_bs,
		bool	enable_gpu,
		TimeProfile &	profile
	)

The constructor for Transfer

Parameters

B	Array of null-space vectors
Nvec	Number of null-space vectors
d	The Dirac operator to which these null-space vectors correspond
geo_bs	The geometric block sizes to use
spin_bs	The spin block sizes to use
parity	For single-parity fields are these QUDA_EVEN_PARITY or QUDA_ODD_PARITY
enable_gpu	Whether to enable this to run on GPU (as well as CPU)

Definition at line 21 of file transfer.cpp.

References B, quda::BlockOrthogonalize(), coarse_tmp_d, coarse_tmp_h, coarse_to_fine_d, coarse_to_fine_h, quda::ColorSpinorField::Create(), quda::ColorSpinorField::CreateCoarse(), createGeoMap(), createSpinMap(), d, device_malloc, enable_gpu, errorQuda, fillV(), fine_tmp_d, fine_tmp_h, fine_to_coarse_d, fine_to_coarse_h, geo_bs, getVerbosity(), QudaGaugeParam_s::location, ndim, Nspin, Nvec, param, printfQuda, QUDA_CUDA_FIELD_LOCATION, QUDA_FLOAT2_FIELD_ORDER, QUDA_FULL_SITE_SUBSET, QUDA_NULL_FIELD_CREATE, QUDA_PARITY_SITE_SUBSET, QUDA_VERBOSE, QUDA_ZERO_FIELD_CREATE, safe_malloc, spin_bs, spin_map, sprintf(), V_d, V_h, warningQuda, and X.

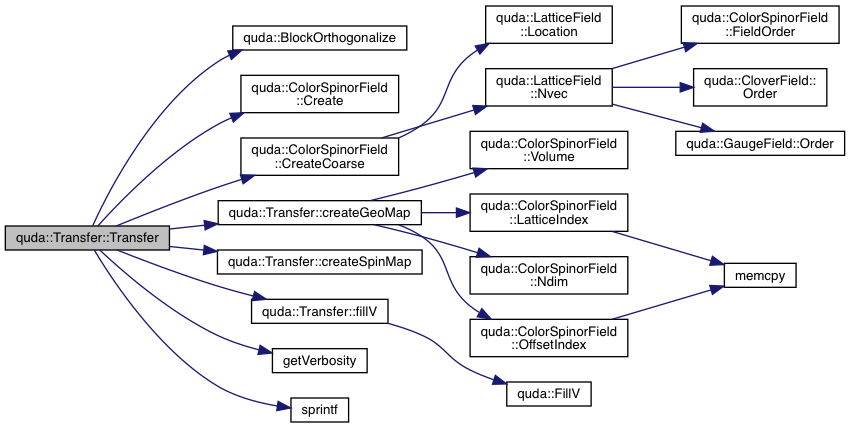

Here is the call graph for this function:

◆ ~Transfer()

quda::Transfer::~Transfer ( )

virtual

The destructor for Transfer

Definition at line 137 of file transfer.cpp.

References coarse_tmp_d, coarse_tmp_h, coarse_to_fine_d, coarse_to_fine_h, device_free, fine_tmp_d, fine_tmp_h, fine_to_coarse_d, fine_to_coarse_h, geo_bs, host_free, spin_map, V_d, and V_h.

Member Function Documentation

◆ createGeoMap()

void quda::Transfer::createGeoMap ( int * geo_bs )

private

Creates the map between fine and coarse grids

Parameters

geo_bs An array storing the block size in each geometric dimension

Definition at line 212 of file transfer.cpp.

References B, checkCudaError, coarse_tmp_h, coarse_to_fine_d, coarse_to_fine_h, d, enable_gpu, fine_tmp_h, fine_to_coarse_d, fine_to_coarse_h, geo_bs, fused_exterior_ndeg_tm_dslash_cuda_gen::i, quda::ColorSpinorField::LatticeIndex(), quda::ColorSpinorField::Ndim(), quda::ColorSpinorField::OffsetIndex(), QUDA_MAX_DIM, qudaMemcpy, quda::ColorSpinorField::Volume(), x, and y.

Referenced by Transfer().

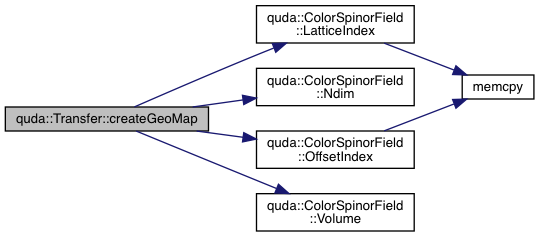

Here is the call graph for this function:

Here is the caller graph for this function:

◆ createSpinMap()

void quda::Transfer::createSpinMap ( int spin_bs )

private

Creates a block-ordered version of the color-spinor field V N.B. in must be the accessor to the color-spinor field V

Parameters

out	A Complex array storing the block-ordered fields
in	Accessor for the color-spinor field V Copies elements from the block-ordered field in back to the color-spinor field V N.B. out must be the accessor to the color-spinor field V
out	The full lattice color spinor field, not block-ordered
in	A Complex array storing the block-ordered fields Does Gram-Schmidt orthogonalization.
v	The block-ordered vectors
nBlocks
Nc
blockSize	Creates the map between fine and coarse spin dimensions
spin_bs	The spin block size

Definition at line 253 of file transfer.cpp.

References B, s, spin_bs, and spin_map.

Referenced by Transfer().

Here is the caller graph for this function:

◆ fillV()

void quda::Transfer::fillV ( ColorSpinorField & V )

private

Copies the null-space vector components into the V-field

Definition at line 197 of file transfer.cpp.

References B, quda::FillV(), Nvec, and V.

Referenced by Transfer().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ flops()

double quda::Transfer::flops ( ) const

Return flops

Returns: flops expended by this operator

Definition at line 342 of file transfer.cpp.

References flops_.

Referenced by quda::MG::flops().

Here is the caller graph for this function:

◆ Geo_bs()

const int* quda::Transfer::Geo_bs ( ) const

inline

Returns the geometrical coarse grid blocking

Returns: geo_bs

Definition at line 215 of file transfer.h.

References geo_bs.

Referenced by quda::DiracCoarse::initializeCoarse().

Here is the caller graph for this function:

◆ nvec()

int quda::Transfer::nvec ( ) const

inline

Returns the number of near nullvectors

Returns: Nvec

Definition at line 203 of file transfer.h.

References Nvec.

Referenced by quda::DiracCoarse::initializeCoarse().

Here is the caller graph for this function:

◆ P()

void quda::Transfer::P	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

Apply the prolongator

Parameters

out	The resulting field on the fine lattice
in	The input field on the coarse lattice

Definition at line 262 of file transfer.cpp.

References coarse_tmp_d, enable_gpu, errorQuda, quda::ColorSpinorField::Even(), fine_tmp_d, fine_tmp_h, fine_to_coarse_d, fine_to_coarse_h, flops_, quda::ColorSpinorField::GammaBasis(), in, Nvec, out, parity, profile, quda::Prolongate(), QUDA_CPU_FIELD_LOCATION, QUDA_CUDA_FIELD_LOCATION, QUDA_FULL_SITE_SUBSET, QUDA_PARITY_SITE_SUBSET, quda::QUDA_PROFILE_COMPUTE, spin_map, use_gpu, V, V_d, and V_h.

Referenced by quda::MG::operator()(), and quda::MG::verify().

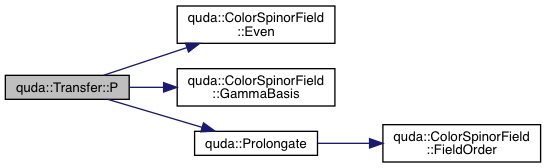

Here is the call graph for this function:

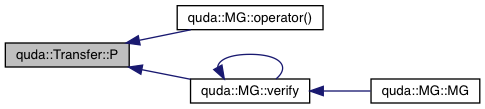

Here is the caller graph for this function:

◆ R()

void quda::Transfer::R	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

Apply the restrictor

Parameters

out	The resulting field on the coarse lattice
in	The input field on the fine lattice

Definition at line 300 of file transfer.cpp.

References coarse_tmp_d, coarse_to_fine_d, coarse_to_fine_h, enable_gpu, errorQuda, quda::ColorSpinorField::Even(), fine_tmp_d, fine_tmp_h, fine_to_coarse_d, fine_to_coarse_h, flops_, quda::ColorSpinorField::GammaBasis(), in, Nvec, out, parity, profile, QUDA_CPU_FIELD_LOCATION, QUDA_CUDA_FIELD_LOCATION, QUDA_FULL_SITE_SUBSET, QUDA_PARITY_SITE_SUBSET, quda::QUDA_PROFILE_COMPUTE, quda::qudaDeviceSynchronize(), quda::Restrict(), spin_map, use_gpu, V, V_d, and V_h.

Referenced by quda::MG::MG(), quda::MG::operator()(), and quda::MG::verify().

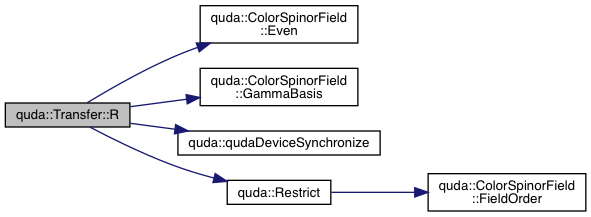

Here is the call graph for this function:

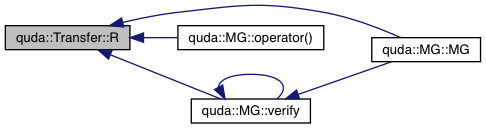

Here is the caller graph for this function:

◆ setSiteSubset()

void quda::Transfer::setSiteSubset	(	QudaSiteSubset	site_subset,
		QudaParity	parity
	)

Sets whether the transfer operator is to act on full fields or single parity fields, and if single-parity which parity. If site_subset is QUDA_FULL_SITE_SUBSET, the transfer operator can still be applied to single-parity fields, however, if site_subset is QUDA_PARITY_SITE_SUBSET, then the transfer operator cannot be applied to full fields, and setSiteSubset will need to be called first to reset to QUDA_FULL_SITE_SUBSET. This method exists to reduce GPU memory overhead - if only transfering single-parity fine fields then we only store a single-parity copy of the null space components on the device.

Parameters

[in]	site_subset	The site_subset of the fine-grid fields
[in]	parity	The parity of the single-parity fields (if applicable)

Definition at line 155 of file transfer.cpp.

References quda::ColorSpinorField::Create(), enable_gpu, errorQuda, quda::ColorSpinorField::Even(), QudaGaugeParam_s::location, quda::ColorSpinorField::Odd(), param, parity, QUDA_CUDA_FIELD_LOCATION, QUDA_EVEN_PARITY, QUDA_FLOAT2_FIELD_ORDER, QUDA_FULL_SITE_SUBSET, QUDA_ODD_PARITY, QUDA_PARITY_SITE_SUBSET, site_subset, V_d, and V_h.

Referenced by quda::MG::reset().

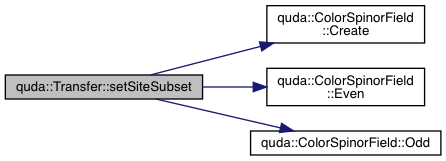

Here is the call graph for this function:

Here is the caller graph for this function:

◆ setTransferGPU()

void quda::Transfer::setTransferGPU ( bool use_gpu ) const

inline

Sets where the prolongator / restrictor should take place

Parameters

location Location where the transfer operator should be computed

Definition at line 221 of file transfer.h.

References use_gpu.

◆ Spin_bs()

int quda::Transfer::Spin_bs ( ) const

inline

Returns the amount of spin blocking

Returns: spin_bs

Definition at line 209 of file transfer.h.

References spin_bs.

Referenced by quda::DiracCoarse::initializeCoarse().

Here is the caller graph for this function:

◆ Vectors()

const ColorSpinorField& quda::Transfer::Vectors ( QudaFieldLocation location = QUDA_CPU_FIELD_LOCATION ) const

inline

Returns a const reference to the V field

Parameters

location Which memory space are we requesting

Returns: The V field const reference

Definition at line 195 of file transfer.h.

References QUDA_CUDA_FIELD_LOCATION, V_d, and V_h.

Referenced by quda::CoarseCoarseOp(), quda::CoarseOp(), quda::DiracWilson::createCoarseOp(), quda::DiracClover::createCoarseOp(), quda::DiracCloverPC::createCoarseOp(), quda::DiracTwistedClover::createCoarseOp(), quda::DiracTwistedCloverPC::createCoarseOp(), quda::DiracCoarse::createCoarseOp(), quda::DiracCoarsePC::createCoarseOp(), quda::DiracCoarse::initializeCoarse(), and quda::MG::verify().

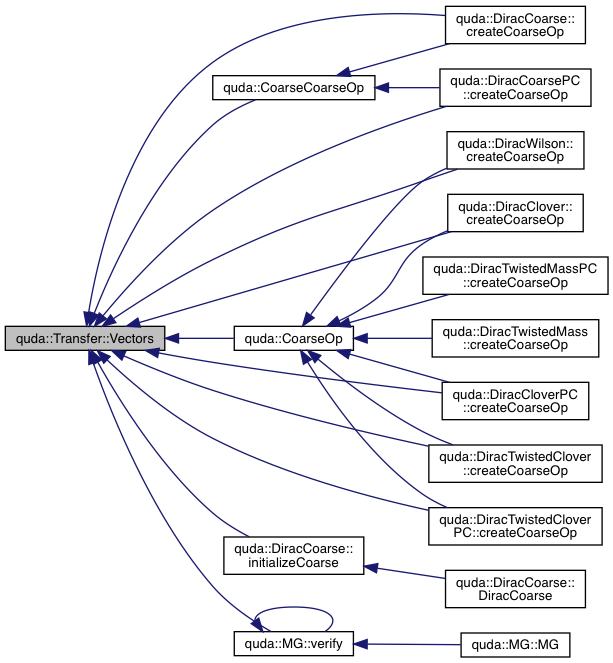

Here is the caller graph for this function:

Member Data Documentation

◆ B

const std::vector<ColorSpinorField*>& quda::Transfer::B

private

The raw null space components

Definition at line 35 of file transfer.h.

Referenced by createGeoMap(), createSpinMap(), fillV(), and Transfer().

◆ coarse_tmp_d

ColorSpinorField* quda::Transfer::coarse_tmp_d

private

A GPU temporary field with coarse geometry and coarse color we use for CPU input / output

Definition at line 56 of file transfer.h.

Referenced by P(), R(), Transfer(), and ~Transfer().

◆ coarse_tmp_h

ColorSpinorField* quda::Transfer::coarse_tmp_h

private

A CPU temporary field with coarse geometry and coarse color

Definition at line 53 of file transfer.h.

Referenced by createGeoMap(), Transfer(), and ~Transfer().

◆ coarse_to_fine_d

int* quda::Transfer::coarse_to_fine_d

private

The mapping onto fine sites from coarse sites. This has length equal to the fine-grid volume, and is sorted into lexicographical block order, with each value corresponding to a fine-grid offset. (GPU)

Definition at line 81 of file transfer.h.

Referenced by createGeoMap(), R(), Transfer(), and ~Transfer().

◆ coarse_to_fine_h

int* quda::Transfer::coarse_to_fine_h

private

The mapping onto fine sites from coarse sites. This has length equal to the fine-grid volume, and is sorted into lexicographical block order, with each value corresponding to a fine-grid offset. (CPU)

Definition at line 70 of file transfer.h.

Referenced by createGeoMap(), R(), Transfer(), and ~Transfer().

◆ enable_gpu

bool quda::Transfer::enable_gpu

private

Whether to enable transfer operator on the GPU

Definition at line 96 of file transfer.h.

Referenced by createGeoMap(), P(), R(), setSiteSubset(), and Transfer().

◆ fine_tmp_d

ColorSpinorField* quda::Transfer::fine_tmp_d

private

A GPU temporary field with fine geometry and fine color we use for changing gamma basis

Definition at line 50 of file transfer.h.

Referenced by P(), R(), Transfer(), and ~Transfer().

◆ fine_tmp_h

ColorSpinorField* quda::Transfer::fine_tmp_h

private

A CPU temporary field with fine geometry and fine color we use for changing gamma basis

Definition at line 47 of file transfer.h.

Referenced by createGeoMap(), P(), R(), Transfer(), and ~Transfer().

◆ fine_to_coarse_d

int* quda::Transfer::fine_to_coarse_d

private

The mapping onto coarse sites from fine sites. This has length equal to the fine-grid volume, and is sorted into lexicographical fine-grid order, with each value corresponding to a coarse-grid offset. (GPU)

Definition at line 76 of file transfer.h.

Referenced by createGeoMap(), P(), R(), Transfer(), and ~Transfer().

◆ fine_to_coarse_h

int* quda::Transfer::fine_to_coarse_h

private

The mapping onto coarse sites from fine sites. This has length equal to the fine-grid volume, and is sorted into lexicographical fine-grid order, with each value corresponding to a coarse-grid offset. (CPU)

Definition at line 65 of file transfer.h.

Referenced by createGeoMap(), P(), R(), Transfer(), and ~Transfer().

◆ flops_

double quda::Transfer::flops_

mutableprivate

Internal flops accumulator

Definition at line 150 of file transfer.h.

Referenced by flops(), P(), and R().

◆ geo_bs

int* quda::Transfer::geo_bs

private

The geometrical coase grid blocking

Definition at line 59 of file transfer.h.

Referenced by createGeoMap(), Geo_bs(), Transfer(), and ~Transfer().

◆ Nvec

const int quda::Transfer::Nvec

private

The number of null space components

Definition at line 38 of file transfer.h.

Referenced by fillV(), nvec(), P(), R(), and Transfer().

◆ parity

QudaParity quda::Transfer::parity

private

The parity of any single-parity fine-grid fields that are passed into the transfer operator

Definition at line 93 of file transfer.h.

Referenced by P(), R(), and setSiteSubset().

◆ profile

TimeProfile& quda::Transfer::profile

private

Reference to profile kept in the corresponding MG instance. Use this to record restriction and prolongation overhead.

Definition at line 156 of file transfer.h.

Referenced by P(), and R().

◆ site_subset

QudaSiteSubset quda::Transfer::site_subset

private

Whether the transfer operator is to be applied to full fields or single parity fields

Definition at line 90 of file transfer.h.

Referenced by setSiteSubset().

◆ spin_bs

int quda::Transfer::spin_bs

private

The spin blocking

Definition at line 84 of file transfer.h.

Referenced by createSpinMap(), Spin_bs(), and Transfer().

◆ spin_map

int* quda::Transfer::spin_map

private

The mapping onto coarse spin from fine spin

Definition at line 87 of file transfer.h.

Referenced by createSpinMap(), P(), R(), Transfer(), and ~Transfer().

◆ use_gpu

bool quda::Transfer::use_gpu

mutableprivate

Whether to apply the transfer operaton the GPU (requires enable_gpu=true in the constructor)

Definition at line 100 of file transfer.h.

Referenced by P(), R(), and setTransferGPU().

◆ V_d

ColorSpinorField* quda::Transfer::V_d

private

GPU copy of the block-normalized null-space components that define the prolongator

Definition at line 44 of file transfer.h.

Referenced by P(), R(), setSiteSubset(), Transfer(), Vectors(), and ~Transfer().

◆ V_h

ColorSpinorField* quda::Transfer::V_h

private

CPU copy of the block-normalized null-space components that define the prolongator

Definition at line 41 of file transfer.h.

Referenced by P(), R(), setSiteSubset(), Transfer(), Vectors(), and ~Transfer().

The documentation for this class was generated from the following files:

include/transfer.h
lib/transfer.cpp

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Transfer()

◆ ~Transfer()

Member Function Documentation

◆ createGeoMap()

◆ createSpinMap()

◆ fillV()

◆ flops()

◆ Geo_bs()

◆ nvec()

◆ P()

◆ R()

◆ setSiteSubset()

◆ setTransferGPU()

◆ Spin_bs()

◆ Vectors()

Member Data Documentation

◆ B

◆ coarse_tmp_d

◆ coarse_tmp_h

◆ coarse_to_fine_d

◆ coarse_to_fine_h

◆ enable_gpu

◆ fine_tmp_d

◆ fine_tmp_h

◆ fine_to_coarse_d

◆ fine_to_coarse_h

◆ flops_

◆ geo_bs

◆ Nvec

◆ parity

◆ profile

◆ site_subset

◆ spin_bs

◆ spin_map

◆ use_gpu

◆ V_d

◆ V_h
