gauge_field_order.h File Reference

Main header file for host and device accessors to GaugeFields. More...

#include <tune_quda.h>
#include <assert.h>
#include <register_traits.h>
#include <complex_quda.h>
#include <quda_matrix.h>
#include <index_helper.cuh>
#include <fast_intdiv.h>
#include <type_traits>
#include <atomic.cuh>
#include <thrust_helper.cuh>

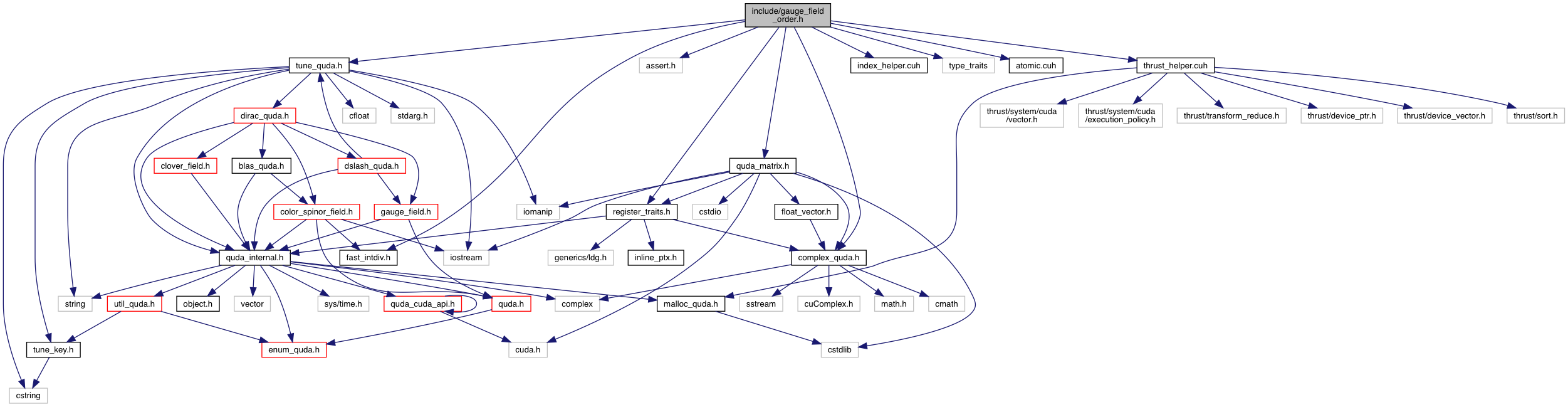

Include dependency graph for gauge_field_order.h:

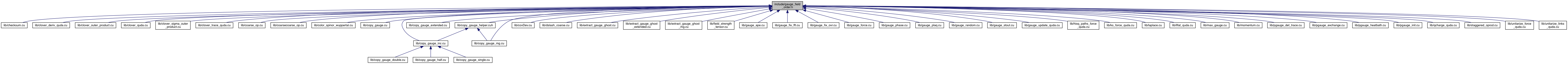

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	quda::gauge_wrapper< Float, T >
	gauge_wrapper is an internal class that is used to wrap instances of gauge accessors, currying in a specific location on the field. The operator() accessors in gauge-field accessors return instances to this class, allowing us to then use operator overloading upon this class to interact with the Matrix class. As a result we can include gauge-field accessors directly in Matrix expressions in kernels without having to declare temporaries with explicit calls to the load/save methods in the gauge-field accessors. More...
struct	quda::gauge_ghost_wrapper< Float, T >
	gauge_ghost_wrapper is an internal class that is used to wrap instances of gauge ghost accessors, currying in a specific location and dimension on the field. The Ghost() accessors in gauge-field accessors return instances to this class, allowing us to then use operator overloading upon this class to interact with the Matrix class. As a result we can include gauge-field ghost accessors directly in Matrix expressions in kernels without having to declare temporaries with explicit calls to the load/save methods in the gauge-field accessors. More...
struct	quda::gauge::square< ReduceType, Float >
struct	quda::gauge::Accessor< Float, nColor, order >
struct	quda::gauge::GhostAccessor< Float, nColor, order, native_ghost >
struct	quda::gauge::Accessor< Float, nColor, QUDA_QDP_GAUGE_ORDER >
struct	quda::gauge::GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost >
struct	quda::gauge::Accessor< Float, nColor, QUDA_MILC_GAUGE_ORDER >
struct	quda::gauge::GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost >
struct	quda::gauge::Accessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER >
struct	quda::gauge::GhostAccessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, native_ghost >
struct	quda::gauge::FieldOrder< Float, nColor, nSpinCoarse, order, native_ghost >
struct	quda::gauge::Reconstruct< N, Float >
struct	quda::gauge::Reconstruct< 19, Float >
struct	quda::gauge::Reconstruct< 12, Float >
struct	quda::gauge::Reconstruct< 11, Float >
struct	quda::gauge::Reconstruct< 13, Float >
struct	quda::gauge::Reconstruct< 8, Float >
struct	quda::gauge::Reconstruct< 9, Float >
struct	quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc >
struct	quda::gauge::S< real, length >
	This is just a dummy structure we use for trove to define the required structure size. More...
struct	quda::gauge::LegacyOrder< Float, length >
struct	quda::gauge::QDPOrder< Float, length >
struct	quda::gauge::QDPJITOrder< Float, length >
struct	quda::gauge::MILCOrder< Float, length >
struct	quda::gauge::MILCSiteOrder< Float, length >
	struct to define gauge fields packed into an opaque MILC site struct: More...
struct	quda::gauge::CPSOrder< Float, length >
struct	quda::gauge::BQCDOrder< Float, length >
	struct to define BQCD ordered gauge fields: More...
struct	quda::gauge::TIFROrder< Float, length >
struct	quda::gauge::TIFRPaddedOrder< Float, length >
struct	quda::gauge_mapper< T, QudaReconstructType, N, stag, huge_alloc >
struct	quda::gauge_mapper< double, QUDA_RECONSTRUCT_NO, N, stag, huge_alloc >
struct	quda::gauge_mapper< double, QUDA_RECONSTRUCT_13, N, stag, huge_alloc >
struct	quda::gauge_mapper< double, QUDA_RECONSTRUCT_12, N, stag, huge_alloc >
struct	quda::gauge_mapper< double, QUDA_RECONSTRUCT_9, N, stag, huge_alloc >
struct	quda::gauge_mapper< double, QUDA_RECONSTRUCT_8, N, stag, huge_alloc >
struct	quda::gauge_mapper< float, QUDA_RECONSTRUCT_NO, N, stag, huge_alloc >
struct	quda::gauge_mapper< float, QUDA_RECONSTRUCT_13, N, stag, huge_alloc >
struct	quda::gauge_mapper< float, QUDA_RECONSTRUCT_12, N, stag, huge_alloc >
struct	quda::gauge_mapper< float, QUDA_RECONSTRUCT_9, N, stag, huge_alloc >
struct	quda::gauge_mapper< float, QUDA_RECONSTRUCT_8, N, stag, huge_alloc >
struct	quda::gauge_mapper< short, QUDA_RECONSTRUCT_NO, N, stag, huge_alloc >
struct	quda::gauge_mapper< short, QUDA_RECONSTRUCT_13, N, stag, huge_alloc >
struct	quda::gauge_mapper< short, QUDA_RECONSTRUCT_12, N, stag, huge_alloc >
struct	quda::gauge_mapper< short, QUDA_RECONSTRUCT_9, N, stag, huge_alloc >
struct	quda::gauge_mapper< short, QUDA_RECONSTRUCT_8, N, stag, huge_alloc >
struct	quda::gauge_order_mapper< T, order, Nc >
struct	quda::gauge_order_mapper< T, QUDA_QDP_GAUGE_ORDER, Nc >
struct	quda::gauge_order_mapper< T, QUDA_QDPJIT_GAUGE_ORDER, Nc >
struct	quda::gauge_order_mapper< T, QUDA_MILC_GAUGE_ORDER, Nc >
struct	quda::gauge_order_mapper< T, QUDA_BQCD_GAUGE_ORDER, Nc >
struct	quda::gauge_order_mapper< T, QUDA_TIFR_GAUGE_ORDER, Nc >
struct	quda::gauge_order_mapper< T, QUDA_TIFR_PADDED_GAUGE_ORDER, Nc >
struct	quda::gauge_order_mapper< T, QUDA_FLOAT2_GAUGE_ORDER, Nc >

Namespaces
	quda
	quda::gauge

Macros
#define	DISABLE_TROVE
#define	INSTANTIATE_RECONSTRUCT(func, g, ...)
#define	INSTANTIATE_PRECISION(func, lat, ...)

Functions
template<int nColor, int N>
__device__ __host__ int	quda::gauge::indexFloatN (int dim, int parity, int x_cb, int row, int col, int stride, int offset_cb)
template<typename Float , typename I >
__device__ __host__ Float	quda::gauge::timeBoundary (int idx, const I X[QUDA_MAX_DIM], const int R[QUDA_MAX_DIM], QudaTboundary tBoundary, bool isFirstTimeSlice, bool isLastTimeSlice, QudaGhostExchange ghostExchange=QUDA_GHOST_EXCHANGE_NO)
template<typename Float , typename I >
__device__ __host__ Float	quda::gauge::milcStaggeredPhase (int dim, const int x[], const I R[])
__host__ __device__ constexpr int	quda::gauge::ct_sqrt (int n, int i=1)
__host__ __device__ constexpr int	quda::gauge::Ncolor (int length)
	Return the number of colors of the accessor based on the length of the field. More...

Variables
constexpr bool	quda::gauge::default_huge_alloc = true

Detailed Description

Main header file for host and device accessors to GaugeFields.

Definition in file gauge_field_order.h.

Macro Definition Documentation

DISABLE_TROVE

#define DISABLE_TROVE

Definition at line 14 of file gauge_field_order.h.

INSTANTIATE_PRECISION

#define INSTANTIATE_PRECISION	(		func,
			lat,
			...
	)

Value:

{                 \
    if (lat.Precision() == QUDA_DOUBLE_PRECISION) {     \
      func<double>(lat, __VA_ARGS__);         \
    } else if(lat.Precision() == QUDA_SINGLE_PRECISION) {   \
      func<float>(lat, __VA_ARGS__);          \
    } else {                \
      errorQuda("Precision %d not supported", lat.Precision());   \
    }                 \
  }

Definition at line 2136 of file gauge_field_order.h.

Referenced by quda::plaquette().

INSTANTIATE_RECONSTRUCT

#define INSTANTIATE_RECONSTRUCT	(		func,
			g,
			...
	)

Value:

{                 \
    if (!data.isNative())           \
      errorQuda("Field order %d and precision %d is not native", g.Order(), g.Precision()); \
    if( g.Reconstruct() == QUDA_RECONSTRUCT_NO) {     \
      typedef typename gauge_mapper<Float,QUDA_RECONSTRUCT_NO>::type Gauge; \
      func(Gauge(g), g, __VA_ARGS__);         \
    } else if( g.Reconstruct() == QUDA_RECONSTRUCT_12){     \
      typedef typename gauge_mapper<Float,QUDA_RECONSTRUCT_12>::type Gauge; \
      func(Gauge(g), g, __VA_ARGS__);         \
    } else if( g.Reconstruct() == QUDA_RECONSTRUCT_8){      \
      typedef typename gauge_mapper<Float,QUDA_RECONSTRUCT_8>::type Gauge; \
      func(Gauge(g), g, __VA_ARGS__);         \
    } else {                \
      errorQuda("Reconstruction type %d of gauge field not supported", g.Reconstruct()); \
    }                 \
  }

Definition at line 2118 of file gauge_field_order.h.
