quda::LatticeFieldParam Struct Reference

#include <lattice_field.h>

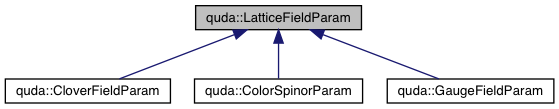

Inheritance diagram for quda::LatticeFieldParam:

Public Member Functions
	LatticeFieldParam ()
	Default constructor for LatticeFieldParam. More...
	LatticeFieldParam (int nDim, const int *x, int pad, QudaPrecision precision, QudaGhostExchange ghostExchange=QUDA_GHOST_EXCHANGE_PAD)
	Constructor for creating a LatticeFieldParam from a set of parameters. More...
	LatticeFieldParam (const QudaGaugeParam &param)
	Constructor for creating a LatticeFieldParam from a QudaGaugeParam. Used for wrapping around a CPU reference field. More...
	LatticeFieldParam (const LatticeField &field)
	Contructor for creating LatticeFieldParam from a LatticeField. More...

Public Attributes
int	nDim
int	x [QUDA_MAX_DIM]
int	pad
QudaPrecision	precision
QudaSiteSubset	siteSubset
QudaMemoryType	mem_type
QudaGhostExchange	ghostExchange
int	r [QUDA_MAX_DIM]

Detailed Description

Definition at line 44 of file lattice_field.h.

Constructor & Destructor Documentation

LatticeFieldParam() [1/4]

quda::LatticeFieldParam::LatticeFieldParam ( )

inline

Default constructor for LatticeFieldParam.

Definition at line 68 of file lattice_field.h.

References fused_exterior_ndeg_tm_dslash_cuda_gen::i, nDim, r, and x.

LatticeFieldParam() [2/4]

quda::LatticeFieldParam::LatticeFieldParam ( int  nDim, const int *  x, int  pad, QudaPrecision  precision, QudaGhostExchange  ghostExchange = QUDA_GHOST_EXCHANGE_PAD  )

inline

Constructor for creating a LatticeFieldParam from a set of parameters.

Parameters

[in]	nDim	Number of field dimensions
[in]	x	Array of dimension lengths
[in]	pad	Field padding
[in]	precision	Field Precision
[in]	ghostExchange	Type of ghost exchange

Definition at line 86 of file lattice_field.h.

References errorQuda, fused_exterior_ndeg_tm_dslash_cuda_gen::i, nDim, QUDA_MAX_DIM, and x.

LatticeFieldParam() [3/4]

quda::LatticeFieldParam::LatticeFieldParam ( const QudaGaugeParam &  param )

inline

Constructor for creating a LatticeFieldParam from a QudaGaugeParam. Used for wrapping around a CPU reference field.

Parameters

[in]

param

Contains the metadata for filling out the LatticeFieldParam

Definition at line 104 of file lattice_field.h.

References fused_exterior_ndeg_tm_dslash_cuda_gen::i, nDim, param, and QudaGaugeParam_s::X.

LatticeFieldParam() [4/4]

quda::LatticeFieldParam::LatticeFieldParam

(

const LatticeField &

field

)

Contructor for creating LatticeFieldParam from a LatticeField.

Definition at line 43 of file lattice_field.cpp.

References nDim, r, quda::LatticeField::R(), x, and quda::LatticeField::X().

Here is the call graph for this function:

Member Data Documentation

ghostExchange

QudaGhostExchange quda::LatticeFieldParam::ghostExchange

The type of ghost exchange to be done with this field

Definition at line 60 of file lattice_field.h.

Referenced by computeKSLinkQuda(), dslash_4_4d(), dw_dslash(), hisq_force_init(), init(), initFields(), invert_test(), main(), GaugeAlgTest::SetUp(), unitarize_link_test(), updateGaugeFieldQuda(), and wil_dslash().

mem_type

QudaMemoryType quda::LatticeFieldParam::mem_type

Definition at line 57 of file lattice_field.h.

nDim

int quda::LatticeFieldParam::nDim

Number of field dimensions

Definition at line 47 of file lattice_field.h.

Referenced by quda::CloverFieldParam::CloverFieldParam(), quda::CoarseOp(), quda::ColorSpinorParam::ColorSpinorParam(), quda::colorSpinorParam(), computeCloverForceQuda(), computeHISQForceQuda(), computeStaggeredForceQuda(), dslash_4_4d(), dw_dslash(), init(), initFields(), invert_test(), LatticeFieldParam(), loadCloverQuda(), quda::ColorSpinorParam::print(), and wil_dslash().

pad

int quda::LatticeFieldParam::pad

Definition at line 52 of file lattice_field.h.

Referenced by quda::CloverFieldParam::CloverFieldParam(), quda::CoarseOp(), quda::colorSpinorParam(), computeCloverForceQuda(), computeHISQForceQuda(), computeStaggeredForceQuda(), dslash_4_4d(), dw_dslash(), hisq_force_init(), hisq_force_test(), init(), initFields(), invert_test(), loadCloverQuda(), main(), packTest(), quda::ColorSpinorParam::print(), GaugeAlgTest::SetUp(), unitarize_link_test(), updateGaugeFieldQuda(), and wil_dslash().

precision

QudaPrecision quda::LatticeFieldParam::precision

Definition at line 54 of file lattice_field.h.

Referenced by quda::CloverFieldParam::CloverFieldParam(), quda::CoarseOp(), quda::ColorSpinorParam::ColorSpinorParam(), quda::colorSpinorParam(), computeCloverForceQuda(), computeGaugeFixingFFTQuda(), computeGaugeFixingOVRQuda(), computeGaugeForceQuda(), computeHISQForceQuda(), computeStaggeredForceQuda(), quda::ColorSpinorField::CreateFine(), dslash_4_4d(), dw_dslash(), quda::fatLongKSLink(), hisq_force_init(), init(), initFields(), invert_test(), invertMultiShiftQuda(), invertQuda(), loadCloverQuda(), loadSloppyCloverQuda(), packTest(), quda::ColorSpinorParam::print(), quda::CloverFieldParam::setPrecision(), quda::GaugeFieldParam::setPrecision(), quda::ColorSpinorParam::setPrecision(), and wil_dslash().

r

int quda::LatticeFieldParam::r[QUDA_MAX_DIM]

The extended field radius (if applicable)

Definition at line 63 of file lattice_field.h.

Referenced by hisq_force_init(), hisq_force_test(), and LatticeFieldParam().

siteSubset

QudaSiteSubset quda::LatticeFieldParam::siteSubset

Definition at line 55 of file lattice_field.h.

Referenced by quda::CloverFieldParam::CloverFieldParam(), quda::CoarseOp(), quda::ColorSpinorParam::ColorSpinorParam(), quda::colorSpinorParam(), computeCloverForceQuda(), computeHISQForceQuda(), computeStaggeredForceQuda(), createCloverQuda(), quda::ColorSpinorField::CreateCoarse(), quda::ColorSpinorField::CreateFine(), dslash_4_4d(), dw_dslash(), init(), initFields(), invert_test(), loadCloverQuda(), quda::ColorSpinorParam::print(), qChargeCuda(), quda::MG::verify(), and wil_dslash().

x

int quda::LatticeFieldParam::x[QUDA_MAX_DIM]

Array storing the length of dimension

Definition at line 50 of file lattice_field.h.

Referenced by quda::CloverFieldParam::CloverFieldParam(), quda::CoarseOp(), quda::ColorSpinorParam::ColorSpinorParam(), quda::colorSpinorParam(), computeCloverForceQuda(), computeHISQForceQuda(), computeStaggeredForceQuda(), quda::ColorSpinorField::CreateCoarse(), quda::ColorSpinorField::CreateFine(), dslash_4_4d(), dw_dslash(), hisq_force_init(), hisq_force_test(), init(), initFields(), invert_test(), LatticeFieldParam(), loadCloverQuda(), quda::ColorSpinorParam::print(), quda::MG::verify(), and wil_dslash().

---

The documentation for this struct was generated from the following files:

• include/lattice_field.h
• lib/lattice_field.cpp
