#include <lattice_field.h>

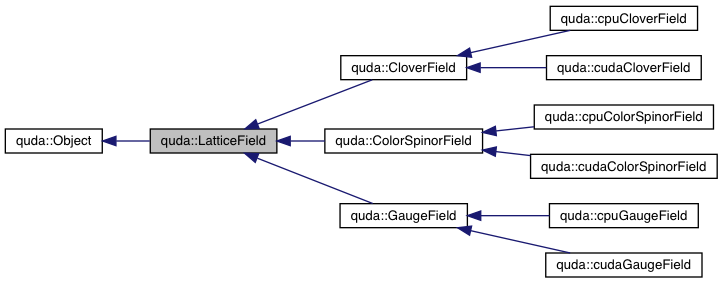

Inheritance diagram for quda::LatticeField:

[legend]

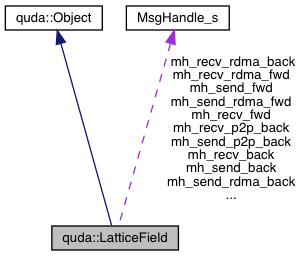

Collaboration diagram for quda::LatticeField:

Public Member Functions
	LatticeField (const LatticeFieldParam &param)

	LatticeField (const LatticeField &field)

virtual	~LatticeField ()

void	allocateGhostBuffer (size_t ghost_bytes) const
	Allocate the static ghost buffers. More...

void	createComms (bool no_comms_fill=false)

void	destroyComms ()

void	createIPCComms ()

bool	ipcCopyComplete (int dir, int dim)

bool	ipcRemoteCopyComplete (int dir, int dim)

const cudaEvent_t &	getIPCCopyEvent (int dir, int dim) const

const cudaEvent_t &	getIPCRemoteCopyEvent (int dir, int dim) const

int	Ndim () const

const int *	X () const

int	Volume () const

int	VolumeCB () const

const int *	SurfaceCB () const

int	SurfaceCB (const int i) const

int	Stride () const

int	Pad () const

const int *	R () const

QudaGhostExchange	GhostExchange () const

QudaPrecision	Precision () const

virtual QudaSiteSubset	SiteSubset () const

virtual QudaMemoryType	MemType () const

int	Nvec () const

QudaFieldLocation	Location () const

size_t	GBytes () const

void	checkField (const LatticeField &a) const

virtual void	read (char *filename)

virtual void	write (char *filename)

virtual void	gather (int nFace, int dagger, int dir, cudaStream_t *stream_p=NULL)

virtual void	commsStart (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)

virtual int	commsQuery (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)

virtual void	commsWait (int nFace, int dir, int dagger=0, cudaStream_t *stream_p=NULL, bool gdr_send=false, bool gdr_recv=true)

virtual void	scatter (int nFace, int dagger, int dir)

const char *	VolString () const

virtual void	backup () const
	Backs up the LatticeField. More...

virtual void	restore ()
	Restores the cpuGaugeField. More...

Public Member Functions inherited from quda::Object
	Object ()

virtual	~Object ()

Static Public Member Functions
static void	freeGhostBuffer (void)
	Free statically allocated ghost buffers. More...

static void	destroyIPCComms ()

Static Public Member Functions inherited from quda::Object
static void *	operator new (std::size_t size)

static void	operator delete (void *p)

static void *	operator new[] (std::size_t size)

static void	operator delete[] (void *p)

Static Public Attributes
static int	bufferIndex = 0

static bool	ghost_field_reset = false

Protected Member Functions
virtual void	setTuningString ()

Protected Attributes
int	volume

int	volumeCB

int	stride

int	pad

size_t	total_bytes

int	nDim

int	x [QUDA_MAX_DIM]

int	surface [QUDA_MAX_DIM]

int	surfaceCB [QUDA_MAX_DIM]

int	r [QUDA_MAX_DIM]

QudaPrecision	precision

QudaSiteSubset	siteSubset

QudaGhostExchange	ghostExchange

int	nDimComms

size_t	ghost_bytes

size_t	ghost_face_bytes [QUDA_MAX_DIM]

int	ghostOffset [QUDA_MAX_DIM][2]

int	ghostNormOffset [QUDA_MAX_DIM][2]

void *	my_face_h [2]

void *	my_face_hd [2]

void *	my_face_dim_dir_h [2][QUDA_MAX_DIM][2]

void *	my_face_dim_dir_hd [2][QUDA_MAX_DIM][2]

void *	my_face_dim_dir_d [2][QUDA_MAX_DIM][2]

void *	from_face_h [2]

void *	from_face_hd [2]

void *	from_face_dim_dir_h [2][QUDA_MAX_DIM][2]

void *	from_face_dim_dir_hd [2][QUDA_MAX_DIM][2]

void *	from_face_dim_dir_d [2][QUDA_MAX_DIM][2]

MsgHandle *	mh_recv_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_recv_back [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_back [2][QUDA_MAX_DIM]

MsgHandle *	mh_recv_rdma_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_recv_rdma_back [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_rdma_fwd [2][QUDA_MAX_DIM]

MsgHandle *	mh_send_rdma_back [2][QUDA_MAX_DIM]

bool	initComms

char	vol_string [TuneKey::volume_n]

QudaMemoryType	mem_type

char *	backup_h

char *	backup_norm_h

bool	backed_up

Static Protected Attributes
static void *	ghost_send_buffer_d [2] = {nullptr, nullptr}

static void *	ghost_recv_buffer_d [2] = {nullptr, nullptr}

static void *	ghost_pinned_buffer_h [2] = {nullptr, nullptr}

static void *	ghost_pinned_buffer_hd [2] = {nullptr, nullptr}

static void *	ghost_remote_send_buffer_d [2][QUDA_MAX_DIM][2]

static size_t	ghostFaceBytes = 0

static bool	initGhostFaceBuffer = false

static MsgHandle *	mh_send_p2p_fwd [2][QUDA_MAX_DIM] { }

static MsgHandle *	mh_send_p2p_back [2][QUDA_MAX_DIM] { }

static MsgHandle *	mh_recv_p2p_fwd [2][QUDA_MAX_DIM] { }

static MsgHandle *	mh_recv_p2p_back [2][QUDA_MAX_DIM] { }

static int	buffer_send_p2p_fwd [2][QUDA_MAX_DIM] { }

static int	buffer_recv_p2p_fwd [2][QUDA_MAX_DIM] { }

static int	buffer_send_p2p_back [2][QUDA_MAX_DIM] { }

static int	buffer_recv_p2p_back [2][QUDA_MAX_DIM] { }

static cudaEvent_t	ipcCopyEvent [2][2][QUDA_MAX_DIM]

static cudaEvent_t	ipcRemoteCopyEvent [2][2][QUDA_MAX_DIM]

static bool	initIPCComms = false

Detailed Description

Definition at line 122 of file lattice_field.h.

Constructor & Destructor Documentation

◆ LatticeField() [1/2]

quda::LatticeField::LatticeField ( const LatticeFieldParam & param )

Constructor for creating a LatticeField from a LatticeFieldParam

Parameters

param Contains the metadata for creating the LatticeField

Definition at line 53 of file lattice_field.cpp.

◆ LatticeField() [2/2]

quda::LatticeField::LatticeField ( const LatticeField & field )

Constructor for creating a LatticeField from another LatticeField

Parameters

field Instance of LatticeField from which we are inheriting metadata

Definition at line 94 of file lattice_field.cpp.

◆ ~LatticeField()

quda::LatticeField::~LatticeField ( )

virtual

Destructor for LatticeField

Definition at line 126 of file lattice_field.cpp.

Member Function Documentation

◆ allocateGhostBuffer()

void quda::LatticeField::allocateGhostBuffer ( size_t ghost_bytes ) const

Allocate the static ghost buffers.

Parameters

[in] ghost_bytes Size of the ghost buffer to allocate

Definition at line 128 of file lattice_field.cpp.

References b, device_pinned_free, device_pinned_malloc, ghost_bytes, ghost_field_reset, ghost_pinned_buffer_h, ghost_pinned_buffer_hd, ghost_recv_buffer_d, ghost_send_buffer_d, ghostFaceBytes, host_free, initGhostFaceBuffer, and mapped_malloc.

Referenced by quda::cudaGaugeField::allocateGhostBuffer(), and quda::cudaColorSpinorField::allocateGhostBuffer().

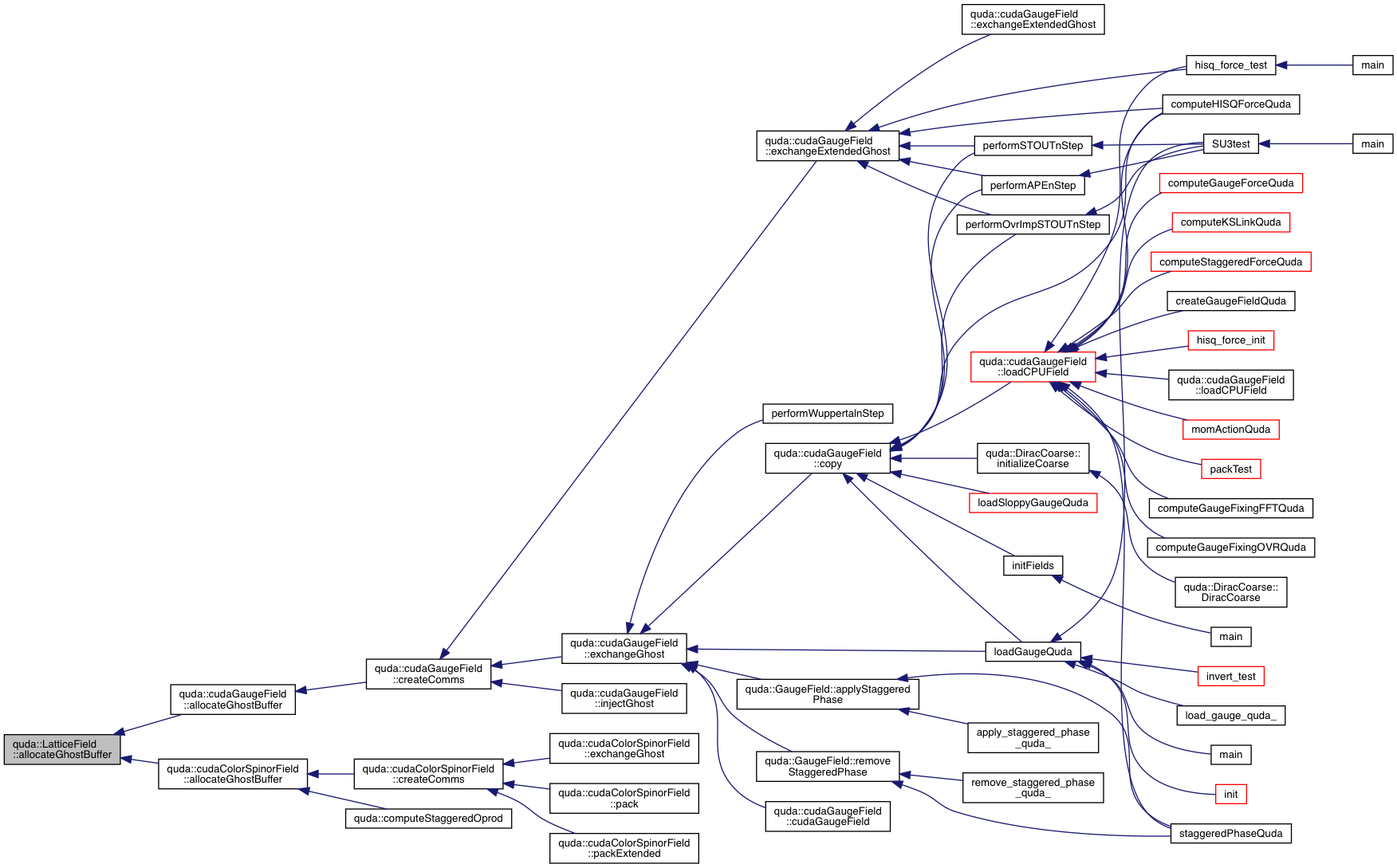

Here is the caller graph for this function:

◆ backup()

virtual void quda::LatticeField::backup ( ) const

inlinevirtual

Backs up the LatticeField.

Reimplemented in quda::cpuColorSpinorField, quda::cudaColorSpinorField, quda::cpuGaugeField, and quda::cudaGaugeField.

Definition at line 527 of file lattice_field.h.

References errorQuda.

Referenced by quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::preTune().

Here is the caller graph for this function:

◆ checkField()

void quda::LatticeField::checkField ( const LatticeField & a ) const

Check that the metadata of *this and a are compatible

Parameters

a	The LatticeField to which we are comparing

Definition at line 493 of file lattice_field.cpp.

References a, errorQuda, ghostExchange, fused_exterior_ndeg_tm_dslash_cuda_gen::i, nDim, QUDA_GHOST_EXCHANGE_EXTENDED, r, surface, surfaceCB, volume, volumeCB, and x.

Referenced by quda::GaugeField::checkField(), quda::cudaCloverField::copy(), and quda::cudaCloverField::saveCPUField().

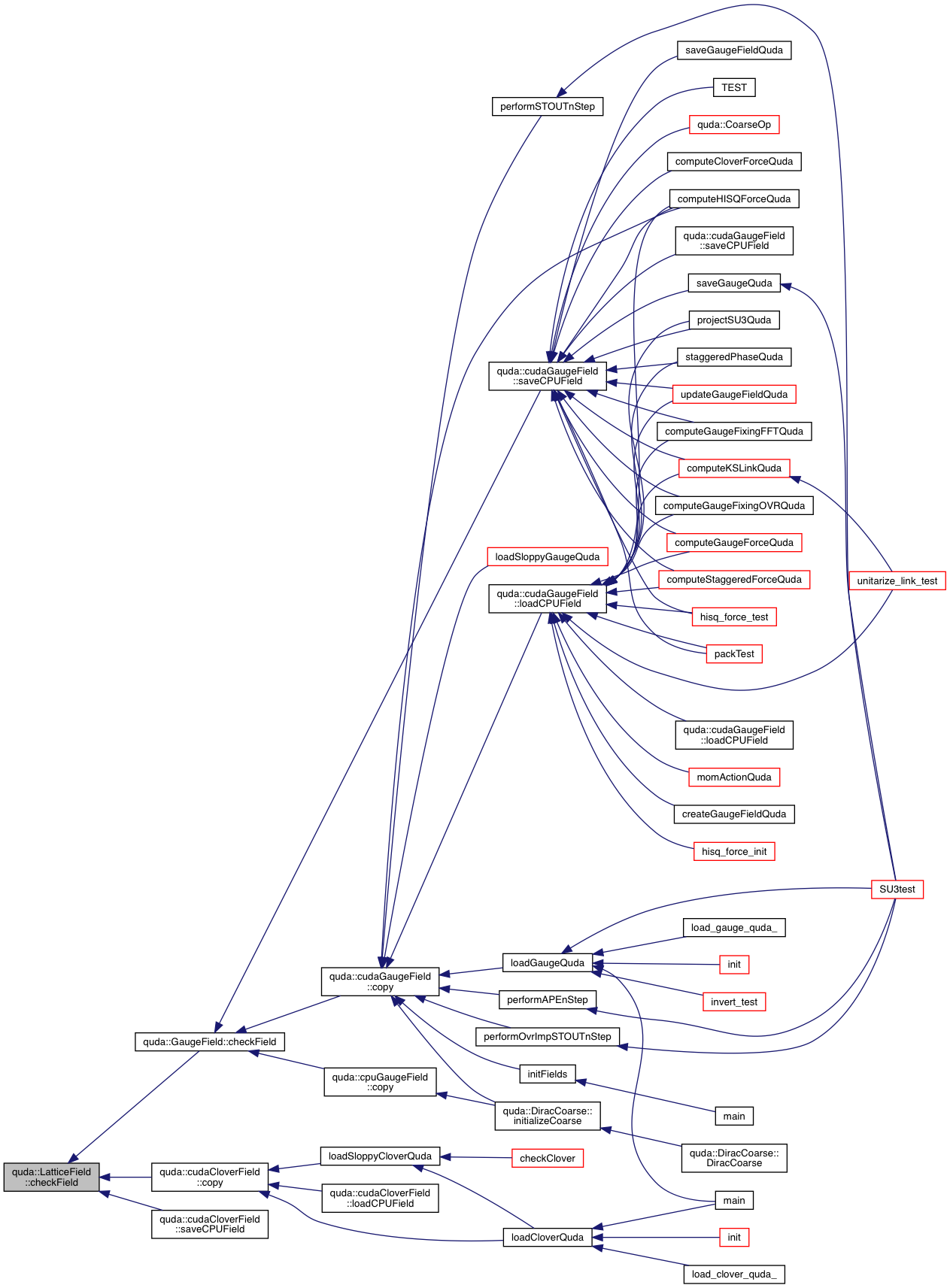

Here is the caller graph for this function:

◆ commsQuery()

virtual int quda::LatticeField::commsQuery	(	int	nFace,
		int	dir,
		int	dagger = `0`,
		cudaStream_t *	stream_p = `NULL`,
		bool	gdr_send = `false`,
		bool	gdr_recv = `true`
	)

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 514 of file lattice_field.h.

References errorQuda.

◆ commsStart()

virtual void quda::LatticeField::commsStart	(	int	nFace,
		int	dir,
		int	dagger = `0`,
		cudaStream_t *	stream_p = `NULL`,
		bool	gdr_send = `false`,
		bool	gdr_recv = `true`
	)

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 511 of file lattice_field.h.

References errorQuda.

◆ commsWait()

virtual void quda::LatticeField::commsWait	(	int	nFace,
		int	dir,
		int	dagger = `0`,
		cudaStream_t *	stream_p = `NULL`,
		bool	gdr_send = `false`,
		bool	gdr_recv = `true`
	)

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 517 of file lattice_field.h.

References errorQuda.

◆ createComms()

void quda::LatticeField::createComms ( bool no_comms_fill = false )

Create the communication handlers (both host and device)

Parameters

[in] no_comms_fill Whether to allocate halo buffers for dimensions that are not partitioned

Definition at line 190 of file lattice_field.cpp.

References b, checkCudaError, comm_declare_receive_relative, comm_declare_send_relative, comm_gdr_enabled(), commDimPartitioned(), destroyComms(), from_face_dim_dir_d, from_face_dim_dir_h, from_face_dim_dir_hd, from_face_h, from_face_hd, ghost_bytes, ghost_face_bytes, ghost_pinned_buffer_h, ghost_pinned_buffer_hd, ghost_recv_buffer_d, ghost_send_buffer_d, ghostOffset, fused_exterior_ndeg_tm_dslash_cuda_gen::i, initComms, mh_recv_back, mh_recv_fwd, mh_recv_rdma_back, mh_recv_rdma_fwd, mh_send_back, mh_send_fwd, mh_send_rdma_back, mh_send_rdma_fwd, my_face_dim_dir_d, my_face_dim_dir_h, my_face_dim_dir_hd, my_face_h, my_face_hd, nDimComms, offset, and precision.

Referenced by quda::cudaGaugeField::createComms(), and quda::cudaColorSpinorField::createComms().

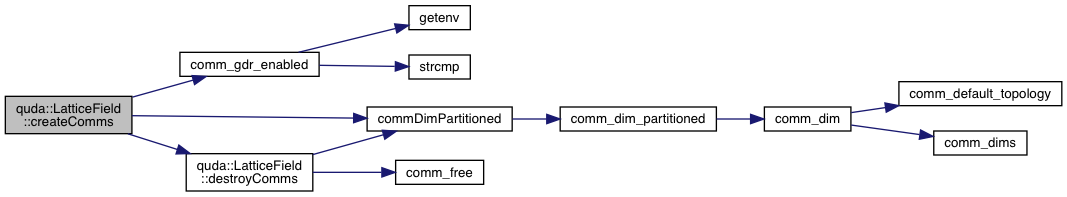

Here is the call graph for this function:

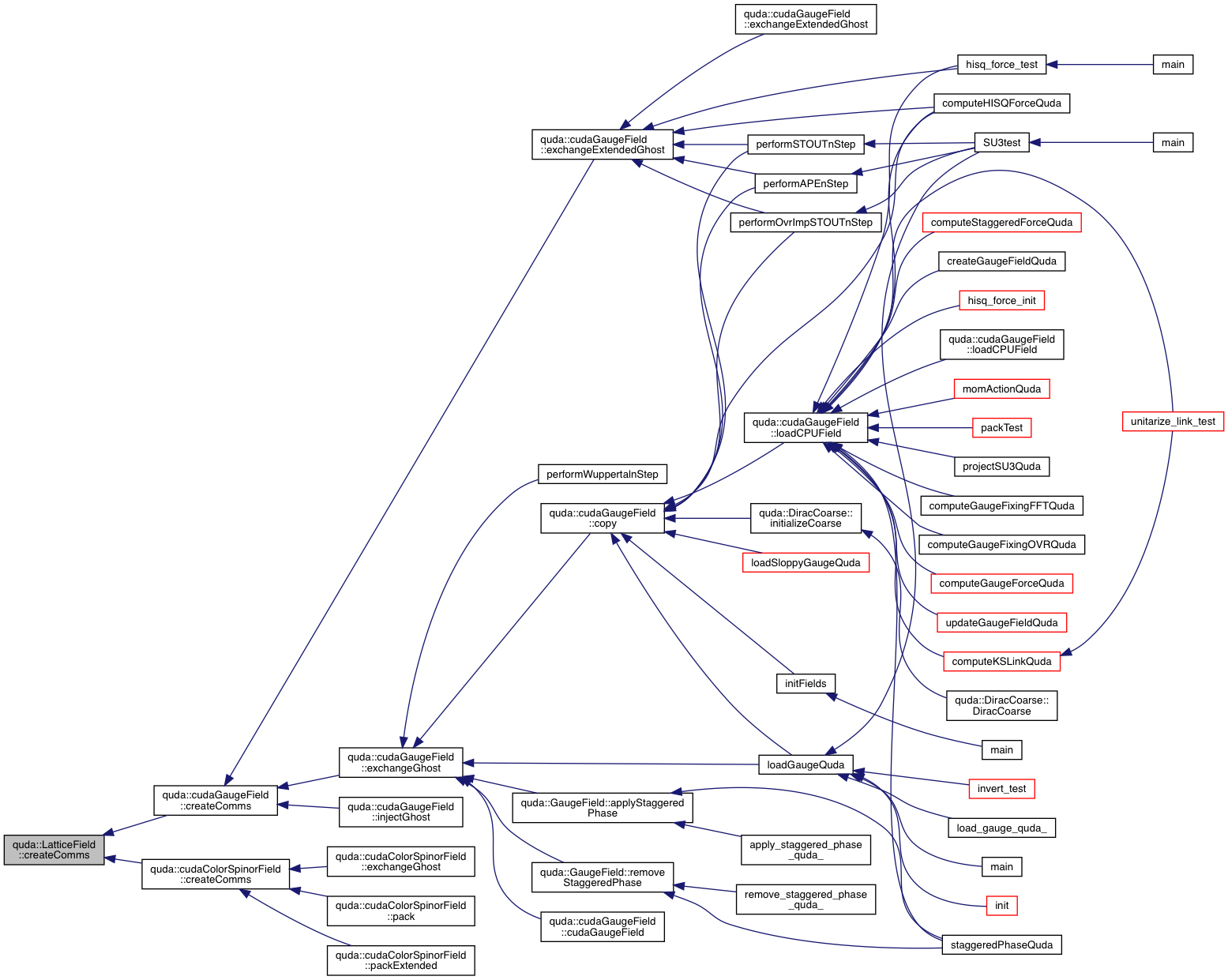

Here is the caller graph for this function:

◆ createIPCComms()

void quda::LatticeField::createIPCComms ( )

Create the inter-process communication handlers

Definition at line 286 of file lattice_field.cpp.

References b, buffer_recv_p2p_back, buffer_recv_p2p_fwd, buffer_send_p2p_back, buffer_send_p2p_fwd, checkCudaError, comm_declare_receive_relative, comm_declare_send_relative, comm_dim(), comm_free(), comm_peer2peer_enabled(), comm_size(), comm_start(), comm_wait(), cudaIpcEventHandle_t, cudaIpcMemHandle_t, dim, errorQuda, ghost_field_reset, ghost_recv_buffer_d, ghost_remote_send_buffer_d, initComms, initIPCComms, ipcCopyEvent, ipcRemoteCopyEvent, mh_recv_p2p_back, mh_recv_p2p_fwd, mh_send_p2p_back, mh_send_p2p_fwd, and QUDA_MAX_DIM.

Referenced by quda::cudaGaugeField::createComms(), and quda::cudaColorSpinorField::createComms().

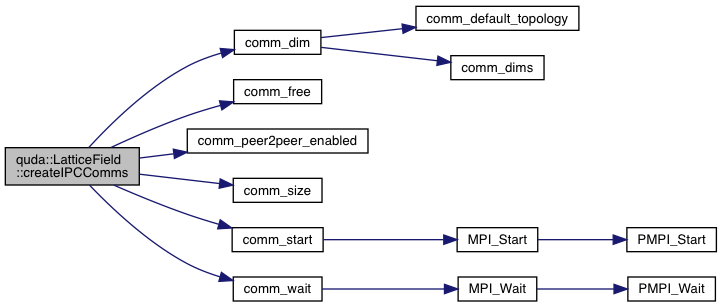

Here is the call graph for this function:

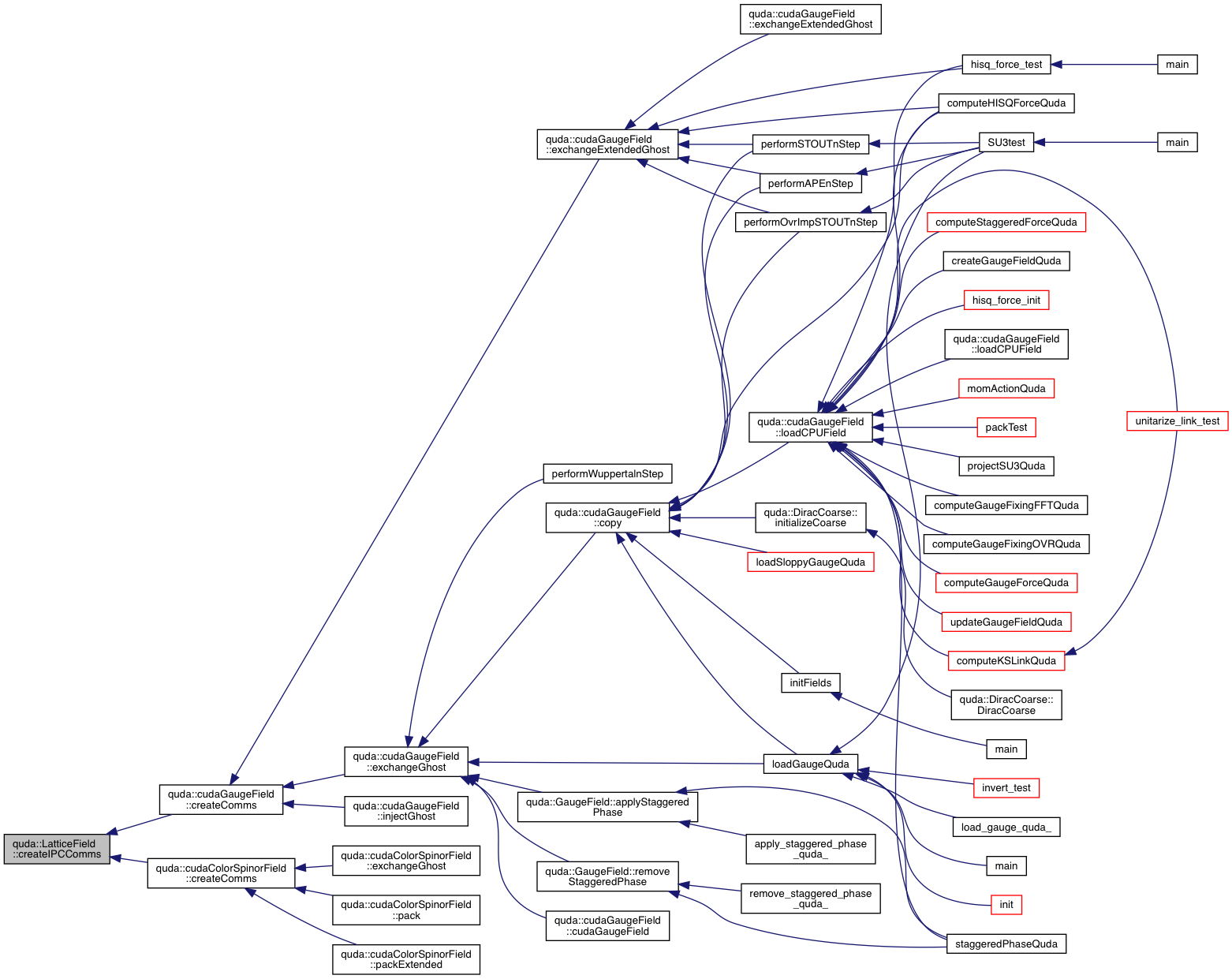

Here is the caller graph for this function:

◆ destroyComms()

void quda::LatticeField::destroyComms ( )

Destroy the communication handlers

Definition at line 260 of file lattice_field.cpp.

References b, checkCudaError, comm_free(), commDimPartitioned(), fused_exterior_ndeg_tm_dslash_cuda_gen::i, initComms, mh_recv_back, mh_recv_fwd, mh_recv_rdma_back, mh_recv_rdma_fwd, mh_send_back, mh_send_fwd, mh_send_rdma_back, mh_send_rdma_fwd, and nDimComms.

Referenced by createComms(), quda::cudaColorSpinorField::operator=(), quda::cudaColorSpinorField::~cudaColorSpinorField(), and quda::cudaGaugeField::~cudaGaugeField().

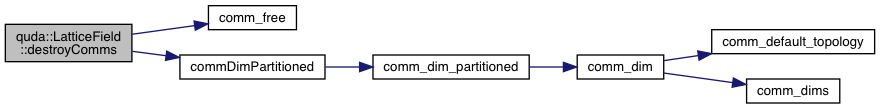

Here is the call graph for this function:

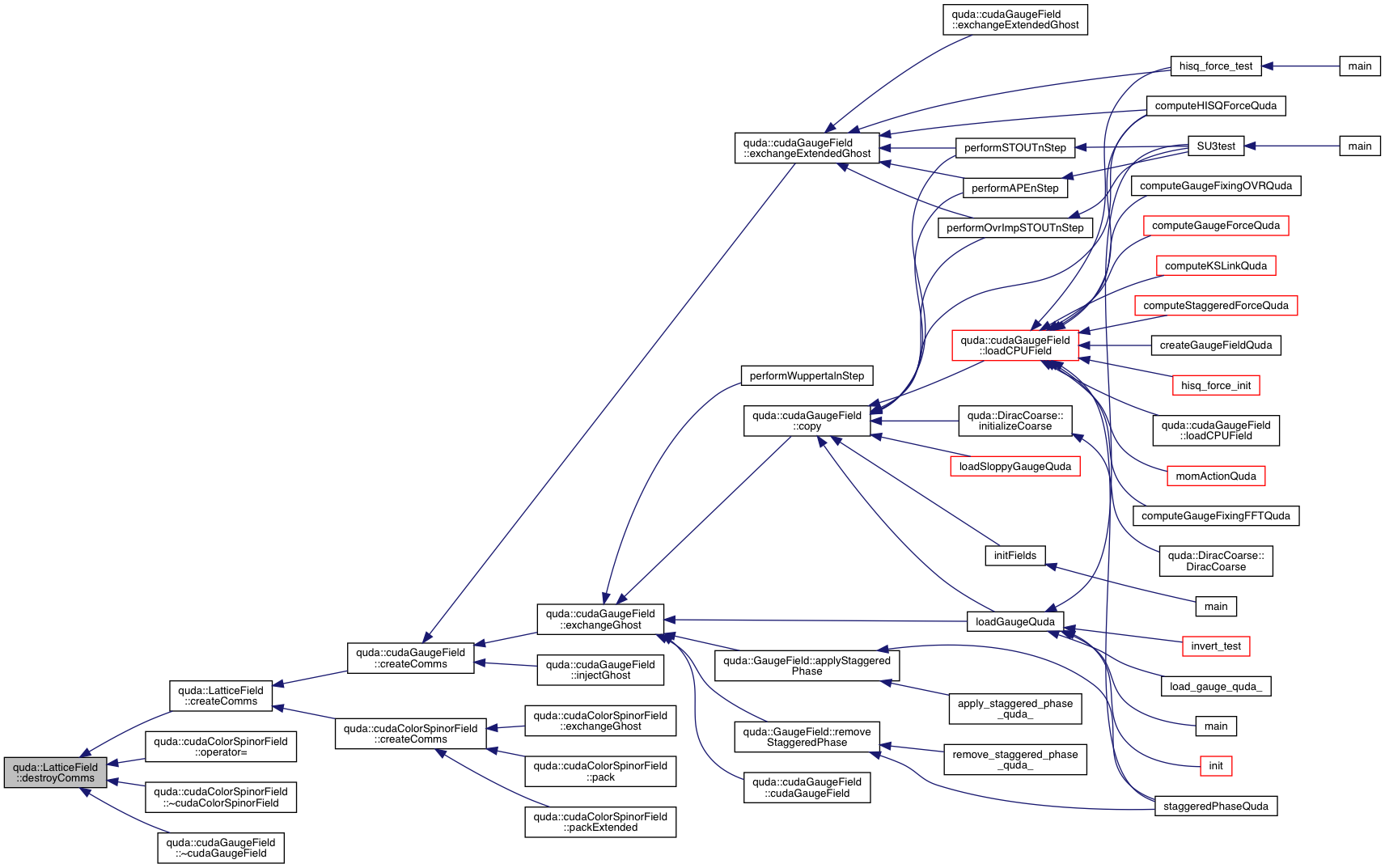

Here is the caller graph for this function:

◆ destroyIPCComms()

void quda::LatticeField::destroyIPCComms ( )

static

Destroy the statically allocated inter-process communication handlers

Definition at line 429 of file lattice_field.cpp.

References b, checkCudaError, comm_dim(), comm_free(), comm_peer2peer_enabled(), dim, ghost_remote_send_buffer_d, initIPCComms, ipcCopyEvent, mh_recv_p2p_back, mh_recv_p2p_fwd, mh_send_p2p_back, and mh_send_p2p_fwd.

Referenced by quda::cudaGaugeField::createComms(), quda::cudaColorSpinorField::createComms(), and freeGhostBuffer().

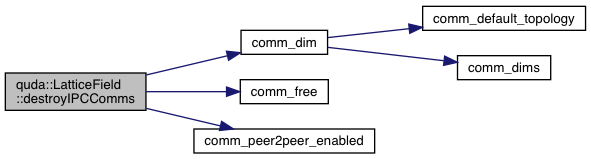

Here is the call graph for this function:

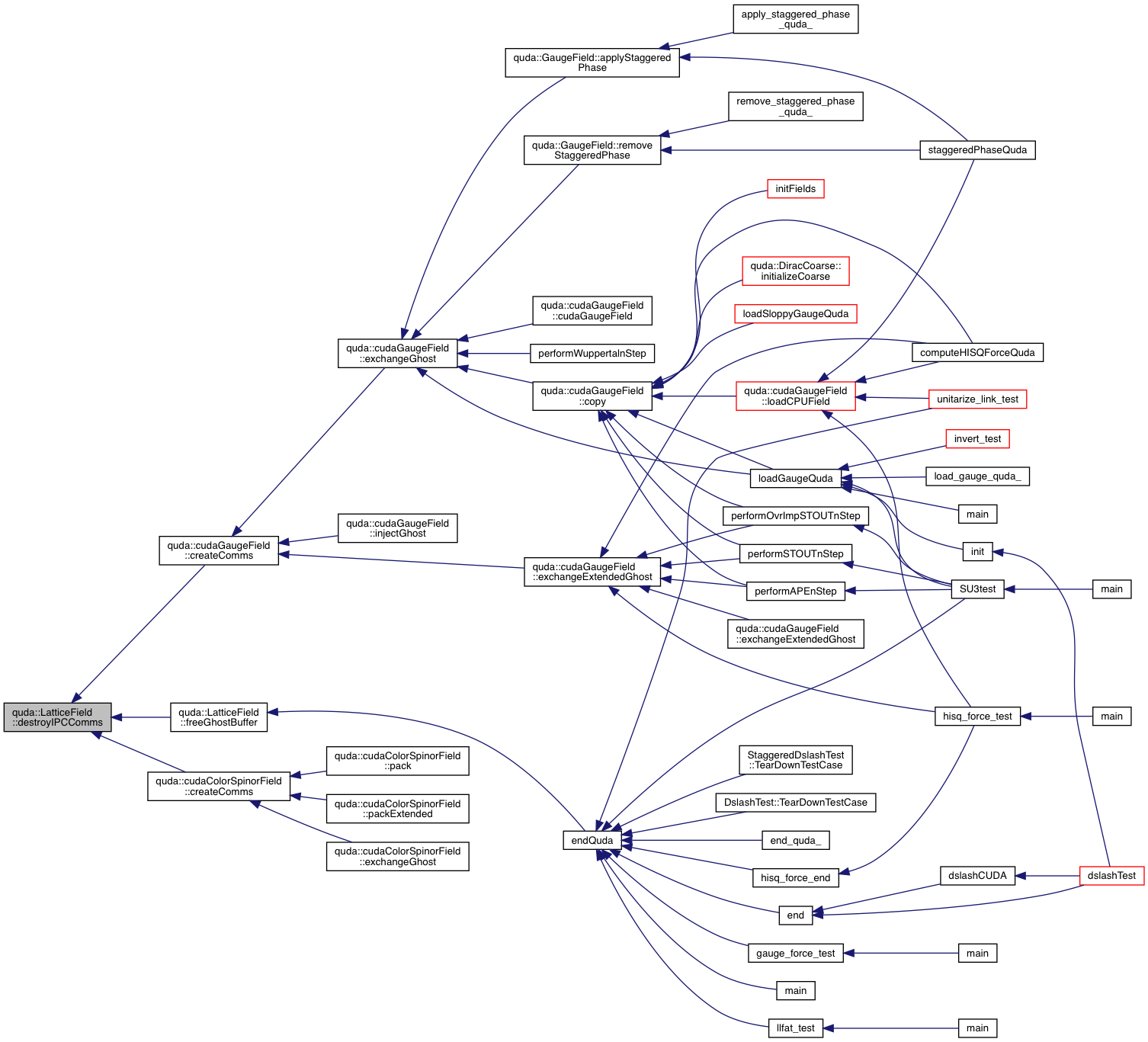

Here is the caller graph for this function:

◆ freeGhostBuffer()

void quda::LatticeField::freeGhostBuffer ( void )

static

Free statically allocated ghost buffers.

Definition at line 167 of file lattice_field.cpp.

References b, destroyIPCComms(), device_pinned_free, ghost_pinned_buffer_h, ghost_pinned_buffer_hd, ghost_recv_buffer_d, ghost_send_buffer_d, host_free, and initGhostFaceBuffer.

Referenced by endQuda().

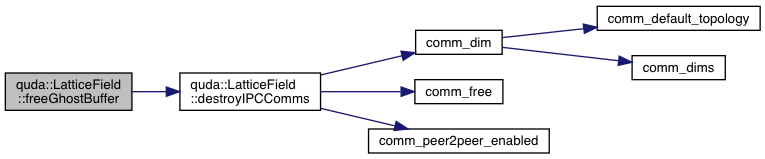

Here is the call graph for this function:

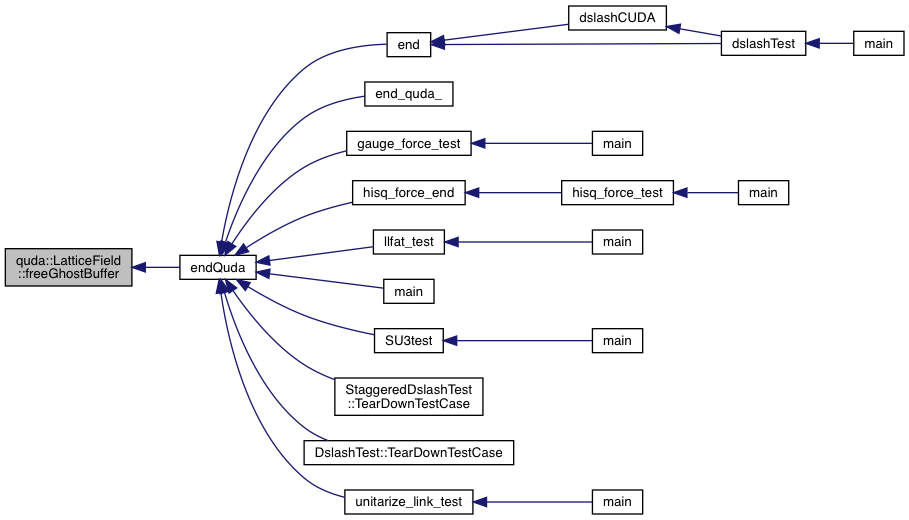

Here is the caller graph for this function:

◆ gather()

virtual void quda::LatticeField::gather	(	int	nFace,
		int	dagger,
		int	dir,
		cudaStream_t *	stream_p = `NULL`
	)

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 508 of file lattice_field.h.

References errorQuda.

◆ GBytes()

size_t quda::LatticeField::GBytes ( ) const

inline

Returns: The total storage allocated

Definition at line 488 of file lattice_field.h.

References total_bytes.

Referenced by loadCloverQuda(), and loadGaugeQuda().

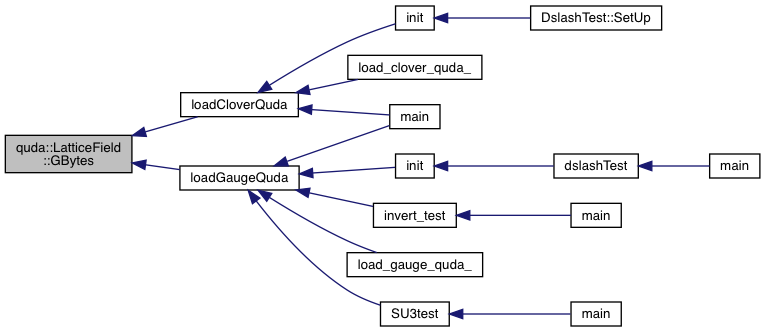

Here is the caller graph for this function:

◆ getIPCCopyEvent()

const cudaEvent_t & quda::LatticeField::getIPCCopyEvent	(	int	dir,
		int	dim
	)		const

Handle to local copy event used for peer-to-peer synchronization

Definition at line 473 of file lattice_field.cpp.

References bufferIndex, dim, and ipcCopyEvent.

◆ getIPCRemoteCopyEvent()

const cudaEvent_t & quda::LatticeField::getIPCRemoteCopyEvent	(	int	dir,
		int	dim
	)		const

Handle to remote copy event used for peer-to-peer synchronization

Definition at line 477 of file lattice_field.cpp.

References bufferIndex, dim, and ipcRemoteCopyEvent.

◆ GhostExchange()

QudaGhostExchange quda::LatticeField::GhostExchange ( ) const

inline

Returns: Type of ghost exchange

Definition at line 457 of file lattice_field.h.

References ghostExchange.

Referenced by quda::cudaGaugeField::copy(), quda::copyGenericGauge(), and quda::cudaGaugeField::saveCPUField().

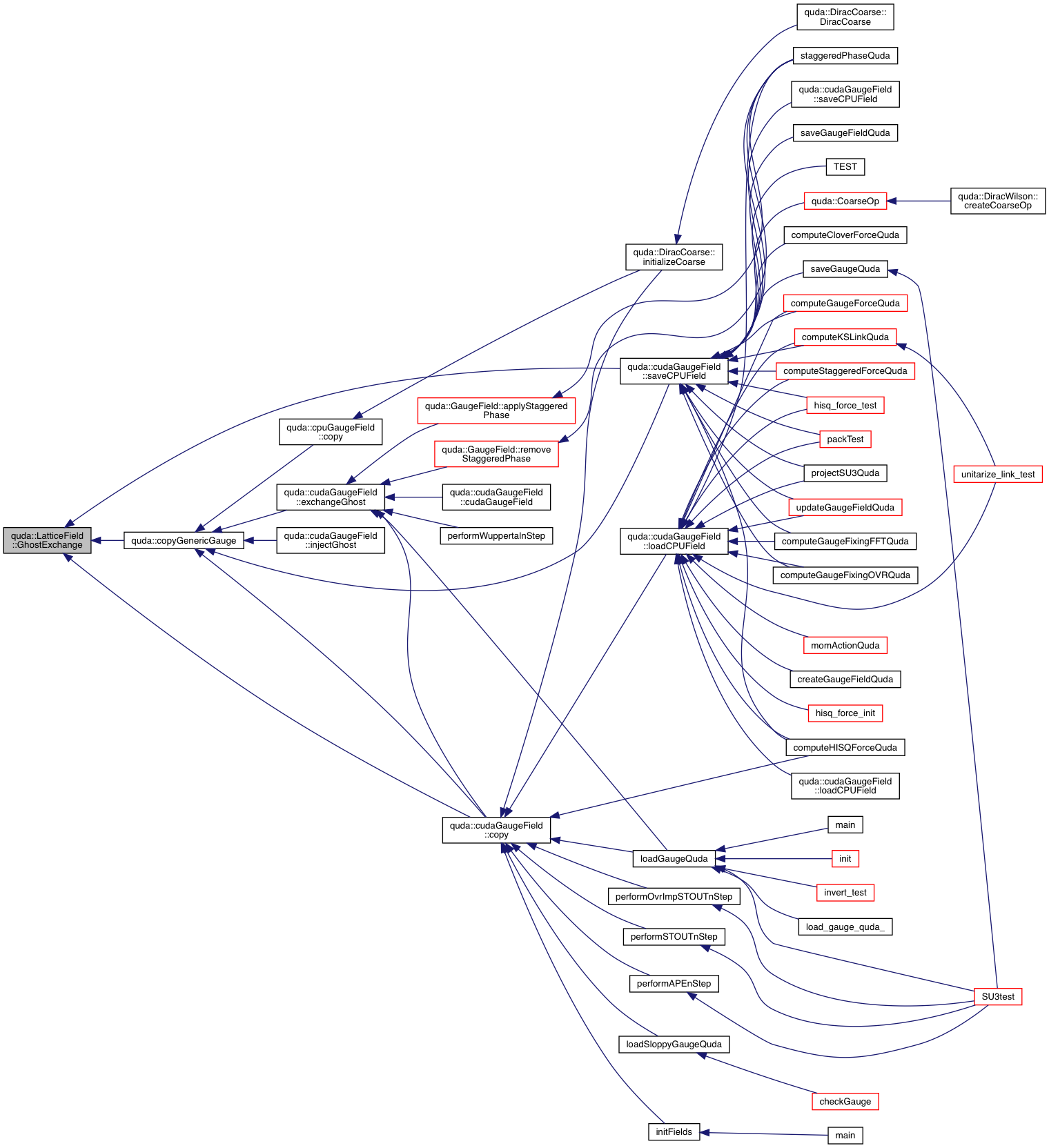

Here is the caller graph for this function:

◆ ipcCopyComplete()

bool quda::LatticeField::ipcCopyComplete	(	int	dir,
		int	dim
	)

inline

Helper function to determine if local-to-remote (send) peer-to-peer copy is complete

Definition at line 463 of file lattice_field.cpp.

References bufferIndex, dim, and ipcCopyEvent.

◆ ipcRemoteCopyComplete()

bool quda::LatticeField::ipcRemoteCopyComplete	(	int	dir,
		int	dim
	)

inline

Helper function to determine if local-to-remote (receive) peer-to-peer copy is complete

Definition at line 468 of file lattice_field.cpp.

References bufferIndex, dim, and ipcRemoteCopyEvent.

◆ Location()

QudaFieldLocation quda::LatticeField::Location ( ) const

Returns: The location of the field

Definition at line 522 of file lattice_field.cpp.

References errorQuda, QUDA_CPU_FIELD_LOCATION, QUDA_CUDA_FIELD_LOCATION, and QUDA_INVALID_FIELD_LOCATION.

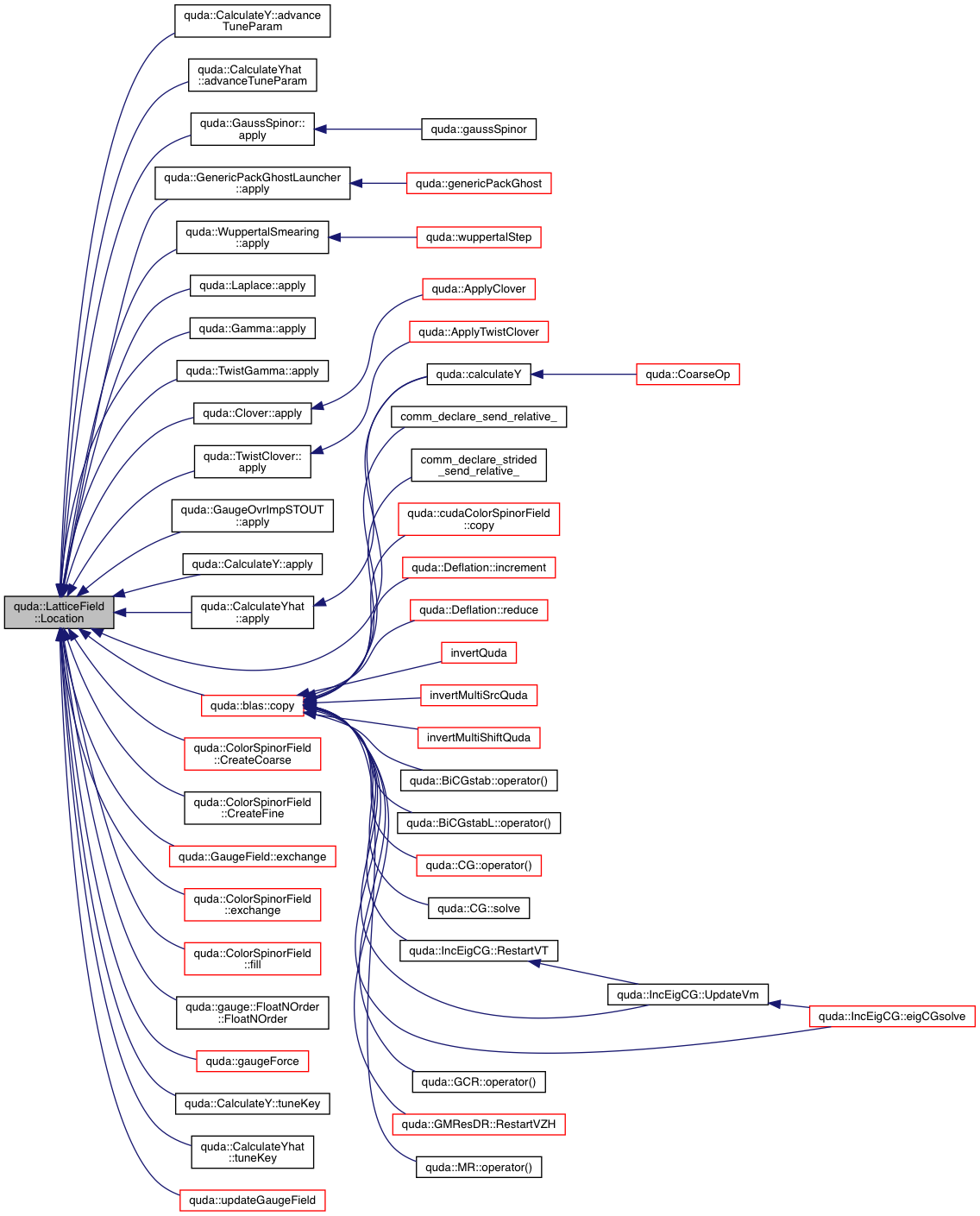

Here is the caller graph for this function:

◆ MemType()

virtual QudaMemoryType quda::LatticeField::MemType ( ) const

inlinevirtual

Returns: Mem type

Definition at line 472 of file lattice_field.h.

References mem_type.

◆ Ndim()

int quda::LatticeField::Ndim ( ) const

inline

Returns: The dimension of the lattice

Definition at line 410 of file lattice_field.h.

References nDim.

Referenced by quda::copyGaugeEx().

Here is the caller graph for this function:

◆ Nvec()

int quda::LatticeField::Nvec ( ) const

Returns: The vector storage length used for native fields , 2 for Float2, 4 for Float4

Definition at line 546 of file lattice_field.cpp.

References errorQuda, quda::ColorSpinorField::FieldOrder(), quda::CloverField::Order(), and quda::GaugeField::Order().

Referenced by quda::ColorSpinorField::CreateCoarse(), quda::ColorSpinorField::CreateFine(), quda::cudaColorSpinorField::sendGhost(), and quda::cudaColorSpinorField::sendStart().

Here is the call graph for this function:

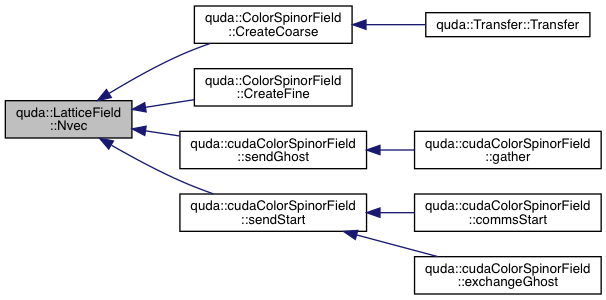

Here is the caller graph for this function:

◆ Pad()

int quda::LatticeField::Pad ( ) const

inline

Returns: The field padding

Definition at line 447 of file lattice_field.h.

References pad.

◆ Precision()

QudaPrecision quda::LatticeField::Precision ( ) const

inline

Returns: The field precision

Definition at line 462 of file lattice_field.h.

References precision.

Referenced by quda::APEStep(), quda::ApplyCovDev(), quda::applyGaugePhase(), quda::applyU(), quda::GenericPackGhostLauncher< Float, Ns, Ms, Nc, Mc, Arg >::bytes(), quda::calculateY(), quda::canReuseResidentGauge(), checkClover(), checkGauge(), quda::cloverDerivative(), quda::CoarseCoarseOp(), quda::CoarseOp(), quda::cudaCloverField::compute(), quda::computeCloverForce(), computeCloverForceQuda(), quda::computeCloverSigmaOprod(), quda::computeFmunu(), quda::computeMomAction(), quda::computeQCharge(), quda::computeStaggeredOprod(), quda::blas::copy_ns::copy(), quda::copyExtendedColorSpinor(), quda::copyGenericColorSpinor(), quda::copyGenericGauge(), quda::copyGenericGaugeDoubleOut(), quda::copyGenericGaugeHalfOut(), quda::copyGenericGaugeMG(), quda::copyGenericGaugeSingleOut(), createCloverQuda(), createExtendedGauge(), quda::extractExtendedGaugeGhost(), quda::extractGaugeGhost(), quda::extractGaugeGhostMG(), quda::gaugefixingFFT(), quda::gaugefixingOVR(), quda::gaugeForce(), quda::gaugeGauss(), quda::getLinkDeterminant(), quda::getLinkTrace(), quda::InitGaugeField(), quda::DiracCoarse::initializeCoarse(), loadSloppyCloverQuda(), loadSloppyGaugeQuda(), quda::Monte(), quda::Deflation::operator()(), quda::BiCGstab::operator()(), quda::BiCGstabL::operator()(), quda::MultiShiftCG::operator()(), quda::DslashCoarseLaunch::operator()(), quda::OvrImpSTOUTStep(), quda::PGaugeExchange(), qChargeCuda(), quda::IncEigCG::RestartVT(), quda::cudaGaugeField::saveCPUField(), quda::shiftColorSpinorField(), quda::CG::solve(), quda::STOUTStep(), quda::unitarizeLinks(), quda::updateGaugeField(), and quda::updateMomentum().

◆ R()

const int* quda::LatticeField::R ( ) const

inline

Returns: Extended field radius

Definition at line 452 of file lattice_field.h.

References r.

Referenced by quda::cudaGaugeField::allocateGhostBuffer(), quda::cudaGaugeField::createComms(), quda::GaugeField::createGhostZone(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc >::FloatNOrder(), quda::GaugeOvrImpSTOUTArg< Float, GaugeOr, GaugeDs >::GaugeOvrImpSTOUTArg(), hisq_force_test(), quda::cudaGaugeField::injectGhost(), quda::LatticeFieldParam::LatticeFieldParam(), loadGaugeQuda(), quda::cudaColorSpinorField::packExtended(), quda::cudaColorSpinorField::packGhostExtended(), and quda::cudaColorSpinorField::unpackGhostExtended().

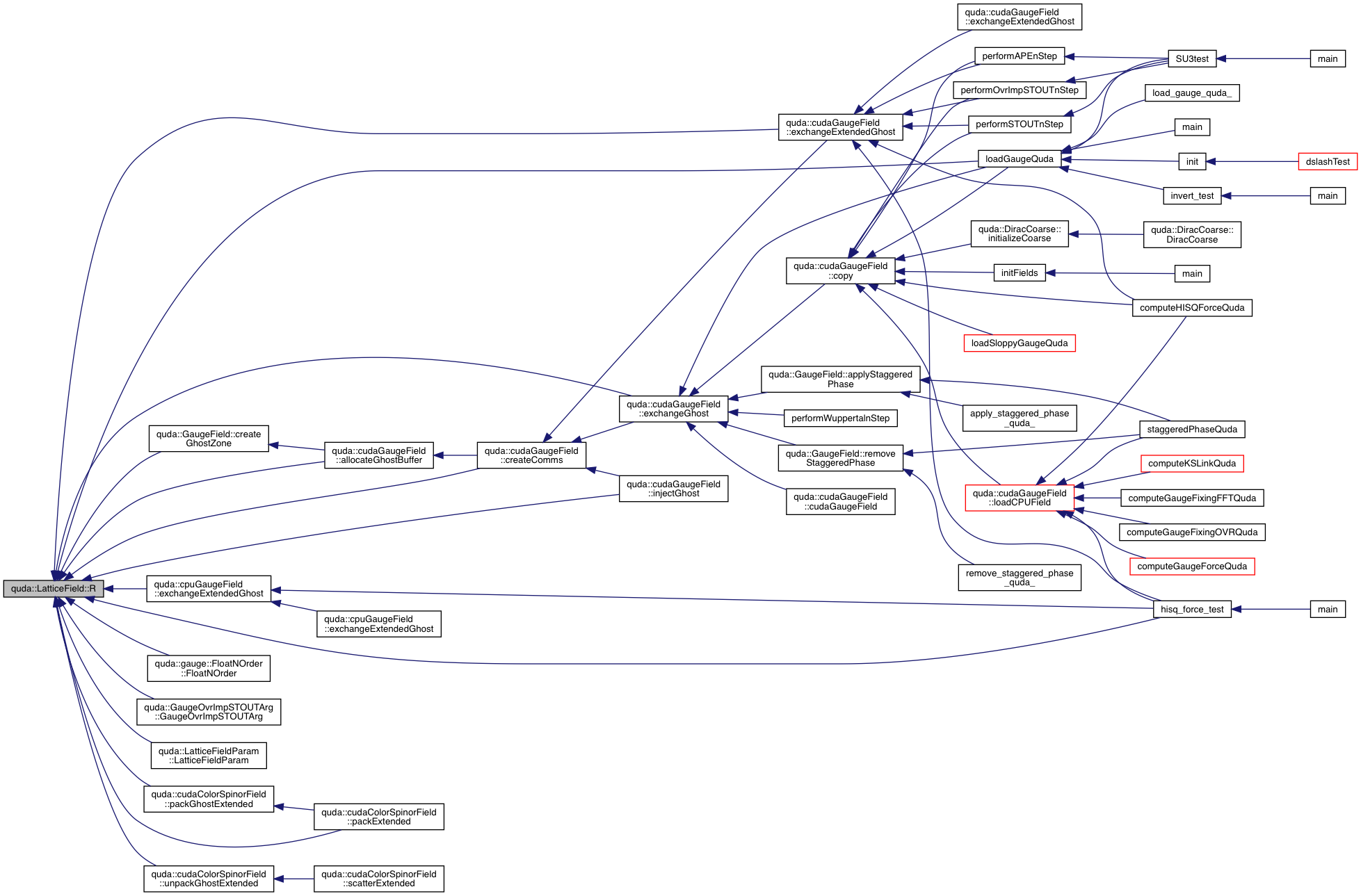

Here is the caller graph for this function:

◆ read()

void quda::LatticeField::read ( char * filename )

virtual

Read in the field specified by filenemae

Parameters

filename The name of the file to read

Definition at line 538 of file lattice_field.cpp.

References errorQuda.

◆ restore()

virtual void quda::LatticeField::restore ( )

inlinevirtual

Restores the cpuGaugeField.

Reimplemented in quda::cpuColorSpinorField, quda::cudaColorSpinorField, quda::cpuGaugeField, and quda::cudaGaugeField.

Definition at line 530 of file lattice_field.h.

References errorQuda.

Referenced by quda::CalculateY< from_coarse, Float, fineSpin, fineColor, coarseSpin, coarseColor, Arg >::postTune().

Here is the caller graph for this function:

◆ scatter()

virtual void quda::LatticeField::scatter	(	int	nFace,
		int	dagger,
		int	dir
	)

inlinevirtual

Reimplemented in quda::cudaColorSpinorField.

Definition at line 520 of file lattice_field.h.

References errorQuda.

◆ setTuningString()

void quda::LatticeField::setTuningString ( )

protectedvirtual

Sets the vol_string for use in tuning

Reimplemented in quda::ColorSpinorField.

Definition at line 481 of file lattice_field.cpp.

References d, errorQuda, nDim, snprintf(), strcpy(), vol_string, quda::TuneKey::volume_n, and x.

Here is the call graph for this function:

◆ SiteSubset()

virtual QudaSiteSubset quda::LatticeField::SiteSubset ( ) const

inlinevirtual

Returns: Field subset type

Reimplemented in quda::ColorSpinorField.

Definition at line 467 of file lattice_field.h.

References siteSubset.

◆ Stride()

int quda::LatticeField::Stride ( ) const

inline

Returns: The single-parity stride of the field

Definition at line 442 of file lattice_field.h.

References stride.

◆ SurfaceCB() [1/2]

const int* quda::LatticeField::SurfaceCB ( ) const

inline

Parameters

i	The dimension of the requested surface

Returns: The single-parity surface of dimension i

Definition at line 431 of file lattice_field.h.

References surfaceCB.

Referenced by quda::GenericPackGhostLauncher< Float, Ns, Ms, Nc, Mc, Arg >::bytes(), quda::copyGauge(), quda::copyGaugeMG(), quda::ExtractGhostArg< Order, nDim >::ExtractGhostArg(), quda::extractGhostEx(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc >::FloatNOrder(), quda::gauge::GhostAccessor< Float, nColor, QUDA_QDP_GAUGE_ORDER, native_ghost >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_MILC_GAUGE_ORDER, native_ghost >::GhostAccessor(), quda::gauge::GhostAccessor< Float, nColor, QUDA_FLOAT2_GAUGE_ORDER, native_ghost >::GhostAccessor(), and quda::gauge::LegacyOrder< Float, length >::LegacyOrder().

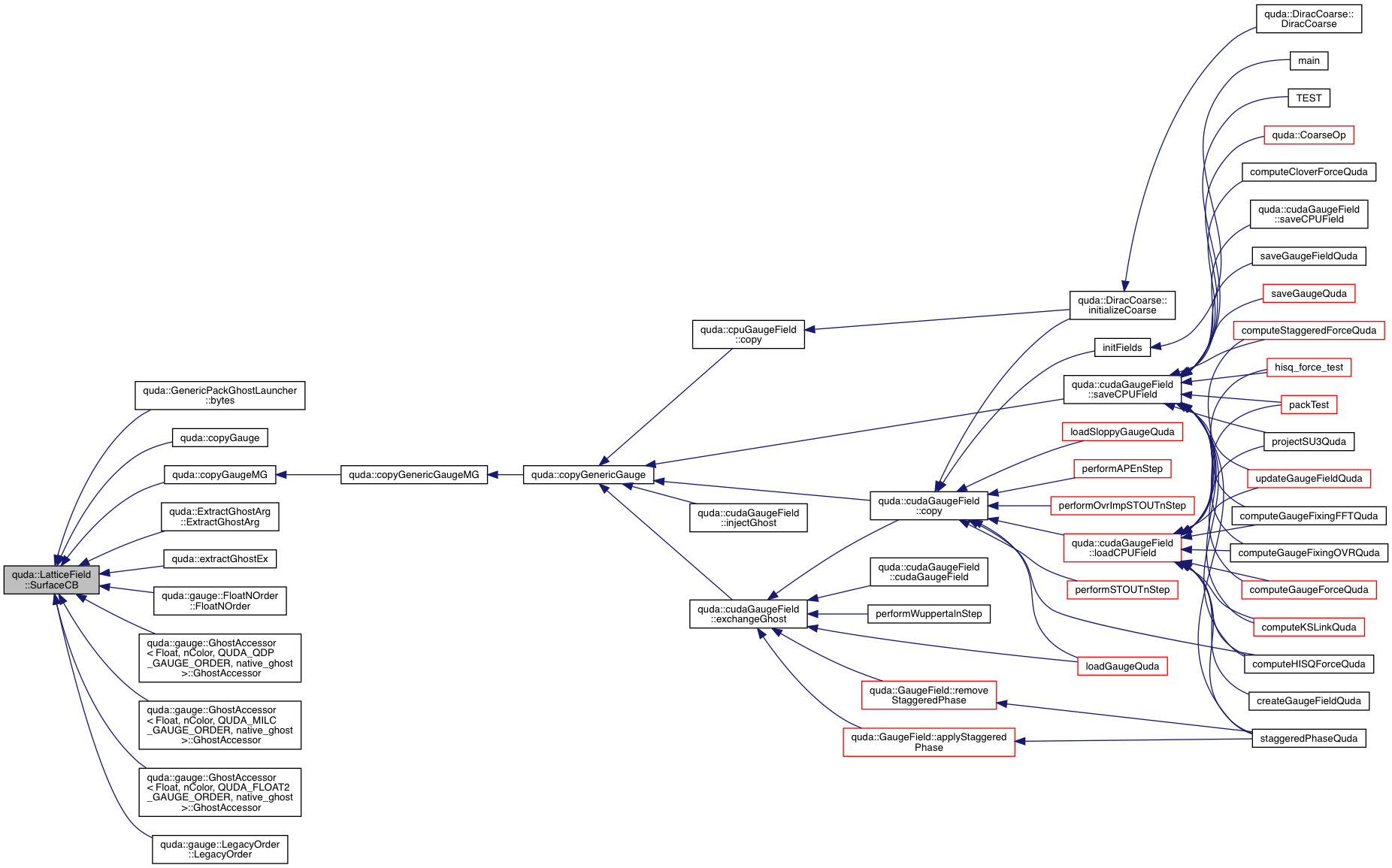

Here is the caller graph for this function:

◆ SurfaceCB() [2/2]

int quda::LatticeField::SurfaceCB ( const int i ) const

inline

Parameters

i	The dimension of the requested surface

Returns: The single-parity surface of dimension i

Definition at line 437 of file lattice_field.h.

References fused_exterior_ndeg_tm_dslash_cuda_gen::i, and surfaceCB.

◆ VolString()

const char* quda::LatticeField::VolString ( ) const

inline

Return the volume string used by the autotuner

Definition at line 524 of file lattice_field.h.

References vol_string.

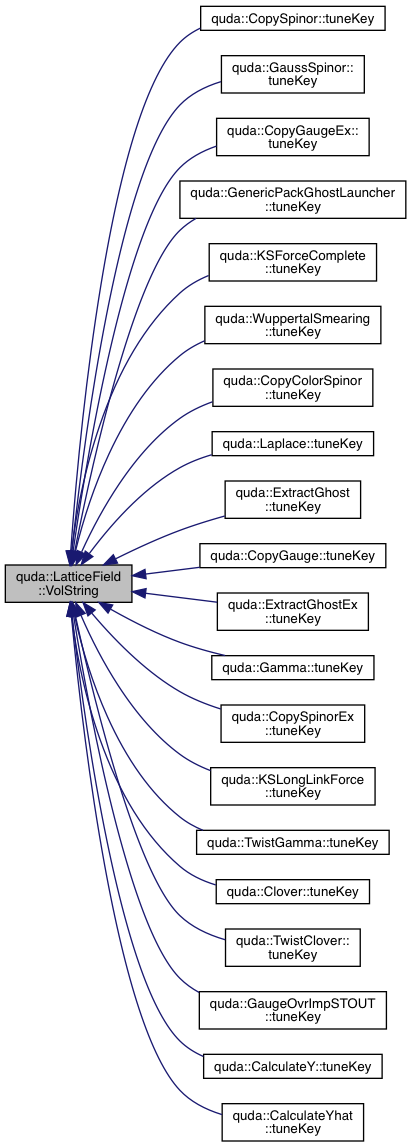

Here is the caller graph for this function:

◆ Volume()

int quda::LatticeField::Volume ( ) const

inline

Returns: The full-field volume

Definition at line 420 of file lattice_field.h.

References volume.

Referenced by quda::calculateY(), quda::Dirac::checkParitySpinor(), gaussGaugeQuda(), hisq_force_init(), hisq_force_test(), and TEST().

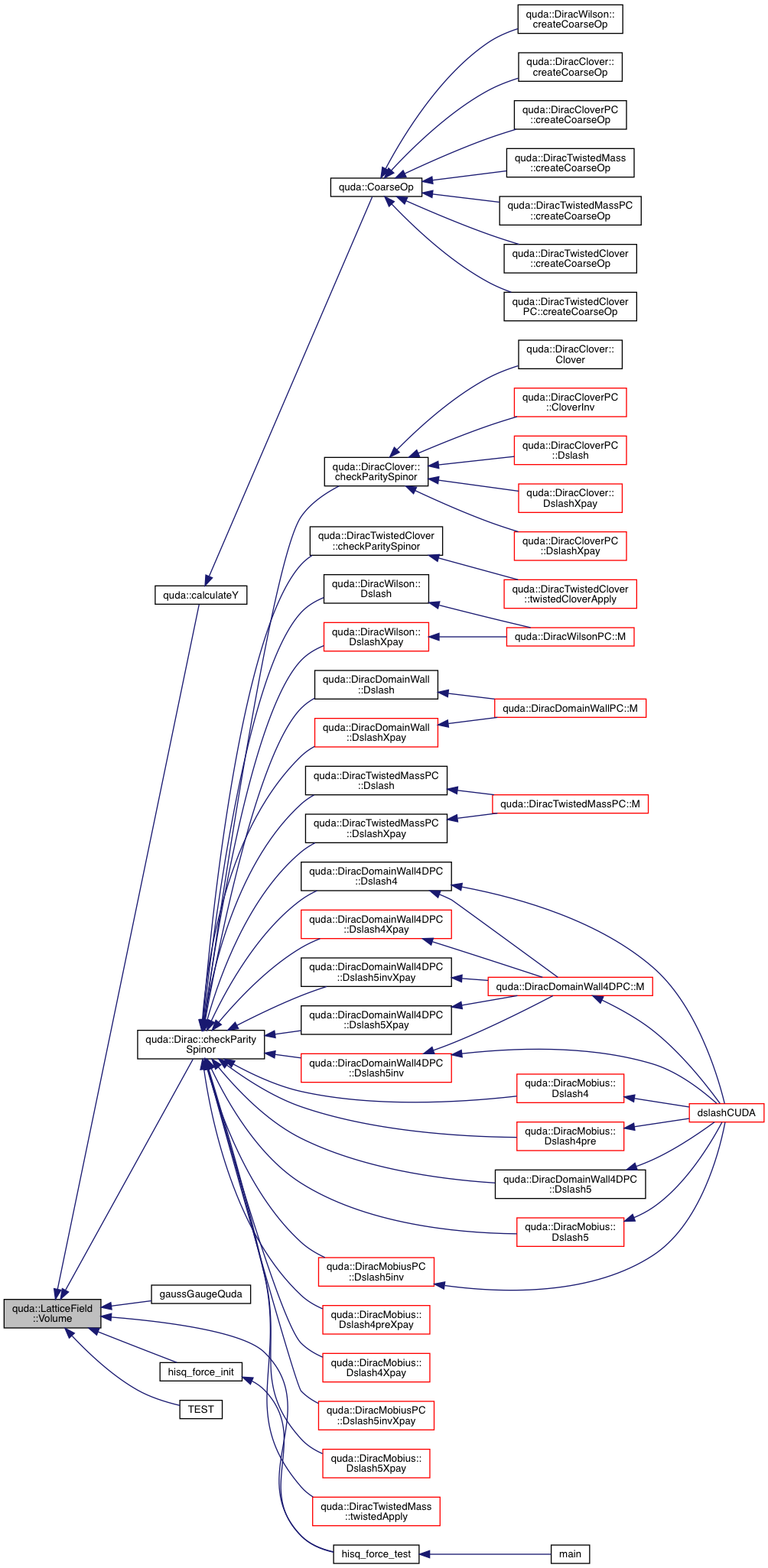

Here is the caller graph for this function:

◆ VolumeCB()

int quda::LatticeField::VolumeCB ( ) const

inline

Returns: The single-parity volume

Definition at line 425 of file lattice_field.h.

References volumeCB.

Referenced by quda::Dirac::checkParitySpinor(), quda::DiracClover::checkParitySpinor(), quda::DiracTwistedClover::checkParitySpinor(), quda::DiracStaggered::checkParitySpinor(), quda::DiracImprovedStaggered::checkParitySpinor(), invertMultiShiftQuda(), invertMultiSrcQuda(), invertQuda(), and quda::ProjectSU3Arg< Float, G >::ProjectSU3Arg().

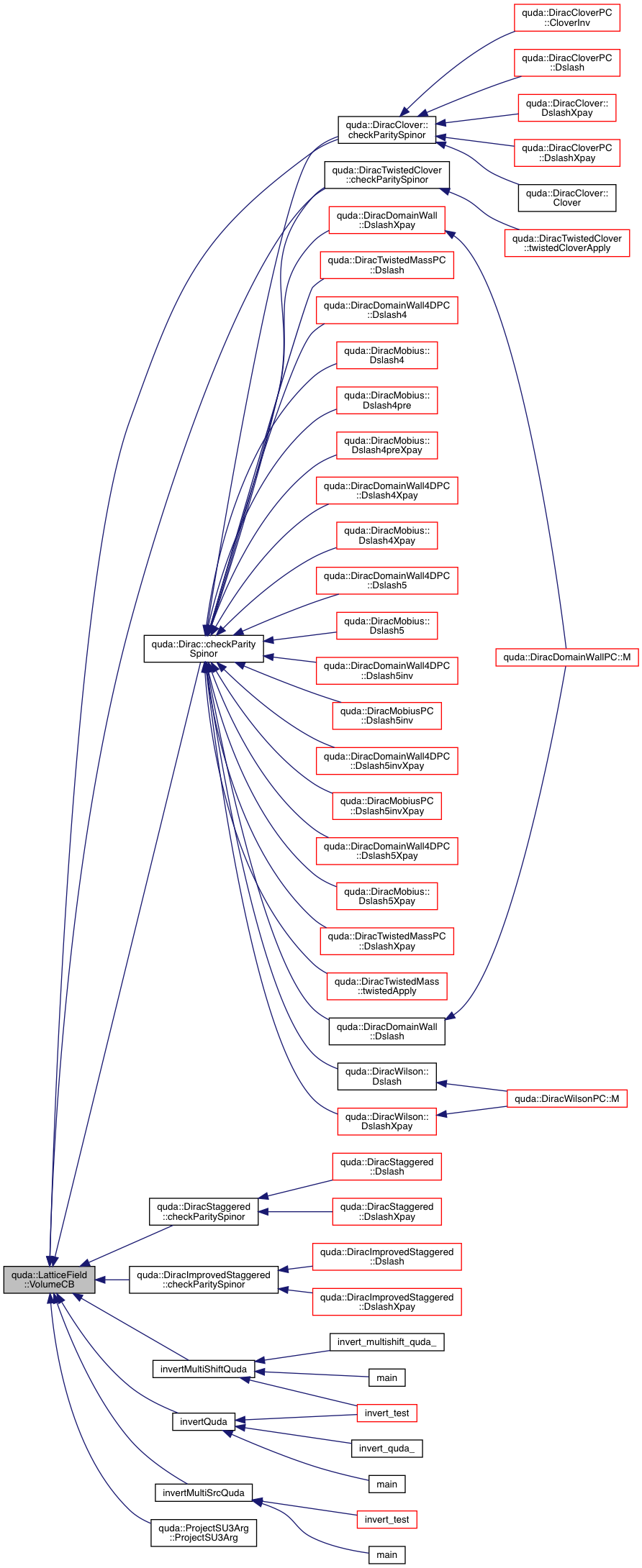

Here is the caller graph for this function:

◆ write()

void quda::LatticeField::write ( char * filename )

virtual

Write the field in the file specified by filename

Parameters

filename The name of the file to write

Definition at line 542 of file lattice_field.cpp.

References errorQuda.

◆ X()

const int* quda::LatticeField::X ( ) const

inline

Returns: The pointer to the lattice-dimension array

Definition at line 415 of file lattice_field.h.

References x.

Referenced by quda::gauge::BQCDOrder< Float, length >::BQCDOrder(), quda::calculateY(), quda::cloverDerivative(), cloverQuda(), quda::CoarseOp(), quda::completeKSForce(), quda::computeKSLongLinkForce(), createCloverQuda(), quda::deflated_solver::deflated_solver(), dslashQuda(), dslashQuda_4dpc(), dslashQuda_mdwf(), quda::extractGhost(), quda::ExtractGhostArg< Order, nDim >::ExtractGhostArg(), quda::extractGhostEx(), quda::fatLongKSLink(), quda::gauge::FloatNOrder< Float, length, N, reconLenParam, stag_phase, huge_alloc >::FloatNOrder(), quda::GaugeOvrImpSTOUTArg< Float, GaugeOr, GaugeDs >::GaugeOvrImpSTOUTArg(), gaussGaugeQuda(), invert_multishift_quda_(), invertMultiShiftQuda(), invertMultiSrcQuda(), invertQuda(), lanczosQuda(), quda::LatticeFieldParam::LatticeFieldParam(), loadCloverQuda(), MatDagMatQuda(), MatQuda(), quda::multigrid_solver::multigrid_solver(), performWuppertalnStep(), quda::ProjectSU3Arg< Float, G >::ProjectSU3Arg(), qChargeCuda(), and quda::gauge::TIFRPaddedOrder< Float, length >::TIFRPaddedOrder().

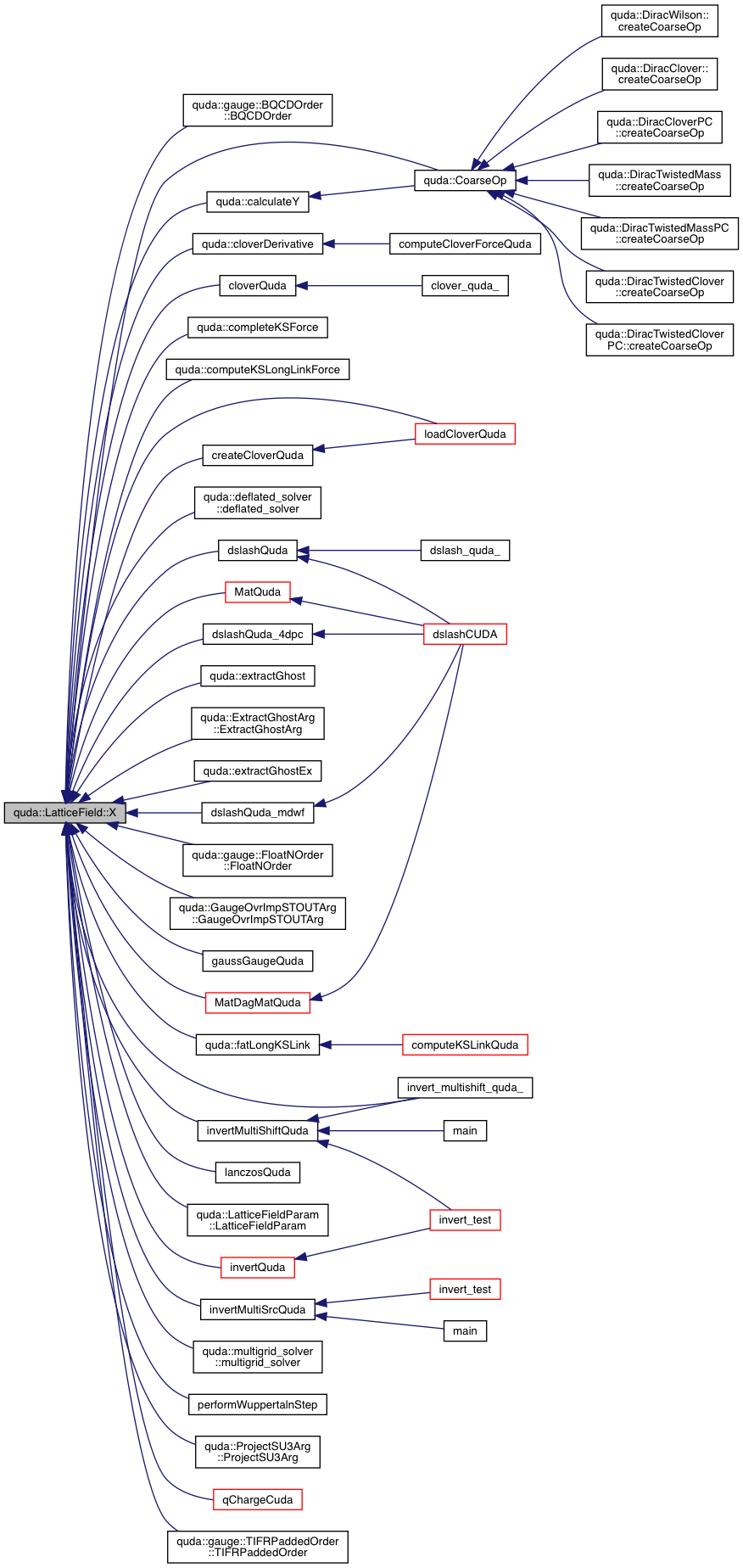

Here is the caller graph for this function:

Member Data Documentation

◆ backed_up

bool quda::LatticeField::backed_up

mutableprotected

Definition at line 322 of file lattice_field.h.

Referenced by quda::cudaGaugeField::backup(), quda::cpuGaugeField::backup(), quda::cudaColorSpinorField::backup(), quda::cpuColorSpinorField::backup(), quda::cudaGaugeField::restore(), quda::cpuGaugeField::restore(), quda::cudaColorSpinorField::restore(), and quda::cpuColorSpinorField::restore().

◆ backup_h

char* quda::LatticeField::backup_h

mutableprotected

Definition at line 320 of file lattice_field.h.

Referenced by quda::cudaGaugeField::backup(), quda::cpuGaugeField::backup(), quda::cudaColorSpinorField::backup(), quda::cpuColorSpinorField::backup(), quda::cudaGaugeField::restore(), quda::cpuGaugeField::restore(), quda::cudaColorSpinorField::restore(), and quda::cpuColorSpinorField::restore().

◆ backup_norm_h

char* quda::LatticeField::backup_norm_h

mutableprotected

Definition at line 321 of file lattice_field.h.

Referenced by quda::cudaColorSpinorField::backup(), quda::cpuColorSpinorField::backup(), quda::cudaColorSpinorField::restore(), and quda::cpuColorSpinorField::restore().

◆ buffer_recv_p2p_back

int quda::LatticeField::buffer_recv_p2p_back { }

staticprotected

Buffer used by peer-to-peer message handler

Definition at line 297 of file lattice_field.h.

Referenced by createIPCComms().

◆ buffer_recv_p2p_fwd

int quda::LatticeField::buffer_recv_p2p_fwd { }

staticprotected

Buffer used by peer-to-peer message handler

Definition at line 291 of file lattice_field.h.

Referenced by createIPCComms().

◆ buffer_send_p2p_back

int quda::LatticeField::buffer_send_p2p_back { }

staticprotected

Buffer used by peer-to-peer message handler

Definition at line 294 of file lattice_field.h.

Referenced by createIPCComms().

◆ buffer_send_p2p_fwd

int quda::LatticeField::buffer_send_p2p_fwd { }

staticprotected

Buffer used by peer-to-peer message handler

Definition at line 288 of file lattice_field.h.

Referenced by createIPCComms().

◆ bufferIndex

int quda::LatticeField::bufferIndex = 0

static

Static variable that is determined which ghost buffer we are using

Definition at line 400 of file lattice_field.h.

◆ from_face_dim_dir_d

void* quda::LatticeField::from_face_dim_dir_d[2][QUDA_MAX_DIM][2]

protected

Local pointers to the device ghost_recv buffer

Definition at line 249 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), and quda::cudaGaugeField::injectGhost().

◆ from_face_dim_dir_h

void* quda::LatticeField::from_face_dim_dir_h[2][QUDA_MAX_DIM][2]

protected

Local pointers to the pinned from_face buffer

Definition at line 243 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), quda::cudaColorSpinorField::scatter(), and quda::cudaColorSpinorField::scatterExtended().

◆ from_face_dim_dir_hd

void* quda::LatticeField::from_face_dim_dir_hd[2][QUDA_MAX_DIM][2]

protected

Local pointers to the mapped from_face buffer

Definition at line 246 of file lattice_field.h.

Referenced by createComms(), and quda::cudaColorSpinorField::exchangeGhost().

◆ from_face_h

void* quda::LatticeField::from_face_h[2]

protected

Memory buffer used for receiving all messages

Definition at line 238 of file lattice_field.h.

Referenced by createComms(), and quda::cudaColorSpinorField::exchangeGhost().

◆ from_face_hd

void* quda::LatticeField::from_face_hd[2]

protected

Mapped version of from_face_h

Definition at line 240 of file lattice_field.h.

Referenced by createComms().

◆ ghost_bytes

size_t quda::LatticeField::ghost_bytes

mutableprotected

Size in bytes of this ghost field

Definition at line 206 of file lattice_field.h.

Referenced by allocateGhostBuffer(), quda::cudaGaugeField::allocateGhostBuffer(), quda::cudaColorSpinorField::allocateGhostBuffer(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), createComms(), quda::GaugeField::createGhostZone(), quda::ColorSpinorField::createGhostZone(), quda::cudaColorSpinorField::Ghost2(), quda::ColorSpinorField::GhostBytes(), quda::ColorSpinorField::GhostNormBytes(), and quda::cudaGaugeField::saveCPUField().

◆ ghost_face_bytes

size_t quda::LatticeField::ghost_face_bytes[QUDA_MAX_DIM]

mutableprotected

Size in bytes of the ghost in each dimension

Definition at line 211 of file lattice_field.h.

Referenced by createComms(), quda::GaugeField::createGhostZone(), quda::ColorSpinorField::createGhostZone(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

◆ ghost_field_reset

bool quda::LatticeField::ghost_field_reset = false

static

Bool which is triggered if the ghost field is reset

Definition at line 405 of file lattice_field.h.

Referenced by allocateGhostBuffer(), quda::cudaGaugeField::createComms(), quda::cudaColorSpinorField::createComms(), and createIPCComms().

◆ ghost_pinned_buffer_h

void * quda::LatticeField::ghost_pinned_buffer_h = {nullptr, nullptr}

staticprotected

Double buffered static pinned send/recv buffers

Definition at line 181 of file lattice_field.h.

Referenced by allocateGhostBuffer(), quda::cudaGaugeField::createComms(), createComms(), quda::cudaColorSpinorField::createComms(), and freeGhostBuffer().

◆ ghost_pinned_buffer_hd

void * quda::LatticeField::ghost_pinned_buffer_hd = {nullptr, nullptr}

staticprotected

Mapped version of ghost_pinned

Definition at line 186 of file lattice_field.h.

Referenced by allocateGhostBuffer(), createComms(), freeGhostBuffer(), and quda::cudaColorSpinorField::Ghost2().

◆ ghost_recv_buffer_d

void * quda::LatticeField::ghost_recv_buffer_d = {nullptr, nullptr}

staticprotected

Double buffered static GPU halo receive buffer

Definition at line 176 of file lattice_field.h.

Referenced by allocateGhostBuffer(), quda::cudaColorSpinorField::allocateGhostBuffer(), createComms(), quda::cudaColorSpinorField::createComms(), createIPCComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), freeGhostBuffer(), quda::cudaColorSpinorField::Ghost2(), quda::cudaGaugeField::injectGhost(), and quda::cudaColorSpinorField::unpackGhost().

◆ ghost_remote_send_buffer_d

void * quda::LatticeField::ghost_remote_send_buffer_d

staticprotected

Remove ghost pointer for sending to

Definition at line 191 of file lattice_field.h.

Referenced by createIPCComms(), destroyIPCComms(), quda::cudaColorSpinorField::packGhost(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

◆ ghost_send_buffer_d

void * quda::LatticeField::ghost_send_buffer_d = {nullptr, nullptr}

staticprotected

Double buffered static GPU halo send buffer

Definition at line 171 of file lattice_field.h.

Referenced by allocateGhostBuffer(), createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), freeGhostBuffer(), and quda::cudaGaugeField::injectGhost().

◆ ghostExchange

QudaGhostExchange quda::LatticeField::ghostExchange

protected

Type of ghost exchange to perform

Definition at line 155 of file lattice_field.h.

Referenced by quda::GaugeField::applyStaggeredPhase(), checkField(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), quda::cudaGaugeField::exchangeGhost(), GhostExchange(), quda::cudaGaugeField::injectGhost(), and quda::GaugeField::removeStaggeredPhase().

◆ ghostFaceBytes

size_t quda::LatticeField::ghostFaceBytes = 0

staticprotected

The current size of the static ghost allocation

Definition at line 196 of file lattice_field.h.

Referenced by allocateGhostBuffer().

◆ ghostNormOffset

int quda::LatticeField::ghostNormOffset[QUDA_MAX_DIM][2]

mutableprotected

Real-number (in floats) offsets to each ghost zone for norm field

Definition at line 221 of file lattice_field.h.

Referenced by quda::cudaColorSpinorField::createComms(), quda::ColorSpinorField::createGhostZone(), quda::ColorSpinorField::GhostNormOffset(), and quda::cudaColorSpinorField::sendStart().

◆ ghostOffset

int quda::LatticeField::ghostOffset[QUDA_MAX_DIM][2]

mutableprotected

Real-number offsets to each ghost zone

Definition at line 216 of file lattice_field.h.

Referenced by createComms(), quda::cudaColorSpinorField::createComms(), quda::GaugeField::createGhostZone(), quda::ColorSpinorField::createGhostZone(), quda::ColorSpinorField::GhostOffset(), quda::cudaColorSpinorField::packGhost(), quda::cudaGaugeField::sendStart(), quda::cudaColorSpinorField::sendStart(), quda::cudaColorSpinorField::unpackGhost(), and quda::cudaColorSpinorField::unpackGhostExtended().

◆ initComms

bool quda::LatticeField::initComms

protected

Whether we have initialized communication for this field

Definition at line 306 of file lattice_field.h.

Referenced by quda::cudaGaugeField::createComms(), createComms(), quda::cudaColorSpinorField::createComms(), createIPCComms(), and destroyComms().

◆ initGhostFaceBuffer

bool quda::LatticeField::initGhostFaceBuffer = false

staticprotected

Whether the ghost buffers have been initialized

Definition at line 201 of file lattice_field.h.

Referenced by allocateGhostBuffer(), and freeGhostBuffer().

◆ initIPCComms

bool quda::LatticeField::initIPCComms = false

staticprotected

Whether we have initialized peer-to-peer communication

Definition at line 309 of file lattice_field.h.

Referenced by createIPCComms(), and destroyIPCComms().

◆ ipcCopyEvent

cudaEvent_t quda::LatticeField::ipcCopyEvent

staticprotected

Local copy of event used for peer-to-peer synchronization

Definition at line 300 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), getIPCCopyEvent(), ipcCopyComplete(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

◆ ipcRemoteCopyEvent

cudaEvent_t quda::LatticeField::ipcRemoteCopyEvent

staticprotected

Remote copy of event used for peer-to-peer synchronization

Definition at line 303 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), quda::cudaColorSpinorField::exchangeGhost(), getIPCRemoteCopyEvent(), and ipcRemoteCopyComplete().

◆ mem_type

QudaMemoryType quda::LatticeField::mem_type

protected

The type of allocation we are going to do for this field

Definition at line 318 of file lattice_field.h.

Referenced by quda::cudaColorSpinorField::create(), quda::cudaColorSpinorField::destroy(), and MemType().

◆ mh_recv_back

MsgHandle* quda::LatticeField::mh_recv_back[2][QUDA_MAX_DIM]

protected

Message handles for receiving from backwards

Definition at line 255 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

◆ mh_recv_fwd

MsgHandle* quda::LatticeField::mh_recv_fwd[2][QUDA_MAX_DIM]

protected

Message handles for receiving from forwards

Definition at line 252 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

◆ mh_recv_p2p_back

MsgHandle * quda::LatticeField::mh_recv_p2p_back { }

staticprotected

Peer-to-peer message handler for signaling event posting

Definition at line 285 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

◆ mh_recv_p2p_fwd

MsgHandle * quda::LatticeField::mh_recv_p2p_fwd { }

staticprotected

Peer-to-peer message handler for signaling event posting

Definition at line 282 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

◆ mh_recv_rdma_back

MsgHandle* quda::LatticeField::mh_recv_rdma_back[2][QUDA_MAX_DIM]

protected

Message handles for rdma receiving from backwards

Definition at line 267 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

◆ mh_recv_rdma_fwd

MsgHandle* quda::LatticeField::mh_recv_rdma_fwd[2][QUDA_MAX_DIM]

protected

Message handles for rdma receiving from forwards

Definition at line 264 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::cudaGaugeField::recvStart(), and quda::cudaColorSpinorField::recvStart().

◆ mh_send_back

MsgHandle* quda::LatticeField::mh_send_back[2][QUDA_MAX_DIM]

protected

Message handles for sending backwards

Definition at line 261 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::ColorSpinorField::exchange(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

◆ mh_send_fwd

MsgHandle* quda::LatticeField::mh_send_fwd[2][QUDA_MAX_DIM]

protected

Message handles for sending forwards

Definition at line 258 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::ColorSpinorField::exchange(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

◆ mh_send_p2p_back

MsgHandle * quda::LatticeField::mh_send_p2p_back { }

staticprotected

Peer-to-peer message handler for signaling event posting

Definition at line 279 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

◆ mh_send_p2p_fwd

MsgHandle * quda::LatticeField::mh_send_p2p_fwd { }

staticprotected

Peer-to-peer message handler for signaling event posting

Definition at line 276 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createIPCComms(), destroyIPCComms(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

◆ mh_send_rdma_back

MsgHandle* quda::LatticeField::mh_send_rdma_back[2][QUDA_MAX_DIM]

protected

Message handles for rdma sending to backwards

Definition at line 273 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

◆ mh_send_rdma_fwd

MsgHandle* quda::LatticeField::mh_send_rdma_fwd[2][QUDA_MAX_DIM]

protected

Message handles for rdma sending to forwards

Definition at line 270 of file lattice_field.h.

Referenced by quda::cudaGaugeField::commsComplete(), quda::cudaColorSpinorField::commsQuery(), quda::cudaColorSpinorField::commsWait(), createComms(), destroyComms(), quda::cudaGaugeField::sendStart(), and quda::cudaColorSpinorField::sendStart().

◆ my_face_dim_dir_d

void* quda::LatticeField::my_face_dim_dir_d[2][QUDA_MAX_DIM][2]

protected

Local pointers to the device ghost_send buffer

Definition at line 235 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaGaugeField::injectGhost(), quda::cudaColorSpinorField::packGhost(), quda::cudaColorSpinorField::packGhostExtended(), quda::cudaColorSpinorField::sendGhost(), quda::cudaGaugeField::sendStart(), quda::cudaColorSpinorField::sendStart(), and quda::cudaColorSpinorField::unpackGhostExtended().

◆ my_face_dim_dir_h

void* quda::LatticeField::my_face_dim_dir_h[2][QUDA_MAX_DIM][2]

protected

Local pointers to the pinned my_face buffer

Definition at line 229 of file lattice_field.h.

Referenced by createComms(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaColorSpinorField::gather(), and quda::cudaGaugeField::injectGhost().

◆ my_face_dim_dir_hd

void* quda::LatticeField::my_face_dim_dir_hd[2][QUDA_MAX_DIM][2]

protected

Local pointers to the mapped my_face buffer

Definition at line 232 of file lattice_field.h.

Referenced by createComms(), quda::cudaColorSpinorField::exchangeGhost(), quda::cudaColorSpinorField::packGhost(), quda::cudaColorSpinorField::packGhostExtended(), and quda::cudaColorSpinorField::unpackGhostExtended().

◆ my_face_h

void* quda::LatticeField::my_face_h[2]

protected

Pinned memory buffer used for sending all messages

Definition at line 224 of file lattice_field.h.

Referenced by quda::cudaGaugeField::createComms(), createComms(), quda::cudaColorSpinorField::createComms(), and quda::cudaColorSpinorField::exchangeGhost().

◆ my_face_hd

void* quda::LatticeField::my_face_hd[2]

protected

Mapped version of my_face_h

Definition at line 226 of file lattice_field.h.

Referenced by createComms().

◆ nDim

int quda::LatticeField::nDim

protected

Number of field dimensions

Definition at line 137 of file lattice_field.h.

Referenced by checkField(), quda::cpuGaugeField::cpuGaugeField(), quda::GaugeField::createGhostZone(), quda::cudaGaugeField::cudaGaugeField(), quda::cudaGaugeField::exchangeExtendedGhost(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cudaGaugeField::exchangeGhost(), quda::cpuGaugeField::exchangeGhost(), quda::GaugeField::GaugeField(), quda::cudaGaugeField::injectGhost(), quda::cpuGaugeField::injectGhost(), Ndim(), setTuningString(), quda::cpuGaugeField::~cpuGaugeField(), and quda::cudaGaugeField::~cudaGaugeField().

◆ nDimComms

int quda::LatticeField::nDimComms

protected

The number of dimensions we partition for communication

Definition at line 160 of file lattice_field.h.

Referenced by quda::cpuColorSpinorField::allocateGhostBuffer(), createComms(), quda::cudaColorSpinorField::createComms(), destroyComms(), quda::GaugeField::exchange(), quda::ColorSpinorField::exchange(), quda::cudaColorSpinorField::exchangeGhost(), and quda::cpuColorSpinorField::exchangeGhost().

◆ pad

int quda::LatticeField::pad

protected

Definition at line 132 of file lattice_field.h.

Referenced by quda::cpuGaugeField::cpuGaugeField(), quda::cudaGaugeField::cudaGaugeField(), and Pad().

◆ precision

QudaPrecision quda::LatticeField::precision

protected

Precision of the field

Definition at line 149 of file lattice_field.h.

◆ r

int quda::LatticeField::r[QUDA_MAX_DIM]

protected

The extended lattice radius (if applicable)

Definition at line 146 of file lattice_field.h.

Referenced by checkField(), createExtendedGauge(), and R().

◆ siteSubset

QudaSiteSubset quda::LatticeField::siteSubset

protected

Whether the field is full or single parity

Definition at line 152 of file lattice_field.h.

Referenced by SiteSubset().

◆ stride

int quda::LatticeField::stride

protected

Definition at line 131 of file lattice_field.h.

Referenced by quda::GaugeField::GaugeField(), and Stride().

◆ surface

int quda::LatticeField::surface[QUDA_MAX_DIM]

protected

Definition at line 142 of file lattice_field.h.

Referenced by checkField(), quda::cudaGaugeField::copy(), quda::cpuGaugeField::copy(), quda::cpuGaugeField::cpuGaugeField(), quda::GaugeField::createGhostZone(), quda::cudaGaugeField::cudaGaugeField(), quda::cpuGaugeField::exchangeExtendedGhost(), quda::cpuGaugeField::exchangeGhost(), quda::cpuGaugeField::injectGhost(), and quda::cudaGaugeField::saveCPUField().

◆ surfaceCB

int quda::LatticeField::surfaceCB[QUDA_MAX_DIM]

protected

Definition at line 143 of file lattice_field.h.

Referenced by quda::cpuColorSpinorField::allocateGhostBuffer(), checkField(), quda::cudaGaugeField::cudaGaugeField(), quda::GaugeField::exchange(), quda::ColorSpinorField::exchange(), and SurfaceCB().

◆ total_bytes

size_t quda::LatticeField::total_bytes

protected

Definition at line 134 of file lattice_field.h.

Referenced by quda::cudaCloverField::cudaCloverField(), quda::ColorSpinorField::exchange(), quda::cudaColorSpinorField::exchangeGhost(), quda::GaugeField::GaugeField(), and GBytes().

◆ vol_string

char quda::LatticeField::vol_string[TuneKey::volume_n]

protected

Used as a label in the autotuner

Definition at line 312 of file lattice_field.h.

Referenced by setTuningString(), quda::ColorSpinorField::setTuningString(), and VolString().

◆ volume

int quda::LatticeField::volume

protected

Lattice volume

Definition at line 126 of file lattice_field.h.

Referenced by checkField(), quda::cpuGaugeField::cpuGaugeField(), quda::GaugeField::GaugeField(), and Volume().

◆ volumeCB

int quda::LatticeField::volumeCB

protected

Checkerboarded volume

Definition at line 129 of file lattice_field.h.

Referenced by checkField(), and VolumeCB().

◆ x

int quda::LatticeField::x[QUDA_MAX_DIM]

protected

Array storing the length of dimension

Definition at line 140 of file lattice_field.h.

Referenced by checkField(), quda::cpuGaugeField::cpuGaugeField(), setTuningString(), and X().

The documentation for this class was generated from the following files:

include/lattice_field.h
lib/lattice_field.cpp

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ LatticeField() [1/2]

◆ LatticeField() [2/2]

◆ ~LatticeField()

Member Function Documentation

◆ allocateGhostBuffer()

◆ backup()

◆ checkField()

◆ commsQuery()

◆ commsStart()

◆ commsWait()

◆ createComms()

◆ createIPCComms()

◆ destroyComms()

◆ destroyIPCComms()

◆ freeGhostBuffer()

◆ gather()

◆ GBytes()

◆ getIPCCopyEvent()

◆ getIPCRemoteCopyEvent()

◆ GhostExchange()

◆ ipcCopyComplete()

◆ ipcRemoteCopyComplete()

◆ Location()

◆ MemType()

◆ Ndim()

◆ Nvec()

◆ Pad()

◆ Precision()

◆ R()

◆ read()

◆ restore()

◆ scatter()

◆ setTuningString()

◆ SiteSubset()

◆ Stride()

◆ SurfaceCB() [1/2]

◆ SurfaceCB() [2/2]

◆ VolString()

◆ Volume()

◆ VolumeCB()

◆ write()

◆ X()

Member Data Documentation

◆ backed_up

◆ backup_h

◆ backup_norm_h

◆ buffer_recv_p2p_back

◆ buffer_recv_p2p_fwd

◆ buffer_send_p2p_back

◆ buffer_send_p2p_fwd

◆ bufferIndex

◆ from_face_dim_dir_d

◆ from_face_dim_dir_h

◆ from_face_dim_dir_hd

◆ from_face_h

◆ from_face_hd

◆ ghost_bytes

◆ ghost_face_bytes

◆ ghost_field_reset

◆ ghost_pinned_buffer_h

◆ ghost_pinned_buffer_hd

◆ ghost_recv_buffer_d

◆ ghost_remote_send_buffer_d

◆ ghost_send_buffer_d

◆ ghostExchange

◆ ghostFaceBytes

◆ ghostNormOffset

◆ ghostOffset

◆ initComms

◆ initGhostFaceBuffer

◆ initIPCComms

◆ ipcCopyEvent
