quda::GaugeFieldParam Struct Reference

#include <gauge_field.h>

Inheritance diagram for quda::GaugeFieldParam:

Collaboration diagram for quda::GaugeFieldParam:

Public Member Functions
	GaugeFieldParam (void *const h_gauge=NULL)
	GaugeFieldParam (const GaugeField &u)
	GaugeFieldParam (const int *x, const QudaPrecision precision, const QudaReconstructType reconstruct, const int pad, const QudaFieldGeometry geometry, const QudaGhostExchange ghostExchange=QUDA_GHOST_EXCHANGE_PAD)
	GaugeFieldParam (void *h_gauge, const QudaGaugeParam &param, QudaLinkType link_type_=QUDA_INVALID_LINKS)
void	setPrecision (QudaPrecision precision)
	Helper function for setting the precision and corresponding field order for QUDA internal fields. More...
Public Member Functions inherited from quda::LatticeFieldParam
	LatticeFieldParam ()
	Default constructor for LatticeFieldParam. More...
	LatticeFieldParam (int nDim, const int *x, int pad, QudaPrecision precision, QudaGhostExchange ghostExchange=QUDA_GHOST_EXCHANGE_PAD)
	Constructor for creating a LatticeFieldParam from a set of parameters. More...
	LatticeFieldParam (const QudaGaugeParam &param)
	Constructor for creating a LatticeFieldParam from a QudaGaugeParam. Used for wrapping around a CPU reference field. More...
	LatticeFieldParam (const LatticeField &field)
	Contructor for creating LatticeFieldParam from a LatticeField. More...

Public Attributes
int	nColor
int	nFace
QudaReconstructType	reconstruct
QudaGaugeFieldOrder	order
QudaGaugeFixed	fixed
QudaLinkType	link_type
QudaTboundary	t_boundary
double	anisotropy
double	tadpole
double	scale
void *	gauge
QudaFieldCreate	create
QudaFieldGeometry	geometry
bool	compute_fat_link_max
QudaStaggeredPhase	staggeredPhaseType
bool	staggeredPhaseApplied
double	i_mu
size_t	site_offset
size_t	site_size
Public Attributes inherited from quda::LatticeFieldParam
int	nDim
int	x [QUDA_MAX_DIM]
int	pad
QudaPrecision	precision
QudaSiteSubset	siteSubset
QudaMemoryType	mem_type
QudaGhostExchange	ghostExchange
int	r [QUDA_MAX_DIM]

Detailed Description

Definition at line 10 of file gauge_field.h.

Constructor & Destructor Documentation

GaugeFieldParam() [1/4]

quda::GaugeFieldParam::GaugeFieldParam ( void *const  h_gauge = NULL )

inline

Definition at line 50 of file gauge_field.h.

GaugeFieldParam() [2/4]

quda::GaugeFieldParam::GaugeFieldParam

(

const GaugeField &

u

)

Definition at line 7 of file gauge_field.cpp.

GaugeFieldParam() [3/4]

quda::GaugeFieldParam::GaugeFieldParam ( const int *  x, const QudaPrecision  precision, const QudaReconstructType  reconstruct, const int  pad, const QudaFieldGeometry  geometry, const QudaGhostExchange  ghostExchange = QUDA_GHOST_EXCHANGE_PAD  )

inline

Definition at line 74 of file gauge_field.h.

GaugeFieldParam() [4/4]

quda::GaugeFieldParam::GaugeFieldParam ( void *  h_gauge, const QudaGaugeParam &  param, QudaLinkType  link_type_ = QUDA_INVALID_LINKS  )

inline

Definition at line 85 of file gauge_field.h.

References errorQuda, link_type, nFace, QUDA_GENERAL_LINKS, QUDA_MOMENTUM_LINKS, QUDA_SMEARED_LINKS, QUDA_SU3_LINKS, and QUDA_THREE_LINKS.

Member Function Documentation

setPrecision()

void quda::GaugeFieldParam::setPrecision ( QudaPrecision  precision )

inline

Helper function for setting the precision and corresponding field order for QUDA internal fields.

Parameters

precision

The precision to use

Definition at line 113 of file gauge_field.h.

References order, quda::LatticeFieldParam::precision, QUDA_DOUBLE_PRECISION, QUDA_FLOAT2_GAUGE_ORDER, QUDA_FLOAT4_GAUGE_ORDER, QUDA_RECONSTRUCT_NO, and reconstruct.

Referenced by quda::CoarseOp(), computeKSLinkQuda(), quda::fatLongKSLink(), and unitarize_link_test().

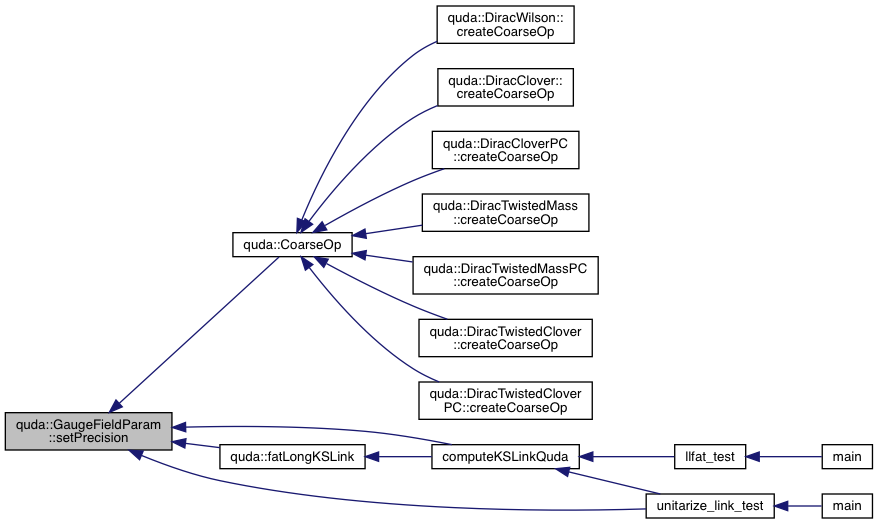

Here is the caller graph for this function:

Member Data Documentation

anisotropy

double quda::GaugeFieldParam::anisotropy

Definition at line 20 of file gauge_field.h.

Referenced by hisq_force_init().

compute_fat_link_max

bool quda::GaugeFieldParam::compute_fat_link_max

Definition at line 32 of file gauge_field.h.

create

QudaFieldCreate quda::GaugeFieldParam::create

Definition at line 25 of file gauge_field.h.

Referenced by computeCloverForceQuda(), computeGaugeFixingFFTQuda(), computeGaugeFixingOVRQuda(), computeGaugeForceQuda(), computeHISQForceQuda(), computeKSLinkQuda(), computeStaggeredForceQuda(), createExtendedGauge(), createGaugeFieldQuda(), quda::fatLongKSLink(), hisq_force_init(), hisq_force_test(), initFields(), main(), momActionQuda(), packTest(), performWuppertalnStep(), projectSU3Quda(), GaugeAlgTest::SetUp(), staggeredPhaseQuda(), unitarize_link_test(), and updateGaugeFieldQuda().

fixed

QudaGaugeFixed quda::GaugeFieldParam::fixed

Definition at line 16 of file gauge_field.h.

gauge

void* quda::GaugeFieldParam::gauge

Definition at line 23 of file gauge_field.h.

Referenced by computeKSLinkQuda(), computeStaggeredForceQuda(), and unitarize_link_test().

geometry

QudaFieldGeometry quda::GaugeFieldParam::geometry

Definition at line 27 of file gauge_field.h.

Referenced by computeCloverForceQuda(), createGaugeFieldQuda(), initFields(), and saveGaugeFieldQuda().

i_mu

double quda::GaugeFieldParam::i_mu

Imaginary chemical potential

Definition at line 41 of file gauge_field.h.

link_type

QudaLinkType quda::GaugeFieldParam::link_type

Definition at line 17 of file gauge_field.h.

Referenced by computeCloverForceQuda(), computeGaugeFixingFFTQuda(), computeGaugeFixingOVRQuda(), computeGaugeForceQuda(), computeKSLinkQuda(), computeStaggeredForceQuda(), GaugeFieldParam(), hisq_force_init(), hisq_force_test(), initFields(), main(), GaugeAlgTest::SetUp(), unitarize_link_test(), and updateGaugeFieldQuda().

nColor

int quda::GaugeFieldParam::nColor

Definition at line 11 of file gauge_field.h.

Referenced by initFields().

nFace

int quda::GaugeFieldParam::nFace

Definition at line 12 of file gauge_field.h.

Referenced by computeHISQForceQuda(), GaugeFieldParam(), and initFields().

order

QudaGaugeFieldOrder quda::GaugeFieldParam::order

Definition at line 15 of file gauge_field.h.

Referenced by quda::CoarseOp(), computeCloverForceQuda(), computeGaugeFixingFFTQuda(), computeGaugeFixingOVRQuda(), computeGaugeForceQuda(), computeHISQForceQuda(), computeStaggeredForceQuda(), createGaugeFieldQuda(), hisq_force_init(), hisq_force_test(), initFields(), main(), momActionQuda(), packTest(), projectSU3Quda(), setPrecision(), GaugeAlgTest::SetUp(), staggeredPhaseQuda(), unitarize_link_test(), and updateGaugeFieldQuda().

reconstruct

QudaReconstructType quda::GaugeFieldParam::reconstruct

Definition at line 14 of file gauge_field.h.

Referenced by quda::CoarseOp(), computeCloverForceQuda(), computeGaugeFixingFFTQuda(), computeGaugeFixingOVRQuda(), computeGaugeForceQuda(), computeKSLinkQuda(), computeStaggeredForceQuda(), quda::fatLongKSLink(), hisq_force_init(), hisq_force_test(), initFields(), main(), momActionQuda(), packTest(), projectSU3Quda(), setPrecision(), GaugeAlgTest::SetUp(), staggeredPhaseQuda(), unitarize_link_test(), and updateGaugeFieldQuda().

scale

double quda::GaugeFieldParam::scale

Definition at line 22 of file gauge_field.h.

site_offset

size_t quda::GaugeFieldParam::site_offset

Offset into MILC site struct to the desired matrix field (only if gauge_order=MILC_SITE_GAUGE_ORDER)

Definition at line 44 of file gauge_field.h.

Referenced by computeGaugeForceQuda(), projectSU3Quda(), and updateGaugeFieldQuda().

site_size

size_t quda::GaugeFieldParam::site_size

Size of MILC site struct (only if gauge_order=MILC_SITE_GAUGE_ORDER)

Definition at line 47 of file gauge_field.h.

Referenced by computeGaugeForceQuda(), projectSU3Quda(), and updateGaugeFieldQuda().

staggeredPhaseApplied

bool quda::GaugeFieldParam::staggeredPhaseApplied

Whether the staggered phase factor has been applied

Definition at line 38 of file gauge_field.h.

staggeredPhaseType

QudaStaggeredPhase quda::GaugeFieldParam::staggeredPhaseType

The staggered phase convention to use

Definition at line 35 of file gauge_field.h.

t_boundary

QudaTboundary quda::GaugeFieldParam::t_boundary

Definition at line 18 of file gauge_field.h.

Referenced by computeStaggeredForceQuda(), initFields(), main(), and GaugeAlgTest::SetUp().

tadpole

double quda::GaugeFieldParam::tadpole

Definition at line 21 of file gauge_field.h.

---

The documentation for this struct was generated from the following files:

• include/gauge_field.h
• lib/gauge_field.cpp
