Full Covariant Derivative operator. Although not a Dirac operator per se, it's a linear operator so it's conventient to put in the Dirac operator abstraction. More...

#include <dirac_quda.h>

Inheritance diagram for quda::GaugeCovDev:

[legend]

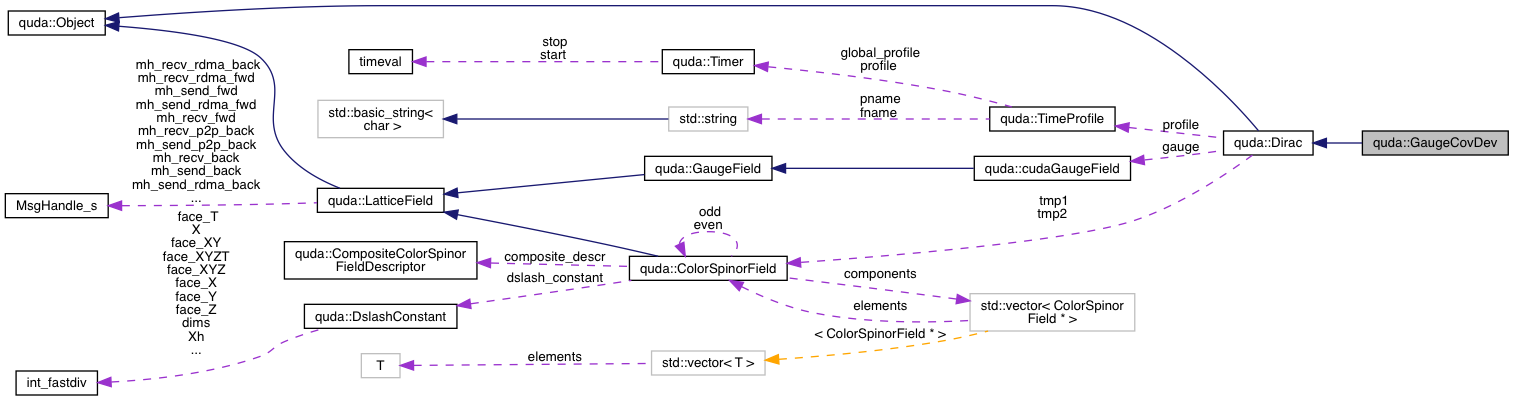

Collaboration diagram for quda::GaugeCovDev:

[legend]

Public Member Functions
	GaugeCovDev (const DiracParam &param)

	GaugeCovDev (const GaugeCovDev &covDev)

virtual	~GaugeCovDev ()

GaugeCovDev &	operator= (const GaugeCovDev &covDev)

virtual void	DslashCD (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity, const int mu) const

virtual void	MCD (ColorSpinorField &out, const ColorSpinorField &in, const int mu) const

virtual void	MdagMCD (ColorSpinorField &out, const ColorSpinorField &in, const int mu) const

virtual void	Dslash (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity) const

virtual void	DslashXpay (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity, const ColorSpinorField &x, const double &k) const

virtual void	M (ColorSpinorField &out, const ColorSpinorField &in) const

virtual void	MdagM (ColorSpinorField &out, const ColorSpinorField &in) const

virtual void	prepare (ColorSpinorField &src, ColorSpinorField &sol, ColorSpinorField &x, ColorSpinorField &b, const QudaSolutionType) const

virtual void	reconstruct (ColorSpinorField &x, const ColorSpinorField &b, const QudaSolutionType) const

Public Member Functions inherited from quda::Dirac
	Dirac (const DiracParam &param)

	Dirac (const Dirac &dirac)

virtual	~Dirac ()

Dirac &	operator= (const Dirac &dirac)

virtual void	checkParitySpinor (const ColorSpinorField &, const ColorSpinorField &) const

virtual void	checkFullSpinor (const ColorSpinorField &, const ColorSpinorField &) const

void	checkSpinorAlias (const ColorSpinorField &, const ColorSpinorField &) const

void	Mdag (ColorSpinorField &out, const ColorSpinorField &in) const

void	MMdag (ColorSpinorField &out, const ColorSpinorField &in) const

void	setMass (double mass)

double	Kappa () const

virtual double	Mu () const

virtual double	MuFactor () const

unsigned long long	Flops () const

QudaMatPCType	getMatPCType () const

int	getStencilSteps () const

void	Dagger (QudaDagType dag) const

virtual void	createCoarseOp (GaugeField &Y, GaugeField &X, GaugeField &Xinv, GaugeField &Yhat, const Transfer &T, double kappa, double mu=0., double mu_factor=0.) const
	Create the coarse operator (virtual parent) More...

Public Member Functions inherited from quda::Object
	Object ()

virtual	~Object ()

Additional Inherited Members
Static Public Member Functions inherited from quda::Dirac
static Dirac *	create (const DiracParam &param)

Static Public Member Functions inherited from quda::Object
static void *	operator new (std::size_t size)

static void	operator delete (void *p)

static void *	operator new[] (std::size_t size)

static void	operator delete[] (void *p)

Protected Member Functions inherited from quda::Dirac
bool	newTmp (ColorSpinorField **, const ColorSpinorField &) const

void	deleteTmp (ColorSpinorField **, const bool &reset) const

Protected Attributes inherited from quda::Dirac
cudaGaugeField *	gauge

double	kappa

double	mass

QudaMatPCType	matpcType

QudaDagType	dagger

unsigned long long	flops

ColorSpinorField *	tmp1

ColorSpinorField *	tmp2

QudaDiracType	type

QudaTune	tune

int	commDim [QUDA_MAX_DIM]

TimeProfile	profile

Detailed Description

Full Covariant Derivative operator. Although not a Dirac operator per se, it's a linear operator so it's conventient to put in the Dirac operator abstraction.

Definition at line 948 of file dirac_quda.h.

Constructor & Destructor Documentation

◆ GaugeCovDev() [1/2]

quda::GaugeCovDev::GaugeCovDev ( const DiracParam & param )

Definition at line 9 of file gauge_covdev.cpp.

◆ GaugeCovDev() [2/2]

quda::GaugeCovDev::GaugeCovDev ( const GaugeCovDev & covDev )

Definition at line 11 of file gauge_covdev.cpp.

◆ ~GaugeCovDev()

quda::GaugeCovDev::~GaugeCovDev ( )

virtual

Definition at line 13 of file gauge_covdev.cpp.

Member Function Documentation

◆ Dslash()

void quda::GaugeCovDev::Dslash	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity
	)		const

virtual

Implements quda::Dirac.

Definition at line 47 of file gauge_covdev.cpp.

Referenced by computeCloverForceQuda(), computeStaggeredForceQuda(), and dslashQuda().

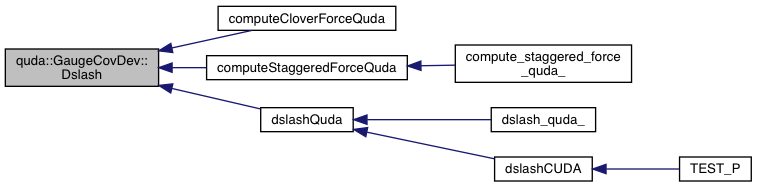

Here is the caller graph for this function:

◆ DslashCD()

void quda::GaugeCovDev::DslashCD	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity,
		const int	mu
	)		const

virtual

Definition at line 21 of file gauge_covdev.cpp.

References quda::ApplyCovDev(), quda::Dirac::checkSpinorAlias(), quda::Dirac::flops, quda::Dirac::gauge, in, mu, out, and parity.

Referenced by MCD().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DslashXpay()

void quda::GaugeCovDev::DslashXpay	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const QudaParity	parity,
		const ColorSpinorField &	x,
		const double &	k
	)		const

virtual

Implements quda::Dirac.

Definition at line 52 of file gauge_covdev.cpp.

◆ M()

void quda::GaugeCovDev::M	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Implements quda::Dirac.

Definition at line 61 of file gauge_covdev.cpp.

Referenced by computeCloverForceQuda(), and MatQuda().

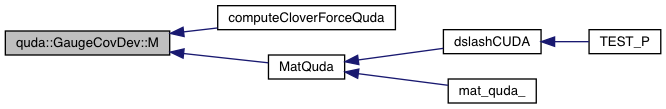

Here is the caller graph for this function:

◆ MCD()

void quda::GaugeCovDev::MCD	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const int	mu
	)		const

virtual

Definition at line 30 of file gauge_covdev.cpp.

References quda::Dirac::checkFullSpinor(), DslashCD(), in, mu, out, and QUDA_INVALID_PARITY.

Referenced by dslashCUDA(), and MdagMCD().

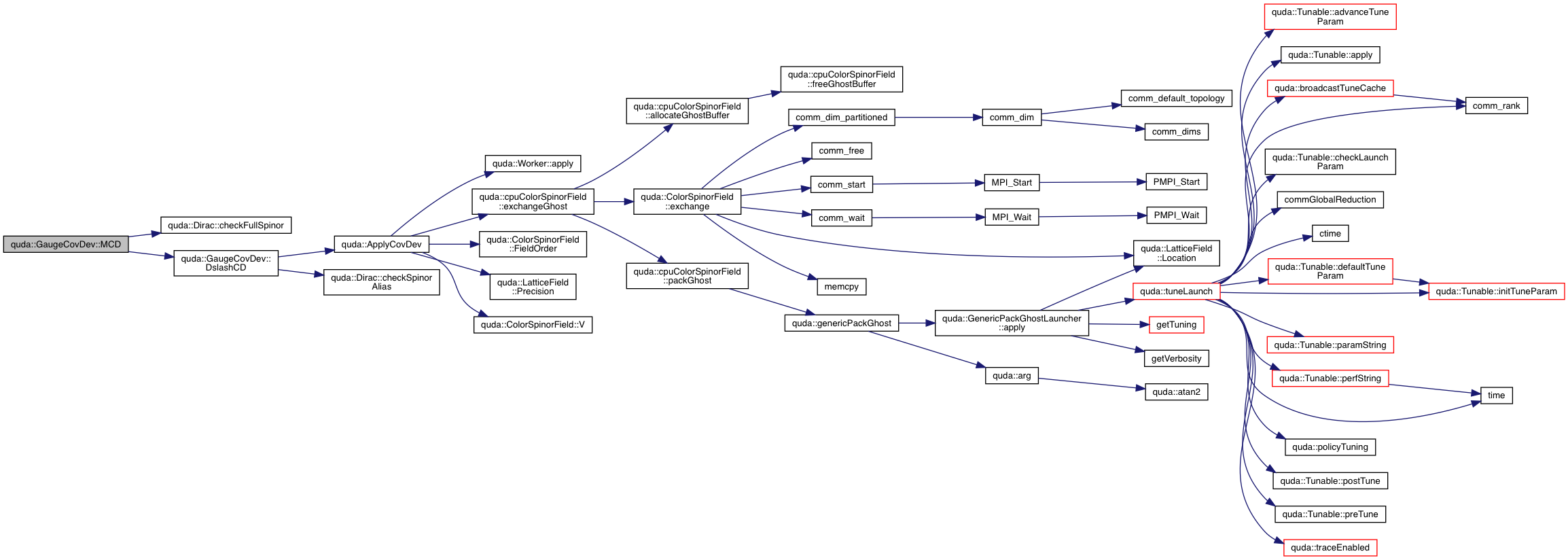

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MdagM()

void quda::GaugeCovDev::MdagM	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Implements quda::Dirac.

Definition at line 66 of file gauge_covdev.cpp.

Referenced by MatDagMatQuda().

Here is the caller graph for this function:

◆ MdagMCD()

void quda::GaugeCovDev::MdagMCD	(	ColorSpinorField &	out,
		const ColorSpinorField &	in,
		const int	mu
	)		const

virtual

Definition at line 36 of file gauge_covdev.cpp.

References quda::Dirac::checkFullSpinor(), quda::Dirac::deleteTmp(), in, MCD(), mu, quda::Dirac::newTmp(), out, and quda::Dirac::tmp1.

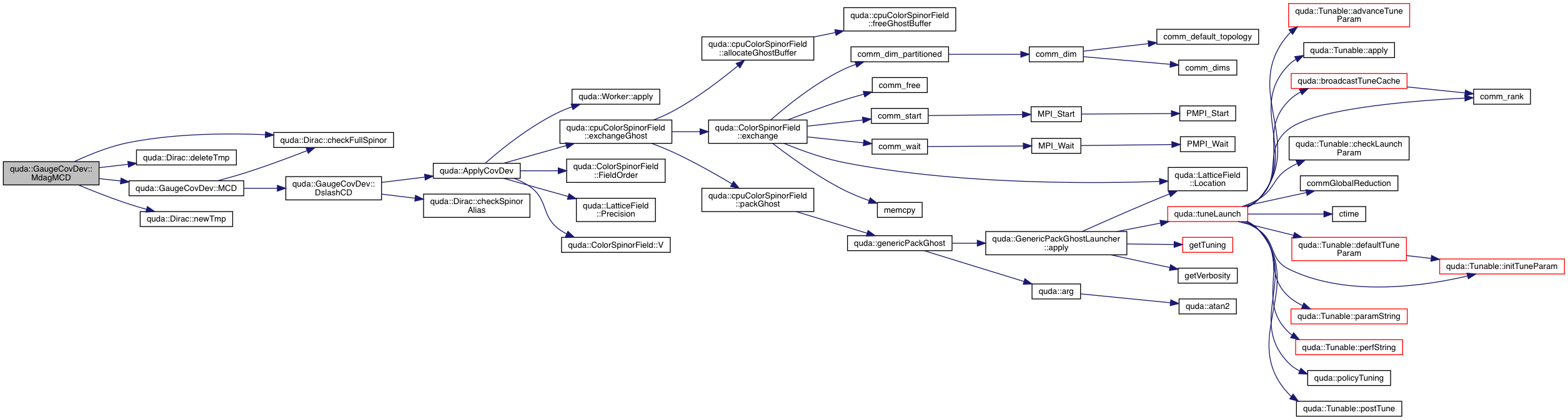

Here is the call graph for this function:

◆ operator=()

GaugeCovDev & quda::GaugeCovDev::operator= ( const GaugeCovDev & covDev )

Definition at line 15 of file gauge_covdev.cpp.

References quda::covDev(), and quda::Dirac::operator=().

Here is the call graph for this function:

◆ prepare()

void quda::GaugeCovDev::prepare	(	ColorSpinorField *&	src,
		ColorSpinorField *&	sol,
		ColorSpinorField &	x,
		ColorSpinorField &	b,
		const QudaSolutionType	solType
	)		const
