Even-odd preconditioned Gauge Laplace operator. More...

#include <dirac_quda.h>

Inheritance diagram for quda::GaugeLaplacePC:

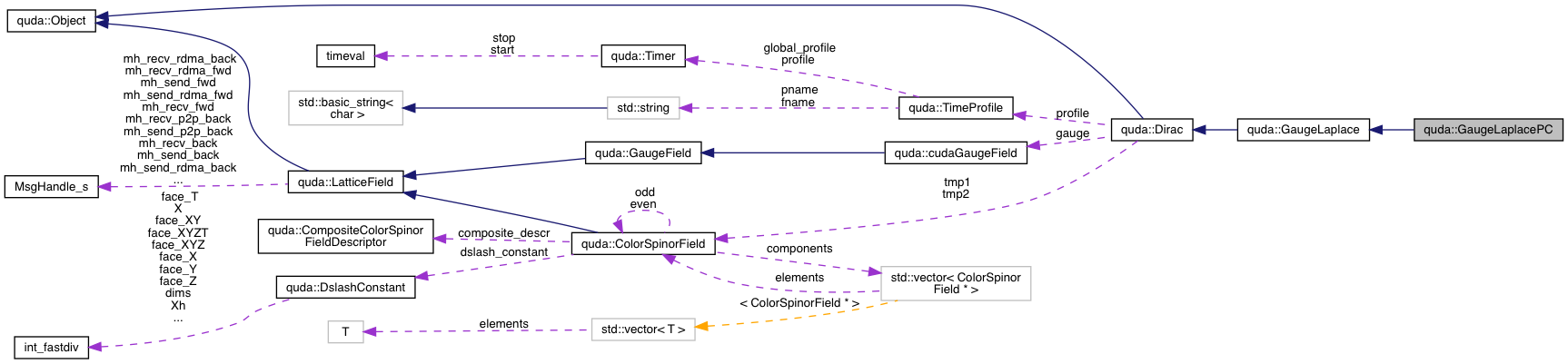

Collaboration diagram for quda::GaugeLaplacePC:

[legend]

Public Member Functions
	GaugeLaplacePC (const DiracParam &param)

	GaugeLaplacePC (const GaugeLaplacePC &laplace)

virtual	~GaugeLaplacePC ()

GaugeLaplacePC &	operator= (const GaugeLaplacePC &laplace)

void	M (ColorSpinorField &out, const ColorSpinorField &in) const

void	MdagM (ColorSpinorField &out, const ColorSpinorField &in) const

void	prepare (ColorSpinorField &src, ColorSpinorField &sol, ColorSpinorField &x, ColorSpinorField &b, const QudaSolutionType) const

void	reconstruct (ColorSpinorField &x, const ColorSpinorField &b, const QudaSolutionType) const

Public Member Functions inherited from quda::GaugeLaplace
	GaugeLaplace (const DiracParam &param)

	GaugeLaplace (const GaugeLaplace &laplace)

virtual	~GaugeLaplace ()

GaugeLaplace &	operator= (const GaugeLaplace &laplace)

virtual void	Dslash (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity) const

virtual void	DslashXpay (ColorSpinorField &out, const ColorSpinorField &in, const QudaParity parity, const ColorSpinorField &x, const double &k) const

Public Member Functions inherited from quda::Dirac
	Dirac (const DiracParam &param)

	Dirac (const Dirac &dirac)

virtual	~Dirac ()

Dirac &	operator= (const Dirac &dirac)

virtual void	checkParitySpinor (const ColorSpinorField &, const ColorSpinorField &) const

virtual void	checkFullSpinor (const ColorSpinorField &, const ColorSpinorField &) const

void	checkSpinorAlias (const ColorSpinorField &, const ColorSpinorField &) const

void	Mdag (ColorSpinorField &out, const ColorSpinorField &in) const

void	MMdag (ColorSpinorField &out, const ColorSpinorField &in) const

void	setMass (double mass)

double	Kappa () const

virtual double	Mu () const

virtual double	MuFactor () const

unsigned long long	Flops () const

QudaMatPCType	getMatPCType () const

int	getStencilSteps () const

void	Dagger (QudaDagType dag) const

virtual void	createCoarseOp (GaugeField &Y, GaugeField &X, GaugeField &Xinv, GaugeField &Yhat, const Transfer &T, double kappa, double mu=0., double mu_factor=0.) const
	Create the coarse operator (virtual parent) More...

Public Member Functions inherited from quda::Object
	Object ()

virtual	~Object ()

Additional Inherited Members
Static Public Member Functions inherited from quda::Dirac
static Dirac *	create (const DiracParam &param)

Static Public Member Functions inherited from quda::Object
static void *	operator new (std::size_t size)

static void	operator delete (void *p)

static void *	operator new[] (std::size_t size)

static void	operator delete[] (void *p)

Protected Member Functions inherited from quda::Dirac
bool	newTmp (ColorSpinorField **, const ColorSpinorField &) const

void	deleteTmp (ColorSpinorField **, const bool &reset) const

Protected Attributes inherited from quda::Dirac
cudaGaugeField *	gauge

double	kappa

double	mass

QudaMatPCType	matpcType

QudaDagType	dagger

unsigned long long	flops

ColorSpinorField *	tmp1

ColorSpinorField *	tmp2

QudaDiracType	type

QudaTune	tune

int	commDim [QUDA_MAX_DIM]

TimeProfile	profile

Detailed Description

Even-odd preconditioned Gauge Laplace operator.

Definition at line 926 of file dirac_quda.h.

Constructor & Destructor Documentation

◆ GaugeLaplacePC() [1/2]

quda::GaugeLaplacePC::GaugeLaplacePC ( const DiracParam & param )

Definition at line 76 of file gauge_laplace.cpp.

◆ GaugeLaplacePC() [2/2]

quda::GaugeLaplacePC::GaugeLaplacePC ( const GaugeLaplacePC & laplace )

Definition at line 78 of file gauge_laplace.cpp.

◆ ~GaugeLaplacePC()

quda::GaugeLaplacePC::~GaugeLaplacePC ( )

virtual

Definition at line 80 of file gauge_laplace.cpp.

Member Function Documentation

◆ M()

void quda::GaugeLaplacePC::M	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Reimplemented from quda::GaugeLaplace.

Definition at line 88 of file gauge_laplace.cpp.

References quda::Dirac::deleteTmp(), quda::GaugeLaplace::Dslash(), quda::GaugeLaplace::DslashXpay(), errorQuda, in, quda::Dirac::kappa, quda::Dirac::matpcType, quda::Dirac::newTmp(), out, QUDA_EVEN_PARITY, QUDA_MATPC_EVEN_EVEN, QUDA_MATPC_ODD_ODD, QUDA_ODD_PARITY, and quda::Dirac::tmp1.

Referenced by MdagM().

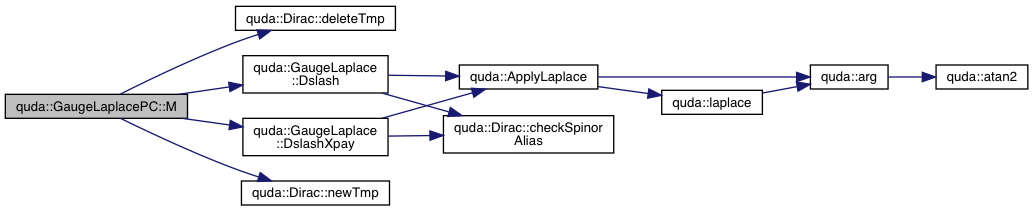

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MdagM()

void quda::GaugeLaplacePC::MdagM	(	ColorSpinorField &	out,
		const ColorSpinorField &	in
	)		const

virtual

Reimplemented from quda::GaugeLaplace.

Definition at line 107 of file gauge_laplace.cpp.

References quda::Dirac::deleteTmp(), in, M(), quda::Dirac::Mdag(), quda::Dirac::newTmp(), out, and quda::Dirac::tmp2.

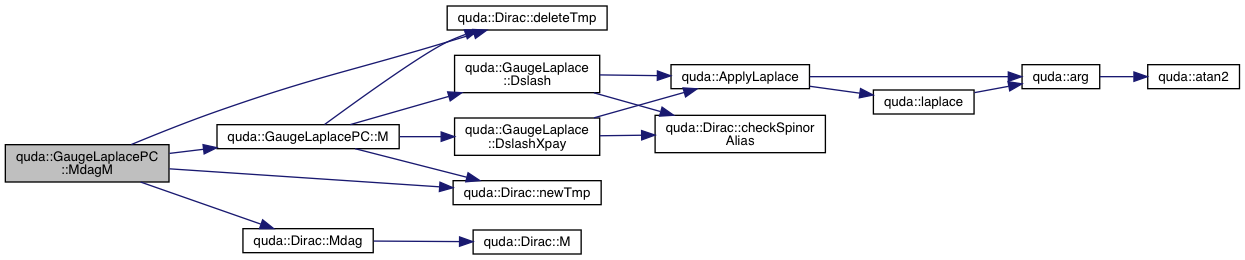

Here is the call graph for this function:

◆ operator=()

GaugeLaplacePC & quda::GaugeLaplacePC::operator= ( const GaugeLaplacePC & laplace )

Definition at line 82 of file gauge_laplace.cpp.

References quda::laplace(), and quda::GaugeLaplace::operator=().

Here is the call graph for this function:

◆ prepare()

void quda::GaugeLaplacePC::prepare	(	ColorSpinorField *&	src,
		ColorSpinorField *&	sol,
		ColorSpinorField &	x,
		ColorSpinorField &	b,
		const QudaSolutionType	solType
	)		const
